17-4 Ph Stainless Steel Fasteners Highlights
| Size in Ready Stock: | M4 to M100 |
|---|---|
| Custom Sizes Available in: | Up to M100 |
| Length: | 3mm to 200mm |
| International Standard: | ASME B18 2.1, ISO 4032, ISO 4033, DIN 931, DIN 933 |
| European and American Standard: | ASTM A193, ASME SA193, UNS S17400, WNR 1.4545 |
| Raw Material Origin: | Janpanese, UK, Korean, Indian, European, German |
| Connotation: | Austenitic Family |
| Advantages: | Exceptional strength |
| Tensile Strength: | 1000 MPa (145 Ksi) |
| Use: | Require High Strength Toughness |
| Test: | Non-Destructive Testing |
| Temperature Range: | Up to 572° F (300° C) |
| Corrosion Resistance: | High Levels |
| Suited For: | High Strength Applicaitons |
| Mechanical Strength: | Up to 600°F |
| Heat Capacity: | 0-100C (J/kg.K) |
| MTC: | EN 10204/3.1B |
| Suitable Environment: | Salt Water and Mild Acids |
| Characteristics: | High Strength to Weight Ratio |
| Hardness: | 92 Rockwell B (Max) |
| Thread Pitch: | Fine Thread and Coarse Thread |
| Finish: | Phosphating, HDG, Oxidation |
| Threads: | UNF, UNJ, UNC, Rolled, UNR |
| Temperature Range: | Up to 870°C |
| Delivery Time |
|
| RFQ: | support@pipingmaterial.ae |
UNS S17400 hex bolts and nut suppliers in UAE
17-4 PH Stainless Steel Fasteners Specifications
Size Range: M2 to M120 or Custom Sizes
Manufacturing Method: CNC Machined, Cold Forging, Hot Forging
Threads Types : BSW, UN, UNF, CBSF
Testing : Flattening Test, PMI Test, Micro and Macro Test
Type of Head: Flat, Hex, Pan, Oval, Heavy Hex, Truss
Machines: Thread Rolling, CNC Lath, Making Machines
Application: Food Processing, Automotive and Aerospace
Applicable Fluids: Steam, Oil, Water, Air and Gas
Threads Pitch : Fine and Coarse
Washer Available Forms : Type A, C, G, D, B, E
Type of Neck : Knurled, Square, Triangular, Hex
Finish: Nickel Plated and Oxidation
Get Quote Directly from 17-4 PH Stainless Steel Fasteners Suppliers in UAE

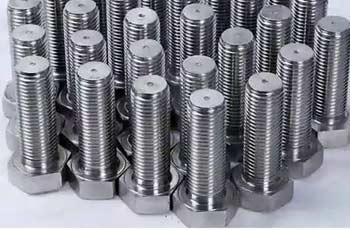

100% Tested UNS S17400 Hex Bolt with MTC EN 10204 3.1/3.2
- Quality control : 100% Inspection
- Advantage : Competitive
- Size : M4-M64
- Application : Industry, Machine
- Length : 50mm-3000mm
- Strength : 4.8/ 8.8/ 10.9/12.9
- Head Type : Double Head
- Tolerance : 0.01mm to 0.1mm
- Surface Treatment : Zinc Plated
- Function : Used in Various Fields
- Advantage : Produce Strictly
- Tolerance : +/-0.002mm

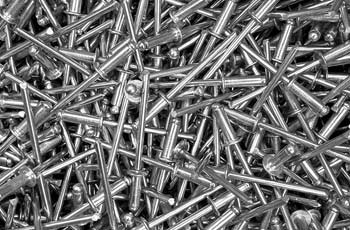

- Rivet Diameter : M2-M10
- Grip Range : 50 – 2000
- Outer Diameter : 30 mm
- Usage : Industrial Machine
Buy 17-4 PH SS nut for heavy engineering industries in the Middle East, UNS S17400 bolt available in BSF, BSW, UNF, UNC threads
Get 17-4 PH Stainless Steel Fasteners Suppliers and Stockist in Abu Dhabi or Umm Al Quwain, Provides Outstanding Sizes for Nuts.
| Nut Size (Millimeter) |
Diameter* (Millimeter) |
Height in (Millimeter) |
||
|---|---|---|---|---|
| Nylock Nut | Jam Nut | Hex Nut | ||
| 20 | 30 | 20 | 10 | 16 |
| 18 | 27 | 18.5 | 9 | 15 |
| 16 | 24 | 16 | 8 | 13 |
| 14 | 22 | 14 | 7 | 11 |
| 12 | 19 | 12 | 6 | 10 |
| 10 | 17 | 10 | 5 | 8 |
| 8 | 13 | 8 | 4 | 6.5 |
| 7 | 11 | – | 3.5 | 5.5 |
| 6 | 10 | 6 | 3.2 | 5 |
| 5 | 8 | 5 | 2.7 | 4 |
| 4 | 7 | 5 | 2.2 | 3.2 |
| 3 | 5.5 | 4 | 1.8 | 2.4 |
| 2.5 | 5 | – | 1.6 | 2 |
| 2 | 4 | – | 1.2 | 1.6 |

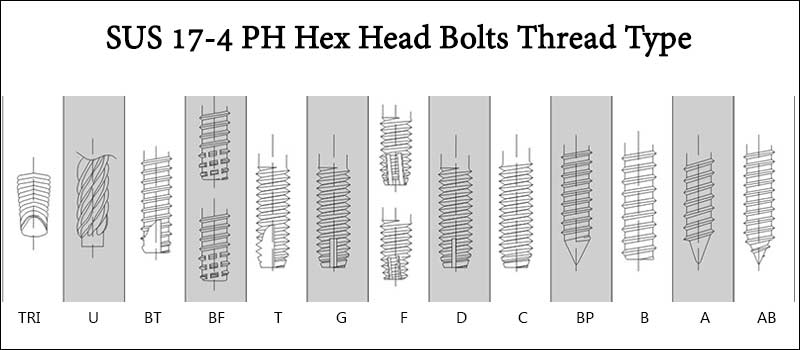

SUS 17-4 PH Hex Head Bolts Thread Type
Our Diverse Client Base in the Following Nations
| MENA | Libya, Algeria, Israel, Egypt, Morocco, Tunisia, Palestine |
|---|---|
| Africa | South Africa, Nigeria, Egypt, Algeria, Morocco, Kenya, Tunisia, |
| Middle East countries | UAE, Kuwait, Iraq, Lebanon, Qatar, Saudi, Bahrain, Jordan, Iran, Syria, Yemen |
Types of 17-4 PH Stainless Steel Fasteners
View 17-4 PH Stainless Steel Fasteners Suppliers in UAE, Offers Many Types of Fasteners That Are Frequently Used.
SUS 17-4 PH Hex Head Bolts
17-4 PH Stainless Steel Eye Bolts
17-4 PH SS U Bolts
SS 17-4 PH Hex Nuts
UNS S17400 Heavy Hex Nuts
DIN 1.4542 Square Nuts
17-4 PH Stainless Steel Stud Bolt

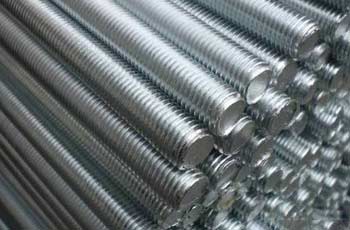

17-4 Stainless Steel Threaded Rod

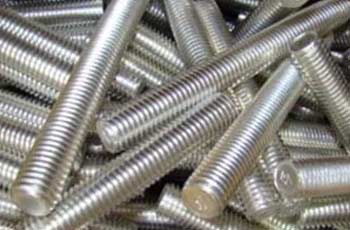

SUS 17-4 PH Studs
DIN 1.4542 Square Washer

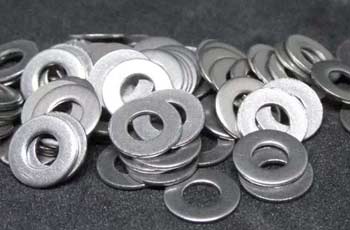

17-4 PH Stainless Steel Flat Washer
SUS 17-4 PH Lock Washer
Compare 17-4 PH stainless steel threaded rod tensile strength, find DIN 1.4542 studs material properties, torque chart & specifications
Find 17-4 PH Stainless Steel Fasteners Distributer in Ras Al Khaimah or Fujairah, Provides a Great Torque Chart for Bolt.
| Daimeter of Bolt (Millimeter) |
Torque (in-lbs.) | Torque in (N-m) | ||
|---|---|---|---|---|
| Dry | Lubricated | Dry | Lubricated | |
| 22 | 358 | 322 | 485 | 437 |
| 24 | 445 | 400 | 603 | 543 |
| 20 | 273 | 246 | 370 | 333 |
| 16 | 133 | 119 | 180 | 162 |
| 18 | 190 | 171 | 258 | 232 |
| 14 | 87 | 78 | 118 | 106 |
| 12 | 54 | 48 | 73 | 66 |
| 10 | 372 | 335 | 42 | 38 |
| 8 | 188 | 169 | 21.2 | 19.1 |
| 6 | 77.0 | 69.3 | 8.7 | 7.8 |
| 5 | 45.1 | 40.6 | 5.1 | 4.6 |
| 4 | 23.0 | 20.7 | 2.6 | 2.3 |
| 3 | 8.9 | 8.0 | 1.0 | 0.9 |
17-4 Stainless Steel Nuts Tensile Strength
| Grade | Tensile Strength | |
|---|---|---|
| MPa | Ksi | |
| 17-4 PH Bolts | 1000 MPa | 145 Ksi |
SS 17-4 PH Fasteners Chemical Composition
| Grade | S | C | Cu | Mn | Nb | Si | P | Ta | Ni | Cr | |
| 17-4 PH | Min. | – | – | 3 | – | – | – | – | – | 3 | 15.0 |
| Max. | 0.030 | 0.070 | 5 | 1.0 | – 0.45 | 1 | 0.040 | 0.45 | 5 | 17.5 | |
UNS S17400 Hex Bolts and Nut Mechanical Properties
| Grade | Shear modulus | Poisson’s Ratio | Thermal expansion co-efficient | Brinell (HB) | Rockwell C (HR C) |
|---|---|---|---|---|---|
| (GPa) min | (@ 21-93°C/69.8-199°F) | max | max | ||
| 17-4 PH Bolts | 77.4 GPa | 0.27-0.30 | 10.8 µm/m°C | 352 | 363 |
17-4 PH Stainless Steel Fasteners Equivalent Grades
| AISI Grade Equivalent | UNS Designation | ASTM | EN/DIN Numerical Equivalent | JIS Equivalent | EN/DIN Symbolical Equivalent | Stainless Steel Notation |
|---|---|---|---|---|---|---|
| 17-4 Ph Fasteners | UNS S17400 | A479 | EN 1.4542 | SUS 17-4 PH | X5CrNiMo1713 | SS 17-4 PH |
Physical Properties of 17-4 PH Stainless Steel Threaded Rod
| Propertise | Units | Value |
|---|---|---|
| Melting Range | ℉ | 2560-2625 |
| Density | lb/in³ | 0.282 |
| Electrical Resistivity | Ohm-circ mil/ft | 463 |
| Poisson’s Ratio | 0.272 |
17 4 Ph Stainless Steel Fasteners Properties
Material Inspection Facility in Following Locations
| Umm Al Quwain | Sharjah | Doha | Fujairah |
|---|---|---|---|
| Dubai | Muscat | Ras Al Khaimah | Riyadh |
| Abu Dhabi | Saudi Arabia | Ajman | Al Jubail |
View SUS 17-4 PH hex head bolts and DIN 1.4542 washers diameter tolerance, hsn code and dimensions
17-4 PH Shoulder Bolts Weight Chart
View 17-4 PH Stainless Steel Fasteners Suppliers in UAE, Provides a Accurate Weight Chart.
| Length in (Millimeter) | Daimeter of 17-4 PH Stainless Steel Fasteners | |||||||||
| M 22 | M 20 | M 18 | M 16 | M 14 | M 12 | M 10 | M 8 | M 6 | M 5 | |
| 400 | 113.0636 | 69.0444 | 39.0063 | |||||||
| 380 | 108.0696 | 66.0667 | 37.0037 | |||||||
| 360 | 104.0167 | 63.0291 | 35.0211 | |||||||
| 340 | 98.0039 | 60.0241 | 33.0557 | |||||||
| 320 | 92.0593 | 56.0818 | 31.0646 | |||||||
| 300 | 104.0167 | 87.0719 | 53.0763 | 29.0940 | 20.0325 | |||||
| 280 | 98.0039 | 81.0967 | 50.0505 | 28.0090 | 19.0157 | |||||
| 260 | 90.0909 | 76.0923 | 47.0170 | 26.0316 | 17.0921 | |||||
| 240 | 84.0746 | 71.0429 | 43.0860 | 24.0510 | 16.0722 | |||||
| 220 | 79.0365 | 65.0789 | 40.0650 | 22.0624 | 15.0528 | |||||
| 200 | 73.0529 | 60.0976 | 49.0020 | 37.0594 | 29.0586 | 20.0833 | 14.0327 | |||
| 180 | 67.0568 | 55.0556 | 34.0247 | 26.0882 | 19.0011 | 13.0123 | ||||
| 160 | 61.0728 | 50.0505 | 40.0984 | 31.0056 | 24.0272 | 17.0241 | 11.0905 | |||
| 140 | 55.0556 | 46.0296 | 35.0461 | 27.0933 | 20.0833 | 15.0432 | 10.0707 | |||
| 120 | 50.0000 | 40.0984 | 32.0895 | 24.0631 | 18.0797 | 13.0624 | 9.0506 | |||
| 100 | 46.0296 | 35.0714 | 27.0778 | 21.0459 | 16.0340 | 11.0820 | 8.0251 | 4.0873 | ||
| 80 | 40.0000 | 30.0303 | 24.0510 | 18.0248 | 13.0889 | 10.0000 | 7.0013 | 4.0072 | 2.0111 | |
| 60 | 32.0051 | 25.0126 | 20.0000 | 15.0244 | 12.0255 | 8.0183 | 5.0774 | 3.0270 | 1.0670 | |
| 20 | 4.0892 | 3.0411 | 1.0711 | 0.0812 | 0.0598 | |||||

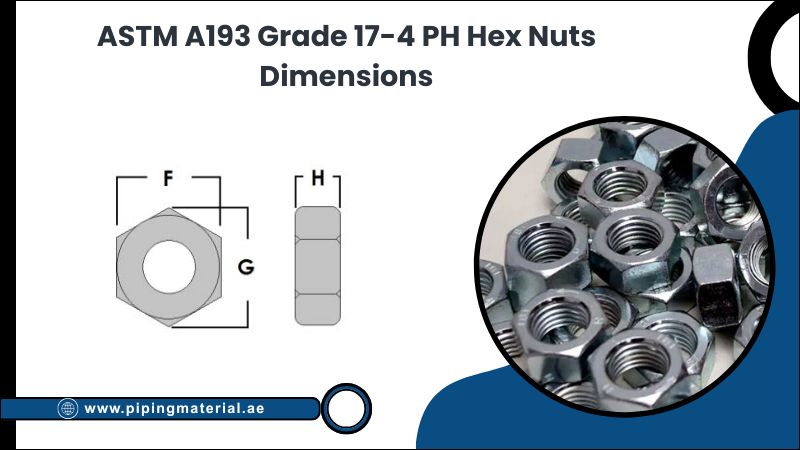

ASTM A193 Grade 17-4 PH Hex Nuts Dimensions
Check 17-4 PH Stainless Steel Fasteners Suppliers and Stockist in Ajman, Sharjah or Dubai, Gives Excellent Sizes.
| Diameter of Basic Major Thread | H | G | F | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Thickness | Width Across Corners | Width Across Flats | |||||||
| Basic | Min | Max | Min | Max | Basic | Min | Max | ||
| 2-3/4 | 2.7500 | 2-3/8 | 2.319 | 2.431 | 4.546 | 4.763 | 4-1/8 | 3.988 | 4.125 |
| 2-1/2 | 2.5000 | 2-5/32 | 2.105 | 2.209 | 4.133 | 4.330 | 3-3/4 | 3.625 | 3.750 |
| 2 | 2.0000 | 1-23/32 | 1.675 | 1.763 | 3.306 | 3.464 | 3 | 2.900 | 3.000 |
| 1-5/8 | 1.6250 | 1-25/64 | 1.353 | 1.429 | 2.686 | 2.815 | 2-7/16 | 2.356 | 2.438 |
| 1-3/8 | 1.3750 | 1-11/64 | 1.138 | 1.206 | 2.273 | 2.382 | 2-1/16 | 1.994 | 2.062 |
| 1-3/4 | 1.7500 | 1-1/2 | 1.460 | 1.540 | 2.893 | 3.031 | 2-5/8 | 2.538 | 2.625 |
| 1-1/8 | 1.1250 | 31/32 | .939 | .999 | 1.859 | 1.949 | 1-11/16 | 1.631 | 1.688 |
| 1-1/2 | 1.500 | 1-9/32 | 1.245 | 1.ASTM A194 GR. 8 | 2.480 | 2.598 | 2-1/4 | 2.175 | 2.250 |
| 1 | 1.0000 | 55/64 | .831 | .887 | 1.653 | 1.732 | 1-1/2 | 1.450 | 1.500 |
| 9/16 | .5625 | 31/64 | .473 | .496 | .982 | 1.010 | 7/8 | .861 | .875 |
| 7/16 | .4375 | 3/8 | .365 | .385 | .768 | .794 | 11/16 | .675 | .688 |
| 7/8 | .8750 | 3/4 | .724 | .776 | 1.447 | 1.516 | 1-5/16 | 1.269 | 1.312 |
| 5/16 | .3125 | 17/64 | .258 | .273 | .557 | .577 | 1/2 | .489 | .500 |
| 5/8 | .6250 | 35/64 | .535 | .559 | 1.051 | 1.083 | 15/16 | .922 | .938 |
| 3/8 | .3750 | 21/64 | .479 | .337 | .628 | .650 | 9/16 | .551 | .562 |
| 3/4 | .7500 | 41/64 | .617 | .665 | 1.240 | 1.299 | 1-1/8 | 1.088 | 1.125 |
| 1/4 | .2500 | 7/32 | .212 | .226 | .488 | .505 | 7/16 | .428 | .438 |
| 1/2 | .5000 | 7/16 | .427 | .448 | .840 | .866 | 3/4 | .736 | .750 |
Call Now for a Free Sample, Which Can Be Arranged From the Cities Specified Below
| Region | City | Country |
|---|---|---|
| Middle East | Dubai | United Arab Emirates |
| Africa | Cape Town | South Africa |
| Middle East | Abu Dhabi | United Arab Emirates |
| Africa | Johannesburg | South Africa |
| Middle East | Riyadh | Saudi Arabia |
| Africa | Lagos | Nigeria |
| Middle East | Dammam | Saudi Arabia |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| Middle East | Jeddah | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Doha | Qatar |
| MENA | Cairo | Egypt |
17-4 PH Stainless Steel Fasteners HSN Code
| Grade | HSN Code |
|---|---|
| SS 17-4 PH Fasteners | 73181500 |
Check the online price of UNS S17400 stud bolts and SS 17-4 PH fasteners as per ASTM A479 in Dubai
Applications of 17-4 PH Stainless Steel Threaded Rod
Get 17-4 PH Stainless Steel Fasteners Suppliers in UAE, Offers a Various Industrial Applications.
Fatigue Strength for 17-4 PH Stainless Steel Bolts
| Propertise | Room Temperature | 316 °C (600 °F) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H 1150 | H 1025 | H 925 | H 900 | H 1025 | H 900 | |||||||
| Fatigue Strength | MPa | ksi | MPa | ksi | MPa | ksi | MPa | ksi | MPa | ksi | MPa | ksi |
| 100 million cycles | 621 | 90 | 538 | 78 | 510 | 74 | 503 | 73 | 448 | 65 | 427 | 62 |
| 10 million cycles | 621 | 90 | 572 | 83 | 607 | 88 | 621 | 90 | 517 | 75 | 531 | 77 |
DIN 1.4542 Washers Melting Range
| Grades | Melting Range | |
|---|---|---|
| °F | °C | |
| 17-4 PH Fasteners | 2560-2625°F | 1404-1440°C |

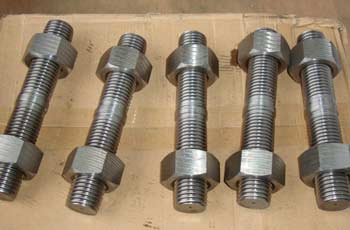

UNS S17400 Stud Bolts Heat Treatments
| Condition | Hardening Temp ± 9 °C (± 15 °F) | Hardening Time (hours) | Type of Cooling | |
|---|---|---|---|---|
| °C | °F | |||
| H1150-M | 760 °C | 1400 °F | 2 Followed by 4 | Air |
| 621 °C | 1150 °F | |||
| H1150-D | 621 °C | 1150 °F | 4 Followed by 4 | |
| 621 °C | 1150 °F | |||
| H1150 | 621 °C | 1150 °F | 4 | |
| H1100 | 593 °C | 1100 °F | 4 | |
| H1075 | 579 °C | 1075 °F | 4 | |
| H1025 | 552 °C | 1025 °F | 4 | |
| H925 | 496 °C | 925 °F | 4 | |
| H900 | 482 °C | 900 °F | 1 | |
17-4 Stainless Steel Bolts Modulus of Elasticity
| Condition | Torsion Gpa (Mpsi) | Tension Gpa (Mpsi) |
|---|---|---|
| H1150 | 69 (10) | 201 (29) |
| H1075 | 69 (10) | – |
| H1025 | 76 (11) | 201 (29) |
| H900 | 77 (11) | 200 (29) |
Must Visit for Lowest Price
Our Dealers and Distributors Are Present in the Locations Mentioned Below
| Country | Cities |
|---|---|
| Belgium | Westerlo |
| Netherlands | Rotterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Seraing |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Amsterdam |
| Belgium | Leuven |
Find only Genuine Stockist and Distributors of 17-4 PH Stainless Steel Fasteners in Dubai
- Century Fasteners LLC :- Al Qusais, Dubai
- Golden Metal Trading LLC :- Deira, Dubai
- Shabbari Trading LLC :- Sharjah, Dubai
- Saizo General Trading L.L.C :- Ras Al Khor, Dubai
Table of Content
