Core Characteristics for 18-8 Socket Head Cap Screw
| Size in Ready Stock: | M4 to M100 |
|---|---|
| Custom Sizes Available in: | Up to M100 |
| Length: | 3mm to 200mm |
| International Standard: | ASME B18 2.1, DIN 912, ISO 7462 |
| American Standard: | ASTM A193, ASME SA193 |
| Raw Material Origin: | European, German, Korean, UK, Janpanese, Indian |
| MTC: | EN 10204/3.1B |
| Thread Pitch: | Fine Thread and Coarse Thread |
| Finish: | HDG, Oxidation, Phosphating |
| Threads: | UNC, UNF, Rolled, UNR, UNJ |
| Technique: | Hot forging / Cold forging |
| Tensile Strength: | 72,500 psi |
| Delivery Time |
|
| RFQ: | support@pipingmaterial.ae |
18-8 stainless steel hexagon socket allen head cap screw & 18-8 SS button head cap screw suppliers in UAE
18-8 Socket Head Cap Screw Specification
Size Range: M4 To M100 or Custom Sizes
Manufacturing Method: Hot Forging, CNC Machined, Cold Forging
Testing : Proof Load Test, Stress Rupture Test, Microstructure Test
Threads Types : BSW, UN, UNF, CBSF
Machines: Making Machines, CNC Lath, Thread Rolling
Type of Head: Hex, Button, Pan, Oval, Flat, Truss
Applicable Fluids: Water, Oil, Steam, Air and Gas
Application: Mechanical Applications, Woodworking, Automotive, Oil and Gas
Finish: Electroplated, Mirror and Polished
Benefits : High Strength & Finishes
Get Quote Directly from 18-8 Socket Head Cap Screw Suppliers in UAE
100% Tested 18-8 SS Button Head Cap Screw with MTC EN 10204 3.1/3.2
Buy directly from the SS 18-8 socket flat head screw manufacturer online and save cost. Check stainless steel
18-8 flange socket head cap screws weight chart
Stainless Steel 18-8 Flange Socket Head Cap Screws Weight Chart
| Weight in (kilograms) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | M48 | M36 | M30 | M24 | M22 | M20 | M18 | M16 | M14 | M12 | M10 | M8 | M6 | M5 | M4 | M3 | M2.5 | M2 |
| Length | ||||||||||||||||||
| 100 | 2460 | 1230 | 800 | 471 | 396 | 291 | 243 | 186 | 132 | 98.0 | 71.2 | |||||||
| 90 | 2320 | 1150 | 745 | 435 | 366 | 266 | 223 | 170 | 120 | 89.1 | 64.9 | |||||||
| 80 | 2180 | 1070 | 690 | 399 | 336 | 241 | 203 | 154 | 108 | 80.2 | 58.5 | 37.0 | ||||||
| 70 | 2040 | 990 | 635 | 363 | 306 | 216 | 183 | 138 | 96 | 71.3 | 52.1 | 33.0 | ||||||
| 65 | 950 | 608 | 345 | 291 | 205 | 174 | 130 | 90 | 67.8 | 48.9 | 31.0 | |||||||
| 60 | 910 | 581 | 330 | 276 | 194 | 165 | 122 | 84 | 63.4 | 45.7 | 28.9 | 15.4 | ||||||
| 55 | 870 | 554 | 316 | 263 | 183 | 156 | 114 | 78 | 58.9 | 42.5 | 26.9 | 14.3 | ||||||
| 50 | 527 | 300 | 250 | 172 | 147 | 106 | 73 | 54.5 | 39.3 | 24.9 | 13.2 | 8.6 | ||||||
| 45 | 500 | 285 | 237 | 161 | 138 | 97.6 | 68 | 50.1 | 36.1 | 22.9 | 12.1 | 7.9 | ||||||
| 40 | 270 | 224 | 150 | 129 | 91 | 63 | 46.5 | 32.9 | 20.9 | 11.0 | 7.1 | 4.7 | ||||||
| 35 | 211 | 139 | 120 | 84.4 | 58 | 42.9 | 30.4 | 18.9 | 9.9 | 6.3 | 4.2 | |||||||
| 30 | 128 | 111 | 77.8 | 53 | 39.3 | 27.9 | 16.9 | 8.3 | 5.6 | 3.7 | 1.9 | |||||||
| 25 | 71.3 | 48 | 35.7 | 25.4 | 15.0 | 7.6 | 4.8 | 3.2 | 1.6 | 0.975 | ||||||||
| 20 | 32.1 | 22.9 | 13.4 | 6.5 | 4.0 | 2.7 | 1.4 | 0.825 | 0.495 | |||||||||
| 16 | 20.9 | 12.1 | 5.8 | 3.5 | 2.3 | 1.2 | 0.705 | 0.415 | ||||||||||
| 12 | 10.9 | 5.1 | 3.0 | 2.0 | 1.0 | 0.585 | 0.355 | |||||||||||
| 10 | 4.7 | 2.7 | 1.8 | 0.9 | 0.525 | 0.295 | ||||||||||||
| 8 | 2.5 | 1.7 | 0.8 | 0.465 | 0.255 | |||||||||||||
| 6 | 1.5 | 0.7 | 0.405 | 0.215 | ||||||||||||||
| 5 | 0.7 | 0.375 | 0.195 | |||||||||||||||
| 4 | 0.345 | 0.175 | ||||||||||||||||
| 3 | 0.155 | |||||||||||||||||
Sales Representatives Are Available to Provide Prompt Quotes
| Region | City | Country |
|---|---|---|
| Middle East | Dubai | United Arab Emirates |
| MENA | Casablanca | Morocco |
| Middle East | Dammam | Saudi Arabia |
| MENA | Cairo | Egypt |
| Middle East | Doha | Qatar |
| Africa | Cape Town | South Africa |
| Middle East | Riyadh | Saudi Arabia |
| Africa | Johannesburg | South Africa |
| Middle East | Jeddah | Saudi Arabia |
| Africa | Lagos | Nigeria |
Check 18-8 hex socket head screws and 18-8 SS shcs screw with customized sizes, view its torque chart
18-8 Socket Head Cap Screw Dimension Chart
| Size (d1) | Thread Pitch | Head Diameter (d2) | Head Height (k) | Key Size (s) | Key Engagement (t) | |||
|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Nominal | ||
| M100 | 6.00 | 150.63 | 149.37 | 100 | 99.13 | 85.470 | 85.120 | 60 |
| M90 | 6.00 | 135.63 | 134.37 | 90.00 | 89.13 | 75.400 | 75.100 | 54 |
| M80 | 6.00 | 120.54 | 119.46 | 80.00 | 79.26 | 65.400 | 65.100 | 48 |
| M72 | 6.00 | 108.54 | 107.46 | 72.00 | 71.26 | 55.400 | 55.100 | 43 |
| M64 | 6.00 | 96.54 | 95.46 | 64.00 | 63.26 | 46.330 | 46.080 | 38 |
| M56 | 5.50 | 84.54 | 93.46 | 56.00 | 55.26 | 41.330 | 41.080 | 34 |
| M48 | 5.00 | 72.46 | 71.54 | 48.00 | 47.38 | 36.330 | 36.080 | 28 |
| M45 | 4.50 | 67.46 | 66.54 | 45.00 | 44.38 | 32.330 | 32.080 | 24 |
| M42 | 4.50 | 63.46 | 62.54 | 42.00 | 41.38 | 32.330 | 32.080 | 24 |
| M39 | 4.00 | 58.46 | 57.54 | 39.00 | 38.38 | 27.275 | 27.065 | 22 |
| M36 | 4.00 | 54.56 | 53.54 | 36.00 | 35.38 | 27.275 | 27.065 | 19 |
| M33 | 3.50 | 50.39 | 49.61 | 33.00 | 32.38 | 24.275 | 24.065 | 18 |
| M30 | 3.50 | 45.39 | 44.61 | 30.00 | 29.48 | 22.275 | 22.065 | 15.5 |
| M27 | 3.00 | 40.39 | 39.61 | 27.00 | 26.48 | 19.275 | 19.065 | 13.5 |
| M24 | 3.00 | 36.39 | 35.61 | 24.00 | 23.48 | 19.275 | 19.050 | 12 |
| M22 | 2.50 | 33.39 | 32.61 | 22.00 | 21.48 | 17.230 | 17.050 | 11 |
| M20 | 2.50 | 30.33 | 29.67 | 20.00 | 19.48 | 17.230 | 17.050 | 10 |
| M18 | 2.50 | 27.33 | 26.67 | 18.00 | 17.57 | 14.212 | 14.032 | 9 |
| M16 | 2.00 | 24.33 | 23.67 | 16.00 | 15.57 | 14.212 | 14.032 | 8 |
| M14 | 2.00 | 21.33 | 20.67 | 14.00 | 13.57 | 12.212 | 12.032 | 7 |
| M12 | 1.75 | 18.27 | 17.73 | 12.00 | 11.57 | 10.175 | 10.025 | 6 |
| M10 | 1.50 | 16.27 | 15.73 | 10.00 | 9.64 | 8.175 | 8.025 | 5 |
| M8 | 1.25 | 13.27 | 12.73 | 8.00 | 7.64 | 6.140 | 6.020 | 4 |
| M6 | 1.00 | 10.22 | 9.78 | 6.00 | 5.70 | 5.140 | 5.020 | 3 |
| M5 | 0.80 | 8.72 | 8.28 | 5.00 | 4.82 | 4.095 | 4.020 | 2.5 |
| M4 | 0.70 | 7.22 | 6.78 | 4.00 | 3.82 | 3.080 | 3.020 | 2 |
| M3 | 0.50 | 5.68 | 5.32 | 3.00 | 2.86 | 2.580 | 2.520 | 1.3 |
| M2.5 | 0.45 | 4.68 | 4.32 | 2.50 | 2.36 | 2.060 | 2.020 | 1.1 |
| M2 | 0.40 | 3.98 | 3.62 | 2.00 | 1.86 | 1.560 | 1.520 | 1 |
| M1.6 | 0.35 | 3.14 | 2.86 | 1.60 | 1.46 | 1.560 | 1.520 | 0.7 |
| M1.4 | 0.30 | 2.74 | 2.46 | 1.40 | 1.26 | 1.360 | 1.320 | 0.6 |
Stainless Steel 18-8 Flange Socket Head Cap Screws Torque Chart
Find 18-8 Socket Head Cap Screw Suppliers in UAE, Provides a Great Torque Chart for Screws
| Nominal Dia | Unified Coarse Thread Series | |||||
|---|---|---|---|---|---|---|
| Threads per Inch | Clamp Load | Tensile Stress Area | Tightening Torque | |||
| K = 0.20 | K=0.16 | K = 0.15 | ||||
| (Inches) | (lbs) | (sq. in.) | (ft-lbs) | (ft-lbs) | (ft-lbs) | |
| 2 | 4.5 | 252945 | 2.4982 | 8432 | 6745 | 6324 |
| 1 3/8 | 6 | 116932 | 1.1549 | 2680 | 2144 | 2010 |
| 1 3/4 | 5 | 192320 | 1.8995 | 5609 | 4487 | 4207 |
| 1 1/8 | 7 | 77282 | 0.7633 | 1449 | 1159 | 1087 |
| 1 1/4 | 7 | 98123 | 0.9691 | 2044 | 1635 | 1533 |
| 1 1/2 | 6 | 142282 | 1.4053 | 3557 | 2846 | 2668 |
| 1 | 8 | 61332 | 0.6057 | 1022 | 818 | 767 |
| 7/16 | 14 | 11162 | 0.1063 | 81 | 65 | 61 |
| 7/8 | 9 | 46751 | 0.4617 | 682 | 545 | 511 |
| 5/16 | 18 | 5505 | 0.0524 | 29 | 23 | 22 |
| 5/8 | 11 | 22883 | 0.2260 | 238 | 191 | 179 |
| 3/8 | 16 | 8136 | 0.0775 | 51 | 41 | 38 |
| 3/4 | 10 | 33864 | 0.3345 | 423 | 339 | 317 |
| 1/4 | 20 | 3341 | 0.0318 | 14 | 11 | 10 |
| 1/2 | 13 | 14899 | 0.1419 | 124 | 99 | 93 |
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Netherlands | Eindhoven |
| Belgium | Seraing |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Ghent |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Rotterdam |
| Belgium | Westerlo |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Belgium | Leuven |
SS 18-8 socket countersunk head cap screw importers in Dubai, also see stainless steel 18-8 button head hex
drive screw applications

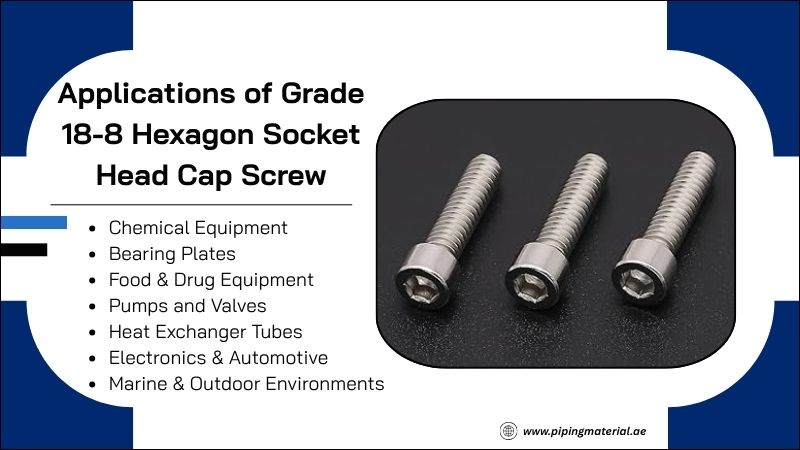

Applications of Grade 18-8 Hexagon Socket Head Cap Screw
Explore Nearby Locations for the Quickest Delivery Options
| Africa | Tunisia, South Africa, Morocco, Kenya, Nigeria, Egypt, Algeria |
|---|---|
| Middle East countries | Iran, Syria, Yemen, Kuwait, Lebanon, Qatar, Iraq, Jordan,Saudi, Bahrain, UAE |
| MENA | Israel, Tunisia, Algeria, Egypt, Libya, Morocco, Palestine |
Check updated and latest price of grade 18-8 torx head cap screw in United Arab Emirates, view stainless steel
grades 18/8 sealing socket head screws temperature range
Types of 18-8 Socket Head Cap Screw
Check 18-8 Socket Head Cap Screw Suppliers and Stockist in Abu Dhabi or Sharjah, Offers a Large Range of Commonly Used Screws Types
18-8 SS Socket Head Shoulder Screw
Stainless Steel Grades 18/8 Sealing Socket Head Screws
Grade 18-8 Tapered Socket Head Cap Screw
AISI 18-8 Hex Socket Button Head Cap Screw
18-8 Stainless Steel Hexagon Socket Allen Head Cap Screw
Stainless Steel 18-8 Flanged Socket Head Cap Screw
18-8 Socket Button Head Cap Screws Chemical Composition
View 18-8 Socket Head Cap Screw Distributer in Fujairah, Ras Al Khaimah or Umm Al Quwain, Offer Outstanding Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| 18-8 Hex Socket Head Screws | 0.08 | 1.0 | 2.0 | 0.05 | 0.03 | 15,0-20,0 | 0.0 | 8,0-19,0 | 4.0 |
18-8 Socket Button Head Cap Screw Mechanical Properties
View 18-8 Socket Head Cap Screw Suppliers and Stockist in Dubai or Ajman, Provides Great Mechanical Properties
| Grade | Class | Tensile Stress Rm MPa (N/mm2) minimum | Yield Strength Rp 0.2 Mpa (N/mm2) minimum | AL Minimum Elongation | Daimeter |
|---|---|---|---|---|---|
| 18-8 Stainless Steel | 70 | 700 | 450 | 0.4d | =< M20 |
| 18-8 Stainless Steel | 80 | 800 | 600 | 0.3d | =< M20 |
SS 18-8 Socket Flat Head Screw Equivalent Grades
Find 18-8 Socket Head Cap Screw Suppliers in UAE, Offer Superior Equivalent Materials
| Grade | British (BS) | French | German (EN) | Italian | Japanese (SUS) | Swedish | USA (SS) |
|---|---|---|---|---|---|---|---|
| 18-8 Socket Head Cap Screw | 304S15304S16 | Z8CN18.09 | 1.4301 | X5CrNi 18 10 | SUS301 | 14 23 33 | 304 |
18-8 Socket Head Cap Screw Properties
