Above are certified AISI 302 hot rolled and cold rolled plate suppliers

302 stainless steel sheet specification

302 stainless steel sheet specifications

For larger sizes, please contact the above-mentioned 302 stainless steel sheet suppliers who are situated in the United Arab Emirates.
Manufacturing size range of A240 gr 302 plate and sheet ASME SA 240 Grade 302 sheet thickness 302 stainless steel plate thickness
  • Width: 914mm to 1524mm
  • Length: 300mm to 6000mm
Thickness: 0.4mm to 6.0mm Thickness: 3.0mm to 100mm
ASTM A240 TP 302 sheets surface treatment SS 302 plates ASTM standard/American standards 302 SS plate and sheet density
  • Coated
  • Color Coated
  • PVC Coated
  • Film Coated
  • Galvanised
  • ASTM A240/ A240M Type 302
  • ASTM A412/ A412M Type 302
  • ASTM A480/ A480M – SS 302 flat rolled sheet
  • ASTM A263/ A263M – SS 302 Clad Plate
  • ASTM A666/ A666M – SS 302 Annealed/ cold worked sheet
  • ASTM A177/ A177M – SS 302 high strength plate
  • ASTM A895/ A895M – SS 302 free machining plate
7.86 g/cc
AISI 302 sheet maximum operating temperature SUS 302 sheet and plate melting point UNS S30200 plates bending method
870 °C 1400 – 1420 °C
  • Press braking
  • Roll bending
  • Rotary bending
European standard Hardness range of 302 stainless coil SA 240 tp 302 plates and sheets lifespan
  • EN 10088 -2 (Technical delivery conditions)
80 HB Upto 30 years
SUS 302 sheet edges Most common types of ASTM A240 Grade 302 plates Manufacturing technique of ASTM A240 SS 302
plates
  • round
  • rolled
  • deburred
  • slit
  • square
  • broken corner
  • v edge
  • custom
  • AISI 302 Sheet
  • UNS S30200 Plate
  • A240 TP302 Blank (Circle)
  • 302 stainless steel Perforated Sheet
  • ASTM A240 Grade 302 Foils
  • INOX 302 Coils
  • SA 240 tp 302 Rolls
  • SUS 302 Plain Sheet
  • SS 302 Flats
  • ASME SA 240 TP 302 Strip
  • SA 240 SS 302 Shim Sheet
  • SUS 302 Chequered Plate
  • AISI 302 Ring (Flange)

In contrast to other 302 stainless steel sheet suppliers, compare our price and response time.

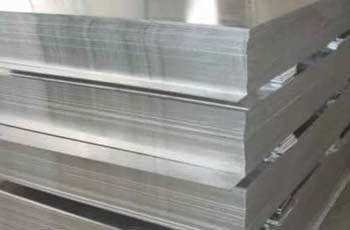

  • Cold Rolled AISI 302 plate
  • Hot Rolled INOX 302 sheet
Processing ASTM A240 Grade 302 plates and sheets origin Supply SS 302 sheet in following brand
  • Pickling outside with mill edge
  • Pickling outside with mill edge
  • Pickling with mill edge
  • Pickling with cut edge
  • Temper pass with mill edge
  • Temper pass with cut edge
  • Korea
  • Thailand
  • Taiwan
  • Indian
  • European
  • Japanese
  • US
  • TISCO
  • Arcelor Mittal
  • VDM
  • Nippon Metal
  • POSCO
  • Aperam
  • Jindal Stainless
  • DKC Korea
  • Thyssenkrup
  • Baosteel
  • Outokumpu
Stainless steel 302 sheets and plates marking Available finishes UNS S30200 sheet applications
  • Sizes
  • ASTM/ ASME standard
  • Origin of material
  • Manufacturer logo / name
  • Manufacturing date
  • Material grade
  • Checkered
  • embossed
  • hair line
  • sand blast
  • Brush
  • etching
  • 2B
  • 2D
  • 8K
  • Mirror Finish
  • Brushed finish
  • BA
  • NO.1
  • NO.4
  • NO.8
  • Food and beverage industry
  • Stamping
  • Cryogenic applications
  • Wire forming

The suppliers listed have ex-stock 302 stainless steel sheet and have supplied to numerous nations in the past, such as South Africa, Egypt, Middle East, Saudi Arabia, United States, and Nigeria.



AISI 302 sheets color 302 stainless steel plate coefficient of thermal expansion ASTM A240 SS 302 sheet & plate load capacity
silver 9.56 µin/in-°F 2.6 lbs
302 stainless steel plates and sheet standard AISI 302 sheets certification Services of SA 240 gr 302 plates
  • ASTM A167
  • EN10088-2-2005
  • GB/T3280-2007
  • ASTM A240
  • ASME SA240
  • JIS4304-2005
  • Third Party Inspection Report
  • Certificate of Origin legalized
  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Beveling
  • Shearing
  • Forming
  • Welding
  • Polish
  • Pickling
  • Heat Treatment
  • Rolling
  • Forging
  • Bending
  • Machining
  • Plate Leveling
  • grinding
  • Annealing
  • Cutting
  • Minor Fabrication

Chat or email are the best ways to get in touch with mentioned 302 stainless steel sheet stockists, stockholders, and distributors for these services.

Packaging of SUS 302 sheet A240 type 302 plates testing requirements UNS S30200 sheets welding method
  • Wooden boxes/ crates/ pallets
  • Big rolls with spools
  • Bundles with plastic wrapping
  • Industrial packing techniques
  • PMI testing
  • UT testing
  • Visual Inspection
  • Packing Condition
  • Dimension Verification
  • Witnessed Chemical Analysis
  • Hardness Testing
  • TIG welding
  • Resistance welding
  • MIG welding
Compare ASME SA 240 Grade 302 plate, sheet & coil Benefits of INOX 302 plates and sheets ASTM A240 Grade 302 strips surface
  • Sheet thickness: from 0.5 mm up to 6 mm
  • Foil thickness:less than 0.2 mm
  • Plate thickness: at around 6 mm or thick
  • More corrosion resistant
  • Slightly magnetic after cold working
  • Good resistance to solvents
  • Black Surface
  • Grounded: Bright sheet but rough ; Not precision
  • Machining for plate: Precision & bright ; Little turning scar
  • Turned/ Peeled material: Precision & bright; Little turning scar
  • Polished SS 302 sheet: Very Bright finish & precision size; No turning scar
A240 type 302 plate method of cutting AISI 302 perforated plate sheet documentation provided Delivery schedule of ASTM A240 SS 302 plate
  • Laser cutting
  • Oxy-propane flame cutting
  • Plasma cutting
  • Waterjet cutting

Direct contact with the above-mentioned 302 stainless steel sheet distributors, dealers, and stockists for those specific cuts

  • Country of Origin Certificate (Original)
  • Bill of Lading.
  • Copy of Invoice
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Generally it is 7-10 days if its in stock
  • 15-20 days if its not in stock
ASTM A240 Type 302 rolling sheets smelting Forming of ASME SA 240 Type 302 material AISI 302 cold rolled plate heat treatment
  • EAF+PESR: protective atmosphere Electro Slag Remelting
  • VIM+PESR: Vacuum induction melting
  • EAF: Electric Arc Furnace
  • EAF+LF+VD: Refined-smelting and vacuum degassing
  • EAF+ESR: Electro Slag Remelting
  • Hot rolling process
  • Hot Forging
  • +P: Precipitation hardened
  • +AT: Solution annealed
  • +A: Annealed (soft/ full/ spheroidizing)
  • +QT: Quenched and tempered (oil/ water)
  • +N: Normalized
  • +NT: Normalized and tempered

Stockist listed above guarantee fastest delivery of UNS S30200 sheet, Check ASTM A240 Grade 302 strips thickness

Various types of SUS 302 plate

302 SS Sheet

302 SS Sheet

SS 302 Plate

SS 302 Plate

INOX 302 slitting coil

INOX 302 slitting coil

Stainless steel 302 Perforated Sheet

Stainless steel 302 Perforated Sheet

A240 gr 302 Foils

A240 gr 302 Foils

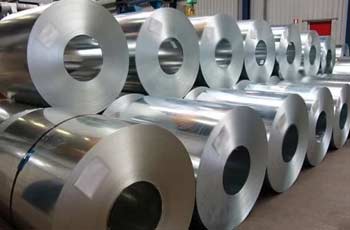

UNS S30200 Coils

UNS S30200 Coils

SA 240 gr 302 thin strips

SA 240 gr 302 thin strips

SUS 302 Plain Sheet

SUS 302 Plain Sheet

ASTM A240 SS 302 rolling plate

ASTM A240 SS 302 rolling plate

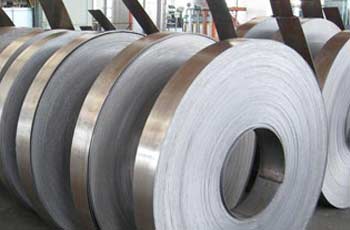

A240 type 302 Strip

A240 type 302 Strip

AISI 302 Shim Sheet

AISI 302 Shim Sheet

SA 240 tp 302 Chequered Plate

SA 240 tp 302 Chequered Plate

UNS S30200 sheet chemical composition

Want to buy SUS 302 plate in custom size contact above listed suppliers, View ASME SA 240 Type 302 clad plate weight chart

Element 302
Carbon 0.15
Chromium 17.0-19.0
Nickel 8.0-10.0
Manganese 2.00
Silicon 0.75
Nitrogen 0.10
Phosphorus 0.045
Sulfur 0.030

ASTM A240 Grade 302 strips mechanical properties

Property 302
Yield Strength, min. (ksi) 30
Tensile Strength, min. (ksi) 75
Elongation, min. (%) 40
Hardness, max. (Rb) 92

Physical properties of AISI 302 perforated plate

Inox 302 polished plate is available in stock sizes or cut to size, Get a quote from genuine distributor of SA 240 tp 302 chequered plate
Property 302
Density, lb/in3 0.29
Modulus of Elasticity, psi 29.0 x 106
Coefficient of Thermal Expansion, 68-212˚F, /˚F 9.2 x 10-6
Thermal Conductivity, Btu/ft hr ˚F 9.4
Specific Heat, Btu/lb ˚F 0.12
Electrical Resistivity, Microohm-in 27.4

Hot working of ASTM A240 Type 302 rolling sheets

Hot working 1149°C (2100°F)

Gauge chart of SUS 302 hot rolled plate

SS 302 slitting coil are manufactured by hot rolling or cold drawing process, ASTM A240 SS 302 rolling plate are available in various finishes such as 2B/ 2D/ smooth finish
Gauge Number MM Inches
7 4.554 .1793
8 4.175 .1644
9 3.797 .1495
10 3.416 .1345
11 3.038 .1196
12 2.656 .1046
14 1.897 .0747
16 1.518 .0598
18 1.214 .0478
20 .911 .0359
22 .759 .0299
24 .607 .0239
26 .454 .0179
28 .378 .0149
