3CR12L stainless steel sheet

3cr12l stainless steel sheet

Verified Supplier

Verified stockists and suppliers

Find top 10 reliable suppliers of AISI 3CR12L plate

3CR12L stainless steel sheet specification

3cr12l stainless steel sheet specification

Contact the trusted 3CR12L stainless steel sheet suppliers in the UAE listed above for bespoke sizes.

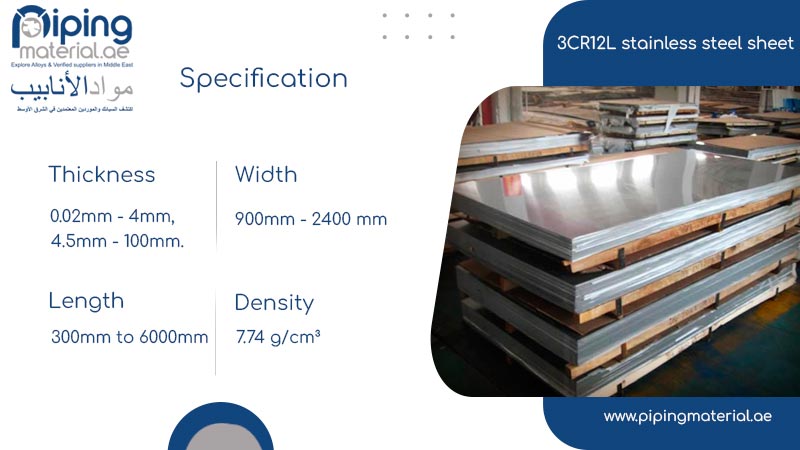

Sizes of SA 240 Gr 3CR12L plate and sheet SS 3CR12L sheet thickness ASME SA 240 SS 3CR12L plate thickness
  • Width: 914mm to 1524mm
  • Length: 300mm to 6000mm
Thickness: 0.4mm to 6.0mm Thickness: 3.0mm to 100mm
3CR12L UNS S43035 sheets surface treatment SA 240 Gr 3CR12L plates ASTM standard/American standards Stainless steel grade 3CR12L plate and sheet density
  • Film Coated
  • Coated
  • PVC Coated
  • Galvanised
  • Color Coated
  • ASTM A240/ A240M Type 3CR12L
  • ASTM A412/ A412M Type 3CR12L
  • ASTM A480/ A480M – SS 3CR12L flat rolled sheet
  • ASTM A263/ A263M – SS 3CR12L Clad Plate
  • ASTM A666/ A666M – SS 3CR12L Annealed/ cold worked sheet
  • ASTM A177/ A177M – SS 3CR12L high strength plate
  • ASTM A895/ A895M – SS 3CR12L free machining plate
7.74 g/cm³
ASTM A240 Gr 3CR12L sheet maximum operating temperature Alloy 3CR12L sheet and plate melting point INOX 3CR12L plates bending method
between 450 and 600°C 1430-1510 °C
  • Press braking
  • Roll bending
  • Rotary bending
European standard Hardness range of 3CR12L stainless steel plate SUS 3CR12L plates and sheets lifespan
  • EN 10088 -2 (Technical delivery conditions)
180 HB Upto 20 years
Stainless steel grade 3CR12L sheet edges Most demanded INOX 3CR12L plate types Manufacturing methods of SS 3CR12L
plates
  • deburred
  • slit
  • round
  • v edge
  • custom
  • rolled
  • square
  • broken corner
  • 3CR12L stainless steel Sheet
  • INOX 3CR12L Plate
  • 3CR12L low carbon SS Perforated Sheet
  • ASTM A240 Type 3CR12L Foils
  • SUS 3CR12L Coils
  • 3CR12L SS Plain Sheet
  • Corrosion resistant 3CR12L Strip
  • SA 240 Grade 3CR12L Shim Sheet
  • EN 1.4510 Chequered Plate

In contrast to other 3CR12L stainless steel sheet suppliers, compare our price and response time.

  • Cold Rolled 3CR12L ferritic stainless steel plate
  • Hot Rolled ASTM A240 Grade 3CR12L sheet
ASTM A240 Type 3CR12L sheets processing 3CR12L ferritic stainless steel plates and sheets origin Supply SS 3CR12L sheet in following brand
  • Temper pass with cut edge
  • Pickling with mill edge
  • Temper pass with mill edge
  • Pickling outside with mill edge
  • Pickling with cut edge
  • US
  • Korea
  • Thailand
  • Japanese
  • Taiwan
  • Indian
  • European
  • TISCO
  • POSCO
  • Thyssenkrup
  • Baosteel
  • Arcelor Mittal
  • VDM
  • Nippon Metal
  • Aperam
  • Jindal Stainless
  • DKC Korea
  • Outokumpu
ASTM A240 Grade 3CR12L sheets and plates marking AISI 3CR12L plates finish 3CR12L SS sheet applications
  • Sizes
  • ASTM/ ASME standard
  • Manufacturer logo / name
  • Manufacturing date
  • Material grade
  • Origin of material
  • 8K
  • Mirror Finish
  • Checkered
  • 2B
  • NO.4
  • sand blast
  • Brush
  • 2D
  • BA
  • NO.1
  • etching
  • Brushed finish
  • NO.8
  • embossed
  • hair line
  • Sugar processing industries
  • Mining industry
  • Oven and furnaces
  • Transport equipment

Buy from the top zero-rejection 3CR12L stainless steel sheet suppliers in South Africa, Middle East, Egypt, US, Oman, and Saudi Arabia.

SA 240 Type 3CR12L plates and sheet standard SA 240 TP 3CR12L sheets certification Services of Corrosion resistant 3CR12L plates
  • ASTM A167
  • EN10088-2-2005
  • GB/T3280-2007
  • ASTM A240
  • JIS4304-2005
  • ASME SA240
  • Third Party Inspection Report
  • EN 10204/3.1B,
  • 100% Radiography Test Report
  • Certificate of Origin legalized
  • Raw Materials Certificate
  • Bending
  • Beveling
  • Polish
  • Annealing
  • Shearing
  • Forming
  • Forging
  • Plate Leveling
  • Welding
  • Heat Treatment
  • grinding
  • Rolling
  • Cutting
  • Minor Fabrication
  • Machining
  • Pickling

Chat or email are the best ways to get in touch with mentioned 3CR12L stainless steel sheet stockists, stockholders, and distributors for these services.

Packaging of SA 240 Grade 3CR12L sheet SA 240 Grade 3CR12L material inspection plan Stainless steel 3CR12L sheets welding method
  • Big rolls with spools
  • Industrial packing techniques
  • Wooden boxes/ crates/ pallets
  • Bundles with plastic wrapping
  • PMI testing
  • Visual Inspection
  • Dimension Verification
  • Hardness Testing
  • UT testing
  • Packing Condition
  • Witnessed Chemical Analysis
  • MIG welding
  • TIG welding
  • Resistance welding
Compare Grade 3CR12L plate, sheet & coil AISI 3CR12L coil surface Benefits of 3CR12L SS plates and sheets
  • Sheet thickness: from 0.5 mm up to 6 mm
  • Foil thickness:less than 0.2 mm
  • Plate thickness: at around 6 mm or thick
  • Turned/ Peeled material: Precision & bright; Little turning scar
  • Black Surface
  • Grounded: Bright sheet but rough ; Not precision
  • Machining for plate: Precision & bright ; Little turning scar
  • Polished SUS 3CR12L sheet: Very Bright finish & precision size; No turning scar
  • Corrosion and abrasion resistance
  • Durability and low maintenance
Alloy 3CR12L plate method of cutting ASTM A240 TP3CR12L sheet documentation provided Delivery schedule of EN 1.4510 plate
  • Laser cutting
  • Oxy-propane flame cutting
  • Plasma cutting
  • Waterjet cutting

Direct contact with the above-mentioned 3CR12L stainless steel sheet distributors, dealers, and stockists for those specific cuts

  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Copy of Invoice
  • Country of Origin Certificate (Original)
  • Bill of Lading.
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Generally it is 7-10 days if its in stock
  • 15-20 days if its not in stock
3CR12L low carbon SS plate smelting Forming of Grade 3CR12L thin strips Stainless steel grade 3CR12L clad plate heat treatment
  • EAF+ESR: Electro Slag Remelting
  • VIM+PESR: Vacuum induction melting
  • EAF: Electric Arc Furnace
  • EAF+LF+VD: Refined-smelting and vacuum degassing
  • EAF+PESR: protective atmosphere Electro Slag Remelting
  • Hot rolling process
  • Hot Forging
  • +NT: Normalized and tempered
  • +P: Precipitation hardened
  • +N: Normalized
  • +AT: Solution annealed
  • +QT: Quenched and tempered (oil/ water)
  • +A: Annealed (soft/ full/ spheroidizing)

INOX 3CR12L strips can be manufactured through cold rolled or hot rolled finish, 3CR12L polished plate with min 10.5% chromium

UNS S41003 plate types

Corrosion resistant 3CR12L sheet

Corrosion resistant 3CR12L sheet

AISI 3CR12L plate

AISI 3CR12L plate

SUS 3CR12L coil

SUS 3CR12L coil

INOX 3CR12L CR sheet

INOX 3CR12L CR sheet

Alloy 3CR12L cold rolled sheet

Alloy 3CR12L cold rolled sheet

ASTM A240 Type 3CR12L plain sheet

ASTM A240 Type 3CR12L plain sheet

3CR12L stainless steel rolling plate

3CR12L stainless steel rolling plate

3CR12L low carbon SS strip

3CR12L low carbon SS strip

ASTM A240 TP3CR12L chequered plate

ASTM A240 TP3CR12L chequered plate

3CR12L vs 3CR12

Alloy Chromium
3CR12 10.50 to 12.50%
3CR12L min 10.5%

INOX 3CR12L strips chemical composition

SA 240 Type 3CR12L perforated sheet are suitable for sugar industries & mining, AISI 3CR12L plate in Hot Rolled Annealed and Pickled (HRAP) finish

Type %P %Mn %Ni %S %C %Cr %N %Si %Ti
3CR12 0.040
max
2.00
max
1.50
max
0.030
max
0.030
max
10.50
12.50
1.00
max
4(C+N)
0.6

3CR12L polished plate mechanical properties

Type Product Form1  or Gauge (mm) Tensile Strength (MPa) 0.2% Proof Stress (MPa) Brinell Hardness Elongation (%) Impact Energy (J)
3CR12 <3 460 min 280
450
220 max 18 min2
3 to 4.5 460 min 300
450
220 max 18 min2 354
>4.5 to 12 460 min 300
450
220 max 20 min2 354
>12 460 min 300
450
250 max 20 min2 354

Physical properties of AISI 3CR12L coil

Trusted stockist & distributors of 3CR12L low carbon SS hot rolled plate sheet & coils in 2B/ 2D finish, get multiple quotes with ready stock sizes
Density 7 680 kg/m3
Modulus of Elasticity in Tension 200GPa
Modulus of Elasticity in Torsion 77GPa
Poisson’s Ratio 0.32
Specific Heat Capacity 478J/kg K
Thermal Conductivity: @ 100°C
@ 500°C
30.0W/mK
40.0W/mK
Electrical Resistivity 678 <m
Mean Co-efficient of Thermal Expansion: 0 – 100°C
0 – 300°C
0 – 500°C
11.1µm/mK 11.7µm/mK 12.3µm/mK
Melting Range 1 430°C-1 510°C

Equivalent grade of ASTM A240 Type 3CR12L rolling plate

UNS S41003
AISI 410S
WNR 1.4003

Service temperature of SA 240 Type 3CR12L perforated sheet

Refer 3CR12L SS foil standards and thickness, Alloy 3CR12L rolling sheets are annealed at temperatures from 700 to 750°C.
Operating Conditions Temperature (°C)
Continuous 620
Intermittent 730

Creep properties of Alloy 3CR12L rolling sheets

Stress to Produce 1% Strain (MPa)
Temperature
(°C)
1 000 hours 5 000 hours 10 000 hours
400 315 283 270
450 195 151 134
500 88 65 56
550 34 29 28

Annealing and stress relieving of 3CR12L SS foil

Annealing Stress relieving
between 700°C and 750°C at 600°C to 650°C
