430Ti stainless steel sheet

Home > 430Ti stainless steel sheet

430Ti Stainless Steel Sheet Abstract

Standard	ASTM A240 ASME SA 240
Classified According to Group	Group 1 Group 2 Group 3 Group 4 Group 5
Contain	16 – 19.5% chromium
Life Span	30 Years
Origin	American, Japanese, European, Russian, Korean
HSN Code	72202090
Common Defects	Orange Peel, Warping, Ridging
Tolerance	Thickness Tolerance: ±0.08 to 0.15 mm Width Tolerance: ±5 to 10 mm
Sample	Yes

Table of Content

430Ti Stainless Steel Sheet Specification
Dimension Chart of ASTM A240 Grade 430Ti Polished Plate
Available Types of Alloy 430Ti Plate
Alloy 430Ti Clad Plate Technical Information
Size Chart of SUS 430Ti Flat Sheet
430Ti Stainless Steel Coil Chemical Composition
SUS 430Ti Flat Sheet Mechanical Properties
Equivalent Grade of EN 1.4510 Strip
430Ti SS Chequered Plate Thermal Properties
Weight Chart of ASTM A240 Type 430Ti Slitting Coil
Thickness Tolerance of 430Ti SS Hot Rolled Plate

Contact to Top 10 SA 240 Type 430Ti Strip Suppliers Listed Above

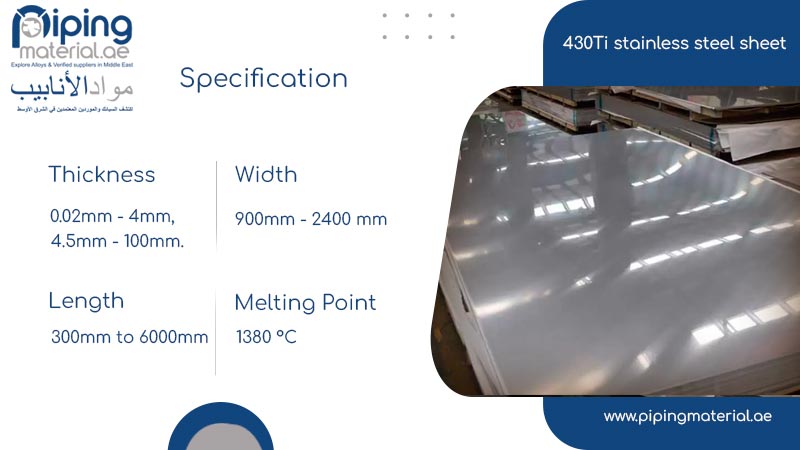

430Ti Stainless Steel Sheet Specification

Get 430Ti Stainless Steel Sheet Suppliers in UAE offering detailed specifications

430Ti stainless steel sheet specification

Stainless Steel 430Ti Plate Wall Thickness: 0.4 to 5.0 mm or Custom

ASTM A240 Type 430Ti Slitting Coil Width : 1000 to 1500 mm

Alloy 430Ti Clad Plate Length: 300 to 6000 mm or Custom

SA 240 Type 430Ti Strip Flatness Tolerances: ±6 to 10 mm/m

Alloy 430Ti Plate Cutting: Laser Cutting, Shearing, Plasma

SA 240 TP 430Ti Foil Annealing Temperature: 760 to 815°C

AISI 430Ti Rolling Sheets Welding: SMAW, MMA, GTAW, TIG, GMAW, MIG

Applications: Civil Engineering, Food Industry, Automotive Construction

Alloy 430Ti Clad Plate Surface Roughness: 0.1 to 0.5 µm (2B), ≤ 0.1 µm (BA)

Surface Finish: 2B, BA, No.4, Mirror finish

Buy Directly From 430Ti Stainless Steel Sheet Suppliers in UAE and Get Datasheet

Form: Coils, Sheet, Slit Coils, Plate

Mill Finishes Are Basic Supply Condition for 430Ti Stainless Steel Coil, Refer Dimensions of ASTM A240 Grade 430Ti Polished Plate

Dimension Chart of ASTM A240 Grade 430Ti Polished Plate

Thickness (mm)	Width (mm)	Length (mm)
0.55 mm	914 & 1219	1828 & 2438
0.70 mm	914 & 1219	1828 & 2438
0.90 mm	914 & 1219	1828 & 2438
1.20 mm	914, 1219 & 1500	1828, 2438, 3000, 3048 & 3658
4.00 mm	1500 & 2000	3000 & 6000
1.60 mm	914, 1219 & 1500	1828, 2438, 3000, 3048 & 3658
2.00 mm	914, 1219 & 1500	1828, 2438, 3000, 3048 & 3658
0.55 mm	1219	2438
0.70 mm	1219	2438
2.50 mm	914, 1219 & 1500	1828, 2438, 3000, 3048 & 3658
1.50 mm	914, 1219 & 1500	1828, 2438, 3000, 3048 & 3658
3.00 mm	914, 1219 & 1500	1828, 2438, 3000, 3048 & 3658
4.00 mm	1500 & 2000	3000 & 6000
0.90 mm	1219	2438
1.20 mm	1219	2438
2.50 mm	1219 & 1500	2438, 3000 & 3658
1.50 mm	1219 & 1500	2438, 3000 & 3658
1.60 mm	1219 & 1500	2438, 3000 & 3658
2.00 mm	1219 & 1500	2438, 3000 & 3658
3.00 mm	1219 & 1500	2438, 3000 & 3658
0.70 mm	914 & 1219	1828 & 2438
0.90 mm	914 & 1219	1828 & 2438
1.2 mm	1250	2500
1.6 mm	1250	2500
2.0 mm	1250	2500
3.0 mm	1250 & 1500	2500, 3000 & 6000
4.0 mm	1250 & 1500	2500, 3000 & 6000

Available Types of Alloy 430Ti Plate

Check 430Ti Stainless Steel Sheet Suppliers in UAE providing variety of types

430Ti Ferritic Stainless Steel Sheet

430Ti Stainless Steel Plate

Alloy 430Ti Slitting Coil

SS 430Ti Perforated Sheet

AISI 430Ti Foils

SUS 430Ti Coils

INOX 430Ti Thin Strips

430Ti SS Plain Sheet

UNS S43036 Rolling Plate

Steel 1.4510 Strip

ASTM A240 Type 430Ti Shim Sheet

SA 240 TP 430Ti Chequered Plate

Call Now for the Clients List Based in Below Locations

Region	City	Country
Middle East	Abu Dhabi	United Arab Emirates
Africa	Lagos	Nigeria
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
MENA	Casablanca	Morocco
Middle East	Dammam	Saudi Arabia
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Kuwait City	Kuwait
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa

Alloy 430Ti Clad Plate Technical Information

Contact to the Approved 430Ti Stainless Steel Sheet Suppliers and Stockists for the Most Precise Estimate.
Manufacturing Range of 430Ti Stainless Steel Plate and Sheet	SS 430Ti sheet thickness	X6CrTi17 plate thickness
Width: 914mm to 1524mm Length: 300mm to 6000mm	Thickness: 0.4mm to 6.0mm	Thickness: 3.0mm to 100mm
430Ti ferritic stainless steel sheets surface treatment	INOX 430Ti plates ASTM standard/American standards	ASTM A240 SS 430Ti plate and sheet density
PVC Coated Film Coated Coated Color Coated Galvanised	ASTM A240/ A240M Type 430Ti ASTM A412/ A412M Type 430Ti ASTM A480/ A480M – SS 430Ti flat rolled sheet ASTM A263/ A263M – SS 430Ti Clad Plate ASTM A666/ A666M – SS 430Ti Annealed/ cold worked sheet ASTM A177/ A177M – SS 430Ti high strength plate ASTM A895/ A895M – SS 430Ti free machining plate	7.7 g/cm
Stainless steel 430Ti sheet maximum operating temperature	Stainless steel grade 430Ti sheet and plate melting point	SA 240 Gr 430Ti plates bending method
815 °C	1380° C	Press braking Roll bending Rotary bending
European standard	Hardness range of 430Ti SS plate	430Ti stainless steel plates and sheets lifespan
EN 10088 -2 (Technical delivery conditions)	78 – 86 HB	Upto 30 years
Steel 1.4510 sheet edges	Most popular Stainless steel 430Ti plate types	Manufacturing methods of EN 1.4510 plates
square broken corner v edge rolled deburred slit round custom	Stainless steel 430Ti Sheet SA 240 Gr 430Ti Plate UNS S43036 Perforated Sheet INOX 430Ti Foils SUS 430Ti Coils EN 1.4510 Plain Sheet AISI 430Ti Strip Steel 1.4510 Shim Sheet SA 240 Gr 430Ti Chequered Plate In contrast to other 430Ti stainless steel sheet suppliers, compare our price and response time.	Cold Rolled SA 240 Type 430Ti plate Hot Rolled SUS 430Ti sheet
Inox 1.4510 sheets processing	ASTM A240 Grade 430Ti plates and sheets origin	Supply SS 1.4510 sheet in following brand
Temper pass with cut edge Pickling with mill edge Pickling with cut edge Temper pass with mill edge Pickling outside with mill edge	Korea Thailand Indian European US Taiwan Japanese	VDM DKC Korea Arcelor Mittal Nippon Metal POSCO Aperam Jindal Stainless Outokumpu Thyssenkrup Baosteel TISCO
SA 240 TP 430Ti sheets and plates marking	SA 240 Type 430Ti plates finish	Alloy 430Ti sheet applications
Sizes Manufacturer logo / name Manufacturing date Material grade ASTM/ ASME standard Origin of material	NO.8 8K Mirror Finish 2B 2D Sand blast Brush Etching BA NO.1 NO.4 Checkered Embossed Hair line Brushed finish	Automotive construction Civil engineering Food industry Buy from the top zero-rejection 430Ti stainless steel sheet suppliers in South Africa, Middle East, Egypt, US, Oman, and Saudi Arabia.
SUS 430Ti plates and sheet standard	1.4510 stainless steel sheets certification	Services of UNS S43036 plates
ASME SA240 GB/T3280-2007 ASTM A240 ASTM A167 EN10088-2-2005 JIS4304-2005	100% Radiography Test Report EN 10204/3.1B, Raw Materials Certificate Third Party Inspection Report Certificate of Origin legalized	Heat Treatment Annealing Shearing Forming grinding Cutting Minor Fabrication Rolling Forging Polish Welding Plate Leveling Machining Pickling Bending Beveling Chat or email are the best ways to get in touch with mentioned 430Ti stainless steel sheet stockists, stockholders, and distributors for these services.
Packaging of INOX 430Ti sheet	Alloy 430Ti plates inspection methods	ASTM A240 TP430Ti sheets welding method
Bundles with plastic wrapping Industrial packing techniques Wooden boxes/ crates/ pallets Big rolls with spools	PMI testing Hardness Testing Packing Condition Visual Inspection Dimension Verification Witnessed Chemical Analysis UT testing	Resistance welding MIG welding TIG welding
Compare SUS 430Ti plate, sheet & coil	SA 240 TP 430Ti material surface	Benefits of EN 1.4510 plates and sheets
Sheet thickness: from 0.5 mm up to 6 mm Foil thickness:less than 0.2 mm Plate thickness: at around 6 mm or thick	Machining for plate: Precision & bright ; Little turning scar Black Surface Grounded: Bright sheet but rough ; Not precision Turned/ Peeled material: Precision & bright; Little turning scar Polished Stainless steel 430Ti sheet: Very Bright finish & precision size; No turning scar	Tough and strong Higher level of machinability Increased cold formability
ASTM A240 UNS S43036 plate method of cutting	SA 240 Grade 430Ti sheet documentation provided	Delivery schedule of AISI 430Ti plate
Oxy-propane flame cutting Plasma cutting Laser cutting Waterjet cutting Direct contact with the above-mentioned 430Ti stainless steel sheet distributors, dealers, and stockists for those specific cuts	Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc. Copy of Invoice Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc., Country of Origin Certificate (Original) Bill of Lading.	Generally it is 7-10 days if its in stock 15-20 days if its not in stock
ASTM A240 TP430Ti hot rolled plate smelting	Forming of AISI 430Ti rolling sheets	Stainless steel 430Ti plate heat treatment
VIM+PESR: Vacuum induction melting EAF: Electric Arc Furnace EAF+ESR: Electro Slag Remelting EAF+PESR: protective atmosphere Electro Slag Remelting EAF+LF+VD: Refined-smelting and vacuum degassing	Hot rolling process Hot Forging	+P: Precipitation hardened +AT: Solution annealed +A: Annealed (soft/ full/ spheroidizing) +N: Normalized +NT: Normalized and tempered +QT: Quenched and tempered (oil/ water)

SA 240 TP 430Ti Foil are Extremely Heat and Oxidation Resistant, Call Above Listed Stockists of SUS 430Ti Flat Sheet for Custom Sizes

Size Chart of SUS 430Ti Flat Sheet

Get 430Ti Stainless Steel Sheet Suppliers in UAE providing custom sizes

Size (mm)	Size (inch)
3.18	0.125″
3.4	0.134″
4.75	0.187″
6.35	0.250″
44.5	1.750″
7.92	0.312″
31.8	1.250″
12.7	0.500″
3.96	0.156″
28.6	1.125″
15.9	0.625″
19.1	0.750″
22.2	0.875″
25.4	1″
38.1	1.500″
9.53	0.375″
50.8	2″
63.5	2.500″
76.2	3″

Material Inspection Facility in Following Locations

Sharjah	Umm Al Quwain	Fujairah	Doha
Muscat	Dubai	Riyadh	Ras Al Khaimah
Saudi Arabia	Abu Dhabi	Al Jubail	Ajman

430Ti Stainless Steel Coil Chemical Composition

Element	Content (%)
Iron, Fe	76 – 80
Chromium, Cr	16-19.5
Manganese, Mn	1
Silicon, Si	1
Nickel, Ni	0.8
Titanium, Ti	0.50 (min)
Carbon, C	0.10
Phosphorous, P	0.04
Sulfur, S	0.03

SUS 430Ti Flat Sheet Mechanical Properties

Properties	Metric
Poisson’s ratio	0.27-0.30
Tensile strength	515 MPa
Elongation	30%
Elastic modulus	190-210 GPa
Yield strength	310 MPa
Reduction of Area	65%

Equivalent Grade of EN 1.4510 Strip

AISI	EN		JIS	AFNOR	GOST
AISI	Number	Name	JIS	AFNOR	GOST
430Ti	1.4510	X6CrTi17	SUS430LX	Z4CT17	08KH17T

430Ti SS Chequered Plate Thermal Properties

Properties	Metric
Thermal expansion (@ 20-100°C/70-212°F)	10.1 (µm/m°C)

Cutting AISI 430Ti Rolling Sheets With Waterjet Cutting Method Provides Higher Precision, Check Weight Chart of ASTM A240 Type 430Ti Slitting Coil

Weight Chart of ASTM A240 Type 430Ti Slitting Coil

Thick. on base (mm)	Unit Weight / Coil (kg)
3000 x1000 x3.0	78.0
3000 x1250 x4.5	143.0
3000 x1250 x6.0	180.0
3000 x1250 x8.0	210.0

Partner Traders and Importers Are Available in the Regions Mentioned Below for Swift Deliveries

MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria
Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen

430Ti SS Chequered Plate Can Resist a Temperature Up to 850°C, Contact Above Exporters of Alloy 430Ti Clad Plate for Latest Price List

Thickness Tolerance of 430Ti SS Hot Rolled Plate

Nominal thickness	Tolerances on nominal thickness
	Class A		Class B		Class C		Class D
	Lower	Upper	Lower	Upper	Lower	Upper	Lower	Upper
>3 < 5	-0.4	+0.8	-0.3	+0.9	-0	+1.2	-0.6	+0.6
>5 < 8	-0.4	+1.1	-0.3	+1.2	-0	+1.5	-0.75	+0.75
>8 < 15	-0.5	+1.2	-0.3	+1.4	-0	+1.7	-0.85	+0.85
>15 < 25	-0.6	+1.3	-0.3	+1.6	-0	+1.9	-0.95	+0.95
>25 < 40	-0.8	+1.4	-0.3	+1.9	-0	+2.2	-1.1	+1.1
>40 < 80	-1.0	+1.8	-0.3	+2.5	-0	+2.8	-1.4	+1.4
>80 < 150	-1.0	+2.2	-0.3	+2.9	-0	+3.2	-1.6	+1.6
>150 < 250	-1.2	+2.4	-0.3	+3.3	-0	+3.6	-1.8	+1.8
