AL6XN Pipe Product Synopsis

Sizes Available	Seamless Pipe: 3.35 To 101.6 mm (OD) Welded Pipe: 6.35 To 152 mm (OD)
Brands in Stock	Centravis, Rivit, Sanyo Special Steel
Raw Material Orign	Janpanese, Korean, European, Indian, American, Europe, USA, North America, Canada, UK, Japan, South Korea, Germany, Russia, South Africa
Swg & Bwg	Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Carbon Content	less than 0.02 %
Pipe Finish	Polished, Annealed & Pickled, Bright & Annealed
International Standards	ASME B36.19, EN 10217-7, NSF 61, DIN 17456, DIN 17458
Value Added Services	Cutting, Beveling, Threading, Polishing
Pipe Length	Single Random, Double Random, Standard & Cut length
Pipe Type	Seamless, ERW, EFW, Welded, Fabricated
Test Certificates	EN 10204 3.1 & 3.2

AL-6XN Pipe Chemical Composition
Manufacturing Process Of AL-6XN Alloy Tubing
ASTM A312 UNS N08367 Mechanical Properties
AL-6XN Seamless Pipe Physical Properties
Schedule Chart SB 676 N08367 Pipe
Annealing & Forging Temperature Of AL-6XN High Pressure Tube
Testing Methods Of Al-6xn Sanitary Tubing
AL-6XN Pipe Vs 316L Stainless Steel Pipe
AL-6XN Stainless Steel Pipe Size Chart
Properties Of UNS N08367 Pipe
Al6xn Tubing Dimensions
Common Uses Of AL-6XN Sanitary Tubing
What Is The Recommended Heat Treatment Procedure For N08367 Stainless Steel Tubing After Fabrication ?
Surface Finishes ASTM B676 UNS N08367 Welded Tube
What Are The Maximum Allowable Stress Of ASTM B675 UNS N08367 Welded Pipe ?
Supporting Documents Of QC and N08367 Stainless Steel Tubing

Get KNPC Approved Al6xn Tube Suppliers in UAE, And Learn How to Weld Al6xn Material.

Al-6xn Tubing Specification

AL-6XN Seamless Pipe: 0.5 – 12 mm (Wall Thickness)

AL-6XN Stainless Steel Welded Pipe: 0.8 to 12.7 mm (Wall Thickness), Upto 26 m
(Length)

AL-6XN Thick Walled Pipe: 10-600 mm (OD), 2.5 – 100 mm (Wall Thickness), 0.5-
12 m (Length)

Alloy 25-6HN Schedule: Schedule 5 / 5S to XXS

Method: Cold Formed, Hot Formed, Precision Rolled

Pipe End: Bevelled, Plain, Grooved, Threaded

Suitable Temperatures: up to 1000°F (538°C)

Process: ERW, Seamless, Welded

MTR:Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

Stainless Steel AL-6XN Finish: Annealing, Polished, Bright

Get Quote Directly from Al6xn Tubing Suppliers in UAE With Complete Documentation

Form: Round, Square, Rectangular, Hexagon etc.

Forming & Welding Process Of Al-6xn Pipe

Forming	Welding
Hot Forming Cold Forming Warm Forming Tube Forming	Gas Tungsten Arc Welding (GTAW) Gas Metal Arc Welding (GMAW) Shielded Metal Arc Welding (SMAW) Flux Cored Arc Welding (FCAW) Submerged Arc Welding (SAW)

Ready Stock Of Al6xn Pipe

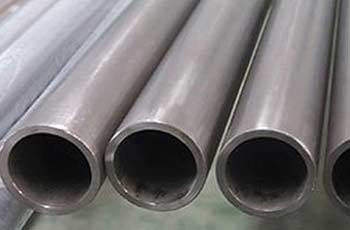

AL-6XN Seamless Pipe

Machining Tool: High Speed Steel Or Cemented Carbide, Sharp Tool
Turning & Milling Speed: 70 sfm

AL-6XN Welded Pipe

Cold Forming Operation: Bending, Drawing and Pressing
Material Grade: AL-6XN (UNS N08367)

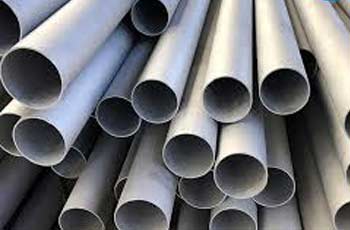

AL-6XN Alloy ERW Pipe

Drilling Speed: 50 sfm
American Standard: ASTM A312, ASTM A358, ASTM B675, ASTM B676

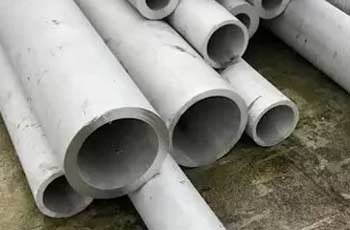

ASTM B676 UNS N08367 Round Pipe

Alloy Type: Super-Austenitic Stainless Steel
Magnetic Permeability: 33

N08367 Stainless Steel Square Pipe

Nickel Content: 24-26%
Welding Consideration: Preheating Not Required

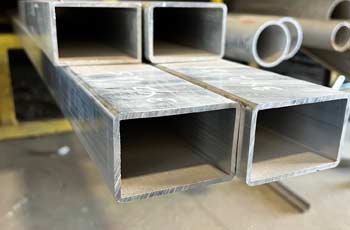

Alloy 25-6HN Rectangular Pipe

Young’s Modulus: 199 x 10³ N/mm2
HS Code: 7209161000

Incoloy Alloy 25-6HN Annealed Pipe

Resistance to Pitting: Very High, PREN ≥ 40
Pipe Type: Seamless, Welded, ERW, EFW

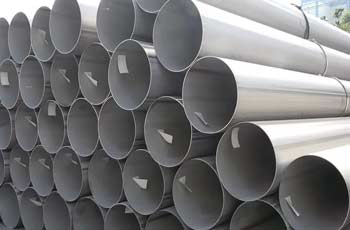

Stainless Steel AL-6XN Hollow Pipe

Charpy Impact Value: 40-60 J
End Type: PE (Plain End), BE (Beveled End)

UNS N08367 Polished Pipe

Annealing: Temperatures > 1121°C (2050°F)
Fabrication: Can be cold bent, flared, or expanded

AL-6Xn Stainless Steel Thick Wall Pipe

Transport Package: Standard Packing
Certification: EN 10204 3.1 / 3.2 Mill Test Certificate

AL-6Xn Hot Finished Pipe

Machinability: Moderate, Slower Feed Rates Recommended
Size: Cut To Size Or Customized

N08367 Stainless Steel Cold Finished Pipe

Forging: Hot forged between 1150 – 1200°C
Trademark: Super Austenite stainless steel

SB 676 UNS N08367 Exhaust Pipe

Hot Working: Temperature ranges 982-1232°C (1800-2250°F)
Surface Treatment: Bright

Alloy 25-6HN Clad Pipe

Service Life: 20+ Years
Filler Metal: ERNiCrMo-3 or Equivalent

AL6XN Pipe Origin

Nippon Steel & Sumitomo Metal Corporation make Tube

Nippon Steel & Sumitomo Metal Corporation: Tokyo, Japan

Wujin: Changzhou, Jiangsu, CHINA

Alleima (Sandvik): Scranton, PA, USA

Tubacex: Ternitz, Austria

Rivit: Caltrano, Italy

Centravis: Nikopol, Ukraine

Webco Industries: Tulsa, OK, USA

Sanyo Special Steel.: Himeji, JAPAN

Please find Authorised Dealers and Distributors of Sanyo Special Al6xn Pipe in Dubai

SMT Global Pipes: Dubai, UAE
Prestige Metalloys LLC: Dubai, UAE
Alinox Steel Alloys FZE: JAFZA, Dubai, UAE
Mipra Steel: Dubai, UAE
Stainless Inox: Jebel Ali Free Zone, Dubai, UAE

If you’re Expecting Reasonable Cost For Al6xn Tubing From Different Middle East Importers. Get The Most Recent Price List And Compare Al6xn Vs 254 SMO Tube Here

Al6xn Vs 254 SMO Tube

AL-6XN Tube

Melting Range: 1370-1425°C
Yield Strength: 300-450 MPa
Tensile Strength: 690-860 MPa
Hardness: 95-200 HB
Temperature Range: -50°C to 315°C up to 600°C

254 SMO Tube

Melting Range: 1390 – 1425°C
Yield Strength: 300 – 450 MPa
Tensile Strength: 700-850 MPa
Hardness: 95 – 200 HB
Temperature Range: 2100 to 2190 °F, 1150 to 1200 °C

Most Common Types of Al6xn Pipe

AL-6Xn Seamless Pipe

Alloy 25-6HN Welded Pipe

AL-6Xn ERW Pipe

Alloy 25-6HN EFW Pipe

INCOLOY Alloy 25-6HN Round Pipe

Alloy 25-6HN Rectangular Pipe

AL-6Xn Stainless Steel square pipe

UNS N08367 Cold Finished Seamless Pipe

SB 676 N08367 Hot Finished Seamless Pipe

Equivalent Standard of AL-6XN Welded Tube

Material	UNS	Pipe Welded	Tube Welded	Sheet/Plate	Bar	Valves	Flanges & Fittings
Al6xn pipe	UNS N08367	B675, A312	B676, A249	B688, A240	B691, A479	ASTM B61 UNS N08367	B462, A182

AL-6XN Welded Tube Pressure Rating

Tube O.D. (inch)	Wall Thickness of Tube (inch)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1	2200	2900	3400	3900	4300
1/4	3700	4800	7000	9500
3/8	3100	4400	6100
1/2	2300	3200	4400
5/16	3700	5400	7300
3/4	2200	3000	4000	4600

Weekly Shipment to Below Locations

Country	Cities
Belgium	Ghent
Belgium	Brussels
Netherlands	The Hague
Netherlands	Amsterdam
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Meeuwen-Gruitrode
Netherlands	Haarlem
Belgium	Westerlo
Belgium	Leuven
Netherlands	Rotterdam
Belgium	Antwerp

Impact and Tensile Properties of AL6XN Pipes & Tubing

Temp. °F (°C)	Tensile Strength, psi	.2% Yield Strength, psi	Elongation in 2”, %	Charpy Toughness, ft-lb
-200 (-129)	–	–	–	100
-450 (-268)	218,000	142,000	36	353*
-320 (-196)	196,000	107,000	49	85
200 (93)	99,900	49,400	47	–
400 (204)	903,000	40,400	46	–
70 (21)	108,000	53,000	47	140
600 (316)	86,000	36,300	47	–
800 (427)	87,000	36,000	48	–

AL-6XN Pipe Chemical Composition

Grade	DIN	UNS	Ni	Si	C	Mn	S	P	Cu	Cr	N	Mo
Al6xn pipe	1.4547	S31254	18	0.7	<0.02	1	0.01	0.03	0.75	20	0.2	6.1

Buy These Make Ex-stock From Verified Al6xn Pipe Suppliers in UAE at Dealer Price

Manufacturing Process Of AL-6XN Alloy Tubing

ASTM A312 UNS N08367 Mechanical Properties

Grade	Temper	Tensile Rm	Tensile Rm	R.p. 0.2% al-6xn pipe yield strength	R.p. 0.2% Yield	Elongation (2” or 4D gl)
Grade		(min)	(min)	(min)	(min)	(min)
Al6xn pipe	Annealed	98 ksi	675 MPa	45 ksi	310 MPa	35 %

Al6xn Pipe Properties

AL-6XN Seamless Pipe Physical Properties

Property	Value (Units)	Value(Units)
Modulus of Elasticity	195 Gpa	23.8 ×106 psi
Density	8.06 g/cm³	0.291 lb/in³
Specific Heat capacity	500 J/kg • K	0.11 Btu/lb • ℉
Thermal Conductivity	14.1 W/(m • K)	7.5 Btu/hr • ft • ℉
Coefficient of Expansion	14.2 10-6/℃	7.9 10-6/℉
Melting Range	1320 to 1400 ℃	2410 to 2550 ℉
Electrical Resistivity	0.89 Ωm	535 Ohm • circ mil/ft

Refer These Details Before Buying Al-6xn ERW Tube From Manufacturers, Suppliers, Traders, Stockholders, Stockists, Or Importers

Sales Representatives Are Available to Provide Prompt Quotes

Middle East countries	UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen
MENA	Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine
Africa	Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria

Schedule 60, 40, 80, 20, std, and XXS Al6xn Stainless Steel Pipe Can Be Purchased In Dubai, In Addition, Consider The Al-6xn® Alloy Tubing Rigid Inspection Technique.

Schedule Chart SB 676 N08367 Pipe

4 Inch
Schedule 5 / 5S
SCH 10 254 SMO stainless steel pipe (Most selling)
SCH 20
SCH 30
SCH 40 EN 1.4547 stainless steel pipe (Most selling)
SCH 40S
SCH 80 / 80S
SCH 120
SCH 160
Standard (SCH STD)
Ex-Standard (XS)
Double Extra Strong (XSS)

Annealing & Forging Temperature Of AL-6XN High Pressure Tube

Annealing	Forging
2050-2150 F (1120-1180 C)	2200-2250 F (1204-1232 C)

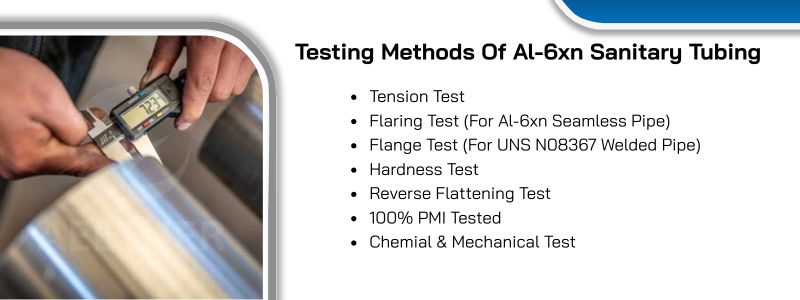

Testing Methods Of Al-6xn Sanitary Tubing

Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below

Region	Country	City
Middle East	United Arab Emirates	Dubai
Middle East	Saudi Arabia	Riyadh
Middle East	Saudi Arabia	Jeddah
Middle East	United Arab Emirates	Abu Dhabi
Middle East	Qatar	Doha
Middle East	Saudi Arabia	Dammam
Middle East	Kuwait	Kuwait City
Africa	South Africa	Johannesburg
Africa	South Africa	Cape Town
Africa	Nigeria	Lagos
Africa	Nigeria	Abuja
MENA	Egypt	Cairo
MENA	Morocco	Casablanca

Find The Top 5 Stockists And Traders Of Al6xn Sanitary Tubing In Accordance With The Required Specifications. Compare Al6xn To 316l.

AL-6XN Pipe Vs 316L Stainless Steel Pipe

AL-6XN Pipe

UNS: N08367
Nicke Content: 23.5 to 25.5 %
Yield Strength: 300-450 MPa
Tensile Strength: 690-860 MPa
Melting Point: 1370-1425°C
Hardness: 95-200 HB
Corrosion Resistance: Excellent Resistance to Chlorides
Temperature Range: -50°C to 315°C up to 600°C

316L Stainless Steel Pipe

UNS: S31603
Nicke Content: 10 to 14.5 %
Yield Strength : 170-300 MPa
Tensile Strength: 485-620 MPa
Melting Point: 1375-1400°C
Hardness: 95-190 HB
Corrosion Resistance: Moderate Chloride Resistance
Temperature Range: -200°C to 300°C

Cut-to-length Services Are Provided By A Lot Of Al6xn Seamless Pipe Distributors In Gcc Countries. Know Why UNS N08367 Pipe Is Referred To As Sanitary Tubing?

AL-6XN Stainless Steel Pipe Size Chart

Contact Below Al6xn Pipe Suppliers in UAE For Custom Size or Thickness

Size	O.D in MM	10 Gauge (3.25) (0.128″)	12 Gauge (2.64) (0.104″)	14 Gauge (2.1) (0.083″)	16 Gauge (1.65) (0.065″)	18 Gauge (1.21) (0.049″)
1/4″	6.35	0.075	0.070	0.065	0.058	0.046
1″	25.4	0.541	0.450	0.351	0.294	0.218
1 1/4″	31.750	0.696	0.580	0.448	0.375	0.275
3/8″	9.52	0.152	0.135	0.113	0.097	0.080
1/2″	12.7	0.226	0.200	0.157	0.134	0.105
5/8″	15.87	0.310	0.264	0.212	0.174	0.134
3/4″	19.05	0.386	0.326	0.256	0.215	0.161
7/8″	22.25	0.465	0.390	0.310	0.252	0.192
1 1/2″	38.1	0.851	0.700	0.542	0.452	0.332
1 3/4″	44.45	1.020	0.832	0.646	0.530	0.390
2″	50.8	1.161	0.960	0.733	0.607	0.447
2 1/4″	57.15	1.315	1.085	0.828	0.687	0.504
2 1/2″	63.5	1.472	1.210	0.924	0.792	0.562
2 3/4″	69.85	1.630	1.338	1.022	0.847	0.619
3″	76.2	1.782	1.460	1.115	0.924	0.676
3 1/2″	88.9	2.092	1.718	1.306	1.082	0.791
4 1/2″	114.3	2.713	2.224	1.608	1.397	1.020
4″	101.6	2.403	1.971	1.497	1.239	0.905
5″	127.0	3.023	2.477	1.879	1.554	1.134
5/16″	7.93	0.114	0.105	0.089	0.079	0.060
5 1/2″	139.7	3.336	2.730	2.070	1.713	1.250
6″	152.4	3.654	2.983	2.261	1.875	1.364

Properties Of UNS N08367 Pipe

Outstanding Corrosion Resistance
Reduces The Iron Oxidation Rate
Has A Lifespan Of Over A Century
High PERN of 43
Suitable For Sanitary Usage
High-Purity Standards
Superior Surface Finish
Weldability and Crevice Reduction

Al-6xn Tubing Dimensions

Nominal Size	OD in mm	Wall Thickness
½	12.7	0.065 (1.651 mm)
¾	19.05	0.065 (1.651 mm)
1	25.4	0.065 (1.651 mm)
1½	38.1	0.065 (1.651 mm)
2	50.8	0.065 (1.651 mm)
2½	63.5	0.065 (1.651 mm)
3	76.2	0.065 (1.651 mm)
4	101.6	0.083 (2.1082 mm)

Find Verified Stockists And Al6xn Pipe Suppliers in UAE Who Supply Pipe & Tubes Which Uses In Heat Exchanger, The Chemical Industry, The Medical Sector, Petroleum Refining, Etc.

Common Uses Of AL-6XN Sanitary Tubing

Heat Exchangers
Mining Industry
Oil and Gas Industry
Pharmaceutical Industry
Chemical Processing
Water Treatment Plants
Marine Applications
Metal Processing
Pressure Vessels
Desalination Plants

Listed Al-6xn Pipe Suppliers Are Verified And Keep Stock Of Material In UAE, Saudi Arabia, Oman & Qatar, Get A Quick Quote Now!

Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries.

Riyadh	Dubai	Muscat	Ras Al Khaimah
Fujairah	Umm Al Quwain	Sharjah	Doha
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

What Is The Recommended Heat Treatment Procedure For N08367 Stainless Steel Tubing After Fabrication ?

Heat Treat Above 2025°F (1110°C)
Never Heat above 2350°F (1290°C)
Avoid Incipient Melting
Cool Rapidly to Prevent Precipitation of Secondary Phases
Avoid Furnace Cooling
Remove All Oxides Completely After Heat Treatment

Surface Finishes ASTM B676 UNS N08367 Welded Tube

Annealed & Pickled (A&P)	2B
Bright Annealed	Mirror
Solution annealed AL-6XN SS pipe	BA polishing
180 Grit Polished	320 Grit
400 grit	600 grit
Matt finish	Cold Drawn
