ASME b16.36 Class 1500 RTJ Orifice Flange Overview
| Flange Manufacturing Type | ASME B16.36 Class 1500 RTJ Orifice Flange |
|---|---|
| B16.36 RTJ Orifice Flange Gaskets Type | Octagonal |
| Size | 1″ To 24″ |
| Applications and Uses | Oil and Gas Industry |
| Manufacturing Specification | ANSI B16.36 |
1500# RTJ Jack Screw Flange & ANSI B16.36 1500lb Orifice Ring Type Joint Flange Suppliers in UAE

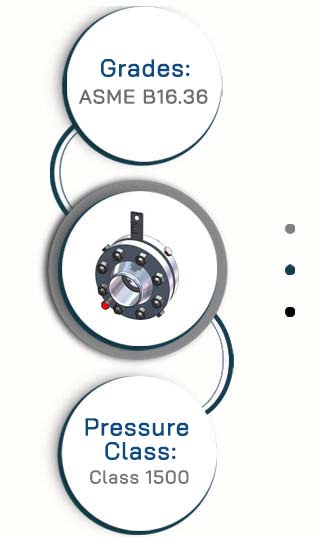

ASME B16.36 Class 1500 RTJ Orifice Flange Specification
Dimensions: ASME B16.36
Size Range: NPS: 1″ To 24″
Pressure rating: Class 1500
Manufacturing Standard: ANSI B16.36
Marking: B16.36 + Manufacturer Name + Size + Material
Flange Facings: RTJ (Ring Type Joint)
Get Quote Directly from ASME B16.36 Class 1500 Orifice Flange Suppliers
100% Tested ASME B16.36 Class 1500 Orifice Flange with MTC EN 10204/3.1
Cut Out All Intermediaries And Direct Buy From Manufacturers of ASME B16.36 Cl1500 RTJ Jack Screw Flange To Save Up To 40%
Weight Chart of ANSI B16 36 Class 1500 RTJ Jack Screw Flange
| Size (Inch) | Weight (kg) |
|---|---|
| 24 | 1511 |
| 20 | 932 |
| 18 | 738 |
| 16 | 510 |
| 14 | 400 |
| 12 | 303 |
| 10 | 204 |
| 8 | 119 |
| 6 | 70 |
| 4 | 22 |
| 3 | 22 |
| 2 1/2 | 15.8 |
| 2 | 11.5 |
| 1 1/2 | 7.8 |
| 1 | 5.4 |
Have Direct Contact With the Verified B16.36 Class 1500 Ring Type Joint Orifice Plate Flanges Suppliers in Dubai for Quality Material and Timely Delivery in the United Arab Emirates
ASME B16.36 Class 1500 RTJ Orifice Flange Dimensions
ANSI B16.36 Cl 1500 Orifice Ring Type Joint Flange Bolt Chart
| ISO Stud Size | Hole Size | Number of Bolts | Bolt Size UNC | RF Stud Length |
|---|---|---|---|---|
| M90 | 3 5/8 | 16 | 3 1/2 | 620 |
| M76 | 3 1/8 | 16 | 3 | 545 |
| M72 | 2 7/8 | 16 | 2 3/4 | 500 |
| M64 | 2 5/8 | 16 | 2 1/2 | 450 |
| M56 | 2 3/8 | 16 | 2 1/4 | 415 |
| M52 | 2 1/8 | 16 | 2 | 380 |
| M48 | 1 | 12 | 1 7/8 | 345 |
| M42 | 1 3/4 | 12 | 1 5/8 | 300 |
| M36 | 1 1/2 | 12 | 1 3/8 | 265 |
| M33 | 1 3/8 | 8 | 1 1/4 | 205 |
| M30 | 1 1/4 | 8 | 1 1/8 | 185 |
| M27 | 1 1/8 | 8 | 1 | 165 |
| M24 | 1 | 8 | 7/8 | 150 |
| M27 | 1 1/8 | 4 | 1 | 160 |
| M24 | 1 | 4 | 7/8 | 150 |
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Check Class 1500 ANSI b16.36 Ring Type Joint Orifice Plate Flanges Dimensions, Weight, And Price List, and Find Genuine Suppliers of 1500lbs Orifice Weld Neck RTJ Flange in the Middle East and South Korea
Class 1500 RTJ Orifice Flange Material
| Duplex Steel ASME B16.36 1500 Rtj Orifice Flanges | Duplex 2205, UNS S31803 (DIN 1.4462), UNS S32205, Super Duplex 2507, UNS S32750 (DIN 1.4410), UNS S32760, ASTM A182 Grade F51, F52, F53, F54, F55, F57, F59, F60, F61, SMO 254, AL6xn, 6Mo, UNS S31254, DIN 1.4547 |
|---|---|
| Nickel Alloy ANSI B16 36 Class 1500 Rtj Jack Screw Flange | ASTM B564 / ASME SB 564M, Nickel 200, Alloy 201, Nickel 205LC, Nickel 205 |
| Inconel Class 1500 Rtj Orifice Flange |
ASME SB 564 UNS N06600 (Alloy 600) W.Nr. 2.4816, UNS N06601 (Alloy 601) W.Nr. 2.4851, UNS N06617 (Alloy 617) W.Nr. 2.4663a, ASTM B564 UNS N06625 (Alloy 625) W.Nr. 2.4856, UNS N06626 (Alloy 625LCF) W.Nr. 2.4856, UNS N06686 (Alloy 686) W.Nr. 2.4606, UNS N06690 (Alloy 690) W.Nr. 2.4642, UNS N06693 (Alloy 693), UNS N09706 (Alloy 706), UNS N07718 (Alloy 718) W.Nr. 2.4668, UNS N07719 (Alloy 718SPF), UNS N07725 (Alloy 725), UNS N07740 (Alloy 740H), UNS N07750 (Alloy X-750) W.Nr. 2.4669, UNS N07751 (Alloy 751), UNS N07754 (Alloy MA754), UNS R30783 (Alloy 783) |
| Incoloy ANSI B16.36 Cl 1500 Orifice Ring Type Joint Flange | ASTM B564 UNS N08825, UNS N09925 |
| Incoloy Alloy 20 ASME B16.36 1500 Rtj Orifice Flanges | ASTM B462 UNS N08020 |
| Hastelloy ASME B16.36 Cl 1500 Rtj Orifice Slip On Flange | ASTM B564 UNS N10276 (Hastelloy C276), UNS N06022 (Hastelloy C22), UNS N06200 (C2000), UNS N06002 (X), UNS N10001 (B), UNS N10665 (B2), UNS N10675 (B3), UNS N06035 (G35), UNS N06985 (G3), UNS N06030 (G30), UNS N06455 (C4), UNS N07022 (C-22HS), UNS N10003 (N), UNS N06635 (S) |
| Monel Class 1500 ANSI B16.36 Rtj Orifice Plate Flanges | ASTM B564 UNS N04400, UNS N05500 |
| SS 904L ASME B16.36 Class 1500 Orifice Weld Neck Rtj Flanges | UNS N08904 |
| Stainless Steel ASME B16.36 Class 1500 Rtj Orifice Pipe Flange | ASTM A182 Gr 304, 304L, 316, 316L, 310, 310S, 317L, 316Ti, 321, 347, 347H, UNS S66286 |
| Carbon Steel ASME B16.36 Cl 1500 Rtj Orifice Slip On Flange | ASTM A105, A105N, A350 LF2 (LTCS), LF3, AISI 4130, AISI 4140, AISI 4340, AISI 4145 |
| Carbon Steel ASTM A694 ASME B16.36 Class 1500 Rtj Orifice Flange | A694 F42, F46, F52, F60, F65, F706 |
| Alloy Steel ASME B16.36 1500 Lb Ring Type Joint Orifice Flange | ASTM A182 F5, F9, F11, F22, F91 |
| Cupro Nickel ASME B16.36 Cl 1500 Ring Type Joint Orifice Flange | Copper Nickel 90/10 and Cuni 70/30 |
| Titanium ASME B16.36 Class 1500 Orifice Weld Neck Rtj Flanges | Titanium Gr 2, Gr 5 |
Get Connected With a Trusted And Audited Class 1500 B16.36 Ring Type Joint Orifice Flange Manufacturer in Bahrain, ASME B16.36 1500# RTJ Jack Screw Flange As Per International Standard And Bespoke Size Range
Types of ASME B16.36 1500 RTJ Orifice Flanges
ASME B16.36 Cl 1500 Ring Type Joint Orifice Flange
ASME B16.36 Class 1500 Orifice Weld Neck RTJ Flanges
ASME B16.36 Cl 1500 RTJ Orifice Slip On Flange
ASME B16.36 1500 RTJ Orifice Flanges
Class 1500 ANSI B16.36 RTJ Orifice Plate Flanges
ASME B16.36 Class 1500 RTJ Orifice Pipe Flange
ASME B16.36 Class 1500 RTJ Orifice Flange Size Chart
| Size (Inch) | Size (mm) |
|---|---|
| 24 | 600 |
| 20 | 500 |
| 18 | 450 |
| 16 | 400 |
| 14 | 350 |
| 12 | 300 |
| 10 | 250 |
| 8 | 200 |
| 6 | 150 |
| 4 | 100 |
| 3 | 80 |
| 2 1/2 | 65 |
| 2 | 50 |
| 1 1/2 | 40 |
| 1 | 25 |
Warehouse Locations of Partner Suppliers
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
What is the Function of the 1500# RTJ Jack Screw Flange in The Pipeline?
The function of the 1500# RTJ jack screw flange in the pipeline are given below:
- Plate insertion
- Reduced force
- Controlled opening
- Maintenance safety
- Safe separation
How Much Pressure Can an ANSI B16.36 1500Lb Orifice Ring Type Joint Flange Take?
The ANSI B16.36 1500Lb Orifice Ring Type Joint Flange can handle pressure upto 2492 PSI
Which Test Reports of ASME b16.36 Cl1500 RTJ Jack Screw Flange Are Mandatory For The Petrochemical Industry?
- Visual inspection
- Hardness test
- Material verification
- Hydrostatic test
ASME B16.36 1500 Lb Ring Type Joint Orifice Flange Bolt Torque Chart
| Size (Inch) | Size in mm | Deeper Than the Serrations (mm) | No deeper than the serrations (mm) |
|---|---|---|---|
| 24 | 600 | 6.0 | 12.0 |
| 20 | 500 | 6.0 | 12.0 |
| 18 | 450 | 6.0 | 12.0 |
| 16 | 400 | 4.5 | 10.0 |
| 14 | 350 | 4.5 | 8.0 |
| 12 | 300 | 4.5 | 8.0 |
| 10 | 250 | 4.5 | 8.0 |
| 8 | 200 | 4.5 | 8.0 |
| 6 | 150 | 3.0 | 6.0 |
| 5 | 125 | 3.0 | 6.0 |
| 4 | 100 | 3.0 | 6.0 |
| 3 | 80 | 1.5 | 4.5 |
| 3 1/2 | 90 | 3.0 | 6.0 |
| 2 | 50 | 1.5 | 3.0 |
| 2 1/2 | 65 | 1.5 | 3.0 |
| 1 | 25 | 1.5 | 3.0 |
| 1 1/2 | 40 | 1.5 | 3.0 |
What are the Uses and Applications of ASME B16.36 Class 1500 Orifice Weld Neck RTJ Flanges?
- Power Generation
- Chemical Processing
- Oil and Gas Industry
- Petrochemical
Sales Agents in Following Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
ASME B16.36 Class 1500 Orifice Weld Neck RTJ Flanges Thickness Chart
| Size | O.D | SCH 160 | SCH 140 | SCH 100 | SCH 120 | SCH 80 | SCH 60 | SCH 40 | SCH 20 | SCH 30 | SCH 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20 | 1.969 | 1.75 | 1.281 | 1.5 | 1.031 | 0.812 | 0.594 | 0.375 | 0.5 | 0.25 |
| 18 | 18 | 1.781 | 1.562 | 1.156 | 1.375 | 0.938 | 0.75 | 0.562 | 0.312 | 0.438 | 0.25 |
| 16 | 16 | 1.594 | 1.438 | 1.031 | 1.219 | 0.844 | 0.656 | 0.5 | 0.312 | 0.375 | 0.25 |
| 14 | 14 | 1.406 | 1.25 | 0.938 | 1.094 | 0.75 | 0.594 | 0.438 | 0.312 | 0.375 | 0.25 |
| 12 | 12.75 | 1.312 | 1.125 | 0.844 | 1 | 0.688 | 0.562 | 0.406 | 0.25 | 0.33 | 0.18 |
| 10 | 10.75 | 1.125 | 1 | 0.719 | 0.844 | 0.594 | 0.5 | 0.365 | 0.25 | 0.307 | 0.165 |
| 8 | 8.625 | 0.906 | 0.812 | 0.594 | 0.719 | 0.5 | 0.406 | 0.322 | 0.25 | 0.277 | 0.148 |
| 6 | 6.625 | 0.719 | – | – | 0.562 | 0.432 | – | 0.28 | – | – | 0.134 |
| 5 | 5.563 | 0.625 | – | – | 0.5 | 0.375 | – | 0.258 | – | – | 0.134 |
| 4 | 4.5 | 0.531 | – | – | 0.438 | 0.337 | – | 0.237 | – | – | 0.12 |
| 3 | 3.5 | 0.438 | – | – | – | 0.3 | – | 0.216 | – | – | 0.12 |
| 2 | 2.375 | 0.344 | – | – | – | 0.218 | – | 0.154 | – | – | 0.109 |
| 1 ½ | 1.9 | 0.281 | – | – | – | 0.2 | – | 0.145 | – | – | 0.109 |
| 1 | 1.315 | 0.25 | – | – | – | 0.179 | – | 0.133 | – | – | 0.109 |
How do You Measure The Size of the ASME B16.36 1500# RTJ Jack Screw Flange?
to measure the size of the ASME B16.36 1500# RTJ jack screw flange following points must be remembered:
- Outside Diameter
- NPS
- Flange Thickness
- Bolt Circle Diameter
- Bolt Hole Size
- RTJ Groove Dimensions
- Orifice Bore
- Jack Screw Size
Readily Available Stock Of ASME B16.36 Class 1500 RTJ Orifice Flange
Storage Sites of Partner Suppliers
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
