ASME b16.36 Class 900 RTJ Orifice Flange Highlights
| Flange Manufacturing Type | ASME B16.36 Class 900 RTJ Orifice Flange |
|---|---|
| B16.36 RTJ Orifice Flange Gaskets Type | Octagonal, Oval |
| Size | 1″ To 24″ |
| Applications and Uses | Petrochemicals Industry |
| Manufacturing Specification | ANSI B16.36 |
900Lb RTJ Jack Screw Flanges suppliers in Dubai, UAE
ASME B16.36 Class 900 RTJ Orifice Flange Dimensions
Check class 900 Ring Type Joint Orifice Flange Available Material, Pressure Rating, And Price Per Kg In Bahrain
ANSI B16 36 Class 900 RTJ Jack Screw Flange Weight Chart
| Size (Inch) | Weight (kg) |
|---|---|
| 24 | 1511 |
| 20 | 932 |
| 18 | 738 |
| 16 | 510 |
| 14 | 400 |
| 12 | 303 |
| 10 | 204 |
| 8 | 119 |
| 6 | 70 |
| 4 | 22 |
| 3 | 22 |
| 2 1/2 | 15.8 |
| 2 | 11.5 |
| 1 1/2 | 7.8 |
| 1 | 5.4 |
Buy cl 900 RTJ Jack Screw Flange As Per Asme B16.36, Check Manufacturing Methods, Advantages, And Disadvantages

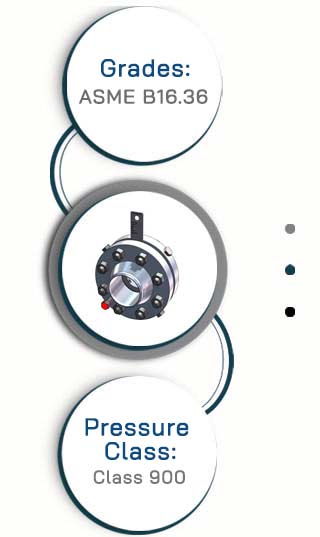

ASME B16.36 Class 900 RTJ Orifice Flange Specification
Dimensions: ASME B16.36
Size Range: NPS: 1″ To 24″
Pressure rating: Class 900
Manufacturing Standard: ANSI B16.36
Marking: B16.36 + Manufacturer Name + Size + Material
Flange Facings: RTJ (Ring Type Joint)
Get Quote Directly from ASME B16.36 Class 900 Orifice Flange Suppliers
100% Tested ASME B16.36 Class 900 Orifice Flange with MTC EN 10204/3.1
Find Reputable Class 900 ANSI b16.36 RTJ Orifice Plate Flanges Suppliers In The Middle East And Asia, Who Can Supply ASME b16.36 cl 900 Ring Type Joint Orifice Slip On Flange As Per Your Needs
ASME B16.36 900 LB Ring Type Joint Orifice Flange Bolt Chart
| Normal Pipe Size | Bolts Number | Bolt Circle in inch | Diameter Stud Bolts | Length Of Stud Bolt in Inch | Diameter Of Holes |
|---|---|---|---|---|---|
| 1 | 4 | 3.5 | 3/4 | 5/8 | 5.51 |
| 1.1/2 | 4 | 4.5 | 7/8 | 3/4 | 5.51 |
| 2 | 8 | 5 | 3/4 | 5/8 | 5.51 |
| 2.1/2 | 8 | 5.87 | 7/8 | 3/4 | 5.70 |
| 3 | 8 | 7.5 | 1 | 7/8 | 6.49 |
| 4 | 8 | 9.25 | 1.1/4 | 1.1/8 | 7.48 |
| 6 | 12 | 12.5 | 1.1/4 | 1.1/8 | 8.26 |
| 8 | 12 | 15.5 | 1.1/2 | 13/8 | 9.44 |
| 10 | 16 | 18.5 | 1.1/2 | 13/8 | 10.03 |
| 12 | 20 | 21 | 1.1/2 | 13/8 | 10.82 |
| 14 | 20 | 22 | 1.5/8 | 1.1/2 | 11.41 |
| 16 | 20 | 24.25 | 1.3/4 | 1.5/8 | 12.00 |
| 18 | 20 | 27 | 2 | 17/8 | 13.77 |
| 20 | 20 | 29.5 | 2.1/8 | 2 | 14.76 |
Check ASME B16.36 Cl 900 RTJ Orifice Pipe Flange and 900LB Orifice Weld Neck Ring Type Joint Flanges Pressure Rating, Weight, And Composition
Class 900 RTJ Orifice Flange Material
| Duplex Steel ANSI B16 36 Class 900 RTJ Jack Screw Flange | Duplex 2205, UNS S31803 (DIN 1.4462), UNS S32205, Super Duplex 2507, UNS S32750 (DIN 1.4410), UNS S32760, ASTM A182 Grade F51, F52, F53, F54, F55, F57, F59, F60, F61, SMO 254, AL6xn, 6Mo, UNS S31254, DIN 1.4547 |
|---|---|
| Nickel Alloy ASME B16.36 Class 900 RTJ Orifice Pipe Flange | ASTM B564 / ASME SB 564M, Nickel 200, Alloy 201, Nickel 205LC, Nickel 205 |
| Inconel ANSI B16.36 Cl 900 Orifice Ring Type Joint Flange |
ASME SB 564 UNS N06600 (Alloy 600) W.Nr. 2.4816, UNS N06601 (Alloy 601) W.Nr. 2.4851, UNS N06617 (Alloy 617) W.Nr. 2.4663a, ASTM B564 UNS N06625 (Alloy 625) W.Nr. 2.4856, UNS N06626 (Alloy 625LCF) W.Nr. 2.4856, UNS N06686 (Alloy 686) W.Nr. 2.4606, UNS N06690 (Alloy 690) W.Nr. 2.4642, UNS N06693 (Alloy 693), UNS N09706 (Alloy 706), UNS N07718 (Alloy 718) W.Nr. 2.4668, UNS N07719 (Alloy 718SPF), UNS N07725 (Alloy 725), UNS N07740 (Alloy 740H), UNS N07750 (Alloy X-750) W.Nr. 2.4669, UNS N07751 (Alloy 751), UNS N07754 (Alloy MA754), UNS R30783 (Alloy 783) |
| Incoloy ASME B16.36 Class 900 Orifice Weld Neck RTJ Flanges | ASTM B564 UNS N08825, UNS N09925 |
| Incoloy Alloy 20 ASME B16.36 900 RTJ Orifice Flanges | ASTM B462 UNS N08020 |
| Hastelloy Class 900 ANSI B16.36 RTJ Orifice Plate Flanges | ASTM B564 UNS N10276 (Hastelloy C276), UNS N06022 (Hastelloy C22), UNS N06200 (C2000), UNS N06002 (X), UNS N10001 (B), UNS N10665 (B2), UNS N10675 (B3), UNS N06035 (G35), UNS N06985 (G3), UNS N06030 (G30), UNS N06455 (C4), UNS N07022 (C-22HS), UNS N10003 (N), UNS N06635 (S) |
| Monel ASME B16.36 Cl 900 RTJ Orifice Slip On Flange | ASTM B564 UNS N04400, UNS N05500 |
| SS 904L ASME B16.36 Cl 900 Ring Type Joint Orifice Flange | UNS N08904 |
| Stainless Steel Class 900 RTJ Orifice Flange | ASTM A182 Gr 304, 304L, 316, 316L, 310, 310S, 317L, 316Ti, 321, 347, 347H, UNS S66286 |
| Carbon Steel ANSI B16 36 Class 900 RTJ Jack Screw Flange | ASTM A105, A105N, A350 LF2 (LTCS), LF3, AISI 4130, AISI 4140, AISI 4340, AISI 4145 |
| Carbon Steel ASTM A694 ASME B16.36 900 Lb Ring Type Joint Orifice Flange | A694 F42, F46, F52, F60, F65, F706 |
| Alloy Steel Class 900 ANSI B16.36 RTJ Orifice Plate Flanges | ASTM A182 F5, F9, F11, F22, F91 |
| Cupro Nickel ASME B16.36 Class 900 RTJ Orifice Flange | Copper Nickel 90/10 and Cuni 70/30 |
| Titanium ANSI B16 36 Class 900 RTJ Jack Screw Flange | Titanium Gr 2, Gr 5 |
Storage Sites of Partner Suppliers
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Types of ASME B16.36 Class 900 RTJ Orifice Flange
Class 900 ANSI B16.36 RTJ Orifice Plate Flanges
ASME B16.36 Cl 900 RTJ Orifice Slip On Flange
ASME B16.36 Cl 900 Ring Type Joint Orifice Flange
ASME B16.36 Class 900 RTJ Orifice Flange
ANSI B16 36 Class 900 RTJ Jack Screw Flange
ASME B16.36 Class 900 RTJ Orifice Pipe Flange
What Size 600LB RTJ Jack Screw Flanges is Best For The Petrochemical Industry?
| Size (Inch) | Size (mm) |
|---|---|
| 24 | 600 |
| 20 | 500 |
| 18 | 450 |
| 16 | 400 |
| 14 | 350 |
| 12 | 300 |
| 10 | 250 |
| 8 | 200 |
| 6 | 150 |
| 4 | 100 |
| 3 | 80 |
| 2 1/2 | 65 |
| 2 | 50 |
| 1 1/2 | 40 |
| 1 | 25 |
Applications of ASME B16.36 Class 900 RTJ Orifice Flange
- Gas Processing
- Oil production
- Power Generation
- Petrochemicals
Sales Agents in Following Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
Pressure Rating of ASME B16.36 Class 900 Orifice Weld Neck RTJ Flanges
| Temperature (°F) | 900# |
|---|---|
| 1500 | 80 |
| 1450 | 105 |
| 1400 | 145 |
| 1350 | 185 |
| 1300 | 255 |
| 1250 | 340 |
| 1200 | 465 |
| 1150 | 595 |
| 1100 | 770 |
| 1000 | 965 |
| 1050 | 925 |
| 950 | 1145 |
| 900 | 1165 |
| 850 | 1190 |
| 800 | 1210 |
| 750 | 1245 |
| 700 | 1275 |
| 650 | 1290 |
| 600 | 1310 |
| 500 | 1395 |
| 400 | 1490 |
| 300 | 1620 |
| 200 | 1800 |
| -20 to 100 | 2160 |
How to Check The MTC And Hydro Test Report of the ASME B16.36 Class 900 RTJ Orifice Flange
- Ultrasonic test
- Hydrostatic test
- Pneumatic test
- Visual Inspection
Warehouse Locations of Partner Suppliers
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
ASME B16.36 900 RTJ Orifice Flanges Bolt Torque
| Size (Inch) | No Deeper Than the Serrations mm() |
|---|---|
| 24 | 12.0 |
| 20 | 12.0 |
| 16 | 10.0 |
| 18 | 12.0 |
| 14 | 8.0 |
| 12 | 8.0 |
| 10 | 8.0 |
| 8 | 8.0 |
| 6 | 6.0 |
| 5 | 6.0 |
| 4 | 6.0 |
| 3 | 4.5 |
| 2 1/2 | 3.0 |
| 2 | 3.0 |
| 1 1/2 | 3.0 |
| 1 | 3.0 |

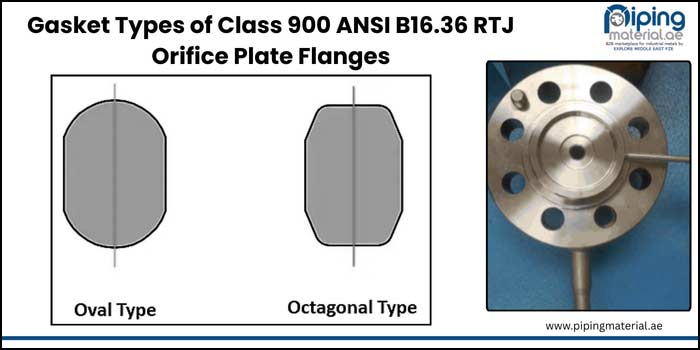

Gasket Types of Class 900 ANSI B16.36 RTJ Orifice Plate Flanges
What is the Importance of ASME B16.36 Cl 900 RTJ Orifice Slip On Flange in The Pipeline?
Some the important points for ASME B16.36 Cl 900 RTJ orifice slip on flange in the pipeline are given below
- Instrument tapping
- Easy inspection
- Flow metering
- High pressure sealing
- Standard compatibility
Does ASME B16.36 Cl 900 RTJ Orifice Pipe Flange Crack?
Class 900 RTJ orifice flanges may crack due to high stress, temperature changes, or corrosion
