ASME B16.47 Flange

Check ANSI B16.47 slip on flange dimensions and B16.47 Series A flange weight chart

ASME B16.47 Flange dimensions, weight and specification


ASME B16.47 Flange Specification

Size Standard Pressure
NPS 26 through NPS 60 ASME B16.47 (Large Diameter Flanges)
  • Class 150
  • Class 300
  • Class 400
  • Class 600
  • Class 900
  • Class 1500
  • Class 2500
Series Type Of Flanges Facings type
  • Series A
  • Series B
  • Blind
  • Weld neck
  • Slip on

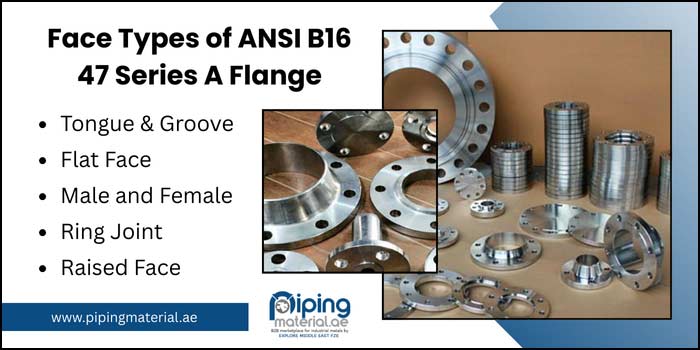

  • RF
  • FF
  • RTJ
Types Of Process Material Specification (ANSI B16.47 slip on flange) Types of B16.47 Series A flange testing
  • Forged
  • Stamped
  • Plate
  • Casting
  • Inconel: ( important Nickel Alloy 600, 601, 625, 718 grade), 601GC, 602CA, 603XL, 686, 690, 693, 617, 625LCF, 706, 718SPF, 725, 740H, X-750, 751, MA754, MA758, 783
  • Stainless Steel : ASTM A182 Gr F304/304L, F316/316L, F316Ti, F310/310S, F321/321H, F347/347H, F317L, F904L
  • LTCS : ASME SA350 LTCS LF2/ Gr LF3/ Gr LF6
  • Alloy Steel : ASME SA182 Grade F1/ F5/ F9/ F11/ F12/ F22/ F91
  • CS (Carbon steel) :
    • ASTM A181 Gr CL 60 and CL 70
    • ASTM Carbon Steel A105
    • SA694 F42/46/52/56/60/65/70
  • Nickel alloy: ASTM B564 Ni 200, Ni 201
  • Titanium : ASTM B381 F2/3/5/12
  • Copper nickel (CU-Ni) (for sea water):
    • ASTM B151
    • CU-Ni 70/30
    • Copper nickel 90/10, C70620, CW352H, EEMUA 234/3-6, WL 2.1972, C7060T
  • Super Duplex and Duplex: F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550), ASME SA182 Grade F44 (UNS S31254), F51 (UNS S31803)
  • Incoloy: 800/ 800H/800 HT, 803, 825, 832, 864, 890, 903, 907, 908, 909, 925, 926, 945, 945X, MA956, DS, 330, A-286, 27-7MO, 020, 028, 25-6HN
  • Hastelloy: Nickel B, B-2, B-3, Alloy C-22, C-22HS, C-276, C-2000, C, C-4, N, S, W, X, G-35, G-3, G-30
  • Monel: (top selling Gr 400, K-500), 401, 404, R-405, 502
  • Magnetic particle test
  • Hydrostatic test
  • Hardness test
  • Proof test
  • Metallurgical test
  • Impact test
  • Tensile testing
Get in touch with genuine suppliers of ASME B16.47 flange in UAE Export Packaging Logistics
  • Aging Treatment / Solution Treatment
  • Quotation with Valuable Data Sheet
  • Design / Modify Drawings for Free
  • Ship with MTC Acc. to EN 10204/3.1
  • Lowest price in UAE
  • Quick Response within 24 Hours
  • Wooden Case
  • Plastic Bag
  • Or custom as required
  • By Sea
  • By Air (for urgent demand)

View the sizes, pressure ratings, and price per kg of ANSI b16.47 Series A class 150 flanges in Dubai.

Tired of paying exorbitant prices for ANSI B16.47 Series A class 300 flanges from stockists? For wholesale prices in the GCC countries.

Buy ANSI b16.47 stainless steel flanges from authorized suppliers in the UAE. Check ASME 16.47 series b flange dimensions
Choose from the list of verified ASME B16.47 blind flange manufacturers in Sharjah before ordering, and compare response times and prices

ASME B16.47 flange weight chart in LBS

NPS 150# 300# 600# 900#
Weld Neck (WNRF) Blind (BLRF) Weld Neck (WNRF) Blind (BLRF) Weld Neck (WNRF) Blind (BLRF) Weld Neck (WNRF) Blind (BLRF)
22 240.3 357.14 449.7 626.11 683.43 963.42 – –
26 339.5 707.68 641.5 1051.6 992.0 1712.99 1962.11 2425.08
28 385.8 837.75 776.02 1287.5 1115.54 2004 2325.87 2976.24
30 449.7 992.08 892.87 1510.17 1267.6 2367.76 2711.68 3549.44
32 559.9 1234.5 1025.15 1748.27 1415.37 2762.39 3262.84 4276.96
34 601.8 1377.8 1153.0 2026.05 1554.26 3145.99 3858.09 5092.67
36 707.6 1675.5 1278.68 2363.35 1763.7 3670.69 4402.63 5864.29
38 789.2 1829.8 714.29 1984.16 1485.92 3326.77 4409.24 5930.43
40 850.9 2039.2 862.00 2350.12 1598.35 3736.83 4764.1 6503.63
42 974.44 2380.9 943.57 2658.77 1973.14 4470.97 5244.79 7231.16
44 1082.47 2711.6 1069.2 3037.97 2096.6 4951.58 7321.55 8399.61
46 1157.43 2965.2 1232.3 3461.25 2325.87 5606.35 7107.70 9766.47
48 1278.6 3351.02 1316.16 3847.06 2749.16 6505.84 7716.17 10714.47
50 1375.6 3677.3 1485.9 4371.76 3137.17 7453.82 – –
52 1518.9 4116.0 1604.9 4836.94 3291.50 8117.42 – –
54 1675.5 4603.2 1920.23 5595.33 3608.96 9019.11 – –
56 1862.9 5088.2 2030.46 6014.21 4063.11 10108.19 – –
58 2034.8 5630.6 2134.07 6558.75 4307.83 10992.25 – –
60 2140.69 6095.7 2275.17 7165.02 5187.47 12676.58 – –



Assumed ANSI B16.47 flange import price and shipping time variations :

Libya Nigeria Germany
Estimated Shipping 45-60 days 30 days 20 days
Extra cost 5% 5% 5%
Poland Finland Sweden
Estimated Shipping 45 days 45 days 45 days
Extra cost 5% 5% 5%
Note: View online price list from the leading ASME B16.47 flange stockist, manufacturers and suppliers listed on pipingmaterial.ae

Types of ASME B16.47 flange

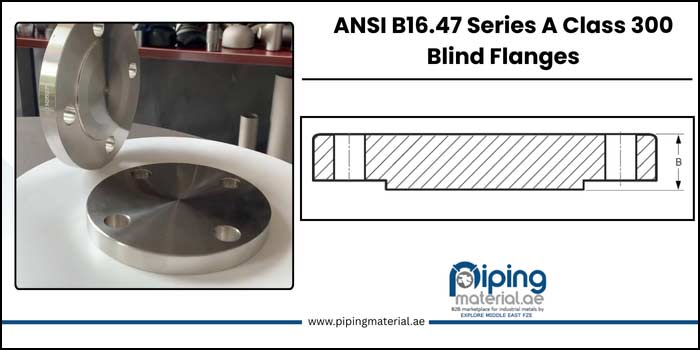

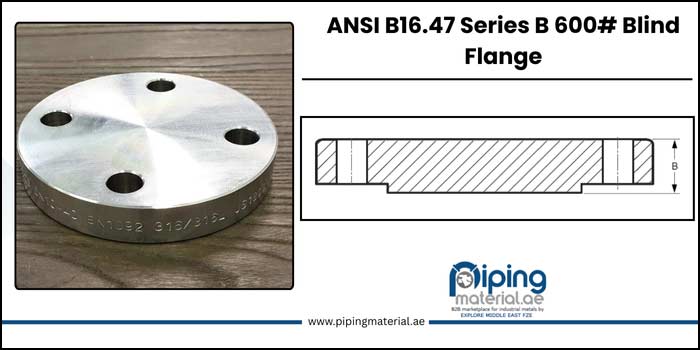

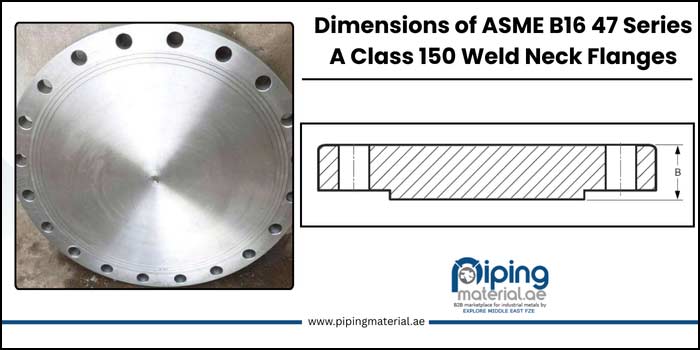

ASME B16.47 Blind flange

ASME B16.47 Blind flange

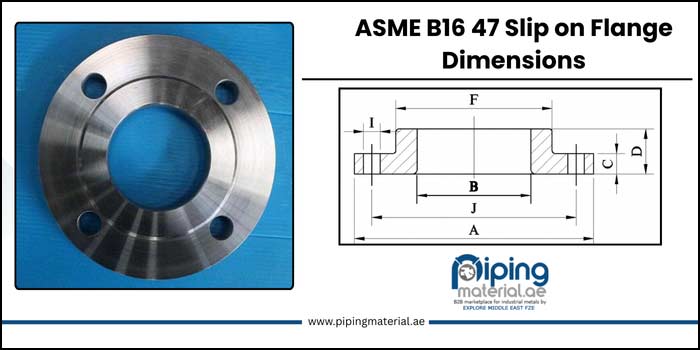

ANSI B16.47 Slip On flange

ANSI B16.47 Slip On flange

ASME B16.47 Series A Plate flange

ASME B16.47 Series A Plate flange

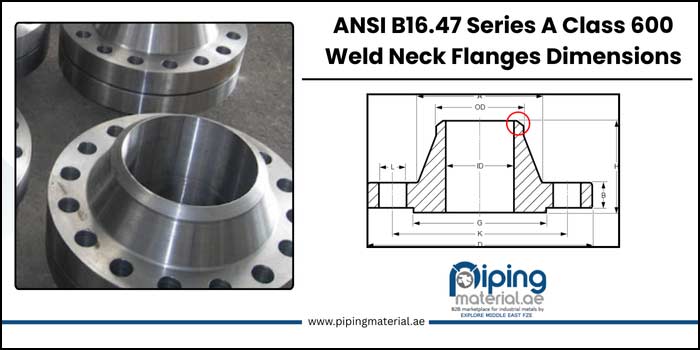

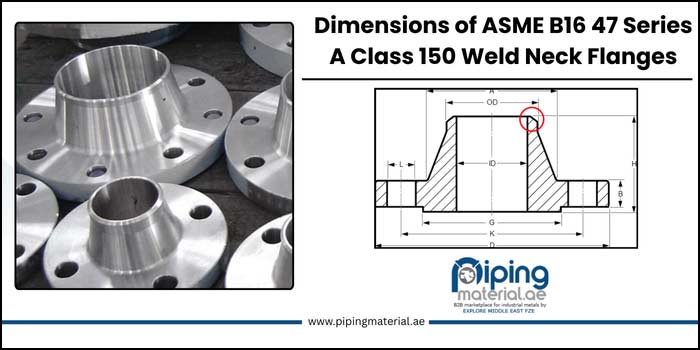

ASME B16.47 Series B Weld Neck flange
