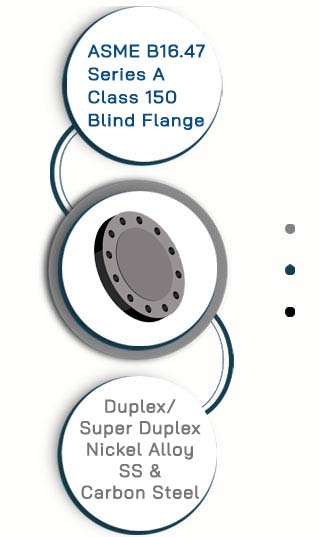

ASME B16.47 Series A Class 150 Blind Flange Quick Overview
| Flange Manufacturing Type | ASME B16.47 Series A Class 150 Blind Flange |
|---|---|
| ASME B16 47 Class 150 Blind Flange Physical Attribute | Heavy, Thicker, Stronger & Large Diameter Bolting |
| Size | 26″ To 60″ |
| Applications and Uses | Water Treatment, Which Is Used for Pipe to Valve Connection |
| Manufacturing Specification | MSS SP44 |
Check Series A BLRF flange dimensions and ANSI b16 47 sr a cl 150 blank flanges pressure rating
Dimensions Chart for ASME B16.47 Series A Blind Flange
| Nominal Sizes | Wall Thck. (T) (Min.) | Outside Diameter (O) | Bolt Circle (C) | Raised Face Dia. (R) | Dia. of Holes | Approx. Weight (lbs) | No. of Holes |
|---|---|---|---|---|---|---|---|
| 60 | 5.19 | 73 | 69.25 | 66 | 1.88 | 6155 | 52 |
| 58 | 5.06 | 71 | 67.25 | 64 | 1.88 | 5675 | 48 |
| 56 | 4.88 | 68.75 | 65 | 62 | 1.88 | 5130 | 48 |
| 54 | 4.75 | 66.25 | 62.75 | 59.50 | 1.88 | 4639 | 44 |
| 52 | 4.56 | 64 | 60.50 | 57.50 | 1.88 | 4156 | 44 |
| 50 | 4.38 | 61.75 | 58.25 | 55.50 | 1.88 | 3716 | 44 |
| 48 | 4.25 | 59.50 | 56 | 53.50 | 1.62 | 3350 | 44 |
| 46 | 4.06 | 57.25 | 53.75 | 51 | 1.62 | 2961 | 40 |
| 44 | 4 | 55.25 | 51.75 | 49 | 1.62 | 2715 | 40 |
| 42 | 3.81 | 53 | 49.50 | 47 | 1.62 | 2380 | 36 |
| 40 | 3.56 | 50.75 | 47.25 | 44.25 | 1.62 | 2040 | 36 |
| 38 | 3.44 | 48.75 | 45.25 | 42.25 | 1.62 | 1819 | 32 |
| 36 | 3.56 | 46 | 42.75 | 40.25 | 1.62 | 1676 | 32 |
| 34 | 3.25 | 43.75 | 40.50 | 38 | 1.62 | 1384 | 32 |
| 32 | 3.19 | 41.75 | 38.50 | 36 | 1.62 | 1238 | 28 |
| 30 | 2.94 | 38.75 | 36 | 33.75 | 1.38 | 982 | 28 |
| 28 | 2.81 | 36.50 | 34 | 31.50 | 1.38 | 833 | 28 |
| 26 | 2.69 | 34.25 | 31.75 | 29.50 | 1.38 | 702 | 24 |
At What Temperature Does ASME B16 47 Class 150 Blind Flange Get Weak ?
At Approx. 200°C (400°F) Temperature, ASME B16 47 Class 150 Blind Flange Get Weak
ASME B16.47 Series A Class 150 Blind Flange Specification
Dimensions: ASME B16.47 Series A
Size Range: NPS: 26″ – 60″
Pressure Rating: Class 150 (26″ – 60″)
Manufacturing Standard: MSS SP44
Marking: MSS SP-44 + Manufacturer Name + Size + Material
Flange Facings: Raised Face (RF), Ring Joint (RTJ), Flat Face (FF)
Get Quote Directly from ASME B16.47 Series A Class 150 Blind Flange Suppliers
100% Tested ASME B16.47 150# Blind Flange with MTC EN 10204/3.1
Explore Nearby Locations for the Quickest Delivery Options
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Asme b16.47 series a 150# blind flange and ANSI b16.47 SR b 150LB blank flanges for high-temperature applications in UAE
Bolt Chart for ASME B16 47 Class 150 Blind Flange
| Nominal Size (inch) | Dia of Bolts or Studs | # Bolts or Studs | Length of Stud |
|---|---|---|---|
| 24 | 1.25 | 20 | 6-3/4 |
| 20 | 1.13 | 20 | 6-1/4 |
| 18 | 1.13 | 16 | 5-3/4 |
| 16 | 1.00 | 16 | 5-1/4 |
| 14 | 1.00 | 12 | 5-1/4 |
| 12 | 0.88 | 12 | 4-3/4 |
| 10 | 0.88 | 12 | 4-1/2 |
| 8 | 0.75 | 8 | 4-1/4 |
| 6 | 0.75 | 8 | 4 |
| 5 | 0.75 | 8 | 3-3/4 |
| 4 | 0.63 | 8 | 3-1/2 |
| 3-1/2 | 0.63 | 8 | 3-1/2 |
| 3 | 0.63 | 4 | 3-1/2 |
| 2-1/2 | 0.63 | 4 | 3-1/2 |
| 2 | 0.63 | 4 | 3-1/4 |
| 1-1/2 | 0.50 | 4 | 2-3/4 |
| 1-1/4 | 0.50 | 4 | 2-3/4 |
| 1 | 0.50 | 4 | 2-1/2 |
| 3/4 | 0.50 | 4 | 2-1/2 |
| 1/2 | 0.50 | 4 | 2-1/4 |

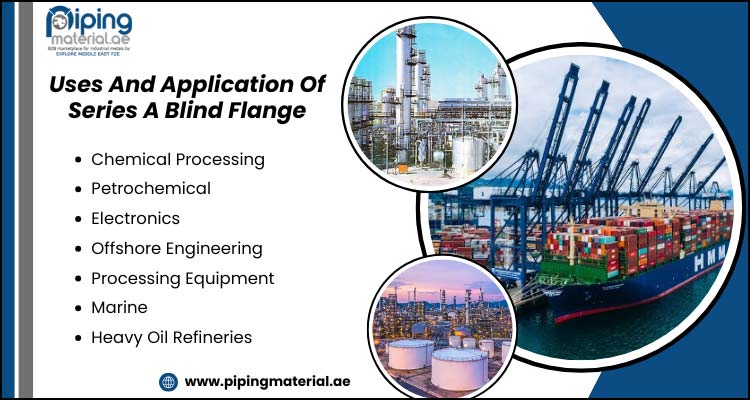

What Are The Uses And Application Of Series A Blind Flange ?
Many of the listed suppliers can supply ANSI b16.47 Sr a 150 blind flange and series a blank flange at dealer price in the middle east, check sizes and availability
ASME B16 47 Series A Class 150 Blind Flange Material
| Inconel ASME B16.47 Series A Class 150 Blind Flange |
ASME SB 564 UNS N06600 (Alloy 600) W.Nr. 2.4816, UNS N06601 (Alloy 601) W.Nr. 2.4851, UNS N06617 |
|---|---|
| Nickel Alloy ASME B16.47 Series A 150# Blind Flange | ASTM B564 / ASME SB 564M, Nickel 200, Alloy 201, Nickel 205LC, Nickel 205 |
| Duplex Steel Series A 150# Blind Flange | Duplex 2205, UNS S31803 (DIN 1.4462), UNS S32205, Super Duplex 2507, UNS S32750 (DIN 1.4410), UNS S32760, ASTM A182 Grade F51, F52, F53, F54, F55, F57, F59, F60, F61, SMO 254, AL6xn, 6Mo, UNS S31254, DIN 1.4547 |
| Incoloy ASME B16.47 Series A 150 Lb Blind Flange | ASTM B564 UNS N08825, UNS N09925 |
| Monel ASME B16.47 Class 150 Blind Flange | ASTM B564 UNS N04400, UNS N05500 |
| Hastelloy ASME B16.47 Series A Class 150 Blind Flange | ASTM B564 UNS N10276 (Hastelloy C276), UNS N06022 (Hastelloy C22), UNS N06200 (C2000), UNS N06002 (X), UNS N10001 (B), UNS N10665 (B2), UNS N10675 (B3), UNS N06035 (G35), UNS N06985 (G3), UNS N06030 (G30), UNS N06455 (C4), UNS N07022 (C-22HS), UNS N10003 (N), UNS N06635 (S) |
| Incoloy Alloy 20 ASME B16.47 Series A 150# Blind Flange | ASTM B462 UNS N08020 |
| SS 904L Series A 150# Blind Flange | UNS N08904 |
| Carbon Steel ASTM A694 ASME B16.47 Series A 150 Lb Blind Flange | A694 F42, F46, F52, F60, F65, F706 |
| Carbon Steel ASME B16.47 Class 150 Blind Flange | ASTM A105, A105N, A350 LF2 (LTCS), LF3, AISI 4130, AISI 4140, AISI 4340, AISI 4145 |
| Stainless Steel ASME B16.47 Series A Class 150 Blind Flange | ASTM A182 Gr 304, 304L, 316, 316L, 310, 310S, 317L, 316Ti, 321, 347, 347H, UNS S66286 |
| Alloy Steel ASME B16.47 Series A 150# Blind Flange | ASTM A182 F5, F9, F11, F22, F91 |
| Titanium Series A 150# Blind Flange | Titanium Gr 2, Gr 5 |
| Cupro Nickel ASME B16.47 Series A 150 Lb Blind Flange | Copper Nickel 90/10 and Cuni 70/30 |
ANSI B16.47 Series A Class 150 Blind Flange Production Technique
- Threaded
- Plate
- Forged
- Screwed
Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
Common Types of ASME B16.47 Series A Class 150 Blind Flange
ASME B16 47 Class 150 Blind Flange
ANSI B16.47 Series A Class 150 Blind Flange
ANSI B16.47 Series A Class 150 Blank Flanges
ASME B16 47 Class 150 Series A Blrf Flange
B16.47 Series A Blind Flanges
ANSI B16 47 Series A Class 150 Blank Flange
You can save 30%-40% cost when ordering ASME b16 47 SR A CL 150 blind flange and series A BLRF flange directly from manufacturers in the middle east and Asia
Series A Blind Flange Torque Specs
| Nominal Sizes | Rec. Torque (ft-lbs) | Bolt Diameter | Quantity of Bolts | |
|---|---|---|---|---|
| Max | Min | |||
| 26 | 670 | 650 | 1 1/4 | 24 |
| 24 | 670 | 650 | 1 1/4 | 20 |
| 22 | 480 | 460 | 1 1/8 | 20 |
| 20 | 470 | 450 | 1 1/8 | 20 |
| 18 | 470 | 450 | 1 1/8 | 16 |
| 16 | 340 | 320 | 1 | 12 |
| 14 | 340 | 320 | 1 | 12 |
| 12 | 230 | 220 | 7/8 | 12 |
| 10 | 230 | 215 | 7/8 | 12 |
| 8 | 150 | 130 | 3/4 | 8 |
| 6 | 150 | 130 | 3/4 | 8 |
| 5 | 130 | 120 | 3/4 | 8 |
| 4 | 110 | 100 | 5/8 | 8 |
| 3 1/2 | 120 | 110 | 5/8 | 8 |
| 3 | 120 | 110 | 5/8 | 4 |
| 2 1/2 | 90 | 80 | 5/8 | 4 |
| 2 | 90 | 80 | 5/8 | 4 |
| 1 | 50 | 40 | 1/2 | 4 |
| 1/2 | 50 | 40 | 1/2 | 4 |
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Characteristics for ANSI B16 47 Series A Class 150 Blank Flanges
- Highly Resistance to Various Reducing Chemical
- Excellence Resistant to Caustic Alkalie
- Good Magnetostrictive Properties
- Higher Electrical Conductivity
- Neutral & Alkalies Salt Solution Resistance
- Better Thermal Properties
- Outstanding Resistance to Dry Fluorine
- Widely Used in Handle Caustic Soda
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Thickness Chart of ASME B16.47 Series A Blind Flange
| Nominal Line Sizes (Inch) | Class 150# | |
|---|---|---|
| Wall Thck. | Outside Diameter (O.D.) | |
| 26 | 1 5/8″ | 30 3/8″ |
| 28 | 1 3/4″ | 32 5/8″ |
| 30 | 1 7/8″ | 34 5/8″ |
| 32 | 2″ | 36 7/8″ |
| 34 | 2 1/8″ | 38 7/8″ |
| 36 | 2 1/4″ | 41 1/8″ |
| 38 | 2 3/8″ | 43 5/8″ |
| 40 | 2 1/2″ | 45 5/8″ |
| 42 | 2 5/8″ | 47 7/8″ |
| 44 | 2 3/4″ | 50 1/8″ |
| 46 | 2 7/8″ | 52 1/8″ |
| 48 | 3″ | 54 3/8″ |
| 50 | 3 1/8″ | 56 3/8″ |
| 52 | 3 1/4″ | 58 5/8″ |
| 54 | 3 1/4″ | 60 7/8″ |
| 56 | 3 3/8″ | 63 1/8″ |
| 58 | 3 1/2″ | 65 3/8″ |
| 60 | 3 5/8″ | 67 3/8″ |

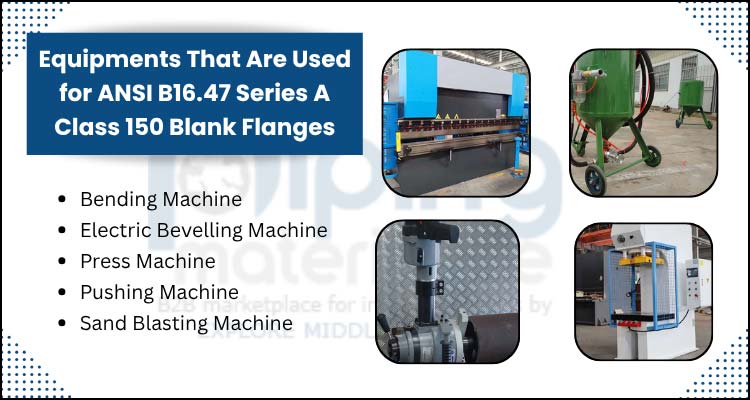

Which Equipments Are Used for ANSI B16.47 Series A Class 150 Blank Flanges ?
We have an stock of ASME B16.47 Series A Class 150 Blind Flange which are sourced from top manufacturer that are supplied from Dubai and Ajman.
B16.47 series blind flanges in large diameter, check SR A 150# blank flanges pressure rating, weight & dimension
Series A Blind Flange Weight Chart In Kg
| Nominal Sizes | Dimension | Weight (Kg) | |||||
|---|---|---|---|---|---|---|---|
| MM | Inch | Thickness D (mm) | Outside Diameter (O.D.) (mm) | ||||
| 600 | 24 | 47.8 | 812.8 | 185.0 | |||
| 500 | 20 | 42.9 | 698.5 | 122.0 | |||
| 450 | 18 | 39.6 | 635 | 93.7 | |||
| 400 | 16 | 36.6 | 596.9 | 76.1 | |||
| 350 | 14 | 35.1 | 533.4 | 58.1 | |||
| 300 | 12 | 31.8 | 482.6 | 43.2 | |||
| 250 | 10 | 30.2 | 406.4 | 28.6 | |||
| 200 | 8 | 28.4 | 342.9 | 19.6 | |||
| 150 | 6 | 25.4 | 279.4 | 11.3 | |||
| 125 | 5 | 23.9 | 254 | 8.6 | |||
| 100 | 4 | 23.9 | 228.6 | 7.0 | |||
| 90 | 3 1/2 | 23.9 | 215.9 | 6.2 | |||
| 80 | 3 | 23.9 | 190.5 | 4.9 | |||
| 65 | 2 1/2 | 22.4 | 177.8 | 3.9 | |||
| 50 | 2 | 19.1 | 152.4 | 2.4 | |||
| 40 | 1 1/2 | 17.5 | 127 | 1.5 | |||
| 32 | 1 1/4 | 15.7 | 117.3 | 1.2 | |||
| 25 | 1 | 14.2 | 108 | 0.9 | |||
| 20 | 3/4 | 12.7 | 98.6 | 0.6 | |||
| 15 | 1/2 | 11.2 | 88.9 | 0.4 | |||
Why Testing Is Required For ANSI B16.47 Series A Class 150 Blind Flange ?
- Hydrostatic Tested Machine
- Ultrasonic Flaw Detector
- Direct Read Spectrograph
- X-Ray Detector
- Magnetic Particle Detector
Material Inspection Facilities in the Following Countries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
ASME B16.47 Series A Blind Flange Temperature Rating
| Flange Table | 475°C | 450°C | 425°C | 400°C | 350°C | 300°C | 250°C | -10°C to 200°C |
|---|---|---|---|---|---|---|---|---|
| 160 | 40 | 60 | 80 | 92 | 112 | 132 | 152 | 160 |
| 100 | 25 | 37 | 50 | 57 | 70 | 83 | 95 | 100 |
| 64 | 16 | 24 | 32 | 36 | 44 | 53 | 61 | 64 |
| 40 | 10 | 15 | 20 | 23 | 28 | 33 | 38 | 40 |
| 25 | 6 | 9 | 12 | 14 | 17 | 21 | 24 | 25 |
| 16 | – | – | – | 9 | 11 | 13 | 15 | 16 |
| 10 | – | – | – | 6 | 7 | 8 | 9 | 10 |
| 6 | – | – | – | – | – | 5 | 5.5 | 6 |
Advantages of Using Series A Blind Flange
High-performance ASME B16.47 Series A Class 150 Blind Flange Supplier in UAE offering Flanges that are built to endure at toughest conditions.
How To Calculate Weight Of ASME B16.47 Series A Blind Flange?
Weight = Volume x Density
Series A Blind Flange Coating Methods
- Anti Rust Paint
- Yellow Transparent
- Oil Black Painted
- Zinc Plated
- Hot & Cold Dip Galvanize
