ASME B16.47 Series A Class 300 Blind Flange Information
| Flange Manufacturing Type | ASME B16.47 Series A Class 300 Blind Flange |
|---|---|
| ASME B16.47 Class 300 Blind Flange Physical Attribute | Heavy, Thicker, Stronger & Larger Diameter Bolting |
| Size | 26″ To 60″ |
| Applications and Uses | Chemical Process & Power Generation |
| Manufacturing Specification | MSS SP44 |
Check ANSI b16.47 Sr a 300 lb blank flange dimension and weight chart
ASME B16.47 Series A Class 300 Blind Flange Specification
Dimensions: ASME B16.47 Series A
Size Range: NPS: 26″ to 60″
Pressure Rating: Class 300 (26″ – 60″)
Manufacturing Standard: MSS SP44
Marking: MSS SP-44 + Manufacturer Name + Size + Material
Flange Facings: Flat Face (FF), Ring Joint (RTJ), Raised Face (RF)
Get Quote Directly from ASME B16.47 Series A Class 300 Blind Flange Suppliers
100% Tested ASME B16.47 300# Blind Flange with MTC EN 10204/3.1

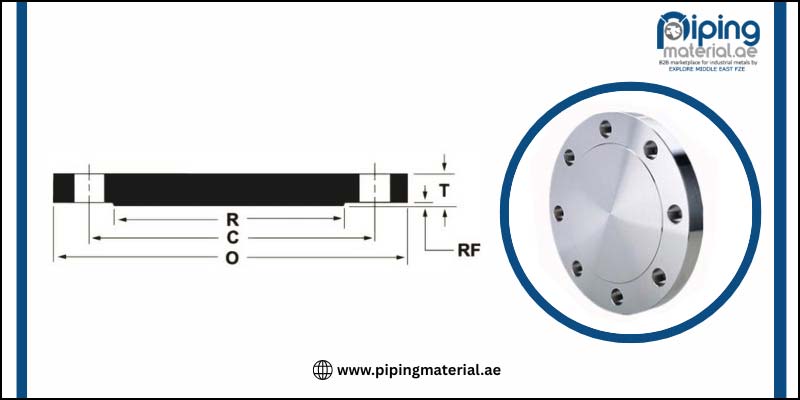

Dimension Chart of ASME B16.47 Series A Class 300 Blind Flange
| Nominal Sizes | Wal Thck. (T) | Outside Diameter (O) | Bolt Circle (C) | Approx. Weight (lbs) | Holes Diameter | Raised Face Dia. (R) | No. of Holes |
|---|---|---|---|---|---|---|---|
| 60 | 6.44 | 71.25 | 67 | 7274 | 2.38 | 64 | 32 |
| 58 | 6.25 | 69.25 | 65 | 6669 | 2.38 | 62 | 32 |
| 56 | 6.06 | 67.25 | 63 | 6099 | 2.38 | 59.75 | 28 |
| 54 | 6 | 65.25 | 61 | 5684 | 2.38 | 57.75 | 28 |
| 52 | 5.69 | 62.25 | 58.25 | 4906 | 2.12 | 55.50 | 32 |
| 50 | 5.50 | 60.25 | 56.25 | 4442 | 2.12 | 53.50 | 32 |
| 48 | 5.25 | 57.75 | 54 | 3896 | 2 | 51.25 | 32 |
| 46 | 5.06 | 55.75 | 52 | 3500 | 2 | 49 | 28 |
| 44 | 4.88 | 53.25 | 49.75 | 3079 | 1.88 | 47 | 32 |
| 42 | 4.69 | 50.75 | 47.50 | 2689 | 1.75 | 44.75 | 32 |
| 40 | 4.50 | 48.75 | 45.50 | 2380 | 1.75 | 42.75 | 32 |
| 38 | 4.25 | 46 | 43 | 2001 | 1.62 | 40.50 | 32 |
| 36 | 4.38 | 50 | 46 | 2435 | 2.12 | 40.25 | 32 |
| 34 | 4.12 | 47.50 | 43.50 | 2068 | 2 | 38 | 28 |
| 32 | 3.94 | 45.25 | 41.50 | 1795 | 2 | 36 | 28 |
| 30 | 3.75 | 43 | 39.25 | 1545 | 1.88 | 33.75 | 28 |
| 28 | 3.56 | 40.75 | 37 | 1315 | 1.75 | 31.50 | 28 |
| 26 | 3.31 | 38.25 | 34.50 | 1079 | 1.75 | 29.50 | 28 |
Get in touch with the middle east trusted ASME b16.47 series a cl 300 BLRF flange suppliers directly for high-quality products supplied on time.
Benefits of Using ASME B16.47 Series A Class 300 Blind Flange
- Leaks Prevention
- Easier to Maintain & Inspection
- Flexible
- Costly Effective
ASME B16.47 Series A Class 300 Blind Flange Bolt Chart
| Nominal Sizes | Diameter of Bolts & Studs | # Bolts & Studs | Stud Length |
|---|---|---|---|
| 24 | 1.50 | 24 | 9 |
| 20 | 1.25 | 24 | 8 |
| 18 | 1.25 | 24 | 7-3/4 |
| 16 | 1.25 | 20 | 7-1/2 |
| 14 | 1.13 | 20 | 7 |
| 12 | 1.13 | 16 | 6-3/4 |
| 10 | 1.00 | 16 | 6-1/4 |
| 8 | 0.88 | 12 | 5-1/2 |
| 6 | 0.75 | 12 | 4-3/4 |
| 5 | 0.75 | 8 | 4-3/4 |
| 4 | 0.75 | 8 | 4-1/2 |
| 3-1/2 | 0.75 | 8 | 4-1/4 |
| 3 | 0.75 | 8 | 4-1/4 |
| 2-1/2 | 0.75 | 8 | 4 |
| 2 | 0.63 | 8 | 3-1/2 |
| 1-1/2 | 0.75 | 4 | 3-1/2 |
| 1 | 0.63 | 4 | 3 |
| 1/2 | 0.50 | 4 | 2-1/2 |
Buy all types of b16.47 Series A blind flanges as per industry standards, check manufacturing methods, advantages, and Disadvantages
In Which Industrial Sectors ASME B16.47 Series A Class 300 Blind Flange Are Used ?
Material of ASME B16.47 Series A Class 300 Blind Flange
| Duplex Steel ASME B16.47 Series A 300# Blind Flange | Duplex 2205, UNS S31803 (DIN 1.4462), UNS S32205, Super Duplex 2507, UNS S32750 (DIN 1.4410), UNS S32760, ASTM A182 Grade F51, F52, F53, F54, F55, F57, F59, F60, F61, SMO 254, AL6xn, 6Mo, UNS S31254, DIN 1.4547 |
|---|---|
| Nickel Alloy Series A Class 300 Blind Flange | ASTM B564 / ASME SB 564M, Nickel 200, Alloy 201, Nickel 205LC, Nickel 205 |
| Inconel ASME B16.47 Series A Cl 300 Blind Flange |
ASME SB 564 UNS N06600 (Alloy 600) W.Nr. 2.4816, UNS N06601 (Alloy 601) W.Nr. 2.4851, UNS N06617 |
| Incoloy ASME B16.47 300 Lb Blind Flange | ASTM B564 UNS N08825, UNS N09925 |
| Incoloy Alloy 20 ASME B16.47 Cl 300 Blind Flange | ASTM B462 UNS N08020 |
| Hastelloy ASME B16.47 300# Blind Flange | ASTM B564 UNS N10276 (Hastelloy C276), UNS N06022 (Hastelloy C22), UNS N06200 (C2000), UNS N06002 (X), UNS N10001 (B), UNS N10665 (B2), UNS N10675 (B3), UNS N06035 (G35), UNS N06985 (G3), UNS N06030 (G30), UNS N06455 (C4), UNS N07022 (C-22HS), UNS N10003 (N), UNS N06635 (S) |
| Monel ASME B16.47 Series A 300# Blind Flange | ASTM B564 UNS N04400, UNS N05500 |
| SS 904L Series A Class 300 Blind Flange | UNS N08904 |
| Stainless Steel ASME B16.47 Series A Cl 300 Blind Flange | ASTM A182 Gr 304, 304L, 316, 316L, 310, 310S, 317L, 316Ti, 321, 347, 347H, UNS S66286 |
| Carbon Steel ASME B16.47 300 Lb Blind Flange | ASTM A105, A105N, A350 LF2 (LTCS), LF3, AISI 4130, AISI 4140, AISI 4340, AISI 4145 |
| Carbon Steel ASTM A694 ASME B16.47 Cl 300 Blind Flange | A694 F42, F46, F52, F60, F65, F706 |
| Alloy Steel ASME B16.47 300# Blind Flange | ASTM A182 F5, F9, F11, F22, F91 |
| Cupro Nickel ASME B16.47 Series A 300# Blind Flange | Copper Nickel 90/10 and Cuni 70/30 |
| Titanium Series A Class 300 Blind Flange | Titanium Gr 2, Gr 5 |
Material Inspection Facilities in the Following Countries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Manufacturing Process for ASME B16.47 Series A Class 300 Blind Flange
- Selection of Raw Material
- Material Cutting
- Heating
- Forging
- Heat treatment
- Machining
- Testing
- Pickling & Anti Corrosive
- Quality Evaluation
Advantages & Disadvantages Of B16.47 Series Blind Flanges
ASME B16.47 Series A Class 300 Blind Flange HS Code
| Grade | HS Code |
|---|---|
| ASME B16.47 Series A 300# | 7307210000 |
Not happy with your current stockists? Get connected with verified series A 300A blind flange suppliers in middle east countries for the lowest price
Price List for ASME B16.47 Series A Class 300 Blind Flange
| Material | Class | Face Form | Nominal Sizes (Inch) | Price In AED |
|---|---|---|---|---|
| Blind Flange | 300# | Flat Face | 0.5 | AED 232.02 |
| 0.75 | AED 241.17 | |||
| 1 | AED 249.41 | |||
| 1.25 | AED 251.57 | |||
| 1.5 | AED 258.52 | |||
| 2 | AED 260.64 | |||
| 2.5 | AED 313.11 | |||
| 3 | AED 258.60 | |||
| 4 | AED 336.22 | |||
| 5 | AED 412.89 | |||
| 6 | AED 463.34 | |||
| 8 | AED 735.06 | |||
| 10 | AED 1,520.75 | |||
| 12 | AED 2,132.29 | |||
| 14 | AED 3,129.39 | |||
| 16 | AED 3,321.70 | |||
| 18 | AED 4,621.19 | |||
| 20 | AED 6,327.56 | |||
| 24 | AED 8,347.59 |
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Why ASME B16.47 Series A Class 300 Blind Flange Surface Finish Is Important ?
Beacause of Achieving a Tighted & Leak Proof Seal Surface Finish Is Important.
ASME B16.47 Series A Class 300 Blind Flange Thickness Chart
| Nominal Sizes (Inch) | Outside Daimeter (O.D.) | SCH 160 | SCH 140 | SCH 120 | SCH 100 | SCH 80 | EXT Hvy | SCH 60 | SCH 40 | STD Wall | SCH 30 | SCH 20 | SCH 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 48 | – | – | – | – | – | 0.5 | – | – | 0.375 | – | – | – |
| 42 | 42 | – | – | – | – | – | 0.5 | – | – | 0.375 | – | – | – |
| 40 | 40 | – | – | – | – | – | 0.5 | – | – | 0.375 | – | – | – |
| 36 | 36 | – | – | – | – | – | 0.5 | – | 0.75 | 0.375 | 0.625 | 0.5 | 0.312 |
| 30 | 30 | – | – | – | – | – | 0.5 | – | – | 0.375 | 0.625 | 0.5 | 0.312 |
| 26 | 26 | – | – | – | – | – | 0.5 | – | – | 0.375 | – | – | – |
| 24 | 24 | 2.344 | 2.062 | 1.812 | 1.531 | 1.219 | 0.5 | 0.969 | 0.688 | 0.375 | 0.562 | 0.375 | 0.25 |
| 22 | 22 | – | – | – | – | – | 0.5 | – | – | 0.375 | – | – | 0.25 |
| 20 | 20 | 1.969 | 1.75 | 1.5 | 1.281 | 1.031 | 0.5 | 0.812 | 0.594 | 0.375 | 0.5 | 0.375 | 0.25 |
| 18 | 18 | 1.781 | 1.562 | 1.375 | 1.156 | 0.938 | 0.5 | 0.75 | 0.562 | 0.375 | 0.438 | 0.312 | 0.25 |
| 16 | 16 | 1.594 | 1.438 | 1.219 | 1.031 | 0.844 | 0.5 | 0.656 | 0.5 | 0.375 | 0.375 | 0.312 | 0.25 |
| 14 | 14 | 1.406 | 1.25 | 1.094 | 0.938 | 0.75 | 0.5 | 0.594 | 0.438 | 0.375 | 0.375 | 0.312 | 0.25 |
| 12 | 12.75 | 1.312 | 1.125 | 1 | 0.844 | 0.688 | 0.5 | 0.562 | 0.406 | 0.375 | 0.33 | 0.25 | 0.18 |
| 10 | 10.75 | 1.125 | 1 | 0.844 | 0.719 | 0.594 | 0.5 | 0.5 | 0.365 | 0.365 | 0.307 | 0.25 | 0.165 |
| 8 | 8.625 | 0.906 | 0.812 | 0.719 | 0.594 | 0.5 | 0.5 | 0.406 | 0.322 | 0.322 | 0.277 | 0.25 | 0.148 |
| 6 | 6.625 | 0.719 | – | 0.562 | – | 0.432 | 0.432 | – | 0.28 | 0.28 | – | – | 0.134 |
| 5 | 5.563 | 0.625 | – | 0.5 | – | 0.375 | 0.375 | – | 0.258 | 0.258 | – | – | 0.134 |
| 4 | 4.5 | 0.531 | – | 0.438 | – | 0.337 | 0.337 | – | 0.237 | 0.237 | – | – | 0.12 |
| 3 | 3.5 | 0.438 | – | – | – | 0.3 | 0.3 | – | 0.216 | 0.216 | – | – | 0.12 |
| 2 | 2.375 | 0.344 | – | – | – | 0.218 | 0.218 | – | 0.154 | 0.154 | – | – | 0.109 |
| 1 ½ | 1.9 | 0.281 | – | – | – | 0.2 | 0.2 | – | 0.145 | 0.145 | – | – | 0.109 |
| 1 | 1.315 | 0.25 | – | – | – | 0.179 | 0.179 | – | 0.133 | 0.133 | – | – | 0.109 |
| ¾ | 1.05 | 0.219 | – | – | – | 0.154 | 0.154 | – | 0.113 | 0.113 | – | – | 0.083 |
Coating Methods for Series A Class 300 Blind Flange
- Oil Black Painted
- Zinc Plated
- Yellow Transparent
- Anti Rust Paint
- Cold & Hot Dip Galvanize
Popular Types of ASME B16.47 Series A Class 300 Blind Flange
ASME B16.47 Series A Class 300 Blind Flanges
ASME B16.47 Series A 300# Blind Flange
Series A Class 300 Blind Flange
ASME B16.47 300 Lb Blind Flange
Series A 300# Blind Flange
ASME B16.47 Cl 300 Blind Flanges
We maintain ready stock of ASME B16.47 Series A Class 300 Blind Flange that are sourced from top manufacturers, supplied from Abu Dhabi and Sharjah.
Check Series A 300Lb blind flange and ANSI b16.47 Sr A 300 lb BLRF flange dimensions, weight & specification
ASME B16.47 Series A Class 300 Blind Flange Weight
| Nominal Sizes | Weight in Kg |
|---|---|
| 60 | 3250 |
| 58 | 2975 |
| 56 | 2728 |
| 54 | 2538 |
| 52 | 2194 |
| 50 | 1983 |
| 48 | 1745 |
| 46 | 1570 |
| 44 | 1378 |
| 42 | 1206 |
| 40 | 1066 |
| 38 | 900 |
| 36 | 1072 |
| 34 | 919 |
| 32 | 793 |
| 30 | 685 |
| 28 | 584 |
| 26 | 477 |
| 22 | 284 |
Explore Nearby Locations for the Quickest Delivery Options
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |

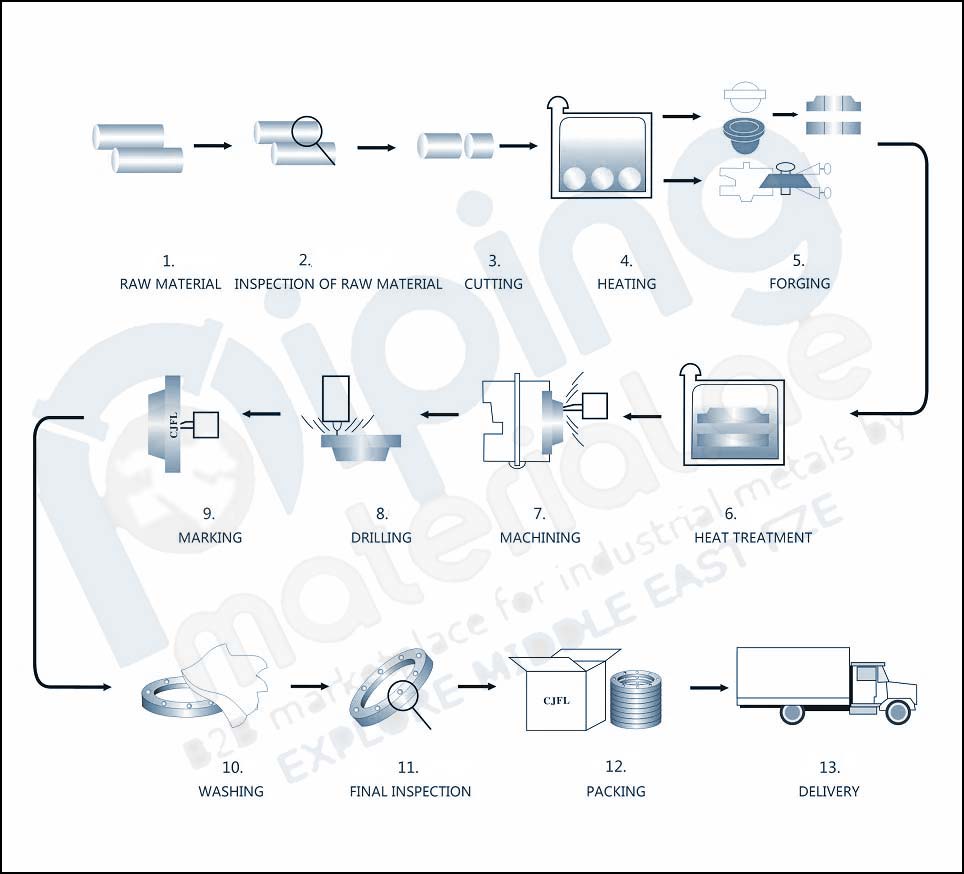

Manufacturing Process of ASME B16.47 Series A Class 300 Blind Flange
ASME B16.47 Series A Class 300 Blind Flange Pressure Rating
| Temperature (°F) | Class 300 |
|---|---|
| Cr Mo | |
| 1000 | 215 |
| 950 | 345 |
| 900 | 450 |
| 850 | 485 |
| 800 | 510 |
| 750 | 530 |
| 700 | 570 |
| 650 | 590 |
| 600 | 605 |
| 500 | 665 |
| 400 | 705 |
| 300 | 730 |
| 200 | 750 |
| 100 | 750 |
Leading ASME B16.47 Series A Class 300 Blind Flange Supplier in UAE offering durable and precision in every flange delivered.
Testing Requirements for ASME B16.47 Series A Class 300 Blind Flange
- Hydrostatic Test machine
- Ultrasonic Testing
- Direct Reading Spectrograph
- X-Ray Detection
Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
What Are Series A Class 300 Blind Flange Installation Instructions ?
