ASME B16.47 Series A Class 400 Blind Flange Overview

Flange Manufacturing Type	ASME B16.47 Series A Class 400 Blind Flange
ASME B16.47 Class 400 Blind Flange Physical Attribute	Thicker, Heavier, Stronger & Larger Diameter Bolting
Size	26″ To 60″
Applications and Uses	Nuclear Power System, Heating Systems
Manufacturing Specification	MSS SP44

Table of Content

ASME B16.47 Series A Class 400 Blind Flange OD Dimensions
What Temperature Can B16.47 Sr A 400 Lbs Blrf Flange Withstand ?

ASME B16.47 Series A Class 400 Blind Flange Specifications
Bolt Chart of Using ASME B16.47 Series A Class 400 Blind Flange
ASME B16.47 Series A Class 400 Blind Flange Material
Series A Class 400 Blind Flange Popular Types
Common Mistakes that can Avoid When Use of Blind Flanges
Where Are ANSI B16.47 Sr A 400 LBS Blind Flanges Used ?
ASME B16.47 Series A Class 400 Blind Flange Wall Thickness Chart
Testing Procedure for Series A Class 400 Blind Flange
ASME B16.47 Series A Class 400 Blind Flange Weight
Advantages of Using Serie A 400# Blind Flange
ASME B16.47 Series A Class 400 Blind Flange OD Specs
6 Major Benefits for Series A Class 400 Blind Flange
400# Series A Blind Flange Gasket Chart
How To Choose The Right Series A Class 400 Blank Flange ?
Are ASME B16.47 Series A Class 400 Blind Flange Suitable For Marine Use ?

Check Series A Cl 400 BLRF flange dimension and ANSI b16.47 Sr a 400# blank flange pressure rating

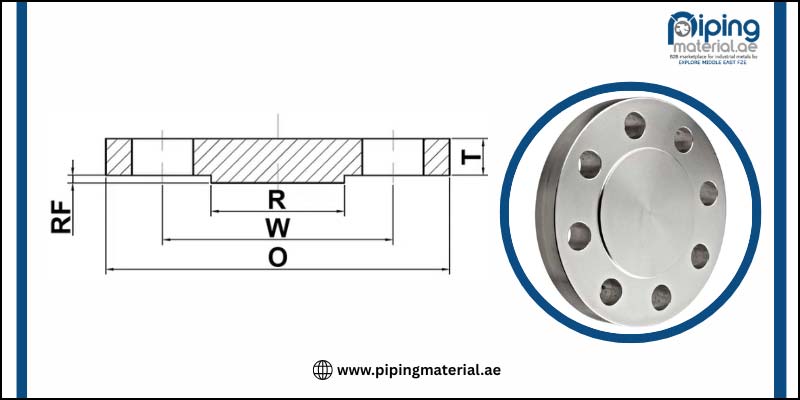

ASME B16.47 Series A Class 400 Blind Flange OD Dimensions

Nominal Sizes	Wall Thck. (T) (min)	Outside Diameter (O.D.) (O)	No. of Holes	Raised Face Dia. (R)	Bolt Circle (W)	Dia. of Holes	Approx. Weight (lbs)
60	7.44	74.25	32	64.38	69.00	2.88	9126
58	7.12	71.00	32	62.12	66.25	2.62	7986
56	6.94	69.00	32	60.12	64.25	2.62	7352
54	6.75	67.00	28	57.88	62.25	2.62	6742
52	6.44	63.75	32	55.62	59.50	2.38	5823
50	6.25	61.75	32	53.62	57.50	2.38	5303
48	6.00	59.50	28	51.50	55.25	2.38	4725
46	5.75	56.75	36	49.50	52.75	2.12	4120
44	5.50	54.50	32	47.25	50.50	2.12	3635
42	5.25	52.00	32	45.00	48.25	2.00	3160
40	5.12	50.00	32	43.00	46.25	2.00	2849
38	4.88	47.50	32	40.75	44.00	1.88	2450
36	5.06	50.00	32	40.25	46.00	2.12	2815
34	4.81	47.50	28	38.00	43.50	2.12	2415
32	4.56	45.25	28	36.00	41.50	2.12	2075
30	4.38	43.00	28	33.75	39.25	2.12	1802
28	4.12	40.75	28	31.50	37.00	2.00	1520
26	3.88	38.25	28	29.50	34.50	1.88	1263

What Temperature Can B16.47 Sr A 400 Lbs Blrf Flange Withstand ?

At Temperature of 14°F To 887°F (-10°C To 475°C) B16.47 Sr A 400 Lbs Blrf Flange Can Withstand.
