ASME B16.47 Series A Class 600 Blind Flange Short Info.
| Flange Manufacturing Type | ASME B16.47 Series A Class 600 Blind Flange |
|---|---|
| ASME B16.47 Class 600 Blind Flange Physical Attribute | Heavier, Thicker, Stronger & Larger Diameter Bolting |
| Size | 26″ – 60″ |
| Applications and Uses | Petrochemical & Marine Uses |
| Manufacturing Specification | MSS SP44 |
Check Sr a 600lb blank flange weight and ANSI b16.47 series a cl 600 BLRF flanges dimension chart

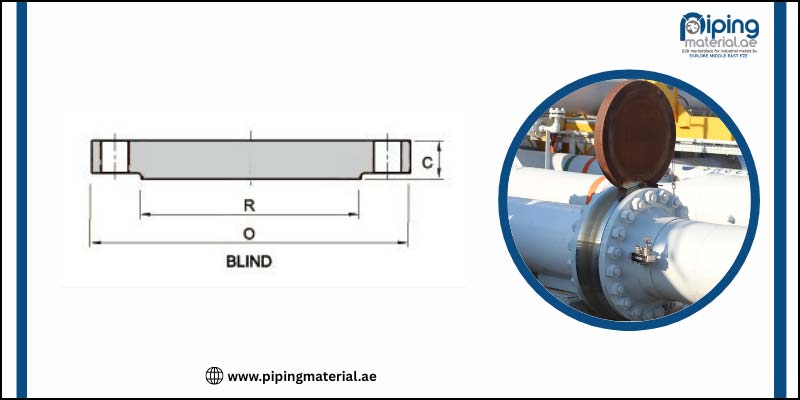

Dimension Chart for ASME B16.47 Series A Class 600 Blind Flange
| Nominal Sizes (Inch) | Thck. | Outside Diameter (O.D.) | Dia. of Bolt | Raised Face Dia. | No. of Bolt Holes | Dia. of Bolt Circle | Dia. of Bolt Holes | Fillet Radius Min. |
|---|---|---|---|---|---|---|---|---|
| C | O | DB | R | BN | BD | BH | r1 | |
| 60″ | 242.8 | 1993.9 | 3 1/2 | 1657.4 | 28 | 1822.5 | 91.9 | 17.5 |
| 58″ | 231.6 | 1905 | 3 1/4 | 1600.2 | 32 | 1746.3 | 85.9 | 15.7 |
| 56″ | 225.6 | 1854.2 | 3 1/4 | 1543.1 | 32 | 1695.5 | 85.9 | 15.7 |
| 54″ | 217.4 | 1778 | 3 | 1492.3 | 32 | 1632 | 79.2 | 14.2 |
| 52″ | 209.6 | 1720.9 | 3 | 1435.1 | 32 | 1574.8 | 79.2 | 14.2 |
| 50″ | 203.2 | 1670.1 | 3 | 1384.3 | 28 | 1524 | 79.2 | 14.2 |
| 48″ | 195.3 | 1593.9 | 2 3/4 | 1333.5 | 32 | 1460.5 | 73.2 | 14.2 |
| 46″ | 185.7 | 1511.3 | 2 1/2 | 1276.4 | 32 | 1390.7 | 66.5 | 14.2 |
| 44″ | 177.8 | 1454.2 | 2 1/2 | 1225.6 | 32 | 1333.5 | 66.5 | 14.2 |
| 42″ | 171.5 | 1403.4 | 2 1/2 | 1168.4 | 28 | 1282.7 | 66.5 | 14.2 |
| 40″ | 162.1 | 1320.8 | 2 1/4 | 1111.3 | 32 | 1212.9 | 60.5 | 14.2 |
| 38″ | 155.4 | 1270 | 2 1/4 | 1054.1 | 28 | 1162.1 | 60.5 | 14.2 |
| 36″ | 162.1 | 1314.5 | 2 1/2 | 1022.4 | 28 | 1193.8 | 66.5 | 14.2 |
| 34″ | 153.9 | 1244.6 | 2 1/4 | 965.2 | 28 | 1130.3 | 60.5 | 14.2 |
| 32″ | 147.6 | 1193.8 | 2 1/4 | 914.4 | 28 | 1079.5 | 60.5 | 12.7 |
| 30″ | 139.7 | 1130.3 | 2 | 857.3 | 28 | 1022.4 | 53.8 | 12.7 |
| 28″ | 131.8 | 1073.2 | 2 | 800.1 | 28 | 965.2 | 53.8 | 12.7 |
| 26″ | 125.5 | 1016 | 1 7/8 | 749.3 | 28 | 914.4 | 50.8 | 12.7 |
ASME B16.47 Series A Class 600 Blind Flange Specifications
Dimensions: ASME B16.47 Series A
Size Range: NPS: 26″ – 60″
Pressure Rating: Class 900 (26″ – 36″); Class 150, 300, 600 (26″ – 60″)
Manufacturing Standard: MSS SP44
Marking: MSS SP-44 + Manufacturer Name + Size + Material
Flange Facings: Raised Face (RF), Flat Face (FF), Ring Joint (RTJ)
Get Quote Directly from ASME B16.47 Series A Class 600 Blind Flange Suppliers
100% Tested ASME B16.47 600# Blind Flange with MTC EN 10204/3.1
Bolt Chart of ASME B16.47 Series A 600# Blind Flange
| Nominal Sizes (Inch) | Class 600 In Inch | |
|---|---|---|
| L | D | |
| 60 | – | – |
| 58 | – | – |
| 56 | – | – |
| 54 | – | – |
| 52 | – | – |
| 50 | – | – |
| 48 | – | – |
| 46 | – | – |
| 44 | – | – |
| 42 | – | – |
| 40 | – | – |
| 38 | – | – |
| 36 | 17-3/4 | 2-1/4 |
| 34 | 17-1/4 | 2-1/4 |
| 32 | 15-3/4 | 2 |
| 30 | 15-1/4 | 1-7/8 |
| 28 | 14-1/4 | 1-3/4 |
| 26 | 13-3/4 | 1-5/8 |
Choose among the verified suppliers of ASME b16.47 Sr A 600# blind flange in middle east countries, and compare the price list and quality
Material of ASME B16.47 Series A Class 600 BLRF Flange
| Duplex Steel ASME B16.47 Series A Cl 600 Blind Flange | Duplex 2205, UNS S31803 (DIN 1.4462), UNS S32205, Super Duplex 2507, UNS S32750 (DIN 1.4410), UNS S32760, ASTM A182 Grade F51, F52, F53, F54, F55, F57, F59, F60, F61, SMO 254, AL6xn, 6Mo, UNS S31254, DIN 1.4547 |
|---|---|
| Nickel Alloy Serie A 600# Blank Flange | ASTM B564 / ASME SB 564M, Nickel 200, Alloy 201, Nickel 205LC, Nickel 205 |
| Inconel ASME B16.47 Series A class 600 BLRF Flange |
ASME SB 564 UNS N06600 (Alloy 600) W.Nr. 2.4816, UNS N06601 (Alloy 601) W.Nr. 2.4851, UNS N06617 |
| Incoloy ASME B16.47 Series A 600# Blind Flange | ASTM B564 UNS N08825, UNS N09925 |
| Incoloy Alloy 20 ASME B16.47 A class 600 Blind Flange | ASTM B462 UNS N08020 |
| Hastelloy ASME B16.47 Series A 600 Lbs Blank Flange | ASTM B564 UNS N10276 (Hastelloy C276), UNS N06022 (Hastelloy C22), UNS N06200 (C2000), UNS N06002 (X), UNS N10001 (B), UNS N10665 (B2), UNS N10675 (B3), UNS N06035 (G35), UNS N06985 (G3), UNS N06030 (G30), UNS N06455 (C4), UNS N07022 (C-22HS), UNS N10003 (N), UNS N06635 (S) |
| Monel ASME B16.47 Series A Cl 600 Blind Flange | ASTM B564 UNS N04400, UNS N05500 |
| SS 904L Serie A 600# Blank Flange | UNS N08904 |
| Stainless Steel ASME B16.47 Series A class 600 BLRF Flange | ASTM A182 Gr 304, 304L, 316, 316L, 310, 310S, 317L, 316Ti, 321, 347, 347H, UNS S66286 |
| Carbon Steel ASME B16.47 Series A 600# Blind Flange | ASTM A105, A105N, A350 LF2 (LTCS), LF3, AISI 4130, AISI 4140, AISI 4340, AISI 4145 |
| Carbon Steel ASTM A694 ASME B16.47 A class 600 Blind Flange | A694 F42, F46, F52, F60, F65, F706 |
| Alloy Steel ASME B16.47 Series A 600 Lbs Blank Flange | ASTM A182 F5, F9, F11, F22, F91 |
| Cupro Nickel ASME B16.47 Series A Cl 600 Blind Flange | Copper Nickel 90/10 and Cuni 70/30 |
| Titanium Serie A 600# Blank Flange | Titanium Gr 2, Gr 5 |
Most Common Types For Series A Class 600 Blind Flange
ASME B16.47 Class 600 Blind Flange
Serie A 600# Blrf Flange
ANSI B16.47 Series A 600 Lbs Blank Flange
Asme B16.47 Series A Class 600 Blank Flange
B16.47 Series A Cl 600 Blind Flange
Asme B16.47 Series A 600# Blrf Flange
Advantages of Using ASME B16.47 Series A Class 600 Blank Flange
- Robust Construction
- Precised Machining
- Versatile
- Compliance
Supplier of series a 600 blind flange and ANSI b16.47 sr a 600lb BLRF flange in Dubai, dimensional suitability to ANSI b 16.47
ASME B16.47 Series A Class 600 Blind Flange Weight Chart
| Nominal Sizes (Inch) | Class 600 Weight in Kg |
|---|---|
| 60 | 5750 |
| 58 | 4986 |
| 56 | 4585 |
| 54 | 4091 |
| 52 | 3682 |
| 50 | 3381 |
| 48 | 2951 |
| 46 | 2543 |
| 44 | 2246 |
| 42 | 2028 |
| 40 | 1695 |
| 38 | 1509 |
| 36 | 1665 |
| 34 | 1427 |
| 32 | 1253 |
| 30 | 1074 |
| 28 | 909 |
| 26 | 777 |
| 22 | 437 |
What Are The Uses And Applications Of Sr A 600lb Blank Flanges ?
Material Inspection Facilities in the Following Countries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
High-quality ASME B16.47 Series A Class 600 Blind Flange are available from our stock, sourced from reputed manufacturers in Ras Al Khaimah and Fujairah.
B16.47 Series A Cl 600 Blind Flange Gasket Chart
| Nominal Sizes (Inch) | Outer Daimeter (O.D.) (D2) | Inside Daimeter (I.D.) (D1) |
|---|---|---|
| 60 | 1721 | 1524 |
| 58 | 1664 | 1473 |
| 56 | 1613 | 1422 |
| 54 | 1556 | 1372 |
| 52 | 1499 | 1321 |
| 50 | 1448 | 1270 |
| 48 | 1391 | 1219 |
| 46 | 1327 | 1168 |
| 44 | 1270 | 1118 |
| 42 | 1219 | 1067 |
| 40 | 1156 | 1016 |
| 38 | 1105 | 965 |
| 36 | 1130 | 914 |
| 34 | 1073 | 864 |
| 32 | 1022 | 813 |
| 30 | 972 | 762 |
| 28 | 914 | 711 |
| 26 | 867 | 660 |
Quickly get pricing from genuine ASME b16.47 Sr A 600# blank flange suppliers in Sharjah, check series a class 600 BLRF flange price in UAE
Coating Methods Are B16.47 Serie A Class 600 Blind Flange
- Oil Black Painted
- Zinc Plate
- Yellow Transparent
- Anti Rust Paint
- Cold & Hot Dip Galvanized
ASME B16.47 Series A Class 600 Blind Flange Pressure Rating
| Temperature in °F | Pressure Rating |
|---|---|
| 1500 | 55 |
| 1450 | 70 |
| 1400 | 95 |
| 1350 | 125 |
| 1300 | 170 |
| 1250 | 225 |
| 1200 | 310 |
| 1150 | 400 |
| 1100 | 515 |
| 1050 | 615 |
| 1000 | 640 |
| 900 | 780 |
| 800 | 805 |
| 700 | 850 |
| 600 | 875 |
| 500 | 930 |
| 400 | 995 |
| 300 | 1080 |
| 200 | 1200 |
| -20 to 100 | 1440 |
How Long Do ANSI B16.47 Series A Class 600 BLRF Flange Valve Last ?
About Approx. 10 Yrs. Long ANSI B16.47 Series A Class 600 BLRF Flange Valve Last.
Before you buy ASME B16.47 series a 600LBS blank flange in Bahrain, check the manufacturing origin, view Sr A class 600 blind flange torque chart
600 Lbs ASME B16.47 Series A Blind Flange Torque Chart
| Nominal Sizes (Inch) | Screw Torque (NM) | Screw Thread |
|---|---|---|
| 5″ | 295 | M16 |
| 4″ | M16 | 295 |
| 2 1/2″ | M12 | 130 |
| 2″ | M12 | 130 |
| 3 1/2″ | M16 | 295 |
| 3″ | M16 | 295 |
| 1 1/2″ | M12 | 130 |
| 3/4″ | M10 | 70 |
| 1/2″ | M8 | 32 |
| 1 1/4″ | M10 | 70 |
| 1″ | M10 | 70 |
Explore Nearby Locations for the Quickest Delivery Options
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Testing Requirements That are Used to Test Series A 600# Blind Flange
Series A Class 600 BLRF Flange of Heat Resistance
| Grade | Heat Resistance | |
|---|---|---|
| °F | °C | |
| ASME B16.47 Series A Class 600 | 1600 | 870 |
Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
Major machine Equipment Are Used for ANSI B16.47 Serie A 600 Lbs Blind Flange
- Pushing
- Bending
- Sand Blasting
- Press
- Electric Bevelling
What Are The Advantages & Disadvantages Of Series A Class 600 Blind Flange ?
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Certified ASME B16.47 Series A Class 600 Blind Flange Supplier in UAE of high-integrity flanges with proven resistance to fatigue.
