What is ASME B16.47 Series A Class 900 Weld Neck Flange?
Piping components are essential for piping applications to make sure that the pipes are connected, bent, and tilted conveniently as required by the application. To do this, fittings and flanges are used. The pipe fittings are usually welded with each other to make the connection whereas the flanges are welded with pipe ends but are connected with each other through bolting. Flanges have different sizes and dimensions according to different specifications. The ASME B16.47 is a specification for larger-diameter flanges with nominal pipe sizes above 24 NPS. Within this specification, there are different pressure classes to govern the maximum pressure they can withstand at different temperature ranges. Class 900 is one of the highest pressure classes within this specification. There are also series A and series B of the flanges to differentiate between the number of bolt holes, the wall thicknesses, and some other parameters. The Asme B16 47 Series A Class 900 Weld Neck Flange

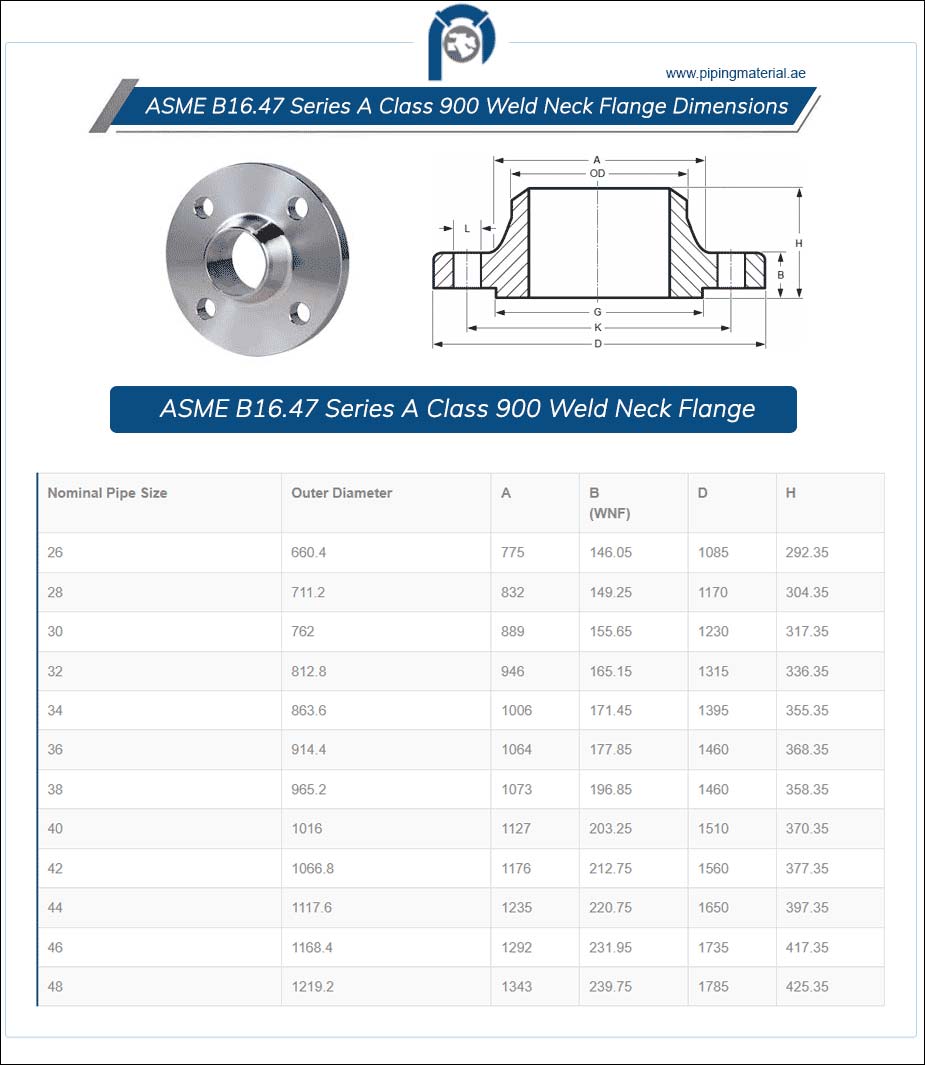

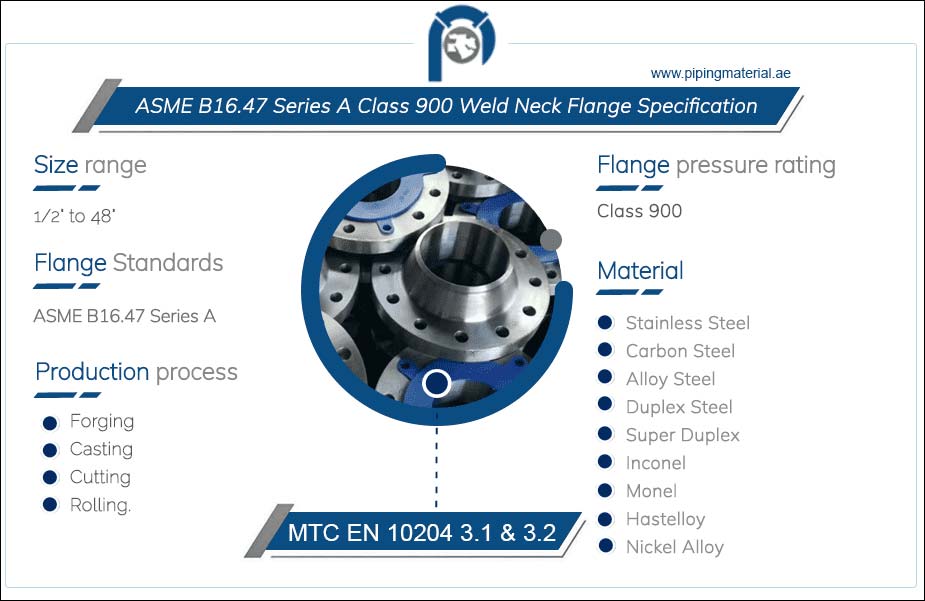

ASME B16.47 Series A Class 900 Weld Neck Flange dimensions, weight and specification
Check Sr a cl900 WN flange and ANSI b16.47 series a 900# welding neck flanges dimensions
What type of allseries a cl 900 reducing weld neck flange is used on pipelines?
The series A has slip-on flanges, lap flanges, blind flanges, reducing flanges, and many other types. There are also different faces to the flanges such as the raised, flat, and ring-type joints. The Series A Cl 900 Reducing Weld Neck Flange is used to reduce the flow rate by reducing the diameter of the run pipe. The pressure difference at the reduction point will cause turbulence in the system, especially if there is any change of direction as well. The Series A Class 900 Wnrf Flange can handle turbulence well because of its shape and pressure capacities.
View types of series A cl 900 reducing weld neck flange & Sr A cl 900 WNRF flange size chart, view weight, dimension & price in Dubai

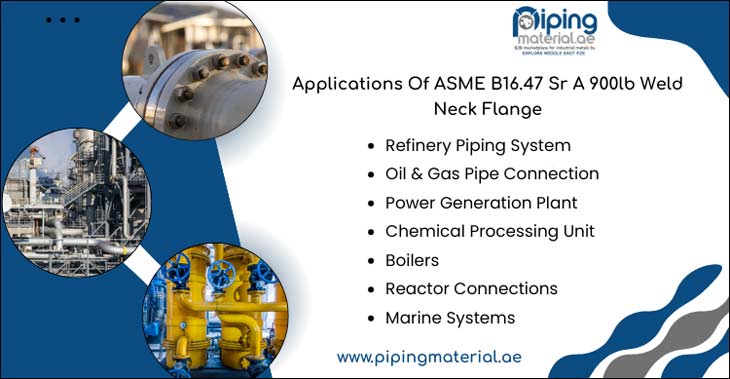

Uses & Applications of ASME b16.47 Sr A 900lb weld neck flange
Asme B16 47 Series A Cl 900 Weld Neck Flange is used in high-pressure, high-temperature applications. The flanges can perform at up to 538° Celsius operating temperatures. This allows the ASME B16.47 Series A Class 900 Raised Face Weld Neck Flange to be used in heat exchangers, thermal power plants, oil and gas industries, food and beverages, and in pulp and paper applications. Depending on the requirements for larger diameter pipes and flanges, these can be used in domestic applications such as water lines as well. The ASME B16.47 Series A Class 900 Weld Neck Flange can be used in offshore and onshore applications as it is made of some of the most corrosion-resistant materials and can withstand harsh conditions.
ASME b16.47 Sr A 900lb weld neck flange in large diameter, check Series A 900# wnrf flange size, weight & specification
How much pressure can a Series A 900 Lbs Weld Neck Pipe Flanges take?
Series A 900 Lbs Weld Neck Pipe Flanges can have about 153 bars pressure capacity from -29° Celsius to 38° Celsius temperature range. After that, at each step, the pressure capacity drops with the temperature rise. At 200° C, the pressure capacity is 131.4 bars, at 375° C, the capacity is 109 bars, and so on. The Series A Cl 900 Wnrf Flange can operate up to 500° C where the pressure capacity would drop to a mere 35 bars. This is because the ductility of the material increases, making the yield strength lower. This allows for the internal pressure to break the pipes and piping components at high temperatures.
Contact with series a cl 900 reducing weld neck flange manufacturers in UAE for factory prices, list of genuine Sr A 900 lb welding neck flange suppliers in middle east countries
How is ANSI b16.47 series a 900# welding neck flanges pressure rating calculated?
Ansi B16.47 Sr A 900# Wn Flange pressure rating calculation is complicated. The easier way to go with the pressure rating table. If you need the specific pressure to be calculated, then you can use the following formulae. Pt = C1S1Pr/8750, where C1 is 1 if the S1 is expressed in psi, if it is expressed in MPa, then C1 is 10; the Pr is the same as the class number, 900; the Pt is the working pressures and the S1 is the selected stress in MPa or in psi. The Ansi B16.47 Sr A #900 Rtj Wn Flange pressure capacity can be calculated with this formula when you need very specific conditions and the pressure table is not enough to make informed decisions.
Is your existing supplier increasing prices? Find trustworthy & verified Series A 900 Lbs weld neck pipe flanges suppliers in Sharjah
What are the advantages and disadvantages of the Sr A 900 lb welding neck flange?
The Series A 900 Lb Wn Flange has bolting connections so that they are easy to connect to the next component in the pipe. They can be welded to the pipe ends, so the connection with the pipe end is stronger. However, since the flanges cause turbulence in the pipe, if the pipe has a change of direction, or the velocity of the fluid flow is high, it can cause a misalignment between parts because it was not welded. It can result in leakages. On the other hand, the flanges are handy to remove and reassemble because they are not completely welded with the lines.
