ASME B16.47 Series B Class 150 Weld Neck Flange Features
| Flange Manufacturing Type | ASME B16.47 Series B Class 150 Weld Neck Flange |
|---|---|
| B16.47 Weld Neck Flange Physical Attribute | Light, Smaller Diameter Bolting |
| Size | 36″ To 60″ |
| Applications and Uses | Heavy Duty Pipe System |
| Manufacturing Specification | API 605 |
Sr b 150# wn flanges and ANSI b16.47 series b 150lb WNRF flange suppliers in UAE

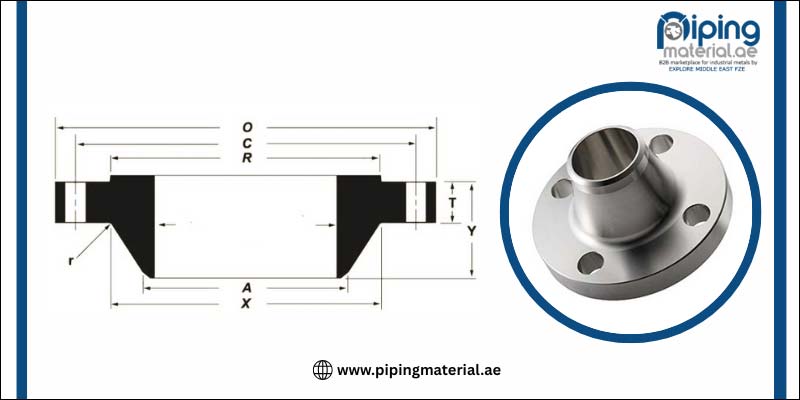

ASME B16.47 Series B Class 150 Weld Neck Flange Dimensions Chart
| Nominal Sizes (Inch) | Max Thickness (T) | Outside Diameter (O) | Weight (lbs) | Hub Diameter (X) | Raised Face Diameter (R) | Top of Hub (A) | Number of Holes | Length Thru Hub (Y) | Minimum Fillet Radius (r) | Bolt Circle (C) | Diameter of Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 3.00 | 67.94 | 850 | 61.81 | 63.00 | 60.12 | 52 | 7.06 | 0.56 | 65.44 | 1.38 |
| 58 | 2.94 | 65.94 | 780 | 59.69 | 60.75 | 58.12 | 48 | 6.88 | 0.56 | 63.44 | 1.38 |
| 56 | 2.88 | 63.00 | 650 | 57.69 | 58.75 | 56.12 | 60 | 6.56 | 0.56 | 60.75 | 1.25 |
| 54 | 2.81 | 61.00 | 620 | 55.62 | 56.75 | 54.12 | 56 | 6.38 | 0.44 | 58.75 | 1.25 |
| 52 | 2.75 | 58.81 | 550 | 53.56 | 54.75 | 52.12 | 52 | 6.19 | 0.44 | 56.56 | 1.25 |
| 50 | 2.69 | 56.81 | 520 | 51.50 | 52.75 | 50.12 | 48 | 6.06 | 0.44 | 54.56 | 1.25 |
| 48 | 2.56 | 54.81 | 480 | 49.50 | 50.75 | 48.12 | 44 | 5.88 | 0.44 | 52.56 | 1.25 |
| 46 | 2.44 | 52.81 | 435 | 47.44 | 48.62 | 46.12 | 40 | 5.69 | 0.44 | 50.56 | 1.25 |
| 44 | 2.38 | 50.25 | 370 | 45.38 | 46.50 | 44.12 | 52 | 5.38 | 0.44 | 48.12 | 1.25 |
| 42 | 2.31 | 48.25 | 345 | 43.38 | 44.50 | 42.12 | 48 | 5.25 | 0.44 | 46.12 | 1.12 |
| 40 | 2.19 | 46.25 | 310 | 41.31 | 42.50 | 40.12 | 44 | 5.06 | 0.38 | 44.12 | 1.12 |
| 38 | 2.12 | 44.25 | 290 | 39.25 | 40.25 | 38.12 | 40 | 4.88 | 0.38 | 42.12 | 1.12 |
| 36 | 2.06 | 41.62 | 240 | 37.19 | 38.25 | 36.06 | 44 | 4.62 | 0.38 | 39.75 | 1.00 |
| 34 | 1.94 | 39.56 | 210 | 35.12 | 36.25 | 34.06 | 40 | 4.34 | 0.38 | 37.69 | 1.00 |
| 32 | 1.81 | 37.06 | 170 | 33.06 | 34.00 | 32.06 | 48 | 4.25 | 0.38 | 35.44 | 0.88 |
| 30 | 1.75 | 34.94 | 150 | 31.00 | 32.00 | 30.06 | 44 | 3.94 | 0.38 | 33.31 | 0.88 |
| 28 | 1.75 | 32.94 | 140 | 28.94 | 30.00 | 28.06 | 40 | 3.75 | 0.38 | 31.31 | 0.88 |
| 26 | 1.62 | 30.94 | 120 | 26.94 | 28.00 | 26.06 | 36 | 3.50 | 0.38 | 29.31 | 0.88 |
How to choose correctly sr b 150# wn flanges ?
- Checking the system pressure & rating of temperature
- Selection of material based on environment
- Matched the size of flange
- Choosing the correct face type
- Verification of bolt circle & drill pattern
ASME B16.47 Series B Class 150 Weld Neck Flange Specification
Dimensions: ASME B16.47 Series B
Size Range: NPS: 26″ – 60″
Pressure Rating : Class 150 (26″ – 60″)
Manufacturing Standard : API 605
Marking: API 605 + Manufacturer Name + Size + Material
Flange Facings: Ring Joint (RTJ), Raised Face (RF), Flat Face (FF)
Get Quote Directly from ASME B16.47 Series B Class 150 Weld Neck Flange Suppliers
100% Tested ASME B16.47 150# Weld Neck Flange with MTC EN 10204/3.1
Explore Nearby Locations for the Quickest Delivery Options
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Bolt Chart of B16.47 Series B Class 150 Weldneck Flange
| Nominal Sizes (Inch) | Outside Diameter (O.D.) | No. of Holes | Bolt Circle | Dia. of Hole |
|---|---|---|---|---|
| 60 | 67.94 | 52 | 65.44 | 1.38 |
| 58 | 65.94 | 48 | 63.44 | 1.38 |
| 56 | 63.00 | 60 | 60.75 | 1.25 |
| 54 | 61.00 | 56 | 58.75 | 1.25 |
| 52 | 58.81 | 52 | 56.56 | 1.25 |
| 50 | 56.81 | 48 | 54.56 | 1.25 |
| 48 | 54.81 | 44 | 52.56 | 1.25 |
| 46 | 52.81 | 40 | 50.56 | 1.25 |
| 44 | 50.25 | 52 | 48.12 | 1.25 |
| 42 | 48.25 | 48 | 46.12 | 1.12 |
| 40 | 46.25 | 44 | 44.12 | 1.12 |
| 38 | 44.25 | 40 | 42.12 | 1.12 |
| 36 | 41.62 | 44 | 39.75 | 1.00 |
| 34 | 39.56 | 40 | 37.69 | 1.00 |
| 32 | 37.06 | 48 | 35.44 | 0.88 |
| 30 | 34.94 | 44 | 33.31 | 0.88 |
| 28 | 32.94 | 40 | 31.31 | 0.88 |
| 26 | 30.94 | 36 | 29.31 | 0.88 |
Before you buy ASME b16.47 series b class 150 raised face weld neck flange in Dubai, check the manufacturing origin
ASME B16.47 Series B Cl 150 Rf Weld Neck Flange Material
Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
What is the Highest Temperature for Series B Class 150 Wnrf Flange ?
| Grade | Highest Temperature |
|---|---|
| ASME B16.47 Sr B 150# Weld Neck Flange | 750°F (400°C) |
ANSI b16.47 sr b cl 150 WN flange and series b class 150 WNRF flanges with the hydro test, check dimension, pressure rating, and weight
ASME B16.47 Series B Class 150 Weld Neck Flange Weight Chart
| Nominal Sizes (Inch) | Outside Diameter (O.D.) | Weight in Lbs |
|---|---|---|
| 60 | 67.94 | 850 |
| 58 | 65.94 | 780 |
| 56 | 63.00 | 650 |
| 54 | 61.00 | 620 |
| 52 | 58.81 | 550 |
| 50 | 56.81 | 520 |
| 48 | 54.81 | 480 |
| 46 | 52.81 | 435 |
| 44 | 50.25 | 370 |
| 42 | 48.25 | 345 |
| 40 | 46.25 | 310 |
| 38 | 44.25 | 290 |
| 36 | 41.62 | 240 |
| 34 | 39.56 | 210 |
| 32 | 37.06 | 170 |
| 30 | 34.94 | 150 |
| 28 | 32.94 | 140 |
| 26 | 30.94 | 120 |
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
What Is The Inspection Method Of The Series B 150 Lb Wn Flange ?
- Pitting Resistant Tested
- Flattening Testing
- PosPMI
- Chemical Analysis
- Hardness Test
- Mechanical Testing
We maintain a comprehensive stock of ASME B16.47 Series B Class 150 Weld Neck Flange supplied by internationally recognized mills like Sharjah and Ras Al Khaimah.
Popular Types of ASME B16.47 Series B Class 150 Weld Neck Flange
Class 150 B16.47 Series B Weld Neck Flange
Sr B ASME B16.47 Cl 150 Raised Face Weld Neck Flange
ASME B16.47 150# Series B Weld Neck Flange
150 Lbs B16.47 Series B WNRF Flange
ANSI B16.47 B Sr Class 150 Weld Neck Flange
150# ASME B16.47 Series B Weld Neck Flange
Quickly get pricing from genuine b16.47 series b class 150 weld neck flange suppliers in the middle east and Africa.
Series B Cl 150 Reducing Weld Neck Flange Major Advantages
- Costly Effective
- Availability of Various Sizes & Materials of Material is Easier
- Sealing is Reliable
- Overall Reducement in Piping System Weight
High-end ASME B16.47 Series B Class 150 Weld Neck Flange Supplier in UAE offering expertly designed products that exceed industry standards.
What Are The Application Of Series B 150 Lbs Weld Neck Pipe Flanges ?
Is your existing supplier increasing prices? Find trustworthy & verified ASME b16.47 series b 150lb welding neck flanges suppliers in GCC countries
ANSI B16.47 Series B Class 150 Welding Neck Flanges Gasket Chart
| Nominal Sizes (Inch) | Inside Daimeter (I.D.) | Outside Daimeter (O.D.) |
|---|---|---|
| 60 | 1524 | 1630 |
| 58 | 1473 | 1580 |
| 56 | 1422 | 1514 |
| 54 | 1372 | 1464 |
| 52 | 1321 | 1408 |
| 50 | 1270 | 1357 |
| 48 | 1219 | 1307 |
| 46 | 1168 | 1256 |
| 44 | 1118 | 1197 |
| 42 | 1067 | 1146 |
| 40 | 1016 | 1095 |
| 38 | 965 | 1045 |
| 36 | 914 | 987 |
| 34 | 864 | 935 |
| 32 | 813 | 881 |
| 30 | 762 | 827 |
| 28 | 711 | 776 |
| 26 | 660 | 725 |
Material Inspection Facilities in the Following Countries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
The manufacturing process of b16.47 series b class 150 weld neck flange
- Selection Of Raw Material
- Material Cutting & Heating For Forging Method
- Forged In Flange Shape
- Strength Heat Treatment
- Machined & Drill Hole
- Finish Surface & Testing
ASME B16.47 Series B Class 150 Weld Neck Flange Thickness
| Nominal Sizes (Inch) | Outside Diameter (O.D.) | Flange Thickness |
|---|---|---|
| 60 | 67.94 | 3.00 |
| 58 | 65.94 | 2.94 |
| 56 | 63.00 | 2.88 |
| 54 | 61.00 | 2.81 |
| 52 | 58.81 | 2.75 |
| 50 | 56.81 | 2.69 |
| 48 | 54.81 | 2.56 |
| 46 | 52.81 | 2.44 |
| 44 | 50.25 | 2.38 |
| 42 | 48.25 | 2.31 |
| 40 | 46.25 | 2.19 |
| 38 | 44.25 | 2.12 |
| 36 | 41.62 | 2.06 |
| 34 | 39.56 | 1.94 |
| 32 | 37.06 | 1.81 |
| 30 | 34.94 | 1.75 |
| 28 | 32.94 | 1.75 |
| 26 | 30.94 | 1.62 |
Technical Consultant are Placed in Below Locations to Resolve All
| Dubai | Abu Dhabi |
| Umm Al Quwain | Sharjah |
| Ajman | Ras Al Khaimah |
