ASME B16.47 Series B Class 900 Blind Flange Summary
| Flange Manufacturing Type | ASME B16.47 Series B Class 900 Blind Flange |
|---|---|
| ASME B16.47 Blind Flange Physical Attribute | Light, Smaller Diameter Bolting |
| Size | 26″ To 36″ |
| Applications and Uses | Sealing the End of an Highly Pressure Pipe System |
| Manufacturing Specification | API 605 |
View Sr b cl600 BLRF flanges dimension and ANSI b16.47 900# series b blank flange sizes

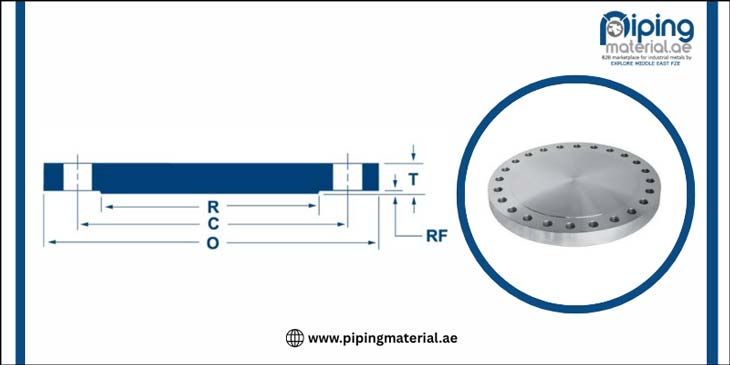

ASME B16.47 Series B Class 900 Blind Flange Dimensions Chart
| Nominal Size (Inch) | Thickness (T) (min.) | Outside Diameter (O.D.) (O) | Diameter of Holes | Raised Face Dia. (R) | Bolt Circle (C) | Weight in lbs | No. of Holes |
|---|---|---|---|---|---|---|---|
| 36 | 7.94 | 53 | 3.12 | 40.50 | 47.25 | 4963 | 24 |
| 34 | 7.68 | 51.75 | 3.38 | 39 | 45.50 | 4575 | 20 |
| 32 | 7.31 | 48.75 | 3.12 | 36.50 | 43 | 3865 | 20 |
| 30 | 6.93 | 46.50 | 3.12 | 34.50 | 40.75 | 3334 | 20 |
| 28 | 6.56 | 43.50 | 2.88 | 32.25 | 38.25 | 2762 | 20 |
| 26 | 6.06 | 40.25 | 2.62 | 30 | 35.50 | 2185 | 20 |
How to prevent b16.47 900# series b BLRF flange corrosion ?
To prevent b16.47 900# series b BLRF flange corrosion are Follows :
- Epoxy/ urethane based coating
- Tapes coating
- Using corrosive inhibitors
- Selection of proper gasket
- Maintenance of ventilation & drainage
- Use of cathodic protection
ASME B16.47 Series B Class 900 Blind Flange Specifications
Size Range: NPS: 26″ – 36″
Dimensions: ASME B16.47 Series B
Manufacturing Standard: API 605
Pressure Rating : Class 900 (26″ – 36″)
Flange Facings: Ring Joint (RTJ), Raised Face (RF), Flat Face (FF)
Marking: API 605 + Manufacturer Name + Size + Material
Get Quote Directly from ASME B16.47 Series B Class 900 Blind Flange Suppliers
100% Tested ASME B16.47 900# Blind Flange with MTC EN 10204/3.1
Bolt Chart of B16.47 900# Series B BLRF Flange
| Nominal Size (Inch) | Outside Diameter (O.D.) | Dia. of Hole | Bolt Circle | Number of Hole |
|---|---|---|---|---|
| 36 | 53 | 3.12 | 47.25 | 24 |
| 34 | 51.75 | 3.38 | 45.50 | 20 |
| 32 | 48.75 | 3.12 | 43 | 20 |
| 30 | 46.50 | 3.12 | 40.75 | 20 |
| 28 | 43.50 | 2.88 | 38.25 | 20 |
| 26 | 40.25 | 2.62 | 35.50 | 20 |
Material Inspection Facilities in the Following Countries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Contact with b16.47 900lb series b BLRF flange manufacturers in UAE for factory prices, list of genuine ASME b16.47 cl 900 sr b blank flange suppliers in Dubai
ASME B16.47 Series B Class 900 Blind Flange Material
Established ASME B16.47 Series B Class 900 Blind Flange Supplier in UAE of reliable goods tailored for harsh industrial applications.
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Coatings Methods on B16.47 Series B cl900 Blind Flanges
- Anti Rusted Painted
- Yellow Transparent
- Zinc Plate
- Oil Black Painted Flange
- Cold & Hot Dip Galvanize
Buy b16.47 series b cl900 blind flanges as per international standards, check manufacturing methods, advantages, and disadvantages
ASME B16.47 Series B Class 900 Blind Flange Thickness Chart
| Nominal Size (Inch) | Thickness (min.) | Outside Diameter (O.D.) |
|---|---|---|
| 36 | 7.94 | 53 |
| 34 | 7.68 | 51.75 |
| 32 | 7.31 | 48.75 |
| 30 | 6.93 | 46.50 |
| 28 | 6.56 | 43.50 |
| 26 | 6.06 | 40.25 |
Most Common Types of ANSI B16.47 Series B Class 900 Blank Flanges
ASME B16.47 Series B Class 900 Blind Flange
Cl 900 B16.47 Sr B Blind Flange
Serie B ANSI B16.47 900 Lbs Blind Flange
B16.47 Class 900 Serie B Blank Flange
ASME B16.47 900# B Sr Blind Flange
900# B16.47 Serie B Blind Flange

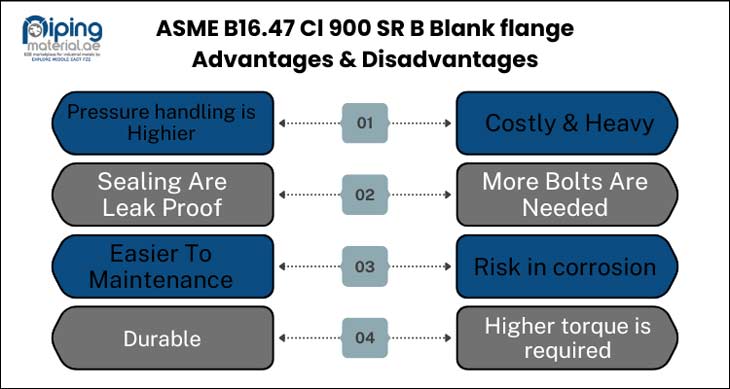

ASME B16.47 Cl 900 SR B Blank flange Advantages & Disadvantages
Piping material introduces trusted names of distributors and wholesalers of ASME b16.47 sr b cl 900 blank flanges in the middle east and Asia, check MTC & test reports
ASME B16.47 Series B Class 900 Blind Flange Testing Methods
- Flaring Testing
- Pitting Resistant Tested
- Micro & Macro
- Flange Flattening Test
- PMI
- Hardness Tested Report
Which are Resistance to ANSI B16.47 Series B Class 900 Blind Flanges ?
Check ANSI b16.47 series b 900lb blind flange dimensions and weight chart, and buy b16.47 sr b cl900 BLRF flanges from verified suppliers in the UAE
ASME B16.47 Series B Class 900 Blind Flange Weight Chart
| Nominal Size (Inch) | Outside Diameter (O.D.) (O) | Weight in lbs |
|---|---|---|
| 36 | 53 | 4963 |
| 34 | 51.75 | 4575 |
| 32 | 48.75 | 3865 |
| 30 | 46.50 | 3334 |
| 28 | 43.50 | 2762 |
| 26 | 40.25 | 2185 |
Explore Nearby Locations for the Quickest Delivery Options
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Our inventory includes top-quality ASME B16.47 Series B Class 900 Blind Flange sourced from trusted manufacturers in Ras Al Khaimah and Sharjah.
What materials do ANSI b16 47 series b class 900 blank flanges come in ?
- Carbon Steel
- ASTM A105
- A105N Normalized
- ASTM A350 LF2
- LTCS
- ASTM A694 F42
- ASTM A692 F52
- Stainless Steel
- ASTM A182 Gr 304
- SS 304L
- 316 Stainless Steel
- AISI 316L
- Duplex Steel
- Super Duplex
- ASTM A182 F51
- ASTM A182 F60
- ASTM A182 F53
- ASTM A182 F55
- Inconel
- Monel
- Hastelloy
- Inconel 625
- Hastelloy C276
- ASTM B564 UNS N06625
Where Are B16.47 Series B Cl900 Blind Flanges Most Commonly Used ?
At Which Pressure ANSI B16 47 Series B Class 900 Blank Flanges excels it’s sealing efficiency ?
- At low to medium pressures Pressure ANSI B16 47 Series B Class 900 Blank Flanges excels it’s sealing efficiency.
