Product Information of ASTM A105 Forged Fittings
| Sizes in Stock : | 1/2″ TO 4″ |
| Environments : | Harsh Chemicals |
| Process : | CNC Machined and Forging |
| Used for : | Oil and Gas Pipelines |
| Corrosion Resistance : | Extreme Environments |
| Connection : | Threaded & Socket Welding |
| Threads : | NPT, BSPP, BSPT |
| Also known : | ASTM A105N |
| Machinability : | Good Machinability |
| Forming : | Hot Formed |
| Standard : | ASME B16.11, ANSI B16.11 |
| Minimum Temperature : | 590°C or 1100°F |
| Forging Temperature : | Normalizing = 950°C for 2.5 hours |
| Hardness Level : | 187 HBW |
| Thermal Conductivity : | 21 W/(m·K) |
| NPT Connection : | Male / Female |
| Origin of Raw Material: | European, Indian, Korean, Janpanese, UK, German |
| MTC | EN 10204/3.1B |
| RFQ: | support@pipingmaterial.ae |
Find top 10 verified A105n carbon steel half coupling and ASTM A105 elbow suppliers in UAE
ASTM A105 Forged Fittings Specification
Size In Ready Stock: Socket Weld : 1/2" To 4" | Threaded : 1/2"
To 6"
Maximum Size: Up to 6 Inch For Pipe Nipple
Wall Thickness: SCH 20 to SCH 80
Pressure Class: 2000 PSI to 9000 PSI
International Standard: ANSI B16.11, ASME B16.11
Surface Finish: Polished, Pickled
Installations: Mining slurry, Petrochemicals, Oil and Gas
Standard Testing: Tensile, Hardness, Impact Testing & Visual Inspection
Packaging: Plastic Bag, Wooden Case & Carton Box
Connection: Socket Welding & Threaded
Threads : NPT, NPS, BSPT, BSPP
Forging Method: Open Die & Closed Die Forging
Available Stock of ASTM A105 Fittings
- Overall Length : 3/4″
- Pressure : High Pressure
- Working Pressure : 3000 Psi to 9000psi
- Certification : CE/ISO9001
- Process : Forged
- Standard : ASTM B16.11
- Connection : Female NPT
- Usage : Gas Oil Water
- Size : 1/3″ to 6″
- Surface Treatment : Anti-rust Oil
- Connection Method : Welding / Thread
- Application : Pipe Lines Connect
- Connection Method : Thread Connecting
- Technic : Forged
- Mounting Hole Diameter : 0.55in~1.02in
- Wall Thickness : SCH 40
- Service : Customized Processing Service
- Package : Wooden Case Pallet
- Hole Diameter : 1/2″
- Surface Treatment : Anti-rust Oil, Polished
Why spend time in shortlisting and verifying manufacturers of ASTM A105 fittings in Dubai? Find a limited number of suppliers of A105 forged steel union & bushing who have already been certified
ASTM A105N Socket Weld Fittings Size Chart
| NPS | Thread Length (Min) |
Wall Thickness (Min) | Outside Daimeter of Band D |
Center to End A |
|
|---|---|---|---|---|---|
| Type J | Type B | ||||
| 4 | 33 | 27.7 | 6.55 | 146 | 106 |
| 3 | 30.5 | 25.9 | 5.99 | 109 | 86 |
| 3/4 | 13.9 | 12.7 | 3.18 | 38 | 33 |
| 2 ½ | 28.9 | 23.6 | 5.61 | 92 | 76 |
| 2 | 19.2 | 19 | 4.27 | 75 | 60 |
| 1 ¼ | 18 | 17 | 3.89 | 56 | 44 |
| 1 ½ | 18.4 | 17.8 | 4.01 | 62 | 51 |
| 1 | 17.3 | 14.7 | 3.68 | 46 | 38 |
| 1/2 | 13.6 | 10.9 | 3.18 | 33 | 28 |
Material Inspection Facility in Following Locations
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |

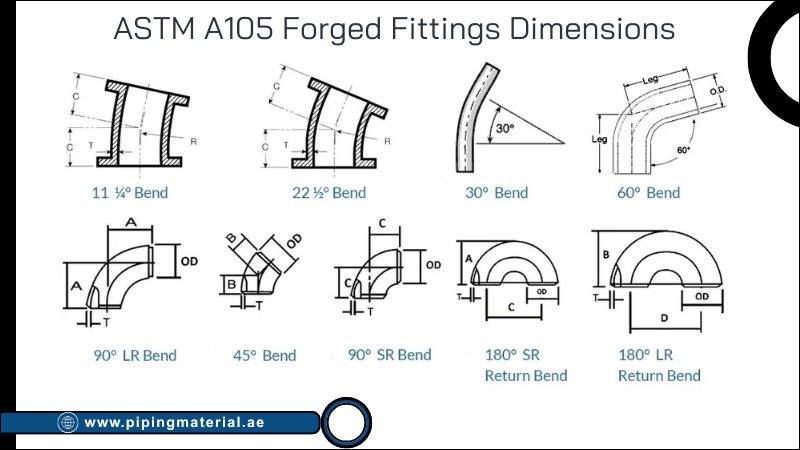

ASTM A105 Forged Fittings Dimensions
| Nominal Size | Wall Thickness | OD Y | SR 45 Deg Elbows Weight |
LR 45 Deg Elbows Centre to Face B | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
|---|---|---|---|---|---|---|---|---|---|---|
| (Inches) | (Millimeter) | Schedule | (Millimeter) | (Millimeter) | (Killogram) | (Millimeter) | (Millimeter) | (Killogram) | (Millimeter) | (Killogram) |
| 24” | 600 | STD | 9.52 | 610.00 | 101.5 | 381.0 | 914.0 | 203.0 | 610.0 | 135.0 |
| – | X.S | 12.7 | – | 134.5 | 381.0 | 914.0 | 269.0 | 610.0 | 179.0 | |
| 20” | 500 | STD | 9.52 | 508.0 | 85.0 | 318.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| – | X.S | 12.7 | – | 112.5 | 318.0 | 762.0 | 186.0 | 508.0 | 124.0 | |
| 18” | 450 | STD | 9.52 | 457.0 | 56.5 | 286.0 | 686.0 | 113.0 | 457.0 | 75.6 |
| – | X.S | 12.7 | – | 75.0 | 286.0 | 686.0 | 150.0 | 457.0 | 100.0 | |
| 16” | 400 | STD | 9.52 | 406.4 | 45.0 | 254.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| – | X.S | 12.7 | – | 59.0 | 254.0 | 610.0 | 118.0 | 406.0 | 78.7 | |
| 14” | 350 | STD | 9.52 | 355.6 | 34.1 | 222.0 | 533.0 | 68.1 | 356.0 | 45.4 |
| – | X.S | 12.7 | – | 45.0 | 222.0 | 533.0 | 90.0 | 356.0 | 60.0 | |
| 12” | 300 | STD | 9.52 | 323.9 | 26.6 | 190.0 | 457.0 | 53.1 | 305.0 | 35.4 |
| – | X.S | 12.7 | – | 35.0 | 190.0 | 457.0 | 70.0 | 305.0 | 46.7 | |
| 10” | 250 | STD | 9.27 | 273.9 | 18.1 | 159.0 | 381.0 | 36.1 | 254.0 | 24.1 |
| – | X.S | 12.7 | – | 24.4 | 159.0 | 381.0 | 48.8 | 254.0 | 32.5 | |
| 8” | 200 | STD | 8.18 | 219.1 | 10.2 | 127.0 | 305.0 | 20.4 | 203.0 | 13.6 |
| – | X.S | 12.7 | – | 15.5 | 127.0 | 305.0 | 30.9 | 203.0 | 20.9 | |
| 6” | 150 | STD | 7.11 | 168.3 | 5.1 | 95.2 | 229.0 | 10.1 | 152.4 | 6.8 |
| – | X.S | 10.97 | – | 7.7 | 95.2 | 229.0 | 15.3 | 152.4 | 10.2 | |
| 5” | 125 | STD | 6.65 | 141.3 | 3.4 | 79.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| – | X.S | 9.5 | – | 5.0 | 79.4 | 190.0 | 10.0 | 127.0 | 6.5 | |
| 4” | 100 | STD | 6.02 | 114.3 | 2.1 | 63.5 | 152.4 | 4.2 | 101.6 | 2.8 |
| – | X.S | 8.56 | – | 2.9 | 63.5 | 152.4 | 5.7 | 101.6 | 3.9 | |
| 3” | 80 | STD | 5.49 | 88.9 | 1.1 | 50.8 | 114.3 | 2.18 | 76.2 | 1.45 |
| – | X.S | 7.62 | – | 1.45 | 50.8 | 114.3 | 2.86 | 76.2 | 1.95 | |
| 3/4” | 20 | STD | 2.87 | 26.7 | 0.04 | 11.1 | 28.6 | 0.08 | – | – |
| – | X.S | 3.91 | – | 0.05 | 11.1 | 28.6 | 0.11 | – | – | |
| 21/2” | 65 | STD | 5.16 | 73.0 | 0.73 | 44.4 | 95.2 | 1.46 | 63.5 | 0.95 |
| – | X.S | 7.01 | – | 0.91 | 44.4 | 95.2 | 1.82 | 63.5 | 1.27 | |
| 2” | 50 | STD | 3.91 | 60.3 | 0.36 | 34.9 | 76.2 | 0.72 | 50.8 | 0.5 |
| – | X.S | 5.54 | – | 0.5 | 34.9 | 76.2 | 1.0 | 50.8 | 0.68 | |
| 11/2” | 40 | STD | 3.68 | 48.3 | 0.2 | 28.6 | 57.1 | 0.4 | 38.1 | 0.26 |
| – | X.S | 5.08 | – | 0.25 | 28.6 | 57.1 | 0.5 | 38.1 | 0.35 | |
| 1” | 25 | STD | 3.38 | 33.4 | 0.09 | 22.2 | 38.1 | 0.15 | 25.4 | 0.11 |
| – | X.S | 4.55 | – | 0.11 | 22.2 | 38.1 | 0.19 | 25.4 | 0.14 | |
| 1/2” | 15 | STD | 2.78 | 21.3 | 0.04 | 15.9 | 38.1 | 0.08 | – | – |
| – | X.S | 3.73 | – | 0.05 | 15.9 | 38.1 | 0.10 | – | – | |
Explore Nearby Locations for the Quickest Delivery Options
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
ASTM A105 Fittings Weight Chart
| Nominal Size | Class 3000 | Class 3000 |
|---|---|---|
| Inch | Half Coupling | Half Coupling |
| 4 | 3.2 | 6.5 |
| 3 | 1.6 | 3.7 |
| 3/8 | 0.03 | 0.6 |
| 3/4 | 0.3 | 0.21 |
| 2 | 0.69 | 2.50 |
| 1 1/4 | 0.24 | 0.72 |
| 1 1/2 | 0.52 | 1.06 |
| 1 | 21 | 0.41 |
| 1/2 | 0.07 | 0.14 |
Are you looking for legitimate importers of A105n steel threaded fittings? Buy A105 coupling at the cheapest prices in the Middle East countries
ASTM A105 Fittings Manufacturing Process
Carbon Steel A105 Threaded Fittings Allowable Stress
| NPS (Inches) | Temperature | ||||
|---|---|---|---|---|---|
| 500 | 400 | 300 | 200 | 100 | |
| Allowable Stress | |||||
| 10″ | 1974 | 2124 | 2289 | 2289 | 2289 |
| 999 | 1075 | 1159 | 1159 | 1159 | |
| 603 | 649 | 699 | 699 | 699 | |
| 8″ | 1982 | 2133 | 2298 | 2298 | 2298 |
| 1050 | 1131 | 1218 | 1218 | 1218 | |
| 665 | 716 | 771 | 771 | 771 | |
| 6″ | 2054 | 2211 | 2382 | 2382 | 2382 |
| 1189 | 1280 | 1379 | 1379 | 1379 | |
| 756 | 814 | 877 | 877 | 877 | |
| 5″ | 2133 | 2296 | 2474 | 2474 | 2474 |
| 1231 | 1325 | 1428 | 1428 | 1428 | |
| 832 | 896 | 965 | 965 | 965 | |
| 4″ | 2552 | 2424 | 2611 | 2611 | 2611 |
| 1377 | 1482 | 1596 | 1596 | 1596 | |
| 950 | 1023 | 1102 | 1102 | 1102 | |
| 3″ | 2403 | 2587 | 2787 | 2787 | 2787 |
| 1590 | 1712 | 1844 | 1844 | 1844 | |
| 1122 | 1208 | 1301 | 1301 | 1301 | |
| 2″ | 2831 | 3047 | 3283 | 3283 | 3283 |
| 1712 | 1843 | 1985 | 1985 | 1985 | |
| 1182 | 1272 | 1371 | 1371 | 1371 | |
| 1 1/2″ | 2899 | 3120 | 3362 | 3362 | 3362 |
| 1986 | 2138 | 2303 | 2303 | 2303 | |
| 1404 | 1512 | 1629 | 1629 | 1629 | |
| 1″ | 3874 | 4170 | 4493 | 4493 | 4493 |
| 2640 | 2841 | 3061 | 3061 | 3061 | |
| 1902 | 2047 | 2205 | 2205 | 2205 | |
Call Now for the Clients List Based in Below Locations
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Explore Nearby Locations for the Quickest Delivery Options
| Country | Country Name | City Name | Delivery Time |
|---|---|---|---|
 |
Belgium | Meeuwen-Gruitrode | 40 days |
 |
Saudi Arabia | Riyadh | 7 days |
 |
Netherlands | Haarlem | 5 Days |
 |
Morocco | Casablanca | 10 days |
 |
Nigeria | Abuja | 30 days |
 |
Qatar | Doha | 7 days |
 |
Egypt | Cairo | 18 days |
 |
South Africa | Cape Town | 25-30 days |
 |
Kuwait | Kuwait City | 10 days |

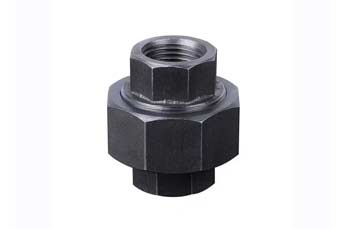

Pressure Rating of ASTM A105N Union Fittings
| Temperature | Class | ||||
|---|---|---|---|---|---|
| Class 150 | Class 300 | ||||
| 2 1/2 – 3 inch | 1 1/4 – 2 inch | 1/4 – 1 inch | |||
| (ºC) | (ºF) | ||||
| 288 | 550 | – | 300 | 300 | 300 |
| 260 | 500 | – | 385 | 450 | 510 |
| 232 | 450 | – | 475 | 600 | 725 |
| 204 | 400 | – | 560 | 750 | 935 |
| 177 | 350 | 150 | 650 | 900 | 1150 |
| 149 | 300 | 185 | 735 | 1050 | 1360 |
| 121 | 250 | 225 | 825 | 1200 | 1575 |
| 93 | 200 | 265 | 910 | 1350 | 1785 |
| -29 to 66 | -20 to 150 | 300 | 1000 | 1500 | 2000 |
See Where You Can Find Material Ex Stock
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Contact directly to cs ASTM A105 UNS K03504 reducer and SA105 steel hex nipples manufacturers and compare pricing of different suppliers
ASTM A105 Carbon Steel Forged Fittings Application
ASTM A105 Forged Fittings End Connections
| Connection | Pressure | Wall Thickness |
|---|---|---|
| NPT (Threaded) | Class 3000 | SCH 160 |
| SW (Socket Weld ) | Class 3000 | SCH 80 |
| NPT (Threaded) | Class 6000 | SCH XXS |
| SW (Socket Weld ) | Class 6000 | SCH 160 |
Check A105 carbon steel hex head plug and ASTM A105n threaded boss/ equal tee tensile, and price list in Dubai
3000lbs NPT SA 105 Socket Weld Elbow Threads Types
Benefits of Using ASTM A105 Forged Fittings
| Material | High-Temperature Service | Low-Temperature Service |
|---|---|---|
| ASTM A105 Fittings | 120-160 HB | 130-180 HB |
ASTM A105 Forged Fittings Material
Available Coating Types for Carbon Steel A105 Coupling
- PE Coating
- 3PE Coating
- Customized Coating
- Anti Corrosion Coating

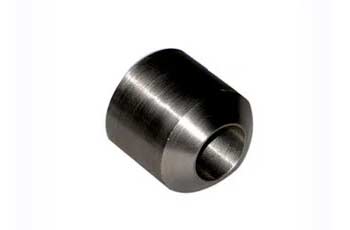

ASTM A105 Carbon Steel Boss Temperature Range
| Material | Temperature Range | |
|---|---|---|
| °C | °F | |
| A105 Fittings | -29°C to 427°C | -20°F to 800°F |
Types of ASTM A105 Forged Elbow

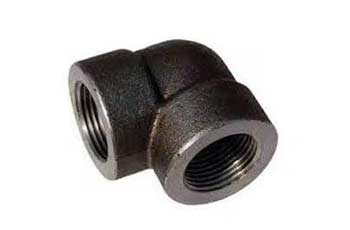

ASTM A105 45 degree threaded elbow
SA105 90 degree threaded elbow
Carbon steel A105 45 degree socket weld elbow
ASME SA105 90 degree socket weld elbow
ASTM A105N Street elbow
A105N NPT elbow
Types of ASTM A105 Forged Adapter
A105 Steel Expansion adapters
CS ASTM A105 Mechanical joint adapters
Carbon steel A105 Reducing coupling
SA105 Threaded half coupling
A105 Carbon Steel Threaded full coupling
ASTM A105 Steel Half coupling
A105 CS Full coupling

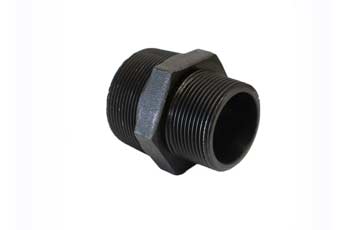

Types of ASTM A105 Pipe Nipple
ASTM A105 Steel Barrel nipples
A105N Hexagon nipple
CS ASTM A105 Eccentric Swage Nipple
ASME SA105 Concentric Swage Nipple
ASTM A105N Swage nipple
Carbon steel A105 Socket weld union
A105 CS Threaded union
ASTM A105N Threaded Union Female Male
A105 Steel Threaded Union Female-Female
SA105 Hex bushing
ASME SA105 Hex reducing bushing
A105N Threaded tee
A105 Carbon Steel Socket weld tee
CS ASTM A105 Diverter tee
ASTM A105 Lateral tee
A105N NPT tee
Types of ASTM A105 Forged Cross
A105 CS Threaded cross
ASTM A105 Socket weld cross
CS ASTM A105 Threaded cap
ASTM A105 Steel Socket weld cap
ASTM A105N Hex bull plug
A105 Carbon Steel Bull plug
ASME SA105 Square head plug
SA105 Hex plug
Types of ASTM A105 Forged Reducer
Carbon steel A105 Threaded reducer
A105 Carbon Steel Socket weld concentric reducer
A105 CS Female threaded reducer
A105 Steel Male threaded reducer
Other Types of ASTM A105 Forged Fittings
ASTM A105 Steel Boss
CS ASTM A105 Reducer Insert
Carbon steel A105 NPT threaded fittings
A105N BSP threaded fittings
Table of Content
