ASTM A182 F53 Flange Overview
| Grade | ASTM A182 F53 | UNS UNS S32750 | W.Nr./ DIN 1.440 |
|---|---|
| ASTM A182 F53 Flange Classification | WN (Weld Neck) Flange, LJ (Lapped) Flange, SW (Socket Weld) Flange, BL (Blind) Flange, SO (Slip-On) Flange, TH (Threaded) Flange |
| Iron & Chromium Content | Fe 58.0 min. and Cr 24.0-26.0 |
| Suitable for | High Temperatures & Pressures |
| Other Trade Name | SAF 2507®, UNS S32750 |
SA 182 F53 Blind Flange & UNS S32750 Forged Flanges Suppliers in UAE
ASTM A182 F53 Flange Specification
Dimensions: ASME B16.5, B16.48, B16.36, B16.47
Size Range : 15 – 1500 NB, NPS: ½” to 48″
Pressure Rating: Class 150-2500# (Forged), 150-600# (Threaded)
Manufacturing Standard: ASTM A182/ ASME SA182
Design Spec: ASME VIII DIV 2 (PART 4-5)
Manufacturing Procedure: As per NORSOK M-650/ISO 17782
Get Quote Directly from ASTM A182 F53 Flange Suppliers
100% Tested UNS S32750 Flanges with MTC EN 10204/3.1
F53 Duplex Plate Flange as Per JIS, GB, AISI, ASTM, BS, SAE, EN, UNS, DIN International Standard. View Forging Process of SA 182 F53 Flange
Super Duplex Steel F53 Flanges Standards
| Standard | |
|---|---|
| ASME B16.36 | ASME B16.48 |
| ASME B16.5 | ASME B16.47 |
ASTM A182 F53 Slip on Flange
A182 F53 Lap Joint Flanges
UNS S32750 Socket Weld Flange
F53 Duplex Spectacle Blind Flange
A182 Gr F53 Blind Flanges
SA182 F53 Forged Flanges
ASTM A182 Gr F53 Ring Type Joint Flanges
Super Duplex F53 Threaded Flange
F53 Duplex Stainless Steel Orifice Flange
ASTM A182 Grade F53 Plate Flanges
A182 F53 Duplex Raised Face Flange
F53 Duplex Steel Weld Neck Flanges
Buy ASTM A182 Grade F53 Weld Neck Flanges at Affordable Prices From Genuine Manufacturers & Suppliers in the Middle East. View SA182 F53 Reducing Flange Open/ Close Die Forging Differences
What is the Difference Between Open Die and Close Die Forging of Super Duplex Steel F53 Flanges?
Open Die Forging
- shapes metal in open space
- can create large parts
- produce parts with custom shapes
Close Die Forging
- uses molds under high pressures
- best for small parts
- limited to the mold’s dimensions

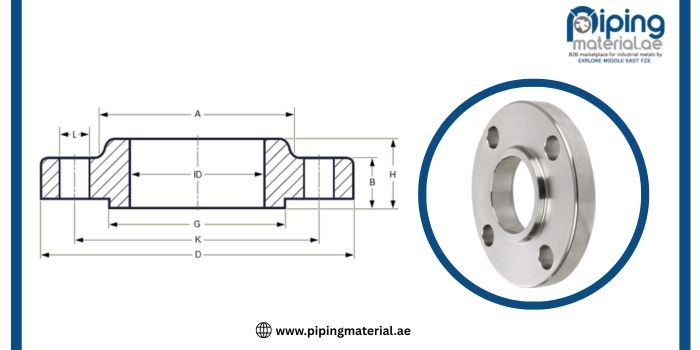

ASTM A182 UNS S32750 Slip On Flanges Dimensions
| NPS | Outside Dia. (D) |
Dia. of Hub at base (A) |
Thickness (B) |
Dia. of raised face (G) |
Dia of bore (ID) |
Length thru Hub (H) |
No of holes |
Dia of bolts |
Dia of holes (L) |
Approx weight kg |
Diam of bolt circle (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 88.9 | 35.1 | 11.2 | 30.2 | 22.4 | 15.7 | 4 | 1/2 | 15.7 | 0.5 | 60.5 |
| 1 | 108 | 50.8 | 14.2 | 49.3 | 34.5 | 17.5 | 4 | 1/2 | 15.7 | 1 | 79.2 |
| 3/4 | 98.6 | 42.9 | 12.7 | 38.1 | 27.7 | 15.7 | 4 | 1/2 | 15.7 | 1 | 69.9 |
| 1-1/4 | 117.3 | 63.5 | 15.7 | 58.7 | 43.2 | 20.6 | 4 | 1/2 | 15.7 | 1 | 88.9 |
| 2 | 152.4 | 91.9 | 19.1 | 77.7 | 62 | 25.4 | 4 | 5/8 | 19.1 | 2 | 120.7 |
| 1-1/2 | 127 | 73.2 | 17.5 | 65 | 49.5 | 22.4 | 4 | 1/2 | 15.7 | 1 | 98.6 |
| 2-1/2 | 177.8 | 104.6 | 22.4 | 90.4 | 74.7 | 28.4 | 4 | 5/8 | 19.1 | 3 | 139.7 |
| 3-1/2 | 215.9 | 139.7 | 23.9 | 122.2 | 103.4 | 31.8 | 8 | 5/8 | 19.1 | 5 | 177.8 |
| 3 | 190.5 | 127 | 23.9 | 108 | 90.7 | 30.2 | 4 | 5/8 | 19.1 | 4 | 152.4 |
| 4 | 228.6 | 157.2 | 23.9 | 134.9 | 116.1 | 33.3 | 8 | 5/8 | 19.1 | 6 | 190.5 |
| 6 | 279.4 | 215.9 | 25.4 | 192 | 170.7 | 39.6 | 8 | 3/4 | 22.4 | 9 | 241.3 |
| 5 | 254 | 185.7 | 23.9 | 163.6 | 143.8 | 36.6 | 8 | 3/4 | 22.4 | 7 | 215.9 |
| 8 | 342.9 | 269.7 | 28.4 | 246.1 | 221.5 | 44.5 | 8 | 3/4 | 22.4 | 14 | 298.5 |
| 12 | 482.6 | 381 | 31.8 | 365.3 | 327.2 | 55.6 | 12 | 7/8 | 25.4 | 29 | 431.8 |
| 10 | 406.4 | 323.9 | 30.2 | 304.8 | 276.4 | 49.3 | 12 | 7/8 | 25.4 | 20 | 362 |
| 14 | 533.4 | 412.8 | 35.1 | 400.1 | 359.2 | 57.2 | 12 | 1 | 28.4 | 41 | 476.3 |
| 18 | 635 | 533.4 | 39.6 | 505 | 461.8 | 68.3 | 16 | 1-1/8 | 31.8 | 59 | 577.9 |
| 16 | 596.9 | 469.9 | 36.6 | 457.2 | 410.5 | 63.5 | 16 | 1 | 28.4 | 44 | 539.8 |
| 24 | 812.8 | 692.2 | 47.8 | 663.4 | 616 | 82.6 | 20 | 1-1/4 | 35.1 | 100 | 749.3 |
| 20 | 698.5 | 584.2 | 42.9 | 558.8 | 513.1 | 73.2 | 20 | 1-1/8 | 31.8 | 75 | 635 |
What is the Welding Preheat Temperature of WERKSTOFF NR.1.4410 Flanges?
- 150 – 250°C
Get Connected With Trusted and Audited SA 182 F53 Spectacle Blind Flange Manufacturers in Middle East Countries. ASTM A182 Gr F53 Socket Weld Flange as Per International Standard and Bespoke Size Range
UNS S32750 Slip On Flange Size Chart
| Sizes | Thickness | Length | |
|---|---|---|---|
| Inch | mm | ||
| 1/2 | 15 | 12.7 | 21 |
| 1 | 25 | 15.9 | 25 |
| 3/4 | 20 | 14.3 | 24 |
| 1 1/4 | 32 | 17.5 | 25 |
| 2 | 50 | 20.7 | 32 |
| 1 1/2 | 40 | 19.1 | 29 |
| 3 | 80 | 27 | 41 |
| 2 1/2 | 65 | 23.9 | 37 |
ASTM A182 F53 Flange Pressure Rating
| Temp. (°F) | 150 | 400 | 300 | 600 | 900 | 800 | 1500 | 4500 | 2500 |
|---|---|---|---|---|---|---|---|---|---|
| -20 to 100 | 290 | 1,000 | 750 | 1,500 | 2,250 | 2,000 | 3,750 | 11,250 | 6,250 |
| 300 | 230 | 885 | 665 | 1,330 | 1,995 | 1,773 | 3,325 | 9,970 | 5,540 |
| 200 | 260 | 960 | 720 | 1,440 | 2,160 | 1,920 | 3,600 | 10,800 | 6,000 |
| 400 | 200 | 820 | 615 | 1,230 | 1,845 | 1,640 | 3,070 | 9,215 | 5,120 |
| 600 | 140 | 740 | 555 | 1,115 | 1,670 | 1,485 | 2,785 | 8,350 | 4,640 |
| 500 | 170 | 770 | 575 | 1,150 | 1,730 | 1,537 | 2,880 | 8,640 | 4,800 |
| 650 | 125 | 735 | 550 | 1,100 | 1,650 | 1,467 | 2,750 | 8,245 | 4,580 |
| 750 | 95 | 710 | 530 | 1,065 | 1,595 | 1,418 | 2,660 | 7,970 | 4,430 |
| 700 | 110 | 725 | 540 | 1,085 | 1,625 | 1,445 | 2,710 | 8,135 | 4,520 |
Yield Strength of DIN 1.4410 Flanges
| Property | Value |
|---|---|
| Yield Strength | 525 MPa |
ASTM A182 F53 Flange Equivalent
| Forging Grade | UNS | AFNOR | WNR |
|---|---|---|---|
| A182 F53 | S32750 | Z3CND25.07Az | 1.4410 |
Check Super Duplex F53 Threaded Flange and S32750 F53 Lap Joint Flange Chemical Composition & Mechanical Properties. Also Find A182 F53 Super Duplex RTJ Flange Applications
SA 182 F53 Flange Chemical Composition
| Element | Composition (%) |
|---|---|
| Mn | ≤1.20 |
| S | ≤0.020 |
| P | ≤0.035 |
| Si | ≤0.80 |
| Mo | 3.0-5.0 |
| Ni | 6.0-8.0 |
| N | 0.24-0.32 |
| C | ≤0.030 |
| Cu | ≤0.50 |
| Cr | 24.0-26.0 |
Explore Nearby Locations for the Quickest Delivery Options
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
UNS N06625 Flanges Mechanical Properties
| Tensile Strength ksi | Elongation (%)(min.) | Proof Strength 0.2% ksi (min.) |
|---|---|---|
| 110-135 | 15 | 80 |
What Are the Applications of Super Duplex Steel F53 Flanges?
| Applications |
|---|
| Petrochemical |
| Chemical Manufacturing |
| Marine Industry |
Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
ASTM A182 F53 UNS S32750 Flange Hardness
| Property | Rockwell C |
|---|---|
| Hardness | 28 (max.) |
How Do You Measure the Size of the F53 Blind Flange?
A182 S32750 Flat Flanges Weight Chart
| Class 600 | ||||||
|---|---|---|---|---|---|---|
| NPS | Thd | Slip On |
Socket Weld |
Blind | Lap Joint |
Weld Neck |
| 1/2 | 0.9 | 0.9 | 0.9 | 1.4 | 0.9 | 1.4 |
| 1 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| 3/4 | 1.4 | 1.4 | 1.4 | 1.8 | 1.4 | 1.8 |
| 1¼ | 2.3 | 2.3 | 2.3 | 2.7 | 2.3 | 2.7 |
| 2 | 4.1 | 4.1 | 4.1 | 4.5 | 4.1 | 5.4 |
| 1½ | 3.2 | 3.2 | 3.2 | 3.6 | 3.2 | 3.6 |
| 2½ | 5.9 | 5.9 | 5.9 | 6.8 | 5.4 | 8.1 |
| 3½ | 9.5 | 9.5 | 9.5 | 13 | 9 | 11.7 |
| 3 | 7.2 | 7.2 | 7.2 | 9 | 6.8 | 10.4 |
| 4 | 16.7 | 16.7 | 16.7 | 18.5 | 16.2 | 18.9 |
| 6 | 36 | 36 | 36 | 38.7 | 35.1 | 36.5 |
| 5 | 28.4 | 28.4 | 28.4 | 30.6 | 28.4 | 30.6 |
| 8 | 51.8 | 51.8 | 51.8 | 63 | 50.4 | 54 |
| 12 | 96.8 | 96.8 | 96.8 | 132.8 | 108 | 101.7 |
| 10 | 79.7 | 79.7 | 79.7 | 103 | 87.8 | 85.5 |
| 14 | 116.6 | 116.6 | 116.6 | 170.1 | 130.5 | 156.2 |
| 18 | 214.2 | 214.2 | 214.2 | 299.3 | 211.1 | 249.8 |
| 16 | 164.7 | 164.7 | 164.7 | 237.2 | 180 | 216.5 |
| 20 | 275.4 | 275.4 | 275.4 | 384.8 | 271.8 | 310.5 |
| 24 | 394.2 | 394.2 | 394.2 | 562.5 | 389.7 | 439.7 |
| 22 | 265.5 | 265.5 | 265.5 | 450 | 301.5 | 324 |
| Weight in Kg | ||||||
Forging Process of SA 182 F53 Blind Flange
A182 Gr F53 Material Can Be Produced Forging Process Free Forging or Die Forging. Forging Procedures Includes the Following Steps:
- Blanking
- Shaping
- Heating
- Cooling
Locate Available Material from Stock
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Super Duplex Steel F53 Flanges Testing
- Corrosion Test
- Hardness Test
- Tensile Test
- Visual Inspection
- Dimensional Examination
- PMI Test
Heat Treatment of ASME B16.5 ASTM A182 Gr F53 Material
| Type | Solution Treat & Quench |
|---|---|
| Quenching Cool Below °F [°C] | 500 [260] |
| Cooling Media | Liquid |
Material Inspection Facilities in the Following Countries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
A182 F53 Super Duplex RTJ Flange Temperature
| Temperature °F | KSI |
|---|---|
| 600 | 29.4 |
| 500 | 29.6 |
| 400 | 30.1 |
| 300 | 31.2 |
| 200 | 33.0 |
| 100 | 33.1 |
Why use Flange Protectors for DIN 1.4410 Flanges?
Content Of Chromium in A182 Gr F53 Material
| Element | Content |
|---|---|
| Chromium | 25% |
SA 182 F53 S32750 Blind Flange Allowable Stress Tension
| Temp. °F | Tension Max.(S) |
|---|---|
| 600 | 34.3 |
| 500 | 34.5 |
| 400 | 35.1 |
| 300 | 36.4 |
| 200 | 38.5 |
| Min. to 100 | 38.7 |
Physical Properties of ASME SA182 F53 UNS S32750 Flange
| Properties | Values |
|---|---|
| Density | 7.8 g/cm 3 |
| Melting Point | 1370°C – 1410°C |
Super Duplex Steel F53 Socket Weld Flanges Machining Considerations
- Cutting: Carbide Tools for Machining
- Cold Bending: 200 – 300°C Preheat to Avoid Cracking
- Grinding: Done at Low Speeds to Avoid Heating & Damage
