ASTM A182 F55 Fasteners

Home > ASTM A182 F55 Fasteners

ASTM A182 F55 Fasteners Product Overview

Size in Ready Stock:	M3-M56
Standards :	ASTM A182
Thread Types :	BSF. UNC, UN8, BSW
ISO Standard :	4033, 4032
Raw Material Origin :	Korean, European, Indian, UK, Japanese, German
DIN Standard :	931, 933
Metric Sizes :	M3 to M180
Thickness :	3-200 mm
Temperature Range :	1100-1140 min°C
Approvals :	MA’ADEN, KNPC, BAPCO, ADNOC, Q CHEM, SABIC, KOC, Saudi Aramco, EIL, KPI
MTC :	EN 10204/3.1B
Test Certificate :	Fumigation Certificates Mill Test Certificate Raw Material Test Certificate
Delivery Time :	Rotterdam : 20 Days \| France : 20-25 Days \| Azerbaijan : 26-32 Days
RFQ:	support@pipingmaterial.ae

Why is Pipingmaterial.ae The First Choice For Oil And Gas Piping Material Buyers In UAE, Saudi Arabia, And Qatar?

Explore Middle East FZE, A UAE-registered company since 2016, has invested its 26 years of deep market knowledge into making Pipingmaterial.ae the smartest sourcing platform for industrial metals in the Middle East.

Verified suppliers
Direct sourcing
Approved vendors
Certified quality
Local stock

Table of Content

ASTM A182 F55 Fasteners Specification
Assorted Types Of ASTM A182 F55 Bolts
Common Types Of ASTM A182 Gr F55 Bolts
Diverse Types of F55 Duplex Washers
Available Types of ASTM A182 Grade F55 Washer
Different Types of A182 Gr F55 Nuts
Distinct Types of UNS S32760 F55 Nuts
ASTM A182 F55 Fasteners Torque Chart
ASME SA182 Gr F55 Screws Applications
F55 Bolts Chemical Composition

A182 Gr F55 Nuts & Bolts Mechanical Properties
SA182 F55 Nut Bolts Strength
A182 F55 Duplex Fasteners Equivalent Standard
ASTM A182 F55 Fasteners Weight Chart
ASTM A182 F55 U Bolt Dimensions
Advantages Of Using Grade F55 Bolts Fasteners
ASTM A182 F55 Fasteners Technical Details
Testing Methods of ASTM A182 Gr F55 Threaded Rod
Surface Coating For ASTM A276 UNS S32760 Heavy Hex Nut

ASTM A182 Grade F55 Bolts and UNS S32760 Nuts Suppliers in UAE

ASTM A182 F55 Fasteners Specification

Get ADNOC Approved ASTM A182 F55 Fasteners Suppliers in UAE offering reliable specifications

ASTM A182 F55 Fasteners Specifications

Size Range: M3-M56

Manufacturing Method: CNC Machined, Cold Forging, Hot Forging

Testing : PMI Test, Hardness Test, Ferritiscope Test

Threads Types : BSW, UNF, CBSF, UN

Threads Pitch : Fine and Coarse

Washer Available Forms : Type A, D, G, B, C, E

Type of Neck : Square, Triangular, Knurled, Hex

Finish: Oxidation and Nickel Plated

Machines: Thread Rolling, CNC Lath, Making Machines

Type of Head: Hex, Heavy Hex, Pan, Oval, Flat, Truss

Application: Marine engineering, Nuclear power plants Furnaces & gas turbines, Chemical processing

Applicable Fluids: Water, Oil, Steam, Air and Gas

Get Quote Directly from ASTM A182 F55 Fasteners Suppliers in UAE

100% Tested ASTM A182 F55 Fasteners with MTC EN 10204 3.1/3.2

Check Size, Price List of ASTM A182 Gr F55 Hex Bolt and SA182 F55 Studs According to ASTM A182 and ASME SA 182

Assorted Types Of ASTM A182 F55 Bolts

ASTM A182 F55 Fasteners

ASTM A182 F55 Material

ASTM A182 Gr F55 Hex Bolt

ASTM A182 Grade F55 Super Duplex U Bolt

SA182 F55 UNS S32760 Flange Bolts

A182 F55 Carriage Bolt

A182 F55 Square Bolt

SA182 F55 Eye Bolt

Super Duplex Stainless Steel A182 F55 Screws

ASTM A182 Gr F55 Socket Head Cap Screw

ASME SA182 Gr F55 Screws

ASTM A182 S32760 Full Thread Studs

SA182 F55 Studs

ASTM A182 F55 Stud Bolt

ASTM A 182 F55 Threaded Rod

Common Types Of ASTM A182 Gr F55 Bolts

Most common ASTM A182 Grade F55 nut bolt	Special UNS S32760 F55 bolting material
UNS S32760 F55 plow bolt A182 F55 flange bolts ASTM A276 S32760 socket bolt F55 Duplex Steel heavy hex bolt ASTM A182 F55 hex bolts A479 S32760 lag bolt ASTM A182 Grade F55 round head bolts A182 gr F55 eye bolts ASTM A276 UNS S32760 carriage bolt A182 F55 Duplex hex head bolt F55 duplex stainless steel shoulder bolt A276 S32760 j bolt F55 Duplex square bolts	A182 gr F55 t-head bolt A182 F55 Duplex machine bolt F55 Duplex Steel 12 point bolt SA182 F55 tap bolt A182 F55 mushroom head square neck bolts ASTM A182 Grade F55 t-head bolt UNS S32760 F55 elevator bolt F55 Duplex foundation bolt ASTM A276 S32760 stove bolt A479 S32760 draw bolt ASTM A276 UNS S32760 hanger bolt F55 duplex stainless steel step bolt

Diverse Types of F55 Duplex Washers

UNS S32760 Washer

Available Types of ASTM A182 Grade F55 Washer

Type of ASTM A182 Grade F55 Washer
ASTM A276 S32760 hexagonal washer F55 Duplex Steel spring washer ASTM A182 F55 flat washer ASTM A182 Grade F55 dome tooth washer F55 duplex stainless steel lock washer SA182 F55 tooth lock washer ASTM A182 Grade F55 square washer UNS S32760 F55 dome washer F55 Duplex Steel hex washers F55 Duplex machined washer UNS S32760 F55 plain washer A479 S32760 customized washer ASTM A479 UNS S32760 tab washer A276 S32760 fender washer A182 F55 punched washer A182 gr F55 ogee washer ASTM A479 S32760 dock washer ASTM A182 F55 split washer A182 F55 Duplex countersunk washer A182 F55 Duplex round washer ASTM A276 UNS S32760 spherical washer

Different Types of A182 Gr F55 Nuts

UNS S32760 Nut

ASTM A182 Grade F55 Bolt And Nut

ASTM A182 Gr F55 Hexagon Nut

UNS S32760 Heavy Hex Nut

Distinct Types of UNS S32760 F55 Nuts

Types of UNS S32760 F55 Nuts
ASTM A276 UNS S32760 Weld Nuts F55 Duplex Steel Hex Nuts ASTM A182 Grade F55 Cage Nuts SA182 F55 Self Locking Nuts F55 duplex stainless steel Dowel Nuts ASTM A479 UNS S32760 Castle Nut ASTM A479 S32760 Square Nut F55 duplex stainless steel Wing Nut A182 F55 Duplex T Nuts A182 F55 Heavy Hex Nut A182 gr F55 Wheel Nuts ASTM A276 UNS S32760 Flange Lock Nut ASTM A479 S32760 Eye Nuts A479 S32760 Dome Nuts A182 gr F55 2 Way Lock Nut UNS S32760 F55 Cap Nut ASTM A182 Grade F55 Lug Nuts ASTM A479 S32760 Dome Head Nuts ASTM A182 Grade F55 Coupler Nuts A182 F55 Duplex Nylon Insert Nut A182 gr F55 Lock Nut A276 S32760 Jam Nut ASTM A276 UNS S32760 Captive Nuts SA182 F55 Flange Nuts A182 F55 Flex Lock Nut A479 S32760 Slotted Nut F55 Duplex Steel K Lock Nut fully threaded F55 Duplex Hex Nuts F55 duplex stainless steel Rivet Nuts ASTM A276 S32760 High Tensile Heavy Hex Nuts

ASME Sa182 Gr F55 Screws and ASTM A182 F55 Material Manufacturer in Dubai, View Torque Chart & Corrosion Resistance

ASTM A182 F55 Fasteners Torque Chart

Bolt Size	TPI	Proof Load (lbs)1	Clamp Load (lbs)2	Tightening Torque (ft lbs)
Bolt Size	TPI	Proof Load (lbs)1	Clamp Load (lbs)2	Galv+Waxed	Galv	Plain
1/4	20	1,053	790	2	4	3
5/16	18	1,735	1,302	3	8	7
3/8	16	2,567	1,925	6	15	12
7/16	14	3,521	2,640	10	24	19
1/2	13	4,700	3,525	15	37	29
9/16	12	6,028	4,521	21	53	42
5/8	11	7,485	5,614	29	73	58
3/4	10	11,062	8,297	52	130	104
7/8	9	15,301	11,476	84	209	167
1	8	20,071	15,053	125	314	251
1 1/8	7	25,271	18,953	178	444	355
1 1/4	7	32,093	24,070	251	627	501
1 3/8	6	38,254	28,690	329	822	657
1 1/2	6	46,534	34,900	436	1,091	873
1 3/4	5	62,928	47,196	688	1,721	1,377
2	4 1/2	82,800	62,100	1,035	2,588	2,070
2 1/4	4 1/2	107,640	80,730	1,514	3,784	3,027
2 1/2	4	132,480	99,360	2,070	5,125	4,140
2 3/4	4	163,282	122,461	2,806	7,016	5,613
3	4	197,726	148,295	3,707	9,268	7,415
3 1/4	4	235,152	176,364	4,777	11,941	9,553
3 1/2	4	275,890	206,917	6,035	15,088	12,070
3 3/4	4	319,939	239,954	7,499	18,746	14,997
4	4	366,970	275,227	9,174	22,936	18,348

ASTM A182 F55 Fasteners Stockist in UAE Material Inspection Facility in Following Locations

Asia	Vietnam, Mongolia, Brunei, Indonesia, Cambodia, Philippines, Laos, Thailand, Myanmar, Singapore, Taiwan, Malaysia
Middle East	Iraq, Syria, Turkey, Jeddah, Abu Dhabi, Beirut, Doha, Umm Al Quwain, Ras Al Khaimah, Fujairah, Manama, Muscat, SCZone, Riyadh, Al Khobar, Sharjah, Yemen, Al Jubail, Jebel Ali, Saudi Arabia, Dubai, Lusail, Sohar, Lebanon, Amman, Ajman, Dammam, Jordan
Europe	Germany, Armenia, Netherlands, Andorra, France, Italy, Georgia, Belgium, Azerbaijan

ASME SA182 Gr F55 Screws Applications

Piping Components
Aerospace
Chemical Processing
Oil & gas Industry

View UNS S32760 Washer/ Stud Bolt and A182 F55 Chemical Composition, Yield Strength, Weight Chart & Dimension Table

F55 Bolts Chemical Composition

Grade	UNS	Ti	Other	Cr	Mo	CbB	Si	Ni	P	S	C	Mn
ASTM A182 Grade F55	S32760	–	N 0.20-0.30 Cu 0.50-1.00 W 0.50-1.00O	24.0-26.0	3.0-4.0	–	1.00	6.0-8.0	0.030	0.010	0.030	1.00

A182 Gr F55 Nuts & Bolts Mechanical Properties

Grade	Tensile Strength, min, ksi [MPa]	Elongation in 2 in. [50 mm] or 4D, min, %	Yield Strength, min, ksi [MPa]B	Reduction of Area, min, %
ASTM A182 Grade F55	109-130 [750-895]	25	80 [550]	45

SA182 F55 Nut Bolts Strength

Tensile Strength	Yield Strength
750-895 MPa	550 MPa

A182 F55 Duplex Fasteners Equivalent Standard

STANDARD	UNS	WERKSTOFF NR
ASTM A182 F55	UNS S32760	1.4501

ASTM A182 F55 Fasteners Weight Chart

Diameter / Length	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M30
4	0.48
5	0.53	1.26
6	0.57	1.33	2.18	3.40
7	0.61	1.41	2.28	3.57	5.60
8	0.66	1.49	2.38	3.74	5.85	8.5	15.2
10	0.75	1.64	2.63	4.08	6.35	9.1	16.2	23.3	38.0
12	0.84	1.80	2.87	4.42	6.85	9.8	17.2	25.0	40.0	52.9
14	0.92	1.95	3.12	4.76	7.35	10.5	18.2	26.4	42.0	55.6
16	1.00	2.10	3.37	5.11	7.85	11.1	19.2	27.7	44.0	58.3	82.0	105	133	173
18	1.09	2.25	3.62	5.45	8.35	11.7	20.2	29.1	46.0	60.9	84.9	110	137	178
20	1.18	2.41	3.87	5.80	8.85	12.3	21.2	31.0	48.0	63.5	87.2	114	143	184
22	1.27	2.56	4.12	6.15	9.35	12.9	22.2	33.0	50.0	66.2	92.2	119	148	190
25	1.40	2.80	4.49	6.65	10.00	13.9	23.7	34.1	53.0	70.2	95.8	124	155	199
28	1.52	3.04	4.86	7.15	10.70	14.9	25.2	36.2	55.9	74.2	100.0	129	161	200
30	1.61	3.19	5.11	7.51	11.30	15.5	26.2	37.7	57.9	76.9	104.0	134	168	214
35		3.57	5.73	8.37	12.50	17.1	28.7	41.3	62.9	83.5	112.0	145	181	229	424
40		3.96	6.35	9.23	13.80	18.7	31.2	44.9	67.9	90.2	120.0	155	193	244	448
45		4.34	6.99	10.10	15.00	20.3	33.7	48.5	72.9	97.1	128.0	165	206	259	472
50		4.73	7.59	11.00	16.30	21.8	36.2	52.0	77.9	103.0	136.0	176	219	274	496
55		5.12	8.21	11.90	17.50	23.4	38.7	55.6	82.8	110.0	145.0	186	232	289	519
60		5.50	8.83	12.70	18.70	25.0	41.3	58.2	87.8	117.0	153.0	196	244	304	543
65		5.89	9.45	13.60	20.00	26.6	43.8	62.8	92.8	123.0	161.0	207	257	319	566
70		6.28	10.10	14.40	21.20	28.2	46.3	66.4	97.9	130.0	169.0	217	269	334	590
75			10.70	15.30	22.50	29.8	48.8	70.0	102.0	137.0	177.0	227	282	348	614
80			11.30	16.20	23.70	31.4	51.3	73.6	107.0	144.0	186.0	238	295	363	637
85					25.00	33.0	53.8	77.2	112.0	150.0	194.0	247	308	378	661
90					26.20	34.6	56.3	80.8	117.0	157.0	202.0	258	321	393	685
95					27.50	35.2	59.8	84.4	122.0	164.0	210.0	268	333	408	708
100					28.70	37.7	61.3	88.0	127.0	170.0	218.0	279	346	423	732
110						40.9	66.4	95.2	137.0	184.0	235.0	300	371	453	779
120							71.4	102.0	147.0	197.0	251.0	320	397	483	827
130							76.4	109.0	157.0	210.0	268.0	340	421	513	874
140							81.4	116.0	167.0	224.0	284.0	361	448	543	921
150							86.4	123.0	177.0	237.0	300.0	381	473	572	969
160											316.0	402	498	602	1010
170											332.0	422	523	632	1060
180											348.0	442	548	662	1110
190											364.0	462	573	692	1160

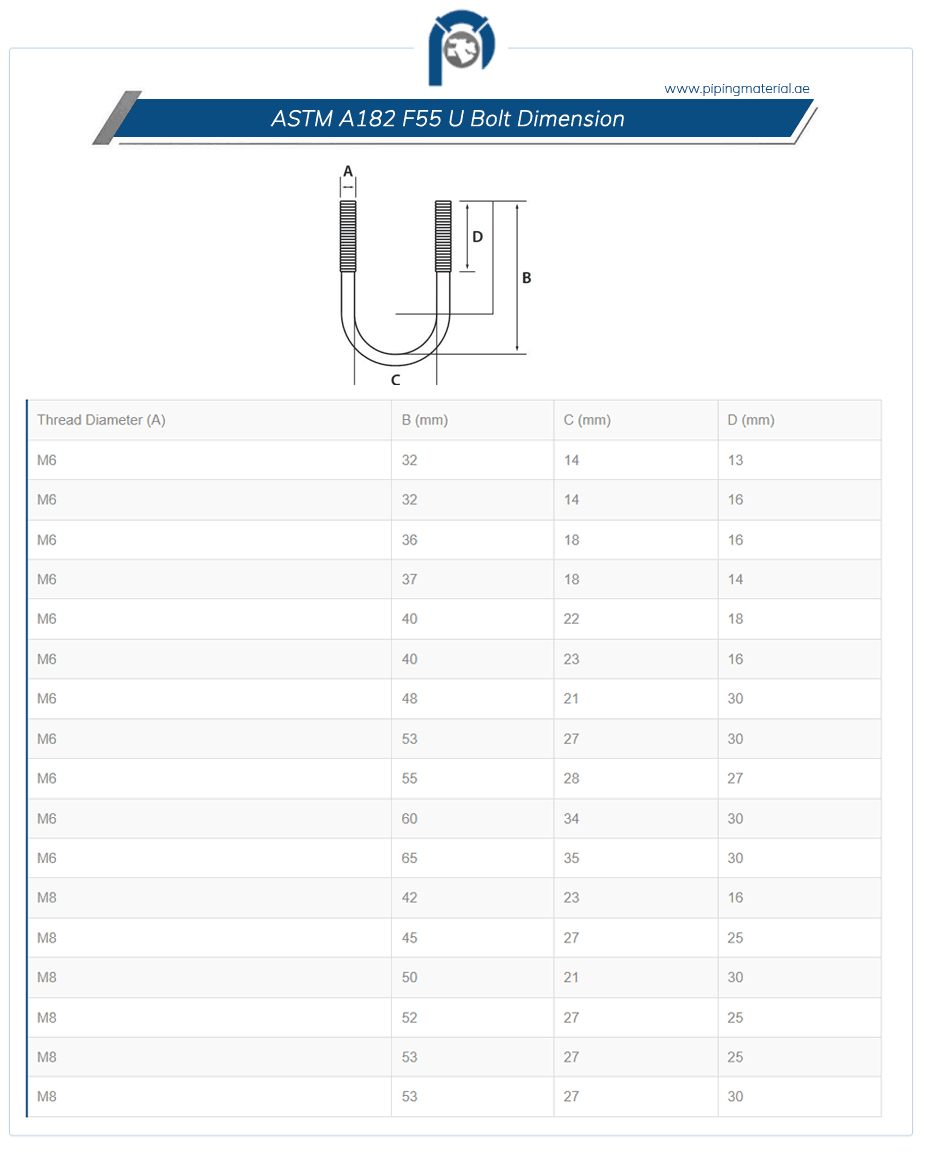

ASTM A182 F55 U Bolt Dimensions

ASTM A182 F55 Fasteners Manufacturers in UAE Sales Representative Available To Provide Quick Quote

Country	Cities
Netherlands	Amsterdam, The Hague, Eindhoven, Haarlem, Rotterdam
Belgium	Westerlo, Leuven, Brussels, Seraing, Meeuwen-Gruitrode, Ghent, Antwerp

Advantages Of Using Grade F55 Bolts Fasteners

High Strength
Versatility
Durability
Low Maintenance

ASTM A182 F55 Fasteners Technical Details

ASTM A182 Grade F55 hex bolt sizes	A182 gr F55 washer size chart	A182 F55 Duplex other fasteners
Imperial A182 gr F55 bolt: 1/4″ to 4″ Metric SA182 F55 bolt: M1.2 – M48 Length: 12 – 1200mm (1/2″ – 4.0″) Most common sizes M8 A276 S32760 hex bolt M10 ASTM A479 S32760 hex bolt M12 F55 duplex stainless steel hex bolt	1/4″ to 3″ M3 – M36	Super Duplex Threaded Rod Super Duplex Screws SA182 F55 anchor bolt F55 Duplex screws
A182 F55 Duplex grades	Standard	F55 duplex stainless steel temperature range
Duplex F55	ASTM A182 F55 ASTM A276 UNS S32760 ASTM A479 UNS S32760	-45º to 316ºC
F55 Duplex Steel hex bolt thread class	UNS S32760 F55 bolt head types	ASTM A276 UNS S32760 manufacturing method
5 ONF 2G 6G 5 CSF Class 3A (Tight fit) 4G 5 HF custom 3G 8G Class 2A (Medium fit) Class 1A (Loose fit) Contact above ASTM A182 F55 Fasteners suppliers, stockholders & manufacturers for long length material	Truss Button head Hex head Oval Phillips Drive Hex / Socket / Allen Drive Slotted hex washer Combination Drive Hex washer head Socket cap head Frearson Drive Flat Slotted Drive Pan	Hot Forged CNC machined Cold Forged Compare price of stockist & ASTM A182 F55 Fasteners manufacturers and buy A182 F55 Duplex at best price in South Africa, Oman, Qatar, Saudi Arabia, USA, UAE & Nigeria
ASTM A182 F55 required testing & certificates	A276 S32760 machine bolts thread types	A182 F55 Duplex end
Tensile test Charpy V-notch test Rockwell / Brinell Hardness test Impact testing Microstructure Analysis EN 10204 / 3.1, 3.2	2-thread series (12-UN) Metric coarse Fine Thread (UNF) BSF Metric fine UNEF 8-Thread Series (8UN) Coarse thread (UNC) UNJ ACME Trapezoidal	Gimlet point Cone point Sheared end Semi-cone point Half point 45 degree angle cut Chamfer end Chisel point Milled end
A182 gr F55 eye bolt meet standards	SA182 F55 nut bolts applications	F55 Duplex Steel hex bolts surface treatments
ANSI B 28.2.4 1M IS – Indian UNI – Italy ASME B1.1 ASTM A722 ASME B1.5 BS – British ASME B16.5 ANSI B 18.2.4 2M ISO 4014 SAE -America GB T5783 /T5782 / 5783 ISO 4017 Polish PN JIS – Japan ISO ASME – USA DAST 021 DIN 933 ASTM A1082 DIN 931 ANSI – USA EU – Europe DIN – Germany CSN – Spain	Solar plants Flange joints Wind mills Ship building Aerospace Automotive industry Offshore Petrochemical plants Rigs Bridge construction	Cadmium Mechanical Black Finish Hot Dip Galvanized Yellow Zinc Plated Plain Green Finish Black Oxide Zinc Nickel Oil Nickel Plated Clear Zinc Plated PTFE/ Teflon

Are You Searching For Your Specific Size in ASTM A 182 F55 Threaded Rod? Also Check the Difference Between ASTM A182 Gr F55 Socket Head Cap Screw and UNS S32760 Heavy Hex Nut

Testing Methods of ASTM A182 Gr F55 Threaded Rod

Check SABIC Approved ASTM A182 F55 Fasteners Suppliers in UAE providing verified testing methods

X-Ray Testing
Hardness Testing
Ferritiscope Testing
PMI Testing
