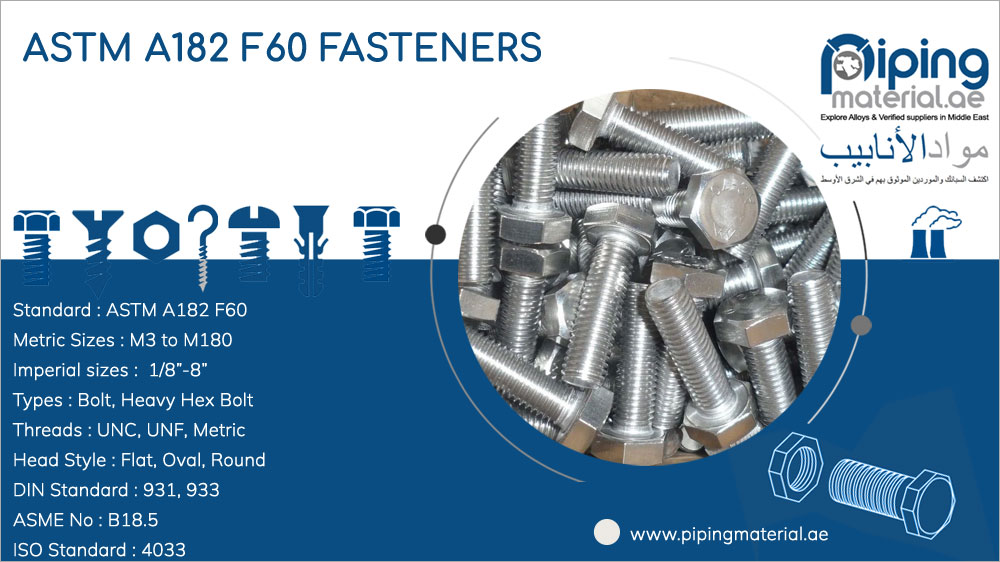

ASTM A182 F60 Fasteners

ASTM A182 F60 Fasteners

Fasteners produced according to this standard are super duplex stainless steel components intended for use in high-temperature environments. ASTM A182 F60 Fasteners have exceptional resistance to corrosion and mechanical properties that are far superior compared to regular stainless steel alloys.

Verified Supplier

Verified manufacturers and stockists

UNS S32205 hex bolt manufacturer in UAE, check ASTM A182 F60 bolts heat treatment

ASTM A182 F60 fasterner specification


ASTM A182 F60 Fasteners Specifications

A182 gr F60 hex bolt sizes SA182 F60 washer size chart A182 F60 bolts other fasteners
  • Imperial A182 F60 bolt: 3/6″ to 2″
  • Metric F60 duplex steel bolt: M3 to M56
  • Length: 3 to 200 mm

Most common sizes

  • M8 A182 F60 duplex hex bolt
  • M10 ASTM A182 grade F60 hex bolt
  • M12 UNS S32205 F60 hex bolt
  • 3/6″ to 2″
  • M3 to M56




ASTM A182 F60 bolts grades UNS S32205 hex bolts ASTM standard F60 washer temperature range
  • Grade F60
  • ASTM A276
  • ASTM A479
  • ASTM A182
  • 1350 °C
  • 2460 °F
A276 UNS S32205 heavy hex bolts thread class A182 gr F60 hex bolt head types A479 UNS S32205 socket head bolts manufacturing method
  • 6G
  • 4G
  • 5 CSF
  • Class 1A (Loose fit)
  • Class 2A (Medium fit)
  • 3G
  • 8G
  • 2G
  • 5 HF
  • Class 3A (Tight fit)
  • 5 ONF
  • custom

Contact above ASTM A182 F60 fasteners manufacturers & suppliers to see thread diameter

  • Socket cap head
  • Button head
  • Slotted hex washer
  • Slotted Drive
  • Truss
  • Hex / Socket / Allen Drive
  • Frearson Drive
  • Phillips Drive
  • Combination Drive
  • Flat
  • Hex head
  • Pan
  • Oval
  • Hex washer head
  • Cold Forged
  • Hot Forged
  • CNC machined

Have customized requirements? Contact above listed ASTM A182 F60 fasteners suppliers & distributors in middle east, Qatar, Saudi Arabia (KSA), Oman & Kuwait

ASTM A479 S32205 eye bolt required testing & certificates ASTM A276 S32205 nut bolts thread types ASTM A182 F60 square bolts end
  • Microstructure Analysis
  • Tensile test
  • Impact testing
  • 3.2
  • Rockwell / Brinell Hardness test
  • Charpy V-notch test
  • EN 10204 / 3.1
  • BSF
  • 12-thread series (12-UN)
  • UNEF
  • Fine Thread (UNF)
  • Coarse thread (UNC)
  • 8-Thread Series (8UN)
  • Metric coarse
  • Metric fine
  • UNJ
  • ACME
  • Trapezoidal
  • Half point
  • Milled end
  • Cone point
  • Gimlet point
  • Chamfer end
  • Sheared end
  • Semi-cone point
  • Chisel point
  • 45 degree angle cut





F60 duplex steel flange bolts meet standards A182 F60 carriage bolts applications F60 Duplex machine bolts surface treatments
  • SAE -America
  • ASME – USA
  • ISO
  • IS – Indian
  • JIS – Japan
  • ANSI – USA
  • ANSI B 18.2.4 2M
  • ASME B16.5
  • ASTM A1082
  • GB T5783 /T5782 / 5783
  • EU – Europe
  • CSN – Spain
  • ASME B1.1
  • Polish PN
  • ISO 4017
  • ASTM A722
  • UNI – Italy
  • BS – British
  • DIN – Germany
  • DAST 021
  • ISO 4014
  • DIN 933
  • DIN 931
  • ASME B1.5
  • ANSI B 28.2.4 1M
  • Flange joints
  • Automotive industry
  • Wind mills
  • Rigs
  • Solar plants
  • Offshore
  • Aerospace
  • Bridge construction
  • Petrochemical plants
  • Ship building
  • Yellow Zinc Plated
  • Mechanical
  • Nickel Plated
  • Hot Dip Galvanized
  • Cadmium
  • Green Finish
  • Zinc Nickel
  • Oil
  • PTFE / Teflon
  • Black Oxide
  • Clear Zinc Plated
  • Plain
  • Black Finish

Suppliers of A182 F60 hex bolt and SA 182 F60 studs, find your choice of sizes, temperature & updated price list of ASTM A182 grade F60 stud bolt

Types of A182 F60 bolts

Check large stock of A182 gr F60 U bolts with leading stockist, manufacturers & suppliers in middle east

ASTM A182 F60 Fastener

ASTM A182 F60 Fastener

ASTM A182 F60 Threaded Rod

ASTM A182 F60 Threaded Rod

ASTM A182 F60 Bolts

ASTM A182 F60 Bolts

ASTM A182 F60 Hex Bolt

ASTM A182 F60 Hex Bolt

ASTM A182 F60 U Bolt

ASTM A182 F60 U Bolt

ASTM A182 F60 Flange Bolt

ASTM A182 F60 Flange Bolt

A182 F60 Anchor Bolt

A182 F60 Anchor Bolt

F60 Duplex Square Bolt

F60 Duplex Square Bolt

ASTM A182 Gr F60 Eye Bolt

ASTM A182 Gr F60 Eye Bolt

SA 182 F60 Stud Bolt

SA 182 F60 Stud Bolt

A182 F60 Carriage Bolt

A182 F60 Carriage Bolt

A182 Gr F60 Heavy Hex Head Bolt

A182 Gr F60 Heavy Hex Head Bolt

F60 Duplex Flat Washer

F60 Duplex Flat Washer

A 182 F60 Full Thread Studs

A 182 F60 Full Thread Studs

Gr F60 Screws

Gr F60 Screws

ASTM A182 F60 Socket Head Cap Screw

ASTM A182 F60 Socket Head Cap Screw

Super Duplex F60 Hex Head Screw

Super Duplex F60 Hex Head Screw

ASTM A182 F60 Set Screw

ASTM A182 F60 Set Screw

ASTM A 182 Gr F60 Countersunk Screw

ASTM A 182 Gr F60 Countersunk Screw

A182 F60 Duplex Stainless Steel Hex Nut

A182 F60 Duplex Stainless Steel Hex Nut

ASTM A182 F60 UNS S32205 Lock Nut

ASTM A182 F60 UNS S32205 Lock Nut

SA 182 F60 UNS S32205 Hexagon Nut

SA 182 F60 UNS S32205 Hexagon Nut

ASTM A182 F60 Washers

ASTM A182 F60 Washers

A182 F60 Punched Washer

A182 F60 Punched Washer

ASTM A182 Gr F60 Tab Washer

ASTM A182 Gr F60 Tab Washer

Most common A182 gr F60 nut bolt Special SA182 F60 bolting material
  • ASTM A276 UNS S32205 j bolt
  • A276 UNS S32205 square bolts
  • A479 UNS S32205 hex bolts
  • ASTM A479 S32205 heavy hex bolt
  • ASTM A276 S32205 hex head bolt
  • ASTM A182 F60 round head bolts
  • F60 Duplex Steel eye bolts
  • A182 F60 socket bolt
  • F60 Duplex shoulder bolt
  • A182 gr F60 lag bolt
  • SA182 F60 carriage bolt
  • A182 F60 Duplex plow bolt
  • ASTM A182 Grade F60 flange bolts
  • UNS S32205 F60 draw bolt
  • F60 duplex stainless steel 12 point bolt
  • ASTM A276 UNS S32205 elevator bolt
  • ASTM A479 S32205 hanger bolt
  • F60 Duplex Steel mushroom head square neck bolts
  • A479 UNS S32205 t-head bolt
  • F60 Duplex tap bolt
  • SA182 F60 stove bolt
  • ASTM A182 Grade F60 step bolt
  • F60 duplex stainless steel foundation bolt
  • A182 gr F60 machine bolt
  • A182 F60 t-head bolt

Types of F60 washers

  • ASTM A276 UNS S32205 flat washer
  • A276 UNS S32205 dock washer
  • A479 UNS S32205 spring washer
  • ASTM A479 S32205 countersunk washer
  • ASTM A276 S32205 hexagonal washer
  • ASTM A182 F60 customized washer
  • F60 Duplex Steel dome washer
  • A182 F60 plain washer
  • F60 Duplex ogee washer
  • A182 gr F60 round washer
  • SA182 F60 spherical washer
  • A182 F60 Duplex punched washer
  • ASTM A182 Grade F60 machined washer
  • UNS S32205 F60 lock washer
  • F60 duplex stainless steel fender washer
  • A182 gr F60 split washer
  • F60 Duplex Steel square washer
  • ASTM A276 S32205 hex washers
  • A276 UNS S32205 dome tooth washer
  • F60 Duplex tooth lock washer
  • ASTM A182 F60 tab washer

ASTM A276 UNS S32205 hex bolts strength

Grade Yield Strength
0.2% Proof min
Tensile Strength
min
UNS S32205 80000 psi

550 Mpa

116000 psi

800 Mpa

ASTM A182 gr F60 equivalent material

STANDARD WERKSTOFF NR. UNS
A182 grade F60 1.4462 S32205

ASTM A182 F60 chemical composition

Grade Fe Mn C N Si S P Mo Cr Ni
A182 gr F60 63.54 min 2.00 max 0.030 max 0.8 – 0.20 1.00 max 0.020 max 0.030 max 2.50 – 3.50 21.0 – 23.0 4.50 – 6.50

ASTM A182 F60 Fasteners Chemical Composition

A182 F60 bolts mechanical properties

Grade Density Elongation
(% in 50mm)
Melting Point
SA182 F60 7.8 g/cm3 15 2460 °F (1350 °C)

ASTM A182 F60 Fasteners Mechanical Properties

See A182 F60 material price list in Dubai, also check ASTM A182 grade F60 socket head cap screw vs SA182 F60 hex nut

ASTM A182 Grade F60 Socket head cap screws are fasteners that are installed by turning their heads. They are preferred in applications that require secure fastening. A hex key is often used to secure them. SA182 F60 Hex Nuts are fastened to a bolting unit with a wrench. The right torque can prevent the assembly from becoming loose. Hex nuts are very versatile and find use in different bolting applications.

These nickel-based components are heat treated by usually annealing or using a solution treatment at a temperature of 1870oF. After this treatment, they are cooled in a liquid medium and quenched below 500oF. Tempering the fasteners can give them improved hardness and higher tensile strength.

It is vital to use UNS S32205 Fasteners between 300°C to -50°C. There are two reasons for this. First, using the alloy above 300°C causes embrittlement of constituents leading it to undergo precipitation. And second, beyond a temperature of -50°C, the fasteners undergo a ductile to brittle transition, rendering the alloy unusable.

Refer ASTM A182 GR F60 heavy hex bolt, SA182 F60 washer and ASTM A182 F60 chemical composition, equivalent & specification

The alloy exhibits resistance to local attacks such as intergranular, crevice and pitting corrosion. Even at moderately high temperatures, the ASTM A182 F60 Hex Bolt will resist chloride stress corrosion cracking. These fasteners are a part of critical applications where conventional grades like 304 or 316 are likely to experience failure.

A182 GR F60 heavy hex bolt manufacturers in the Middle East and Asia can supply to your specifications at a great deal. Check the ASTM A182 F60 screws/ threaded rod advantages and disadvantages

Duplex fasteners tend to work well in caustic environments. They are reliable and have excellent resistance to abrasion. While regular stainless steel alloys experience failure in the presence of high levels of chlorine, F60 Fasteners can last longer.

A major disadvantage is that the fasteners can only be used between 300°C to -50°C. It gets oxidized above 300°C.
