ASTM A193 B8C Bolts Product Information
| Steel Type | Austenitic Stainless Steel |
|---|---|
| Bolts Head | Flat, Button, Hex, Round, Truss |
| Environments | Highly Corrosive Environments |
| Dimensions Standard | ASME B18.3, B18.2.1 |
| Origin | Russian, American, Janpanese, European, Korean |
| Threads Configuration |
|
| Hardness | 223 HBW or 96 HRB |
| Heat Treatment | Carbide Solution Treated |
| Certification |
|
| End Type | Sheared, Flat or Saw cut, Chamfered, Rounded, Oval |
SA 193 Gr B8c Hex Bolt and A193 B8c Stud Bolt suppliers in UAE

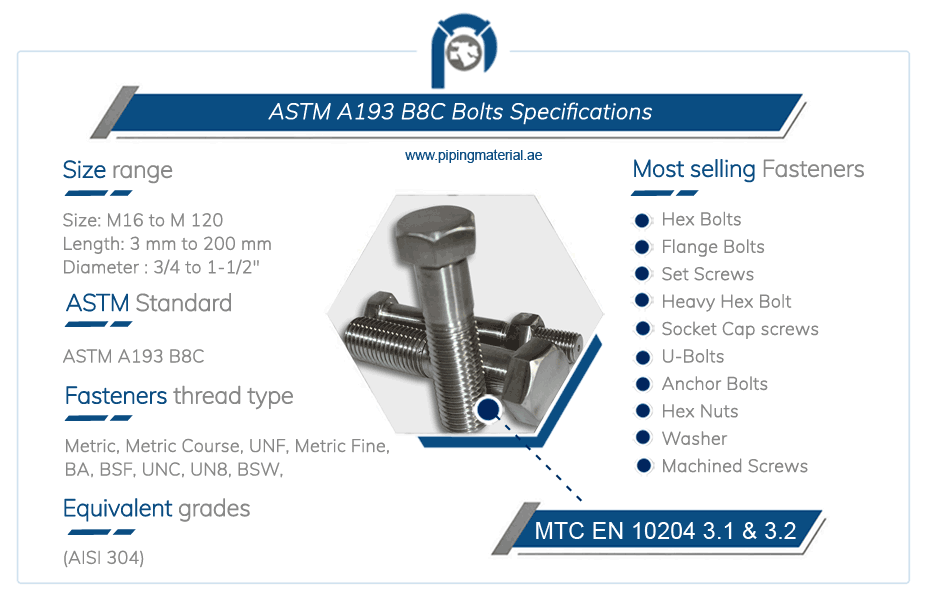

ASTM A193 B8C Bolts Specifications
Size Range: M2 to M120 or Custom Sizes
Length: 3 To 200 Mm
Threads Requirement : UNC & UNF, UN, BSW
Testing : PMI Test, Tensile Test, Hardness Test, Ferritiscope Test
Coating : Teflon, Galvanized, Cadmium, Black Oxide, Zinc, Xylan
Threads Pitch : Fine and Coarse
Type of Neck : Square, Hex, Knurled, Triangular & Knurled
Finish: Nickel Plated and Oxidation
Type of Head: Pan, Flat, Heavy Hex, Hex, Truss, Oval
Machines: Thread Rolling, CNC Lath, Making Machines
Application: Food Processing, Aerospace and Automotive
Applicable Fluids: Oil, Steam, Water, Air and Gas
Get Quote Directly from ASTM A193 B8C Bolts suppliers in UAE
Manufacturing Method: Cold Heading, Inspection, Wire Drawing, Heat Treatment, Surface Plating, Insert tapping
ASTM A193 B8c Socket Head Cap Screws as per ISO 4762, DIN 912 Standards
ASTM A193 B8C Bolts DIN and ISO Standards
| DIN Standards | ISO Standards |
| DIN 84, DIN 85, DIN 94, DIN 125A, DIN 125B, DIN 127B,DIN 137B, DIN 315, DIN 439B, DIN 911 | ISO 7379 |
| DIN 912, DIN 916, DIN 931, DIN 933, DIN 934, DIN 939, DIN 960, DIN 961, DIN 963, DIN 964 | ISO 7380 |
A193 gr 8c Socket Head Cap Screws and B8c bolt for OCTG, oil and gas sector
Applications of A193 B8C Stud Bolt
Find ASTM A193 B8C Bolts Suppliers in UAE, Offers a Various Industrial Applications for Bolts.
Contact Us Now for a List of Clients Situated in the Cities Listed Below
| Al Jubail | Ajman | Saudi Arabia | Abu Dhabi |
|---|---|---|---|
| Riyadh | Ras Al Khaimah | Muscat | Dubai |
| Fujairah | Doha | Sharjah | Umm Al Quwain |
No middle man, no extra cost! Give an order directly to the manufacturers of SA 193 B8c Eye Bolt and ASTM B8c Hex Bolts. A193 b8c material at factory price in Dubai
Locate Available Material from Stock
| Region | City | Country |
|---|---|---|
| Middle East | Kuwait City | Kuwait |
| Africa | Johannesburg | South Africa |
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Doha | Qatar |
| Africa | Lagos | Nigeria |
| Middle East | Dubai | United Arab Emirates |
| Africa | Cape Town | South Africa |
| Middle East | Riyadh | Saudi Arabia |
| MENA | Cairo | Egypt |
| Middle East | Dammam | Saudi Arabia |
| Middle East | Jeddah | Saudi Arabia |
| MENA | Casablanca | Morocco |
| Africa | Abuja | Nigeria |
Types of ASTM A193 B8C Bolts
ASTM A193 B8C Stud Bolts
SA 193 Gr B8C Hex Bolts
A193 B8C Socket Head Cap Screws
A193 gr 8c Structural Bolts
ASTM A193 B8C Nuts
SA 193 B8C Anchor Bolts
A193 Gr B8c Anchor Bolts and SA 193 Gr B8c Heavy Hex Bolt with high power ultrasonic inspection reports
A193 Gr 8C Socket Head Cap Screws Testing
Check ASTM A193 B8C Bolts Suppliers in UAE, Provides Outstanding & Different Testing Methods.

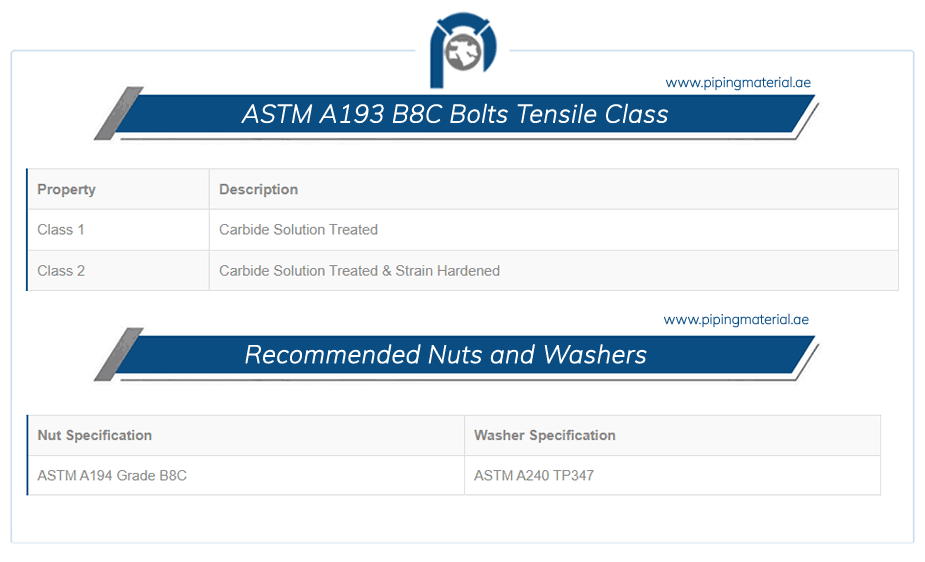

ASTM A193 B8C Bolts Tensile Class
ASTM B8C Hex Bolts Temperature Range
View ASTM A193 B8C Bolts Suppliers in UAE, Provides a Accurate Temperature Range for Bolts.
| Material | Temperature Range |
|---|---|
| B8C Bolt | -321°F to 1600°F. |
Call Now for a Free Sample, Which Can Be Arranged From the Cities Specified Below
| Country | Cities |
|---|---|
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Haarlem |
| Belgium | Leuven |
| Netherlands | Amsterdam |
| Belgium | Westerlo |
| Belgium | Seraing |
| Netherlands | Rotterdam |
| Belgium | Antwerp |
| Belgium | Brussels |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | The Hague |
ASTM A193 B8C Bolts Chemical Composition
| Grade | C | Mn | Si | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| B8C Bolt | 0.08% max | 2.00% max | 1.00% max | 0.045% | 0.030% | 10.0 – 14.0% | 16.0 – 18.0% | 2.00 – 3.00% |
SA 193 B8C Eye Bolt Mechanical Properties
| Tensile Class | Diameter Inch | Yield Strength min, 0.2% offset, ksi | Tensile Strength, min, ksi | Reduction of Area min, % | Elongation in 4D min, % | Hardness max |
| Class 1A | All Sizes | 30 | 75 | 50 | 30 | 223 HBW or 96 HRBC |
| Class 2B | 3/4 and under | 100 | 125 | 35 | 12 | 321 HBW or 35 HRC |
| over 3/4 to 1 inclusive | 80 | 115 | 35 | 15 | ||
| over 1-¼ to 1½ inclusive | 50 | 100 | 45 | 28 | ||
| over 1 to 1-¼ inclusive | 65 | 105 | 35 | 20 |
ASTM A193 B8C Bolts Equivalent Material
| Material | DIN | UNS | EN | BS | AFNOR | Werkstoff No |
|---|---|---|---|---|---|---|
| B8C Bolt | 1.4550 | S34700 | X6CrNiNb18-10 | 347S31 | Z6CNNb18-10 | 1.4550 |
ASTM A193 B8C Bolts Properties
