ASTM A193 Bolts Overview

Grade	ASTM A193 Bolts
Manufacturing Standard	ASME B18.2.1, ASME B18.6.3, ANSI B1.1, GB5783, IS:1364, BS 3692, UNI 5737
ISO Standard	ISO 4017, ISO 4033, ISO 4032, ISO 4014, ISO 7380
DIN Standard	DIN 931, DIN 934, DIN 933, DIN 603, DIN 912, DIN 970, DIN 6923, DIN 7982, DIN916, DIN 7981, DIN 7985, DIN 913
Threads Specification	UNF-3B, UNC, UNF, 8UN, UNJF-3A, UNS, NPT, NPTF, BSF, BSW, UNEF, Metric Fine, Metric Course
Standard Sizes in mm	M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M27, M30, M36

ASTM A193 Material suppliers in UAE

ASTM A193 Bolts Specifications

Metric Sizes : M2 – M56, 3/2″ – 2″

Heads : Square, Round, Hex flange, Hex Head, Triangular, Flat, T-head

ASTM A193 Fasteners Type : Hex Bolts, Nuts, Washers, Screws

Make : Sundaram, TVS, UNBRAKO, LPS, BOLTMASTER, PFL, Fischer, DFL, VIF, BOSSARD

Buy Directly from ASTM A193 Bolts suppliers in UAE

100% Tested ASTM A193 Bolts with MTC EN 10204/3.1

Does the length of an ASTM A193M Heavy Hex Bolt include the head ?

No, the length of an ASTM A193M Heavy Hex Bolt doesn’t include the head

Buy ASTM A193 Fasteners and SA193 Hex Bolt in 1/4 to 7 inches at lowest price in Dubai

A193M Hex Head Bolt Size Chart

Thread Sizes (D1)	S	E	K
M30	46	50.85	18.7
M27	41	45.2	17.0
M24	36	39.98	15.0
M22	32	35.72	14.0
M20	30	33.53	12.5
M18	27	30.14	11.5
M16	24	26.75	10.0
M14	22	24.49	8.8
M12	19	21.1	7.5
M10	17	18.9	6.4
M8	13	14.38	5.3
M6	10	11.05	4.0
M5	8	8.79	3.5
M4	7	7.66	2.8
M3	5.5	6.01	2.0

Why Is Selecting the Right Grade Important ?

Ensure structure the integrity of project
Can withstand working pressure condition
Match’s the operating temperature requirement
Improve service life & durable
Prevents material failure & premature wear
Enhances safety & reliability
Resists corrosion environment

Compatibility Chart for ASTM A193 Fasteners

Grades	A194 Heavy Hex Nut Grade
Gr B6	6
Gr B5	3
Gr B16	4 / 7 / 16
Gr B7M	2HM
Gr B8M (Class 1 & 2)	8M
Gr B8 (Class 1 & 2)	8
Gr B7	2H / 4 / 7

Different Material of ASTM A193 Bolts

ASTM A193 Hex Bolts

AISI 4142
Energy Production

ASTM A193 Hex Bolts

SA193 Hex Nuts

Bolt Grade : B7, B8 Cl 1, B8M Cl 1, B8 Cl 2, B8M Cl 2
M3 To M56

SA193 Hex Nuts

ASTM A193M Screws

B.S 1506.621 Gr A
ASTM A194 Alloy Steel Screws

ASTM A193M Screws

SA193M Washers

S32100
Highly Strength

SA193M Washers

A193M Threaded Rod

WNr. : 1.4541
Heat Treatment : Carbide Solution Treat

A193M Threaded Rods

ASME SA193 Socket Head Bolts

ASME SA 193 Gr B8R Class 1C Socket Head Cap Bolts
Higher Tensile Property

ASME SA193 Socket Head Bolts

A193 Flange Bolts

321S31
EN X6CRNITI18-10

A193 Flange Bolts

ASME SA193M Socket Head Cap Screw

Yield Strength 0.2 % offset : 205 Mpa (min.)
AFNOR 42 CD 4

ASME SA193M socket head cap screw

ASTM A193 Hex Cap Screws

ASTM A193 B7 Socket Head Cap Screws
Reduction of Area (min.) : 50%

ASTM A193 Hex Cap Screws

SA193 Heavy Hex Bolts

AISI 4140
NACE MR0103

SA193 Heavy Hex Bolts

ASTM A193M Eye Bolt

Coating : Xylan Coated
DIN 42Cr Mo4

ASTM A193M Eye Bolt

SA193M Anchor Bolts

Classes 1, 1A, 2
Certified : PED 97/23/EC

SA193M Anchor Bolts

A193M Carriage Bolts

BS2337
Unified Thread : ASME B1.1 2A/3A

A193M Carriage Bolts

ASME SA193 Square Bolts

ASTM A193 Gr B8R Class 1C Square Bolts
A193 B8R Class 1C Square Bolts

ASME SA193 Square Bolts

A193 U Bolts

Area of Reduction : 50% (min.)
Upto 2-1/2″ To 7″

A193 U Bolts

ASME SA193M Machine Bolts

Merkblatt AD 2000 W2 Certified Fasteners
Requirements : ISO 15156 Compliance

ASME SA193M Machine Bolts

ASTM A193 Full Threaded Hex Bolts

A193 Full Threaded Rod
Hardness Tested Bolts

ASTM A193 Full threaded hex bolts

SA193 Half Thread Hex Bolts

Packaging : Wooden Crates
Mostly Used in General Structural Purpose

SA193 Half Thread hex bolts

ASTM A193M Hex Head Bolts

Additional Requirement : MR0175
DIN 976

ASTM A193M Hex Head Bolts

SA193M Long Hex Head Bolts

A193 Grade B8 Class 2 Bolts
Diameter : 2-1/2″ – 4″

SA193M long hex head bolts

A193M Heavy Hex Head Bolts

Carbon Content Upto 0.48%
ASTM A193 Heavy Hex Bolts Supplier

A193M heavy hex head bolts

ASME SA193 Finished Hex Head Bolts

Size : Upto 7 Inch
Corrosion Resistance Finished

ASME SA193 Finished Hex Head Bolts

Check ASTM A193M Heavy Hex Bolt and ASME SA193 U-bolts dimensions, specifications, grades and torque chart

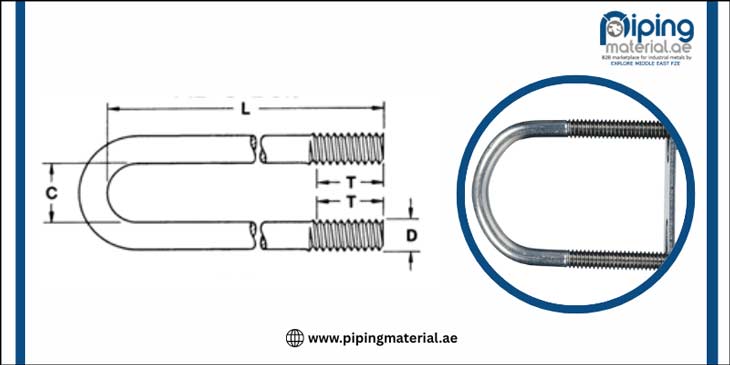

ASME SA193 U-bolts Dimensions Chart

Bolt Diameter	Nominal Sizes	Hook (C)	Length (L)	Thread Length (T)
1	36	36 1/8	39 11/16	4 3/4
1	30	30 1/8	33 11/16	4 3/4
1	24	24 1/8	27 11/16	4 3/4
1	20	20 1/8	23 11/16	4 3/4
1	18	18 1/8	21 11/16	4 3/4
7/8	16	16 1/8	19 5/16	4 1/4
7/8	14	14 1/8	17 5/16	4 1/4
7/8	12	12 7/8	16 1/16	4 1/4
3/4	10	10 7/8	13 13/16	4
5/8	8	8 3/4	11 1/2	3 3/4
5/8	6	6 3/4	9 1/2	3 3/4
1/2	5	5 5/8	7 13/16	3
1/2	4	4 9/16	6 13/16	3
1/2	3 1/2	4 1/16	6 5/16	3
1/2	3	3 9/16	5 13/16	3
1/2	2- 1/2	2 15/16	5 1/4	3
3/8	2	2 7/16	4 1/2	2- 1/2
3/8	1- 1/2	2	4	2- 1/2
3/8	1- 1/4	1- 11/16	3- 3/4	2 3/8
1/4	1	1 3/8	3 7/16	2 3/8
1/4	3/4	1 1/8	3 5/16	2 3/8
1/4	1/2	15/16	3 1/4	2 3/8

Advantages of USing ASTM A193 Material

Excellence Mechanical Property
Widely Use In Variou Industrial Equipment
Structural Connection
Withstand Higher Temperature & Pressure

ASTM A193 Bolts Torque Chart

Bolt Dia	Nut Size	Moly Lube	Nickel Lube	Copper Lube	Machine Oil	Dry
Bolt Dia	Nut Size	u=0.085		u=0.100	u=0.160	u=0.400
2-1/8″	N/A	4790		7618	11150	28816
1-7/8″	2-15/16″	3292	8324	5204	7596	19550
1-5/8″	2-9/16″	2142	5682	3364	4890	12520
1-3/4″	2-3/4″	2676	3668	4218	6144	15776
1-1/2″	2-3/8″	1674	4602	2614	3792	9274
1-1/4″	2″	966	2850	1492	2150	5440
2″	3-1/8″	3994	1622	6334	9260	23884
1-3/8″	2-3/16″	1288	6920	2000	2894	7356
1-1/8″	1-13/16″	702	2180	1076	1544	3888
7/8″	1-7/16″	330	1170	500	716	1786
1″	1-5/8″	490	544	746	1066	2664
3/4″	1-1/4″	208	810	314	448	1118

SA193M Carriage Bolt, A193 Eye Bolts and Machine Bolts available in 1/2 inch to 52 inch length

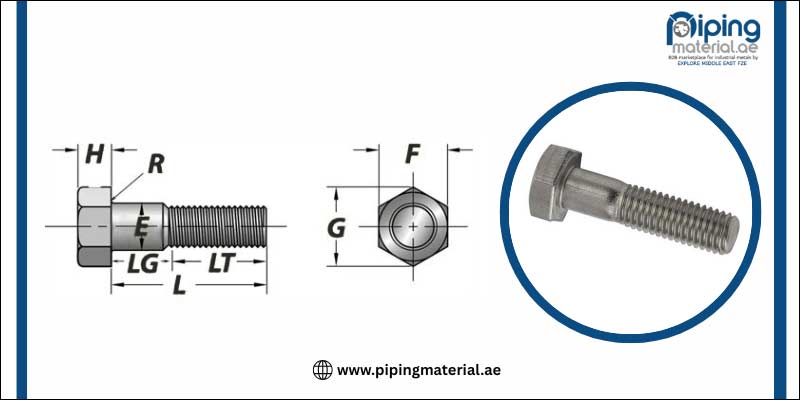

ASTM A193M Heavy Hex Bolt Dimension Chart

Nominal Diameter (D)	Across the Corners ©		Across the Flats (F)		Body Diameter (D)		Thread Lengths (T)		Head Height (H)
Nominal Diameter (D)	min.	max.	min.	max.	min.	max.	> 6”	< 6”	min.	max.
3	5.102	5.34	4.475	4.625	2.961	3.081	6.	6.25	1.815	2.06
2 3/4	4.688	4.907	4.112	4.25	2.711	2.827	6	5.75	1.632	1.869
2 1/2	4.275	4.474	3.75	3.875	2.461	2.559	5.5	5.25	1.479	1.708
2 1/4	3.862	4.041	3.388	3.5	2.214	2.305	5	4.75	1.327	1.548
1 3/4	3.035	3.175	2.662	2.75	1.716	1.785	4	3.75	1.054	1.196
1 1/2	2.622	2.742	2.3	2.375	1.47	1.531	3.5	3.25	0.902	1.036
1 3/8	2.416	2.526	2.119	2.188	1.345	1.404	3.25	3	0.81	0.94
1 1/8	2.002	2.093	1.756	1.812	1.098	1.149	2.75	2.5	0.658	0.78
1	1.796	1.876	1.575	1.625	0.976	1.022	2.5	2.25	0.591	0.7
1/2	0.969	1.01	0.85	0.875	0.482	0.515	1.5	1.25	0.302	0.364
7/8	1.589	1.66	1.394	1.438	0.852	0.895	2.25	2	0.531	0.604
3/4	1.383	1.443	1.212	1.25	0.729	0.768	2	1.75	0.455	0.524
5/8	1.175	1.227	1.031	1.062	0.605	0.642	1.75	1.5	0.378	0.444
1 1/4	2.209	2.309	1.938	2	1.223	1.277	3	2.75	0.749	0.876
2	3.449	3.608	3.025	3.125	1.964	2.039	4.5	4.25	1.175	1.388

Thread Forms of ASTM A193 Bolt

ASME SA193M Lag Bolts Tensile Strength

Grade	Tensile Strength (MPa)
ASME SA193M	860

Most Common Types of ASTM A193 Bolts

ASTM A193 Bolts

ASTM A193M Threaded Rod

SA193M Screws

A193M Heavy Hex Bolt

ASME SA193 Nuts

A193 Stud Bolts

ASME SA193M Hex Bolt

ASTM A193 Carriage Bolt

A193M hex head bolt for high-pressure service applications in Middle East countries

Top 10 applications of SA193M Carriage Bolt

Pipe Flange Assemblies
Heat Exchangers
Boilers
Pressure Vessels
Chemical Processing Plants
Valves & Control System
Oil & Gas
Petrochemical Refinery
Power Generation Facility
Heavier Industry Structure

What is the difference between SA193 and A193 Fasteners ?

Chemical Composition of ASTM A193 Machine Bolts

Our inventory includes an extensive selection of ASTM A193 Bolts from well-known manufacturers that are Supplied from Umm Al Quwains and Sharjah.

Elements	316 (B8M)	4140 (B7)	304 (B8)
Carbon	0.08% max	0.37% – 0.49%	0.08% max
Manganese	2% max	0.65% – 1.10%	2% max
Chromium	16% – 18%	0.75 – 1.20%	18% – 20%
Silicon	1% max	0.15% – 0.35%	1% max
Sulfur, max	0.03%	0.04%	0.03%
Phosphorus, max	0.05%	0.04%	0.05%
Nickel	10% – 14%		8% – 11%
Molybdenum	2% – 3%	0.15% – 0.25%	–

ASME SA193M Lag Bolts Mechanical Properties

Grade	Marking	Description	Diameter	Tensile Strength, min.	Yield Strength, min.	Hardness, max.
B7M	B7M	Chromium-Molybdenum	4” and under	100	80	235 HB or 99 HRB
B7M	B7M	Chromium-Molybdenum	over 4” to 7”	100	75	235 HB or 99 HRB
B6	B6	S41000 (410)	Up to 4”	110	85
B8R	B8R	S20910	all	100	55	271 HB or 28 HRC
B8 class 1	B8	S30400 (304)	all	75	30	223 HB or 96 HRB
B8C class 1	B8C	S34700 (347)	all	75	30	223 HB or 96 HRB
B8M class 1	B8M	S31600 (316)	all	75	30	223 HB or 96 HRB
B8T class 1	B8T	S32100 (321)	all	75	30	223 HB or 96 HRB
B7	B7	Chromium-Molybdenum	2 1/2” and under	125	105	321 HB or 35 HRC
			over 4” to 7”	100	75	321 HB or 35 HRC
			over 2 1/2” to 4”	115	95	321 HB or 35 HRC
B16	B16	Chromium-Molybdenum- Vanadium	2 1/2” and under	125	105	321 HB or 35 HRC
			over 4” to 8”	100	85	321 HB or 35 HRC
			over 2 1/2” to 4”	110	95	321 HB or 35 HRC
B8 class 2	B8SH	S30400 (304)	3/4” and under	125	100	321 HB or 35 HRC
			over 3/4” to 1”	115	80	321 HB or 35 HRC
			over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
			over 1” to 1 1/4”	105	65	321 HB or 35 HRC
B8C class 2	B8CSH	S34700 (347)	3/4” and under	125	100	321 HB or 35 HRC
			over 3/4” to 1”	115	80	321 HB or 35 HRC
			over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
			over 1” to 1 1/4”	105	65	321 HB or 35 HRC
B8M class 2	B8MSH	S31600 (316)	3/4” and under	110	95	321 HB or 35 HRC
			over 3/4” to 1”	100	80	321 HB or 35 HRC
			over 1 1/4” to 1 1/2”	90	50	321 HB or 35 HRC
			over 1” to 1 1/4”	95	65	321 HB or 35 HRC
B8T class 2	B8TSH	S32100 (321)	3/4” and under	125	100	321 HB or 35 HRC
			over 3/4” to 1”	115	80	321 HB or 35 HRC
			over 1 1/4” to 1 1/2”	100	50	321 HB or 35 HRC
			over 1” to 1 1/4”	105	65	321 HB or 35 HRC
B8S	B8S	S21800	all	95	50	271 HB or 28 HRC

Storage Sites of Partner Suppliers

City	Region	Country
Dubai	Middle East	United Arab Emirates
Abu Dhabi	Middle East	United Arab Emirates
Dammam	Middle East	Saudi Arabia
Riyadh	Middle East	Saudi Arabia
Doha	Middle East	Qatar
Abuja	Africa	Nigeria
Kuwait City	Middle East	Kuwait
Jeddah	Middle East	Saudi Arabia
Cairo	MENA	Egypt
Casablanca	MENA	Morocco
Johannesburg	Africa	South Africa
Cape Town	Africa	South Africa
Lagos	Africa	Nigeria

How to choose the Correct SA193 Hex Bolt ?

Selecting the Correct Grade
Determination the Size of Thread & Bolt
Checking the Required Mechanical Strength
Evaluates Operating Temperature
Considering Corrosive
Matches the Compatible Washer & Nut
Verification of Marking, Standard & Certification
Confirming Industrial Compliance

SA193M Carriage Bolt Recommended Hardware

Grades	Washer	Nut
B16	F436	A194 Gr 7
B8M Class 2	316 Stainless	A194 Gr 8M
B8M Class 1	316 Stainless	A194 Gr 8M
B8 Class 2	304 Stainless	A194 Gr 8
B8 Class 1	304 Stainless	A194 Gr 8
B7	F436	A194 Gr 2H

Sales Agents in Following Locations

Muscat	Riyadh	Dubai	Ras Al Khaimah
Sharjah	Fujairah	Umm Al Quwain	Doha
Saudi Arabia	Al Jubail	Abu Dhabi	Ajman

Length Tolerances for A193M Bolts

Preferred ASTM A193 Bolts Supplier in UAE for industries that requiries resilience, strength & precision.

Nominal Length	Nominal Sizes
Nominal Length	Over 1 1/2	1 1/8 – 11/2	7/8 – 1	9/16 – 3/4	7/16 and 1/2	1/4 – 3/8
Up – 1 in,incl.	–	–	–	+0.02	+0.02	+0.02
Up – 1 in,incl.	–	–	–	-0.03	-0.03	-0.03
Over 2 1/2 into 4 in,incl	+0.20	+0.16	+0.10	+0.08	+0.06	+0.04
Over 2 1/2 into 4 in,incl	-0.20	-0.16	-0.14	-0.10	-0.08	-0.06
Over 1 into 2 1/2 in,incl	+0.18	+0.12	+0.08	+0.06	+0.04	+0.02
Over 1 into 2 1/2 in,incl	-0.18	-0.12	-0.10	-0.08	-0.06	-0.04
Longer than 6 in.	+0.24	+0.22	+0.16	+0.14	+0.12	+0.10
Longer than 6 in.	-0.24	-0.22	-0.20	-0.18	-0.18	-0.18
Over 4 into 6 in,incl	+0.22	+0.18	+0.12	+0.10	+0.08	+0.06
Over 4 into 6 in,incl	-0.22	-0.18	-0.16	-0.10	-0.10	-0.10

How to Identify ASTM A193 B16 & B7 Fasteners in the Field ?

Markings on head of bolts are quickest way for distinguish between B16 & B7 fasteners

Warehouse Locations of Partner Suppliers

Middle East countries	Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen
Africa	Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA	Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine

Coating Surface on A193 Eye Bolts

A193M Heavy Hex Bolt Temperature Range

Grade	Temperature Range
A193M	Upto 480°C

Warehouse Locations of Partner Suppliers

Umm Al Quwain	Sharjah
Fujairah	Abu Dhabi
Dubai	Ajman

Check Out Your Nearby Locations For Fastest Deliveries

Country	Cities
Netherlands	The Hague
Belgium	Meeuwen-Gruitrode
Netherlands	Amsterdam
Belgium	Antwerp
Netherlands	Haarlem
Belgium	Brussels
Belgium	Seraing
Belgium	Ghent
Belgium	Leuven
Netherlands	Eindhoven
Belgium	Westerlo
Netherlands	Rotterdam
