ASTM A249 TP316 Welded Tube Product Overview

Sizes Availability	Seamless Tube: 1/8 to 12” OD Welded Tube: 1/8 in. [3.2 mm] Custom
Brands in Stock	Nippon Steel Corp., PCC Rollmet, Alleima, Mannesmann Stainless, Sanyo Special Steel, Centravis, Maruichi Stainless, Ratnamani Metals & Tubes, Tubacex
Raw Material Orign	Japanese, Korean, Russia, European, American, Indian
HSN Code	73064000
Saudi Arabian Standards	SASO-ASTM-A312M, A733, SASO 7306
International Standards	ASTM A249, ASME SA 249, UNS S31600, WNR 1.4401, AISI 316, EN 58E, INOX 316, SUS 316, BS 316S31
Approval	BAPCO, SABIC, ADNOC, Q CHEM, MA’ADEN, KNPC, KOC, Saudi Aramco, EIL, Marine and KPI.
Services	Moulding Shearing Heat Treatment Cutting
MTC	EN 10204 3.1 and 3.2

Table of Content

ASTM A249 TP316 Tube Specifications
ASTM A249 TP316 ERW Tubing Sizes
ASME SA249 TP316 Electropolish Tubes Thickness Range
ASTM A249 TP316 SS Tube Heat Treatment
Thermal Properties Of A249 Type 316 Tubing
Wall Thickness Of A249 316 Stainless Steel Tubing
ASTM A249 TP 316 Boiler Tube Pressure Ratings
Most Frequently Used Types Of ASTM A249 TP316 Tube
Industrial Applications of SA 249 TP 316 Welded Tubing
Inspection and Testing of ASME SA249 Gr 316 Tube

SA 249 Type 316 Tubing Electrical Properties
Dimensional Tolerance of ASTM A249 TP 316 Stainless Steel Tube
Physical Properties Of ASME SA 249 TP316 Austenitic Stainless Steel Tubing
ASTM A249 Type 316 Welded Tube Chemical Composition
Mechanical Properties of ASTM A249 316 Heat Exchanger Tube
ASTM A249 Gr 316 Condenser Tube Equivalent
Welding Methods of ASME SA 249 TP 316 SS Tubing
ASTM A249 TP316 Tube Technical Information
ASTM A249 UNS S31600 ERW Tube Pressure Ratings
ASTM A249 Type 316 Welded SS Tube Test Certificates

SA 249 316 Condenser Tubes Suppliers in UAE

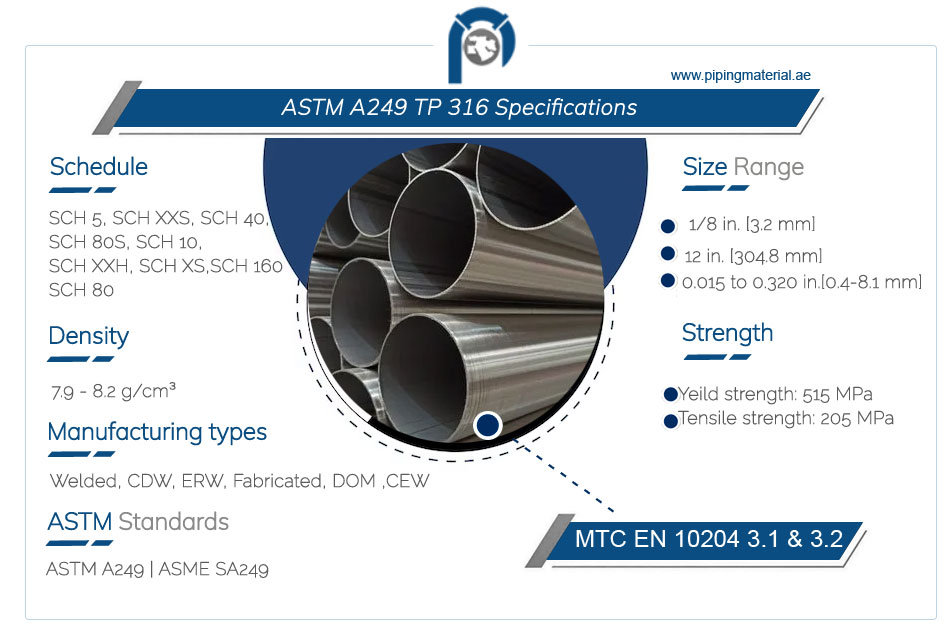

ASTM A249 TP316 Welded Tube Specifications

ASME SA249 TP316 Seamless Tube: 0.5mm to 10mm (Wall Thickness)

ASTM A249 Grade 316 Welded Tube: 0.015 to 0.320″ (Wall Thickness), Up to 6 meters or Custom (Length)

A249 Grade 316 Heater Thick Walled Tube: 12 in. (316.8 mm) (OD), 2.5 to 100mm (Wall Thickness)

SA 249 Grade TP316 Tube Schedule: SCH 5 to SCH 160, XXS

ASME SA249 TP316 Tube Method: Cold rolled, Hot rolled, Extrusion, Cold drawn Tubee

End: Plain End, Threaded, Beveled End

Suitable Temperatures: Upto 1600°F

ASME SA249 Grade 316 ERW Tube Process: ERW, Seamless, Welded

MTR: Destructive and Non Destructive Test Report, Chemical, Mechanical, PMI

SA 249 GR .TP316 Electropolish Tubes Finish: Mirror Finish, Annealing, Polished, Bright

Get Quote Directly from ASTM A249 TP316 Welded Tube Suppliers in UAE With Complete Documentation

ASME SA 249 TP316 Tubing Form: Round, Square, Rectangular, Hexagon etc.

ASTM A249 TP316 ERW Tubing Sizes

Weight per Kg	Dimensions in Mm	Wall Thickness in Mm	Dimensions in Mm		Weight per Kg	Wall Thickness in Mm
1.14	25 * 25	1.50	60*60		5.49	3.00
0.55	12.7 * 12.7	1.50	40*40		1.85	1.50
0.44	12.7 * 12.7	1.20	40*40		1.49	1.20
1.49	25 * 25	2.00	70*70		6.53	3.00
1.10	30 * 30	1.20	80*80		7.53	3.00
0.53	15 * 15	1.20	40*40		2.45	2.00
0.71	20 * 20	1.20	50*50		2.32	1.50
0.88	20 * 20	1.50	50*50		3.08	2.00
0.65	15 * 15	1.50	40*40		3.75	3.00
1.19	20 * 20	2.00	50*50		4.65	3.00
0.92	25 * 25	1.20	60*60		3.71	2.00
1.37	30 * 30	1.50	100 * 100		6.40	2.00
1.84	30 * 30	2.00	100 * 100		9.53	3.00
2.20	25 * 25	3.00	80*80		4.98	2.00
2.72	30 * 30	3.00	–	–	–	–

Sales Representative Available To Provide Quick Quote

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

ASME SA249 TP316 Electropolish Tubes Thickness Range

Gauge	Typical Value (Inches)	Thickness Range (Inch)
22	0.028	0.025 – 0.029
17	0.058	0.053 – 0.058
9	0.148	0.140 – 0.150
13	0.095	0.087 – 0.097
11	0.12	0.112 – 0.122
15	0.072	0.066 – 0.074
19	0.042	0.038 – 0.042
7	0.18	0.175 – 0.185

ASTM A249 TP316 Material In Heat-treated Condition

ASTM A249 TP316 SS Tube Heat Treatment

Grade	TP316
Heat Treatment Category	Solution treatment
Solutioning and austenitizing Temperature range, minimum, or °F [°C]	1900 °F [1040 °C]
Media Cooling	Water or similar quick-cool substance

Thermal Properties Of A249 Type 316 Tubing

Property	Temperature	Value
Coefficient of thermal expansion	23.0 °C	1.7E-5 – 1.9E-5 1/K
Thermal conductivity		11 – 21 W/(m·K)
Specific heat capacity		440 J/(kg·K)

Wall Thickness Of A249 316 Stainless Steel Tubing

Sizes		≥20, welded	≥20, seamless, t/D> 5%	3~18,t/D> 5%	3~18,t/D≤5%	1/8-2 1 /2	≥0, seamless, t/D≤ 5%
WT	Plus	17.5	15	15	22.5	20	22.5
WT	Minus	12.5	12.5	12.5	12.5	12.5	12.5

Diverse Client Base In The Following Nations

Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

ASTM A249 TP 316 Boiler Tube Pressure Ratings

OD inches	Min Yield Strength (PSI)	Collapse Pressure (PSI)	Ave. Wall inches	Min Tensile Strength (PSI)	Working Pressure (PSI) 25% of Burst	Theoretical Yield Point (PSI)
0.250	30,000	5,967	0.028	75,000	5,412	8,660
0.250	30,000	9,455	0.049	75,000	12,089	19,342
0.375	30,000	3,029	0.020	75,000	2,239	3,582
0.250	30,000	7,224	0.035	75,000	7,292	11,667
0.250	30,000	4,416	0.020	75,000	3,571	5,714
0.250	30,000	11,544	0.065	75,000	20,313	32,500
0.375	30,000	4,145	0.028	75,000	3,292	5,266
0.375	30,000	6,816	0.049	75,000	6,634	10,614
0.500	30,000	8,307	0.083	75,000	9,319	14,910
0.625	30,000	2,568	0.028	75,000	1,845	2,953
0.625	30,000	3,172	0.035	75,000	2,365	3,784
0.625	30,000	1,859	0.020	75,000	1,282	2,051
0.625	30,000	4,335	0.049	75,000	3,487	5,579
0.500	30,000	2,316L	0.020	75,000	1,630	2,609
0.625	30,000	5,591	0.065	75,000	4,924	7,879
0.625	30,000	7,734	0.095	75,000	8,190	13,103
0.625	30,000	6,910	0.083	75,000	6,781	10,850
0.625	30,000	8,639	0.109	75,000	10,043	16,069
0.750	30,000	2,669	0.035	75,000	1,930	3,088
0.375	30,000	5,077	0.035	75,000	4,303	6,885
0.375	30,000	8,597	0.065	75,000	9,949	15,918
0.500	30,000	3,172	0.028	75,000	2,365	3,784
0.500	30,000	5,316L	0.049	75,000	4,571	7,313
0.500	30,000	6,786	0.065	75,000	6,588	10,541
0.500	30,000	3,906	0.035	75,000	3,052	4,884
0.750	30,000	2,156	0.028	75,000	1,513	2,421
0.750	30,000	3,664	0.049	75,000	2,818	4,509
0.750	30,000	5,905	0.083	75,000	5,330	8,527
0.750	30,000	4,749	0.065	75,000	3,931	6,290
0.750	30,000	6,637	0.095	75,000	6,362	10,179
0.750	30,000	8,064	0.120	75,000	8,824	14,118
0.750	30,000	7,453	0.109	75,000	7,683	12,293
0.875	30,000	5,807	0.095	75,000	5,201	8,321
0.875	30,000	5,152	0.083	75,000	4,390	7,024
0.875	30,000	7,100	0.120	75,000	7,087	11,339
0.875	30,000	1,340	0.020	75,000	898	1,437
0.875	30,000	2,316L	0.035	75,000	1,630	2,609
0.875	30,000	1,859	0.028	75,000	1,282	2,051
0.875	30,000	4,126	0.065	75,000	3,272	5,235
0.875	30,000	3,172	0.049	75,000	2,365	3,784
1.000	30,000	6,336	0.120	75,000	5,921	9,474
0.875	30,000	6,543	0.109	75,000	6,221	9,954
1.000	30,000	2,027	0.035	75,000	1,411	2,258
1.000	30,000	1,633	0.028	75,000	1,112	1,780
1.000	30,000	3,647	0.065	75,000	2,802	4,483
1.000	30,000	2,796	0.049	75,000	2,037	3,259
1.000	30,000	5,159	0.095	75,000	4,398	7,037
1.000	30,000	4,567	0.083	75,000	3,732	5,971
1.000	30,000	5,827	0.109	75,000	5,227	8,363

Most Frequently Used Types Of ASTM A249 TP316 Tube

ASTM A249 TP316 welded tube

ASME SA 249 TP316 Square Tubing

SA 249 Gr 316 HFW Tube

ASTM A249 TP 316 Instrumentation Tube

A249 316 ERW Tubes

SA249 Type 316 Welded Alloy Tube

ASTM A249 Gr 316 Condenser Tube

ASTM A249 316 Rectangular Tubing

A249 TP316 Boiler Tube

A249 Gr 316 Electric Resistance Welded Tube

A249 Type 316 Heat Exchanger Tube

SA 249 Grade 316 CEW Tube

ASTM A249 Grade 316 Superheater Tube

ASTM A249 Type 316 Round Tube

Industrial Applications of SA 249 TP 316 Welded Tubing

Get Top ASTM A249 TP316 Welded Tube Suppliers in UAE Who Delivered To Multiple Industries For Functional Uses.

Nuclear Power Plants
Petrochemical
Heat Exchangers
Boilers
Pharmaceutical Industry
Water Treatment Systems
Marine
Chemical Processing

A249 TP316 Heavily cold-worked (HCW) Pipe With Flange, Hardness, And Tension Test

Inspection and Testing of ASME SA249 Gr 316 Tube

Reverse Flattening Test
Non-Destructive Electric Test
Tensile Properties
Flaring Test
Hardness Test
Reverse Bend Test
Grain Size

SA 249 Type 316 Tubing Electrical Properties

Property	Temperature	Value
Electrical resistivity	23.0 °C	8.5E-7 Ω·m

Call Now For The Clients List Based In Below Locations

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Dimensional Tolerance of ASTM A249 TP 316 Stainless Steel Tube

Size			1/8~1 1 /2	> 34~48	> 1 1 /2~4	> 26~34	> 4~8	> 18~26	> 8~18
O.D.	Plus	inch	1/64(0.015)	3/16(0.187)	1/32(0.031)	5/32(0.156)	1/16(0.062)	1/8(0.125)	3/32(0.093)
	Plus	mm	0.4	4.8	0.8	4	1.6	3.2	2.4
	Minus	inch	1/32(0.031)
	Minus	mm	0.8

ASTM A249 TP 316 Stainless Steel Heat Exchanger Tube For High-temperature And Boilers

Physical Properties Of ASME SA 249 TP316 Austenitic Stainless Steel Tubing

Properties	Value
Density	7.9 – 8.2 g/cm³
Melting Point	1230 – 1480 °C

ASTM A249 Type 316 Welded Tube Chemical Composition

Element	Value
Carbon	0.08
Manganese	2
Phosphorus	0.045
Sulfur	0.03
Silicon	1
Chromium	16.0 – 18.0
Nickel	10.0 – 14.0
Molybdenum	2.00 – 3.00

Mechanical Properties of ASTM A249 316 Heat Exchanger Tube

Properties	Value
Elongation	35 %
Tensile Strength,	515 MPa
Yield Strength	205 MPa
Hardness	B90

ASTM A249 Gr 316 Condenser Tube Equivalent

Standards	Country	Value
UNS	North America	S31600
WNR	Russia	1.4401
ASTM	America	A 249
ASME	Australia	SA 249
JIS	Japan	SUS 316
BS	United Kingdom	316S31
GOST	Russia	–
AFNOR	France	Z7CND17‐11‐02
EN	Europe	X5CrNiMo17-12-2
AMS	United States	–
ANSI	America	–
SAE	United States	–
AS	Australia	–
DIN	German	1.4401

Material Inspection Facility In Following Locations

Umm Al Quwain	Sharjah	Fujairah	Doha
Dubai	Ras Al Khaimah	Muscat	Riyadh
Ajman	Saudi Arabia	Abu Dhabi	Al Jubail

Welding Methods of ASME SA 249 TP 316 SS Tubing

TIG Welding
Submerged Arc Welding
Stick Welding
MIG -Metal Inert Gas Welding
Plasma Arc Welding

Buy Seam-Free ASTM A249 Grade 316 Superheater Tubes & HCW Pipe in UAE

ASTM A249 TP316 Tube Technical Information

For Larger Sizes, Please Contact The ASTM A249 TP316 Welded Tube Suppliers in UAE
ASTM A249 grade 316 tube inside diameter	SA249 type 316 welded tube outside diameter	A249 316 ERW tube wall thickness
1/8 in. [3.2 mm]	12 in. [316.8 mm]	0.015 to 0.320 in. [0.4 to 8.1 mm]
Technique	ASME SA 249 tp316 tube manufacturing types	Schedule
Cold rolled Hot rolled tube Cold drawn Extrusion	CEW Fabricated ERW Welded DOM CDW	SCH 5 SCH XXS SCH 40 SCH 80S SCH 10 SCH XXH SCH XS SCH 160 SCH 80
Length	ASTM Standard	SA 249 gr 316 delivery condition
6m or custom	ASTM A249 ASME SA249	Bright annealed (BA) Polished Cold drawn Annealed and pickled (AP) MF
Density	Melting point	Grits
7.9 – 8.2 g/cm³	1230 – 1480 °C	400G 320G 500G 180G 600G 800G
Form	Strength	ASTM A249 grade 316 boiler tube surface finish
Round Square Straight Honed Tubes Hydraulic Coiled Rectangular U Shape Pan Cake Coils	Yeild strength: 515 MPa Tensile strength: 205 MPa	1D 2B Mirror Polished No.1 Satin/ Hairline No.4 2D BA 8K No.3 HL No.8
Value added services	Most common types of SA 249 grade 316 tube	SWG
Welding Punching Moulding Cutting Decoiling Bending Use chat or email to get in direct contact with mentioned ASTM A249 tp316 tube stockists, stocks, and distributors for these services.	HFW tube Boiler tube Welded tube Condenser tube ERW tubes Heat exchanger tube Round tube Superheater tube Instrumentation tube CEW tube Rectangular tubing Square tubing	10 Swg. 12 Swg. 14 Swg. 16 Swg. 18 Swg. 20 Swg.
Temprature range	Maximum operating temperature	Hardness range
1650 °F(893 °C)	2000 °F(1903 °C)	B90
Marking	Welding method	ASTM A249 TP 316 welded tube applications
Material Grade Heat Number Nominal Size Schedule or Wall Thickness Method of Manufacturing (Seamless / Welded) Manufacturer’s Name or Custom Logo – on request Specification	SMAW GMAW including both MIG and MAG FCAW Submerged arc welding TIG	Pharmaceutical and medical equipment Food and beverage processing Power generation Chemical and petrochemical processing Aerospace and marine applications The ASTM A249 TP316 Welded Tube Suppliers in UAE Mentioned Above Have Ex-stock And Have Previously Supplied To Many Countries, Including Cyprus, Lebanon, Syria, Nigeria, South Africa, and Ethiopia.
Origin standards	Certification of ASTM A249 Gr 316 superheater tube	ASTM A249 316 rectangular tubing features
European Standard Russia Standard American Standard Janpanese Standard	Complete Report on Radiography Tests Test certificates certifying nace mr0103, nace mr0175 Report on Third-Party Inspection Fumigation Certificates Certificate of origin Form A for Generalized System of Preferences (GSP) Raw material test reports Buyer Inspection Nabl approved laboratory test reports Certificate of material testing (MTC) in accordance with EN 10204 3.1 and EN 10204 3.2 HS Code Commercial Invoice Moisture testing Surface roughness measurement DFARS compliant	Cryogenic properties High-temperature resistance Chemical composition Mechanical properties
Packaging	A249 Gr 316 tube testing requirements	Tubes end type
Crates (steel/wooden) Custom Special crates for with each radius separated Bundles (hexagonal) PE Fabric Bundles Wrapped in plastic or standard seaworthy export packing Wooden Boxes	Positive material identification – PMI testing Chemical analysis – spectro analysis Intergranular corrosion (IGC) test Flaring test Mechanical testing such as tensile of area Micro test Flattening test Hardness test Flange test Pitting resistance test Reverse flattening Test Open lines of communication for the above-mentioned test with the distributors, dealers, and ASTM A249 tp316 tube stockists specified above	TOE:Thread One End TSE:Thread Small End Bevelled Ends (BW) BE:Bevel End Bevel Both Ends (BBE) Bevel Large End(BLE) TLE:Thread Large End BOE:Bevel One End Bevel Small End(BSE) BW:Buttweld End Plain Ends (PE) PBE:Plain Both Ends Plain One End(POE) TE:Thread End PE:Plain End TBE:Thread Both Ends Threaded Ends (TE) Grooved Ends
ASME SA 249 tp316 round tube benefits	Documentation offered	ASTM A249 type 316 condenser tube delivery time
Cost-effective Safety and hygiene Versatility Durability and long lifespan	Guarantee letter Heat treatment charts Quality assurance plan (qap) Commercial invoice Packing list Material traceability records	1-2 Days for Material in Stock 7-30 Days for Make to Order Materials

ASTM A249 UNS S31600 ERW Tube Pressure Ratings

OD inches	D/t Ratio	Ave. Wall inches	Internal Area (in2)	ID inches	Tube Cross Sectional Area (in2)
0.250	7.14	0.035	0.0254	0.180	0.0236
0.250	3.85	0.065	0.0113	0.120	0.0378
0.250	8.93	0.028	0.0296	0.194	0.0195
0.250	12.50	0.020	0.0346	0.210	0.0145
0.250	5.10	0.049	0.0181	0.152	0.0309
0.375	7.65	0.049	0.0603	0.277	0.0502
0.375	10.71	0.035	0.0731	0.305	0.0374
0.375	13.39	0.028	0.0799	0.319	0.0305
0.375	18.75	0.020	0.0881	0.335	0.0223
0.375	5.77	0.065	0.0471	0.245	0.0633
0.500	10.20	0.049	0.1213	0.402	0.0694
0.500	14.29	0.035	0.1452	0.430	0.0511
0.500	6.02	0.083	0.0876	0.334	0.1087
0.500	17.86	0.028	0.1548	0.444	0.0415
0.500	25.00	0.020	0.1662	0.460	0.0302
0.500	7.69	0.065	0.1075	0.370	0.0888
0.625	31.25	0.020	0.2688	0.585	0.0380
0.625	17.86	0.035	0.2419	0.555	0.0649
0.625	7.53	0.083	0.1655	0.459	0.1413
0.625	5.73	0.109	0.1301	0.407	0.1767
0.625	22.32	0.028	0.2543	0.569	0.0525
0.625	9.62	0.065	0.1924	0.495	0.1144
0.625	12.76	0.049	0.2181	0.527	0.0887
0.750	26.79	0.028	0.3783	0.694	0.0635
0.625	6.58	0.095	0.1486	0.435	0.1582
0.750	11.54	0.065	0.3019	0.620	0.1399
0.750	9.04	0.083	0.2679	0.584	0.1739
0.750	15.31	0.049	0.3339	0.652	0.1079
0.750	21.43	0.035	0.3632	0.680	0.0786
0.750	7.89	0.095	0.2463	0.560	0.1955
0.750	6.25	0.120	0.2043	0.510	0.2375
0.875	25.00	0.035	0.5090	0.805	0.0924
0.875	10.54	0.083	0.3948	0.709	0.2065
0.875	8.03	0.109	0.3390	0.657	0.2623
0.875	7.29	0.120	0.316L7	0.635	0.2846
0.875	9.21	0.095	0.3685	0.685	0.2328
0.875	43.75	0.020	0.5476	0.835	0.0537
0.750	6.88	0.109	0.2223	0.532	0.2195
0.875	31.25	0.028	0.5268	0.819	0.0745
0.875	17.86	0.049	0.4742	0.777	0.1272
0.875	13.46	0.065	0.4359	0.745	0.1654
1.000	35.71	0.028	0.6999	0.944	0.0855
1.000	10.53	0.095	0.5153	0.810	0.2701
1.000	12.05	0.083	0.5463	0.834	0.2391
1.000	20.41	0.049	0.6390	0.902	0.1464
1.000	28.57	0.035	0.6793	0.930	0.1061
1.000	15.38	0.065	0.5945	0.870	0.1909
1.000	9.17	0.109	0.4803	0.782	0.3051

ASTM A249 Type 316 Welded SS Tube Test Certificates

Raw Materials Certificate
EN 10204/3.1B
100% Radiography Test Report
Third Party Inspection Report
Visual Inspection Certificate

Time And Place Of Delivery For A249 TP316 Welded Stainless Steel Tubes

Export to	Variations in price and the scheduled delivery
Bahrain	5 % extra \| 9 days
Kuwait	5 % extra \| 10 days
Singapore	5 % extra \| 8 days
Azerbaijan	5 % extra \| 30 to 45 days
Egypt	5 % extra \| 18 days
Turkey	5 % extra \| 21 days
Libya	5 % extra \| 45 to 60 days
Nigeria	5 % extra \| 30 days
Germany	5 % extra \| 20 days
Poland	5 % extra \| 45 days
Finland	5 % extra \| 45 days
Sweden	5 % extra \| 45 days
