ASTM A269 TP304L Tube

Home > ASTM A269 TP304L Tube

ASTM A269 TP304L Tube Features

Sizes Availability	Seamless Tube: 6 mm to 114 mm OD Welded Tube: 1/16- 12″ OD Custom
Brands in Stock	PCC Rollmet, Alleima, Sanyo Special Steel, Centravis, Maruichi Stainless, Mannesmann Stainless, Nippon Steel Corp., Ratnamani Metals & Tubes, Tubacex
Raw Material Orign	American, Russia, Japanese, European, Korean, Indian
HSN Code	73064000
Saudi Arabian Standards	SASO-ASTM-A312M, A733, SASO 7306
International Standards	ASTM A269, ASME SA 269, UNS S30400, WNR 1.4301, AISI 304L, EN 58E, INOX 304L, SUS 304L, BS 304S31
Approval	BAPCO, ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, SABIC, KOC, Saudi Aramco, Marine and KPI.
Services	Cutting Shearing Heat Treatment
MTC	EN 10204 3.1 and 3.2

Table of Content

ASTM A269 TP304L Tube Specifications
Heat Treatment And Hardness Chart Of ASTM A269 TP 304L Stainless Steel Tube
SA269 Type 304L Tubing Equivalent
Size Chart of ASTM A269 Type 304L Tubing
A269 Type 304L ERW Tube Dimension Chart
ASTM A269 Grade 304L Heater Tubes Wall Thickness
ASTM A269 TP304L Tube Technical Details
SA269 Grade 304L Round Tube Testing Methods

A269 304L Stainless Steel Tubing Permissible Variations In Dimensions
Most Frequently Used Types of ASTM A269 TP304L Tube
ASTM A269 TP 304L SS Tube Applications
ASTM A269 TP304L Tube Weight Chart
Fabrication Process of ASTM A269 TP304L
ASME SA 269 TP304L Tube Chemical Composition
Mechanical Properties of ASTM A269 Type 304L Seamless Tube
Physical Properties of ASTM A269 Grade 304l Welded Tube
Documents For SA 269 Grade TP304L ERW Tube

Get Lowest Price From Below Listed SA269 Gr 304L Seamless Tubes Suppliers in UAE

ASTM A269 TP304L Tube Specifications

ASME SA269 TP304L Seamless Tube: 0.8 to 4 mm (Wall Thickness)

ASTM A269 Grade 304L Welded Tube: 0.005 – 0.500″ (Wall Thickness), up to 26 Meters (Length)

A269 Grade 304L Heater Thick Walled Tube: 10 to 600mm (OD), 2.5 to 100mm (Wall Thickness)

SA 269 Grade TP304L Tube Schedule: 5 to XXH

ASME SA269 TP304L Tube Method: Cold Formed, Hot Formed, Precision Rolled

End: Bevelled, Plain, Grooved, Threaded

Suitable Temperatures: up to 925°C

ASME SA269 Grade 304L ERW Tube Process: ERW, Seamless, Welded

MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

SA 269 GR .TP304L Electropolish Tubes Finish: Annealing, Polished, Bright

Get Quote Directly from ASTM A269 TP304L Tube Suppliers in UAE With Complete Documentation

ASME SA 269 TP304L Tubing Form: Round, Square, Rectangular, Hexagon etc.

ASTM A269M TP304L Annealed Tube in Annealed Condition

Heat Treatment And Hardness Chart Of ASTM A269 TP 304L Stainless Steel Tube

Grade	UNS	Hardness, maximum			Range °F [°C]
Grade	UNS	HBW	HV	HRB	1900 [1040]
TP201	S20100	220	230	96
TP201LN	S20153	250	263	100
TP304	S30400	192	200	90
TP304L	S30403
TP304LN	S30453
TP316	S31600
TP316L	S31603
TP316N	S31653
TP317	S31700
–	S31730
TP321	S32100
TP347	S34700
TP348	S34800
TPXM-10	S21900	269	285	25
TPXM-11	S21904	269	285	25
TPXM-15	S38100	192	200	90
TPXM-19	S20910	269	25	25
TPXM-29	S24000	265	270	100
–	S32053	192	200	90
–	S30600
–	S31725
–	S31726
–	S32654				2100 [1150]
–	SS31254	220	230	96	2100 [1150]
–	N08926	265	270	100	2010 [1100]
–	N08904	192	200	90	2010 [1100]
–	S35045				2000 [1095]
–	S31727				1975-2155 [1080-1180]
–	N08367	265	270	100	2025 [1110]
–	S34565	265	270	100	2050-2140 [1120-1070]
–	N08925	217	95	–	2010-2100 [1100-1150]

SA269 Type 304L Tubing Equivalent

Standards	Country	Value
UNS	North America	S30403
WNR	Russia	1.4307
ASTM	America	A269
ASME	Australia	SA 269
JIS	Japan	SUS 304L
BS	United Kingdom	3304S11
GOST	Russia	03Х18Н11
AFNOR	France	Z3CN18-10
EN	Europe	X2CrNi18-9 / X2CrNi19-11
AMS	United States	–
ANSI	America	–
SAE	United States	–
AS	Australia	–
DIN	German	1.4307

Partner Traders And Importers Are Available In The Regions Mentioned Below For Swift Deliveries

Fujairah	Umm Al Quwain	Sharjah	Doha
Ras Al Khaimah	Muscat	Dubai	Riyadh
Ajman	Saudi Arabia	Abu Dhabi	Al Jubail

Stainless Steel A269 TP304L Welded Tube in Specific Or Random Length

Size Chart of ASTM A269 Type 304L Tubing

O.D.	Type	mm	Wall	mm	Length
1/2”	Welded	12.70	0.065”	1.65	10′-20′
3/4”		19.05		1.65
1”		25.4		1.24
1”		25.4		1.65
11/2”		38.10		1.24
11/2”		38.10		1.65
2”		50.80		1.24
2”		50.80		1.65
21/2”		63.50		1.65
3”		76.20		1.65
4”		101.60		1.65
4”		101.60	0.083”	2.11
6”		152.40	0.083”	2.11
6”		152.40	0.109”	2.77
8”		203.20	0.109”	2.77
10”		254.00	0.134”	3.40
12”		304.80		3.40
14”		355.60		3.40

A269 Type 304L ERW Tube Dimension Chart

Find Trusted ASTM A269 TP304L Tube Suppliers in UAE Who Provide Products In Various Sizes & Dimensions

Nominal Size (mm)	Outside Diameter (OD) (mm)	Inside Diameter (ID) (mm)	Wall Thickness (WT) (mm)
70 mm	70.00	60.00	5.00
10 mm	10.00	8.00	1.00
120 mm	120.00	105.00	7.50
12 mm	12.00	9.60	1.20
35 mm	35.00	29.00	3.00
100 mm	100.00	87.00	6.50
160 mm	160.00	141.00	9.50
15 mm	15.00	12.00	1.50
150 mm	150.00	132.00	9.00
20 mm	20.00	16.00	2.00
110 mm	110.00	96.00	7.00
25 mm	25.00	20.00	2.50
180 mm	180.00	160.00	10.00
30 mm	30.00	24.40	2.80
90 mm	90.00	78.00	6.00
40 mm	40.00	33.00	3.50
55 mm	55.00	46.60	4.20
95 mm	95.00	82.60	6.20
45 mm	45.00	37.40	3.80
85 mm	85.00	74.40	5.80
50 mm	50.00	42.00	4.00
75 mm	75.00	64.60	5.20
125 mm	125.00	109.00	8.00
80 mm	80.00	69.00	5.50
60 mm	60.00	51.00	4.50
200 mm	200.00	179.00	10.50
65 mm	65.00	56.40	4.80

ASTM A269 Grade 304L Heater Tubes Wall Thickness

NPS	ASTM A269 TP304 Tube Tolerance, %
NPS	+	–
≥ 20, seamless, t/D> 5%	15	12.5
3-18, t/D> 5%	15	12.5
≥ 20, welded	17.5	12.5
3-18, t/D≤ 5%	22.5	12.5
≥ 20, seamless, t/D≤ 5%	22.5	12.5
1/8-2 1 /2	20	12.5

Material Inspection Facility In Following Locations

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

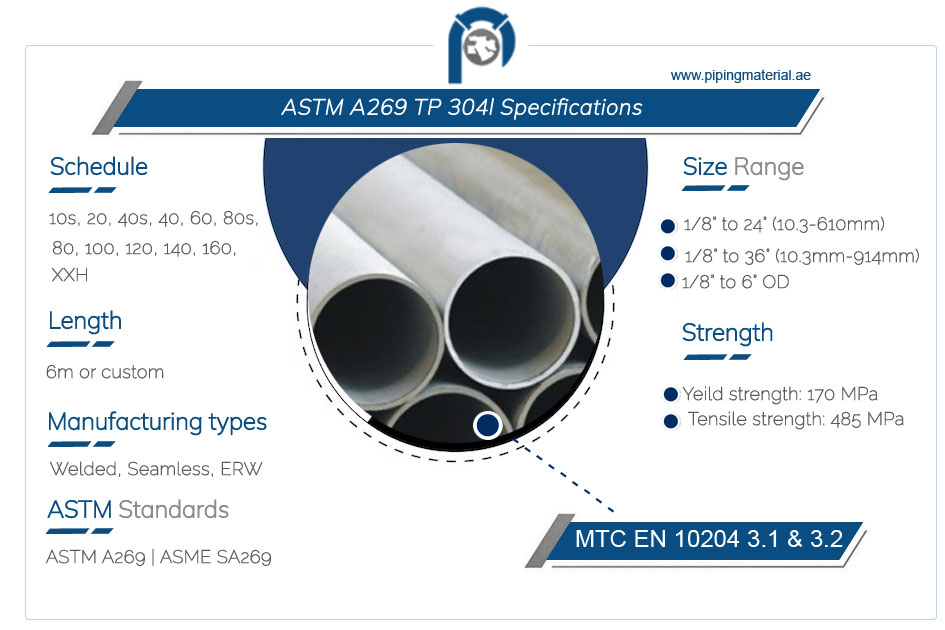

ASTM A269 TP304L Tube Technical Details

Send your Drawing To Reliable Astm A269 TP304L Tube Suppliers in UAE For The Most Precise Estimate.
ASTM A269 TP304L Seamless Tube size	A269 Type 304L Welded Tube sizes	ASTM A269 type 304L tube OD
1/8” to 24” (10.3 to 610mm)	1/8” to 36” (10.3mm to 914mm)	1/8” to 6” OD
Schedules	Manufacturing types	SA 269 grade 304L tubing wall thickness
10s, 20, 40s, 40, 60, 80s, 80, 100, 120, 140, 160, XXH	Welded Seamless ERW	1 to 60 mm
Length	ASTM Standard	ASTM A269 grade 304L tube delivery condition
6m or custom	ASTM A269 ASME SA269	Annealed and Pickled (AP) Polished Cold Drawn MF Bright Annealed (BA)
ASTM A269 304L tube density	Heat exchanger tube melting point	Manufacturing types
8.0 g/cm3	1400°C (2550°F)	Seamless Welded Fabricated ERW
Form	Strength	ASTM A269 Gr 304L boiler tube surface finish
Round Rectangular Straight U Shape Square Hollow Hydraulic	Yeild strength: 170 MPa Tensile strength: 485 MPa	Hairline/satin 400G, 800G, 500G, 600G mirror finish Custom finish
Value added services	Most common types of ASTM A269 TP 304L tube	SWG
Cutting Draw & Expansion as per required Size & Length Destructive and Non Destructive Beveling Ultrasonic Testing Annealed & Pickled Bending Threading Polishing (Electro & Commercial) Use chat or email to get in direct contact with mentioned ASTM A269 TP304L tube stockists, stocks, and distributors for these services.	Annealed tube Extruded tube Redrawn tube Square tubing Exhaust tubing ASME SA 269 TP304L Seamless Tube Condenser tubes Heat exchanger tube Boiler tube Superheater tubes Cold drawn tube Bright annealed tube SA269 Type 304L Welded Tube Coiled tubing Precision tubes Polish tube Capillary tubing Instrumentation tube Gas tube SA 269 grade 304L ERW tube Instrumentation tubing Rectangular tubing Round tube Electropolish tube	10 Swg. 18 Swg. 20 Swg. 12 Swg. 14 Swg. 16 Swg.
Temprature range	Elongation	Hardness range
1900°F (1040°C)	35 %	192HBW/ 200HV
Marking	Welding method	Applications
Specification Material Grade Nominal Size Schedule or Wall Thickness Method of Manufacturing (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo – on request	SMAW Submerged arc welding TIG GMAW including both MIG and MAG FCAW	Springs, screws, nuts & bolts Sanitary ware and troughs Sinks & splash backs Architectural panelling Cutlery and flatware Tubing The ASTM A269 TP304L Tube Suppliers in UAE Mentioned Above Have Ex-stock And Have Previously Supplied To Many Countries, Including South Africa, United States, Oman, Saudi Arabia, Egypt, and Middle East.
Origin standards	Certification of A269 Gr 304L cold drawn tube	Features
American Standard Russia Standard Janpanese Standard European Standard	Raw material test reports Test certificates certifying nace mr0103, nace mr0175 Form A for Generalized System of Preferences (GSP) Moisture testing Surface roughness measurement Certificate of origin 100% Radiography Test Report Material test certificates (mtc) as per en 10204 3.1 and en 10204 3.2 Third Party Inspection Report Fumigation Certificates DFARS compliant Nabl approved laboratory test reports Buyer Inspection HS Code Commercial Invoice	High pressure-resistant Mechanical stress-resistant Excellent resistance
Packaging	A269 TP304L tube testing requirements	Tubes end type
Wooden Boxes Wrapped in plastic or standard seaworthy export packing Custom PE Fabric Bundles Crates (steel/wooden) Special crates for with each radius separated Bundles (hexagonal)	Reverse flattening Test Micro test Mechanical testing such as tensile of area Hardness test Chemical analysis – spectro analysis Pitting resistance test Flaring test Intergranular corrosion (IGC) test Flattening test Positive material identification – PMI testing Flange test Open lines of communication for the above-mentioned test with the distributors, dealers, and ASTM A269 TP304L tube stockists specified above	Plain Ends (PE) BW: Buttweld End Threaded Ends (TE) BBE: Bevel Both Ends TBE: Thread Both Ends BOE: Bevel One End BLE: Bevel Large End Bevelled Ends (BW) Grooved Ends TOE: Thread One End BE: Bevel End PE: Plain End PBE: Plain Both Ends POE: Plain One End TE: Thread End BSE: Bevel Small End TLE: Thread Large End TSE: Thread Small End
Benefits	Documentation offered	A269 304L condenser tube delivery time
High strength Reusability Good formality	Commercial invoice Material traceability records Heat treatment charts Guarantee letter Quality assurance plan (qap) Packing list	1-2 Days for Material in Stock 7-30 Days for Make to Order Materials

Buy ASME SA269 Grade 304L Cold Drawn Tube With Non Destructive Electric Testing In Dubai

SA269 Grade 304L Round Tube Testing Methods

Radiographic Examination
Transverse Tension
Flattening Test
Etching
Stabilizing Heat Treatment
Intergranular Corrosion
Grain Size
Dual Grade
Magnetic Particle Detection
Flare Test
Hardness Test
Tensile Test

A269 304L Stainless Steel Tubing Permissible Variations In Dimensions

Size (OD) in	Wall thickness %	Varations in (OD)	Varation in Cut Length in (mm)		Thin Walled tubes inch (mm)
Size (OD) in	Wall thickness %	Varations in (OD)	Over	Under	Thin Walled tubes inch (mm)
Up to 1/2	±15	±0.005 (0.13)	1/8 (3.2)	0	–
1/2 to 11/2 , excl	±10	±0.005 (0.13)	1/8 (3.2)		less than 0.065 (1.65) nominal
11/2 to 31/2 , excl		±0.010 (0.25)	3/16 (4.8)		less than 0.095 (2.41) nominal
31/2 to 51/2 , excl		±0.015 (0.38)	3/16 (4.8)		less than 0.150 (3.81) nominal
51/2 to 8, excl		±0.030 (0.76)	3/16 (4.8)		less than 0.150 (3.81) nominal
8 to 12, excl		±0.040 (1.01)	3/16 (4.8)		less than 0.200 (5.08) nominal
12 to 14, excl		±0.050 (1.26)	3/16 (4.8)		less than 0.220 (5.59) nominal

Most Frequently Used Types of ASTM A269 TP304L Tube

ASTM A269 TP304L Seamless Tube

A269 Type 304L Welded Tube

ASTM A269 Type 304L ERW Tube

ASTM A269 Grade 304L Annealed Tube

ASTM A269 304L Extruded Tube

ASTM A269 Gr 304L Redrawn Tube

ASTM A269 TP 304L Square Tubing

A269 Gr 304L Exhaust Tubing

A269 TP304L Condenser Tubes

A269 304L Heat Exchanger Tube

ASME SA 269 TP304L Boiler Tube

SA269 Type 304L Superheater Tubes

SA 269 Grade 304L Cold Drawn Tube

A269 Type 304L Bright Annealed Tube

SA 269 Gr 304L Coiled Tubing

A269 Type 304L Precision Tubes

ASTM A269 Type 304L Polish Tube

ASTM A269 Type 304L Grade 304L Capillary TubingTube

A269 TP304L Instrumentation Tube

A269 304L Gas Tube

ASME SA 269 TP304L Instrumentation Tubing

ASTM A269 TP304L Rectangular Tubing

SA 269 Gr 304L Round Tube

SA 269 Grade 304L Electropolish Tube

Call Now For The Clients List Based In Below Locations

Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

ASTM A269 TP 304L SS Tube Applications

Chemical Industry
Petrochemical Industries
Oil and Gas Industries
defence & Aerospace
Power Generation Industries
Pulp and Paper Industry
Automotive Industry
Industry & Factory

ASTM A269 TP304L Tube Weight Chart

Nominal Size (inches)	Outside Diameter (OD) mm	Wall Thickness (mm)	Weight per Meter (kg)
3″	76.20	3.00	7.10
1-1/4″	31.75	1.60	3.00
1/2″	12.70	0.80	1.10
1/8″	3.18	0.30	0.22
1″	25.40	1.50	2.45
5/16″	7.94	0.40	0.50
2″	50.80	2.00	4.50
3/8″	9.53	0.45	0.65
1-1/2″	38.10	1.80	3.58
5/8″	15.88	1.00	1.48
2-1/2″	63.50	2.50	5.60
3/4″	19.05	1.10	1.84
4″	101.60	3.50	9.90

Fabrication Process of ASTM A269 TP304L

Surface Preparation
Cutting
Bending
Forming
Inspection

SA 269 304L Stainless Steel Bright Annealed Tube With High Degree Of Ductility, Check A269 TP304L Material Properties

ASME SA 269 TP304L Tube Chemical Composition

Carbon	Manganese	Phosphorus	Sulfur	Silicon	Chromium	Nickel
0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0

Mechanical Properties of ASTM A269 Type 304L Seamless Tube

Temperure	Tensile Strength		Yield Strength		Elongation %, Min
Min.	Ksi.	MPa	Ksi.	MPa	Elongation %, Min
1900º F (1040º C)	70	485	25	170	35

Sales Representative Available To Provide Quick Quote

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Physical Properties of ASTM A269 Grade 304l Welded Tube

Properties	Value
Density	8000.00 Kg/m3
Modulus of Elasticity	193 GPa
Thermal Conductivity	16.2W/m.K
Melting Point	1450 °C
Thermal Expansion	17.2 x 10-6 /K
Electrical Resistivity	0.072 x 10-6 Ω .m

Documents For SA 269 Grade TP304L ERW Tube

Material Test Certificates (MTC)
Raw Material Test Reports
Certificate of Origin
NABL Laboratory Reports
Test Certificates certifying NACE MR0175, NACE MR0103

Time and Place of Delivery for SA 269 Gr 304L Tube

Export to	The delivery date and the price changes
Turkey	5 % extra \| 21 days
Libya	5 % extra \| 45 to 60 days
Nigeria	5 % extra \| 30 days
Germany	5 % extra \| 20 days
Poland	5 % extra \| 45 days
Finland	5 % extra \| 45 days
Sweden	5 % extra \| 45 days
Norway	5 % extra \| 45 days
Kazakhstan	5 % extra \| 45 to 60 days
Bangladesh	5 % extra \| 15 days
Bhutan	5 % extra \| 7 days
Nepal	5 % extra \| 7 days
