ASTM A269 TP316 Tube

ASTM A269 TP316 Tube Overview

Sizes Availability
  • Seamless Tube: 6 to 114.3 mm OD
  • Welded Tube: 10 to 114.3 mm OD
  • Custom
Brands in Stock Maruichi Stainless, PCC Rollmet, Alleima, Sanyo Special Steel, Centravis, Mannesmann Stainless, Nippon Steel Corp., Ratnamani Metals & Tubes, Tubacex
Raw Material Orign Korean, American, Russia, Japanese, European, Indian
HSN Code 73044100
Saudi Arabian Standards SASO-ASTM-A312M, A733, SASO 7306
International Standards ASTM A269, ASME SA 269, UNS S31600, WNR 1.4401, AISI 316, EN 58E, INOX 316, SUS 316, BS 304S31
Approval Saudi Aramco, BAPCO, ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, SABIC, KOC, Marine and KPI.
Services
  • Cutting
  • Shearing
  • Heat Treatment
MTC EN 10204 3.1 and 3.2



Piping Material

Table of Content

List of Top 10 SA269 316 Seamless Tube Suppliers in UAE

ASTM A269 TP316 Tube Specifications

Experienced ASTM A269 TP316 Tube Suppliers in UAE Who Deliver Solutions In Varied Sizes & Specifications

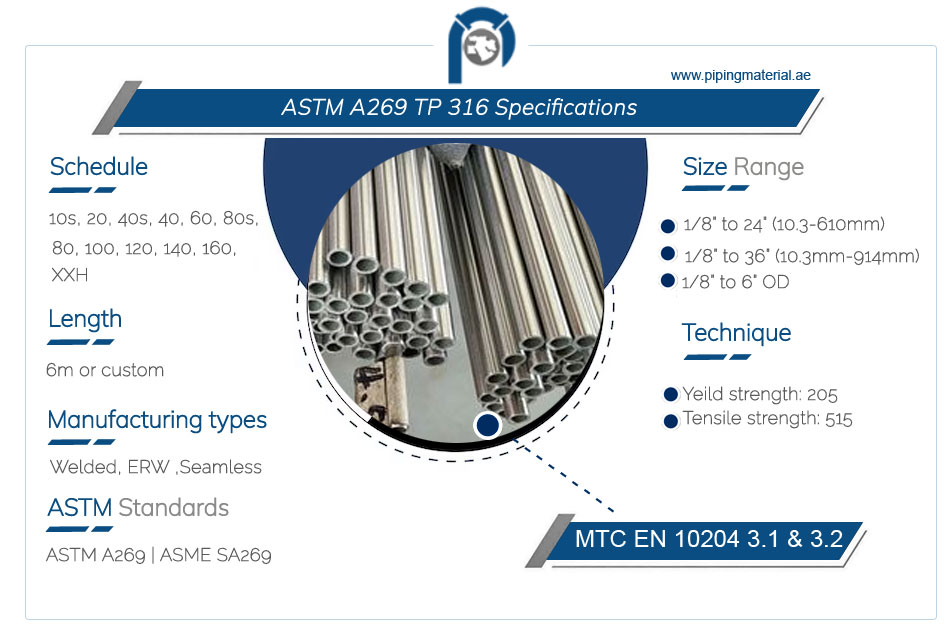

ASTM A269 TP316 Tube specification



Seamless Pipe

ASME SA269 TP316 Seamless Tube: 0.8 to 4 mm (Wall Thickness)

Welded Pipe

ASTM A269 Grade 316 Welded Tube: 0.005 – 0.500″ (Wall Thickness), 1 m to 12.5 m (Length)

Thick Walled Pipe

A269 Grade 316 Heater Thick Walled Tube: 10 to 600mm (OD), 2.5 to 100mm (Wall Thickness)

Schedule

SA 269 Grade TP316 Tube Schedule: 5 to XXH

Method

ASME SA269 TP316 Tube Method: Hot Formed, Cold Formed, Precision Rolled

End

End: Grooved, Bevelled, Plain, Threaded

Suitable temperatures

Suitable Temperatures: 1900 ºF (1040ºC)

Process

ASME SA269 Grade 316 ERW Tube Process: ERW, Seamless, Welded

MTR

MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

Finish

SA 269 GR .TP316 Electropolish Tubes Finish: Annealing, Polished, Bright

Quote

Get Quote Directly from ASTM A269 TP316 Tube Suppliers in UAE With Complete Documentation

Form

ASME SA 269 TP316 Tubing Form: Round, Square, Rectangular, Hexagon etc.



A269 TP 316 Stainless Steel Boiler and Heat Exchanger Tubes With Eddy Current Tests

Testing mathods of ASME SA269 Type 316 Mechanical Polished Tube

  • Tensile Test
  • Ultrasonic Test
  • Flaring Test
  • Flattening Test
  • Hardness Test
  • Impact Test
  • Hydrostatic Test
  • Visual Inspection
  • Positive Material Identification (PMI)
  • Dimensional Inspection



SA269 Type 316 Tubing Pressure Rating

OD inch 0.25 0.375 0.5 0.625
Ave. Wall inches 0.02 0.028 0.035 0.049 0.065 0.02 0.028 0.035 0.049 0.065 0.02 0.028 0.035 0.049 0.065 0.083 0.02 0.028 0.035 0.049 0.065 0.083 0.095 0.109
Yield Point 5,714 8,660 11,667 19,342 32,500 3,582 5,266 6,885 10,614 15,918 2,609 3,784 4,884 7,313 10,541 14,910 2,051 2,953 3,784 5,579 7,879 10,850 13,103 16,069
Burst Pressure 14,286 21,649 29,167 48,355 81,250 8,955 13,166 17,213 26,534 39,796 6,522 9,459 12,209 18,284 26,351 37,275 5,128 7,381 9,459 13,947 19,697 27,124 32,759 40,172
Min Yield Strength 30,000
Collapse Pressure 4,416 5,967 7,224 9,455 11,544 3,029 4,145 5,077 6,816 8,597 2,316L 3,172 3,906 5,316L 6,786 8,307 1,859 2,568 3,172 4,335 5,591 6,910 7,734 8,639
Minimum Tensile Strength 75,000
Pressure 25% of Burst 3,571 5,412 7,292 12,089 20,313 2,239 3,292 4,303 6,634 9,949 1,630 2,365 3,052 4,571 6,588 9,319 1,282 1,845 2,365 3,487 4,924 6,781 8,190 10,043



Associate Traders And Importers Available In Below Locations For Quick Deliveries

Region City Country
Middle East Dubai United Arab Emirates
Middle East Riyadh Saudi Arabia
Middle East Abu Dhabi United Arab Emirates
Middle East Dammam Saudi Arabia
Africa Abuja Nigeria
Middle East Doha Qatar
Middle East Jeddah Saudi Arabia
Middle East Kuwait City Kuwait
MENA Casablanca Morocco
MENA Cairo Egypt
Africa Cape Town South Africa
Africa Johannesburg South Africa
Africa Lagos Nigeria



ASTM A269 Gr 316 Austenitic Stainless Steel Tubing Wall Thickness

B.W.G Wall
Thick		 2.000 1.500 0.500 0.750 1.000
10 0.134 1.732 1.232 0.232 0.482 0.732
12 0.109 1.782 1.282 0.282 0.532 0.782
13 0.095 1.810 1.310 0.310 0.560 0.810
15 0.072 1.856 1.356 0.356 0.606 0.856
16 0.065 1.870 1.370 0.370 0.620 0.870
19 0.042 1.916 1.416 0.416 0.666 0.916
20 0.035 1.930 1.430 0.430 0.680 0.930
22 0.028 1.944 1.444 0.444 0.694 0.944
24 0.022 1.956 1.456 0.456 0.706 0.956



SS ASTM A269 TP316 Solution Annealed Tube Suitable for Pharmaceutical and Food Industries

ASME SA 269 TP 316 Tubing Applications

  • Pharmaceuticals Equipments
  • Ttextile Industry
  • Food Processing Equipments
  • Oil and Gas Industries
  • Pulp and Paper Industry
  • Automotive Industry
  • Industry & Factory
  • Constructions
  • Petrochemical Industries



Most Frequently Used Types of ASTM A269 TP316 Tube

ASTM A269 316 Capillary Tubing

ASTM A269 316 Capillary Tubing

ASTM A269 type 316 ERW tube

ASTM A269 type 316 ERW tube

A269 316 Heat Exchanger Tube

A269 316 Heat Exchanger Tube

ASTM A269 Grade 316 Annealed Tube

ASTM A269 Grade 316 Annealed Tube

SA 269 Grade 316 Electropolish Tube

SA 269 Grade 316 Electropolish Tube

SA 269 Grade 316 Cold Drawn Tube

SA 269 Grade 316 Cold Drawn Tube

ASTM A269 Grade 316 Polish Tube

ASTM A269 Grade 316 Polish Tube

A269 Type 316 Coiled Tubing

A269 Type 316 Coiled Tubing

A269 TP316 Instrumentation Tube

A269 TP316 Instrumentation Tube

ASTM A269 Gr 316 Redrawn Tube

ASTM A269 Gr 316 Redrawn Tube

ASTM A269 Type 316 Precision Tubes

ASTM A269 Type 316 Precision Tubes

ASME SA 269 TP316 Instrumentation Tubing

ASME SA 269 TP316 Instrumentation Tubing

SA 269 Gr 316 Bright Annealed Tube

SA 269 Gr 316 Bright Annealed Tube

ASME SA 269 TP316 Boiler Tube

ASME SA 269 TP316 Boiler Tube

A269 Type 316 Welded Tube

A269 Type 316 Welded Tube

SA269 Type 316 Superheater Tubes

SA269 Type 316 Superheater Tubes

ASTM A269 Gr 316 Square Tubing

ASTM A269 Gr 316 Square Tubing

SA 269 Gr 316 Round Tube

SA 269 Gr 316 Round Tube

ASTM A269 TP316 Seamless Tube

ASTM A269 TP316 Seamless Tube

A269 Gr 316 Exhaust Tubing

A269 Gr 316 Exhaust Tubing

ASTM A269 316 Extruded Tube

ASTM A269 316 Extruded Tube

A269 TP316 Condenser Tubes

A269 TP316 Condenser Tubes

SA269 Type 316 Rectangular Tubing

SA269 Type 316 Rectangular Tubing

A269 316 Gas Tube

A269 316 Gas Tube



Call Now For The Clients List Based In Below Locations

Middle East Countries Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria



Buy ASTM A269 Grade 316 Bright Annealed Tube in Various Surface Finish With Strong Tolerance in Dubai

ASTM A269 TP316 Cold Drawn Tube Surface Finish

  • Electropolish
  • Mechanical Polish
  • Satin Finish
  • Passivated



Tolerance of ASME SA269 Grade 316 Electropolish Tubes

OD, inch OD Tolerance inch(mm) WT Tolerance % Length Tolernace inch(mm)
– +
≤1 /2 ± 0.005 ( 0.13 ) ±15 0 1 /8 ( 3.2 )
> 5 1 /2~< 8 ± 0.030(0.76) ±10 0 3 /16(4.8)
> 1 1 /2~< 3 1 /2 ± 0.010(0.25) ±10 0 3 /16(4.8)
12~< 14 ± 0.050(1.26) ±10 0 3 /16(4.8)



Heat Treatment of ASME SA269 TP316 SS Seamless Tubes

Process Temp. range
Solution Treatment (Annealing) 1010-11200C



ASME SA 269 TP316 Tube Weight Chart

Outside Diameter inches Internal Area (in2) Wall inches ID inches D/t Ratio Tube Cross Sectional Area (in2)
0.25 0.0346 0.02 0.21 12.5 0.0145
0.0296 0.028 0.194 8.93 0.0195
0.0254 0.035 0.18 7.14 0.0236
0.0181 0.049 0.152 5.1 0.0309
0.0113 0.065 0.12 3.85 0.0378
0.375 0.0881 0.02 0.335 18.75 0.0223
0.0799 0.028 0.319 13.39 0.0305
0.0731 0.035 0.305 10.71 0.0374
0.0603 0.049 0.277 7.65 0.0502
0.0471 0.065 0.245 5.77 0.0633
0.5 0.1662 0.02 0.46 25 0.0302
0.1548 0.028 0.444 17.86 0.0415
0.1452 0.035 0.43 14.29 0.0511
0.1269 0.049 0.402 10.2 0.0694
0.1075 0.065 0.37 7.69 0.0888
0.0876 0.083 0.334 6.02 0.1087
0.625 0.2688 0.02 0.585 31.25 0.038
0.2543 0.028 0.569 22.32 0.0525
0.2419 0.035 0.555 17.86 0.0649
0.2181 0.049 0.527 12.76 0.0887
0.1924 0.065 0.495 9.62 0.1144
0.1655 0.083 0.459 7.53 0.1413
0.1486 0.095 0.435 6.58 0.1582
0.1301 0.109 0.407 5.73 0.1767
0.75 0.3783 0.028 0.694 26.79 0.0635
0.3632 0.035 0.68 21.43 0.0786
0.3339 0.049 0.652 15.31 0.1079
0.3019 0.065 0.62 11.54 0.1399
0.2679 0.083 0.584 9.04 0.1739
0.2463 0.095 0.56 7.89 0.1955
0.2223 0.109 0.532 6.88 0.2195
0.2043 0.12 0.51 6.25 0.2375
0.875 0.5476 0.02 0.835 43.75 0.0537
0.5268 0.028 0.819 31.25 0.0745
0.509 0.035 0.805 25 0.0924
0.4742 0.049 0.777 17.86 0.1272
0.4359 0.065 0.745 13.46 0.1654
0.3948 0.083 0.709 10.54 0.2065
0.3685 0.095 0.685 9.21 0.2328
0.339 0.109 0.657 8.03 0.2623
0.316L7 0.12 0.635 7.29 0.2846
1 0.6999 0.028 0.944 35.71 0.0855
0.6793 0.035 0.93 28.57 0.1061
0.639 0.049 0.902 20.41 0.1464
0.5945 0.065 0.87 15.38 0.1909
0.5463 0.083 0.834 12.05 0.2391
0.5153 0.095 0.81 10.53 0.2701
0.4803 0.109 0.782 9.17 0.3051
0.4536 0.12 0.76 8.33 0.3318
0.4208 0.134 0.732 7.46 0.3646



Documentation Of ASME SA269 Gr 316 Bright Annealed Tube

  • 100% Radiography Test Report
  • MTC as per EN 10204 3.1 and EN 10204 3.2
  • NABL approved laboratory test reports
  • Raw material test reports
  • Third Party Inspection Report
  • Certificate of origin
  • Buyer Inspection
  • HS Code Commercial Invoice
  • Fumigation Certificates



Explore Nearby Locations For The Quickest Delivery Options

Country Cities
Netherlands Amsterdam
Netherlands The Hague
Belgium Brussels
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Seraing
Netherlands Eindhoven
Belgium Ghent
Netherlands Rotterdam
Belgium Leuven
Belgium Westerlo
Belgium Antwerp



ASTM A269 TP316 Tube Technical Information

For Larger Sizes, Please Contact The ASTM A269 TP316 Tube Suppliers in UAE
ASTM A269 TP316 Seamless Tube size A269 Type 316 Welded Tube sizes ASTM A269 type 316 tube OD
1/8” to 24” (10.3 to 610mm) 1/8” to 36” (10.3mm to 914mm) 1/8” to 6” OD
Schedules Manufacturing types ASTM A269 grade 316 tubing wall thickness
10s, 20, 40s, 40, 60, 80s, 80, 100, 120, 140, 160, XXH
  • Welded
  • ERW
  • Seamless
 1 to 60 mm
Length ASTM Standard ASTM A269 316 tube delivery condition
6m or custom
  • ASTM A269
  • ASME SA269
  • Pickled and Annealed
  • Polished
  • Cold Drawn
  • Bright Annealed
  • MF
ASTM A269 Gr 316 tube density Heat exchanger tube melting point Manufacturing types
8.0 g/cm3 1400°C (2550°F)
  • Seamless
  • ERW
  • Welded
  • Fabricated
Form Strength ASTM A269 TP 316 boiler tube surface finish
  • Round
  • Rectangular
  • Hydraulic
  • Square
  • Hollow
  • Straight
  • U Shape
  • Yield strength: 205
  • Tensile strength: 515
  • Hairline/satin
  • 400G, 800G, 500G, 600G mirror finish
  • Custom finish
Value added services Most demanded A269 Gr 316 tube types SWG
  • Cutting
  • Ultrasonic Testing
  • Polishing (Electro & Commercial)
  • Annealed & Pickled Bending
  • Beveling
  • Threading
  • Destructive and Non Destructive
  • Draw & Expansion as per required Size & Length

Use chat or email to get in direct contact with mentioned ASTM A269 TP316 tube stockists, stocks, and distributors for these services.
  • Heat exchanger tube
  • Instrumentation tubing
  • Cold drawn tube
  • Superheater tubes
  • Gas tube
  • Instrumentation tube
  • Redrawn tube
  • Round tube
  • ASME SA 269 TP316 seamless tube
  • Precision tubes
  • SA 269 grade 316 ERW tube
  • Extruded Tube
  • Polish tube
  • Coiled tubing
  • Square tubing
  • Exhaust tubing
  • Rectangular tubing
  • Annealed tube
  • Boiler tube
  • Condenser tubes
  • Capillary tubing
  • SA269 Type 316 Welded Tube
  • Electropolish tube
  • Bright annealed tube
  • 10 Swg.
  • 12 Swg.
  • 14 Swg.
  • 16 Swg.
  • 18 Swg.
  • 20 Swg.
Temprature range Elongation Hardness range
1900°F (1040°C) 35 % 192HBW/ 200HV
Marking Welding method Applications
  • Specification
  • Material Grade
  • Nominal Size
  • Schedule or Wall Thickness
  • Method of Manufacturing (Seamless / Welded)
  • Heat Number
  • Manufacturer’s Name or Custom Logo – on request
  • SMAW
  • GMAW including both MIG and MAG
  • FCAW
  • Submerged arc welding
  • TIG
  • Sinks & splash backs
  • Cutlery and flatware
  • Tubing
  • Architectural panelling

Purchase from the leading zero-rejection ASTM A269 TP316 Tube Suppliers in UAE, South Africa, the Middle East, Egypt, the United States, Oman, Senegal, and Saudi Arabia.
Origin standards Certification of A269 TP316 cold drawn tube Features
  • American Standard
  • Russia Standard
  • Janpanese Standard
  • European Standard
  • Material test certificates (mtc) as per en 10204 3.1 and en 10204 3.2
  • Certificate of origin
  • Fumigation Certificates
  • Raw material test reports
  • Test certificates certifying nace mr0103, nace mr0175
  • 100% Radiography Test Report
  • Third Party Inspection Report
  • Material test certificates (mtc) as per en 10204 3.1 and en 10204 3.2
  • Nabl approved laboratory test reports
  • Buyer Inspection
  • DFARS compliant
  • HS Code Commercial Invoice
  • Form A for Generalized System of Preferences (GSP)
  • Moisture testing
  • Surface roughness measurement
  • Good formality
  • High strength
  • Reusability
Packaging A269 316 tube inspection plan Tubes end type
  • Wooden Boxes
  • PE Fabric Bundles
  • Crates (steel/wooden)
  • Special crates for with each radius separated
  • Bundles (hexagonal)
  • Wrapped in plastic or standard seaworthy export packing
  • Custom
  • Pitting resistance test
  • Reverse flattening Test
  • Mechanical testing such as tensile of area
  • Hardness test
  • PMI testing
  • Micro test
  • Chemical analysis – spectro analysis
  • Flaring test
  • Intergranular corrosion (IGC) test
  • Flange test\
  • Flattening test

Open lines of communication for the above-mentioned test with the distributors, dealers, and ASTM A269 TP316 tube stockists specified above
  • Plain Ends (PE)
  • Threaded Ends (TE)
  • Bevelled Ends (BW)
  • Grooved Ends
  • BE: Bevel End
  • BBE: Bevel Both Ends
  • BLE: Bevel Large End
  • TLE: Thread Large End
  • TOE: Thread One End
  • BOE: Bevel One End
  • BSE: Bevel Small End
  • BW: Buttweld End
  • PE: Plain End
  • PBE: Plain Both Ends
  • POE: Plain One End
  • TE: Thread End
  • TBE: Thread Both Ends
  • TSE: Thread Small End
Benefits Documentation offered ASME SA 269 TP316 condenser tube delivery time
  • High pressure-resistant
  • Excellent resistance
  • Mechanical stress-resistant
  • Commercial invoice
  • Packing list
  • Heat treatment charts
  • Material traceability records
  • Quality assurance plan (qap)
  • Guarantee letter
  • 1-2 Days for Material in Stock
  • 7-30 Days for Make to Order Materials



Find Wide Stock Of European, Korean And Japanese Origin A269M TP316 Welded Tube in UAE

ASTM A269 Type 316 Seamless Tube Equivalent

Standards Country Value
UNS North America S31600
WNR Russia 1.4404
ASTM America A269
ASME Australia SA 269
JIS Japan SUS316
BS United Kingdom 316S31
GOST Russia 08KH16N11M3
AFNOR France Z6CND17-11 / Z7CND17-11-02 / Z7CND17-12-02
EN Europe X5CrNiMo17-12-2
AMS United States –
ANSI America –
SAE United States –
AS Australia –
DIN German 1.4404



Physical Properties of ASTM A269 Grade 316 Welded Tube

Density Elastic Modulus
(GPa)		 Thermal Expansion Thermal Conductivity Elec Resistivity
0-100°C 0-315°C 0-538°C At 100°C At 500°C
8.0 g/cm3 193 15.9 16.2 17.5 16.3 21.5 740



Tube ASTM A269 TP316 Chemical Composition

Element Value
Carbon 0.08
Manganese 2.00
Phosphorous 0.045
Sulfur 0.03
Silicon 1.00
Chromium 16.0–18.0
Nickel 10.0–14.0
Molybdenum 2.00–3.00



Mechanical Properties Of A269 Type 316 Tubing

Temperure Tensile Strength Yield Strength Elongation %, Min
Min. Ksi. MPa Ksi. MPa
1900º F (1040º C) 75 515 30 205 35



Partner Traders And Importers Are Available In The Regions Mentioned Below For Swift Deliveries

Umm Al Quwain Sharjah Fujairah Doha
Dubai Ras Al Khaimah Muscat Riyadh
Ajman Saudi Arabia Abu Dhabi Al Jubail



A269 TP316 Stainless Steel Exhaust Tube Types Of Packaging

  • Bundles (hexagonal)
  • Wooden Boxes
  • Crates (steel/wooden)
  • Special crates for U-Bend tubes
  • Packaging As per customer’s requirements



Time And Place Of Delivery For A269 316 Stainless Steel Tubing

Export to The delivery date and the price changes
UAE 5 % extra | 5 Days
South Africa 5 % extra | 25 to 30 days
Saudi Arabia 5 % extra | 7 days
Qatar 5 % extra | 7 days
USA 5 % extra | 40 to 60 days
Uk 5 % extra | 30 days
France 5 % extra | 30 days
Italy 5 % extra | 30 days
Malaysia 5 % extra | 10 days
Philippines 5 % extra | 14 days
Indonesia 5 % extra | 9 days
Oman 5 % extra | 5 days



Verified Supplier

Top 10 ASTM A269 TP316 Tube Suppliers in UAE

available 10 cars
Prestige Metalloys LLC
1
Dubai, UAE
Prestige Metalloys LLC
  • info@metalloys.ae
  • +971 568293363
Raaj Sagar Steels Logo
1
Mumbai, India
Raaj Sagar Steels
  • ayush@raajsagarsteels.com
  • +91 9820889426
Aaradhana Metals Logo
1
Mumbai, India
Aaradhana Metals
  • aaradhanametals@gmail.com
  • +91 8005603801
Magnus Alloys Overseas Logo
1
Mumbai, India
Magnus Alloys
  • sales@magnusalloys.com
  • +91 9820211163
Aaditya Stainless Pvt Ltd Logo
1
Mumbai, India
Aaditya Stainless
  • gulfsales@aadityastainless.com
  • +91 8655884715
Manifold Pipe Solution Inc.
1
Mumbai, India
Manifold Pipe Solution Inc
  • sales@fastenersonline.co.in
  • +91 9819881321
Silver Tubes
1
Mumbai, India
Silver Tubes
  • info@silvertubes.co.in
  • +91 9819614402
Supplier 91
1
Mumbai, India
Bhawal Steel Agency
  • marketing@bhawalsteelagency.com
  • +91 9833484196
Supplier 52
1
Mumbai, India
Excel Metal & Engg.
  • sales@excelmetal.net
  • +91 9930005444
Supplier 23
1
Mumbai, India
Manisha Steel
  • inquiry@manishasteel.com
  • +91 9819868540

Pipe

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
