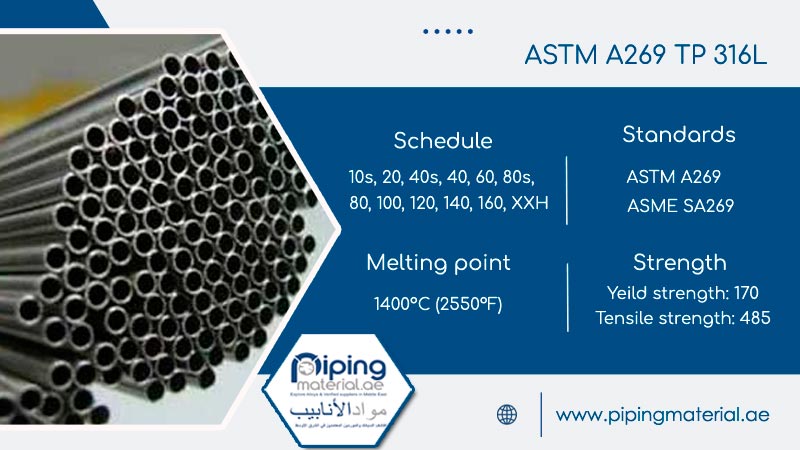

ASTM A269 TP316L Tube

Home > ASTM A269 TP316L Tube

ASTM A269 TP316L Tube Highlights

Sizes Availability	Seamless Tube: 1/2” to 16” OD Welded Tube: 1/8″ NB – 24″ NB OD Custom
Brands in Stock	Ratnamani Metals & Tubes, Maruichi Stainless, PCC Rollmet, Alleima, Sanyo Special Steel, Centravis, Mannesmann Stainless, Nippon Steel Corp., Tubacex
Raw Material Orign	European, Indian, Korean, American, Russia, Japanese
HSN Code	73041110
Saudi Arabian Standards	SASO-ASTM-A312M, A733, SASO 7306
International Standards	ASTM A269, ASME SA 269, UNS S31603, WNR 1.4404, AISI 316L, EN 58E, INOX 316L, SUS 316L, BS 304S31
Approval	Marine and KPI, Saudi Aramco, BAPCO, ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, SABIC, KOC
Services	Shearing Cutting Heat Treatment
MTC	EN 10204 3.1 and 3.2

Table of Content

ASTM A269 TP316L Tube Specifications
ASTM A269 TP316L Welded Tube Size Chart
ASME SA 269 TP316L Condencer Tube Dimensions
ASTM A269 TP316L Welded Tube Available Surface Finishes
ASME SA269 TP316L Stainless Steel ERW Tube Weight Chart
ASTM A269 Grade 316L Welded Tubing Dimensional Tolerance
What Point Should Mentioned To Order A269 316l Stainless Steel Tubing?
ASTM A269 Grade 316L Welded Tube Equivalent
Most Common Types of ASTM A269 TP316L Tube

ASME SA269 Gr 316L Tube Tolerance
ASTM A269 TP316L Tube Technical Data
Mechanical Properties of ASME SA 269 TP316L Tube
Quality Inspection of ASTM A269 TP316L Tubes
SA269 Type 316L Tubing Chemical Composition
Physical Properties of ASTM A269 TP316L SS Tube
Heat Treatment of ASME SA 269 TP316L Heat Exchanger Tubes
Documents of ASME SA269 Grade 316L Seamless Tubing
ASTM A269 Grade 316L ERW Tube Pressure Ratings
ASTM A269 Grade 316L Tubing Manufacturing Process

Get Multiple Quotes From Verified SA269 316L Stainless Steel Seamless Tubing Suppliers in UAE

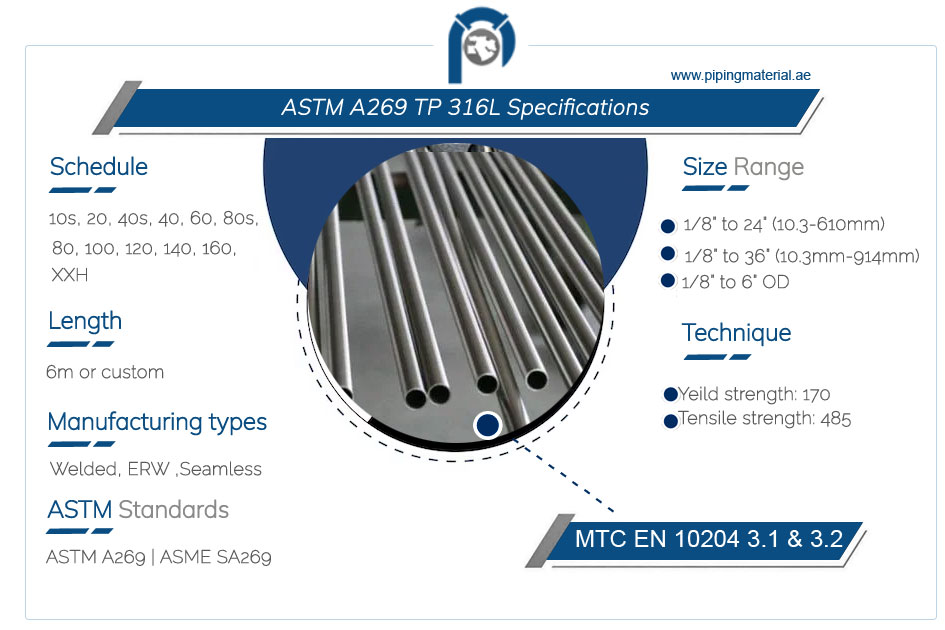

ASTM A269 TP316L Tube Specifications

ASME SA269 TP316L Seamless Tube: 1 to 15 mm (Wall Thickness) | 6″ NB – 100″ NB

ASTM A269 Grade 316L Welded Tube: 1.0 – 15.0 mm (Wall Thickness), 1 to 12.5 meters or Custom (Length)

A269 Grade 316L Heater Thick Walled Tube: 1/8” to 24” (OD), 1.0 – 15.0 mm (Wall Thickness)

SA 269 Grade TP316L Tube Schedule: SCH 5 to SCH 160, XXS

ASME SA269 TP316L Tube Method: Hot Formed, Cold Formed, Precision Rolled

End: Bevelled, Plain, Grooved, Threaded

Suitable Temperatures: 1149 – 1260°C

ASME SA269 Grade 316L ERW Tube Process: ERW, Seamless, Welded

MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

SA 269 GR .TP316L Electropolish Tubes Finish: Mirror Finish, Annealing, Polished, Bright

Get Quote Directly from ASTM A269 TP316L Tube Suppliers in UAE With Complete Documentation

ASME SA 269 TP316L Tubing Form: Round, Square, Rectangular, Hexagon etc.

ASTM A269 TP316L Welded Tube Size Chart

OD (inches)	OD (mm)	Wall Thickness (inches)	Wall Thickness (mm)
1″ to 8″	25.40 mm to 203.20 mm	0.065″ to 0.750″	1.65 mm to 19.05 mm
1/4″ to 2″	6.35 mm to 50.80 mm	0.035″ to 0.250″	0.89 mm to 6.35 mm
1/2″ to 4″	12.70 mm to 101.60 mm	0.035″ to 0.500″	0.89 mm to 12.70 mm
1/4″ to 1 1/2″	6.35 mm to 38.10 mm	0.040″ to 0.200″	1.02 mm to 5.08 mm
3/8″ to 3″	9.53 mm to 76.20 mm	0.045″ to 0.375″	1.14 mm to 9.53 mm

ASME SA 269 TP316L Condencer Tube Dimensions

OD inches	Ave. Wall inches	D/t Ratio	ID inches	Internal Area (in2)	Tube Cross Sectional Area (in2)
0.250	0.035	7.14	0.180	0.0254	0.0236
0.375	0.065	5.77	0.245	0.0471	0.0633
0.375	0.020	18.75	0.335	0.0881	0.0223
0.500	0.049	10.20	0.402	0.1269	0.0694
0.500	0.035	14.29	0.430	0.1452	0.0511
0.625	0.049	12.76	0.527	0.2181	0.0887
0.750	0.083	9.04	0.584	0.2679	0.1739
0.750	0.065	11.54	0.620	0.3019	0.1399
0.875	0.049	17.86	0.777	0.4742	0.1272
0.875	0.120	7.29	0.635	0.316/ 316L7	0.2846
1.000	0.049	20.41	0.902	0.6390	0.1464
1.500	0.120	12.50	1.260	1.2469	0.5202
1.500	0.134	11.19	1.232	1.1921	0.5750
1.750	0.095	18.42	1.560	1.9113	0.4939
1.000	0.120	8.33	0.760	0.4536	0.3318
2.000	0.083	24.10	1.834	2.6417	0.4999
1.250	0.095	13.16	1.060	0.8825	0.3447
1.750	0.109	16.06	1.532	1.8433	0.5619
2.000	0.165	12.12	1.670	2.1904	0.9512

ASME SA269 Grade 316L Welded Tube in Polish G400, G600 and Brush Finish at Lowest Price in Dubai

ASTM A269 TP316L Welded Tube Available Surface Finishes

AP-Annealed & Pickled
BA-Bright Annealed
MP-Mechanical Polish
EP-Electro Polish
Bright Annealed Finish

ASME SA269 TP316L Stainless Steel ERW Tube Weight Chart

NPS (inches)	OD	Schedule
	OD	10S	5S	80S	40S
	(mm)	kg/m	kg/m	kg/m	kg/m
3/8	17.2	0.63	–	1.10	0.85
1/8	10.3	0.28	–	0.47	0.37
3/4	26.7	1.28	1.02	2.20	1.68
2	60.3	3.93	2.40	7.49	5.45
3	88.9	6.46	4.52	15.3	11.3
1 1/4	42.2	2.69	1.66	4.47	3.39
4	114.3	8.37	5.84	22.3	16.1
6	168.3	13.9	11.3	42.6	28.3
10	273.1	27.8	22.7	81.5	60.4

Call Now For The Clients List Based In Below Locations

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

ASTM A269 Grade 316L Welded Tubing Dimensional Tolerance

Nominal Wall	OD	OD Size	Length	Wall Thickness
0.065 (1.65)	+/-0.005 (0.13)	1/2 (12.7)	+1/8 (3.18)/-0	+/-10%
0.109 (2.77)	+/-0.030 (0.76)	6 (152.4)	+3/16 (4.76)/-0	+/-10%
0.065 (1.65)	+/-0.008 (0.20)	2 (50.8)	+1/8 (3.18)/-0	+/-10%
0.065 (1.65)	+/-0.008 (0.20)	1-1/2 (38.1)	+1/8 (3.18)/-0	+/-10%
0.065 (1.65)	+/-0.010 (0.25)	3 (76.2)	+1/8 (3.18)/-0	+/-10%
0.065 (1.65)	+/-0.010 (0.25)	2-1/2 (63.5)	+1/8 (3.18)/-0	+/-10%
0.065 (1.65)	+/-0.005 (0.13)	1 (25.4)	+1/8 (3.18)/-0	+/-10%
0.109 (2.77)	+/-0.030 (0.76)	8 (203.2)	+3/16 (4.76)/-0	+/-10%
0.065 (1.65)	+/-0.005 (0.13)	3/4 (19.1)	+1/8 (3.18)/-0	+/-10%
0.083 (2.11)	+/-0.015 (0.38)	4 (101.6)	+1/8 (3.18)/-0	+/-10%

What Point Should Mentioned To Order A269 316l Stainless Steel Tubing

Quantity
Material name
Grade
Dimensions
Length
Heat treatment
Test report needed
Designation of specifications
Specific needs as well as any other requirements chosen.

ASTM A269 Grade 316L Welded Tube Equivalent

Standards	Country	Value
UNS	North America	S31603
WNR	Russia	1.4404 /1.4435
ASTM	America	A269
ASME	Australia	SA 269
JIS	Japan	SUS316L
BS	United Kingdom	316S11
GOST	Russia	03KH17N14M3
AFNOR	France	Z2CND17-12 / Z3CND17-11-02 / Z3CND18-12-02
EN	Europe	X2CrNiMo17-12-2
AMS	United States	–
ANSI	America	–
SAE	United States	–
AS	Australia	–
DIN	German	1.4404 /1.4435

Most Common Types of ASTM A269 TP316L Tube

ASTM A269 Type 316L ERW Tube

SA 269 Gr 316L Bright Annealed Tube

ASTM A269 Grade 316L Polish Tube

SA269 Type 316L Rectangular Tubing

SA 269 Grade 316L Cold Drawn Tube

ASTM A269 Grade 316L Annealed Tube

ASME SA 269 tp316l Boiler Tube

ASME SA 269 TP316L Boiler Tube

A269 316l Gas Tube

A269 316L Gas Tube

ASTM A269 Type 316L Precision Tubes

A269 Type 316L Coiled Tubing

SA 269 grade 316l electropolish tube

SA 269 grade 316L electropolish tube

ASTM A269 tp316l Seamless Tube

ASTM A269 TP316L Seamless Tube

ASME SA 269 tp316l Instrumentation Tubing

ASME SA 269 TP316L Instrumentation Tubing

SA 269 Grade 316L Round Tube

ASTM A269 TP 316l Square Tubing

ASTM A269 TP 316L Square Tubing

A269 Gr 316l Capillary Tubing

A269 Gr 316L Capillary Tubing

A269 316l Heat Exchanger Tube

A269 316L Heat Exchanger Tube

SA269 Type 316L Superheater Tubes

ASTM A269 316l Extruded Tube

ASTM A269 316L Extruded Tube

A269 Gr 316l Exhaust Tubing

A269 Gr 316L Exhaust Tubing

A269 Type 316L Welded Tube

ASTM A269 Gr 316l Redrawn Tube

ASTM A269 Gr 316L Redrawn Tube

A269 tp316l Instrumentation Tube

A269 TP316L Instrumentation Tube

A269 tp316l Condenser Tubes

A269 TP316L Condenser Tubes

ASME SA269 Gr 316L Tube Tolerance

Nominal Pipe Size	Tolerance, %
Nominal Pipe Size	+	–
1/8-2 1 /2	20.0	12.5
3~18, t/D≤ 5%	22.5	12.5
3~18, t/D> 5%	15.0	12.5
≥ 20, welded	17.5	12.5
≥ 20, seamless, t/D≤ 5%	22.5	12.5
≥ 20, seamless, t/D> 5%	15.0	12.5

Call Now For The Clients List Based In Below Locations

Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

ASTM A269 TP316L Tube Technical Data

Contact One of The Authorised ASTM A269 TP316L Tube Suppliers in UAE Mentioned Above For Custom Sizes.
ASTM A269 TP316L seamless tube size	A269 type 316L welded tube sizes	ASTM A269 type 316L tube OD
1/8” to 24” (10.3 to 610mm)	1/8” to 36” (10.3mm to 914mm)	1/8” to 6” OD
Schedules	Manufacturing types	ASTM A269 grade 316L tubing wall thickness
10s, 20, 40s, 40, 60, 80s, 80, 100, 120, 140, 160, XXH	Welded Seamless ERW	1 to 60 mm
Length	ASTM Standard	ASTM A269 316L tube delivery condition
6m or custom	ASTM A269 ASME SA269	Annealed and Pickled (AP) Polished Bright Annealed (BA) Cold Drawn MF
ASTM A269 Gr 316L tube density	Heat exchanger tube melting point	Manufacturing types
8.0 g/cm3	1400°C (2550°F)	Seamless ERW Welded Fabricated
Form	Strength	ASTM A269 TP 316L boiler tube surface finish
Round Rectangular Hydraulic Square Hollow Straight U Shape	Yeild strength: 170 Tensile strength: 485	Hairline/satin 400G, 800G, 500G, 600G mirror finish Custom finish
Value added services	Type of A269 Gr 316L tube for chemical Industry	SWG
Draw & Expansion as per required Size & Length Threading Ultrasonic Testing Annealed & Pickled Bending Cutting Destructive and Non Destructive Beveling Polishing (Electro & Commercial) Use chat or email to get in direct contact with mentioned ASTM A269 TP316L tube stockists, stocks, and distributors for these services.	SA269 type 316L seamless tube Annealed tube Extruded tube Redrawn tube Square tubing Exhaust tubing Condenser tubes Heat exchanger tube SA 269 grade 316L welded tube Boiler tube Superheater tubes Cold drawn tube Bright annealed tube Coiled tubing Precision tubes Polish tube SA 269 gr 316L ERW tube Capillary tubing Instrumentation tube Gas tube Instrumentation tubing Rectangular tubing Round tube Electropolish tube	14 Swg 20 Swg. 10 Swg 16 Swg 18 Swg 12 Swg
Temprature range	Elongation	Hardness range
1900º F(1040º C)	35 %	HRB- 90 max
Marking	Welding method	Applications
Heat Number Manufacturer’s Name or Custom Logo – on request Schedule or Wall Thickness Material Grade Nominal Size Specification Method of Manufacturing (Seamless / Welded)	SMAW Submerged arc welding TIG FCAW GMAW including both MIG and MAG	Offshore Oil platform Nuclear Power industry Shipbuilding industry Low-pressure heater Petrochemical industry Electric industry Oil and Gas industry With a lot of expertise exporting A269 type 316L tube to nations including Saudi Arabia, Middle East, Tanzania, Kenya, Egypt, South Africa, and United States, Those Companies Are Sincere Distributors And ASTM A269 TP316L Tube Suppliers in UAE
Origin standards	Certification of A269 TP316L cold drawn tube	Features
American Standard Russia Standard Janpanese Standard European Standard	Test certificates certifying nace mr0103, nace mr0175 Material test certificates (mtc) as per en 10204 3.2 & en 10204 3.1 Certificate of origin 100% Radiography Test Report HS Code Commercial Invoice Form A for Generalized System of Preferences (GSP) Moisture testing Third Party Inspection Report Fumigation Certificates Raw material test reports Nabl approved laboratory test reports Buyer Inspection DFARS compliant Surface roughness measurement	Excellent resistance to oxidation Good strength Carburization in high-temperature exposure
Packaging	A269 316L tube inspection methods	Tubes end type
Wooden Boxes Bundles (hexagonal) PE Fabric Bundles Crates (steel/wooden) Wrapped in plastic or standard seaworthy export packing Custom Special crates for with each radius separated	Flange test Hardness test Chemical analysis – spectro analysis Mechanical testing such as tensile of area Intergranular corrosion (IGC) test Micro test Pitting resistance test Positive material identification – PMI testing Flattening test Reverse flattening Test Flaring test Open lines of communication for the above-mentioned test with the distributors, dealers, and ASTM A269 TP316L tube stockists specified above	Plain Ends (PE) Threaded Ends (TE) Bevelled Ends (BW) Grooved Ends BE: Bevel End BBE: Bevel Both Ends BLE: Bevel Large End BOE: Bevel One End BSE: Bevel Small End BW: Buttweld End PE: Plain End PBE: Plain Both Ends POE: Plain One End TE: Thread End TBE: Thread Both Ends TLE: Thread Large End TOE: Thread One End TSE: Thread Small End
Benefits	Documentation offered	ASME SA 269 TP316L condenser tube delivery time
High strength Good formality Reusability	Commercial invoice Heat treatment charts Quality assurance plan (qap) Guarantee letter Packing list Material traceability records	1-2 Days for Material in Stock 7-30 Days for Make to Order Materials

ASME SA269 Gr 316L Cold Drawn Tube with NDT and Eddy Current Testing, Check ASTM A269 TP316L Mechanical Properties

Mechanical Properties of ASME SA 269 TP316L Tube

Properties	Value
Tensile Strength Min ksi (MPa)	70 (485)
Elongation Min	35
Yield Strength Min ksi (MPa)	25 (170)
Rockwell Hardness Max	B90

Quality Inspection of ASTM A269 TP316L Tubes

Testing Methods
Dimensional Inspection
Eddy Current Testing
Flattening Test
Chemical Composition Analysis
Hydrostatic Testing
Ultrasonic Testing
Tensile Testing
Surface Inspection
Hardness Testing

Explore Nearby Locations For The Quickest Delivery Options

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

SA269 Type 316L Tubing Chemical Composition

Element	Value
Carbon	0.035
Sulfur	0.03
Silicon	1.00
Chromium	16.0 – 18.0
Manganese	2.00
Phosphorous	0.045
Nickel	10.0 – 14.0
Molybdenum	2.00 – 3.00

Buy Fully Annealed ASTM A269 TP 316L Stainless Steel Tube For Improved Magnetic Properties

Physical Properties of ASTM A269 TP316L SS Tube

Density	Melting Point	Elastic Modulus (GPa)	Thermal Expansion
Density	Melting Point	Elastic Modulus (GPa)	0-100°C	0-315°C	0-538°C
8.0 g/cm3	1400°C (2550°F)	193	15.9	16.2	17.5

Heat Treatment of ASME SA 269 TP316L Heat Exchanger Tubes

Process	Temperature Range (°C)	Temperature Range (°F)
Annealing (High-Temp)	850°C to 1050°C	1562°F to 1922°F
Stress Relieving	550°C to 700°C	1022°F to 1292°F
Tempering	200°C to 350°C	392°F to 662°F

Documents of ASME SA269 Grade 316L Seamless Tubing

Heat Treatment Charts
Raw Material Test Reports
Commercial Invoice
Fumigation Certificates
NABL approved Laboratory Test Reports
MTC EN 10204 3.1/ 3.2
Material Traceability Records

ASTM A269 Grade 316L ERW Tube Pressure Ratings

Wall Thickness in inches	OD in Inch	Working Pressure	Collapse Pressure	Min Tensile Strength (PSI)	Min Yield Strength (PSI)	Theoretical Yield Point
0.020	0.625	1,282	1,859	75,000	30,000	2,051
0.020	0.250	3,571	4,416	75,000	30,000	5,714
0.028	0.375	3,292	4,145	75,000	30,000	5,266
0.028	0.625	1,845	2,568	75,000	30,000	2,953
0.020	0.875	898	1,340	75,000	30,000	1,437
0.028	0.875	1,282	1,859	75,000	30,000	2,051
0.065	1.000	2,802	3,647	75,000	30,000	4,483
0.049	0.750	2,818	3,664	75,000	30,000	4,509
0.095	1.000	4,398	5,159	75,000	30,000	7,037
0.035	1.250	1,112	1,633	75,000	30,000	1,780
0.165	2.000	3,705	4,542	75,000	30,000	5,928
0.049	1.250	1,595	2,260	75,000	30,000	2,552
0.083	1.750	1,965	2,711	75,000	30,000	3,144
0.148	1.750	3,817	4,645	75,000	30,000	6,107
0.049	2.000	966	1,434	75,000	30,000	1,546

Warehouse Locations of ASTM A269 TP316L Tube Suppliers in UAE

Umm Al Quwain	Sharjah	Fujairah	Doha
Dubai	Ras Al Khaimah	Muscat	Riyadh
Ajman	Saudi Arabia	Abu Dhabi	Al Jubail

ASTM A269 Grade 316L Tubing Manufacturing Process

Material Cutting
Bevelling
Forming and Elongation
Heat Treatment
Pickling & Passivation
Annealing
Final Inspection

Delivery Time And Place For ASTM A269 TP 316L Stainless Steel Tube

Export to	The delivery date and the price changes
Costa Rica	5 % extra \| 45 days
Puerto Rica	5 % extra \| 45 days
Trinidad And Tobago	5 % extra \| 60 days
Jamaica	5 % extra \| 50 days
Bahamas	5 % extra \| 60 days
Denmark	5 % extra \| 35 days
Russia	5 % extra \| 20 days
Norway	5 % extra \| 45 days
Germany	5 % extra \| 21 days
France	5 % extra \| 28 days
Italy	5 % extra \| 28 days
Uk	5 % extra \| 30 days
