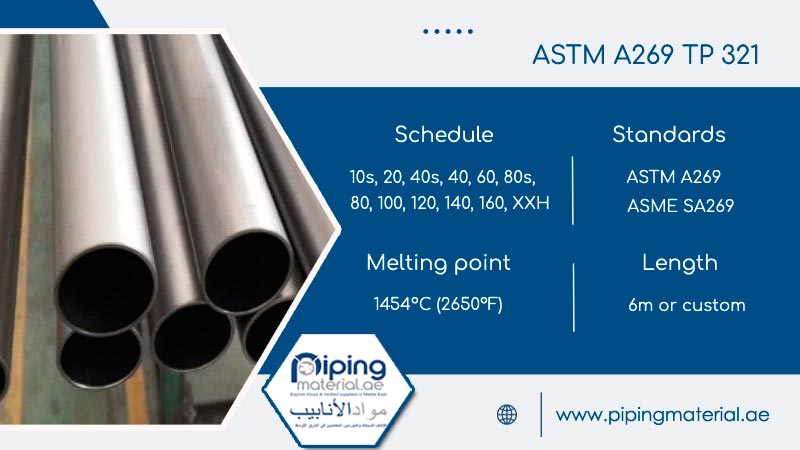

ASTM A269 TP321 Tube

ASTM A269 TP321 Tube Summary

Sizes Availability	Welded Tube: 1/8″ NB – 24″ NB OD Seamless Tube: 1/2” to 16” OD Custom
Brands in Stock	PCC Rollmet, Alleima, Nippon Steel Corp., Ratnamani Metals & Tubes, Maruichi Stainless, Sanyo Special Steel, Centravis, Mannesmann Stainless, Tubacex
Raw Material Orign	Indian, American, European, Korean, Russia, Japanese
HSN Code	73044100
Saudi Arabian Standards	SASO-ASTM-A312M, A733, SASO 7306
International Standards	ASTM A269, ASME SA 269, UNS S32100, WNR 1.4541, AISI 321, EN 58E, INOX 321, SUS 321, BS 304S31
Approval	KNPC, SABIC, Marine and KPI, Saudi Aramco, BAPCO, ADNOC, Q CHEM, EIL, MA’ADEN, KOC
Services	Shearing Cutting Heat Treatment
MTC	EN 10204 3.1 and 3.2

Table of Content

ASTM A269 TP321 Tube Specifications
A269 GR TP321 Welded Tube Dimension Chart
Welding Methods of ASTM A269 TP321 Seamless Tube
ASME SA 269 TP321 Stainless Steel Tubing Sizes
Most Common Types Of ASTM A269 TP321 Tube
ASME SA 269 TP321 Tube Equivalent
Test Certificates of ASTM A269 TP321 Tube
A269 321 Stainless Steel Tubing Chemical Composition
Mechanical Properties of SA269 Type 321 Tubing
Physical Properties of A269 Type 321 Tubing

ASME SA269 Gr 321 Tube Tolerance
SA 269 Grade TP321 Coil Tubing Hardness
ASME SA 269 Grade 321 Condenser Tube Pressure Ratings
ASTM A269 Grade 321 Welded Tube Schedule Chart
ASTM A269 TP321 Tube Technical Details
Inspection and Testing of A269M TP321 Tubing
ASTM A269 Grade 321 Condenser Tube Heat Treatment
ASME SA 269 Grade TP321 Seamless Tube Applications
Marking On SA 269 Gr 321 Bright Annealed Tubes

ASTM A269M TP321 Stainless Steel Seamless Tube Suppliers in UAE

ASTM A269 TP321 Tube Specifications

ASME SA269 TP321 Seamless Tube: 0.8 to 4 mm (Wall Thickness) | 1/8″ NB – 24″ NB (Size)

ASTM A269 Grade 321 Welded Tube: 0.5 – 48 mm (Wall Thickness), 1 to 12.5 meters or Custom (Length)

A269 Grade 321 Heater Thick Walled Tube: 6 to 830 mm (OD), 1.0 – 15.0 mm (Wall Thickness)

SA 269 Grade TP321 Tube Schedule: SCH 5 to SCH 160, XXS

ASME SA269 TP321 Tube Method: Cold Formed, Hot Formed, Precision Rolled

End: Grooved, Bevelled, Plain, Threaded

Suitable Temperatures: 1000°F to 1600°F (538°C – 871°C)

ASME SA269 Grade 321 ERW Tube Process: ERW, Seamless, Welded

MTR: PMI, Chemical, Mechanical, Destructive and Non Destructive Test Report

SA 269 GR .TP321 Electropolish Tubes Finish: Annealing, Mirror Finish, Polished, Bright

Get Quote Directly from ASTM A269 TP321 Tube Suppliers in UAE With Complete Documentation

ASME SA 269 TP321 Tubing Form: Rectangular, Round, Square, Hexagon etc.

ASME SA269 Grade 321 Annealed Tube for Cryogenic Environment

A269 GR TP321 Welded Tube Dimension Chart

OD inches	ID inches	D/t Ratio	Ave. Wall inches	Internal Area (in2)	Tube Cross Sectional Area (in2)
0.250	0.210	12.50	0.020	0.0346	0.0145
2.000	1.670	12.12	0.165	2.1904	0.9512
0.375	0.305	10.71	0.035	0.0731	0.0374
0.500	0.370	7.69	0.065	0.1075	0.0888
0.625	0.407	5.73	0.109	0.1301	0.1767
0.750	0.532	6.88	0.109	0.2223	0.2195
0.875	0.635	7.29	0.120	0.3167	0.2846
1.000	0.782	9.17	0.109	0.4803	0.3051
1.750	1.532	16.06	0.109	1.8433	0.5619
1.500	1.204	10.14	0.148	1.1385	0.6286
1.750	1.510	14.58	0.120	1.7908	0.6145
2.000	1.704	13.51	0.148	2.2805	0.8611
0.250	0.120	3.85	0.065	0.0113	0.0378
0.500	0.334	6.02	0.083	0.0876	0.1087
0.750	0.510	6.25	0.120	0.2043	0.2375
1.000	0.732	7.46	0.134	0.4208	0.3646
1.250	1.010	10.42	0.120	0.8012	0.4260

Material Inspection Facility In Following Locations

Umm Al Quwain	Sharjah	Fujairah	Doha
Dubai	Ras Al Khaimah	Muscat	Riyadh
Ajman	Saudi Arabia	Abu Dhabi	Al Jubail

Welding Methods of ASTM A269 TP321 Seamless Tube

MAG-welding massive wire
TIG-welding
Submerged arc welding (SAW)
flux cored arc welding (FCAW) process
Arc welding (E)
Mig Process
MAG-welding cored wire

6 mm to 38 mm OD A269 TP321 Round Tube in Bright Annealed And Unpolished Condition, Compare Quotes Of Above Listed Suppliers

ASME SA 269 TP321 Stainless Steel Tubing Sizes

Size OD, Inches	BW Ga.	Wall Dec-In.	ID	Weight Lbs/Ft.
1/4	25	0.020	0.210	0.0491
	22	0.028	0.194	0.0664
	21	0.032	0.187	0.0745
	20	0.035	0.180	0.0804
	18	0.049	0.152	0.1052
	16	0.065	0.120	0.1284
1/8	22	0.028	0.069	0.0290
1/8	20	0.035	0.055	0.0336
3/16	22	0.028	0.131	0.0478
3/8	22	0.028	0.319	0.1038
	20	0.035	0.305	0.1271
	18	0.049	0.277	0.1706
	16	0.065	0.245	0.2152
5/16	20	0.035	0.242	0.1039
	18	0.049	0.214	0.1382
	16	0.065	0.182	0.1722
7/16	18	0.049	0.340	0.2036
1/2	25	0.020	0.460	0.1025
	20	0.035	0.430	0.1738
	18	0.049	0.402	0.2360
	16	0.065	0.370	0.3020
5/8	20	0.035	0.555	0.2205
	18	0.049	0.527	0.3014
	16	0.065	0.495	0.3888
3/4	20	0.035	0.680	0.2673
	18	0.049	0.652	0.3668
	16	0.065	0.620	0.4755
	14	0.083	0.584	0.5913
1-1/4	11	0.120	1.010	1.4480
7/8	18	0.049	0.777	0.4323
	16	0.065	0.745	0.5623
	11	0.120	0.635	0.9676
1	20	0.035	0.930	0.3607
	18	0.049	0.902	0.4977
	16	0.065	0.870	0.6491
	14	0.083	0.834	0.8129
	11	0.120	0.760	1.1278

Most Common Types Of ASTM A269 TP321 Tube

ASTM A269 tp321 Seamless Tube

ASTM A269 TP321 Seamless Tube

A269 Type 321 Welded Tube

ASTM A269 Type 321 ERW tube

ASTM A269 Grade 321 Annealed Tube

ASTM A269 321 Extruded Tube

ASTM A269 Gr 321 Redrawn Tube

ASTM A269 TP 321 Square Tubing

A269 Gr 321 exhaust tubing

A269 TP321 Condenser Tubes

A269 321 Heat Exchanger Tube

ASME SA 269 tp321 boiler tube

ASME SA 269 TP321 boiler tube

SA269 Type 321 Cold Drawn Tube

SA 269 Grade 321 Superheater Tubes

SA 269 Gr 321 Bright Annealed Tube

ASTM A269 tp321 Coiled Tubing

ASTM A269 TP321 Coiled Tubing

A269 Type 321 precision tubes

ASTM A269 Type 321 Polish Tube

ASTM A269 Grade 321 Capillary Tubing

ASTM A269 321 instrumentation tube

ASTM A269 Gr 321 Instrumentation Tubing

ASTM A269 TP 321 Gas Tube

A269 Gr 321 Rectangular Tubing

A269 tp321 Round Tube

A269 TP321 Round Tube

A269 321 Electropolish Tube

ASME SA 269 TP321 Tube Equivalent

Standards	Country	Value
UNS	North America	S32100
WNR	Russia	1.4878
ASTM	America	A269
ASME	Australia	SA 269
JIS	Japan	SUS321
BS	United Kingdom	321S31
GOST	Russia	08KH18N10T / 08KH18N12T / 12KH18N10T
AFNOR	France	Z6CNT18-10
EN	Europe	X6CrNiTi18-10
AMS	United States	–
ANSI	America	–
SAE	United States	–
AS	Australia	–
DIN	German	1.4878

Test Certificates of ASTM A269 TP321 Tube

EN 10204/3.1B
Raw Materials Certificate
Tensile Test Report
100% Radiography Test Report
Third Party Inspection Report
Visual Inspection Certificate

A269 321 Stainless Steel Tubing Chemical Composition

Composition, %
C	Mn	P	S	Si	Cr	Ni
0.08	2	0.045	0.03	1	17.0-19	9.0-12

Mechanical Properties of SA269 Type 321 Tubing

UNS	Tensile Strength, Min.		Yield Strength, Min.
UNS	Ksi	MPa	Ksi	MPa
S32100	75	515	30	205

Call Now For The Clients List Based In Below Locations

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Physical Properties of A269 Type 321 Tubing

Density	Melting Point	Elastic Modulus (GPa)	Thermal Expansion
Density	Melting Point	Elastic Modulus (GPa)	0-100°C	0-315°C	0-538°C
8.0 g/cm3	1454°C (2650°F)	193	15.9	16.2	18.4

ASTM A269 Grade 321 Cold Finished Seamless Tube for Decorative, Structural and Hygienic Use, Check Tolerances

ASME SA269 Gr 321 Tube Tolerance

NPS	Outside Diameter (OD)¹				Wall Thickness (t)²		Weight ³
	Under		Over		Under	Over	Under	Over
	in	mm	in	mm	%	%	%	%
⅛ – 1½	0.031	0.8	0.015	0.4	12.5	20	3.5	10
> 1½ – 4	0.031	0.8	0.031	0.8	12.5	20	3.5	10
> 4 – 8	0.031	0.8	0.062	1.6	12.5	22.5	3.5	10
> 8 – 12	0.031	0.8	0.093	2.4	12.5	22.5	3.5	10
> 12 – 18	0.031	0.8	0.093	2.4	12.5	22.5	5	10
> 18 – 26	0.031	0.8	0.125	3.2	12.5	22.5	5	10
> 26 – 34	0.031	0.8	0.156	4.0	12.5	22.5	5	10
> 34 – 48	0.031	0.8	0.187	4.8	12.5	22.5	5	10

SA 269 Grade TP321 Coil Tubing Hardness

Brinell, HBW	≤192
Rockwell, HRB	≤90
Vickers, HV	≤200

ASME SA 269 Grade 321 Condenser Tube Pressure Ratings

Outer Dia					Wall Thickness (inches)
(inches)	0.018	0.024	0.020	0.028	0.035	0.047	0.063	0.059	.126	0.079	0.098
3/16	3726.5	5118.5	4176.0	6104.5	8207.0	11745.0	–	–	–	–	–
1¼	–	696.0	–	812.0	1044.0	1406.5	1899.5	1783.5	3987.5	2407.0	3059.5
1½	–	–	–	667.0	870.0	1174.5	1566.0	1464.5	3277.0	1986.5	2508.5
1¾	–	–	–	580.0	739.5	1000.5	1334.0	1247.0	2769.5	1682.0	2131.5
1/4	2726.0	3726.5	3059.5	4408.0	5858.0	8207.0	11730.5	10802.5	–	–	–
3/8	1783.5	2407.0	1986.5	2842.0	3726.5	5118.5	7134.0	6612.0	–	9338.0	–
1/2	1319.5	1783.5	1464.5	2088.0	2726.0	3726.5	5118.5	4756.0	–	6612.0	–
5/8	–	1406.5	1160.0	1653.0	2146.0	2914.5	3987.5	3712.0	–	5118.5	6612.0
3/4	–	1174.5	971.5	1363.0	1783.5	2407.0	3277.0	3059.5	–	4176.0	5365.0
7/8	–	1000.5	826.5	1174.5	1508.0	2044.5	2769.5	2581.0	–	3523.5	4509.5
1	–	870.0	725.0	1015.0	1319.5	1783.5	2407.0	2247.5	5118.5	3059.5	3886.0
2	–	–	–	–	652.5	870.0	1174.5	1087.5	2407.0	1464.5	1856.0
2½	–	–	–	–	522.0	696.0	928.0	870.0	1899.5	1174.5	1464.5
3	–	–	–	–	–	580.0	768.5	725.0	1566.0	971.5	1218.0
3½	–	–	–	–	–	493.0	652.5	623.5	1334.0	826.5	1044.0
4	–	–	–	–	–	435.0	580.0	536.5	1174.5	725.0	913.5
5	–	–	–	–	–	–	464.0	435.0	928.0	580.0	725.0
6	–	–	–	–	–	–	377.0	362.5	768.5	478.5	594.5
9/32	2407.0	3277.0	2697.0	3871.5	5118.5	7134.0	10106.5	9338.0	–	–	–
5/16	2146.0	2914.5	2407.0	3451.0	4553.0	6307.5	8859.5	8192.5	–	11730.5	–
8	–	–	–	–	–	–	290.0	261.0	580.0	362.5	449.5
10	–	–	–	–	–	–	232.0	217.5	464.0	290.0	362.5

ASTM A269 Grade 321 Welded Tube Schedule Chart

Sizes			(inch)		1/8		1/4		3/8		1/2		3/4		1		1 1/4		1 1/2		2		2 1/2
OD		(mm)			10.3		13.7		17.2		21.3		26.7		33.4		42.2		48.3		60.3		73
OD		(inch)			0.405		0.54		0.675		0.84		1.05		1.315		1.66		1.9		2.375		2.875
SCH	5S	Wall & Weight	mm	(in)	–		–		–		1.65	-0.065	1.65	-0.065	1.65	-0.065	1.65	-0.065	1.65	-0.065	1.65	-0.065	2.11	-0.083
	5S		kg/m		–		–		–		0.81		1.02		1.3		1.66		1.91		2.4		3.69
	10S		mm	(in)	1.25	-0.049	1.66	-0.065	1.66	-0.065	2.11	-0.083	2.11	-0.083	2.77	-0.109	2.77	-0.109	2.77	-0.109	2.77	-0.109	3.05	-0.12
	10S		kg/m		0.28		0.49		0.63		1		1.28		2.09		2.69		3.11		3.93		5.26
	40S		mm	(in)	1.73	-0.068	2.24	-0.088	2.32	-0.091	2.77	-0.109	2.87	-0.113	3.38	-0.133	3.56	-0.14	3.69	-0.145	3.92	-0.154	5.16	-0.203
	40S		kg/m		0.37		0.63		0.85		1.27		1.68		2.5		3.39		4.06		5.45		8.64
	80S		mm	(in)	2.42	-0.095	3.03	-0.119	3.2	-0.126	3.74	-0.147	3.92	-0.154	4.55	-0.179	4.86	-0.191	5.08	-0.2	5.54	-0.218	7.01	-0.276
	80S		kg/m		0.47		0.8		1.1		1.62		2.2		3.24		4.47		5.41		7.49		11.4

Discover Ready Inventory Of ASTM A269 TP321 Tube Suppliers in UAE

Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

ASTM A269 TP321 Tube Technical Details

The Top Ten ASTM A269 TP321 Tube Suppliers in UAE Are Capable Of Creating Unique Designs.
ASTM A269 TP321 seamless tube size	A269 type 321 welded tube sizes	ASTM A269 type 321 tube OD
1/8” to 24” (10.3 to 610mm)	1/8” to 36” (10.3mm to 914mm)	1/8” to 6” OD
Schedules	Manufacturing types	ASTM A269 grade 321 tubing wall thickness
10s, 20, 40s, 40, 60, 80s, 80, 100, 120, 140, 160, XXH	Welded Seamless ERW	1 to 60 mm
Length	ASTM Standard	ASTM A269 Gr 321 tube delivery condition
6m or custom	ASTM A269 ASME SA269	Polished Cold Drawn MF Bright Annealed (BA) Annealed and Pickled (AP)
ASTM A269 321 tube density	Heat exchanger tube melting point	Manufacturing types
8.0 g/cm3	1454°C (2650°F)	Seamless Welded Fabricated ERW
Form	Strength	ASTM A269 TP 321 boiler tube surface finish
Round Straight U Shape Square Rectangular Hydraulic Hollow	Yeild strength: 205 Tensile strength: 515	Hairline/satin Custom finish 400G, 800G, 500G, 600G mirror finish
Value added services	Most selling A269 Gr 321 tube types	SWG
Beveling Draw & Expansion as per required Size & Length Threading Polishing (Electro & Commercial) Cutting Ultrasonic Testing Annealed & Pickled Bending Destructive and Non Destructive Use chat or email to get in direct contact with mentioned ASTM A269 TP321 tube stockists, stocks, and distributors for these services.	SA269 type 321 seamless tube Annealed tube Extruded tube Coiled tubing Precision tubes Polish tube Redrawn tube Square tubing Exhaust tubing Boiler tube Rectangular tubing Heat exchanger tube SA 269 grade 321 welded tube Electropolish tube Superheater tubes Cold drawn tube Bright annealed tube Capillary tubing Round tube Condenser tubes Instrumentation tube SA 269 gr 321 ERW tube Gas tube Instrumentation tubing	14 Swg 10 Swg 18 Swg 20 Swg 12 Swg 16 Swg
Temprature range	Elongation	Hardness range
1900º F(1040º C)	35 %	HRB 90 max
Marking	Welding method	Applications
Schedule or Wall Thickness Heat Number Manufacturer’s Name or Custom Logo – on request Material Grade Specification Method of Manufacturing (Seamless / Welded) Nominal Size	SMAW Submerged arc welding TIG GMAW including both MIG and MAG FCAW	Shipbuilding industry Petrochemical industry Electric industry Low-pressure heater Oil and Gas industry The ASTM A269 TP321 Tube Suppliers in UAE Mentioned Above Have Ex-stock And Have Previously Supplied To Many Countries, Including South Africa, United States, Oman, Saudi Arabia, Egypt, and Middle East.
Origin standards	Certification of A269 TP321 cold drawn tube	Features
European Standard Russia Standard American Standard Janpanese Standard	Form A for Generalized System of Preferences (GSP) Moisture testing Material test certificates (mtc) as per en 10204 3.2 & en 10204 3.1 Surface roughness measurement Certificate of origin DFARS compliant Raw material test reports Test certificates certifying nace mr0103, nace mr0175 Fumigation Certificates Nabl approved laboratory test reports Buyer Inspection 100% Radiography Test Report Third Party Inspection Report HS Code Commercial Invoice	Excellent resistance to oxidation Good strength
Packaging	ASME SA 269 TP321 tube inspection methods	Tubes end type
Wooden Boxes Wrapped in plastic or standard seaworthy export packing Custom Special crates for with each radius separated PE Fabric Bundles Crates (steel/wooden) Bundles (hexagonal)	Pitting resistance test Positive material identification – PMI testing Flange test Chemical analysis – spectro analysis Flattening test Flaring test Intergranular corrosion (IGC) test Reverse flattening Test Mechanical testing such as tensile of area Hardness test Micro test Open lines of communication for the above-mentioned test with the distributors, dealers, and ASTM A269 TP321 tube stockists specified above	Plain Ends (PE) TOE: Thread One End TSE: Thread Small End Threaded Ends (TE) BE: Bevel End BOE: Bevel One End Bevelled Ends (BW) Grooved Ends BSE: Bevel Small End BW: Buttweld End BBE: Bevel Both Ends BLE: Bevel Large End PE: Plain End TBE: Thread Both Ends PBE: Plain Both Ends POE: Plain One End TE: Thread End TLE: Thread Large End
Benefits	Documentation offered	A269 321 condenser tube delivery time
Good formality Reusability High strength	Heat treatment charts Guarantee letter Material traceability records Commercial invoice Packing list Quality assurance plan (qap)	7-30 Days for Make to Order Materials 1-2 Days for Material in Stock

ASTM A269 TP 321 Stainless Steel Welded Tube With Eddy Current Testing And Inspection (ECT)

Inspection and Testing of A269M TP321 Tubing

Flaring Test
Magnetic testing
Penetrant testing
Radiographic testing
Reverse Bend Test
Hardness Test
Eddy current testing
Ultrasonic testing
Tensile Properties

ASTM A269 Grade 321 Condenser Tube Heat Treatment

Process	Temp. Range
Stress Relief	7000°C
Solution Treatment	950 to 11200°C

Weekly Shipment To Below Locations

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

ASME SA 269 Grade TP321 Seamless Tube Applications

Gas Processing	Heat Exchangers
Heat Exchangers	Sea Water Equipment
Chemical Equipment	Pharmaceutical Equipment
Pharmaceuticals	Pulp and Paper Industry

Marking On SA 269 Gr 321 Bright Annealed Tubes

Grade
Schedule (Wall Thickness)
Nominal Pipe Size (Nominal Bore)
Heat Number
Method of Manufacture (Seamless or Welded)
Manufacturers Name or Symbol

Delivery Time And Location For A269 321 Stainless Steel Tube

Export to	The delivery date and the price changes
Spain	5 % extra \| 30 days
Ukraine	5 % extra \| 60 days
Netherland	5 % extra \| 30 days
Belgium	5 % extra \| 40 days
Greece	5 % extra \| 45 days
Nepal	5 % extra \| 7 days
Vietnam	5 % extra \| 10 days
France	5 % extra \| 30 days
Italy	5 % extra \| 30 days
Malaysia	5 % extra \| 10 days
Philippines	5 % extra \| 14 days
Indonesia	5 % extra \| 9 days
