ASTM A320 B8M Stud Bolts

ASTM A320 B8M Stud Bolts

What are ASTM A320 B8M stud bolts?

The ASTM A320 B8m stud bolt is a threaded bar that is threaded across its length, while the middle section is unthreaded. ASTM A320 B8M Stud Bolts are designed with a chemical content of chromium, nickel, molybdenum, and other alloys. The versatile Stud Bolt ASTM A193 Gr B8M has enhanced corrosion resistance properties and good performance. These bolts allow for easy connection with different material types. The ASTM A320 B8M Material has a minimum tensile strength of 515mpa with a minimum yield strength of 205mpa. This material has a hardness of 223 HBW max. The ASTM A320 Grade B8M Welding Studs can be heat treated and are available in different sizes and specifications.

Verified Supplier

Verified manufacturers and stockists

available 10 cars

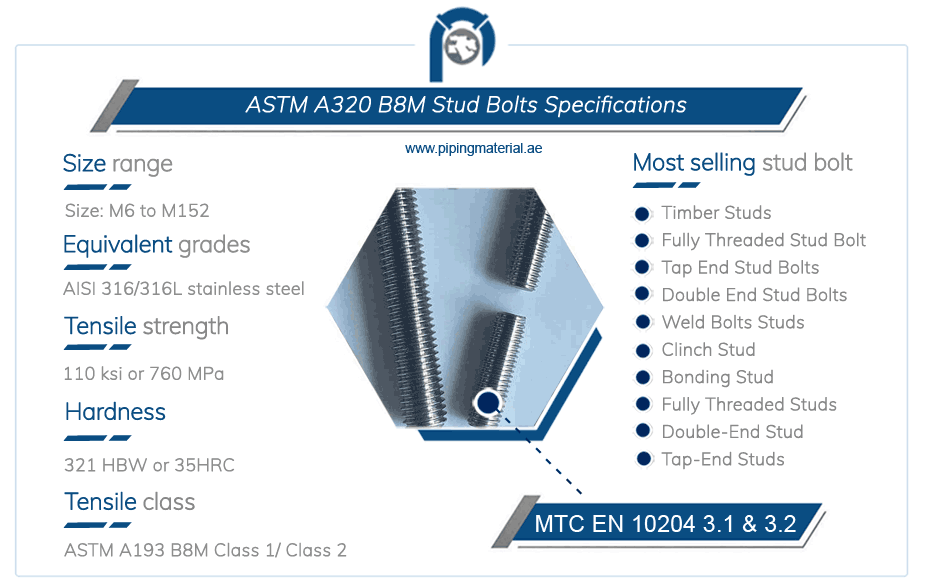

ASTM A320 B8M Stud Bolts Specifications

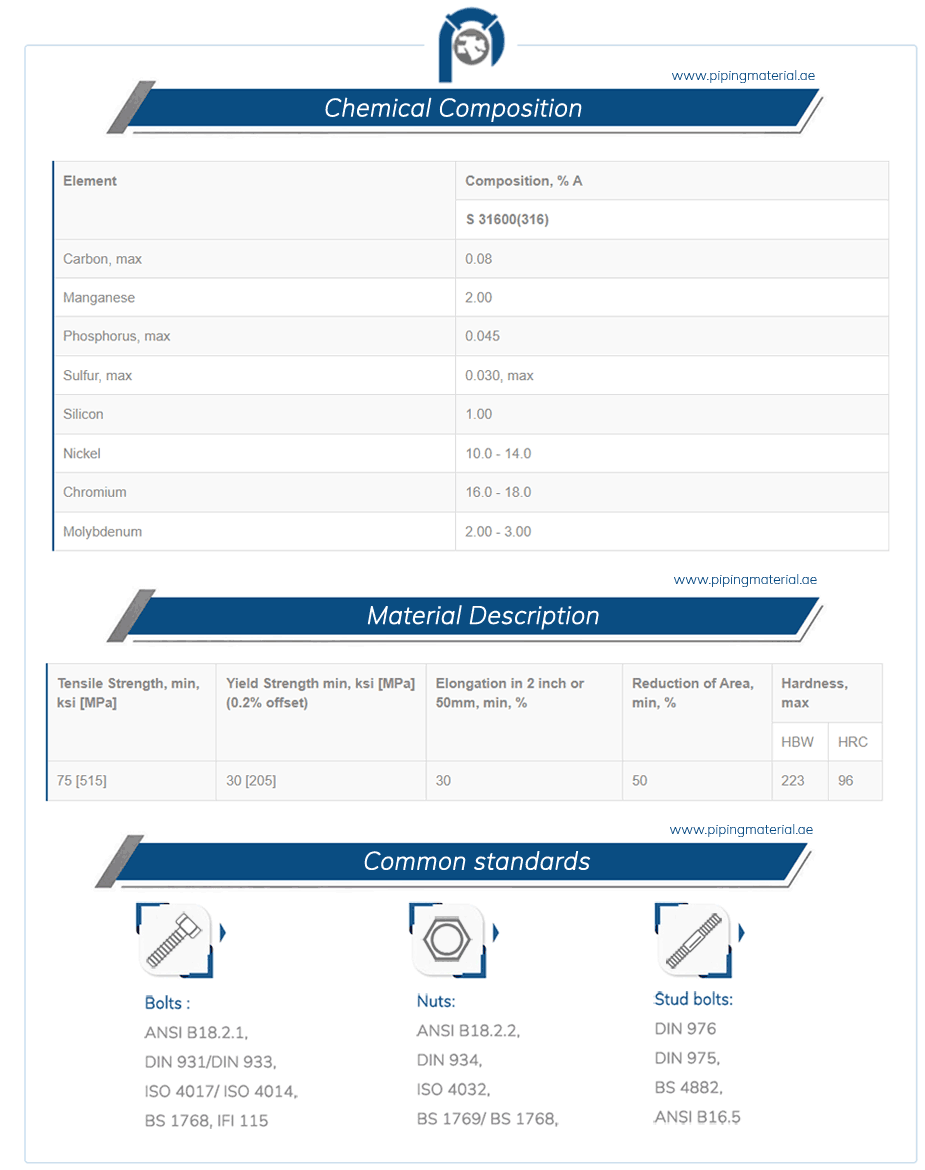

ASTM A320 B8M Stud Bolts Properties

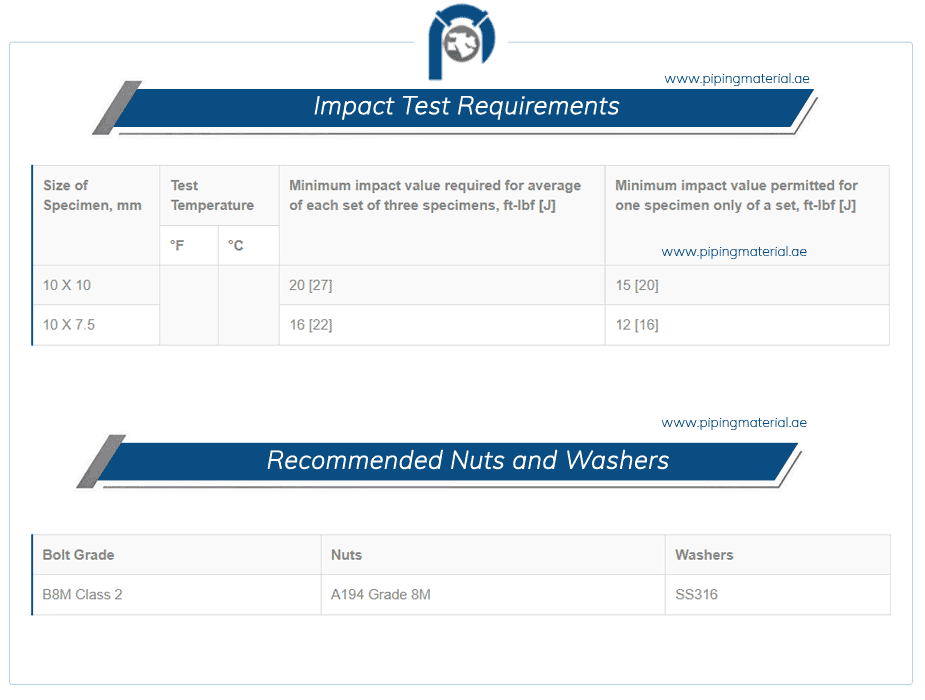

ASTM A320 B8M Stud Bolts Impact Test Requirement

SA 320 GR B8M threaded rod suppliers in UAE

How do you calculate sa 320 GR B8M threaded rod torque?

The SA 320 GR B8M threaded rod is calculated using the formula T = K x F x d.
Here, T= B8M Threaded Rod torque of the bolt
K= coefficient of friction
F= axial bolt force
d= nominal rod diameter

A320 B8M studs, A320 GR B8M double end stud and fully threaded studs manufacturer in Dubai in both metric and imperial (BSW, BSF, BA, UNC & UNF) thread forms

What is A320 Grade B8M all thread?

The A320 grade B8M all thread is known as a threaded rod or stud. A320 Gr B8M All Thread is fully threaded that is screwed with another rod with ease within a small amount of time. The SA320 B8M Fully Threaded Studs have fine pitch, left hand, imperial, and ACME thread specifications.

Get complete information about A320 grade B8M all thread and A320 B8M tap end/ lug/ shear stud bolts application, equivalent, specification chart online

Application of A320 B8M studs

The A320 B8M stud is a lower temperature service system. This A193 B8M Stud is used in flanges, pressure vessels, and valves in different industries.

Competitively priced ASTM A320 GR B8M threaded bar manufacturers in the Middle East and south korea, wide range of SA320 B8M welded stud bolt, check heat treatment and price list

Is heat treatment mandatory for ASTM A320 GR B8M threaded bar?

The ASTM A320 GR B8M threaded bar is fully threaded across its length and can be heat treated. The ASTM A320 Gr B8M Threaded Bar in its classes is generally carbide solution treated to increase its performance and tolerances.

Supplier and importer of ASTM A320 grade B8M hex head stud bolt and SA320 B8M acme threaded rod in metric screw thread (MM) and unified screw thread (inches)

What is the available size of A320 GR B8M double end stud?

The A320 Gr B8M double end stud is designed with standard lengths of 55mm to 170mm. The Stud Bolt A320 B8M Double End Stud is designed in NPS 1/2 to NPS 24 or more.
