ASTM A335 P22 Pipe

ASTM A335 P22 Pipe

P11 Pipe

ASTM A335 P22 pipe is a seamless ferritic alloy grade. SA 335 P22 seamless pipe is designed with a chemical composition of carbon, chromium, molybdenum, silicon, and other constituting alloys.

ASTM A335 P22 material has excellent corrosion and oxidation resistance properties across harsh environments. The pipes have high temperature strength and also work well in lower temperatures.

The P22 alloy steel pipe has high resistance to wear and tear in the systems. The pipes have enhanced elastic limit with good impact resistance. The ASTM A335 P22 restrains grain growth and is highly susceptible to embrittlement. The grade also has good creep strength and resistance to pitting.

The A335 P22 material is designed with a minimum tensile strength of 415mpa and a minimum yield strength of 205mpa. SA335 P22 material is thereby a good choice in pharmaceutical equipment, chemical systems, heat exchangers, condensers, power generation, and other applications.

The P22 pipe suppliers supply seamless pipes in standard sizes of 1/2 NB to 36 NB. These pipes are available in thickness range between SCH 40 to SCH 160 and XXS. The ASTM A335 Gr P22 pipes are designed in plain, bevelled, screwed, and threaded specifications.

Verified Supplier

Verified Suppliers

available 10 cars

SA 335 Gr P22 Seamless Pipe suppliers in UAE

ASTM A335 P22 pipe specification


ASTM A335 p22 pipe specification

ASTM A335 P22 size range ASTM A335 gr P22 high temperature seamless pipe length ASTM A335 gr P22 relevant products
  • Nominal pipe size : 1/2” to 30” NPS
  • Wall thickness : 2.77 – 12.7mm
  • OD: 21.3 – 273 mm

For larger diameter please directly contact above ASTM A335 P22 pipe suppliers & get stock availability and shipping estimate

  • 6 meters
  • 12 meters
  • Single random lengths (4 – 8 meters)
  • Double random lengths (8 – 13 meters)
  • Custom length or cut to length to save wastage
SA335 P22 round pipe material P22 seamless pipe standard wall thickness NBR 5603 P22 chrome pipe temperature limit
  • Alloy Steel
  • Chrome Moly Alloy
  • 4 Inch
  • Standard (SCH STD)
  • Ex-Standard (XS)
  • Double Extra Strong (XSS)
  • Schedule 5
  • SCH 10
  • SCH 20
  • SCH 30
  • SCH 40 SA 335 gr P22 pipe (Most selling)
  • SCH 80
  • SCH 120
  • SCH 160
  • 1149°C
  • 2100°F
P22 seamless pipe condition of delivery Manufacturing method of SA335 gr P22 seamless pipe ASTM A335 P22 IBR pipe american dimensional standard
  • BK- Hard/ Cold-finished
  • NBK – Normalized
  • GBK – Annealed
  • BKW – Soft/ Cold-finished
  • Hot finished seamless SA335 gr P22 pipe
  • Cold drawn seamless SA 335 gr P22 pipe
  • ASME B36.10M
Alloy Steel A335 P22 material required quality test Application & uses Steel Grade P22 pipe material coating & surface
  • Hardness test
  • Flattening test
  • Bend Test
  • Tensile mechanical test

All listed ASTM A335 P22 pipe suppliers also offer third party inspection, MTC EN 10204 3.1 and IBR certificate with delivery

  • Suitable for extreme high temperature applications
  • Pressure vessels
  • Nuclear reactors
  • Power generation industry
  • Petro chemical plants
  • Jet engines
  • Boilers & heat exchangers
  • High Pressure environment
  • Spacecraft
  • FBE/ Epoxy
  • Varnished
  • 3PE
  • Polished
UNS K21590 pipe end SA335 gr P22 chrome moly pipe wall thickness Steel Grade P22 material type
  • PE (Plain End)
  • BE (Beveled Ends)

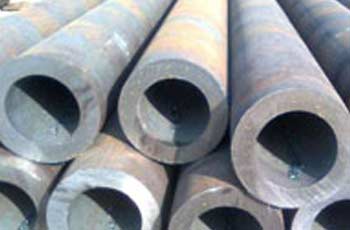

  • Thick wall
  • Medium wall

Contact above listed ASTM A335 P22 pipe suppliers in UAE for certified materials

  • SA335 P22 seamless pipe
  • 2 1/4 Chrome welded pipe / 2 1/4CR pipe

Above ASTM A335 P22 pipe suppliers have supplied in Saudi Arabia, UAE, Jordan, Cyprus & Oman contact them directly for the client refrence

European standard of ASTM A335 grade P22 pipe Ferritic Alloy Steel ASTM A335P22 material approved ex-stock
  • EN 10216-2 (ASTM P22 seamless pipe)
  • EN 10217-2 (SA335P22 welded pipe)
Above listed ASTM A335 P22 pipe suppliers supply ex-stock with following Approvals

  • PDO
  • Pemex
  • ADNOC
  • PDVSA
  • Petrobras
  • Petronas
  • Saudi Aramco
  • KOC
  • Qatar Gas

Find a reliable P22 Pipe suppliers, be sure for lowest price of P22 Seamless Pipe and SA335 P22 material, check P22 Alloy Steel Pipe price per meter in Dubai

P22 Seamless Pipe Price per Ton

SIZE” SIZE NB Price in USD/Ton
1/2 15 US $2,075.00
3/4 20 US $2,000.00
1 25 US $1,940.00
1.25 32 US $1,900.00
1.5 40 US $1,860.00
2 50 US $1,525.00
2.5 65 US $1,525.00
3 80 US $1,525.00
3.5 90 US $1,525.00
4 100 US $1,525.00
5 125 US $1,525.00
6 150 US $1,525.00
8 200 US $1,529.41
10 250 US $1,529.41
12 300 US $1,529.41
14 350 US $1,590.00
16 400 US $1,590.00
18 450 US $1,590.00
20 500 US $1,590.00
22 550 US $1,620.00
24 600 US $1,620.00

Notes:

  1. Above Price USD/Ton
  2. PE ends : Below 2″ diameter pipe
  3. BE ends: up to 2″ diameter pipe

Types of SA335 P22 Pipe

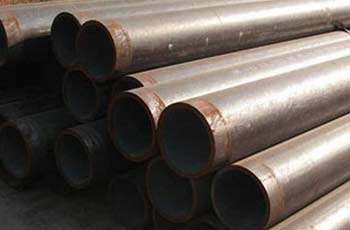

P22 Seamless Pipe

P22 Seamless Pipe

ASTM A335 P22 Pipe

ASTM A335 P22 Pipe

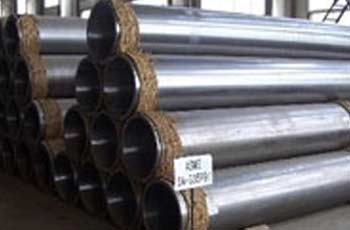

SA335 P22 Welded Pipe

SA335 P22 Welded Pipe

Alloy Steel P22 Round Pipe

Alloy Steel P22 Round Pipe

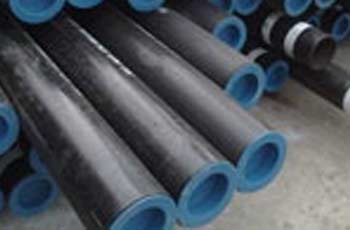

ASTM A335 gr P22 annealed pipe

ASTM A335 gr P22 annealed pipe

UNS K21590 CDW Pipe

UNS K21590 CDW Pipe

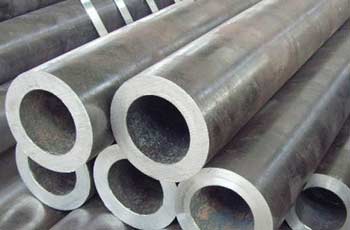

DIN 1.7380 hot finished pipe

DIN 1.7380 hot finished pipe

P22 seam welded pipe

P22 seam welded pipe

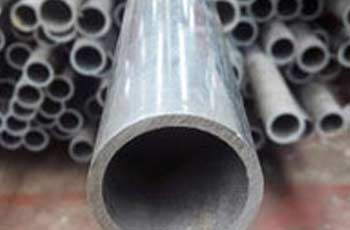

SA 335 Gr P22 ERW Pipe

SA 335 Gr P22 ERW Pipe

Alloy steel A335 P22 temperature range


A335 p22 temperature range

A335 Gr P22 Schedule Chart


A335 gr p22 schedule chart

Allowable Stress of SA335 Gr P22 Pipe

The allowable stress of A335 P22 material is the maximum stress it can handle. To determine the allowable strength first find the yield strength of the material.

Causes of Cracking DIN 1.7380 Pipe


Causes of CrackingDIN 1.7380 Pipe

the primary causes of P22 steel pipe cracking

  • Inadequate heat treatment temperature control
  • Raw material selection
  • Straightening strength
  • How does PMC control production
  • Drawing deformation

UNS K21590 weight chart


UNS K21590 weight chart

P22 material hardness range


What is p22 material hardness range

Uses of SA335 Gr P22

The SA 335 Gr P22 are suitable for high temperature and pressure condition that allows them to be used in different industries. SA335 Gr P22 grade is seen in chemical processing, specialty chemicals, sea water equipment, and pharmaceutical industries.

The SA 335 P22 specification is also common in heat exchangers, condensers, offshore drilling companies, and power generation systems. An ASTM A335 P22 grade can handle these toxic environments due to its superior strength and resistance.

Middle east countries port name & AS ASTM A335 gr P22 boiler steel pipe estimated delivery days

Looking to purchase ASTM A335 grade P22 Alloy Pipe in Middle east? Check estimated delivery of Alloy Steel A335 P22 Material to your nearby port

Middle East Country Name Nearby Port Name P22 Seamless Pipe Import days from Europe
(Italy, Spain, Sweden, Norway)
SA335 P22 round pipe procurement from USA
(North America)
Estimated delivery of SA335P22 from India Estimated delivery of P22 Pipe from China
UAE (Dubai)
  • Al Hamriya Port Dubai
  • Jebel Ali Port Dubai
  • Mina Rashid Port Dubai
24-26 5-10 8-10 20-25
Bahrain
  • Manama Harbour Port Bahrain
  • Sitra Port Bahrain
  • Al Muharraq Port Bahrain
  • Mina Salman Port Bahrain
  • Khalifa Bin Salman Port Bahrain
35-37 31-33 5-6 20-21
Egypt
  • Port of ADABIYA Egypt
  • Alexandria Port Egypt
  • Dekheila Port Egypt
  • Safaga Port Egypt
  • Port of Abu Qir Egypt
  • Port Said Egypt
  • Sokhna Port Egypt
18-20 15-20 12-15 15-18
Israel
  • Port of Eilat Israel
  • Hadera port Israel
  • Port of Haifa Israel
15-16 14-20 7-8 18-20
Kuwait
  • Shuaiba Port Kuwait
  • Shuwaikh Port Kuwait
  • Doha Port Kuwait
27-28 31-33 5-7 26-40
Oman
  • Al Sultan Qaboos Port Ship, Mutrah, Oman
  • Salalah Port Oman
  • Sultan Qaboos Port Oman
22-23 20-22 2-3 15-17
Qatar
  • Hamad Port Qatar
  • Doha Port Qatar
26-28 25-30 4-5 18-20
Saudi Arabia (KSA)
  • Gizan Port Saudi Arabia
  • Jubail Commercial Port Saudi Arabia
  • Jeddah Islamic Port Saudi Arabia
16-17 30-40 5-6 15-18
Turkey
  • Izmir Port Turkey
  • Port Akdeniz Antalya Turkey
  • Haydarpasa Port Turkey
13-14 14-16 16-18 19-21
Yemen
  • Al-Hudaydah Port Yemen
  • Puerto de Aden Port Yemen
25-26 24-26 14-16 22-24
Jordan
  • Port of Aqaba Jordan
24-26 13-16 8-10 25-30
Cyprus
  • Limassol Port Cyprus
  • Port of Famagusta Cyprus
12-14 25-30 8-12 15-20

ASTM A335 gr P22 high temperature seamless pipe manufacturers & brand list

SA 335 gr P22 high pressure pipe manufacturers Origin / Country
JFE JAPAN
ARCELORMITTAL UK
TENARIS ITALY
MAHARASHTRA SEAMLESS Ltd. INDIA
ISMT INDIA
JSW INDIA
TUBOS SPAIN
HYUNDAI HYSCO KOREA
VALCOVNY TRUB CHOMUTOV CZECHIA (Europe)
SEAH KOREA
BUTTING GERMANY
BENTELER SHREVEPORT, USA

Low alloy ASTM A335 P22 steel material important elements comparison

Elements ASTM A335 P22 ASTM A335 P91 ASTM A335 P12 ASTM A335 P11
Chromium / chrome (Cr) 0.05-0.15 0.05-0.15 0.05-0.15
  • 0.05-0.15
  • 1.00% – 1.50%
Silicon (Si) 0.50 max 0.20- 0.50 0.50 max
  • 0.50-1.00
  • 0.50% – 1.00%
Molybdenum/ Moly (Mo) 0.87-1.13 0.85-1.05 0.44-0.65
  • 0.44-0.65
  • 0.44% – 0.65%
Carbon (C) 0.05-0.15 0.08-0.12 0.05-0.15
  • 0.05-0.15
  • 0.05% – 0.15%
Phosphorus (p) 0.025 0.020 0.025
  • 0.025
  • 0.025% max
Sulfur (S) 0.025 0.010 0.025
  • 0.025
  • 0.025% max
Manganese (Mn) 0.30 – 0.60 0.30 – 0.60 0.30 – 0.61
  • 0.30 – 0.60
  • 0.30% – 0.60%
Yield strength
  • 30,000 PSI
  • 205 MPa
  • 60,000 PSI
  • 415 MPa
  • 32,000 PSI
  • 220 MPa
  • 30,000 PSI
  • 205 MPa
Tensile Strength
  • 60,000 PSI
  • 415 MPa
  • 85,000 PSI
  • 585 MPa
  • 60,000 PSI
  • 415 MPa
  • 60,000 PSI
  • 415 MPa
Temperature range
  • 540-750°C
  • 540-750°C
  • 540-750°C
  • 540-750°C

Mill tolerance for ASTM A335 gr P22 pipe wall thickness

AS ASTM A335 gr P22 nominal pipe size
(NPS)
ASTM A335 P22 IBR Pipe Tolerance
(
% from Specified)
Over Under
  • 1/8 NPS to 2 1/2 NPS [6 to 65] inclusive
  • all t/D ratios
20.0% 12.5%
  • Above 2 1/2 NPS [65]
  • t/D < or = 5%
22.5% 12.5%
  • Above 2 1/2 NPS [65]
  • t/D > 5%
15.0% 12.5%
Notes:

  • t means = Specified ASTM A335 grade P22 Alloy Pipe wall thickness
  • D means = Specified SA335P22 Seamless Pipe outside diameter

Allowable or permissible variation of Alloy P22 ASTM A335 pipe OD

ASTM A335 grade P22 nominal pipe size
(NPS)
Over Under
inch mm inch mm
  • 1/8 NPS to 1 1/2 NPS [6 to 40], including
1/64 (0.015) 0.40 1/64 (0.015) 0.40
  • Over 1 1/2 NPS to 4 NPS [40 to 100], including
1/32 (0.031) 0.79 1/32 (0.031) 0.79
  • Over 4 NPS to 8 NPS [100 to 200], including
1/16 (0.062) 1.59 1/32 (0.031) 0.79
  • Over 8 NPS to 12 NPS [200 to 300], including
3/32 (0.093) 2.38 1/32 (0.031) 0.79
  • Over 12 NPS [300]
+/- 1% of the specified P22 outside diameter

Steel Grade P22 ASTM A335 seamless pipe marking

Marking heading
Grade/ material
Length
Schedule
Manufacturer’s Heat Number
Test name
  • S1 – SA335 P22 round pipe Analysis
  • S2 – NBR 5603 P22 Chrome Pipe Transverse Tension Test
  • S3 – Flattening Test of P22 Seamless Pipe
  • S4 – Etching Tests & Metal Structure
  • S5 – Photomicrographs
  • S6 – P22 Pipe Photomicrographs for Individual Pieces
  • S7 – Alternative Heat Treatment – only for ASTM A335 P91 (type 1 and 2)
Indicate UNS K21590 Seamless Pipe test method
  • Test Pressure – if Hydrostatic yes, Nondestructive No
  • NH – if Hydrostatic No, Nondestructive No
  • NDE – if Hydrostatic No, Nondestructive Yes
  • Test Pressure/NDE – if Hydrostatic yes, Nondestructive yes

ASTM A335 gr P22 equivalent

Standards Country ASTM A335 P22
UNS North America K21590
WNR Russia 1.7380
ASTM America A335
ASME Australia SA335
JIS Japan STPA 24
BS United Kingdom 3604 P1 622
GOST Russia
AFNOR France
EN Europe 10CrMo9-10
AMS United States
ANSI America
SAE United States
AS Australia
DIN German 1.7380

ASTM A335 p22 steel equivalent

UNS K21590 pipe heat treatment requirements

Grade UNS Number Heat treat type Subcritical Annealing or Tempering
Temperature , Min or range ᵒf [ ° C ]
Austenitizing / Solutioning
Temperature , min or range ” F [ ” C ]
P22 K21590 Full or Isothermal anneal normalize
and temper
1250 ( 675 ]

Heat treatment of steel grade p22 pipe

SA 335 gr P22 pipe mechanical properties

A335 Low-alloy pipe UNS number Tensile Strength ksi Yield Strength ksi Elongation % Rockwell Brinell
P22 K21590 60 30 30

Sa 335 gr p22 pipe mechanical properties

A335 P22 chemical composition

ASTM A335
Low-Alloy Steel
(Grades)
UNS
equivalent
Cr Mo C≤ Mn P≤ S≤ Si≤
P22 K21590 1.90~2.60 0.87~1.13 0.05~0.15 0.30~0.60 0.025 0.025 0.5

Alloy steel a335 p22 pipe chemical composition

Third Party Inspection

Third Party Inspection of P22 Alloy Steel Pipe

ASTM A335 Gr P22 Hot Finished Seamless Pipe in Sch-40, Sch-80, STD, Sch-5, Sch-10, Sch-60, & XXS as per American standards ANSI/ASME B36.10M

Here the yield strength of the P22 material is 30,000 psi. Next, determine the safety base of the industry. E.g let us take 4 as the safety standard. Now divide the yield strength by the safety standard to find the allowable stress.

30,000 psi / 4 = 7,500 pounds per square inch.

The seamless ferritic alloy-steel pipe ASTM A335 Gr P22 is built to sturdily withstand high-temperature conditions. According to the ASME code, the recommended maximum service temperature for P22 material is 600°C or 1112°F. The exact operating temperature limits of the pipe are influenced by the application, pressure, duration of exposure, and corrosive elements.

A335 Gr P22 Boiler Steel Pipe with third party inspection such as LLOYDS, TUV NORD, BVIS, INTERTEK, DUQM, TEMA, L&T, & JINDAL

The pressure rating and allowable stress for SA335 P22 pipe can be determined using established engineering codes and standards. These calculations take into account various factors such as material properties, and operating conditions of the P22 seamless pipe.

Gather information about the pipe’s outer diameter (OD), wall thickness (WT), and length to calculate the pressure rating of ASTM A335 P22. You also need to know the pipe’s mechanical properties, including the yield strength and tensile strength to calculate the values.

Refer to the applicable design code such as ASME B31.1 for power piping or ASME B31.3 for process piping. Employ the design formulas and equations from the selected code to calculate the pressure rating and allowable stress of the A335 Gr P22 pipe.

Tolerance refers to the permissible deviation in dimensions and mechanical properties allowed during the manufacturing process. Refer to the relevant product standard or specification, such as ASTM A335 to find the specific tolerance values for the P22 pipe.

SA335 Gr P22 Round Pipe and P22 Alloy Steel High Pressure Pipe with Eddy current testing, check ASTM A335 P22 chemical composition, equivalent, schedule chart, and p22 material hardness range

Uses of SA335 Gr P22

Inclusions are non-metallic particles or impurities present in the pipe material and can influence its mechanical properties. After the SA 335 P22 pipe has been welded, defects such as lack of fusion, cracks, or porosity can show up in the weld zone. These defects can weaken the alloy pipe and reduce its integrity.

To detect these defects, manufacturers do a basic inspection method where the surface of the pipe is visually examined for any visible defects. Ultrasonic testing or UT is another method in which manufacturers use high-frequency sound waves to detect internal defects.

What temperature does creep cracking occur on a P22 welded pipe? What does creep crack growth occurs under?

Creep is a time-dependent deformation process that usually happens under sustained high temperature and stress conditions. Creep cracking in a welded A335 P22 pipe can occur at elevated temperatures where the material is subjected to long-term stress. Generally, creep cracking in an ASTM A335 P22 material pipe can occur at temperatures above approximately 500°C (932°F).

Creep crack growth refers to the progressive propagation of cracks under sustained high-temperature and stress conditions. To mitigate creep crack growth in a SA 335 Gr P22 pipe, employ proper welding techniques, post-weld heat treatment, and stress relief.

  • SA335 P22 material typically contains approximately 2.0-2.5% Cr and 0.87-1.13% Mo. While there is 1.0-1.5% Cr and 0.44-0.65% Mo content in P11 products.
  • The recommended maximum service temperature for P22 alloy steel is 600°C or 1112°F, while for P11, it is 550°C or 1022°F.
  • SA335 Gr P22 generally has higher tensile and yield strength compared to P11.
  • Due to its higher chromium content, P22 generally exhibits better corrosion resistance than P11.
  • P11 is more widely available and commonly used compared to P22.

FAQ

How do you weld internally coated P22 Seamless Pipe?

Welding an internally coating ASTM A335 P22 pipe is not a simple procedure and requires precision tools to perform the task. Generally, MIG and TIG roots are used to weld the material to ensure a penetration weld.
The ASTM A335 Gr P22 grade pipe should ideally be welded first and later coated to protect the material.

How to calculate allowable stress of A335 P22 material?

The allowable stress of ASTM A335 P22 material is the maximum stress it can handle. To determine the allowable strength first find the yield strength of the material. Here the yield strength of the P22 material is 30,000 psi. Next, determine the safety base of the industry. E.g let us take 4 as the safety standard.

Now divide the yield strength by the safety standard to find the allowable stress.
30,000 psi / 4 = 7,500 pounds per square inch.

A study on Creep Crack Initiation and Growth Behavior of P22 Welded Pipe

The study of the creep crack initiation and growth behavior of A335 P22 pipe gave out the following results. The results indicate there is compact tension between the specimens. Here the P22 pipe is subjected to internal pressure and bending load. It also showed creep fracture on the mechanic’s parameter.

What are the 7 key advantages of pipingmaterial.ae while searching P22 pipe suppliers in UAE?

  • Instead of hundreds and thousands of companies, you will see the list of the top 10 verified P22 pipe suppliers on pipingmaterial.ae
  • You can connect with the genuine stockist directly via pipingmaterial.ae and request price quotes
  • Pipingmaterial.ae connects buyers with only verified and genuine suppliers in Middle east
  • ASTM A335 P22 pipe suppliers listed on the pipingmaterial.ae delivers industry-best material at the lowest prices
  • You can compare multiple quotes of different P22 pipe suppliers to find a better deal
  • Listed P22 seamless pipe stockists at pipingmaterial.ae has adequate experience in safely delivering pipe products in Middle East
  • Searching SA 335 grade p22 seamless pipe and placing an order to a supplier listed on the pipingmaterial.ae is easy and hassle-free
