ASTM A403 WP317L pipe fittings

Home > ASTM A403 WP317L pipe fittings

Buy AISI 317L Tee and UNS S31703 Elbow in 45°/ 22°/ 90°/ 180° or Custom Radius

ASTM A403 WP317L Pipe Fittings Product Overview

Sizes in Stock :	1/2″NB to 44″ NB
American & European Standard:	ASME SA 403, ASTM A403, UNS S31703, WNR 1.4438
Manufacturing Standard	ASME B16.9, MSS-SP-83, ANSI/ASME B16.28, ANSI/ASME B16.25, MSS-SP-95
Environment :	Acidic, Highly Corrosive, Marine
Origin of Raw Material:	Japanese, Korean, European, Indian, UK, German
Bending Radius:	1D, 3D, 2D, 6D, 5D, 10D, 8D
Heat Treatment :	1010- 1121°C
Lifespan :	50 to 100 Years
HSN Code	73072900
Bending Angle:	22.5°, 30°, 60°, 90°, 45°, or Custom
MTC:	MTC EN 10204 3.1
Schedule:	SCH 10 to SCH 160
Delivery Time:	Malaysia : 10 Days Germany : 20 Days
RFQ:	support@pipingmaterial.ae

Types of stainless steel 317L Pipe cap
Types of SS 317L Pipe Cross
Types of 317L Stainless Steel Stub End
ASTM A403 WP317L Fittings Equivalent
ASTM A403 Gr.wp317L Weld Fittings Welding Electrodes
Chemical Composition of ASTM A403 WP317L
A403 WP317L Material Mechanical Properties
317L Stainless Steel Buttweld Fittings Physical Properties
Welding Methods for UNS S31703 welded Fittings
Heat Treatment of Stainless Steel 317L Weld Fittings
SS 317L Welded Pipe Fittings Temperature Range
Welding Preventions to Achieve Quality Of 1.4438 Stainless Steel Pipe Bend
Tolerance Of SA 403 Grade WP317L Seamless Pipe Fittings
ASTM A403 WP317L Corrosion Rates Comparison with Other Alloys
Melting Range of ASTM A403 WP317L Pipe Fittings
Electrical Resistivity of AISI 317L Butt Welded Fittings

Specification of ASTM A403 WP317L Pipe Fittings

Sizes in Stock: Buttweld : 1/2 to 24″, Seamless : 1/2″-48″, Welded : 24 to 96″;

Maximum Available Size: 120″ (DN2000)

Forms: Cross, Stub End, Tee, Reducer, Cap, Elbow

Wall Thickness : SCH 10 TO SCH XXS

Finish: Mirror Polished, Semi Bright, Pickled, Mill

Packaging: Plastic Wrap, Carton Box, Wooden Case

Value Added Services: Welding, Cutting, Threading, Polishing, Casting

Method: Fabricated, Seamless, Buttweld, Welded

Machinery: Beveling Machine, Cold Forging, CNC

Temprature Range: 1652-2102°F (900-1150°C)

Application: Paper & Pulp Industry, Chemical Processing, Petrochemical, Oil and Gas Industry

Testing: HIC Test, Hardness Test, Hyrdrostatic Test, PMI Test

Get Quote Directly From ASTM A403 WP317L Pipe Fittings Suppliers in UAE

100% Tested A403 Grade WP317L Butt Weld Fittings With MTC EN 10204 3.1/3.2

Ready Stock Of SA 403 WP317L BW Fittings

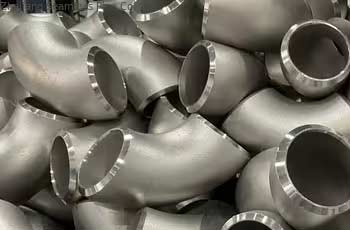

ASTM A403 WP317L Pipe Fittings

Manufactruing Process: Hot Forming, Mandrel
Bending: Rotary Draw, Roll Bend

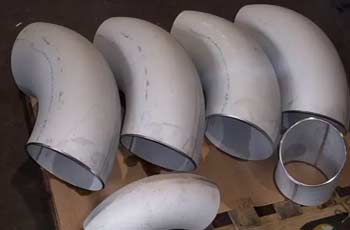

1.4438 Stainless Steel Elbow

Method: Fabricated, Welded
Modulus Elasticity: 193 GPa

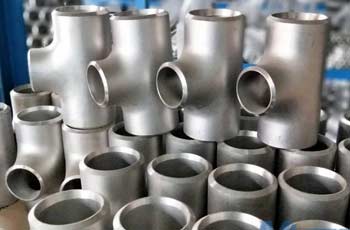

SS A403 WP317L Tee

Annealing Temp.: 1850 to 2050 ° F
Shape: Equal, Reducing

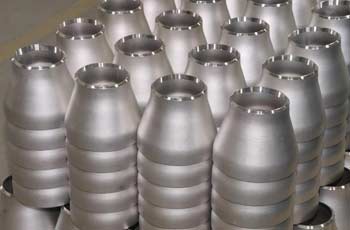

Stainless Steel 317L Reducer

Surface Treatment: Polishing
Thermal Conductivity: 14.6 W.m -1.°K-1

SA 403 Grade WP317L Cap

Packaging: Carton, Wooden Case
Coating: Epoxy Coated, Painted

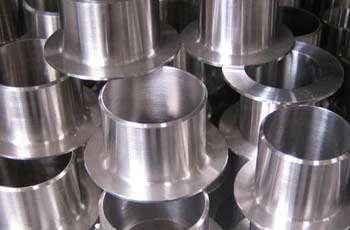

ASTM A403 gr.wp317L Stub End

Marking: Heat number, Size
Electrical Resistivity: 7.4 μohm/cm

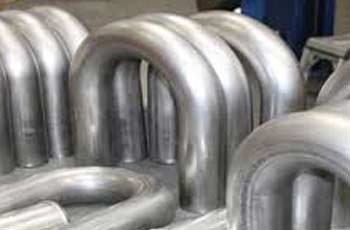

317L Stainless Steel Pipe Bend

Features: Chemical & UV Resistant
Test Passed: Corroison, Tensile

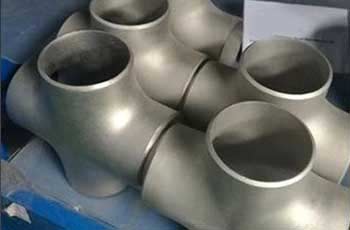

ASTM A403 WP317L Cross

Trade Name: Chemical Equipment
Head code: Round

Find Authorised Dealers and Distributors of ASTM A403 WP317L Pipe Fittings in Abu Dhabi

Star Paper Mill Paper Industry LLC – Abu Dhabi, UAE
AlDhafra Paper Manufacturing Company LLC – Abu Dhabi
Ittihad Paper Mill – Abu Dhabi, ICAD II, UAE
Queenex Hygiene Paper Manufacturing – Mussafah, UAE
Abu Dhabi National Paper Mill LLC -ICAD I, Abu Dhabi

Technical Data of ASTM A403 WP317L Pipe Fittings

Sizes Of ASTM A403 WP317L Pipe Fittings	Density	American Standard Of 317L Stainless Steel Buttweld Fittings
SA 403 WP317L welded fittings : 24 – 96″ (weld) SS 317L seamless fittings : 1/2″ – 24″ (SMLS) ASTM A403 WP317L buttweld fittings : 1/2″ – 24″ (BW) A403 Grade WP317L fabricated fittings : custom	7.89 g /cm3	ASME B16.9 MSS-SP-83 ASME B16.25 (butt welding ends) MSS-SP-95 ASME B16.28 MSS-SP-43 MSS-SP 119 (ASTM A403 WP317L belled end elbow)
Working Temperature	SA 403 WP317L Buttweld Pipe Fittings Meet The Requirements	Classes Of A403 Grade WP317L BW Fittings
1652-2102°F 900-1150°C	HIC tested IBR NORSOK EN 10204 3.2 certificate NACE MR0175 NACE TM-0284 NACE MR0103 ISO 15156 MTC EN 10204 3.1 certificate Sour service	ASTM A403 WP-WX ASTM A403 WP-WU ASTM A403 WP-S 317L : seamless fittings ASTM A403 WP-W 317L : welded fittings Buy Directly From ASTM A403 WP317L Pipe Fittings Suppliers in UAE offer TPI & 3.1 MTC, They Supplies ASTM A403 WP317L Elbow to Several Countries Like Oman, South Africa, USA, Egypt & Saudi Arabia
Manufacturing Method	Ends Type	Wall Thickness Of SA 403 Grade WP317L Butt Weld Fittings
Hot forming Mandrel	Bevelled Plain Bevel Compound Bevel	SCH 10 SCH 20 SCH 40 SCH 60 SCH 80 SCH 160 STD XH XXH Live chat with above manufacturers for latest price list Jeddah (KSA) & Lagos (Nigeria)
Stainless Steel 317L Weld Fittings Testing Requirements	Most demanded types of UNS S31703 Welded Fittings	Radius Of A403 Grade WP317L bend
Magnetic Particle Examination (For above Sch 80 SS 317L bevel ends) HIC tested 100% Radiography tested PMI test Ultrasonic test Hyrdrostatic test Easily get a quote from above listed ASTM A403 WP317L Pipe Fittings Suppliers in UAE, factory price & Japanese/ Korean origin	AISI 317L elbow SS 317L tee UNS S31703 reducer SUS 317L cap Stainless steel 317L stub end DIN 1.4438 pipe bend ASME SA403 WP317L cross	3D 4D 5D 6D 8D 10D
Angle of INOX 317L Welded Bend	Bending Method of SUS 317L Seamless Bend	DIN Standards Of SS 317L Welded Pipe Fittings (Germany)
22.5 Degree 30 Degree 45 Degree 60 Degree 90 Degree 135 Degree 180 Degree	Mandrel bending Rotary draw bending Ram-type bending Roll bending Hot induction bending	DIN 2615-2 (Tee) DIN 2615-1 (Tee) DIN 2618 (saddle) DIN 2605-2 (Elbow) DIN 2616-1 (Eccentric Reducer) DIN 28011 (Torispherical heads) DIN 2617 (Caps) DIN 2605-1 (Elbow) DIN 2616-2 (Concentric Reducer)
EN Standards Of DIN 1.4438 Seamless Pipe Fittings (Europe)	JIS Standard Of 317L SS Butt Welding Fittings (Japan)	GOST Standard (Russia)
EN 10253-2	JIS B2312 JIS B2313	GOST 17375 (induction elbow) GOST 17375 GOST 17376 GOST 17378 GOST 17379
A403 WP317L Butt Welded Joint Applicable Fluids	Marking Formula Of AISI 317L Butt Welded Fittings	ISO Standard
Gas Oil Water Air Steam	Manufacturers name Schedule Grade Size Heat number Dimensional standard – ASME B16.9	ISO 5251

ASTM A403 Gr.WP317L Reducer And SS 317L Tee (Reducing/ Equal) In Schedule 40/STD Or Larger

Stainless Steel 317L Reducer Schedule Chart

Sizes (NB)	SCH 10
1/8	SCH 30
12	SCH 40
28	SCH 100
48	SCH 140
22	SCH 180
32	EXT Hvy

Bending Methods of A403 Grade WP317L Elbow

Press Bending
Liquid filling bend
Mandrel Bending
Tensile bending
Compression bending
Roll bending
Heat bending

Size Chart Of SA 403 Gr WP317L Butt Welding Fittings

NPS	Outside Dia		45° Elbows		180° Returns		90° Elbows
	Outside Dia		Long Radius		Long Radius		Short Radius	Long Radius
	Inch	mm	Radius Inch	Center to Face Inch	Back to face Inch	Center to Center Inch	Center to Face Inch	Center to Face Inch
1/2″	0.840	21.3		5/8	1 7/8	2	–	1 1/2
1 1/2″	1.900	48.3	3	1 1/8	3 1/4	4 1/2	1 1/2	2 1/4
3″	3.500	88.9	6	2	6 1/4	9	3	4 1/2
3 1/2″	4	101.6	7	2 1/4	7 1/4	10 1/2	3 1/2	5 1/4
3/4″	1.050	26.7		7/16	1 11/16	2 1/4	–	1 1/8
6″	6.625	168.3	12	3 3/4	12 5/16	18	6	9
10″	10.750	273.1	15	6 1/4	20 3/8	30	10	15
2″	2.375	60.3	4	1 3/8	4 3/16	6	2	3
4″	4.500	114.3	8	2 1/2	8 1/4	12	4	6
1 1/4″	1.660	42.2	–	1	2 3/4	3 3/4	1 1/4	1 7/8
1″	1.315	33.4		7/8	2 3/16	3	1	1 1/2
2 1/2″	2.875	73	5	1 3/4	5 3/16	7 1/2	2 1/2	3 3/4
5″	5.563	141.3	10	3 1/8	10 5/16	15	5	7 1/2
8″	8.625	219.1	12	5	16 5/16	24	8	12
12″	12.750	323.9	18	7 1/2	24 3/8	36	12	18

Types of ASTM A403 WP317L Elbow

317l Stainless Steel 45 deg Elbow

SA 403 WP317L 90 deg Elbow

A403 Grade WP317L 180 deg Elbow

SA 403 Gr WP317L Long Radius Elbow

SS 317L Short Radius Elbow

Stainless steel 317l 90 deg long radius elbow

Stainless Steel 317L 90 deg Long Radius Elbow

UNS S31703 90 deg Short Radius Elbow

DIN 1.4438 45 deg short radius elbow

DIN 1.4438 45 deg Short Radius Elbow

A 403 WP 317L 45 deg Long Radius Elbow

ASME SA403 WP317L 1.5D Elbow

317L SS 3D Elbow

AISI 317L 2D Elbow

Weight Chart Of SS A403 WP317L Weldable Pipe Fittings

Normal Pipe Size	(A)Dia	(B)Dia	Approx. Weight – (KG)
1″	1.43	1.74	0.52
2″	2.25	2.86	1.49
1/4″	0.80	0.80	0.10
1-1/2″	1.87	2.36	0.99
1-1/4″	1.72	2.07	0.76
1/8″	0.69	0.66	0.06
3/8″	0.94	0.97	0.15
3/4″	1.24	1.38	0.32
1/2″	1.11	1.17	0.22
3″	3.05	4.23	4.41
2-1/2″	2.68	3.57	2.78
4″	3.72	5.24	6.72

Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Types of AISI 317L Pipe Bend

ASTM A403 WP317 45 degree bend

ASME SA403 WP317 90 deg bend

SS 317l 180 deg pipe bend

ASTM A403 WP317l long radius bend

ASTM A403 Grade WP317l short radius bend

SS 317l 2.5D pipe bend

ASTM A 403 Gr.WP317l-WX 3D pipe bend

ASTM A403 WP317l hot induction bend

A403 Gr WP317l mitered pipe bend

Pressure Rating Of A403 Gr WP317L Welded Pipe Fittings

Temp. Ratings		Pressure Class
		150	300
			1 1/4 – 2 inch.	1/4 – 1 inch.	2 1/2 – 3 inch.
°C	°F		1 1/4 – 2 inch.	1/4 – 1 inch.	2 1/2 – 3 inch.
149	300	185	1050	1360	735
177	350	150	900	1150	650
204	400	–	750	935	560
-29 to 66	-20 to 150	300	1500	2000	1000
232	450	–	600	725	475
93	200	265	1350	1785	910
121	250	225	1200	1575	825
260	500	–	450	510	385
288	550	–	300	300	300

Types of A403 WP317L Pipe Reducer

ASTM A 403 WP 317l buttweld reducer

ASTM A403 Gr WP317l concentric reducer

A 403 WP 317l eccentric reducer

Types of SUS 317L Pipe Tee

ASTM A403 WP 317l buttweld tee

SA 403 WP 317l equal tee

SA 403 WP317l reducing tee

A403 WP317l lateral tee

ASME SA403 WP317l barred tee

SA 403 Grade 317l Y tee

Types of Stainless Steel 317L Pipe Cap

SAE 317l buttweld pipe cap

SS UNS S31703 large diameter end caps

ASTM A403 WP 317l SS big size pipe end cap

Types of SS 317L Pipe Cross

A403 WP317l equal cross

S31703 stainless steel reducing cross

Werkstoff No 1.4438 straight crosses

Material Inspection Facility In Following Locations

Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Types of 317L Stainless Steel Stub End

SUS 317 Long Stub End

DIN 1.4438 Short Stub End

317 steel Lap Joint Stub End

317L Stainless Steel Buttweld Cap And DIN 1.4438 Stub End As Per DIN 2605/ 2606/ 2615/ 2616

ASTM A403 WP317L Fittings Equivalent

STANDARD	European (EN)	Swedish (SS)	WERKSTOFF NR.	UNS	Japanese (JIS)
ASTM A403 WP317L fittings	X2CrNiMo18-15-4	–	1.4438	S31703	SUS 317L

ASTM A403 gr.wp317L Weld Fittings Welding Electrodes

Material	Stick Welding Electrode Grade
INOX 317L Welded Fittings	E316

Chemical Composition of ASTM A403 WP317L Fittings

Grade	ASTM A403 WP317L pipe fittings
C (Carbon ) Maximum	0.035*
Mo (Molybdenum)	3.0 – 4.0
N (Nitrogen)	–
P (Phosphorous) Maximum	0.04
Cr (Chromium)	18.0-20.0
Ni (Nickel)	11.0-15.0
S (Sulphur) Maximum	0.03
Si (Silicon) Maximum	1.00
Fe (Iron)	Bal.
Mn (Manganese) Maximum	2.00

A403 WP317L Material Mechanical Properties

Elongation in 2 in. %	Hardness (maximum)	Yield Strength 0.2% Offset PSI (MPa)		Ultimate Tensile Strength PSI (MPa)
40	95 Rockwell B	30,000	205	75,000	515

Contact Above SS 317l Pipe Fittings Suppliers For All Your Urgent Delivery In UAE And Other Middle East Countries

Explore Nearby Locations For The Quickest Delivery Options

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

317L Stainless Steel Buttweld Fittings Physical Properties

Density	0.285 lbs / in3	–
Thermal Conductivity 20°C (68°F)	14 W/(m x K)	8.1 BTU/(hr x ft x °F)
Specific Heat	502 J/kg-°K (0 – 100°C)	0.12 BTU/lb-°F (32 – 212°F)
Modulus of Elasticity	200 GPa	29.0 x 106 psi

Welding Methods for UNS S31703 Welded Fittings

Arc welding (E)
Laser bean welding
SAW (Submerged Arc welding)
TIG welding
MAG welding solid wire

Heat Treatment of Stainless Steel 317L Weld Fittings

Material should be heated at	2100-2300°F (1149-1260°C)
Annealing at	1850-2050°F (1010-1121°C)

SS 317L Welded Pipe Fittings Temperature Range

Temperature Range Of ASTM A403 WP317L
°F	CM/CM °C	°C	In/in °F
68 – 212	16.02 x 10-6	20 – 100	8.9 x 10-6

Live Chat With Above Manufacturers To Get Quick Price Of A403 Grade WP317L Material in UAE

Associate Traders And Importers Available In Below Locations For Quick Deliveries

Doha	Umm Al Quwain	Sharjah	Fujairah
Muscat	Dubai	Ras Al Khaimah	Riyadh
Abu Dhabi	Ajman	Saudi Arabia	Al Jubail

Welding Preventions to Achieve Quality Of 1.4438 Stainless Steel Pipe Bend

Choosing The Right Filler Material
Adjusting Welding Parameters
Using Proper Shielding Gas

Tolerance Of SA 403 Grade WP317L Seamless Pipe Fittings

NPS	Outside Dia at Bevel	Wall Thickness Of T	I.D.at End	Over-all Length Of F	Over-all Length Of H	Center-to-End (Dimension A ,C ,B)
1/2 to 2-1/2	+0.06	Not less than 87.5%m of nominal thickness		+/- 0.12	+/- 0.06	+/- 0.06
	-0.03
3 to 3-1/2	+/- 0.06		+/- 0.06	+/- 0.12	+/- 0.06	+/- 0.06

4	+/- 0.06		+/- 0.06	+/- 0.12	+/- 0.06	+/- 0.06

5 to 8	+/- 0.06		+/- 0.06	+/- 0.25	+/- 0.06	+/- 0.06

10 to 18	+0.16		+/- 0.12	+/- 0.25	+/- 0.09	+/- 0.09
	-0.12
20 to 24	+0.25		+/- 0.19	+/- 0.25	+/- 0.09	+/- 0.09
	-0.19
26 to 30	+0.25		+/- 0.19	+/- 0.38	+/- 0.19	+/- 0.12
	-0.19
32 to 48	+0.25		+/- 0.19	+/- 0.38	+/- 0.19	+/- 0.19
	-0.19
