ASTM a618 tube

Home > ASTM a618 tube

ASTM A618 Tube Core Characteristics

Standard	ASTM A618 / ASME SA618
Sizes Available	1″ to 16″
Brands in Stock	Rath Gibson, Haynes, Sanyo Special Steel, Alleima, Tubacex, Nippon Steel and Sumitomo Metal, Special Metals
End	Bevelled, Plain, Screwed, Threaded
Raw Material Orign	American, Korean, Russia, Indian, Janpanese, European,
Surface Treatment	Bare, Black and Hot-dipped Galvanized
Approval	ADNOC, KOC, ORPIC, PETRONAS, QAFCO, SABIC
Testing	Impact Tests, Hydrostatic, Tensile
Application	Energy and Oil & Gas Industry
MTC	EN 10204 3.1, 3.2

ASTM A618 Tube Specification

Find ASTM A618 Tube Suppliers in UAE Who Offer Detailed Specification

ASTM A618 Round Tubing : NPS 1/2″ – NPS 24″

ASTM A618 tube Length: 1 – 12m

Wall Thickness: 0.109″ – 1.000″ (2.8 – 25.4mm)

Schedule: SCH 5 – SCH 160, XXS

Form: Round, Square, Rectangular.

Available Grades: Ia, Ib, II, III

Package: Bundle packing, Plastic caps at ends

Melting Point: 1,425°C to 1,540°C

MTR: Chemical, PMI, Mechanical, Destructive and Non Destructive Test Report,

Types: Seamless, Welded, ERW

Get Quote Directly from ASTM A618 Tube Suppliers in UAE With Documentation

End Protection: Plastic Caps

Find several UAE-based certified suppliers of ASME sa618 hot-formed welded and seamless structural tube

ASTM A618 Tubing Types

ASME SA618 Steel Tube

ASTM A618 High-Strength Structural Tubing

ASTM A618 Hot-Formed Welded Structural Tubing

ASTM A618 Hollow Sections

ASTM a618 Seamless Structural Tubing

ASTM a618 tubing

Select a stockist of ASTM a618 hot formed seamless and welded high strength low alloy structural tubing in the Middle East. View various grades here

ASTM A618 Tubing Grades

Check ASTM A618 Tube Suppliers in UAE Who Deliver Various Types of Product Grades

la, lb
II, III
IV, V
VI and VII

Sales Agents in Following Locations

Riyadh	Dubai	Muscat	Ras Al Khaimah
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman
Fujairah	Umm Al Quwain	Sharjah	Doha

In Dubai, look for an importer who offers ASTM a618 high-strength structural tubing . Request a price. check to order information

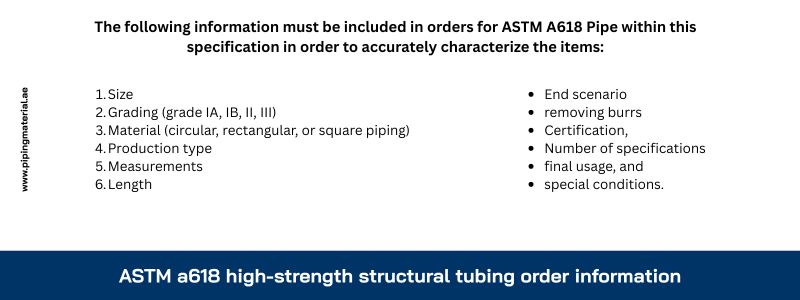

ASTM A618 High-strength Structural Tubing Order Information

Find the oldest trader of ASTM a618 tubing in gcc nations with the full selection of standard and custom sizes, see production method

ASTM A618 Structural Steel Pipe Size Chart

Buy Product From ASTM A618 Tube Suppliers in UAE Available in Various Sizes

NPS (inches)	1	1 1/4	1 1/2	2	1 1/2	2	2 1/2	2 1/2	3	3	3 1/2	3 1/2	4	4	5	5	6	8	8
OD (Inches)	1.315	1.66	1.9	2.375	1.9	2.375	2.875	2.875	3.5	3.5	4	4	4.5	4.5	5.563	5.563	6.625	8.625	8.625
WT (Inches)	0.133	0.14	0.109	0.154	0.145	0.218	0.276	0.12	0.12	0.216	0.12	0.226	0.12	0.337	0.258	0.125	0.28	0.25	0.313
Pipe Schedule	40 / STD	40 / STD	10	40 / STD	40 / STD	80 / XH	80 / XH	10	10	40 / STD	10	40 / STD	10	80 / XH	40 / STD	10	40 / STD	20	40 / STD
ID (Inches)	1.049	1.38	1.682	2.067	1.61	1.939	2.323	2.635	3.26	3.068	3.76	3.548	4.26	3.826	5.047	5.313	6.065	8.125	7.999
Weight Per Foot (Lbs.)	1.679	2.273	2.085	3.653	2.718	5.022	7.661	3.531	4.332	7.576	4.973	9.109	5.613	14.983	14.618	7.26	18.974	22.361	27.786
NPS (inches)	9	10	10	12	10	12	12	12	14	14	14	14	16	16	18	16	18	20	20
OD (Inches)	9.625	10.75	10.75	12.75	10.75	12.75	12.75	12.75	14	14	14	14	16	16	18	16	18	20	20
WT (Inches)	0.342	0.25	0.365	0.25	0.5	0.375	0.562	0.406	0.25	0.312	0.438	0.5	0.25	0.375	0.25	0.5	0.5	0.375	0.5
Pipe Schedule	40	20	40 / STD	20	XH	40 / STD	60	40	10	20	40	XH	10	30	10	40	XH	20	30
ID (Inches)	8.941	10.25	10.02	12.25	9.75	12	11.626	11.938	13.5	13.376	13.124	13	15.5	15.25	17.5	15	17	19.25	19
Weight Per Foot (Lbs.)	33.907	28.035	40.483	33.375	54.735	49.562	73.154	53.525	36.713	45.611	63.441	72.09	42.053	62.578	47.393	82.77	93.45	78.598	104.13

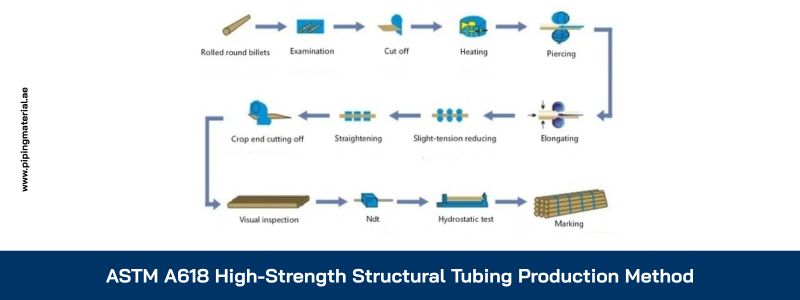

ASTM A618 High-Strength Structural Tubing Production Method

Associate Traders and Importers available in Below Locations For Quick Deliveries

Country	Cities
Netherlands	Eindhoven
Belgium	Meeuwen-Gruitrode
Belgium	Ghent
Netherlands	Rotterdam
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Leuven
Belgium	Antwerp
Belgium	Seraing
Belgium	Brussels
Netherlands	Haarlem

To purchase carbon steel pipe ASTM a618 for 10% to 40% less, get in touch here with reliable distributors, and see can you bend ASTM a618 tube ?

ASTM A618 Tube Chemical Composition

View ASTM A501 Tube Suppliers in UAE offering high-performance goods with exceptional Chemical analysis

Composition, %	Grade Ia		Grade Ib		Grade II		Grade III
Composition, %	Product	Heat	Product	Heat	Product	Heat	Product	Heat
Carbon, max	0.18	0.15	. . .	0.20	0.26	0.22	0.27A	0.23A
Manganese	1.04 max	1.00 max	1.40 max	1.35 max	1.30 max	0.85–1.25	1.40 maxA	1.35 maxA
Silicon, max	. . .	. . .	. . .	. . .	0.33	0.30	0.35	0.30
Copper, min	0.18	0.20	0.18B	0.20B	0.18	0.20	. . .	. . .
Phosphorus, max	0.16	0.15	0.035	0.025	0.035	0.025	0.035	0.025
Sulfur, max	0.045	0.025	0.035	0.025	0.035	0.025	0.035	0.025
Vanadium, min	. . .	. . .	. . .	. . .	0.01	0.02	0.01	0.02C

ASTM A618 Tubing Mechanical Properties

	Grades la, lb, and ll				Grade lll
	Walls 3⁄4 in. [19.0 mm] and Under		Walls over 3⁄4 to 11⁄2 in. [19.0 to 38.0mm], incl
Tensile strength, min, ksi [MPa] Yield strength, min, ksi [MPa] Elongation in 2 in. , min, % Elongation in 8 in. , min, %	70 50 22 19	[485] [345]	67 46 22 18	[460] [315]	65 50 20 18	[450] [345]
