ASTM A672 Pipe Abstract
| Sizes Readily Available |
|
|---|---|
| Brands in Stock | JFE Steel, Tenaris Dalmine, Vallourec Star, LP |
| Raw Material Origin | Japanese, European, American, Korean, Russia, Indian, Europe, Canada, South Korea, South Africa, USA, Russia, UK, Japan, North America, Germany |
| Manufacturing technique | Electric fusion, welded |
| Marking | Specification, Nominal Size |
| Features | Leak proof, Accurate dimension |
| International Standards | EN, JIS, ASTM |
| Approval | ADNOC, KOC, ORPIC, PETRONAS, QAFCO, SABIC |
| Certification | Fumigation Certificates, Moisture testing report |
| MTC | EN 10204 3.1 |
Are You Looking for ASTM A672 Steel Pipe Suppliers in UAE From Approved Mills? Check Grades
ASTM A672 EFW Pipes Specification
A672 Carbon Steel Seamless Pipe: 2 – 60 mm (Wall Thickness)
ASTM 672 Welded Pipe: 4 – 50 mm (Wall Thickness), 3 – 12 mm (Length)
A672M Carbon Steel Thick Walled Pipe: 1/2″ to 36″ NB (OD), 3 – 12 mm (Wall
Thickness)
ASTM A672 Pipe Schedule: SCH80, SCH100, SCH120 SCH10, SCH20, SCH30 SCH140,
SCH160, XXS STD, SCH40, SCH60, XS
Method: Cold Formed, Hot Formed, Precision Rolled
End: Bevelled, Plain, Grooved, Threaded
Suitable Temperatures: 1100-1250 °F
Process: ERW, Seamless, Welded
MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

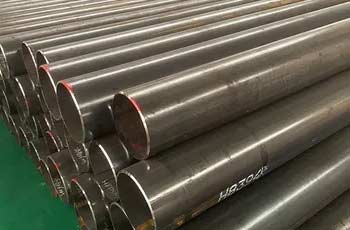

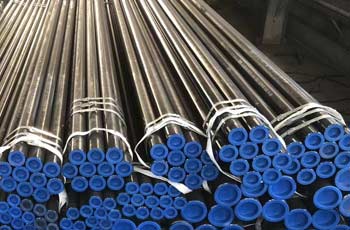

ASTM A672M Carbon Steel EFW Pipe Finish: Annealing, Polished, Bright
Get Quote Directly from ASTM A672 Pipe Suppliers in UAE With Complete
Documentation

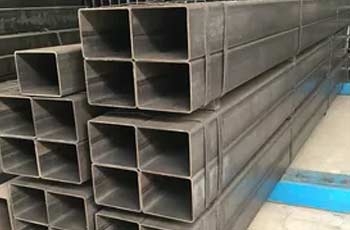

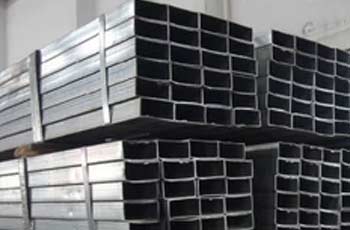

Form: Round, Square, Rectangular, Hexagon etc.
A672 Carbon Steel EFW Pipe Grades
| Plate specification | |||
|---|---|---|---|
| ASTM specification | Type of steel | Pipe grade | |
| No. | Grade | ||
| A285 / A285M | A | Plain carbon | A 45 |
| A285 / A285M | B | A50 | |
| A285 / A285M | C | A 55 | |
| A515 / A515M | 60 | Plain carbon, killed | B60 |
| A515 / A515M | 65 | B65 | |
| A515 / A515M | 70 | B70 | |
| A516 / A516M | 55 | Plain carbon, killed, fine grain | C 55 |
| A516 / A516M | 60 | C60 | |
| A516 / A516M | 65 | C65 | |
| A516 / A516M | 70 | C70 | |
| A537 / A537M | 1 | Manganese-silicon, normalized | D 70 |
| A537 / A537M | 2 | Manganese-silicon, Q&TA | D 80 |
| A302 / A302M | A | Manganese-molybdenum, normalized | H 75 |
| A302 / A302M | B, C or D | H 80 | |
| A533 / A533M | Cl-1B | Manganese-molybdenum, Q&T | J 80 |
| A533 / A533M | Cl-2B | J 90 | |
| A533 / A533M | Cl-3B | J 100 | |
| A202 / A202M | A | Chromium-manganese-silicon | K 75 |
| A202 / A202M | B | K 85 | |
| A204 / A204M | A | Molybdenum | L 65 |
| A204 / A204M | B | L 70 | |
| A204 / A204M | C | L 75 | |
| A299 / A299M | Manganese-silicon | N 75 | |
ASTM A672 Pipe Grades and Classes
- Young’s modulus: 200 GPa
- Fracture Toughness: 70 MPa
- Bulk Modulus: 140 GPa
- Poisson’s Ratio: 0.29
- Maximum operating temperature: 400°C (750°F)
- Cutting method: Burrless Cuts, Tapping
- Welded Line Type: Longitudinal
- Impact Energy: 27 J
- Joint method: Clamp, Pipe Shoulder
- Cutting Speed: 60-90 m/min
- Coolant: Water-based or oil-based
- Feed Rate: 0.08-0.2 mm/rev
- Pipe Machining: Hole Drilling, Punching, Swaging
- Machinability: 65%
- Endurance Limit: 200 MPa
- Packaging: Beveled Protector, Plastic Cloth Wraps
- Magnetic: Ferromagnetic
- Shear modulus: 80 GPa
- Value added services: Expansion, Shot Blasting
- Welding method: SMAW, FCAW
- Elastic modulus: 200 GPa
- Resistivity: 1.74 nΩ·m
- Feed per Tooth: 70-120 m/min
- Clearance Angle: 6°-8°
- Specific Gravity: 7.8
- Work function: 4.5ev
- Turning speed: 60-90m/min
- Rake Angle: 10°-14°
ASTM A672M Electric Fusion Welded Steel Pipe Origin
Arcelor Mittal : Roman, Romania
Benteler : Dinslaken, Germany
JFE Steel: Chita, Japan
Tenaris Dalmine: Bergamo, Italy
Tubos Reunidos SA Tubos Reunidos Industrial: Amurrio, Spain
Vallourec Star, LP (VSTAR) : Youngstown, OH, USA
Buy Directly from Stockists and Dealers of Voest-Alpine ASTM A672 Pipe in Fujairah
- United Steel Industries FZC – Al Sodah, Fujairah
- Explore Middle East FZE – Mraisheed, Fujairah
- Oryx International Building Materials Trading LLC – Al Rugailat Area, Fujairah
- Al Haily Steel Sales & Welding Works Est – Al Nakheel Road, Fujairah
Purchase from Stockists and Importers of A672 Pipe Material in the Middle East for a Reasonable Price With Top-Notch Customer Service View on How to Bend ASME SA672 Pipe.
Find ASTM A672 Pipe Suppliers in UAE with a wide range of types
Basic Types of A672 Pipe Material

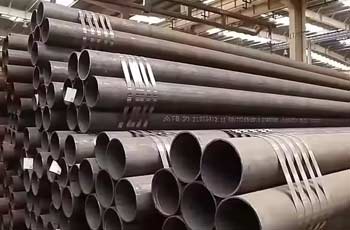

ASTM A672 Electric Fusion Welded Pipe

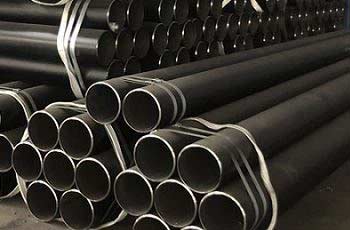

A672 Carbon Steel Welded Pipe
ASTM 672 EFW Pipe
A672M Carbon Steel EFW Pipe
ASTM A672 Carbon Steel EFW Welded Pipe
Wall Thickness of A672 Carbon Steel EFW Pipe
| Astm A672 Pipes Types | Out diameter | Wall thickness | Length |
|---|---|---|---|
| ASTM A672 EFW pipes | 1/2″ NB – 24″ NB | As per need | Custom |
| Welding ASTM A672 pipes (Available) | 1/2″ NB – 24″ NB | As per need | |
| ASTM A672 Seamless pipes (As per need) | 1/2″ NB – 60″ NB | SCH 10 /SCH 5 / SCH 80 /SCH 40 / SCH 160 | |
| ASTM A672 SAW pipes | 16″ NB – 100″ NB | As per need |
The Below-mentioned Suppliers have Ex-stock and have provided to numerous nations in the past, such as the Nigeria, South Africa, Ethiopia, Ghana and Senegal.
Weekly Shipment to Below Locations
| Middle East countries | UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine |
A672M Electric Fusion Welded Pipes Heat Treatment
| Heat treatment parametersA | |||||
|---|---|---|---|---|---|
| Specification and gradeC | Pipe gradeB | Quenching temperature, max, °F (°C) | Normalizing temperature, max, °F (°C) | Tempering temperature, min, °F (°C) | Post-weld heat treatment temperature range °F (°C) |
| A285A | A 45 | – | 1700 (925) | – | 1100-1250 (590-680) |
| A285B | A 50 | – | 1700 (925) | – | |
| A285C | A 55 | – | 1700 (925) | – | |
| A515-60 | B60 | – | 1750 (950) | – | |
| A515-65 | B65 | – | 1750 (950) | – | |
| A515-70 | B70 | – | 1750 (950) | – | |
| A516-55 | C 55 | 1650 (900) | 1700 (925) | 1200 (650) | |
| A516-60 | C60 | 1650 (900) | 1700 (925) | 1200 (650) | |
| A516-65 | C65 | 1650 (900) | 1700 (925) | 1200 (650) | |
| A516-70 | C70 | 1650 (900) | 1700 (925) | 1200 (650) | |
| A537-1 | D 70 | – | 1700 (925) | – | |
| A537-2 | D 80 | 1650 (900) | – | 1200 (650) | |
| A302-A | H 75 | – | 1800 (980) | 1100 (590) | |
| A302-B, C or D | H 80 | – | 1800 (980) | 1100 (590) | |
| A533-C11C | J 80 | 1800 (980) | – | 1100 (590) | |
| A533-C12C | J 90 | 1800 (980) | – | 1100 (590) | |
| A533-C13C | J 100 | 1800 (980) | – | 1100 (590) | |
| A202A | K 75 | – | – | – | |
| A202B | K 85 | – | – | – | |
| A204A | L 65 | – | – | – | |
| A204B | L 70 | – | – | – | |
| A204C | L 75 | – | – | – | |
| A299 | N 75 | – | 1700 (925) | – | |
Diameter Chart of A672M EFW Pipes
| ASTM A672 [DN Designator] | Under | Over | ||
|---|---|---|---|---|
| in. | mm | in. | mm | |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.0015) | 0.04 | 1/64 (0.0015) | 0.04 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.0031) | 0.08 | 1/32 (0.0031) | 0.08 |
| Over 4 to 8 [100 to 200], incl | 1/32 (0.0031) | 0.08 | 1/16 (0.0062) | 1.06 |
| Over 8 to 18 [200 to 450], incl | 1/32 (0.0031) | 0.08 | 3/32 (0.0093) | 2.04 |
| Over 18 to 26 [450 to 650], incl | 1/32 (0.0031) | 0.08 | 1/8 (0.0125) | 3.02 |
| Over 26 to 34 [650 to 859], incl | 1/32 (0.0031) | 0.08 | 5/32 (0.0156) | 4 |
| Over 34 to 48 [850 to 1200], incl | 1/32 (0.0031) | 0.08 | 3/16 (0.0187) | 4.08 |
A672 EFW Welded Pipe Supplementary Requirements
| Specification and Grade | Acceptance Criteria Charpy V-Notch | Test Temperature, °C for plate Thickness (Unless Otherwise Agreed Upon) | |||||
|---|---|---|---|---|---|---|---|
| Energy Absorption | |||||||
| Class A | Min For 1 SpecimenB | Min. Avg for 3 SpecimenB | 25 mm and under | Over 25 mm to 50 mm, incl | Over 50 mm to 75 mm, incl | Over 75 mm to 125 mm, incl | |
| J | J | ||||||
| A285 Grade A | I | 10 | 14 | 4 | 16 | – | – |
| A285 Grade B | 10 | 21 | – | – | |||
| A285 Grade C | 16 | 27 | – | – | |||
| A203 Grade A | III | 14 | 18 | -68 | -68 | -60 | – |
| A203 Grade D | -101 | -101 | -87 | – | |||
| A516 Grade 55 | -51 | -51 | -46 | -46 | |||
| A516 Grade 60 | -51 | -46 | -46 | -46 | |||
| A516 Grade 65 | -51 | -56 | -40 | -32 | |||
| A203 Grade B | IV | 16 | 20 | -68 | -68 | -60 | – |
| A203 Grade E | -101 | -101 | -87 | – | |||
| A203 Grade F (100 mm max) | – | – | -107 | -107 | |||
| A516 Grade 70 | -46 | -40 | -35 | -29 | |||
| A537 Class 1 (64 mm max) | -62 | -60 | -60 | – | |||
| A537 Class 2 (Over 64-100 mm) | |||||||
| A455 | II | 14 | 18 | -4 | – | – | – |
| A203 Grade F | V | 20 | 27 | -107 | -107 | – | – |
| Lateral Expansion mm, minimum Each Specimen Transverse Test | |||||||
| A353 | VI | 0.38 | -196 | -196 | – | – | |
| A553 Type I | -196 | -196 | – | – | |||
| A553 Type II | -170 | -170 | – | – | |||
| A517 all (64 mm max thickness) | C | C | – | – | |||
What are the Key Difficulties when Machining ASTM A672M Carbon Steel Welded Pipe?
- Tool Wear and Failure
- Built-Up Edge
- Chip Formation
- Heat Generation
- Surface Finish Quality
- Machine Rigidity and Vibration
Tolerance of ASTM A672 Pipe EFW
| Outside Diameter, inch | Tolerance, % |
|---|---|
| 3≤OD≤18, WT/OD≤5% | +22.05/-12.05 |
| 1/8≤OD≤2-1/2 | +20.00/-12.05 |
| OD≥20, WT/OD≤5% | +22.05/-12.05 |
| 3≤OD≤18, WT/OD>5% | +15.00/-12.05 |
| OD≥20, WT/OD>5% | +15.0/-12.05 |
For the below-mentioned test, Maintain open lines of communication with the Distributors, Dealers, and ASTM A672 Pipe Stockists stated below.
Material Inspection Facility in Following Locations
| Country | Cities |
|---|---|
| Belgium | Brussels |
| Netherlands | Amsterdam |
| Belgium | Ghent |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Rotterdam |
| Belgium | Westerlo |
| Netherlands | The Hague |
| Belgium | Seraing |
| Belgium | Leuven |
| Belgium | Antwerp |
| Netherlands | Eindhoven |
Chemical Composition of EFW A672 Pipe
| Grade | Chemical composition | ||||
|---|---|---|---|---|---|
| C | Mn | S | Si | P | |
| C55 | -/0.18 | 0.55 | 0.035 | 0.13 ~ 0.45 | 0.035 |
| CC70/C70 | 0.27 | ~1.30 | |||
| B55 | -/0.20 | 0.98 | |||
| CB65/B65 | 0.28 | ||||
| CA55/A55 | – | ||||
| -/A50 | -/0.22 | – | |||
| CB60/B60 | 0.24 | 0.13 ~ 0.45 | |||
| CB70/C70 | 0.31 | 1.3 | |||
| CC60/C60 | 0.21 | ~0.98 | |||
| -/A45 | -/0.17 | 0.98 | – | ||
| CC65/C65 | 0.24 | 0.79 | 0.13 ~ 0.45 | ||
A672 Pipe Mechanical Properties
| Grade | Mechanical composition | Tensile strength of welding points (N/mm2) | ||
|---|---|---|---|---|
| Tensile Stregth (N/mm2) | Yield point (N/mm2) | Elongation (%) | ||
| CC60/C60 | 415~550 | 220 | 25 | 415~550 |
| CC70/C70 | 485~620 | 260 | 21 | 485~620 |
| CB60/B60 | 415~550 | 220 | 25 | 415~550 |
| CC65/C65 | 450~585 | 240 | 23 | 450~585 |
| CB65/B65 | 450~585 | 240 | 23 | 450~585 |
| CB70/C70 | 485~620 | 260 | 21 | 485~620 |
| -/A45 | -/310~450 | -/165 | -/30 | -/310~450 |
| -/A50 | -/345~485 | -/185 | -/28 | -/345~485 |
| CA55/A55 | 380~515 | 205 | 27 | 380~515 |
| B55 | -/380~515 | -/205 | -/27 | -/380~515 |
| C55 | -/380~515 | -/205 | -/27 | -/380~515 |
What are the Best Practices for Effective Machining of A672 Carbon Steel EFW
Pipe?
- Tool Selection
- Parameter Optimization
- Coolant Use
- Machine Maintenance
- Workpiece Preparation
| ASTM Grade | Material | JIS/JPI |
|---|---|---|
| A55 | A285 Gr C | JPI-SB42 |
| B55 | A515 Gr 55 | – |
| B65 | A515 Gr 65 | JPI-SB46 |
| C65 | A516 Gr 65 | JPI-SLA33B (1) |
| C70 | A516 Gr 70 | – |
| B60 | A515 Gr 60 | JPI-SB42 |
| L65 | A204 Gr A | JPI-SB46M |
| L70 | A204 Gr B | JPI-SB49M (2) |
| L75 | A204 Gr C | – |
| B70 | A515 Gr 70 | JPI-SB49 |
| C55 | A516 Gr 55 | – |
| C60 | A516 Gr 60 | JPI-SLA24B (1) |
| N75 | A299 | – |
| D70 | A537 CL 1 | – |
| E55 | A442 Gr 55 | – |
| E60 | A442 Gr 60 | JPI-SPV24 |
Common Welding Defects in ASTM 672 Welded Pipe
- Porosity
- Cracking
- Lack of Fusion
- Undercut
- Incomplete Penetration
Use Chat or Email to Get in Direct contact with mentioned ASTM A672 Pipe Suppliers, Stockholder, and Distributors for these services.
Sales Agents in Following Locations
| Muscat | Dubai | Riyadh | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Umm Al Quwain | Fujairah | Doha |
| Saudi Arabia | Abu Dhabi | Al Jubail | Ajman |
Quickly Get an Extensive Assortment of Pipe A672 in Dubai With Conventional Finishes and Certification to Meet the Needs of Your Project. See ASTM A672 vs API 5L
ASTM A672 Pipe
- Applied Temperature: -49 to 427°C
- Yield Strength: 260 MPa
- Tensile Strength: 485 MPa
API 5L Pipe
- Applied Temperature: -29 to 427°C
- Yield Strength: 240 MPa
- Tensile Strength: 415 MPa
Find here ASTM A672 Pipe Suppliers in UAE providing certified testing methods
Testing Methods of EFW A672 Pipe
Get Connected With Trusted and Genuine Carbon Steel A672 Pipe Traders in GCC Countries, Check the Coating and Welding Process
Coatings of A672M Carbon Steel Welded Pipe
- 3LPE coating
- Galvanized coating
- Epoxy coating
- Black coating
- Varnished coating
Get ASTM A672 Pipe Suppliers in UAE providing precise size chart
Size Chart of A672 Electric Fusion Welded Pipe
| Nominal Pipe Size (NPS) | Outside Diameter (OD, mm) | Outside Diameter (OD, inch) | Wall Thickness Range (mm) | Wall Thickness Range (inch) |
|---|---|---|---|---|
| 16″ | 406.4 | 16.00 | 6-25 | 0.236-0.984 |
| 34″ | 863.6 | 34.00 | 8-50 | 0.315-1.969 |
| 36″ | 914.4 | 36.00 | 8-50 | 0.315-1.969 |
| 26″ | 660.4 | 26.00 | 8-40 | 0.315-1.575 |
| 56″ | 1422.4 | 56.00 | 12-60 | 0.472-2.362 |
| 60″ | 1524.0 | 60.00 | 12-65 | 0.472-2.559 |
| 28″ | 711.2 | 28.00 | 8-45 | 0.315-1.772 |
| 18″ | 457.2 | 18.00 | 6-30 | 0.236-1.180 |
| 24″ | 609.6 | 24.00 | 6-38 | 0.236-1.496 |
| 30″ | 762.0 | 30.00 | 8-50 | 0.315-1.969 |
| 32″ | 812.8 | 32.00 | 8-50 | 0.315-1.969 |
| 40″ | 1016.0 | 40.00 | 10-55 | 0.394-2.165 |
| 20″ | 508.0 | 20.00 | 6-32 | 0.236-1.260 |
| 22″ | 558.8 | 22.00 | 6-35 | 0.236-1.378 |
| 42″ | 1066.8 | 42.00 | 10-55 | 0.394-2.165 |
| 48″ | 1219.2 | 48.00 | 10-60 | 0.394-2.362 |
| 72″ | 1828.8 | 72.00 | 14-70 | 0.551-2.756 |
Welding Process of ASTM A672 Carbon Steel Pipe
- Preparation of Metal Surface
- Select the Right Electrode or Filler
- Set the Right Parameters
- Perform Welding
Compare Delivery Time and Price of Different Nabl-Approved ASTM A672 Seamless and Welded Pipe Distributors With Certification EN10204 3.1, View ASTM A672 vs A671
ASTM A672 Pipe
- Temperature Range: 593.33°C
- Yield Strength: 380-480 MPa
- Tensile Strength: 550-700 MPa
ASTM A671 Pipe
- Temperature Range: 400°C
- Yield Strength: 345-415 MPa
- Tensile Strength: 485-620 MPa
Compare Response Time and Price to those of other ASTM A672 Pipe Stockists.
Associate Traders and Importers available in Below Locations For Quick Deliveries
| Region | Country | City |
|---|---|---|
| Middle East | United Arab Emirates | Dubai |
| Middle East | United Arab Emirates | Abu Dhabi |
| Africa | South Africa | Cape Town |
| Middle East | Saudi Arabia | Dammam |
| Middle East | Qatar | Doha |
| Middle East | Kuwait | Kuwait City |
| MENA | Morocco | Casablanca |
| Middle East | Saudi Arabia | Riyadh |
| Middle East | Saudi Arabia | Jeddah |
| Africa | South Africa | Johannesburg |
| MENA | Egypt | Cairo |
| Africa | Nigeria | Lagos |
| Africa | Nigeria | Abuja |
Check ASTM A672 Seamless Pipe Suppliers in UAE providing industrial applications
Applications of ASTM A672M Carbon Steel Welded Pipe
- Power Plant Systems
- District Heating Systems
- Petroleum-based industries
- Industrial Water Systems
- Chemical Piping
- Water lines
Table of Content
