ASTM A693 Washer

What is ASTM A693 washer?

The ASTM A693 washer comes under the specification of martensitic and chromium, nickel, and copper alloys. ASTM A693 Washer has good resistance to corrosive media in a range of environments. These washers have high strength and work in temperatures up to 600 degrees F. The ASME SA693 Square Washers can be drawn and solution heat treated to influence their performance. These washers have four equal sides and create a strong connection. A693 Grade 630 Belleville Washer can be hardened easily without the risk of cracking or distortion. These washers allow for even weight and pressure distribution. The SA693 Spring Washer is used in conjunction with a nut, bolt, screws, or other fasteners. These washers protect the material from tension and stress. The A693-16 Split Washer has a melting point between 2560 to 2625 degrees F, with a density of 0.2820 lb/in. These washers have good tensile and yield strength. The A693 Type 631 Lock Washer has good resistance and creates strong locking to prevent loosening due to external factors.

ASTM A693 Washer Specifications

ASTM A693 Washer Chemical Composition

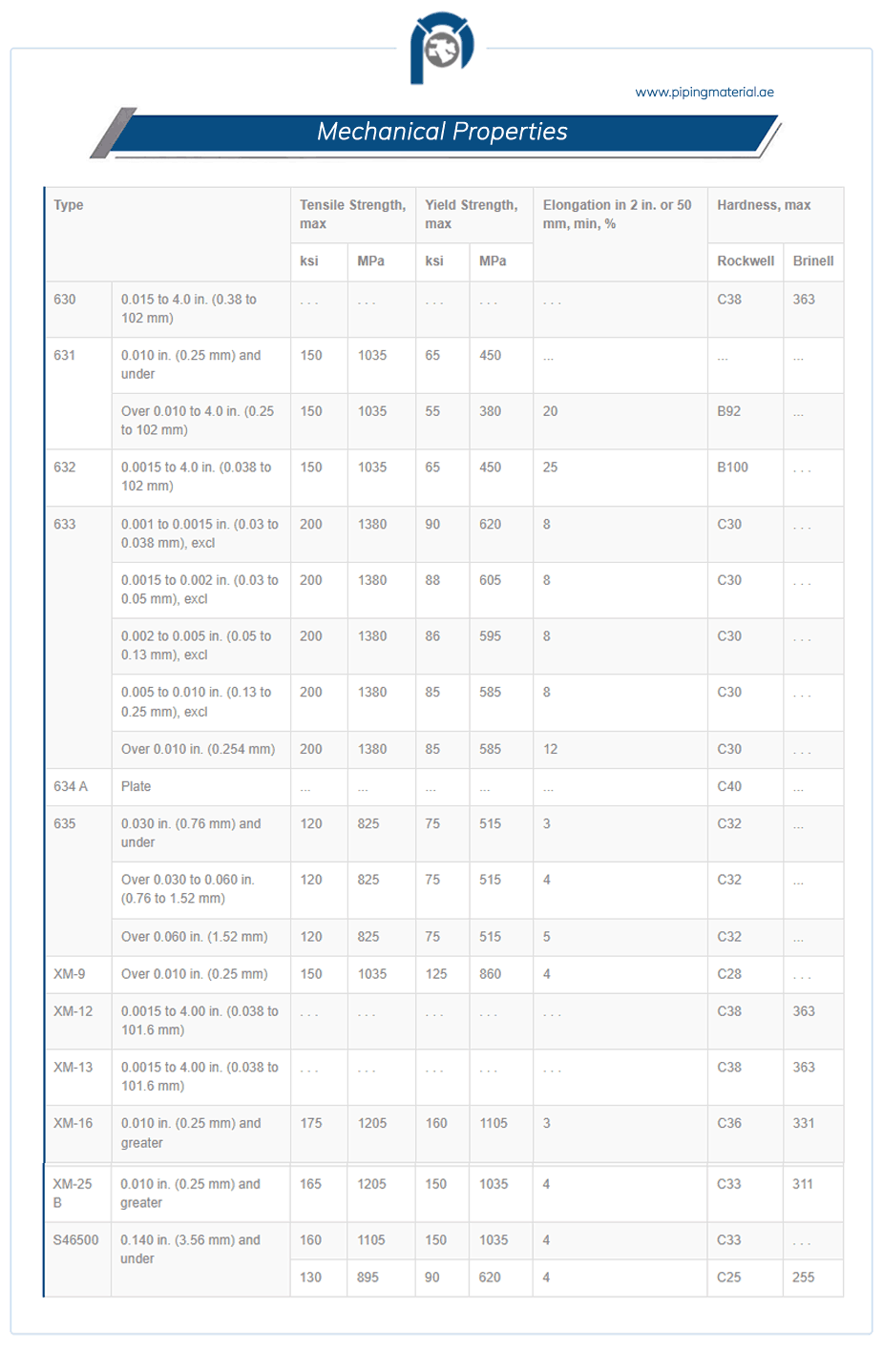

ASTM A693 Washer Mechanical Properties

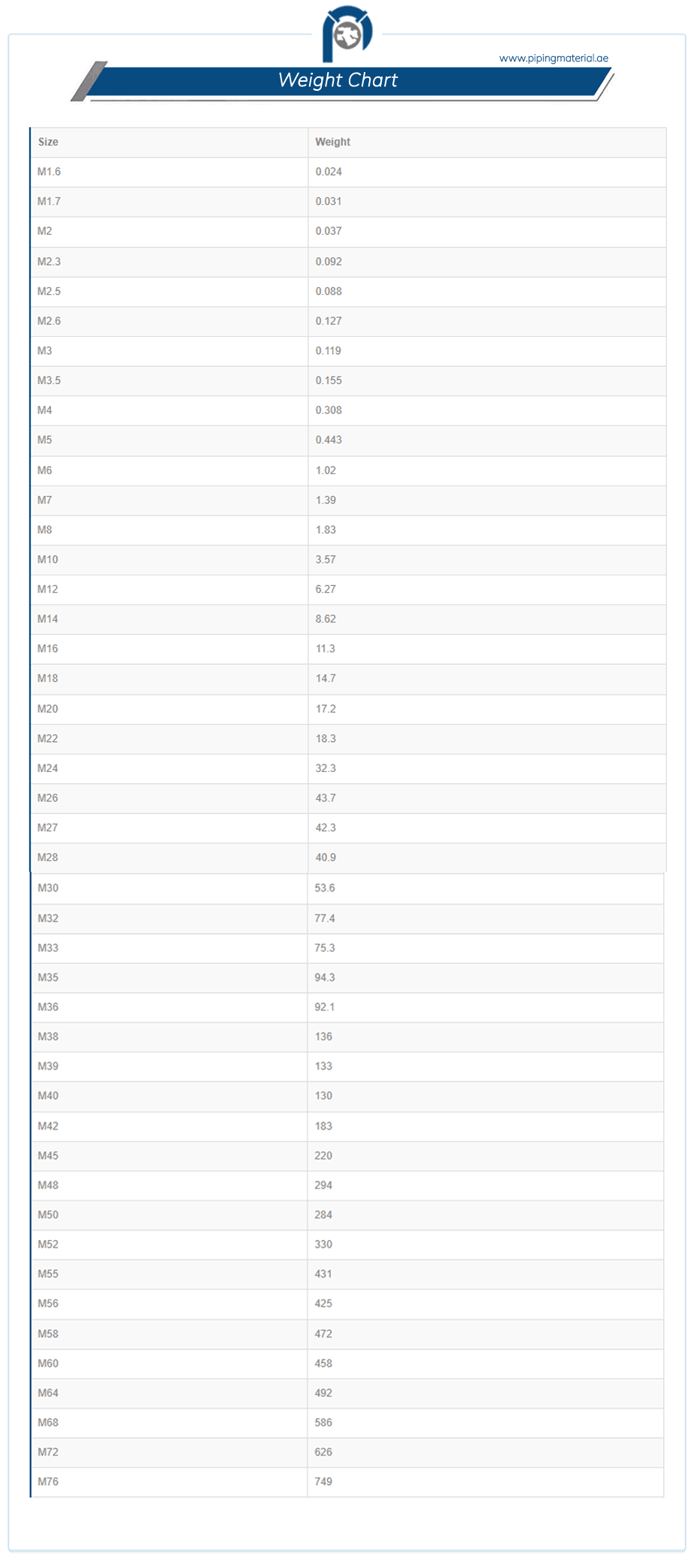

ASTM A693 Washer Weight Chart

ASTM A693 Washer Dimensions

Suppliers and manufacturers of ASTM A693 material in UAE

What is ASTM A693 material?

The ASTM A693 material covers standard precipitation hardened stainless and heat resistant material. This ASTM A693 Material is designed to meet a range of toughness based on its aging and precipitation temperatures.

Check SA693 Grade 630 flat washers price list, view A693 fender washers sizes and dimensions

How are ASTM A693 flat washers measured?

The ASTM A693 flat washers are measured based on their diameters. ASTM A693 Flat Washer can be checked using a caliper. The tool allows measurement of the inner, outer, and thickness of the washer.

ASTM A693-16 penny washers and Type 631 shim washers for high-duty applications in the Middle East countries

Where are ASTM A693 grade 630 fender washers used?

The A693 gr 630 fender washers have a larger outer diameter that is proportional to its central hole. These A693 Grade 630 Fender Washers are used to fasten and affix material efficiently. They are a feature in different process equipment, drilling systems, piping systems, power plants, etc.

View advantages and disadvantages of ASME SA693 square washers and A693 Grade 630 belleville washer

What are the advantages and disadvantages of an ASTM A693-16 penny washers?

The ASTM A693-16 penny washers are large diameter fasteners that spread their weight on the equipment. These ASTM A693-16 Penny Washers help reduce the stress on soft or thin gauge material. They protect the equipment from getting damaged during installation allowing for good pressure distribution. However, the washers may slip during installation causing damage to the material. Further, if a heavy load is placed on them, they can fracture or damage under such pressures.

Refer SA693 spring washer, A693-16 split washer and A693 Type 631 lock washer weight chart

How are metric ASTM A693 Type 631 shim washers measured?

The metric ASTM A693 Type 631 shim washers are specified based on M sizes. ASTM A693 Type 631 Shim Washers size refers to the diameter of the hole that correlates to the bolt diameter. The outside diameter of the washer is bigger than the fasteners.
