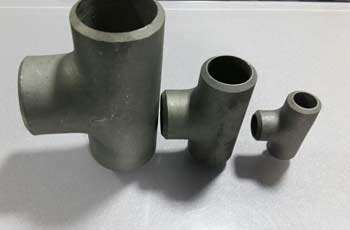

WPNC-S welded tee and elbow suppliers in UAE

ASTM B366 WPNC Fittings specification

ASTM B366 gr WPNC-S buttweld fittings sizes B366 gr WPNC buttweld fittings meet the requirements Delivery estimate and logistic of ASTM B366 WPNC buttweld pipe fittings
  • ASTM B366 gr.WPNC seamless fittings : 1/2″ – 24″ (BW)
  • Grade WPNC welded fittings : 24 – 96″ (BW)
  • ASME SB366 WPNC fabricated fittings : custom
  • MTC EN 10204-3.1
  • Sour service
  • NACE MR0175
  • NACE MR0103
  • ISO 15156
  • NACE TM-0284

Ship
By Ship

Air
By Air

ASTM B366 gr.WPNC bw fittings density Melting point of ASTM B366-WPNC butt weld fittings Nickel %
  • 8.83 g/cm³
  • 1300-1390 ℃
  • 63%
American standard & specification SB366 WPNC weld fittings design standard ASTM B366 WPNC-S seamless pipe fittings manufacturing technique
  • Seamless fittings: ASTM B366 WPNC-S
  • Welded fittings: ASTM B366 WPNC-W

Buy directly from ASTM B366 WPNC Fittings suppliers offer TPI & 3.1 MTC, they supplies WPNC material to several countries like middle east, USA, South Africa, Egypt & Oman

  • ANSI / ASME B16.9
  • ANSI/ ASME B16.25 (butt welding ends)
  • ANSI/ ASME B16.28
  • MSS-SP-43
  • MSS-SP-83
  • MSS-SP-95
  • JIS B2312
  • JIS B2313
  • DIN 2605
  • DIN2615
  • DIN2616
  • Hot forming
  • Mandrel
Ends of ASME SB366 WPNC buttweld fittings ASTM B366 grade WPNC welded pipe fittings schedule chart ASTM B366 gr.WPNC welded fittings testing reqirements
  • Bevelled
  • Plain Bevel
  • Compound Bevel
  • SCH 10
  • SCH 20
  • SCH 40
  • SCH 60
  • SCH 80
  • SCH 160
  • STD
  • XH
  • XXH
  • Magnetic Particle Examination (For above Sch 80 WPNC-S butt welded joint bevel ends)
  • Ultrasonic test
  • HIC tested
  • Positive Material Identification (PMI)
  • 100% Radiography Tested

Want to buy custom sizes? Send your drawing to above listed ASTM B366 WPNC Fittings suppliers & manufacturers & get competitive quote quickly

ASTM B366 WPNC-S bend radius B366 gr.WPNC pipe bend angle Grade WPNC butt welding fittings bending method
  • 3D
  • 4D
  • 5D
  • 6D
  • 8D
  • 10D
  • 15°
  • 22.5
  • 30°
  • 45°
  • 60°
  • 90°
  • 135°
  • 180°
  • Hot Induction Bending
  • Ram-Type Bending
  • Roll Bending
  • Mandrel Bending
  • Rotary Draw Bending
7 manufacturing forms of ASTM B366 gr.WPNC butt welded fittings Delivery state of ASME SB366 WPNC weldable pipe fittings ASTM B366 cl WPNC butt welded fittings features
  • ASTM B366 gr.WPNC elbow
  • Grade WPNC tee
  • ASME SB366-WPNC reducer
  • SB366 WPNC cap
  • ASTM B366 gr WPNC-S stub end
  • ASTM B366 Gr. WPNC pipe bend
  • B366 WPNC cross
  • Forging
  • Pushing
  • Pressing
  • Casting
  • Corrosion resistance
  • White surface
  • High temperature resistance
  • Fine arc

Highly engineered ASTM B366 grade WPNC buttweld pipe fittings at lowest price, call now to above verified WPNC material manufacturers

Grade WPNC tee drawing

Grade WPNC tee drawing

Manufacturing process of ASME SB366 WPNC tee

List of only 10 verified ASTM B366 WPNC-S welded fittings suppliers who already supplied WPNC material in UAE, Oman & Saudi Arabia

ASTM B366 WPNC buttweld tee

ASTM B366 WPNC tee dimensions

Grade WPNC tee drawing

NPS Center-to-End,
mm (in.)
OD at
Bevel, mm (in.)
Run, C Outlet, M Run Outlet
1/2×1/2×3/8 25(1.00) 25(1.00) 21.3(0.84) 17.3(0.68)
1/2×1/2×1/4 25(1.00) 25(1.00) 21.3(0.84) 13.7(0.54)
3/4×3/4×1/2 29(1.12) 29(1.12) 26.7(1.05) 21.3(0.84)
3/4×3/4×3/8 29(1.12) 29(1.12) 26.7(1.05) 17.3(0.68)
1×1×3/4 38(1.50) 38(1.50) 33.4(1.32) 26.7(1.05)
1×1×1/2 38(1.50) 38(1.50) 33.4(1.32) 21.3(0.84)
5/4×5/4×1 48(1.88) 48(1.88) 42.2(1.66) 33.4(1.32)
5/4×5/4×3/4 48(1.88) 48(1.88) 42.2(1.66) 26.7(1.05)
5/4×5/4×1/2 48(1.88) 48(1.88) 42.2(1.66) 21.3(0.84)
3/2×3/2×5/4 57(2.25) 57(2.25) 48.3(1.90) 42.2(1.66)
3/2×3/2×1 57(2.25) 57(2.25) 48.3(1.90) 33.4(1.32)
3/2×3/2×3/4 57(2.25) 57(2.25) 48.3(1.90) 26.7(1.05)
3/2×3/2×1/2 57(2.25) 57(2.25) 48.3(1.90) 21.3(0.84)
2×2×3/2 64(2.50) 60(2.38) 60.3(2.38) 48.3(1.90)
2×2×5/4 64(2.50) 57(2.25) 60.3(2.38) 42.2(1.66)
2×2×1 64(2.50) 51(2.00) 60.3(2.38) 33.4(1.32)
2×2×3/4 64(2.50) 44(1.75) 60.3(2.38) 26.7(1.05)
5/2×5/2×2 76(3.00) 70(2.75) 73.0(2.88) 60.3(2.38)
5/2×5/2×3/2 76(3.00) 67(2.62) 73.0(2.88) 48.3(1.90)
5/2×5/2×5/4 76(3.00) 64(2.50) 73.0(2.88) 42.2(1.66)
5/2×5/2×1 76(3.00) 57(2.25) 73.0(2.88) 33.4(1.32)
3×3×5/2 86(3.38) 83(3.25) 88.9(3.50) 73.0(2.88)
3×3×2 86(3.38) 76(3.00) 88.9(3.50) 60.3(2.38)
3×3×3/2 86(3.38) 73(2.88) 88.9(3.50) 48.3(1.90)
3×3×5/4 86(3.38) 70(2.75) 88.9(3.50) 42.2(1.66)
7/2×7/2×3 95(3.75) 92(3.62) 101.6(4.00) 88.9(3.50)
7/2×7/2×5/2 95(3.75) 89(3.50) 101.6(4.00) 73.0(2.88)
7/2×7/2×2 95(3.75) 83(3.25) 101.6(4.00) 60.3(2.38)
7/2×7/2×3/2 95(3.75) 79(3.12) 101.6(4.00) 48.3(1.90)
4×4×7/2 105(4.12) 102(4.00) 114.3(4.50) 101.6(4.00)
4×4×3 105(4.12) 98(3.88) 114.3(4.50) 88.9(3.50)
4×4×5/2 105(4.12) 95(3.75) 114.3(4.50) 73.0(2.88)
4×4×2 105(4.12) 89(3.50) 114.3(4.50) 60.3(2.38)
4×4×3/2 105(4.12) 86(3.38) 114.3(4.50) 48.3(1.90)
5×5×4 124(4.88) 117(4.62) 141.3(5.56) 114.3(4.50)
5×5×7/2 124(4.88) 114(4.50) 141.3(5.56) 101.6(4.00)
5×5×3 124(4.88) 111(4.38) 141.3(5.56) 88.9(3.50)
5×5×5/2 124(4.88) 108(4.25) 141.3(5.56) 73.0(2.88)
5×5×2 124(4.88) 105(4.12) 141.3(5.56) 60.3(2.38)
6×6×5 143(5.62) 137(5.38) 168.3(6.62) 141.3(5.56)
6×6×4 143(5.62) 130(5.12) 168.3(6.62) 114.3(4.50)
6×6×7/2 143(5.62) 127(5.00) 168.3(6.62) 101.6(4.00)
6×6×3 143(5.62) 124(4.88) 168.3(6.62) 88.9(3.50)
6×6×5/2 143(5.62) 121(4.75) 168.3(6.62) 73.0(2.88)
8×8×6 178(7.00) 168(6.62) 219.1(8.62) 168.3(6.62)
8×8×5 178(7.00) 162(6.38) 219.1(8.62) 141.3(5.56)
8×8×4 178(7.00) 156(6.12) 219.1(8.62) 114.3(4.50)
8×8×7/2 178(7.00) 152(6.00) 219.1(8.62) 101.6(4.00)
10×10×8 216(8.50) 203(8.00) 273.0(10.75) 219.1(8.62)
10×10×6 216(8.50) 194(7.62) 273.0(10.75) 168.3(6.62)
10×10×5 216(8.50) 191(7.50) 273.0(10.75) 141.3(5.56)
10×10×4 216(8.50) 184(7.25) 273.0(10.75) 114.3(4.50)
12×12×10 254(10.00) 241(9.50) 323.8(12.75) 273.0(10.75)
12×12×8 254(10.00) 229(9.00) 323.8(12.75) 219.1(8.62)
12×12×6 254(10.00) 219(8.62) 323.8(12.75) 168.3(6.62)
12×12×5 254(10.00) 216(8.50) 323.8(12.75) 141.3(5.56)
14×14×12 279(11.00) 270(10.62) 355.6(14.00) 323.8(12.75)
14×14×10 279(11.00) 257(10.12) 355.6(14.00) 273.0(10.75)
14×14×8 279(11.00) 248(9.75) 355.6(14.00) 219.1(8.62)
14×14×6 279(11.00) 238(9.38) 355.6(14.00) 168.3(6.62)
16×16×14 305(12.00) 305(12.00) 406.4(16.00) 355.6(14.00)
16×16×12 305(12.00) 295(11.62) 406.4(16.00) 323.8(12.75)
16×16×10 305(12.00) 283(11.12) 406.4(16.00) 273.0(10.75)
16×16×8 305(12.00) 273(10.75) 406.4(16.00) 219.1(8.62)
16×16×6 305(12.00) 264(10.38) 406.4(16.00) 168.3(6.62)
18×18×16 343(13.50) 330(13.00) 457(18.00) 406.4(16.00)
18×18×14 343(13.50) 330(13.00) 457(18.00) 355.6(14.00)
18×18×12 343(13.50) 321(12.62) 457(18.00) 323.8(12.75)
18×18×10 343(13.50) 308(12.12) 457(18.00) 273.0(10.75)
18×18×8 343(13.50) 298(11.75) 457(18.00) 219.1(8.62)
20×20×18 381(15.00) 368(14.50) 508(20.00) 457.0(18.00)
20×20×16 381(15.00) 356(14.00) 508(20.00) 406.4(16.00)
20×20×14 381(15.00) 356(14.00) 508(20.00) 355.6(14.00)
20×20×12 381(15.00) 346(13.62) 508(20.00) 323.8(12.75)
20×20×10 381(15.00) 333(13.12) 508(20.00) 273.0(10.75)
20×20×8 381(15.00) 324(12.75) 508(20.00) 219.1(8.62)
22×22×20 419(16.50) 406(16.00) 559(22.00) 508.0(20.00)
22×22×18 419(16.50) 394(15.50) 559(22.00) 457.0(18.00)
22×22×16 419(16.50) 381(15.00) 559(22.00) 406.4(16.00)
22×22×14 419(16.50) 381(15.00) 559(22.00) 355.6(14.00)
22×22×12 419(16.50) 371(14.62) 559(22.00) 323.8(12.75)
22×22×10 419(16.50) 359(14.12) 559(22.00) 273.0(10.75)
24×24×22 432(17.00) 432(17.00) 610(24.00) 559.0(22.00)
24×24×20 432(17.00) 432(17.00) 610(24.00) 508.0(20.00)
24×24×18 432(17.00) 419(16.50) 610(24.00) 457.0(18.00)
24×24×16 432(17.00) 406(16.00) 610(24.00) 406.4(16.00)
24×24×14 432(17.00) 406(16.00) 610(24.00) 355.6(14.00)
24×24×12 432(17.00) 397(15.62) 610(24.00) 323.8(12.75)
24×24×10 432(17.00) 384(15.12) 610(24.00) 273.0(10.75)
26×26×24 495(19.50) 483(19.00) 660(26.00) 610.0(24.00)
26×26×22 495(19.50) 470(18.50) 660(26.00) 559.0(22.00)
26×26×20 495(19.50) 457(18.00) 660(26.00) 508.0(20.00)
26×26×18 495(19.50) 444(17.50) 660(26.00) 457.0(18.00)
26×26×16 495(19.50) 432(17.00) 660(26.00) 406.4(16.00)
26×26×14 495(19.50) 432(17.00) 660(26.00) 355.6(14.00)
26×26×12 495(19.50) 422(16.62) 660(26.00) 323.8(12.75)
28×28×26 521(20.50) 521(20.50) 711(28.00) 660.0(26.00)
28×28×24 521(20.50) 508(20.00) 711(28.00) 610.0(24.00)
28×28×22 521(20.50) 495(19.50) 711(28.00) 559.0(22.00)
28×28×20 521(20.50) 483(19.00) 711(28.00) 508.0(20.00)
28×28×18 521(20.50) 470(18.50) 711(28.00) 457.0(18.00)
28×28×16 521(20.50) 457(18.00) 711(28.00) 406.4(16.00)
28×28×14 521(20.50) 457(18.00) 711(28.00) 355.6(14.00)
28×28×12 521(20.50) 448(17.62) 711(28.00) 323.8(12.75)
30×30×28 559(22.00) 546(21.50) 762(30.00) 711.0(28.00)
30×30×26 559(22.00) 546(21.50) 762(30.00) 660.0(26.00)

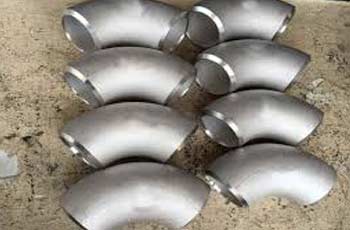

ASTM B366 cl WPNC elbow

ASME SB366 WPNC bw fittings and pipe bend suitable for high/ freezing temperatures

ASTM B366 WPNC elbow

Types of ASTM B366 WPNC buttweld elbow Grade WPNC elbow angle direction & degrees
  • Seamless elbow
  • Welded elbow
  • Long radius elbow
  • Short radius elbow
  • 1d elbow
  • 1.5d elbow
  • 2d elbow
  • 3d elbow
  • 5d elbow
  • 8d elbow
  • reducing elbow
  • 22.5 degree elbow
  • 30° elbow
  • 45° elbow
  • 60° elbow
  • 90° elbow
  • 120° elbow
  • 180° elbow
  • 90° long radius elbow (LR)
  • 90° short radius elbow (SR)
  • 45° long radius elbow
  • 45° short radius elbow
  • 180° long radius elbow (LR return)
  • 180° short radius elbow (SR return)

Purchase from above listed verified ASTM B366 WPNC Fittings suppliers & stockists with MTC certificate



SB366 WPNC tee

B366 gr WPNC weldable pipe fittings in SCHED 40/ 80, X/S, get a free quote via live chat

ASTM B366 WPNC tee

  • Buttweld tee
  • Reducing tee
  • Equal tee
  • Swept tee
  • Saddle tee
  • Barred tee
  • Lateral tee
  • B366 cl WPNC Y tee
  • Straight tees
  • Reducing outlet tees

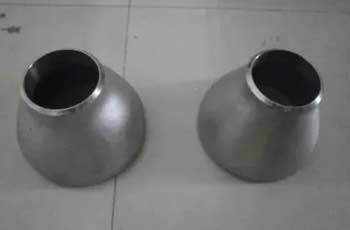

ASTM B366-WPNC reducer

ASTM B366 WPNC reducer

B366 gr WPNC buttweld reducer are manufactured via seamless & welded method, following forms are available in all standard sizes as per ASME B16.9

  • B366 gr.WPNC concentric reducer
  • ASME SB366 WPNC eccentric reducer

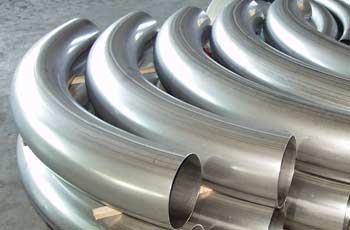

B366 gr WPNC pipe bend

ASTM B366 WPNC pipe bend

Types ASTM B366-WPNC pipe bend dimensions & standard
  • Long radius bend
  • WPNC-S short radius bend
  • Piggable bend
  • Hot induction bend
  • Seamless pipe bend
  • Welded pipe bend
  • Return bend
  • SB366 grade WPNC J bend
  • Mitered pipe bend
  • B366 gr WPNC 2.5d pipe bend
  • ASME SB366 WPNC 3d pipe bend
  • 5d pipe bend
  • 10d pipe bend
  • 22d pipe bend
  • ASTM B366 grade WPNC L bend
  • OD 1/2” to 60”
  • DN15 – DN 1500
  • ASME B16.49
  • ASME B16.9

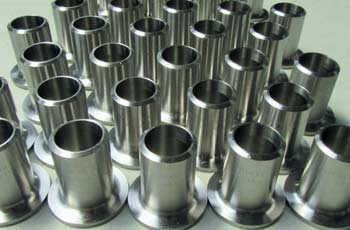

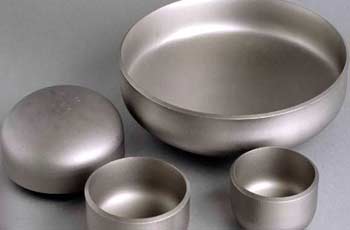

ASTM B366 Gr. WPNC stub end & cap

ASTM B366 WPNC stub end

ASTM B366 WPNC end cap

  • Short stub end
  • Long stub end
  • Lap joint stub end
  • Butt welded hemi-head pipe cap
  • B366 gr WPNC-S collar

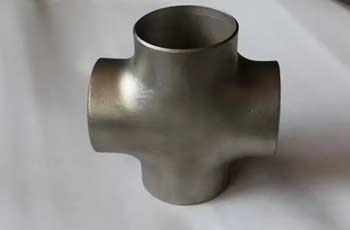

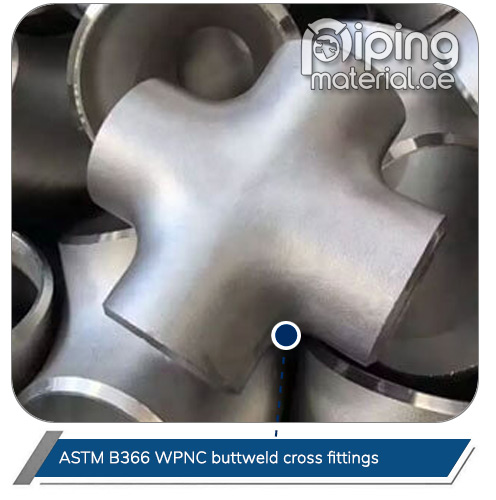

WPNC-S buttweld cross fittings

ASTM B366 WPNC buttweld cross fittings

  • Equal cross
  • Unequal cross (reducing)
  • Straight crosses
  • Reducing outlet crosses

ASME SB366-WPNC swage nipple

ASTM B366 WPNC swage nipple

  • Concentric swage nipple
  • Eccentric swage nipple (reducing)

End types ASTM B366 gr WPNC-S Swaged nipple

  • PBE – Plain Both Ends
  • BBE – Beveled Both Ends
  • TBE – Treaded Both Ends
  • PSE – Plain small end
  • BSE – Beveled small end
  • TSE – Treaded small end
  • PLE – Plain large end
  • BLE – Beveled large end
  • TLE – Treaded large end

B366 gr WPNC buttweld fittings equivalent standard

UNS WP CR
UNS N04400 WPNC CRNC

ASTM B366 gr.WPNC bw fittings chemical composition

C Mn S Si Ni Cu Fe
.30 max 2.00 max .024 max .50 max 63.0 min 28.0-34.0 2.50 max

SB366 WPNC weld fittings mechanical properties

Condition & Size Yield Strength
(0.2% Offset)
Tensile Strength Elongation Hardness Reduction of Area
MPa, min MPa, min %, min Rockwell, max %, min
Seamless / Welded 195 480 35

B366 WPNC fittings physical properties

Density g/cm3 8.80
lb/in.3 0.318
Melting Range °F 2370 – 2460
°C 1300 – 1350

ASTM B366 gr.WPNC welded fittings delivery and surface condition

Delivery Standard Surface Condition
Annealed Pickled
Polished
Sand Blasted
