ASTM B366 WPNCMC Fittings

ASTM B366 WPNCMC Fittings Product Overview

Sizes in Stock: 1/2″NB to 48″ NB
American & European Standard: ASME SB 366, ASTM B366, UNS N10276, WNR 2.4819
Manufacturing Standard ANSI/ASME B16.28, ASME B16.9, MSS-SP-43, ANSI/ASME B16.25, MSS-SP-95
Environment: Caustic Soda, Highly Corrosive, Marine
Origin of Raw Material: UK, Korean, European, Indian, Japanese, German
Bending Radius: 1D, 3D, 2D, 6D, 5D, 10D, 8D
Heat Treatment: 927°C – 1204°C
Lifespan: More than 50 years
HSN Code: 7307
Bending Angle: 22.5°, 30°, 60°, 90°, 45°, or Custom
MTC: MTC EN 10204 3.1
Schedule: SCH 10 to SCH 160
Delivery Time:
  • Egypt : 18 Days
  • Germany : 20 Days
RFQ: support@pipingmaterial.ae



Piping Material

Table of Content



WPNCMC-S Buttweld Elbow And Reducing Tee Suppliers in UAE

Specification of ASTM B366 WPNCMC Fittings

Sizes in Stock

Sizes in Stock: Buttweld : 1/2 to 36″, Seamless : 1/2″-24″, Welded : 24 to 96″;

Maximum Available Size

Maximum Available Size: 120″ (DN2000)

Forms

Forms: Reducer, Cap, Elbow, Tee, Cross

Wall Thickness

Wall Thickness : SCH 10 TO SCH XXS

Finish

Finish: Mirror, Pickled, Polished, Mill

Packaging

Packaging: Carton Box, Plastic Bag, Wooden Case

Value Added Services

Value Added Services: Polishing, Threading, Welding, Bevelling, Cutting, Casting

Method

Method: Fabricated, Seamless, Buttweld, Welded

Machinery

Machinery: Cold Forging, Beveling Machine, CNC

Temprature Range

Temprature Range: 1600 to 2150°F

Application

Application: Power Industry, Petrochemical Industry, Aerospace, Marine Industry

Testing

Testing: Hardness Test, MPT, PMI Test, Hyrdrostatic Test

Quote

Get Quote Directly From ASTM B366 WPNCMC Fittings Suppliers in UAE

Tested

100% Tested ASTM B366 WPNCMC Elbow With MTC EN 10204 3.1/3.2



Ready to Deliver Stock Of ASTM B366 WPNCMC Pipe Fittings

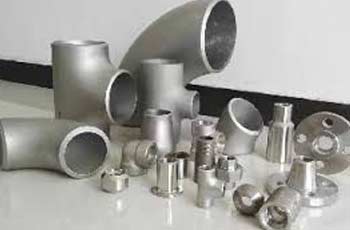

ASTM B366 WPNCMC BW Fittings

ASTM B366 WPNCMC BW Fittings
  • Rockwell B: 135 To 165C
  • Packaging : Plastic Wrap, Wooden Box

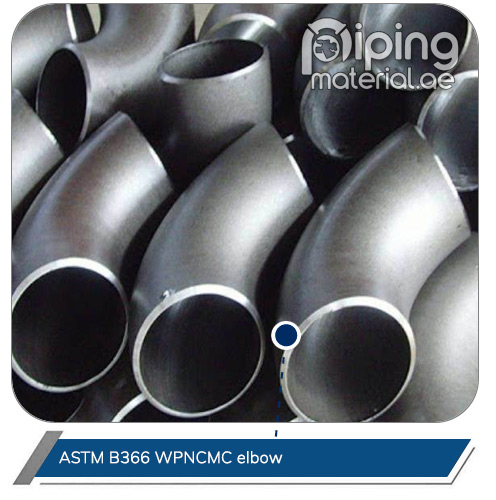

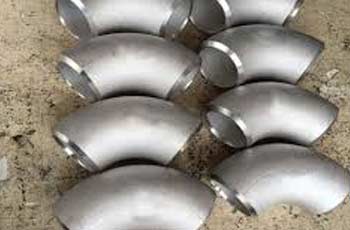

ASTM B366 WPNCMC Elbow

ASTM B366 WPNCMC Elbow
  • Ni Content: 38-46%
  • Shape: Equal

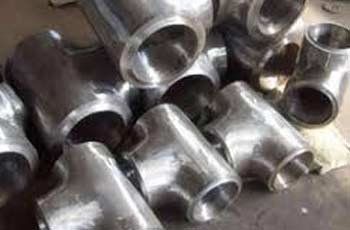

SB366 WPNC Tee

SB366 WPNC Tee
  • Density: 8.14 Mg/m³
  • Customized Support: OEM, ODM, OBM

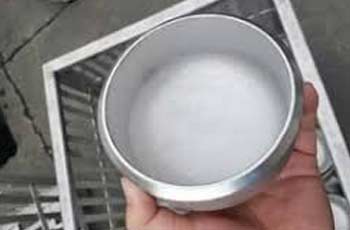

ASTM B366 WPNCMC-WX Cap

ASTM B366 WPNCMC-WX Cap
  • Annealing at : 940°C
  • Finish: Bright, Mill, Polished

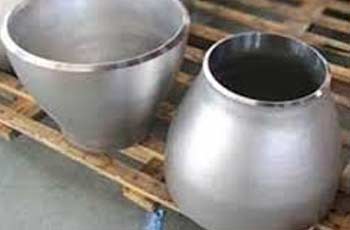

ASTM B366 Grade WPNC Reducer

ASTM B366 Grade WPNC Reducer
  • HSN Code: 7307
  • Hardness In Brinell: 327 (maximum)

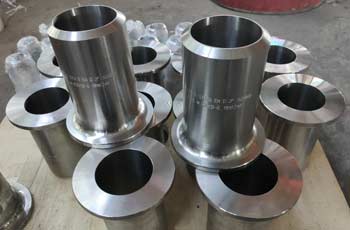

ASTM B366 gr WPNCMC gr 1 Stub End

ASTM B366 WPNCMC Gr 1 Stub End
  • Mounting hole diameter: 0.25 in
  • Fitting Connection: Welding

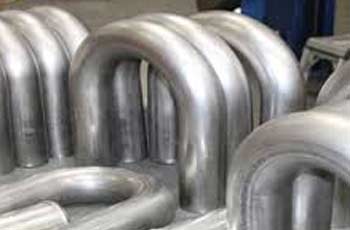

ASME SB366 WPNCMC Pipe Bend

ASME SB366 WPNCMC Pipe Bend
  • Angle: 0°-180°, customized
  • Finish: Polished

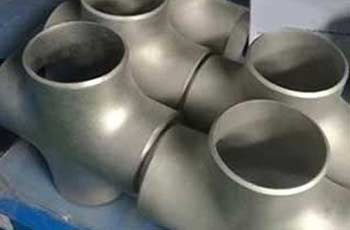

ASTM B366 WPNCMC-S Equal Cross

ASTM B366 WPNCMC-S Equal Cross
  • Head Code: Round
  • Technic: Casting



Find only Genuine Stockist and Distributors of ASTM B366 WPNCMC Fittings in UAE

  • Al Saqr Industries L.L.C.- Sharjah, UAE
  • Emirates National Chemical Industries LLC- Dubai, UAE
  • Union Chemicals Factory LLC- Abu Dhabi, UAE
  • HAK Industrial Chemicals LLC – Dubai, UAE
  • Royal Orange Chemical Industries LLC – Dubai, UAE



ASTM B366 WPNCMC Fittings Technical Data

ASTM B366 gr.WPNCMC buttweld fittings sizes ASTM B366 WPNCMC butt welded fittings meet the requirements ASME SB366 WPNCMC weldable pipe fittings temperature
  • Grade WPNCMC seamless fittings : 1/2″ – 24″ (BW)
  • ASME SB366 WPNCMC welded fittings : 24 – 96″ (BW)
  • B366 gr WPNCMC fabricated fittings : custom
  • MTC EN 10204-3.1
  • Sour service
  • NACE MR0175
  • NACE MR0103
  • ISO 15156
  • NACE TM-0284
  • 1800°F
ASME SB366 WPNCMC butt welding fittings density Melting point of ASTM B366 WPNCMC gr 1 butt welded joint Nickel %
  • 8.4 g/cm3
  • 1350 °C (2460 °F)
  • 58%
American standard & specification B366 gr.WPNCMC welded pipe fittings design standard WPNCMC-S seamless pipe fittings manufacturing technique
  • Seamless fittings: ASTM B366 WPNCMC-S
  • Welded fittings: ASTM B366 WPNCMC-W

Get a free sample from above listed ASTM B366 WPNCMC Fittings Suppliers & manufacturers, their major exporting countries are South Africa, Saudi Arabia, Egypt, USA & Oman
  • ANSI / ASME B16.9
  • ANSI/ ASME B16.28
  • ANSI/ ASME B16.25 (butt welding ends)
  • MSS-SP-43
  • MSS-SP-83
  • MSS-SP-95
  • DIN 2605
  • DIN2615
  • DIN2616
  • JIS B2312
  • JIS B2313
  • Hot forming
  • Mandrel
Ends of ASTM B366 gr WPNCMC-S buttweld fittings Grade WPNCMC weld fittings schedule chart ASTM B366 gr.WPNCMC welded fittings testing reqirements
  • Bevelled
  • Plain Bevel
  • Compound Bevel
  • SCH 5
  • SCH 10
  • SCH 20
  • SCH 40
  • SCH 60
  • SCH 80
  • SCH 160
  • STD
  • XH
  • XXS
  • Magnetic Particle Examination (For above Sch 80 ASME SB366 WPNCMC butt welding fittings bevel ends)
  • Ultrasonic test
  • HIC tested
  • Positive Material Identification (PMI)
  • 100% Radiography Tested

Needed Custom Sizes? Contact Verified ASTM B366 WPNCMC Fittings Suppliers in UAE, Contact Now via Mail or Live Chat
ASTM B366 WPNCMC bend radius ASTM B366 cl WPNCMC pipe bend angle ASTM B366 WPNCMC pipe fittings bending method
  • 6D
  • 8D
  • 3D
  • 4D
  • 10D
  • 5D
  • 15°
  • 22.5
  • 30°
  • 45°
  • 60°
  • 90°
  • 135°
  • 180°
  • Mandrel Bending
  • Rotary Draw Bending
  • Hot Induction Bending
  • Roll Bending
  • Ram-Type Bending
7 manufacturing forms of ASME SB366 WPNCMC butt welded fittings Delivery state of WPNCMC bw fittings ASTM B366 grade WPNCMC buttweld fittings features
  • ASTM B366 gr.WPNCMC elbow
  • Grade WPNCMC tee
  • ASTM B366 gr.WPNCMC reducer
  • WPNCMC-S cap
  • ASME SB366 WPNCMC stub end
  • ASTM B366 WPNCMC gr 1 pipe bend
  • ASME SB366 WPNCMC cross
  • Pushing
  • Casting
  • Pressing
  • Forging
  • Corrosion resistance
  • White surface
  • Fine arc
  • High temperature resistance



ASTM B366 Gr.WPNCMC Elbow in 30/ 45/ 60/ 90 Degree (Long & Short Radius) Angles, Check WPNCMC Material Stock In Dubai & Saudi Arabia

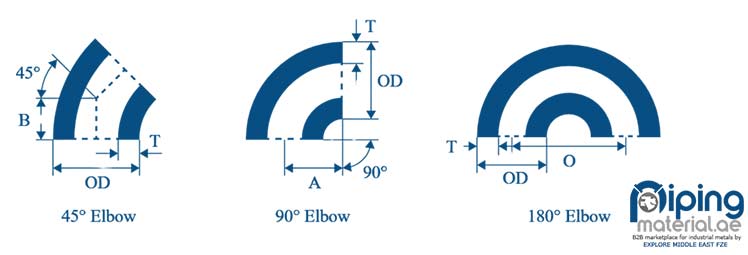

B366 Gr.WPNCMC Elbow Drawing


B366 gr.WPNCMC elbow drawing



Types of Bending ASTM B366-WPNCMC Buttweld Fittings

  • Rotary draw bending
  • Mandrel bending
  • Roll bending
  • Ram type bending
  • Hot induction bending

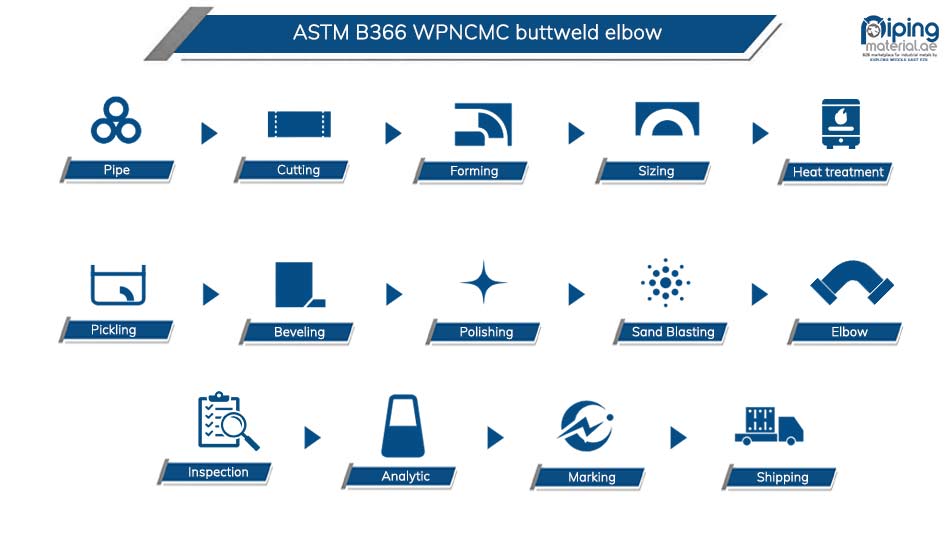

Manufacturing Process of ASME SB366 WPNCMC Elbow


ASTM B366 WPNCMC buttweld elbow



Partner Traders And Importers Are Available In The Regions Mentioned Below For Swift Deliveries

Region City Country
Middle East Dubai United Arab Emirates
Middle East Riyadh Saudi Arabia
Middle East Abu Dhabi United Arab Emirates
Middle East Dammam Saudi Arabia
Africa Abuja Nigeria
Middle East Doha Qatar
Middle East Jeddah Saudi Arabia
Middle East Kuwait City Kuwait
MENA Casablanca Morocco
MENA Cairo Egypt
Africa Cape Town South Africa
Africa Johannesburg South Africa
Africa Lagos Nigeria



ASTM B366 WPNCMC-S Buttweld Fittings in SCH 10/ 40/ 60 to XXS, Get A Free Quote From Verified WPNCMC Fittings Suppliers

ASTM B366 WPNCMC Tee Available Sizes in Stock

Types Welded Seamless Buttweld
Elbow 4″ To 120″ 1/2″ To 28″ 1/2″ To 24″
Reducers 2″ To 56″ 1/2″ To 48″ 1/2″ To 24″
Tee 12″ To 80″ 1/2″ To 36″ 1/2″ To 24″
End Cap 6″ To 70 2″ To 24 1/2″ to 24″
Pipe Bends Upto 48 Up to 36 Up to 24



ASTM B366 Grade WPNCMC Grade Fittings Heat Treatment

Stress Relieved Solution Treated Annealed
Up to 870°C 1090 – 1200°C 930 To 1040°C



Applications of ASTM B366 Gr WPNCMC Gr 1 Fittings

  • Marine Industry
  • Chemical Processing
  • Waste Treatment
  • Aerospace Components
  • Petroleum Refining
  • Air Pollution Control
  • Nuclear Industry



Dimensions of B366 WPNCMC Elbow


B366 gr.WPNCMC elbow drawing



Long Radius Elbows

NPS OD (Outside Diameter) at Bevel, mm(in.) Center-to-End, mm(in.)
90 degree Elbows, A 45 degree Elbows, B
1/2 21.3(0.84) 38(1.50) 16(0.62)
3/4 26.7(1.05) 38(1.50) 19(0.75)
1 33.4(1.32) 38(1.50) 22(0.88)
5/4 42.2(1.66) 48(1.88) 25(1.00)
3/2 48.3(1.90) 57(2.25) 29(1.12)
2 60.3(2.38) 76(3.00) 35(1.38)
5/2 73.0(2.88) 95(3.75) 44(1.75)
3 88.9(3.50) 114(4.50) 51(2.00)
7/2 101.6(4.00) 133(5.25) 57(2.25)
4 114.3(4.50) 152(6.00) 64(2.50)
5 141.3(5.56) 190(7.50) 79(3.12)
6 168.3(6.62) 229(9.00) 95(3.75)
8 219.1(8.62) 305(12.00) 127(5.00)
10 273.0(10.75) 381(15.00) 159(6.25)
12 323.8(12.75) 457(18.00) 190(7.50)
14 355.6(14.00) 533(21.00) 222(8.75)
16 406.4(16.00) 610(24.00) 254(10.00)
18 457.0(18.00) 686(27.00) 286(11.25)
20 508.0(20.00) 762(30.00) 318(12.50)
22 559.0(22.00) 838(33.00) 343(13.50)
24 610.0(24.00) 914(36.00) 381(15.00)
26 660.0(26.00) 991(39.00) 406(16.00)
28 711.0(28.00) 1067(42.00) 438(17.25)
30 762.0(30.00) 1143(45.00) 470(18.50)
32 813.0(32.00) 1219(48.00) 502(19.75)
34 864.0(34.00) 1295(51.00) 533(21.00)
36 914.0(36.00) 1372(54.00) 565(22.25)
38 965.0(38.00) 1448(57.00) 600(23.62)
40 1016.0(40.00) 1524(60.00) 632(24.88)
42 1067.0(42.00) 1600(63.00) 660(26.00)
44 1118.0(44.00) 1676(66.00) 695(27.38)
46 1168.0(46.00) 1753(69.00) 727(28.62)
48 1219.0(48.00) 1829(72.00) 759(29.88)



Short Radius Elbows

Nominal Pipe Size Center-to-End, A, mm(in.) OD at Bevel, mm(in.)
1 25(1.00) 33.4(1.32)
5/4 32(1.25) 42.2(1.66)
3/2 38(1.50) 48.3(1.90)
2 51(2.00) 60.3(2.38)
5/2 64(2.50) 73.0(2.88)
3 76(3.00) 88.9(3.50)
7/2 89(3.50) 101.6(4.00)
4 102(4.00) 114.3(4.50)
5 127(5.00) 141.3(5.56)
6 152(6.00) 168.3(6.62)
8 203(8.00) 219.1(8.62)
10 254(10.00) 273.0(10.75)
12 305(12.00) 323.8(12.75)
14 356(14.00) 355.6(14.00)
16 406(16.00) 406.4(16.00)
18 457(18.00) 457.0(18.00)
20 508(20.00) 508.0(20.00)
22 559(22.00) 559.0(22.00)
24 610(24.00) 610.0(24.00)



Types of ASTM B366 WPNCMC Elbow

ASTM B366 WPNCMC elbow



Types of Grade WPNCMC buttweld elbow B366 gr.WPNCMC elbow angle direction & degrees
  • Seamless elbow
  • Welded elbow
  • Long radius elbow
  • Short radius elbow
  • 1d elbow
  • 1.5d elbow
  • 2d elbow
  • 3d elbow
  • 5d elbow
  • 8d elbow
  • Reducing elbow
  • 22.5 degree elbow
  • 30° elbow
  • 45° elbow
  • 60° elbow
  • 90° elbow
  • 120° elbow
  • 180° elbow
  • 90° long radius elbow (LR)
  • 90° short radius elbow (SR)
  • 45° long radius elbow
  • 45° short radius elbow
  • 180° long radius elbow (LR return)
  • 180° short radius elbow (SR return)

You Can Contact Above Listed Top 10 Stockists & ASTM B366 WPNCMC Fittings Suppliers in UAE for Beveled Elbow

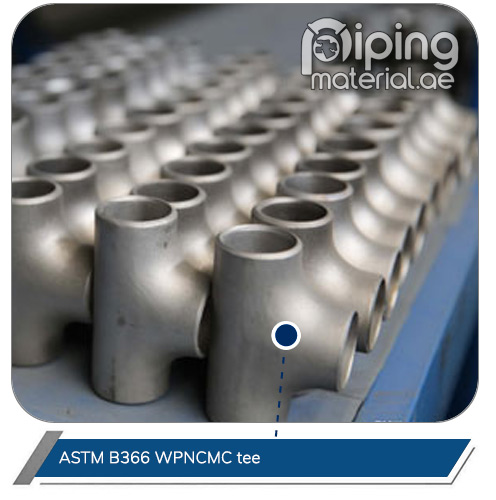

Types of ASME SB366 WPNCMC Tee

ASTM B366 WPNCMC tee

  • Buttweld tee
  • Reducing tee
  • Equal tee
  • Swept tee
  • Saddle tee
  • Barred tee
  • Lateral tee
  • WPNCMC Y tee
  • Straight tees
  • Reducing outlet tees



Types of ASTM B366 Gr WPNCMC-S Reducer

ASTM B366 WPNCMC reducer

  • WPNCMC-S concentric reducer
  • ASME SB366 WPNCMC eccentric reducer



Sales Representative Available To Provide Quick Quote

Middle East Countries Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
MENA Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria



Types of ASTM B366-WPNCMC Pipe Bend

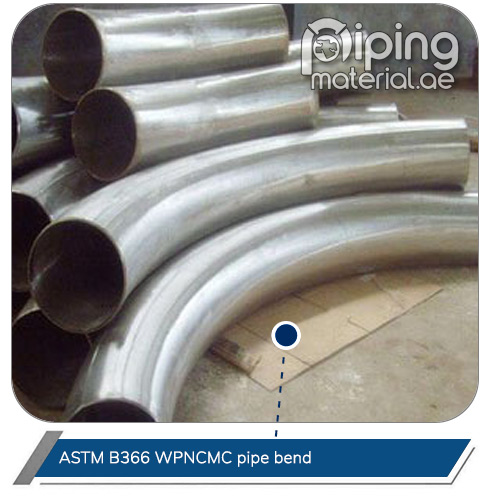

ASTM B366 WPNCMC pipe bend

WPNCMC bend Types SB366 WPNCMC pipe bend dimensions & standard
  • Long radius bend
  • Short radius bend
  • Piggable bend
  • Hot induction bend
  • Seamless pipe bend
  • Welded pipe bend
  • Return bend
  • B366-WPNCMC J bend
  • Mitered pipe bend
  • 2.5d pipe bend
  • 3d pipe bend
  • 5d pipe bend
  • 10d pipe bend
  • 22d pipe bend
  • L bend
  • OD 1/2” to 60”
  • DN15 – DN 1500
  • ASME B16.49
  • ASME B16.9





Types of B366 Gr WPNCMC Stub End & Cap

ASTM B366 WPNCMC end cap

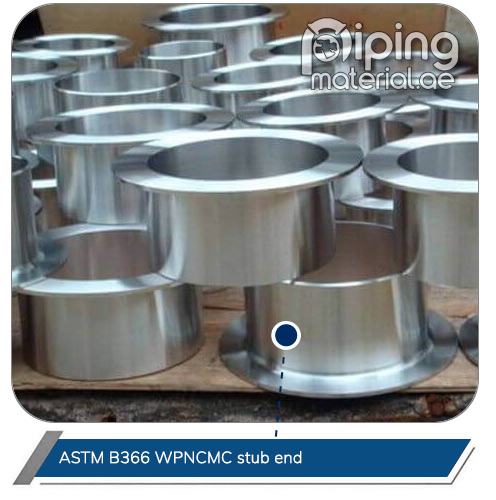

ASTM B366 WPNCMC stub end
  • Short stub end
  • Long stub end
  • Lap joint stub end
  • Butt welded hemi-head pipe cap
  • B366 WPNCMC collar

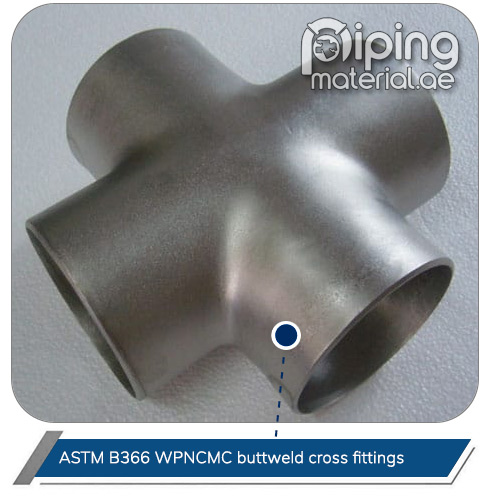

Types of SB366 Grade WPNCMC Buttweld Cross Fittings

ASTM B366 WPNCMC buttweld cross fittings

  • Equal cross
  • Unequal cross (reducing)
  • Straight crosses
  • Reducing outlet crosses



Types of ASTM B366 Grade WPNCMC Swage Nipple

ASTM B366 WPNCMC swage nipple

  • ASME SB366 grade WPNCMC concentric swage nipple
  • B366 gr.WPNCMC eccentric swage nipple (reducing)



End Types ASTM B366 Cl WPNCMC Swaged Nipple

  • PBE – Plain Both Ends
  • BBE – Beveled Both Ends
  • TBE – Treaded Both Ends
  • PSE – Plain small end
  • BSE – Beveled small end
  • TSE – Treaded small end
  • PLE – Plain large end
  • BLE – Beveled large end
  • TLE – Treaded large end



Get Custom Sizes And Marking On WPNCMC Pipe Fittings, Chat With Ped Approved WPNCMC Gr 1 Welded Fittings Manufacturers For Latest Price List

Size Chart Of SB366 Grade WPNCMC Seamless Fittings

O.D (Inches) WT in Inch ID BW Weight  Lbs/Ft.
1 0.035 0.930 20 0.3607
0.049 0.902 18 0.4977
0.065 0.870 16 0.6491
0.083 0.834 14 0.8129
0.120 0.760 11 1.1278
1/2 0.020 0.460 25 0.1025
0.035 0.430 20 0.1738
0.049 0.402 18 0.2360
0.065 0.370 16 0.3020
7/8 0.049 0.777 18 0.4323
0.065 0.745 16 0.5623
0.120 0.635 11 0.9676
7/16 0.049 0.340 18 0.2036
3/4 0.035 0.680 20 0.2673
0.049 0.652 18 0.3668
0.065 0.620 16 0.4755
0.083 0.584 14 0.5913
3/8 0.028 0.319 22 0.1038
0.035 0.305 20 0.1271
0.049 0.277 18 0.1706
0.065 0.245 16 0.2152
5/8 0.035 0.555 20 0.2205
0.049 0.527 18 0.3014
0.065 0.495 16 0.3888
1-1/4 0.120 1.010 11 1.4480
5/16 0.035 0.242 20 0.1039
0.049 0.214 18 0.1382
0.065 0.182 16 0.1722
1/4 0.020 0.210 25 0.0491
0.028 0.194 22 0.0664
0.032 0.187 21 0.0745
0.035 0.180 20 0.0804
0.049 0.152 18 0.1052
0.065 0.120 16 0.1284
1/8 0.028 0.069 22 0.0290
0.035 0.055 20 0.0336
3/16 0.028 0.131 22 0.0478



Marking For ASTM B366 gr WPNCMC Reducer

  • Material grade
  • Origin of material
  • Sizes, Manufacturer logo



Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below

Country Cities
Netherlands Amsterdam
Netherlands The Hague
Belgium Brussels
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Seraing
Netherlands Eindhoven
Belgium Ghent
Netherlands Rotterdam
Belgium Leuven
Belgium Westerlo
Belgium Antwerp



Preventions Tips To Avoid Welding Cracks For ASME SB366 BW Weld Fittings

  • Control Welding Parameter
  • Proper Preheating
  • Ensures No Moisture
  • Post-welding Treatment
  • Clean Joint from Rust
  • Use Proper Welding Consumables
  • Low Strength Filler Metals



ASME B16.9 Standard ASTM B366 Cl WPNCMC Weld Fittings Are Manufacturerd In Shape Of Reducers, Caps, Tees, Elbows And Pipe Bend

Equivalent Standard of WPNCMC material

Alloy UNS WP CR
Alloy 600 UNS N06600 WPNCI CRNCI
Alloy 625 UNS N06625 WPNCMC CRNCMC



Chemical Composition of ASTM B366 WPNCMC Butt Welded Fittings

Grade Si Ni C S Fe Cu Cr Mn
WPNCMC 0.50 max 58.0 min 0.10 max 0.015 max 5.0 max – 20.0 – 23.0 0.50 max
WPNCI 0.50 max 72.00 min 0.15 max 0.015max 6.00 – 10.00 0.50 max 14.00 – 17.00 1.00 max



Mechanical Properties of ASME SB366 WPNCMC Butt Welding Fittings

Condition & Size Elongation Tensile Strength Yield Strength
(0.2% Offset)		 Hardness Reduction of Area
%, min MPa, min MPa, min Rockwell, max %, min
WPNCMC Seamless / Welded 40 690 283 – –



Physical Properties of WPNCMC Pipe Fittings

Density g/cm3 8.89
lb/in.3 0.321
Melting Range °F 2415 – 2500
°C 1323 – 1371



Forming Types of ASME SB366 WPNCMC Elbow

  • Press forging
  • Upsetting
  • Welding
  • Perforating
  • Bending
  • Rolling
  • Hammer



Technical Consultants Are Stationed In The Locations Listed Below To Address All Technical Inquiries.

Fujairah Doha Umm Al Quwain Sharjah
Ras Al Khaimah Muscat Dubai Riyadh
Ajman Abu Dhabi Saudi Arabia Al Jubail



WPNCMC-S Seamless Pipe Fittings Delivery and Surface Condition

Delivery Standard Surface Condition
Annealed Pickled
Polished
Sand Blasted



ASTM B366 Grade WPNICMC Elbow Suitable Environment

  • Hydrogen acid
  • Chlorine acid
  • Organic acids
  • hydrochloric acid
  • Caustic soda
  • Sulphuric acid



ASTM B366 WPNCMC Material Corrosion Resistance

Material Corrosion Rate In mm/a Corrosion Rate In mm/a Acetic Acid Concentration
ASTM B366 WPNCMC Fittings 0.60-0.63 0.0152-0.160 10%



Inspection Requirement for ASTM B366 Pipe Fittings

  • Magnetic Particle Inspection
  • Ultrasonic Testing
  • Hydrostatic Testing
  • Radiographic Testing
  • HIC (Hydrogen-Induced Cracking) Test
  • Flattening Test
  • Flaring Test
  • PMI (Positive Material Identification)
  • Pitting Resistance Test



Verified Supplier

List of ASTM B366 WPNCMC Fittings Suppliers in UAE

available 8 cars
Dinesh Industries Logo
1
Mumbai, India
Dinesh Industries
  • info@dineshindustries.com
  • +91 9819864273
MMB Metal FZE
1
Dubai, UAE
MMB Metal FZE
  • mmbmetalfze@gmail.com
  • +971 555889979
Petrofit Alloys
1
Mumbai, India
Petrofit Alloys
  • sales@petrofitalloys.com
  • +91 9930728606
Ragnar Metals & Tubes
1
Mumbai, India
Ragnar Metals
  • ragnarmetals@gmail.com
  • +91 9920826486
Rajendra Tubes India logo
1
Rajendra Tubes India
  • export@rajendratubes.com
  • +91 7021789138
Kinsey Piping
1
Mumbai, India
Kinsey Piping
  • info@kinseypiping.com
  • +91 9769083933
Supplier 100
1
Mumbai, India
Aristo Metal Industries
  • info@aristometal.com
  • +91 9820728444
Premium Technical Support Trading Est. Logo
1
Al Jubail, KSA
Premium Technical Support
  • info@premiumtechsaudi.com
  • +966 546621439

Pipe fittings manufacturers

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
