ASTM B462 UNS N08020 flange

ASTM B462 UNS N08020 flange

Verified Supplier

Verified manufacturers and stockists

available 6 cars

SB 564 N08020 hot forged flanges and forgings suppliers in UAE

ASTM B462 UNS N08020 flange specification

Manufacturing Size Range ASTM B462 Flanges Faces Types Suitable Temperature Of ASTM B462 N08020 pipe flange
  • PN 2.5 – PN 400
  • 15NB – 1200NB
  • NPS: ½” to 48″

For larger sizes please contact above ASTM B462 UNS N08020 flange suppliers in UAE

  • B462 UNS N08020 raised face flange- (RF)
  • ASME SB462 UNS N08020 flat face or plain face (FF)
  • ASTM B462 N08020 RTJ flange- Ring Joint
  • Lap Joint – LJ
  • Male Female face – M&F
  • Tongue and Groove – T&G
  • 1,000°F
ASTM B 462 UNS N08020 Forged Flange Features Wall Thickness Pressure Class level
  • Nickel iron chromium based
  • Excellent corrosion resistance
  • limited to a temperature 1000°F max.
  • Excellent welding capabilities
  • Low thermal expansion
  • SCH 5 To SCH XXS
  • 150#
  • 300#
  • 600#
  • 900#
  • 1500#
  • 2500#
American Standard Inspection Plan Classification Of SB462 UNS N08020 Forged Steel Flanges
  • ASTM B462 UNS N08020
  • ASME SB462 UNS N08020
  • MSS SP-25
  • ASME B16.5 – (1/2″ To 24″)
  • ASME B16.47 – Series A/ B (24″ To 60″, SCH 5S-SCH XXS, 150-1500#)

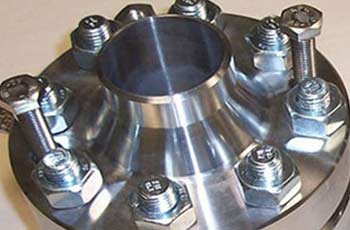

  • ASME B16.36 – (SB 462 UNS N08020 orifice)

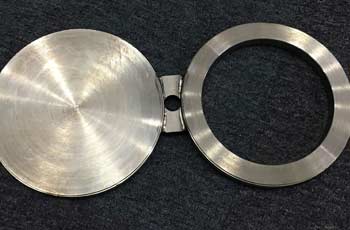

  • ASME B16.48 – (ASME SB462 N08020 spectacle blinds)
  • ASME B16.34 – ASTM B462 large diameter flanges (26″ in To 60″)
  • Visual inspection
  • Tensile test
  • Material inspection
  • Impact test
  • Hardness test
  • Shell pressure test
  • PMI Test (Positive Material Identification)
  • Socket welding flange (SW)
  • Long welding neck flange (LWN)
  • Welding neck flange (WN)
  • Lapped flange (LJ)
  • Slip-On welding flange (SO)
  • Blind flange (BL)
  • Threaded flange (TH)
Types Of ASME SB462 UNS N08020 Slip On Flange Types Of ASTM B462 UNS N08020 Weld Neck Flanges Types Of B462 UNS N08020 Blind Flange
  • B462 UNS N08020 slip on blind flange
  • B462 N08020 slip on welding flange
  • ASME B462 UNS N08020 slip on RTJ flange
  • B462 N08020 slip on flat face flange
  • ASTM B462 N08020 slip on reducing flange
  • B462 UNS N08020 slip on raised face flange
  • Weld neck slip on flanges
  • Raised face weld neck flange
  • SB462 N08020 flat face weld neck flange
  • Ring type joint weld neck flange
  • Weld neck orifice flange
  • ASME SB 462 N08020 weld neck blind flanges
  • SB 462 UNS N08020 long weld neck flange
  • B462 UNS N08020 flat face blind flanges
  • ASTM B462 N08020 ring type joint blind flanges
  • Threaded blind flanges
  • B462 N08020 blind slip on flanges
  • SB 462 UNS N08020 weld neck flanges
  • Socket weld blind flanges
  • ASME S B462M UNS N08020 raised face blind flanges
Number Of Bolts Hole Get connected verified ASTM B462 UNS N08020 flange suppliers, they offers Manufacturing Standards and Country Origin
  • 4 To 48
  • Solution treatment and aging treatment
  • Quotation with valuable sata sheet
  • Quick responce within 24 hours
  • Ship with according to EN 10204/3.1
  • Design & modify drawings for free
  • USA – ASME SB462 UNS N08020
  • USA – ASTM B462 UNS N08020
  • Germany – DIN
  • Europe – BS EN 1092-3 (Alloy)
  • USA – ANSI
  • USA – MSS SP44
  • USA – ASA
  • USA – Class (CL) 125 (Light weight)
  • China – GB/T 9112 / 9119
  • Malaysia – MS 816
  • Australia – AS 2129
  • USA – AWWA
  • Italy – UNI 2276/ 6091
  • Europe – BS EN 1092-1 (Steel)
  • Japan – JIS
  • USA – API-605
  • Malaysia – MS 253
  • Europe – ISO 7005
  • Korea – KS
  • Framce – NF E 29-200/ NF E 29-203
  • Europe – BS EN 1092-2 (Iron)
  • Europe – PN
  • Australia and UK – BS 10
  • Canada – CSA B16.5/ B16.47
  • Europe – EN
  • Russia – Ghost
Machining Process Of SB462 UNS N08020 Forged Steel Flanges Thread Types Of B462 N08020 Threaded Flanges SB 462 Material Manufacturing Method
  • Material selection
  • Cutting
  • Shaping
  • Heat treatment
  • Forming
  • Forging
  • Machining
  • Surface finish
  • Inspection
  • Quality control
  • BSP
  • FNPT (Female) – ASME B1.20.1
  • BSPP (Female & male)
  • NPT
  • BSPT (Female)
  • MNPT (Male)
  • MPT
  • FPT
  • Machined
  • Forged
  • Casting
  • Plate
Marking Method Surface Finish Of SB 462 UNS N08020 Weld Flanges B462 N08020 Hot Forged Flange Applications
  • Sizes (NPS)
  • Pressure rating
  • Standard Of ASTM and ASME
  • Origin of material
  • Type Of facing
  • UNS Number
  • Manufacturer logo & name
  • Grade and material
  • Smooth Finish – (63-125 AA)
  • Mirror Finish / Cold Water Finish
  • Stock Finish – 125- to 250-μin
  • Serrated finish -(Required 30 to 55 grooves per inches)
  • Concentric Serrated – (125 and 500 micro inches)
  • Spiral Serrated – (Generated using a 90-deg tool)
  • Water supply
  • Sulfuric acid environment
  • Nuclear energy sector
  • Petrochemical plants
  • Pumps and valves use
  • Power generation plant
  • Crude oil distillation
  • Hydrochloric acid environment
  • Sea water exchanger

The suppliers listed above have ex-stock of ASTM B462 UNS N08020 flange and have supplied in all over the middle east countries, such as South Africa, Egypt, Middle East, Saudi Arabia, Nigeria, and the United States

Export Packaging Logistics Density
  • Plastic Bag
  • Wooden Case
  • Or custom as required
  • By Air (for urgent demand)
  • By Sea
  • 8.1 g/cm3



Ex-stock of ASTM B462 N08020 blind flange, shipping of SB 462 UNS N08020 forged flange in every alternate day to Saudi Arabia, UAE & Middle east

Top 9 type of ASME SB462 UNS N08020 flange

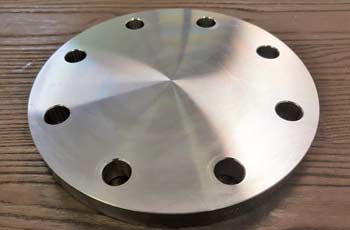

ASTM B462 UNS N08020 blind flange

ASTM B462 UNS N08020 blind flange

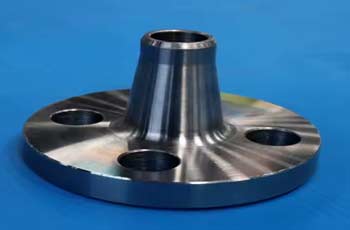

ASME SB462 UNS N08020 weld neck flange

ASME SB462 UNS N08020 weld neck flange

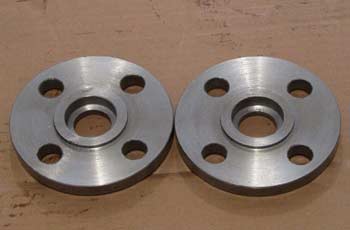

B462 UNS N08020 socket weld flange

B462 UNS N08020 socket weld flange

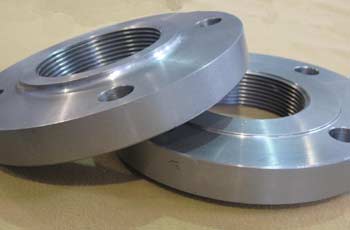

ASTM B462 N08020 threaded flange

ASTM B462 N08020 threaded flange

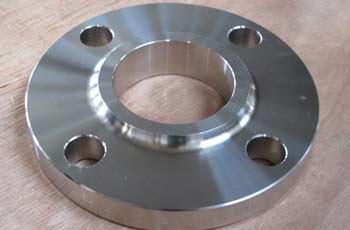

ASTM B462 UNS N08020 slip on flange

ASTM B462 UNS N08020 slip on flange

B462 N08020 reducing flange

B462 N08020 reducing flange

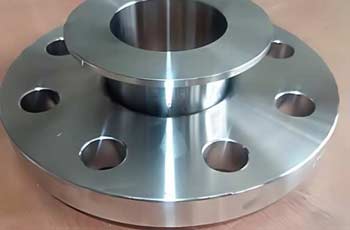

SB 462 UNS N08020 lap joint flange

SB 462 UNS N08020 lap joint flange

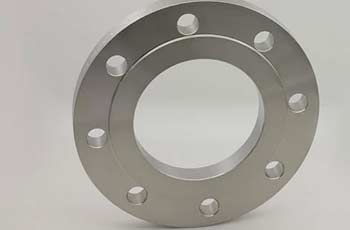

SB462 N08020 plate flanges

SB462 N08020 plate flanges

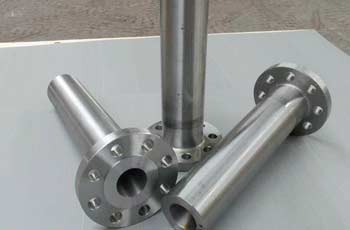

ASTM B 462 UNS N08020 long neck flange

ASTM B 462 UNS N08020 long neck flange



B462 UNS N08020 welding neck flange dimension

Leading manufacturers of B462 UNS N08020 weld flanges, wide range of DIN 86029 PN10 forged pipe flange in Dubai

B462 UNS N08020 welding neck flange dimension

Nominal Pipe Size Outside Diameter NPS Of Welding Neck O.D. Of Welding Neck Wall Thickness (Minimum) Hub Diameter Chamfer Welding Neck Hub Diameter Beginning
NPS O Y B tf X Ah
1/2 90 46 15.8 9.6 30 21.3
3/4 100 51 20.9 11.2 38 26.7
1 110 54 26.6 12.7 49 33.4
5/4 115 56 35.1 14.3 59 42.2
3/2 125 60 40.9 15.9 65 48.3
2 150 62 52.5 17.5 78 60.3
5/2 180 68 62.7 20.7 90 73.0
3 190 68 77.9 22.3 108 88.9
7/2 215 70 90.1 22.3 122 101.6
4 230 75 102.3 22.3 135 114.3
5 255 87 128.2 22.3 164 141.3
6 280 87 154.1 23.9 192 168.3
8 345 100 202.7 27.0 246 219.1
10 405 100 254.6 28.6 305 273.0
12 485 113 304.8 30.2 365 323.8
14 535 125 33.4 400 355.6
16 595 125 35.0 457 406.4
18 635 138 38.1 505 457.0
20 700 143 41.3 559 508.0
24 815 151 46.1 663 610.0



SB 462 UNS N08020 weld flanges equivalent

Buy from Sabic/ PED approved SB 462 UNS N08020 weld neck flange suppliers in UAE, fast quote and best price
STANDARD AFNOR EN WERKSTOFF NR. UNS
ASTM B462 UNS N08020 flange Z2NCUD31-20AZ NiCr20CuMo 2.4660 N08020



ASTM B462 UNS N08020 chemical composition

ASTM B462 N08020 socket weld flange as per EN 1092-2 with MTC, contact directly to ASME SB 462 N08020 threaded flange manufacturers for estimated cost
Cu (Copper) 3.00~4.00
Nb+Ta (Niobium+Tantalum ) 8xCarbon~1
S (Sulfur) ≤0.035
Si (Silicon) ≤1.00
C (Carbon) ≤0.07
Mn (Manganese ) ≤2.00
P (Phosphorus) ≤0.045
Mo (Molybdenum) 2.00~3.00
Ni (Nickel) 32.00~38.00
Cr (Chromium) 19.00~21.00



Mechanical properties Of ASTM B462 N08020 pipe flange

Density Yield Strength (0.2%Offset) Elongation Tensile Strength Melting Point
8.1 g/cm3 Psi – 35,000, MPa – 241 30 % Psi -80,000, MPa -551 1443 °C (2430 °F)



ASTM B462 UNS N08020 forgings temperature ratings

Working pressures in bar

Temperature in °C Pressure 150 Pressure 300 Pressure 600 Pressure 900 Pressure 1500 Pressure 2500
-29~38°C 20.0 51.7 103.4 155.1 258.6 430.9
50°C 19.5 51.7 103.4 155.1 258.6 430.9
100°C 17.7 50.9 101.7 152.6 254.4 423.9
150°C 15.8 48.9 97.9 146.8 244.7 407.8
200°C 13.8 47.2 94.3 141.5 235.8 392.9
250°C 12.1 45.5 91.0 136.5 227.5 379.2
300°C 10.2 42.9 85.7 128.6 214.4 357.1
325°C 9.3 41.4 82.6 124.0 206.6 344.3
350°C 8.4 40.3 80.4 120.7 201.1 335.3
375°C 7.4 38.9 77.6 116.5 194.1 323.2
400°C 6.5 36.5 73.3 109.8 183.1 304.9
425°C 5.5 35.2 70.0 105.1 175.1 291.6



Working pressures in PSIG

Temperature in °F CL 150 CL 300 CL 600 CL 900 CL 1500 CL 2500
-20~100°F 290 750 1500 2250 3750 6250
200°F 260 740 1485 2225 3710 6180
300°F 230 710 1420 2130 3550 5920
400°F 200 680 1365 2045 3410 5680
500°F 170 655 1310 1965 3275 5460
600°F 140 605 1210 1815 3025 5040
650°F 125 590 1175 1765 2940 4905
700°F 110 570 1135 1705 2840 4730
750°F 95 530 1065 1595 2660 4430
800°F 80 510 1015 1525 2540 4230
