ASTM B564 Flange

ASTM B564 Flange Product Overview

Size in Ready Stock: 1/2″ to 48″ | DN15 to DN1200
Grade ASTM B564
ASTM B564 Flange Classification BL (Blind) Flange, WN (Weld Neck) Flange, SO (Slip-On) Flange, TH (Threaded) Flange, LJ (Lapped) Flange, SW (Socket Weld) Flange
Thickness SCH 5 To XXS
Approval : MA’ADEN, KNPC, ADNOC, Q CHEM, EIL, BAPCO, RINA, KPI, SABIC, KOC, Saudi Aramco
Raw Material Origin: UK, European, Indian, German, Korean, Japanese
Suitable for Corrosive and High Temperature Environment
Maximum Forgings Temperature 1180 °C
MTC: EN 10204/3.1B
RFQ: support@pipingmaterial.ae



Piping Material

Table of Content

ASTM B564 Flange Specification



ASME SB 564 Forgings And B564 Forged Steel Flanges Suppliers in UAE

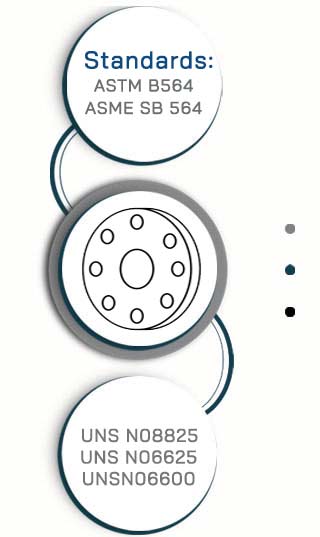

ASTM B564 Flange Specification

Get ASTM B564 Flange Suppliers in UAE offering reliable specifications

Dimensions

Dimensions: ASME B16.5, B16.48, B16.36, B16.47

Size Range

Size Range : 15 – 1500 NB, NPS: 1/2″ to 48″

Pressure rating

Pressure Rating: Class 150-2500# (forged), 150-600# (threaded)

Inspection Methods

Material Inspection and Visual Inspection

Design spec

Design Spec: ASME VIII DIV 2 (PART 4-5)

Manufacturing Standard

Manufacturing Procedure: As Per NORSOK M-650/ISO 17782

Corrosion Resistance

Corrosion Resistance: Sulfuric and Hydrochloric Acid, Seawater

Surface Finish

Surface Finish: Mirror & Stock Finish, Smooth Finish

Documentation

Documentation: MTC EN 10204/3.1B, Third Party Inspection

Packaging

Packaging: Plastic Bag, Wooden Case, Carton Box

Quote

Get Quote Directly from ASTM B564 Flange Suppliers in UAE

Tested

100% Tested B564 Forged Steel Flanges with MTC EN 10204/3.1



Buy ASTM B564 Hot Forged Flange (B564M Nickel Alloy Forgings) At Lowest Price in Dubai

SB564 Forged Flange Strengthening Mechanisms

Precipitation Strengthening Solid Solution Strengthening
Dispersed precipitates through bolt holes Alloying elements through interfering with the movement



B564 Pipe Flange Conditions

Age Hardening Temp. Solution Annealing Temp.
700°C-800°C 980°C – 1150°C



Associate Traders and Importers available in Below Locations For Quick Deliveries

Sharjah Umm Al Quwain Fujairah Doha
Saudi Arabia Abu Dhabi Al Jubail Ajman
Muscat Dubai Riyadh Ras Al Khaimah



Stress Relieving ASME SB 564 Forged Steel Flanges

Properties Values
Stress Relieving Temp. 600°C – 800°C



ASTM B564 Flange Pressure Rating

Temp., °C Working Pressures (Classes)
– 2500 1500 900 600 400 300 150
650 39.4 23.6 14.2 9.5 6.3 4.7 –
625 42.8 25.7 15.4 10.3 6.8 5.1 –
600 55.3 33.2 19.9 13.3 8.9 6.6 –
575 78.6 47.2 28.3 18.9 12.6 9.4 –
550 116.2 69.7 41.8 27.9 18.6 13.9 –
538 137.9 82.7 49.6 33.1 22.1 16.5 1.4
500 235.0 140.9 84.7 56.5 37.6 28.2 2.8
450 281.8 169.0 101.4 67.7 45.1 33.7 4.6
425 291.6 175.1 105.1 70.0 46.5 35.2 5.5
400 304.9 183.1 109.8 73.3 48.9 36.5 6.5
300 357.1 214.4 128.6 85.7 57.0 42.9 10.2
325 344.3 206.6 124.0 82.6 55.0 41.4 9.3
350 335.3 201.1 120.7 80.4 53.6 40.3 8.4
475 263.9 158.2 95.1 63.4 42.3 31.7 3.7
375 323.2 194.1 116.5 77.6 51.6 38.9 7.4
200 405.4 243.4 145.8 97.2 64.8 48.6 13.8
250 386.2 231.8 139.0 92.7 61.7 46.30 12.1
150 418.2 250.8 150.6 100.3 66.8 50.3 15.8
100 429.4 257.6 154.6 103.0 68.7 51.5 17.7
50 430.9 258.6 155.1 103.4 68.9 51.7 19.5
-29 – 38 430.9 258.6 155.1 103.4 68.9 51.7 20.0



Find Genuine Manufacturers of SB 564 Forged Pipe Flange Who Have Wide Supply Network In Saudi Arabia & Middle East

B564 Forged Flange Manufacturing Process


B564 Forged Flange Manufacturing Process



Sales Agents in Following Locations

Middle East Countries UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen
Africa Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine



ASME SB564 Flange Thickness Chart

Normal Pipe Size (NPS) Schedule 160 Schedule 140 Schedule 120 Schedule 100 Schedule 80 Sch 60 Sch 40 Sch 30 Sch 20 Sch 10
36 – – – – – – 0.75 0.625 0.5 0.312
30 – – – – – – – 0.625 0.5 0.312
24 2.344 2.062 1.812 1.531 1.219 0.969 0.688 0.562 0.375 0.25
22 – – – – – – – – – 0.25
20 1.969 1.75 1.5 1.281 1.031 0.812 0.594 0.5 0.375 0.25
18 1.781 1.562 1.375 1.156 0.938 0.75 0.562 0.438 0.312 0.25
16 1.594 1.438 1.219 1.031 0.844 0.656 0.5 0.375 0.312 0.25
14 1.406 1.25 1.094 0.938 0.75 0.594 0.438 0.375 0.312 0.25
12 1.312 1.125 1 0.844 0.688 0.562 0.406 0.33 0.25 0.18
10 1.125 1 0.844 0.719 0.594 0.5 0.365 0.307 0.25 0.165
8 0.906 0.812 0.719 0.594 0.5 0.406 0.322 0.277 0.25 0.148
6 0.719 – 0.562 – 0.432 – 0.28 – – 0.134
5 0.625 – 0.5 – 0.375 – 0.258 – – 0.134
4 0.531 – 0.438 – 0.337 – 0.237 – – 0.12
3 ½ – – – – 0.318 – 0.226 – – 0.12
3 0.438 – – – 0.3 – 0.216 – – 0.12
2 0.344 – – – 0.218 – 0.154 – – 0.109
2 1/2 0.375 – – – 0.276 – 0.203 – – 0.12
1 0.25 – – – 0.179 – 0.133 – – 0.109
1 1/2 0.281 – – – 0.2 – 0.145 – – 0.109
1/2 0.188 – – – 0.147 – 0.109 – – 0.083



ASTM B564M Standard

  • ASME B16.34 – ASTM B564 large diameter flanges (26″ in To 60″)
  • ASME B16.47 – Series A/ B (24″ To 60″)
  • ASME B16.48 – (ASME SB 564 spectacle blinds)
  • ASME B16.36 – (ASTM B564M orifice)
  • ASME B16.5 – (1/2″ To 24″)
  • ASME SB564
  • MSS SP-25
  • ASTM B564



Above Listed ASTM B564M Weld Flanges And Sb564 Material Suppliers & Manufacturers Can Produce As Per Custom Drawing

Class 150 ASTM B564M Threaded Flange Dimension


ASTM B564M Threaded Flange Dimension

NPS in Inch Outside Diameter Hub Diameter Threaded Minimum Thread Length Of Threaded Minimum Thickness
Normal Pipe Size (O) (X) (Y) (T) (tf)
1/2 90 30 14 16 9.6
3/4 100 38 14 16 11.2
1 110 49 16 17 12.7
5/4 115 59 19 21 14.3
3/2 125 65 21 22 15.9
2 150 78 24 25 17.5
5/2 180 90 27 29 20.7
3 190 108 29 30 22.3
7/2 215 122 30 32 22.3
4 230 135 32 33 22.3
5 255 164 35 36 22.3
6 280 192 38 40 23.9
8 345 246 43 44 27.0
10 405 305 48 49 28.6
12 485 365 54 56 30.2
14 535 400 56 57 33.4
16 595 457 62 64 35.0
18 635 505 67 68 38.1
20 700 559 71 73 41.3
24 815 663 81 83 46.1



ASTM B564 Material Melting Point

Grade Melting Point
ASTM B564 UNS N06625 1350 °C (2460°F)
ASTM B564 UNS N06600 1413 °C (2580°F)



Storage Sites of Partner Suppliers

Region Country City
Middle East United Arab Emirates Abu Dhabi
MENA Morocco Casablanca
Middle East Saudi Arabia Jeddah
Africa South Africa Johannesburg
Middle East Saudi Arabia Dammam
Middle East Saudi Arabia Riyadh
Middle East United Arab Emirates Dubai
Middle East Qatar Doha
Africa South Africa Cape Town
Africa Nigeria Lagos
Middle East Kuwait Kuwait City
MENA Egypt Cairo
Africa Nigeria Abuja



SB564 Material Density

Element Density
ASTM B564 UNS N06600 8.47 g/cm3
ASTM B564 UNS N06625 8.4 g/cm3



ASTM B564 Material In Blind, Slip On, Weld Neck, Socket Weld Types as per ASME/ ANSI B16.5 Standard, Get a Quick Quote

Widely Used Types of ASTM B564 Flange

Check ASTM B564 Flange Suppliers in UAE providing distinct types

ASTM B564 Blind Flange

ASTM B564 Blind Flange

ASTM B564 Weld Neck Flange

ASTM B564 Weld Neck Flange

ASME SB564 Socket Weld Flange

ASME SB564 Socket Weld Flange

B564 Threaded Flange

B564 Threaded Flange

ASTM B564 Slip On Flange

ASTM B564 Slip On Flange

SB564 Reducing Flange

SB564 Reducing Flange

ASTM B564M Lap Joint Flange

ASTM B564M Lap Joint Flange

ASME SB564M Plate Flanges

ASME SB564M Plate Flanges

ASTM B 564 Long Weld Neck Flange

ASTM B 564 Long Weld Neck Flange



Classification of B564 Flange

Classification Flange Type
TH Threaded flange
SO Slip-On welding flange
BL Blind flange
SW Socket welding flange
LJ Lapped flange
WN Welding neck flange



Class 300 ASME SB564 Flange Weight Chart

NPS Weld Neck Lap Joint Socket Weld Thd Blind Slip On
24 261 247.5 213.8 220.5 360 220.5
22 209.3 195.8 166.5 166.5 288 166.5
20 180 168.8 141.8 146.3 231.8 141.8
18 144 137.3 112.5 126 186.3 113.9
16 112.5 105.3 85.5 99 141.8 94.5
14 92.7 85.5 74.3 74.3 112.5 74.3
12 63.9 63 51.8 51.8 83.3 51.8
10 45 40 36.5 36.5 55.8 36.5
8 31.1 26.1 26.1 26.1 36.5 26.1
6 20.3 17.6 17.6 17.6 22.5 17.6
5 16.2 12.6 12.6 13.9 16.7 13.0
4 11.9 10.8 9.9 10.8 12.6 10.6
3 1/2 9 7.7 7.7 7.7 9.5 7.7
3 8.1 6.5 5.9 6.3 7.2 5.9
2 1/2 5.4 4.5 4.5 4.5 5.4 4.5
2 4.1 3.2 3.2 3.2 3.6 3.2
1 1/2 3.2 2.9 2.7 2.9 3.2 2.9
1 1.8 1.4 1.4 1.4 1.8 1.4
1/2 0.9 0.9 1.4 0.9 0.9 0.9



Key Elements of B564 Pipe Flange

Grade Strengthening Mechanism Key Elements Notable Properties
ASTM B564 UNS N06600 Solid Solution Fe, Ni, r High Strength,
ASTM B564 UNS N06625 Solid Solution Nb, Ni, Cr, Mo Weldability, Strength



Advantages of ASTM B564 Forgings


Advantages of ASTM B564 Forgings



Tensile Strength of ASME SB 564 Forged Steel Flanges

Material Tensile Strength (MPa)
ASTM B564 UNS N04400 483
ASTM B564 UNS N08825 586
ASTM B564 UNS N10276 690
ASTM B564 UNS N06600 552
ASTM B564 UNS N06625 827



Yield Strength of SB564 Forged Flange

Material Yield Strength (KSI)
ASTM B564 UNS N06625 60
ASTM B564 UNS N08825 35
ASTM B564 UNS N04400 25
ASTM B564 UNS N10276 41
ASTM B564 UNS N06600 35



ASTM B564 Flange Equivalent

Standard UNS EN AFNOR GOST BS WERKSTOFF NR. JIS
ASTM B564 UNS N06625 N06625 NiCr22Mo9Nb NC22DNB4M XH75MБTЮ NA 21 2.4856 NCF 625
ASTM B564 UNS N06600 N06600 NiCr15Fe NC15FE11M МНЖМц 28-2,5-1,5 NA 13 2.4816 NCF 600



Chemical Composition of ASTM B564 Material

ASTM B564 Material Copper (CU) Phosphorus (P) Tungsten (W) Cobalt (Co) Vanadium (V) Nitrogen (N) Fe (Iron ) Manganese (Mn) Carbon (C) silicon (Si) Sulfur (S) Chromium (Cr) Aluminum (Al) Titanium (Ti) Tantalum (Ta) and niobium (Nb) Molybdenum (Mo)
ASTM B564 UNS N04400 63.0 minimum – – – – – 28.0-34.0 2.5 2.0 0.3 0.5 0.024 – – – –
ASTM B564 UNS N06625 58.0 minimum 8.0-10.0 0.015 – – – – 5.0 0.5 0.10 0.5 0.015 20.0-23.0 0.4 0.4 3.15-4.15
ASTM B564 UNS N06600 72.0 minimum – – – – – 0.5 6.0-10.0 1.0 0.15 0.5 0.015 14.0-17.0 – – –
ASTM B564 UNS N08825 38.0-46.0 2.5-3.5 – – – – 1.5-3.0 22.0 minimum 1.0 0.05 0.5 0.03 19.5-23.5 0.2 0.6-1.2 –
ASTM B564 UNS N10276 balance 15.0-17.0 0.04 3.0-4.5 2.5 0.35 – 4.0-7.0 1 0.01 0.08 0.03 14.5-16.5 – – –



B564 Pipe Flange Mechanical Properties

Material Condition Elongation (%) Tensile Strength, minimum, ksi (MPa) Yield Strength, 0.2 % Offset, minimum, ksi (MPa)
ASTM B564 UNS N08825 Annealed 30 85 (586) 35 (241)
ASTM B564 UNS N10276 Solution annealed 30 100 (690) 41 (283)
ASTM B564 UNS N06600 Annealed 40 80 (552) 35 (241)
ASTM B564 UNS N06625 Annealed 42.5 120 (827) 60 (414)
ASTM B564 UNS N04400 Annealed 41 70 (483) 25 (172)



Applications of B564 Flange

Find ASTM B564 Flange Suppliers in UAE offering versatile applications

  • Power Plant
  • Chemical Industry
  • Water Supply Systems
  • Fabrication Industry
  • Structural Pipe
  • Food Processing Industry
  • Plumbing



Sales Representatives Are Available to Provide Prompt Quotes

Country Cities
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Brussels
Netherlands Amsterdam
Belgium Ghent
Netherlands The Hague
Belgium Westerlo
Belgium Seraing
Netherlands Rotterdam
Belgium Leuven
Belgium Antwerp
Netherlands Eindhoven

Verified Supplier

List of ASTM B564 Flange Suppliers in UAE

available 9 cars
Prestige Metalloys LLC
1
Dubai, UAE
Prestige Metalloys LLC
  • info@metalloys.ae
  • +971 568293363
Amigo Impex Logo
1
Mumbai, India
Amigo Impex
  • sales@amigoimpex.net
  • +91 9821327239
Renine Metalloys Logo
1
Mumbai, India
Renine Metalloys
  • sales@reninemetalloys.in
  • +91 9773411046
Dinmani Pipes & Fittings Logo
1
Mumbai, India
Dinmani Pipes
  • sales@dinmanipipefittings.com
  • +91 9819352982
Ruinox Overseas
1
Mumbai, India
Ruinox Overseas
  • +91 8850256664
Supplier 105
1
Mumbai, India
Jainex Metal Industries
  • sales@jainexmetal.com
  • +91 9892249529
Supplier 46
1
Abu Dhabi, UAE
Royal Veritas
  • nkk@rvoget.ae
  • +971 523973687
Supplier 37
1
Mumbai, India
Neonox Overseas
  • export@neonox.in
  • +91 9320277418
Premium Technical Support Trading Est. Logo
1
Al Jubail, KSA
Premium Technical Support
  • info@premiumtechsaudi.com
  • +966 546621439

Price

Flanges

Why PipingMaterial.ae?

Here you will find technical specification, types, pressure rating, dimensions, sizes to compare price and strength of steel flanges. Free quote from multiple stockists, traders, manufacturers, suppliers located in UAE, Netherlands, India and other Asian countries.

Listed companies on this B2B platform offer fast delivery in Abu Dhabi, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, Fujairah, Qatar, Oman, Saudi Arabia and Kuwait.

All Flange material with MTC EN 10204/3.1

Manufacturing Standard includes ANSI/ ASME B16.5, B16.47, B16.36, B16.48 and MSS SP-25

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
