ASTM B564 UNS N04400 Flange

SB 564 N04400 Threaded Flange and Weld Flanges Suppliers in UAE

ASTM B564 UNS N04400 Flange Aspects

Size in Ready Stock: 1/2″ to 48″ | DN15 to DN1200
Custom Sizes Available in: Up to 72 (ASME B16.47)
Thread : BSPP, MNPT, NPT, FNPT, BSPT
Approval : ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, RINA, KPI
Suited for : Sulfuric Acid Environment
European & American Standard: ASTM B564, ASME SB564, UNS N04400, WNR 2.4360
Raw Material Origin: European, Indian, German, Korean, UK, Japanese
Pressure Level: 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB
Types of Faces : Raised Face (RF), Ring Type Joint (RTJ), Male Female Face (M&F), Flat Face (FF), Tongue and Groove
Face (T&G)
Service Life : 25 – 30 years
MTC: EN 10204/3.1B
RFQ: support@pipingmaterial.ae



Piping Material

Table of Content



ASTM B564 N04400 Pipe Flange Specification

Get ASTM B564 UNS N04400 Flange Suppliers in UAE offering reliable specifications

Size In Ready Stock

Size In Ready Stock: DN15 DN1200 | 1/2″ to 48″

Maximum Size

Maximum Size: NPS 26 to NPS 60 For Large Diameter

Manufacturing Way

Manufacturing Way: Forged, Drilling, CNC Machining, Stamping

Bolts Hole Number

Bolts Hole Number: 4 To 48

Corrosion Resistance

Corrosion Resistance: Sulfuric and Hydrochloric Acid, Seawater

Surface Finish

Surface Finish: Mirror & Stock Finish, Smooth Finish

Application

Application: Aerospace Engineering, Petrochemical Plants, Nuclear Energy Sector

Testing

Testing: Shell Pressure Test, Hardness Test, Impact Test

Documentation

Documentation: MTC EN 10204/3.1B, Third Party Inspection

Packaging

Packaging: Wooden Case, Plastic Bag, Carton Box

Value Added Services

Value Added Services: Machining, Sandblasting, Galvanizing

Manufacturing Method

Manufacturing Method: Forged, Drilling, Stamping, CNC Machining

Quote

Get Quote Directly from ASTM B564 UNS N04400 Flange Suppliers in UAE

Tested

100% Tested ASME SB564 UNS N04400 Blind Flange with MTC EN 10204 3.1/3.2



Ready to Dispatch Stock of SB 564 UNS N04400 Forged Steel Flanges

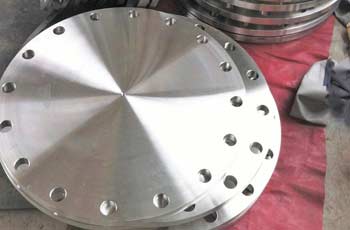

ASTM B564 UNS N04400 Blind Flanges

ASTM B564 UNS N04400 Blind Flanges
  • Pressure: 150# – 2500#
  • Color: Silver

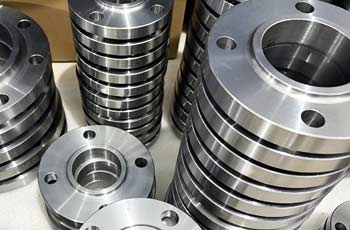

ASME S564M UNS N04400 Slip On Flanges

ASME S564M UNS N04400 Slip On Flanges
  • Forging Method: Impression Die Forging, Drop Forging
  • Specific Gravity: 8.8

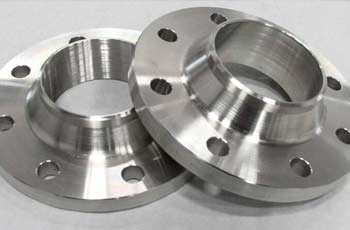

B564 N04400 Weld Neck Flange

B564 N04400 Weld Neck Flange
  • Bolt Hole Quantity: 4, 6, 8, 10
  • Thread: BSPP, BSPT, NPT

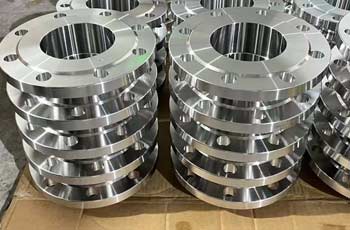

SB 564 N04400 Socket Weld Flange

SB 564 N04400 Socket Weld Flange
  • Surface Treatment: Polishing
  • Certification: ISO 9001

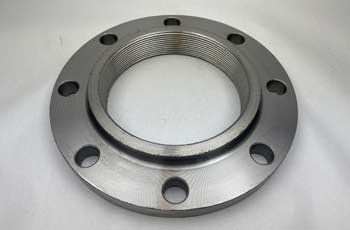

ASME S564M UNS N04400 Threaded Flange

ASME S564M UNS N04400 Threaded Flange
  • Bolt Hole Diameter: 11-42
  • Temperature: -30℃ – 600℃

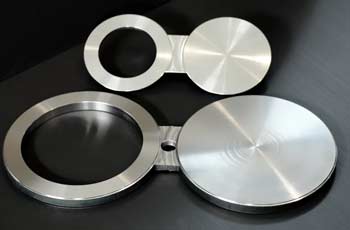

ASTM 564M UNS N04400 Spectacle Blind Flange

ASTM 564M UNS N04400 Spectacle Blind Flange
  • Coating: Anti-rust Paint, Oil Black Paint
  • Poisson’s Ratio: 0.32

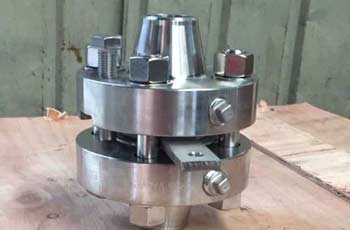

B564 UNS N04400 Orifice Flanges

B564 UNS N04400 Orifice Flanges
  • Shear Modulus: 62 GPa
  • Curie Temperature: 40 °C

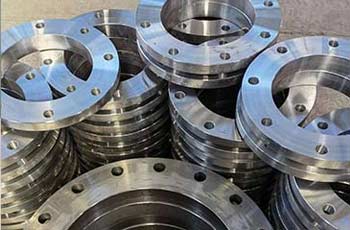

ASME SB564 N04400 Plate Flange

ASME SB564 N04400 Plate Flange
  • Latent Heat of Fusion: 270 J/g
  • Young’s Modulus: 160 GPa

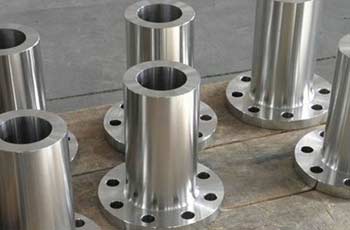

SB 564 UNS N04400 Long Neck Flanges

SB 564 UNS N04400 Long Neck Flanges
  • Embodied Energy: 110 MJ/kg
  • Thermal Diffusivity: 6.1 mm2/s

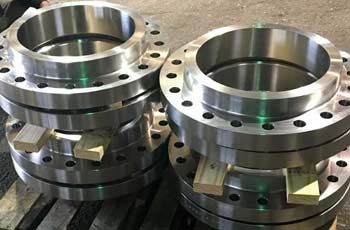

ASME SB564 N04400 Lap Joint Flange

ASME SB564 N04400 Lap Joint Flange
  • Customized Support: OBM OEM
  • Connection Method: Gasket & Screws connect

Please Find Authorised Dealers and Distributors of ASTM B564 UNS N04400 Flange in Dubai

  • Hassyan Power Plant, Dubai
  • APR Energy FZE, Dubai
  • Infusion Power Industry, Dubai
  • Al Aweer Power Plant, Dubai

ASTM 564M UNS N04400 Hot Forged Flange Gaskets Chart

Metallic – Ring Gasket Composite Non-Metallic
– Metal Jacketed Gasket Rubber Gasket
Oval Ring Gasket Spiral Wound Gaskets Compressed Non-Asbestos Fibre Gasket (CNAF)
Octagonal Ring Gasket Camprofile Gaskets PTFE Gasket



ASTM B564 N04400 Blind, Weld Neck, Reducing, Socket Weld and Slip on Flanges upto 48 Inch as Per ASME B16.5/ ANSI B16.47

Types of ASTM B564 UNS N04400 Flanges

Check ASTM B564 UNS N04400 Flange Suppliers in UAE offering assorted types

ASTM B564 UNS N04400 Blind Flange

ASTM B564 UNS N04400 Blind Flange

ASME SB564 UNS N04400 Weld Neck Flange

ASME SB564 UNS N04400 Weld Neck Flange

B564 UNS N04400 Socket Weld Flange

B564 UNS N04400 Socket Weld Flange

ASTM B564 N04400 Threaded Flange

ASTM B564 N04400 Threaded Flange

ASTM B564 UNS N04400 Slip on Flange

B564 UNS N04400 Slip on Flange

SB 564 UNS N04400 Reducing Flange

SB 564 UNS N04400 Reducing Flange

B564 N04400 Lap Joint Flange

B564 N04400 Lap Joint Flange

ASME SB564 N04400 Plate Flanges

ASME SB564 N04400 Plate Flanges

ASTM 564M UNS N04400 Long Neck Flange

ASTM B564M UNS N04400 Long Neck Flange



SB 564 UNS N04400 Weld Flanges Sizes

Sizes (DN) Sizes (Inch)
900 36
800 32
750 30
700 28
600 24
500 20
450 18
400 16
375 15
350 14
300 12
250 10
200 8
125 5
100 4
80 3
50 2
65 2 1/2
40 1 1/2
32 1 1/4
25 1
20 3/4
15 1/2

Associate Traders and Importers available in Below Locations For Quick Deliveries

Muscat Ras Al Khaimah Dubai Riyadh
Sharjah Doha Umm Al Quwain Fujairah
Saudi Arabia Ajman Abu Dhabi Al Jubail

ASTM B 564 UNS N04400 Forged Flange Bolt Diameter

NPS (Inch) Length Stud Bolts No of Bolt Holes Dia Stud Bolts
24 6.75 20 1.1/4
20 6.25 20 1.1/8
18 5.75 16 1.1/8
16 5.25 16 1
14 5.25 12 1
12 4.75 12 7/8
10 4.5 12 7/8
8 4.25 8 3/4
6 4 8 3/4
5 3.75 8 3/4
4 3.5 8 5/8
3 3.5 4 5/8
2 3.25 4 5/8
1 2.5 4 1/2
1/2 2.25 4 1/2

B564 UNS N04400 Lapped Flange Dimension


B564 UNS N04400 Lapped Flange Dimension

Nominal Pipe Size Lapped Flange Corner Bore Radius Hub Diameter Outside Diameter NSP Of Lapped Minimum O.D. Of Lapped Lap Joint Minimum Thickness
NPS r X O Y B tf
24 13 663 815 111 616.0 47.7
20 13 559 700 103 514.4 42.9
18 13 505 635 97 462.3 39.7
16 13 457 595 87 411.2 36.6
14 13 400 535 79 360.2 35.0
12 13 365 485 56 328.2 31.8
10 13 305 405 49 277.4 30.2
8 13 246 345 44 222.2 28.6
4 11 135 230 33 116.8 23.9
6 13 192 280 40 171.4 25.4
5 11 164 255 36 144.4 23.9
1/2 3 30 90 16 22.9 11.2
3/4 3 38 100 16 28.2 12.7
1 3 49 110 17 34.9 14.3
5/4 5 59 115 21 43.7 15.9
3/2 6 65 125 22 50.0 17.5
2 8 78 150 25 62.5 19.1
5/2 8 90 180 29 75.4 22.3
3 10 108 190 30 91.4 23.9
7/2 10 122 215 32 104.1 23.9



Contact Above SB 564 UNS N04400 Forged Flange Manufacturers For Competitive Price List Along With Shipping Time

Factors to Consider When Choosing ASTM 564M UNS N04400 Reducing Flange

  • Material Selection
  • Pressure Rating
  • Size and Dimensions
  • Corrosion Resistance
  • Surface Finish
  • End Connections

Material Inspection Facilities in the Following Countries

Country Cities
Belgium Ghent
Netherlands Amsterdam
Belgium Brussels
Netherlands Haarlem
Belgium Seraing
Belgium Meeuwen-Gruitrode
Netherlands The Hague
Belgium Westerlo
Netherlands Rotterdam
Belgium Antwerp
Netherlands Eindhoven
Belgium Leuven

Insert Cutting Edge Geometry of SB 564 N04400 Socket Weld Flange

Rake Angle 13° -18°
Land Angle Neutral
Honing Size 0.02-0.05 mm
Land Width 0.10-0.20 mm



Get Fast Delivery of ASME SB 564 N04400 Forged Pipe Flange by Air in UAE, Saudi Arabia and Whole Middle East

Warehouse Locations of Partner Suppliers

Middle East Countries UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen
Africa Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine

Yield Properties of ASTM B564 UNS N04400 Forging at Low Temperatures

Temper Yield Strength (0.2% Offset), KSI Temperature, (°F)
Annealed 31.30 70
49.50 -297
Cold-Drawn 93.70 Room
100.85 -110
93.30 Room
Forged 67.00 70
91.50 -297
96.40 -423

Impact Strength of UNS N04400 Flange

Temper Impact Strength (Charpy V-Notch), ft•lb
-310°F -112°F 75°F -20°F
Cold-Drawn, Annealed 212 219 216 212
Weld, As-Welded 73 – 78 –
Hot-Rolled 196 213 219 –

Tensile Properties of ASME SB 564 N04400 Forged Pipe Flange at Low Temperatures

Temper Tensile Strength, ksi Temperature, °F
Annealed

78.65

70

115.25

-297
Cold-Drawn

103.80

Room

117.45

-110

103.40

Room
Forged

92.00

70

128.25

-297

142.00

-423

Compressive Properties of ASTM 564M UNS N04400 Hot Forged Flange

Temper Tension Compression
Yield Strength (0.2% Offset), ksi Yield Strength (0.01% Offset), ksi Yield Strength (0.01% Offset), ksi Yield Strength (0.01% Offset), ksi
Annealed 33 28 19 19
Hot-Rolled 41 37 33 33



B564 UNS N04400 Hot Forged Flange In All Shapes And Functions, Wide Stock of BS 4504 PN10/ EN 1092-1 Standard SB 564 N04400 Flanges in Dubai

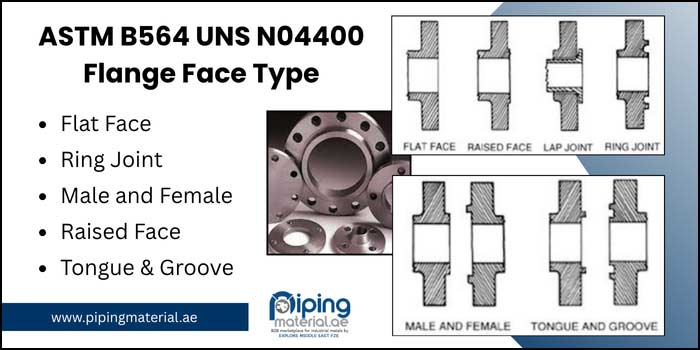

ASTM B564 UNS N04400 Flange Face Type


ASTM B564 UNS N04400 Flange Face Type

Sales Agents in Following Locations

Region Country City
Middle East United Arab Emirates Dubai
Africa Nigeria Abuja
Middle East United Arab Emirates Abu Dhabi
Middle East Saudi Arabia Dammam
MENA Morocco Casablanca
Middle East Saudi Arabia Riyadh
Middle East Saudi Arabia Jeddah
Middle East Qatar Doha
MENA Egypt Cairo
Africa South Africa Johannesburg
Africa South Africa Cape Town
Middle East Kuwait Kuwait City
Africa Nigeria Lagos

Weight Chart of ASME SB564 UNS N04400 Flange

NPS Weld Neck Slip On Blind Thd Socket Weld Lap Joint
24 261 220.5 360 220.5 213.8 247.5
22 209.3 166.5 288 166.5 166.5 195.8
20 180 141.8 231.8 146.3 141.8 168.8
18 144 113.9 186.3 126 112.5 137.3
16 112.5 94.5 141.8 99 85.5 105.3
14 92.7 74.3 112.5 74.3 74.3 85.5
12 63.9 51.8 83.3 51.8 51.8 63
10 45 36.5 55.8 36.5 36.5 40
1/2 0.9 0.9 0.9 0.9 1.4 0.9
3/4 1.4 1.4 1.4 1.4 1.4 1.4
8 31.1 26.1 36.5 26.1 26.1 26.1
6 20.3 17.6 22.5 17.6 17.6 17.6
5 16.2 13.0 16.7 13.9 12.6 12.6
4 11.9 10.6 12.6 10.8 9.9 10.8
3 8.1 5.9 7.2 6.3 5.9 6.5
3½ 9 7.7 9.5 7.7 7.7 7.7
2 4.1 3.2 3.6 3.2 3.2 3.2
2½ 5.4 4.5 5.4 4.5 4.5 4.5
1½ 3.2 2.9 3.2 2.9 2.7 2.9
1 1.8 1.4 1.8 1.4 1.4 1.4

Physical Properties of ASTM B 564 UNS N04400 Forged Flange

Properties Values
Curie Temperature °F 70-120
°C 21-49
Melting Range °F 2370-2460
°C 1300-1350
Density g/cm3 8.8
lb/in3 0.318
Electrisity Resistivity µΩ·m 547

ASTM B564 UNS N04400 Forging Mean Coefficient Linear Expansion

Temperature Mean Coefficient Linear Expansion
°F mm/m•°C in/in/°F x 10-6
2000 18.1d 10.3d
1800 17.7 10.0d
1600 17.4 9.8
1400 17.0 9.6
1200 16.6 9.3
1000 16.3 9.1
800 16.1 8.9
600 15.7 8.8
400 15.2 8.6
200 14.2 7.7
-300 11.1 6.1
-200 11.4 6.4
-100 12.1 6.7

Thermal Conductivity of ASME SB564 UNS N04400 Forgings

Temperature Thermal Conductivity
°C W/m•°C Btu-in/h/ft2/°F
900 48.8d 360d
500 36.5 264
700 42.4 311
600 39.4 287
800 45.5d 335d
400 33.4 238
300 30.1 215
200 26.9 193
100 24.0 167
21 22.0 151
-130 18.2 130
-180 16.5 113
-70 19.8 139

ASTM B564 UNS N04400 Flange Specific Heat

Temperature Specific Heat
°F J/kg•°C Btu/lb/°F
600 470 0.114
400 459 0.110
200 445 0.105
70 427 0.102
-100 378 0.088
-200 320 0.078
-300 223 0.050

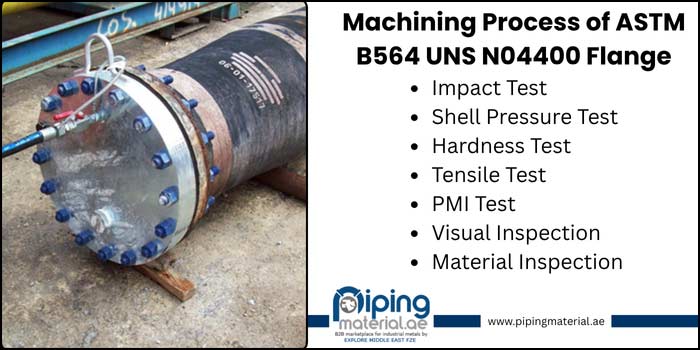

ASME SB564 UNS N04400 Flange Testing

Get ASTM B564 UNS N04400 Flange Suppliers in UAE providing verified testing methods

ASME SB564 UNS N04400 Flange Testing

Electrical Resistivity of ASME SB564 UNS N04400 Forgings

Temperature Electrical Resistivity
°F °C ohm-circ mil/ft mW•m
2000 1000 427 0.692
1800 900 415 0.675
1600 800 403 0.658
1400 700 391 0.639
1200 600 379 0.620
1000 500 367 0.603
200 100 322 0.537
800 400 355 0.587
600 300 346 0.574
400 200 337 0.559
70 21 307 0.511
-320 -200 205 .360

Density of SB564 UNS N04400 Forged Steel Flanges

Density (g/cm3) Density (lb/in3)
8.8 0.318

ASTM B564 N04400 Pipe Flange Heating Temperature

Properties Values
Heating Temperature 2150°F

Machining Process of ASTM B564 UNS N04400 Flange

  • Material selection
  • Cutting
  • Shaping
  • Heat treatment
  • Forging
  • Forming
  • Surface finish
  • Machining
  • Quality control
  • Inspection

SB 564 UNS N04400 Weld Flanges Pressure Rating

Temperature (°C) ASTM B564 UNS N04400 flange
– 1500 2500 400 900 600 300 150
600 33.2 55.3 8.9 19.9 13.3 6.6 –
650 23.6 39.4 6.3 14.2 9.5 4.7 –
625 25.7 42.8 6.8 15.4 10.3 5.1 –
550 69.7 116.2 18.6 41.8 27.9 13.9 –
575 47.2 78.6 12.6 28.3 18.9 9.4 –
538 82.7 137.9 22.1 49.6 33.1 16.5 1.4
500 140.9 235.0 37.6 84.7 56.5 28.2 2.8
475 158.2 263.9 42.3 95.1 63.4 31.7 3.7
450 169.0 281.8 45.1 101.4 67.7 33.7 4.6
425 175.1 291.6 46.5 105.1 70.0 35.2 5.5
400 183.1 304.9 48.9 109.8 73.3 36.5 6.5
375 194.1 323.2 51.6 116.5 77.6 38.9 7.4
350 201.1 335.3 53.6 120.7 80.4 40.3 8.4
325 206.6 344.3 55.0 124.0 82.6 41.4 9.3
300 214.4 357.1 57.0 128.6 85.7 42.9 10.2
250 231.8 386.2 61.7 139.0 92.7 46.30 12.1
200 243.4 405.4 64.8 145.8 97.2 48.6 13.8
150 250.8 418.2 66.8 150.6 100.3 50.3 15.8
100 257.6 429.4 68.7 154.6 103.0 51.5 17.7
50 258.6 430.9 68.9 155.1 103.4 51.7 19.5
-29 to 38 258.6 430.9 68.9 155.1 103.4 51.7 20.0

ASTM B564 N04400 Flange Equivalent

STANDARD EN UNS AFNOR WERKSTOFF NR. JIS BS GOST
ASTM B564 UNS N04400 Flange NiCu30Fe N04400 NU-30M 2.4360 NW 4400 NA 13 28-2,5-1,5

Chemical Composition of UNS N04400 Flange

Element S Ni Cu Fe C Mn Si
Minimum – 63 28 – – – –
Maximum 0.024 – 34 2.5 0.3 2 0.5

ASTM B564 N04400 Pipe Flange Mechanical Properties

Tensile Strength Yield Strength (0.2%Offset) Elongation
80000 Psi, 550 MPa 35000 Psi , 240 MPa 40 %

Shipping Time of ASTM B564 UNS N04400 Flange As per Location

Countries Time
Russia  20 Days
Russia 20 Days
Oman 5 Days
Indonesia 9 Days
Denmark 35 Days
Norway 45 Days
Italy 28 Days
Thailand 7 Days
Slovakia 45-60 Days
Spain 30 Days
Germany 21 Days
Japan 7 Days
Cambodia 9 Days
Colombia 45 Days
