SB 564 N06600 Forgings and ASTM B564 N06600 Blind Flange Suppliers in UAE
ASTM B564 UNS N06600 Flange Highlights
| Size in Ready Stock: | 1/2″ to 48″ | DN15 to DN1200 |
|---|---|
| Custom Sizes Available in: | Up to 72 (ASME B16.47) |
| Thread : | NPT, FNPT, BSPP, MNPT, BSPT |
| Approval : | SABIC, KOC, ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, Saudi Aramco, RINA, KPI |
| Suited for : | Corrosion Environment |
| European & American Standard: | UNS N06600, ASTM B564, ASME SB564, WNR 2.4816 |
| Raw Material Origin: | European, Korean, UK, Japanese, Indian, German |
| Pressure Level: | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Types of Faces : | Tongue and Groove Face (T&G), Raised Face (RF), Ring Type Joint (RTJ), Male Female Face (M&F), Flat Face (FF) |
| Service Life : | up to 30 years |
| MTC: | EN 10204/3.1B |
| RFQ: | support@pipingmaterial.ae |
ASTM B564 UNS N06600 Flange Specification
Contact No. 1 UAE B2B Directory to Find Verified ASTM B564 UNS N06600 Flange Suppliers in UAE.
Size In Ready Stock: DN15 DN1200 | 1/2″ to 48″ NPS;
Maximum Size: NPS 26 to NPS 60 For Large Diameter
Manufacturing Way: Forged, CNC Machining, Drilling, Stamping
Bolts Hole Number: 4 To 48
Corrosion Resistance: Sulfuric and Hydrochloric Acid, Seawater
Surface Finish: Concentric serrated, Polished, Mirror & Stock Finish, Smooth Finish
Application: Sea water exchanger, Power Generation plant, Oil & Gas plants, Petrochemicals industry
Testing: Shell pressure test, Pressure Testing, Hardness Test, Impact Test
Documentation: MTC EN 10204/3.1B, Third Party Inspection
Packaging: Plastic Bag, Wooden Case, Carton Box
Value Added Services: Threading, Casting, Polishing, Cutting
Manufacturing Method: Forged, Drilling, Stamping, CNC Machining
Get Quote Directly from ASTM B564 UNS N06600 Flange Suppliers in UAE
100% Tested SB 564 UNS N06600 Slip On Flange with MTC EN 10204 3.1/3.2
Ready Stock of ASTM B564 UNS N06600 Flange
- Temperature Limit: 2000°F, 1095°C
- Packaging: Wooden case, Plastic bag
- Temperatures up to 1,900°F
- Thread: NPT/ BSP/ FPT
- Logistics: By Sea, By Air
- Process: Forged, Machined
- Marking: Size, SCH & heat no., logo
- Forging: Drilling, Chamfering
- ASME B16.5 Size: 1/2″ To 24″
- Testing: Tensile test, Impact test
- Production: Heat treated and machined
- Design: As per drawing
- Equipment: Press, Bending machine
- Usage: Power, Chemical, Construction
- Facing: RF, RTJ, FF
- Density: 8.4 g/cm³
- Documentation: 100% Radiography Test Report
- Brinell hardness HB: ≤195
- Heat Treatment: 1010 – 1095°C
- Cooling: Rapid quench (air or water)
Please Find Authorised Dealers and Distributors of ASTM B564 UNS N06600 Flange in UAE
- Prestige Metalloys LLC- Dubai,UAE
- Royal Veritas Oil & Gas Equipment LLC -Abu Dhabi (UAE)
- PipingMart FZE – Dubai, UAE
- Bright Deal International FZC – Sharjah (UAE)
UNS N06600 Flange Pressure Capacity
| ASTM B564 UNS N06600 Flange Types | weld neck flange | threaded flange | lap joint flange | slip on flange | blind flange |
|---|---|---|---|---|---|
| Sizes | 1/2″ To 48″ | 1/2″ To 16″ | 1/2″ To 24″ | 1/2″ To 48″ | 1/2″ To 48″ |
| Pressure Capacity | High pressure | Low pressure | Low pressure | Low pressure | Very high pressure |
B564 UNS N06600 Pipe Flange Like Slip On Flange/ Wnrf Are Suitable For High-temperature Projects, Get A Quick Quote Now
Applications of ASTM B564 UNS N06600 Flange
Get Here ASTM B564 UNS N06600 Flange Suppliers in UAE Who Supply in Different Sectors to Fullfill Their Needs
- Off Shore Companies
- Water Works System
- Power Generation
- Sugar Industrial Sector
- Petrochemicals
Top 10 Verified Manufacturers Of ASTM B564 N06600 Forged Flange, Quick Delivery Of SB 564m N06600 Plate Flange In UAE, Saudi Arabia & Complete Middle East Countries
Check Out Your Nearby Locations For Fastest Deliveries
| Region | City | Country |
|---|---|---|
| Middle East | Dubai | United Arab Emirates |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Dammam | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Doha | Qatar |
| Middle East | Jeddah | Saudi Arabia |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| MENA | Cairo | Egypt |
| Africa | Cape Town | South Africa |
| Africa | Johannesburg | South Africa |
| Africa | Lagos | Nigeria |
B564 UNS N06600 Pipe Flange Corrosion Rate at Boiling Temperature
| Acid Concentration, % | Corrosion Rate at Boiling Temperature | |
|---|---|---|
| – | mpy | mm/y |
| 40 | 700 | 17.8 |
| 30 | 216 | 5.49 |
| 20 | 186 | 4.72 |
| 10 | 135 | 3.43 |
ASME SB 564 UNS N06600 Weld Flanges and Threaded Flange Are Available in Class 150#, 300#, 600# And Upto 2500#
SB564 N06600 Weld Flanges Pressure Rating
| ASME SB 564 N06600 | Pressure Ratings | ||||||
|---|---|---|---|---|---|---|---|
| Temperature (°F) | Class 600 | Class 2500 | Class 1500 | Class 150 | Class 900 | Class 300 | Class 400 |
| 1500 | 55 | 230 | 135 | 10 | 80 | 25 | 35 |
| 1450 | 70 | 285 | 170 | 15 | 105 | 35 | 45 |
| 1400 | 95 | 400 | 240 | 20 | 145 | 50 | 65 |
| 1350 | 125 | 515 | 310 | 20 | 185 | 60 | 80 |
| 1300 | 170 | 715 | 430 | 20 | 255 | 85 | 115 |
| 1250 | 225 | 945 | 565 | 20 | 340 | 115 | 150 |
| 1200 | 310 | 1285 | 770 | 20 | 465 | 155 | 205 |
| 1150 | 400 | 1655 | 995 | 20 | 595 | 200 | 265 |
| 1100 | 515 | 2145 | 1285 | 20 | 770 | 255 | 345 |
| 1050 | 615 | 2570 | 1545 | 20 | 925 | 310 | 410 |
| 1000 | 640 | 2675 | 1605 | 20 | 965 | 320 | 430 |
| 900 | 780 | 3240 | 1945 | 50 | 1165 | 390 | 520 |
| 850 | 790 | 3300 | 1980 | 65 | 1190 | 395 | 530 |
| 800 | 805 | 3360 | 2015 | 80 | 1210 | 405 | 540 |
| 750 | 830 | 3460 | 2075 | 95 | 1245 | 415 | 555 |
| 700 | 850 | 3540 | 2125 | 110 | 1275 | 425 | 565 |
| 650 | 860 | 3580 | 2150 | 125 | 1290 | 430 | 575 |
| 600 | 875 | 3640 | 2185 | 140 | 1310 | 435 | 580 |
| 500 | 930 | 3880 | 2330 | 170 | 1395 | 465 | 620 |
| 400 | 995 | 4140 | 2485 | 190 | 1490 | 495 | 660 |
| 300 | 1080 | 4500 | 2700 | 205 | 1620 | 540 | 720 |
| 200 | 1200 | 5000 | 3000 | 230 | 1800 | 600 | 800 |
| 950 | 765 | 3180 | 1910 | 35 | 1145 | 380 | 510 |
| -20 to 100 | 1440 | 6000 | 3600 | 275 | 2160 | 720 | 960 |
Manufactruing Process Of ASTM B564 N06600 Lap Joint Flange
- Raw Material Selection
- Material Inspection
- Cutting
- Heating
- Forging & Stamping
- Heat treatment
- Machining
- Drilling Holes
- Marking
- Coatings
Check Ready Stock Of SB 564 UNS N06600 Hot Forged Flange With Above ASTM B564 N06600 Socket Weld Flange Suppliers & Stockists in UAE
Types of ASTM B564 UNS N06600 Flanges

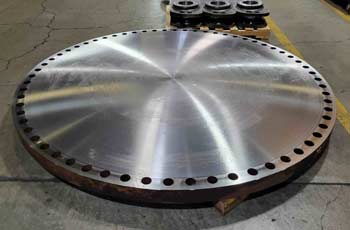

ASTM B564 UNS N06600 blind flange

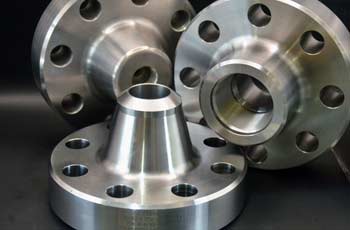

ASME SB564 UNS N06600 weld neck flange

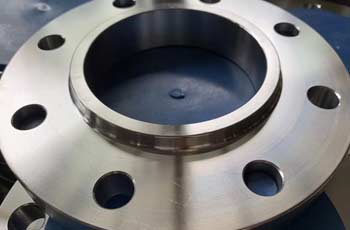

B564 UNS N06600 socket weld flange

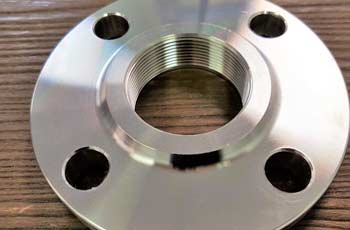

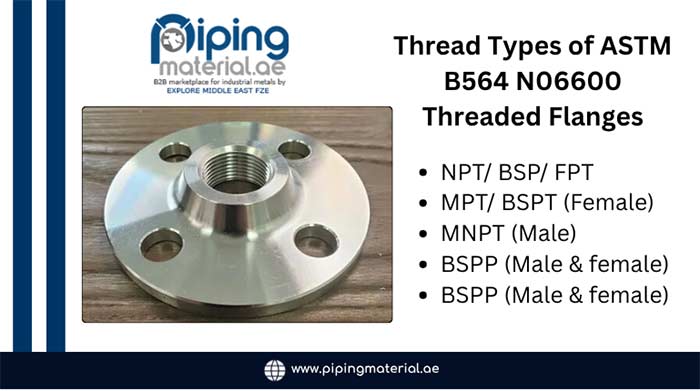

ASTM B564 N06600 threaded flange

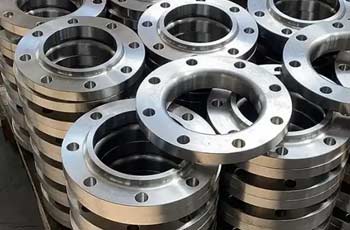

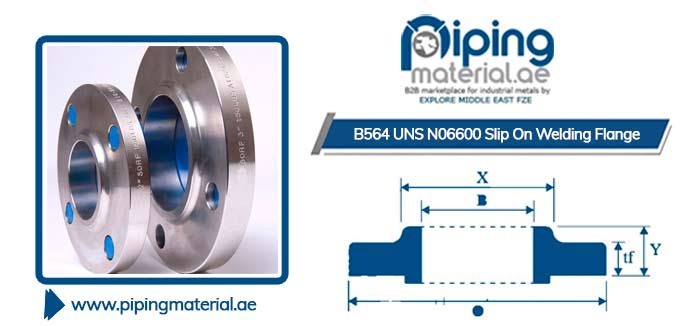

ASTM B564 UNS N06600 slip on flange
ASME B564 UNS N06600 reducing flange

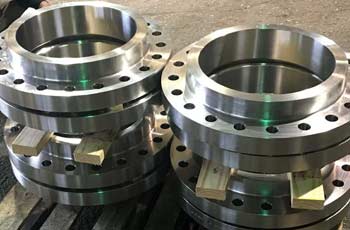

B564 UNS N06600 lap joint flange

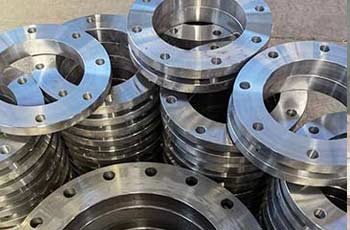

B564 N06600 plate flanges

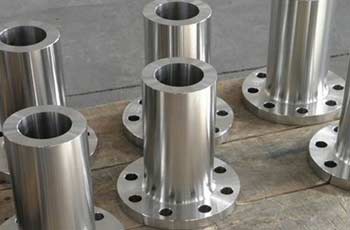

ASTM B564M UNS N06600 long neck flange
SB 564 UNS N06600 Forged Flange Corrosion Rate at Room Temperature
| Acid Concentration, % | Corrosion Rate at Room Temperature | |
|---|---|---|
| – | mm/y | mpy |
| 98 | 0.19 | 7.4 |
| 90 | 0.01 | 0.5 |
| 80 | 0.57 | 22.3 |
| 70 | 0.06 | 2.3 |
| 60 | 0.05 | 1.9 |
| 50 | 0.04 | 1.6 |
| 40 | 0.05 | 1.8 |
| 30 | 0.06 | 2.5 |
| 20 | 0.05 | 2.0 |
| 10 | 0.08 | 3.2 |
Laboratory Tests of SB564 N06600 Weld Flanges In Sulfuric Acid Solutions
| Temperature | Acid Concentration (%) | Velocity | Test | ||
|---|---|---|---|---|---|
| °F | °C | – | ft/sec. | m/sec. | (Hrs.) |
| 86 | 30 | 93 | 0.26 | 0.08 | 20 |
| 86 | 30 | 70 | 0.26 | 0.08 | 20 |
| Room | Room | 10 | None | None | 24 |
| 176 | 80 | 5 | 0.26 | 0.08 | 20 |
| 86 | 30 | 5 | 0.26 | 0.08 | 20 |
| 86 | 30 | 1 | 0.26 | 0.08 | 120 |
| 212 | 100 | 0.16 | – | – | – |
Associate Traders And Importers Available In Below Locations For Quick Deliveries
| Umm Al Quwain | Sharjah | Doha | Fujairah |
|---|---|---|---|
| Riyadh | Muscat | Dubai | Ras Al Khaimah |
| Al Jubail | Abu Dhabi | Ajman | Saudi Arabia |
Physical Properties of ASME SB 564 N06600 Forged Pipe Flange
| Poperties | Values | |
|---|---|---|
| Curie Temperature | °C | -124 |
| °F | -192 | |
| Density | Mg/m3 | 8.47 |
| lb/in3 | 0.306 | |
| Specific Heat | J/kg-°C | 444 |
| Btu/lb-°F | 0.106 | |
| Melting Range | °C | 1354-1413 |
| °F | 2470-2575 | |
| Electrical Resistivity | μΩ-m | 1.03 |
| mil/ft | 620 | |
Thermal Properties of ASTM B564 UNS N06600 Forging
| Temperature (°F) | Specific Heat (Btu/lb•°F) | Coefficient of Expansionᵃ (10⁻⁶in/in•°F) | Electrical Resistivity (ohm•circ•mil/ft) | Thermal Conductivity (Btu•in/ft²•h•°F) |
|---|---|---|---|---|
| 1600 | 0.149 | 9.1 | 686 | 200 |
| 1400 | 0.145 | 8.9 | 680 | 186 |
| 1200 | 0.140 | 8.6 | 680 | 172 |
| 1000 | 0.132 | 8.4 | 680 | 158 |
| 800 | 0.126 | 8.1 | 657 | 145 |
| 600 | 0.121 | 7.9 | 644 | 133 |
| 400 | 0.116 | 7.7 | 634 | 121 |
| 200 | 0.111 | 7.4 | 625 | 109 |
| 70 | 0.106 | 5.8 | 620 | 103 |
| -100 | 0.090 | 6.7 | – | 93 |
| -250 | 0.073 | 6.0 | – | 86 |
| -200 | 0.079 | 6.3 | – | 89 |
ASME SB564 UNS N06600 Forgings Modulus of Elasticity
| Temperature | Poisson’s Ratio | Young Modulus | Shear Modulus |
|---|---|---|---|
| °F | – | 10³ ksi | 10³ ksi |
| 1800 | 0.338 | 21.0 | 7.85 |
| 1600 | 0.329 | 22.8 | 8.58 |
| 1400 | 0.315 | 24.3 | 9.24 |
| 1200 | 0.297 | 25.5 | 9.83 |
| 1000 | 0.297 | 26.7 | 10.29 |
| 800 | 0.301 | 27.8 | 10.68 |
| 600 | 0.307 | 28.8 | 11.02 |
| 400 | 0.312 | 29.7 | 11.32 |
| 200 | 0.319 | 30.5 | 11.56 |
| 72 | 0.327 | 31.1 | 11.72 |
Post Shutdown Inspection for SB 564 UNS N06600 Socket Weld Flange
- Check Gasket for Leaks
- Verify Bolt Torque Pattern
- Inspect Bolts/Nuts For Damage
- Examine Flange Faces
- Check Support Alignment

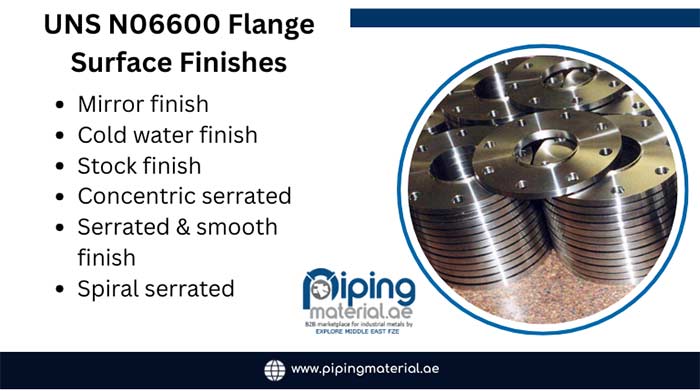

UNS N06600 Flange Surface Finishes
Emissivity of ASTM B564 UNS N06600 Flange
| Properties | Temperature,°C | |||||
|---|---|---|---|---|---|---|
| 1090 | 980 | 815 | 650 | 315 | 480 | |
| Sand-Blasted and Oxidizedb | 0.97 | 0.96 | 0.93 | 0.90 | – | 0.86 |
| Total Hemispherical Emissivity | – | 0.82 | 0.79 | 0.76 | 0.69 | 0.72 |
| Total Normal Emissivity | 0.98 | 0.95 | 0.90 | 0.87 | – | 0.85 |
| As-Rolled and Oxidizeda | 0.97 | 0.96 | 0.93 | 0.90 | – | 0.86 |
Material Inspection Facility In Following Locations
| Middle East Countries | Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen |
|---|---|
| MENA | Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine |
| Africa | South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria |
ASME SB564 UNS N06600 Flange Impact Strength
| Orientation | Longitudinal | Transverse | |||||
|---|---|---|---|---|---|---|---|
| Impact Strengthᴬ | ft-lb | 61.7 | 67 | 61.3 | 63.5 | 65.5 | 60.8 |
| J | 83.7 | 90.8 | 83.1 | 86.1 | 88.8 | 82.4 | |
| Temperature | °F | 70 | -110 | -320 | 70 | -110 | -320 |
| °C | 21 | -79 | -196 | 21 | -79 | -196 | |
SB564 N06600 Weld Flanges Torque Tightening
- Manual Wrench
- Impact Wrench
- Hammer Wrench
- Hydraulic Torque Wrench
- Gear-Assisted Torque Wrench
- Hydraulic Bolt Tensioner
Fatigue Strength of B564 UNS N06600 Pipe Flange
| Condition | Average Endurance Ratio | Fatigue Strength (10^6 Cycles) | |
|---|---|---|---|
| – | – | ksi | MPa |
| Cold-Drawn, Stress-Equalized | 0.34 | 52.5 | 361.0 |
| Annealed | 0.39 | 39.0 | 268.9 |
| Hot-Rolled | 0.41 | 40.5 | 279.2 |
| Cold-Drawn | 0.32 | 45.0 | 310.3 |
B564 UNS N06600 Pipe Flange Gas Carburization Tests
| Alloy | Weight Gain, mg/cm2 | |
|---|---|---|
| 2000°F (1095°C) | 1700°F (925°C) | |
| ASTM B564 UNS N06600 | 12.30 | 2.66 |
Class 150# SB 564 UNS N06600 Forged Flange Weight Chart
| NPS (Inch) | Weld Neck | Blind | Lap Joint | Slip On | Socket Weld | Thd |
|---|---|---|---|---|---|---|
| 24 | 120.6 | 193.5 | 123.8 | 99 | 99 | 99 |
| 22 | 101.3 | 159.8 | 110.3 | 83.3 | 83.3 | 83.3 |
| 20 | 88.7 | 128.3 | 87.8 | 74.3 | 74.3 | 74.3 |
| 18 | 74.3 | 99 | 72 | 58.5 | 58.5 | 58.5 |
| 16 | 63 | 81 | 63 | 47.7 | 44.1 | 44.1 |
| 14 | 51.3 | 63 | 47.3 | 40.5 | 40.5 | 40.5 |
| 12 | 39.6 | 55.4 | 28.8 | 28.8 | 28.8 | 28.8 |
| 10 | 24.3 | 31.5 | 19.4 | 19.4 | 19.4 | 19.4 |
| 8 | 18.9 | 21.2 | 13.5 | 13.5 | 13.5 | 13.5 |
| 6 | 11.7 | 12.2 | 8.6 | 8.6 | 8.6 | 8.6 |
| 5 | 9.5 | 9 | 6.8 | 6.8 | 6.8 | 6.8 |
| 4 | 7.4 | 7.7 | 5.9 | 5.9 | 5.9 | 5.9 |
| 3 | 5.2 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| 2½ | 4.5 | 3.2 | 3.6 | 3.6 | 3.6 | 3.6 |
| 2 | 2.7 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| 1 | 1.4 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| 1/2 | 0.9 | 0.9 | 0.5 | 0.5 | 0.9 | 0.5 |
Dimensions Of B564 UNS N06600 Slip on Welding Flange
| NPS | O.D. | Hub Diameter | NPS Of Slip On Welding | Minimum Outside Diameter | Minimum Thickness |
|---|---|---|---|---|---|
| Normal Pipe Size | (O) | (X) | (Y) | B | (tf) |
| 1/2 | 90 | 30 | 14 | 22.2 | 9.6 |
| 3/4 | 100 | 38 | 14 | 27.7 | 11.2 |
| 1 | 110 | 49 | 16 | 34.5 | 12.7 |
| 5/4 | 115 | 59 | 19 | 43.2 | 14.3 |
| 3/2 | 125 | 65 | 21 | 49.5 | 15.9 |
| 2 | 150 | 78 | 24 | 61.9 | 17.5 |
| 5/2 | 180 | 90 | 27 | 74.6 | 20.7 |
| 3 | 190 | 108 | 29 | 90.7 | 22.3 |
| 7/2 | 215 | 122 | 30 | 103.4 | 22.3 |
| 4 | 230 | 135 | 32 | 116.1 | 22.3 |
| 5 | 255 | 164 | 35 | 143.8 | 22.3 |
| 6 | 280 | 192 | 38 | 170.7 | 23.9 |
| 8 | 345 | 246 | 43 | 221.5 | 27.0 |
| 10 | 405 | 305 | 48 | 276.2 | 28.6 |
| 12 | 485 | 365 | 54 | 327.0 | 30.2 |
| 14 | 535 | 400 | 56 | 359.2 | 33.4 |
| 16 | 595 | 457 | 62 | 410.5 | 35.0 |
| 18 | 635 | 505 | 67 | 461.8 | 38.1 |
| 20 | 700 | 559 | 71 | 513.1 | 41.3 |
| 24 | 815 | 663 | 81 | 616.0 | 46.1 |
Temperature Range of ASME SB 564 N06600 Forged Pipe Flange
| Temperature Range (°C) | Temperature Range(°F) |
|---|---|
| 1095 | 2000 |
Forging Process of B564 UNS N06600 Hot Forged Flange
- Choose material & forging
- Drilling holes
- Chamfering edges
- Cutting & sealing faces
- Heat treatment
- Machining & forming
- Inspection test & packaging
Thread Types of ASTM B564 N06600 Threaded Flanges
Yield Strength of ASME SB564 UNS N06600 Flange
| Yield Strength (MPa) | Yield Strength (PSI) |
|---|---|
| 310 | 45,000 |
Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below
| Country | Cities |
|---|---|
| Netherlands | Amsterdam |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Seraing |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | Rotterdam |
| Belgium | Leuven |
| Belgium | Westerlo |
| Belgium | Antwerp |
Installation Guideline of ASTM B564 UNS N06600 Reducing Flange
- Flange Faces Should Clean
- Free From Dirt Or Damage
- Bolts must be tightened evenly
- Precise Alignment
- Laser alignment tools can be used
ASTM B564 UNS N06600 Flange Equivalent
| Alloy | AFNOR | EN | UNS | GOST | JIS | BS | WERKSTOFF NR. |
|---|---|---|---|---|---|---|---|
| Inconel 600 Flanges | NC15FE11M | NiCr15Fe | N06600 | МНЖМц 28-2,5-1,5 | NCF 600 | NA 13 | 2.4816 |
Chemical Composition of B564 UNS N06600 Pipe Flange
| Elements % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
|---|---|---|---|---|---|---|---|---|---|
| Maximum | – | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
| Minimum | 72 | 14 | 6 | – | – | – | – | – | – |
ASME SB 564M UNS N06600 Weld Flanges Mechanical Properties
- At Room temperature
| Condition | Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation A 5 % | Brinell hardness HB |
|---|---|---|---|---|
| Annealing treatment | 550 | 240 | 30 | ≤195 |
| Solution treatment | 500 | 180 | 35 | ≤185 |
Table of Content
