ASTM B564 UNS N06625 Flange

ASTM B564 UNS N06625 Flange Summary

NPS 1/2″ to 48″
Origin Korean, European, Japanese, Indian, American
Schedule Sch 5 to XXS
Approval ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI
European & American Standard: ASTM B564, ASME SB564, UNS N06625, WNR 2.4856
Pressure 150 to 2500#
Thread BSPT, FNPT, MNPT, NPT, BSPP
Impact Toughness Excellent at Cryogenic Temperatures
Process Forging, Rolling, Casting
Temperature Range 1290 °C to 1350 °C
Surface Mirror, Brushed, Mill Finished, Polished
Connection Welding
MTC: EN 10204/3.1B
RFQ: support@pipingmaterial.ae



Piping Material

Table of Content





SB 564 N06625 Forgings Suppliers in UAE

ASTM B564 UNS N06625 Flange Specification

High Quality ASTM B564 UNS N06625 Flange Suppliers in UAE Available in All Sizes

Size Range

Size Range : NPS: 1/2″ – 48″, 15 to 1200 NB

Dimensions

Dimensions: ASME B16.5, B16.47, B16.36, B16.48

Pressure rating

Pressure Rating: Class 150# to 600# (Threaded) and Class 150 to 2500# (Forged)

Manufacturing Standard

Manufacturing Standard: ASTM B564/ ASME SB 564

Sealing Surface

Sealing Surface : M&F, RTJ, T&G, RF, FF, LJ

Manufacturing Procedure

Manufacturing Procedure: Forged, Machined, Plate

Application

Application: Sea Water Exchanger, Petrochemical Plants, Crude Oil Distillation

Testing

Testing: Visual Test, NDT Test, Impact Test

Documentation

Documentation: MTC EN 10204/3.1B, Third Party Inspection

Packaging

Packaging: Wooden Case, Plastic Bag, Carton Box

Quote

Get Quote Directly from ASTM B564 UNS N06625 Flange Suppliers in UAE

Tested

100% Radiography Tested ASTM B564 UNS N06625 Flange With MTC EN 10204/3.1



Ready Stock Of B564 UNS N06625 Pipe Flange

For Custom Drawing Get in Touch With Top 10 ASTM B564 UNS N06625 Flange Suppliers in UAE

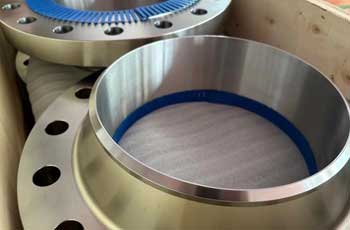

ASTM B564 UNS N06625 Forged Flange

ASTM B564 UNS N06625 Forged Flange
  • Manufacturing Way: Forging, Press
  • Applicable Standard: ASME B16.5, B16.47

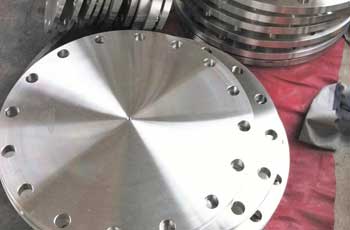

ASME SB 564 UNS N06625 Blind Flange

ASME SB 564 UNS N06625 Blind Flange
  • Connection: Welding,Threaded
  • Transport: Wooden Case and Plastic

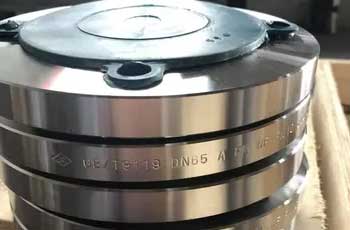

B564 UNS N06625 Slip on Flange

B564 UNS N06625 Slip on Flange
  • Sealing Face: RF, FF, RTJ, TF, GF
  • Machining Method: CNC Machining

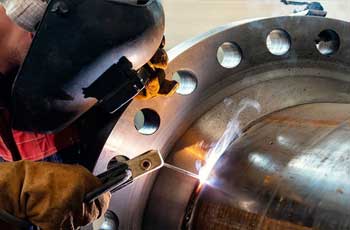

ASTM B564 N06625 Weld Neck Flange

ASTM B564 N06625 Weld Neck Flange
  • Surface: Polish, Sand Blasting, Sand Rolling
  • Use:for Water, Oil and Gas Industrial

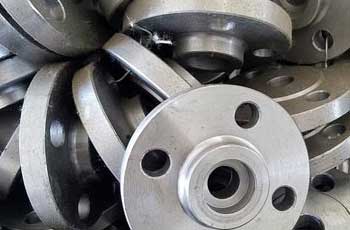

SB 564 UNS N06625 Socket Weld Flange

SB 564 UNS N06625 Socket Weld Flange
  • Heat Treatment: Normalizing; Annealing; Quenching+Tempering
  • Hub Length: Customizable

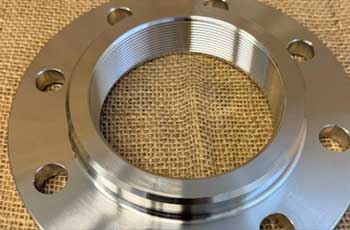

B564 N06625 Threaded Flange

B564 N06625 Threaded Flange
  • Customized: Yes
  • Inspection: UT, RT, ET

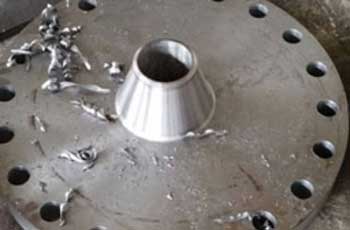

SB564 N06625 Reducing Flange

SB564 N06625 Reducing Flange
  • Quality: 100% Inspection Before Package and Delivery
  • Process: Cold Rolled, Cold Drawn, Bright Anneal

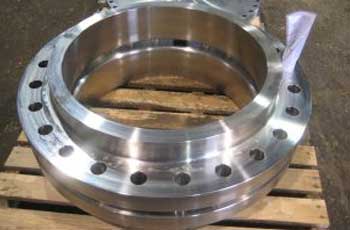

ASME SB 564 N06625 Lap Joint Flange

ASME SB 564 N06625 Lap Joint Flange
  • Pressure: Pn6/10/16/25/40/63
  • Threaded: NPT

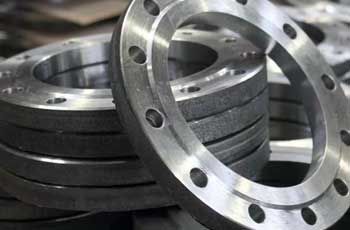

ASME SB564 N06625 Plate Flanges

ASME SB564 N06625 Plate Flanges
  • Certificate: ISO TUV
  • Size: 15NB to 1200NB

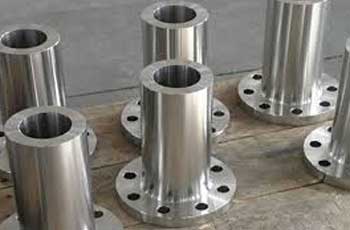

ASTM B564 UNS N06625 Grade 2 Long Neck Flange

ASTM B564 UNS N06625 Grade 2 Long Neck Flange
  • Process: Forging, Rolling, Casting
  • Temperature : 1290-1350 °C

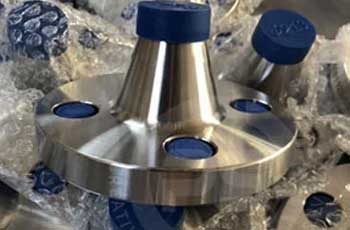

ASTM B564 UNS N06625 Grade 1 Reducing Flange

ASTM B564 UNS N06625 Grade 1 Reducing Flange
  • Fullfill: ISO 15156, NACE MR0175/ MR0103
  • Finish: Mirror, Spiral, Serrated

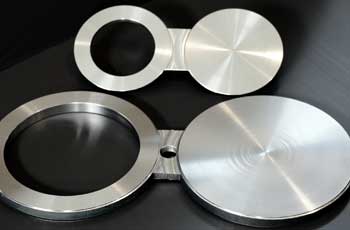

SB 564 N06625 Spectacle Blind Flange

SB 564 N06625 Spectacle Blind Flange
  • Density: 8.44 g/cm³
  • Non-magnetic



Find only Genuine Stockist and Distributors of ASTM B564 UNS N06625 Flange in Ras Al Khaimah

  • NOVA Steel Pipe Industries FZ-LLC, Ras Al Khaimah
  • Al Sahrawi Oil Field Equipment, Ras Al Khaimah
  • Al Hamra Industrial Zone, Ras Al Khaimah
  • Hydro Dynamic Pipe Engineering FZ LLC, Ras Al Khaimah



Weekly Shipment to Below Locations

Country Cities
Netherlands The Hague
Belgium Seraing
Netherlands Haarlem
Belgium Ghent
Belgium Antwerp
Belgium Meeuwen-Gruitrode
Netherlands Amsterdam
Belgium Westerlo
Netherlands Rotterdam
Belgium Brussels
Netherlands Eindhoven
Belgium Leuven



ASTM B564 N06625 Weld Neck Flanges Applications

  • Sea Water Exchanger
  • Petrochemical Plants
  • Water Supply
  • Power Generation Plant
  • Nuclear Energy Sector
  • Crude Oil Distillation



Common Types Of ASME SB564 UNS N06625 Flange

ASTM B564 UNS N06625 Blind Flange

ASTM B564 UNS N06625 Blind Flange

ASME SB564 UNS N06625 Weld Neck Flange

ASME SB564 UNS N06625 Weld Neck Flange

B564 UNS N06625 Socket Weld Flange

B564 UNS N06625 Socket Weld Flange

ASTM B564 N06625 Threaded Flange

ASTM B564 N06625 Threaded Flange

ASTM B564 UNS N06625 Slip On Flange

ASTM B564 UNS N06625 Slip On Flange

B564 N06625 Reducing Flange

B564 N06625 Reducing Flange

ASTM B564 UNS N06625 Grade 2 Lap Joint Flange

ASTM B564 UNS N06625 Grade 2 Lap Joint Flange

ASTM B564M UNS N06625 Plate Flanges

ASTM B564M UNS N06625 Plate Flanges

ASME SB 564 N06625 Long Neck Flange

ASME SB 564 N06625 Long Neck Flange



SB 564 UNS N06625 Forged Flange Accordance to ASME B16.5/ MSS SP-25, Call Below Manufacturers for Large Diameter ASTM B564 N06625 Blind Flange

UNS N06625 Flange Gasket Size

Gasket I.D. (Inside Diameter) Normal Pipe Size Gasket O.D. (Outside Diameter)
600 LB 300 LB 150 LB 400 LB 900 LB
1.06 3/4 2.625 2.625 2.25 2.625 2.75
1.31 1 2.875 2.875 2.625 2.875 3.125
0.84 1/2 2.125 2.125 1.875 2.125 2.50
1.91 1 1/2 3.75 3.75 3.375 3.75 3.875
1.66 1 1/4 3.25 3.25 3 3.25 3.50
2.38 2 4.375 4.375 4.125 4.375 5.625
3.50 3 5.875 5.875 5.375 5.875 6.625
10.75 10 15.75 14.25 13.375 14.125 17.125
2.88 2 1/2 5.125 5.125 4.875 5.125 6.50
4.50 4 7.625 7.125 6.875 7.00 8.125
6.62 6 10.50 9.875 8.75 9.75 11.375
5.56 5 9.50 8.50 7.75 8.375 9.75
8.62 8 12.625 12.125 11 12.00 14.125
12.75 12 18.00 16.625 16.125 16.50 19.625



ASTM B564 UNS N06625 Flange Origin and Manufacturing Standards

Japan China Russia France Europe Germany
JIS T 9112 / GB/9119 Ghost NF E 29-200/ NF E 29-203 BS EN 1092-2 (Iron), ISO 7005, PN DIN
Korea Europe USA Australia Malaysia Canada
KS EN ASTM, ASME, AWWA, MSS SP44, API-605 AS 2129 MS 816, MS 253 CSA B16.47/B16.5
Europe – Italy USA Europe Australia and UK
BS EN 1092-1 (Steel) – UNI 2276/ 6091 ANSI BS EN 1092-3 (Alloy) BS 10



SB 564 UNS N06625 Blind Flange Testing Methods

Get ASTM B564 UNS N06625 Flange Suppliers in UAE That Undergo a Series of Testing and Inspection

  • PT test
  • Impact testing
  • UT testing
  • Material inspection
  • Tensile test
  • Visual testing
  • NDT testing
  • Hardness test



ASTM B564 UNS N06625 Flange Corrosion Resistance

Alloy Acetic Acid Concentration Sion Rate Corrosion
mm/a mpy
ASTM B564 UNS N06625 10% 0.01 to 0.019 0.39 to 0.77



Find Sales Agents in Following Locations

MENA Morocco, Egypt, Tunisia, Algeria, Israel, Libya, Palestine
Middle East Countries Saudi, Bahrain, UAE, Kuwait, Qatar, Iraq, Iran, Oman,Jordan, Syria, Lebanon, Yemen
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria



Features Of B564 UNS N06625 Pipe Flange

  • High pressure and temperatures
  • High melting point of 1350°C
  • Resist temperatures of up to 1000°C
  • Handle pressures of up to 220 bar
  • High strength
  • Resistance to corrosion



Conditions Of ASTM B564 UNS N06625 Grade 1 Threaded Flanges

Conditions
871°C (min.) Annealed
1093°C (min.) Solution Annealed



Temperature Rating Of ASME SB564 UNS N06625 Forgings

Pressure Temperatures in °C
8.4 350
15.8 150
9.3 325
10.2 300
6.5 400
5.5 425
13.8 200
7.4 375
4.6 450
2.8 500
3.7 475
1.4 538
12.1 250

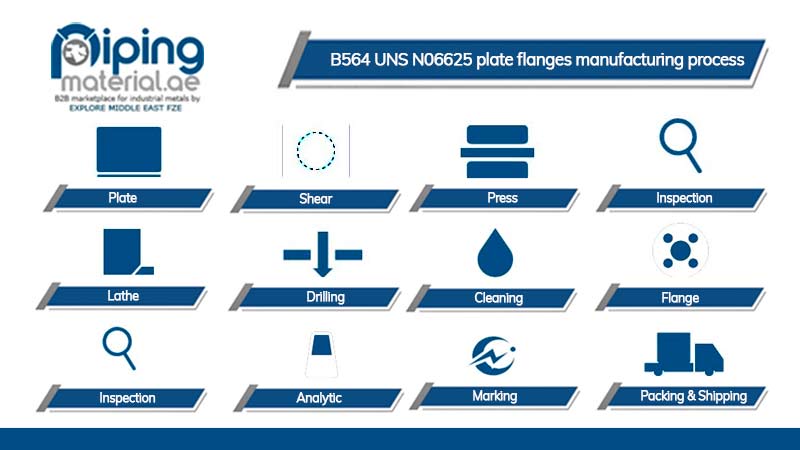

B564 UNS N06625 Plate Flanges Manufacturing Process


B564 UNS N06625 Plate Flanges Manufacturing Process



Weight Chart Of ASTM B564 UNS N06625 Flange

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
ANSI B16.5 Flanges ANSI 900 Flanges 641 559 20 38 41
ANSI 300 Flanges 584 514 20 29 32
ANSI 150 Flanges 533 476 12 25 29
ANSI 600 Flanges 603 527 20 38 41
ANSI 1500 Flanges 749 635 16 57 60
AS 2129 Flanges Table F Flanges 550 495 16 25 30
Table D Flanges 525 470 12 22 26
Table C Flanges 525 470 12 22 26
Table E Flanges 525 470 12 22 26
Table J Flanges 550 495 16 29 32
Table H Flanges 550 495 16 25 30
AS 4087 PN35 Flanges 16 550 495 M27 30
  PN16 Flanges 12 525 470 M24 26
  PN14 Flanges 525 470 12 M24 26
  PN21 Flanges 16 550 495 M27 30
ISO 7005 (DIN) PN20 Flanges 535 476 12 M27 35
PN10 Flanges 505 460 16 M20 22
PN6 Flanges 490 445 12 M20 22
PN16 Flanges 520 470 16 M24 26
PN40 Flanges 580 510 16 M33 36
PN25 Flanges 555 490 16 M30 33



Technical Consultants Are Stationed in the Locations Listed Below to Address All Technical Inquiries

Riyadh Dubai Muscat Ras Al Khaimah
Fujairah Umm Al Quwain Sharjah Doha
Al Jubail Abu Dhabi Saudi Arabia Ajman



ASME SB 564 N06625 Forged Steel Flanges Stock List

Size Max. Pressure Flange Connection Type Flange Schedule/Class
4" 720 psi Slip On ASME B16.5 Class 300
1/2" 275 psi Socket Weld ASME B16.5 Class 150
1/2" 150 psi FNPT ASME B16.5 Class 150
3/4" 150 psi FNPT ASME B16.5 Class 150
2-1/2" 720 psi Slip On ASME B16.5 Class 300
1/2" 150 psi Welded ASME B16.5 Class 150
3/4" 275 psi Socket Weld ASME B16.5 Class 150
3" 720 psi Slip On ASME B16.5 Class 300
3" 720 psi Slip On ASME B16.5 Class 300
4" 720 psi Slip On ASME B16.5 Class 300
1-1/2" 275 psi Socket Weld ASME B16.5 Class 150
2" 150 psi FNPT ASME B16.5 Class 150
1-1/4" 275 psi Socket Weld ASME B16.5 Class 150
1-1/2" 720 psi Slip On ASME B16.5 Class 300
1" 720 psi Slip On ASME B16.5 Class 300
2-1/2" 275 psi Socket Weld ASME B16.5 Class 150
2" 275 psi Socket Weld ASME B16.5 Class 150
3" 275 psi Socket Weld ASME B16.5 Class 150
1/2" 720 psi Slip On ASME B16.5 Class 300
2-1/2" 720 psi Slip On ASME B16.5 Class 300
1/2" 720 psi Slip On ASME B16.5 Class 300
2" 720 psi Slip On ASME B16.5 Class 300
4" 150 psi FNPT ASME B16.5 Class 150
4" 275 psi Socket Weld ASME B16.5 Class 150
1-1/4" 720 psi FNPT ASME B16.5 Class 300
1" 720 psi Slip On ASME B16.5 Class 300
1-1/4" 720 psi Slip On ASME B16.5 Class 300
1-1/2" 720 psi Slip On ASME B16.5 Class 300
2" 720 psi Slip On ASME B16.5 Class 300



ASTM B564 N06625 Blind Flange Dimension


ASTM B564 N06625 Blind Flange Dimension

Nominal Pipe Size, NPS Minimum Thickness Outside Diameter
NPS tf O
1/2 9.6 90
3/4 11.2 100
1 12.7 110
5/4 14.3 115
3/2 15.9 125
2 17.5 150
5/2 20.7 180
3 22.3 190
7/2 22.3 215
4 22.3 230
5 22.3 255
6 23.9 280
8 27.0 345
10 28.6 405
12 30.2 485
14 33.4 535
16 35.0 595
18 38.1 635
20 41.3 700
24 46.1 815



Tolerance Of ASTM B564 N06625 Forged Flange

ASTM B564 N06625 Forged Flange Tolerance Table
Inside Diameter (I.D.)
  • 12″ thru 18″: +1/8″ (3.2 mm)
  • 10" and smaller: ±1/32" (0.8 mm)
  • 20″ and larger: -1/16″ (1.6 mm)
Diameter of hub at base
  • When hub base is 24″ or smaller: ±1/16″ (1.6 millimeter)
  • When hub base is over 24″: ±1/8″ (3.2 millimeter)
Thickness
  • 20" and larger: ±3/16" (4.8 mm), -0"
  • 18" and smaller: ±1/8" (3.2 mm), -0"
Diameter of contact face
  • 1/4" RF (Raised Face), T/G (Tongue & Groove), (male & female), (m/f): ±1/64" (0.4 millimeter)
  • 1/16" raised face: ±1/32" (0.8 mm)
Drilling
  • Bolts hole spacing: ±1/32″ (0.8 mm)
  • Circle Bolts: ±1/16" (1.6 mm)
Eccentricity of bolt circle with respect to facing
  • 3″ and larger ±1/16″ (1.6 mm) maximum
  • 2 1/2" and smaller ±1/32" (0.8 mm) maximum
Diameter of hub at point of welding
  • 6" and larger: +5/32" (4.0 mm), -1/32 (0.8 mm)
  • 5" and smaller: +3/32" (2.4 mm), -1/32" (0.8 mm)
Length of hub
  • 12″ and larger: ±1/8″ (3.2 mm)
  • 10" and smaller: ±1/16" (1.6 mm)



B564 N06625 Weld Flanges Sizes As Per American Standard

  • ASME B16.36 : 2 To 24″
  • ASME B16.48 : 2 To 24″
  • ASME B16.5 : 1/2 To 24″
  • ASME B16.47 : 24 To 60″



Find ASTM B564 UNS N06625 Flange Resellers and Stockist Near You

Region Country City
Middle East Saudi Arabia Dammam
Middle East Saudi Arabia Jeddah
Middle East Kuwait Kuwait City
MENA Egypt Cairo
Middle East Qatar Doha
MENA Morocco Casablanca
Africa South Africa Johannesburg
Middle East Saudi Arabia Riyadh
Africa South Africa Cape Town
Middle East United Arab Emirates Dubai
Africa Nigeria Lagos
Middle East United Arab Emirates Abu Dhabi
Africa Nigeria Abuja



ASTM B564 UNS N06625 Forging Surface Finish

KNPC Approved ASTM B564 UNS N06625 Flange Suppliers in UAE in Various Surface Finish

  • Cold water finish
  • Spiral serrated
  • Stock finish
  • Mirror finish
  • Serrated & smooth finish
  • Concentric serrated



B564 UNS N06625 Pipe Flange Machining Process


B564 UNS N06625 Pipe Flange Machining Process



Thickness Calculation Of ASTM B564 N06625 Forged Flange

Wall Thickness Of Inconel 625 Flanges
Normal Pipe Size (NPS) O.D. (Outside Daimeter) Sch 20 Sch 10 Sch 30 STD Wall Outside Daimeter Sch 60 Sch 40 EXT Hvy Outside Daimeter Schedule 140 Schedule 100 Schedule 80 Schedule 120 XX Hvy Schedule 160
3/4 1.05 – 0.083 – 0.113 – 0.113 0.154 – – 0.154 – 0.308 0.219
1/2 0.84 – 0.083 – 0.109 – 0.109 0.147 – – 0.147 – 0.294 0.188
1 1/4 1.66 – 0.109 – 0.14 – 0.14 0.191 – – 0.191 – 0.382 0.25
1 1.315 – 0.109 – 0.133 – 0.133 0.179 – – 0.179 – 0.358 0.25
1 1/2 1.9 – 0.109 – 0.145 – 0.145 0.2 – – 0.2 – 0.4 0.281
2 1/2 2.875 – 0.12 – 0.203 – 0.203 0.276 – – 0.276 – 0.552 0.375
2 2.375 – 0.109 – 0.154 – 0.154 0.218 – – 0.218 – 0.436 0.344
3 3.5 – 0.12 – 0.216 – 0.216 0.3 – – 0.3 – 0.6 0.438
4 4.5 – 0.12 – 0.237 – 0.237 0.337 – – 0.337 0.438 0.674 0.531
3 1/2 4 – 0.12 – 0.226 – 0.226 0.318 – – 0.318 – 0.636 –
5 5.563 – 0.134 – 0.258 – 0.258 0.375 – – 0.375 0.5 0.75 0.625
8 8.625 0.25 0.148 0.277 0.322 0.406 0.322 0.5 0.812 0.594 0.5 0.719 0.875 0.906
6 6.625 – 0.134 – 0.28 – 0.28 0.432 – – 0.432 0.562 0.864 0.719
10 10.75 0.25 0.165 0.307 0.365 0.5 0.365 0.5 1 0.719 0.594 0.844 1 1.125
14 14 0.312 0.25 0.375 0.375 0.594 0.438 0.5 1.25 0.938 0.75 1.094 – 1.406
12 12.75 0.25 0.18 0.33 0.375 0.562 0.406 0.5 1.125 0.844 0.688 1 1 1.312
16 16 0.312 0.25 0.375 0.375 0.656 0.5 0.5 1.438 1.031 0.844 1.219 – 1.594
20 20 0.375 0.25 0.5 0.375 0.812 0.594 0.5 1.75 1.281 1.031 1.5 – 1.969
48 48 – – – 0.375 – – 0.5 – – – – – –
18 18 0.312 0.25 0.438 0.375 0.75 0.562 0.5 1.562 1.156 0.938 1.375 – 1.781
22 22 – 0.25 – 0.375 – – 0.5 – – – – – –
26 26 – – – 0.375 – – 0.5 – – – – – –
24 24 0.375 0.25 0.562 0.375 0.969 0.688 0.5 2.062 1.531 1.219 1.812 – 2.344
30 30 0.5 0.312 0.625 0.375 – – 0.5 – – – – – –
40 40 – – – 0.375 – – 0.5 – – – – – –
36 36 0.5 0.312 0.625 0.375 – 0.75 0.5 – – – – – –
42 42 – – – 0.375 – – 0.5 – – – – – –



ASTM B564 UNS N06625 Forging Thread Types

  • BSPT (Female)
  • NPT
  • MNPT (Male)
  • FPT
  • BSPP (Female & male)
  • FNPT (Female) – ASME B1.20.1
  • MPT
  • BSP



Crevice Corrosion Of ASTM B564 UNS N06625 Material

Grade Crucial Crevice Temperature in Acidified 6% FeCl3 Crucial Pitting Temperature in Acidified 6% FeCl3
– °Celsius °Fahrenheit °Celsius °Fahrenheit
ASTM B564 UNS N06625 Flange 40 104 100 212



View ASTM B564 UNS N06625 Chemical Composition & Equivalent, send B564 N06625 Flanges RFQ for a Free Quote

ASTM B564 UNS N06625 Chemical Composition

Ti 0.40 S 0.015
Al 0.40 – –
Ni 58.0 minimum C 0.10
Fe 5.0 Mn 0.50
Nb + Ta 3.15-4.15 Si 0.50
Cr 20.0-23.0 Co 1.0
Mo 8.0-10.0 P 0.015



Equivalent Standard of SB564 N06625 Forged Flange

STANDARD GOST AFNOR EN WERKSTOFF NR. UNS JIS BS
ASTM B564 UNS N06625 Flange XH75MБTЮ NC22DNB4MNiCr22Mo9Nb NiCr23Fe 2.4856 N06625 NCF 625 NA 21



Elements Comparison of ASTM B564 UNS N06625 Material With Other Forgings

Forging material Corrosion Resistance Mechanical Behavior Purity Cr Nickel
ASTM B564 UNS N06625 (Alloy 625) 89 69 92 20.0% – 23.0%” ≥ 58.0%
ASTM B564 UNS N06626 (Alloy 625LCF) 89 71 94 20.0% – 23.0% ≥ 58.0%
ASTM B564 UNS N08825(Alloy 825) 76 67 88 19.5% – 23.5% 38.0% – 46.0%
ASTM B564 UNS N10276(Alloy C276) 88 75 92 14.5% – 16.5% 51.0% – 63.5%
ASTM B564 UNS N04400(Alloy 400) 87 62 80 NA ≥ 63.0%



Top 10 Suppliers of ASTM B564 UNS N06625 Grade 2 Pipe Flange in Dubai, Get SB 564 N06625 Lap Joint Flange upto 2500 LB Pressure Level

Pressure Rating Of ASME SB 564 N06625 Forged Steel Flanges

Temp °C Working Pressures Of ASTM B564 N06625 Flanges As Per Classes in Bar
600 300 150 400 1500 900 2500
-29 – 38 103.4 51.7 20.0 68.9 258.6 155.1 430.9
100 103.0 51.5 17.7 68.7 257.6 154.6 429.4
50 103.4 51.7 19.5 68.9 258.6 155.1 430.9
150 100.3 50.3 15.8 66.8 250.8 150.6 418.2
250 92.7 46.30 12.1 61.7 231.8 139.0 386.2
200 97.2 48.6 13.8 64.8 243.4 145.8 405.4
300 85.7 42.9 10.2 57.0 214.4 128.6 357.1
350 80.4 40.3 8.4 53.6 201.1 120.7 335.3
325 82.6 41.4 9.3 55.0 206.6 124.0 344.3
375 77.6 38.9 7.4 51.6 194.1 116.5 323.2
425 70.0 35.2 5.5 46.5 175.1 105.1 291.6
400 73.3 36.5 6.5 48.9 183.1 109.8 304.9
475 63.4 31.7 3.7 42.3 158.2 95.1 263.9
450 67.7 33.7 4.6 45.1 169.0 101.4 281.8
538 33.1 16.5 1.4 22.1 82.7 49.6 137.9
500 56.5 28.2 2.8 37.6 140.9 84.7 235.0
575 18.9 9.4 – 12.6 47.2 28.3 78.6
550 27.9 13.9 – 18.6 69.7 41.8 116.2
625 10.3 5.1 – 6.8 25.7 15.4 42.8
600 13.3 6.6 – 8.9 33.2 19.9 55.3
650 9.5 4.7 – 6.3 23.6 14.2 39.4



Heat Treatment of B564 UNS N06625 Pipe Flange

  • ASTM B564 UNS N06625 Grade 1 – Annealed at 871°C (minimum)
  • ASTM B564 UNS N06625 Grade 2 – Solution Annealed at 1093°C (minimum)



ASTM B564 UNS N06625 Mechanical Properties

Condition & Form Hardness, Brinell Yield Stress (0.2% Offset) Reduction Of Area Tensile Strength Elongation
KSI MPa % KSI MPa %
Solution-Treated (ASTM B564 N06625 Gr 2) 116-194 42-60 290-414 90-60 % 105-130 724-896 65-40 %
Annealed (ASTM B564 N06625 Gr 1) 145-220 60-95 414-655 60-40 % 120-150 827-1034 60-30 %
As-Rolled 175-240 60-110 414-758 60-40 % 120-160 827-1103 60-30 %

Melting Range

  • 1290 – 1350 °C
  • 2350 – 2460 °F

Curie Temperature

  • < -320 °F
  • -196 °C



Physical Properties Of ASTM B 564 UNS N06625 Hot Forged Flange

Curie Temperature Density Specific Heat Melting Range Permeability at 200 Oersted
°F °C lb/cu in gram/cc Btu/lb°F (J/kg°C) 70°F(21°C) °F °C 15.9 kA/m
<-320 -196 0.305 8.44 0.098(410) 2350-2460 1290-1350 1.0006



Looking For ASTM B564M UNS N06625 Flanges in Saudi Arabia? Find Complete Size Range Of SB564 N06625 Weld Neck Flange With Above Stockists

Size Chart Of B564 UNS N06625 Slip On Flange

Nominal Size Min. Thickness (T) Outside Diameter (OD) RF Dia. (R) Diameter of Holes No. of Bolt Holes Bolt Circle (BC) SO Bore ID (SB) Dia. Hub Top (HT) Dia. Hub Base (HB) SO LTH (SL)
3/4 0.56 4.62 1.69 0.75 4 3.25 1.09 1.05 1.88 0.94
11/4 0.69 5.25 2.50 0.75 4 3.88 1.70 1.66 2.50 1.00
1/2 0.50 3.75 1.38 0.63 4 2.62 0.88 0.84 1.50 0.81
1 0.62 4.88 2.00 0.75 4 3.50 1.36 1.32 2.12 1.00
11/2 0.75 6.12 2.88 0.88 4 4.50 1.95 1.90 2.75 1.13
31/2 1.12 9.00 5.50 0.88 8 7.25 4.07 4.00 5.25 1.69
21/2 0.94 7.50 4.12 0.88 8 5.88 2.94 2.88 3.94 1.44
2 0.81 6.50 3.62 0.75 8 5.00 2.44 2.38 3.31 1.25
4 1.19 10.00 6.19 0.88 8 7.88 4.57 4.50 5.75 1.82
3 1.06 8.25 5.00 0.88 8 6.62 3.57 3.50 4.62 1.63
5 1.31 11.00 7.31 0.88 8 9.25 5.66 5.56 7.00 1.94
8 1.56 15.00 10.62 1.00 12 13.00 8.72 8.63 10.25 2.38
6 1.38 12.50 8.50 0.88 12 10.62 6.72 6.63 8.12 2.00
22 2.57 33.00 25.25 1.63 24 29.25 22.22 22.00 25.25 3.93
10 1.81 17.50 12.75 1.12 16 15.25 10.88 10.75 12.62 2.56
12 1.94 20.50 15.00 1.25 16 17.75 12.88 12.75 14.75 2.82
24 2.69 36.00 27.62 1.63 24 32.00 24.25 24.00 27.62 4.13
14 2.06 23.00 16.25 1.25 20 20.25 14.14 14.00 16.75 2.94
16 2.19 25.50 18.50 1.38 20 22.50 16.16 16.00 19.00 3.19
18 2.31 28.00 21.00 1.38 24 24.75 18.18 18.00 21.00 3.44
20 2.44 30.50 23.12 1.38 24 27.00 20.20 20.00 23.12 3.69

Verified Supplier

List of ASTM B564 UNS N06625 Flange Suppliers in UAE

available 9 cars
Prestige Metalloys LLC
1
Dubai, UAE
Prestige Metalloys LLC
  • info@metalloys.ae
  • +971 568293363
Amigo Impex Logo
1
Mumbai, India
Amigo Impex
  • sales@amigoimpex.net
  • +91 9821327239
Renine Metalloys Logo
1
Mumbai, India
Renine Metalloys
  • sales@reninemetalloys.in
  • +91 9773411046
Dinmani Pipes & Fittings Logo
1
Mumbai, India
Dinmani Pipes
  • sales@dinmanipipefittings.com
  • +91 9819352982
Ruinox Overseas
1
Mumbai, India
Ruinox Overseas
  • +91 8850256664
Supplier 105
1
Mumbai, India
Jainex Metal Industries
  • sales@jainexmetal.com
  • +91 9892249529
Supplier 46
1
Abu Dhabi, UAE
Royal Veritas
  • nkk@rvoget.ae
  • +971 523973687
Supplier 37
1
Mumbai, India
Neonox Overseas
  • export@neonox.in
  • +91 9320277418
Premium Technical Support Trading Est. Logo
1
Al Jubail, KSA
Premium Technical Support
  • info@premiumtechsaudi.com
  • +966 546621439

Price

Flanges

Why PipingMaterial.ae?

Here you will find technical specification, types, pressure rating, dimensions, sizes to compare price and strength of steel flanges. Free quote from multiple stockists, traders, manufacturers, suppliers located in UAE, Netherlands, India and other Asian countries.

Listed companies on this B2B platform offer fast delivery in Abu Dhabi, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah, Fujairah, Qatar, Oman, Saudi Arabia and Kuwait.

All Flange material with MTC EN 10204/3.1

Manufacturing Standard includes ANSI/ ASME B16.5, B16.47, B16.36, B16.48 and MSS SP-25

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
