ASTM B637 UNS N07718 Bolts

ASTM B637 UNS N07718 Bolts Spotlights

Grade ASTM B637 UNS N07718 Bolts
DIN Standard DIN 933, DIN 931, DIN 603, DIN 912, DIN 934, DIN 7981, DIN 970, DIN 6923, DIN 7982, DIN 7985, DIN 913, DIN916
Threads Specification UNJF-3A, UNF-3B, UNC, NPT, UNF, 8UN, UNS, BSW, NPTF, UNEF, BSF, Metric Fine, Metric Course
Manufacturing Standard ANSI B1.1, IS:1364, ASME B18.2.1, ASME B18.6.3, GB5783, BS 3692, UNI 5737
ISO Standard ISO 4032, ISO 4017, ISO 4014, ISO 7380, ISO 4033
Standard Sizes (mm) M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M27, M30, M36

Piping Material

Table of Content



ASME SB637 N07718 hex bolt suppliers in UAE

ASTM B637 UNS N07718 Bolts Specification

ASTM B637 UNS N07718 Bolts Specification

Dimension

Metric Sizes : M2 To M152, 1/4″ To 8″

Heads

Heads : Square, Round, Hex flange, Hex Head, Triangular, Flat, T-head

Fasteners Type

ASME SB637 UNS N07718 Fasteners Type: Nuts, Washers, Screws, Hex Bolts

Make

Make : TVS, Fischer, Sundaram, UNBRAKO, BOLTMASTER, PFL, LPS, DFL, VIF,
BOSSARD

Quote

Buy Directly from ASTM B637 UNS N07718 Bolts suppliers in UAE

Tested

100% Tested ASTM B637 UNS N07718 Bolts with MTC EN 10204/3.1

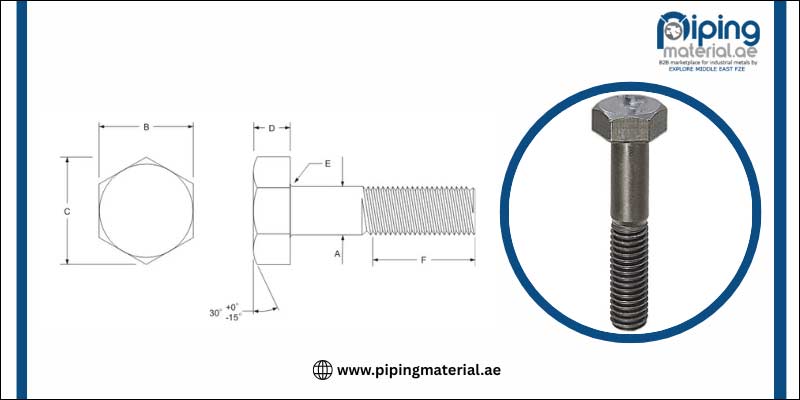

Dimension Chart for ASTM B637 UNS N07718 Bolts

Dimension Chart for ASTM B637 UNS N07718 Bolts

Nominal Bolt Sizes (Inch) A (max) D C (min) B F Thread Length for Bolt Length E
over 6″ 6″ and shorter min max
4″ 4.111 2-11/16 6.612 6 8.500 8.250 0.06 0.19
3-3/4″ 3.858 2-1/2 6.198 5-5/8 8 7.750 0.06 0.19
3-1/2″ 3.589 2-5/16 5.786 5-1/4 7.500 7.250 0.06 0.19
3″ 3.081 2 4.959 4-1/2 6.500 6.250 0.06 0.19
2-1/2″ 2.559 1-21/32 4.133 3-3/4 5.500 5.250 0.06 0.19
2-1/4″ 2.305 1-1/2 3.719 3-3/8 5 4.750 0.06 0.19
2″ 2.039 1-11/32 3.306 3 4.500 4.250 0.04 0.12
1-1/2″ 1.531 1 2.480 2-1/4 3.500 3.250 0.03 0.09
1-1/4″ 1.277 27/32 2.066 1-7/8 3 2.750 0.03 0.09
1-1/8″ 1.149 3/4 1.859 1-11/16 2.750 2.500 0.03 0.09
1″ 1.022 43/64 1.653 1-1/2 2.500 2.250 0.03 0.09
7/8″ 0.895 37/64 1.447 1-5/16 2.250 2 0.02 0.06
3/4″ 0.768 1/2 1.240 1-1/8 2 1.750 0.02 0.06
1/2″ 0.515 11/32 0.826 3/4 1.500 1.250 0.01 0.03
7/16″ 0.452 19/64 0.687 5/8 1.375 1.125 0.01 0.03
5/16″ 0.324 7/32 0.552 1/2 1.125 0.875 0.01 0.03
1/4″ 0.260 11/64 0.484 7/16 1 0.750 0.01 0.03



Have direct contact with the verified B637 UNS N07718 fasteners manufacturers in Dubai for quality materials and timely delivery in the Middle East countries

Which Are The Common Trade Names for Hex Bolts ?

The Following Common Trade Names for Hex Bolts :

  • Haynes 718
  • Alloy 718
  • Inconel 718®
  • Nicrofer 5219

ASME SB637 UNS N07718 Hex Nuts Features


ASME SB637 UNS N07718 Hex Nuts Features

ASTM B637 UNS N07718 Bolts Material

ASTM B637 UNS N07718 Hex Bolts

  • Size : 3 – 56 mm
  • Length : 3 – 200 mm

ASTM B637 UNS N07718 Hex Bolts

B637 UNS N07718 Hex Nuts

  • Hold Strength From : -423°F – 1300°F
  • Hardness Brinell : ≤363

B637 UNS N07718 Hex Nuts

ASME SB637 N07718 Screws

  • Creep Rupture Temperature : Upto 1300°F
  • Diameter : 1” To 7/8”

ASME SB637 N07718 Screws

SB 637 UNS N07718 Washers

  • Higher Temperature Stability : 982°C (2200°F)
  • Thickness : 0.2500″

SB 637 UNS N07718 Washers

ASME SB637 UNS N07718 Threaded Rod

  • Test Treatment : 649°C
  • Inconel® 718

ASME SB637 UNS N07718 Threaded Rod

ASTM B637 N07718 Socket Head Bolts

  • Metric : IFI
  • Standard : ASME B18.3 – 2012

ASTM B637 N07718 Socket Head Bolts

SB637 N07718 Flange Bolts

  • Temperature Range : Upto 700°C
  • Alloy 718

SB637 N07718 Flange Bolts

ASTM B 637 UNS N07718 Socket Head Cap Screw

  • Standard : ASTM B637 / ASME SB637
  • Hardness : Up to 44 HRC after heat

ASTM B 637 UNS N07718 Socket Head Cap Screw

B 637 UNS N07718 Hex Cap Screws

  • Material Content :Nickel Chromium
  • Temperature Resistance : Upto 1290°F

B 637 UNS N07718 Hex Cap Screws

B 637 N07718 Heavy Hex Bolts

  • DIN-EN 2.4668
  • Inconel® 718

B 637 N07718 Heavy Hex Bolts

ASTM B637 UNS N07718 Eye Bolt

  • Reduction of Area : 15%
  • Copper Content : 0.30 max

ASTM B637 UNS N07718 Eye Bolt

B637 UNS N07718 Anchor Bolts

  • Temperature Range : 704°C
  • Diameter : 1/2″ – 6″

B637 UNS N07718 Anchor Bolts

ASME SB637 N07718 Carriage Bolts

  • Carbon Content : 0.08 max
  • Finishing : Black Oxide, HDG

ASME SB637 N07718 Carriage Bolts

SB 637 UNS N07718 Square Bolts

  • Test Certificate : EN 10204/ 3.1
  • Threads : UNF METRIC, UNC, BSW

SB 637 UNS N07718 Square Bolts

ASME SB637 UNS N07718 U Bolts

  • Melting Point : 1350°C To 1400°C
  • Density : 8.19 (g/cm³)

ASME SB637 UNS N07718 U Bolts

ASTM B637 N07718 Machine Bolts

  • Elastic Modulus : 200 (GPa)
  • Poisson’s Ratio : 0.29

ASTM B637 N07718 Machine Bolts

SB637 N07718 Full Threaded Hex Bolts

  • Thermal Conductivity (W/m·K) : 11.2
  • Specific Heat Capacity (J/kg·K) : 435

SB637 N07718 Full Threaded Hex Bolts

ASTM B 637 UNS N07718 Half Thread Hex Bolts

  • Expansion Coefficient (µm/m·°C) : 13
  • Magnetic Permeability : 1.002

ASTM B 637 UNS N07718 Half Thread Hex Bolts

B 637 UNS N07718 Hex Head Bolts

  • 0.295 lb/in³
  • Electrical Resistivity : 1.29 x 10⁻⁶ Ω·m

B 637 UNS N07718 Hex Head Bolts

B 637 N07718 Long Hex Head Bolts

  • Thermal Expansion (µm/m·°C) : 13
  • Shear Modulus : 77.2 GPa

B 637 N07718 Long Hex Head Bolts

ASTM B637 UNS N07718 Heavy Hex Head Bolts

  • Tensile Modulus : 200 GPa
  • Inconel 718 Heavy Hex Bolt

ASTM B637 UNS N07718 Heavy Hex Head Bolts

B637 UNS N07718 Finished Hex Head Bolts

  • Non-Destructive Test
  • Accuracy of Size : Perfect fit for Critical Bolting

B637 UNS N07718 Finished Hex Head Bolts



Are you looking top 6 suppliers and manufacturers for ASTM B637 N07718 studs in United Arab Emirates? You can contact below listed ASTM B637 UNS N07718 threaded rod suppliers for price list

Weight Chart for ASTM B637 UNS N07718 Screws

Nominal Sizes (Inch) Square Finished Hex Finished Jam Heavy Hex Heavy Hex Jam Heavy Square
7/8″ 24.5 19.0 12.0 29.7 16.7 36.2
3/4″ 15.4 11.9 7.70 19.3 11.0 23.5
1/2″ 5.78 3.75 2.62 6.54 4.00 7.87
11/8″ 52.5 40.3 24.7 59.2 32.4 72.4
13/8″ 94.5 73.0 47.9 102 59.3 125.0
15/8″ – – – 162 91.6 –
13/4″ – 151 100 204 114 –
21/4″ – – – 419 227 –
2″ – 224 140 299 165 –
23/4″ – – – 738 429 –
31/4″ – – – 1194 651 –
1″ 36.3 28.3 17.6 42.5 23.5 51.5
5/8″ 10.8 7.33 4.93 11.9 6.96 14.3
11/4″ 70.6 54.3 36.1 78.6 45.8 95.5
11/2″ 122 94.3 60.9 131 74.8 161
31/2″ – – – 1526 851 –
33/4″ – – – 1812 1005 –
17/8″ – – – 241 134 –
4″ – – – 2180 1200 –
21/2″ – – – 564 332 –
3″ – – – 950 545 –

ASTM B637 UNS N07718 Bolts Most Common Types

SB 637 UNS n07718 screw

SB 637 UNS n07718 screw

ASTM B637 UNS n07718 threaded rod

ASTM B637 UNS n07718 threaded rod

ASTM B637 n07718 flange lock nut

ASTM B637 n07718 flange lock nut

SB 637 n07718 socket cap screws

SB 637 n07718 socket cap screws

ASME SB637 n07718 bolts

ASME SB637 n07718 bolts

B637 UNS n07718 metric threaded rod

B637 UNS n07718 metric threaded rod

ASME SB637 UNS n07718 lock nut

ASME SB637 UNS n07718 lock nut

B637 n07718 hex cap screws

B637 n07718 hex cap screws

SB 637 n07718 flat washer

SB 637 n07718 flat washer

SB 637 UNS n07718 stud bolt

SB 637 UNS n07718 stud bolt

B637 n07718 countersunk washer

B637 n07718 countersunk washer

ASTM B637 n07718 ACME threaded rod

ASTM B637 n07718 ACME threaded rod

B637 UNS n07718 washer

B637 UNS n07718 washer

ASME SB637 n07718 heavy hex bolt

ASME SB637 n07718 heavy hex bolt

ASTM B637 UNS n07718 wood screws

ASTM B637 UNS n07718 wood screws

SB 637 UNS n07718 self tapping screws

SB 637 UNS n07718 self tapping screws

ASME SB637 UNS n07718 all thread rod

ASME SB637 UNS n07718 all thread rod

B637 n07718 square bolts

B637 n07718 square bolts

ASME SB637 UNS n07718 dowel pin

ASME SB637 UNS n07718 dowel pin

B637 UNS n07718 hex nuts

B637 UNS n07718 hex nuts

ASTM B637 n07718 fully threaded studs

ASTM B637 n07718 fully threaded studs

ASME SB637 n07718 threaded stud

ASME SB637 n07718 threaded stud

SB 637 n07718 heavy hex nuts

SB 637 n07718 heavy hex nuts

ASTM B637 UNS n07718 double end stud bolts /

ASTM B637 UNS n07718 double end stud bolts

B637 UNS n07718 eye bolts

B637 UNS n07718 eye bolts

ASME SB637 n07718 nuts

ASME SB637 n07718 nuts

SB 637 UNS n07718 square nut

SB 637 UNS n07718 square nut

ASME SB637 UNS n07718 plain washer

ASME SB637 UNS n07718 plain washer

SB 637 n07718 rivets

SB 637 n07718 rivets

ASTM B637 UNS n07718 self drilling screws

ASTM B637 UNS n07718 self drilling screws

B637 n07718 hex bolts

B637 n07718 hex bolts

ASTM B637 n07718 studs

ASTM B637 n07718 studs

SB 637 UNS n07718 machine screws

SB 637 UNS n07718 machine screws

How Much is The Higher Strength Capabilities of ASME SB637 UNS N07718 Bolt ?

  • The Higher Strength Capabilities of ASME SB637 UNS N07718 is About Upto 1800°F.

SB 637 UNS N07718 Hex Bolts Hot-Forming Temperature

Grade

Ksi
Hot Forming Temperature (°F)
2100 2000 1900 1800
Inconel Alloy 718 41 48.3 55.8 63.3



B 637 UNS N07718 stud bolt in plain, zinc plated, & hot dip galvanised finish in the Middle East, check ASME SB637 UNS N07718 heavy hex bolt corrosion resistant

Surface Finishes of ASTM B637 UNS N07718 Heavy Hex Bolt

  • Hot Dip Galvanize
  • Zinc Flake
  • Zinc Plated
  • Electric Galvanized
  • DACROMET

Advantages of Using B637 N07718 Stud Bolt


Advantages of Using B637 N07718 Stud Bolt

ASTM B637 N07718 Heavy Hex Nuts Modulus of Elasticity at Low Temperatures

Temperature (°F) Poisson’s Ratio Modulus of Elasticity, ksi x 103
Young’s Modulus Torsional Modulus
500 0.32 28.0 10.6
400 0.31 28.5 10.9
-308 0.25 31.3 12.5
300 0.30 28.8 11.1
200 0.31 29.4 11.3
100 0.30 29.8 11.5
-86 0.30 30.6 11.8
70 0.29 29.0 11.6



Reasonably expect fair prices of SB 637 UNS N07718 hex nut and hex head bolts from different suppliers in the Middle east and south Korea, check b 637 N07718 Socket Head Cap Screw price per kg

Stress Rupture Requirements of ASME SB637 N07718 Bolts

Alloy Heat Treatment Test Treatment Hours Stress “B” Elongation in 2 in.
°C °F (Min.) MPa Psi
N07718 solution + precipitation harden. 649 1200 23 690 100000 5%

Material Inspection Facility in Following Locations

City Region Country
Dubai Middle East United Arab Emirates
Abu Dhabi Middle East United Arab Emirates
Dammam Middle East Saudi Arabia
Riyadh Middle East Saudi Arabia
Doha Middle East Qatar
Abuja Africa Nigeria
Kuwait City Middle East Kuwait
Jeddah Middle East Saudi Arabia
Cairo MENA Egypt
Casablanca MENA Morocco
Johannesburg Africa South Africa
Cape Town Africa South Africa
Lagos Africa Nigeria

B637 UNS N07718 Nut Testing Requirements

  • Charpy V Notch Testing
  • Microstructure Analysis
  • Tensile Tested
  • Material Impact Tested
  • Hardness Testing

In Which Industrial Sectors of ASTM B637 UNS N07718 Bolts Are Commonly Used ?


Applications of ASTM B637 UNS N07718 Bolts

Our stock of ASTM B637 UNS N07718 Bolts Supplying international in Abu Dhabi and Sharjah.

ASME SB637 UNS N07718 Hex Nuts Thermal Properties

Temperature(°F) Electrical Resistivity (ohm circ mil/ft ) Thermal Conductivity (BTU•in/ft2•h•°F ) Mean Linear Expansionb,c (in/in/°F x 10-6)
Ann. 1800°F/1 hr Ann + Aged Ann. 1800°F/1 hr Ann. + Aged
2000 811 796 196 199 –
1800 801 800 185 186 –
1600 799 796 173 173 –
1400 802 797 160 161 8.91
1200 805 794 147 148 8.39
1000 798 788 135 136 8.09
800 784 775 123 124 7.97
600 775 768 111 112 7.74
400 772 755 98 100 7.53
-320 – – – – 5.9d
200 762 733 86 87 7.31
70 753 725 77 79 –

Explore Nearby Locations for the Quickest Delivery Options

Muscat Riyadh Dubai Ras Al Khaimah
Sharjah Fujairah Umm Al Quwain Doha
Saudi Arabia Al Jubail Abu Dhabi Ajman

Torque Chart for ASME SB637 UNS N07718 Bolt

Nominal Diameter (Inch) Bolt Torque Chart
ft-lb ft-lb Inch
(Dry) (Lubricated)
1/2″ 143.4 107.5 13
161.7 121.2 20
1/4″ 16.2 12.0 20
18.5 13.7 28
1″ 1225 919 8
1373 1031 14
1-1/4″ 2132 1598 7
2361 1769 12
3/4″ 508 380 10
565 424 16
3/8″ 58.8 44.1 16
66.6 49.8 24
5/8″ 285.5 214.2 11
323.4 242.5 18
5/16″ 33.1 24.9 18
36.7 27.6 24
7/8″ 816 613 9
902 675 14
7/16″ 94.0 70.6 14
105.0 78.8 20
9/16″ 206.8 155.2 12
230.7 173.1 18

ASTM B637 UNS N07718 Heavy Hex Bolt Temperature Range

Grade Temperature
B637 UNS N07718 70°F

Call Now for the Clients List Based in Below Locations

Middle East countries Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen
Africa Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine

Equivalent Material of ASTM B637 UNS N07718 Bolts

Grade UNS ASTM EN
SB 637 UNS N07718 N07718 B637 2.4668

Experienced ASTM B637 UNS N07718 Bolts Supplier in UAE delivering dependable solutions for demanding applications.

B637 UNS N07718 Fasteners Mechanical Properties

Grade Yield Strength Tensile Strength Elongation at break Hardness, Brinell Reduction of Area
B637 UNS N07718 1034 MPa 1275 MPa 12 % 331 min 15 %

See Where You Can Find Material Ex Stock

Country Cities
Netherlands The Hague
Belgium Meeuwen-Gruitrode
Netherlands Amsterdam
Belgium Antwerp
Netherlands Haarlem
Belgium Brussels
Belgium Seraing
Belgium Ghent
Belgium Leuven
Netherlands Eindhoven
Belgium Westerlo
Netherlands Rotterdam

Chemical Composition of ASTM B 637 UNS N07718 Threaded Rod

Grade UNS N07718 Bolt
Chromium (Cr) 18
Molybdenum (Mo) 3
Aluminum (Al) 0.5
Copper (Cu) 0.1
Columbium + Tantalum (Cb + Ta) 5
Boron (B) 0.009
Nickel (Ni) 52
Iron (Fe) 19
Titanium (Ti) 0.9
Silicon (Si) 0.35
Manganese (Mn) 0.35
Carbon (C) 0.05

B 637 UNS N07718 Stud Bolt Creep and Stress-Rupture Strengths

Temperature Creep (%) Approx. Initial Creep Stress
1,000h 100h 10h
°F °C ksi MPa ksi MPa ksi MPa
1000 538 0.5 132 910 146 1007 157 1083
1 138 952 150 1034 160 1103
R 144 993 165 1138 — —
1100 593 0.5 108 745 126 869 140 965
1 112 772 130 896 143 986
R 115 793 134 924 150 1034
1200 649 0.5 75 517 101 696 121 834
1 78 538 103 710 124 855
R 87 600 105 724 130 896
1300 704 0.5 35 241 64 441 95 655
1 41 283 67 462 98 676
R 46 317 76 524 106 731

Find Our Resellers and Stockist Near You

Abu Dhabi Dubai
Sharjah Ajman
Umm Al Quwain Ras Al Khaimah

Verified Supplier

List of ASTM B637 UNS N07718 bolts suppliers in UAE

available 9 cars
Raaj Sagar Steels (India)
1
Mumbai, India
Raaj Sagar Steels
  • ayush@raajsagarsteels.com
  • +91 9820889426
Dalloyed Fasteners logo
1
Mumbai, India
Dalloyed Fasteners
  • sales@dalloyedfasteners.com
  • +91 7666996996
Dalloyed Fasteners logo
1
Mumbai, India
Dalloyed Fasteners
  • sales@dalloyedfasteners.com
  • + 91 7666996996
Prevest Metalloys Logo
1
Mumbai, India
Prevest Metalloys
  • prevestmetalloys@hotmail.com
  • +91 9820821707
Supplier 76
1
Mumbai, India
Ganpat Industrial
  • info@ganpatind.com
  • +91 9820083489
Supplier 71
1
Mumbai, India
Micro Metals
  • gulf@micrometals.co.in
  • +91 9773102209
Dalloyed Fasteners logo
1
Mumbai, India
Dalloyed Fasteners
  • sales@dalloyedfasteners.com
  • +91 7666996996
Jade Special Metals
1
Mumbai, India
Jade Special Metals
  • sales1@jadealloys.com
  • +91 9987685906
Petron Steel Middle East FZC Logo
1
Ajman, UAE
Petron Steel Middle East FZC
  • info@petronsteel.ae
  • +971 557552893

Fasteners

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
