ASTM B704 Tube At a Glance

Standard	ASTM B704 / ASME SB704
Sizes Available	6.00 mm OD up to 914.4 mm OD
Brands in Stock	Nippon Steel and Sumitomo Metal, Special Metals, Sanyo Special Steel, Tubacex, Rath Gibson, Haynes, Alleima
Grades Covered	UNS N06625, N06219, N08825
Raw Material Orign	Janpanese, Korean, Russia, European,American, Indian
Melting Point	1290 – 1350°C
Approval	ORPIC, PETRONAS, QAFCO, SABIC, ADNOC, KOC
Testing	Ultrasonic, Mechanical, Chemical, PMI
Application	Chemical processing, Petrochemical equipment, Pollution control systems
MTC	EN 10204 3.1, 3.2

Table of Content

ASTM B704 tube specifications
Most frequently used types of ASME SB 704 tube
ASME SB704 UNS N06625 boiler tube price
ASTM B704 standard covering material list
Sizes of ASTM B704 UNS N06625 tubes
SB 704 N06625 tube gauge thickness chart
Dimensions of ASME SB704 UNS N08825 heat exchanger tube
ASTM B 704 tube chemical composition
Mechanical properties of ASME SB 704 welded nickel alloy tubes
ASTM B704 tubing equivalent
Physical properties of ASTM B704 material
Delivery schedule for ASTM B704 UNS N06625 welded tubes
Compare ASTM B626 and B704
ASTM B704 Welded Tubes Technical Specification
ASME SB704 Welded Alloy Tube Applications
ASME SB704 UNS N06219 Tubing Manufacturing Process

ASTM B704 Tube Specification

Check ASTM B704 Tube Suppliers in UAE Who Provides Detailed Specification

ASTM B704 Tube Outer Diameter: 1/8 to 5 inch

ASTM B704 Tube Length: 0.5 to 12 meter

Thickness: 0.015 to 0.500 inch

Schedule: SCH 5 – SCH 160, XXS

Form: Round, Rectangular, Square

End: Screwed, Threaded, Bevelled, Plain

Package: Bundle packing, Plastic caps at ends

Temprature: 1600 to 2150°F

MTR: Chemical, PMI, Mechanical, Destructive and Non Destructive Test Report

Manufacturing Process : Welded, Electric resistance welded (ERW)

Get Quote Directly from ASTM B704 Tube Suppliers in UAE With Documentation

Swg & Bwg: 10 Swg., 12 Swg., 18 Swg., 20 Swg, 14 Swg., 16 Swg.,

Pick the unique suppliers of ASTM b704 welded tubes in UAE here and Compare ASTM B626 and B704

Compare ASTM B626 and B704

Do you require purchasing ASME SB704 welded alloy tube in custom sizes from reputable Middle East stockists? get here. examine the grades that fall within this specification.

ASTM B704 Welded Tubes Technical Specification

Contact one of the authorised ASTM B704 tube suppliers in the UAE mentioned above for custom sizes.
ASTM B704 tube OD	ASTM B704 UNS N06625 welded tube length	Welded tubing popular grades
1/8 to 5 inch 3.18 to 127 mm	0.5 to 12 meter	ASTM B704 UNS N06625 (Inconel 625 tube) ASTM B704 UNS N08825 (Incoloy 825 tube)
Schedules	Surface finish	SB 704 UNS N06625 ERW tubes wall thickness
SCH 5 to SCH 160	Pickled Polished	0.015 to 0.500 inch 0.38 to 12.70 mm
Dimensional requirements	ASTM B704 N06625 CEW tube dimentional standards	Manufacturing types
ASTM B751	ASME B36.10 / ASME B36.19	Welded Electric resistance welded (ERW)
SB 704 N06625 welded tubing density	ASTM B704 UNS N08825 electric resistance welded tube ordering info	SB 704 UNS N08825 HFW tube melting point
8.14 g/cm3	Quantity UNS number Size Length Class ASTM designation	1400 °C (2550 °F)
ASTM B704 UNS N06625 tube form	ASTM B704 N08825 welded nickel alloy tubes welding electrode	Strength
Round Rectangular Hydraulic Square Hollow Straight U Shape	Inconel 112	Yeild strength: Psi – 32000 , MPa – 220 Tensile strength: Psi – 80000 , MPa – 550
Welding fillers	Supply SB 704 N08825 condenser tube in following brand	Most selling ASTM B704 tube types
Inconel filler metal 625 Incoloy 82	Special metals USA BOHLER Sumitomo metals, Japan Nippon steel corporation, Japan Esab Lincoln Metrode Kobe special tube, Japan Sanyo special steel, Japan Tubacex tubos inoxidables S.A., Spain Schoeller bleckmann, Austria Seah steel corporation, Korea	Nickel-cobalt alloy tube Heat exchanger tube Square tubing Electric resistance welded tube Condenser tube ERW tubes Welded tube Boiler tube Rectangular tubing Round tube CEW tube HFW tube Bright annealed tube Solution annealed tube
ASTM B 704 annealed tube temprature range	Hardness range	Maximum operating temperature
1000℃	145.00–220.00	1600 to 2150°F
ASTM B704 UNS N08825 tube marking	Applications	Welding method
Schedule or wall thickness Method of manufacturing (Seamless / Welded) Specification Material grade Nominal size Heat number Manufacturer’s name or custom logo – on request	Drainage Heat exchangers Boilers Condensers Water pipeline Purchase from the leading zero-rejection ASTM B704 tube suppliers in South Africa, the Middle East, Egypt, USA, Oman, and Saudi Arabia.	Submerged arc welding TIG SMAW GMAW including both MIG and MAG FCAW
Origin standards of ASME SB 704 heat exchanger tube	Features	Certification of ASTM B704 UNS N08825 boiler tube
American Standard Russia Standard’ Korean German Janpanese Standard European Standard	Tolerant to heat Solid under loads High temperature environments Pressure resistance Excellent hydraulicity Insensitive impacts	Fumigation certificates Raw materials certificate Heat treatment charts Third party inspection report Moisture testing report DFARS compliant EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material test certificates (MTC) Surface roughness measurement HS code commercial invoice Laboratory test certificate from Govt. approved lab Form a for generalized system of preferences (GSP)
Packaging	Tubes end type	ASTM B 704 tube inspection criteria
PE fabric bundles Crates (steel/wooden) Special crates for with each radius separated Wooden boxes Bundles (hexagonal) Wrapped in plastic or standard seaworthy export packing Custom	Grooved ends BE: Bevel end BBE: Bevel both ends BLE: Bevel large end BW: Buttweld end PE: Plain end PBE: Plain both ends POE: Plain one end Plain ends (PE) Threaded ends (TE) Bevelled ends (BW) BOE: Bevel one end BSE: Bevel small end TE: Thread end TBE: Thread both ends TLE: Thread large end TOE: Thread one end TSE: Thread small end	Flattening test Flange test Pneumatic for leak testing Eddy current Hydrostatic Ultrasonic for electric testing Straight communication with the distributors, dealers, and ASTM B704 tube stockists listed above for the above mentioned test
Services	ASTM B 704 tubing delivery time	Documentation offered
Cut-to-length services Machining Threading Welding Beveling To communicate directly with listed ASTM B704 tube stockists, stockholders, and distributors for these services, use chat or email.	Generally it is 7-10 days if its in stock 15-20 days if its not in stock	Manufacturer’s mill test certificate certifying, heat no, finish, chemical composition, grade etc., Copy of invoice Copy of packing list indicating details of Sizes, quantity, weight, thickness etc. Country of origin certificate (Original) Bill of lading.

Most frequently used types of ASME SB 704 tube

Find ASTM B704 Tube Suppliers in UAE Providing Frequently Used Types

ASTM B704 ERW tube

ASME SB704 welded tube

UNS N06625 CEW tube

ASTM B704 gr. UNS N06625 welded nickel alloy tubes

ASME SB 704 boiler tube

ASTM B704 gr.UNS NO. 6625 welded tubing

SB 704 heat exchanger tube

ASTM B704 UNS N08825 square tubing

B704 electric resistance welded tube

SB704 condenser tube

ASTM B 704 rectangular tubing

B 704 HFW tube

ASTM B704 welded coiled tubing

ASME SB704 UNS N06625 boiler tube price

Sizes	Price in USD/Units	Price in UAE Driham	Price in Nigeria
6 mm od x 1 mm thk x 2000 mm long	US $ 118.16	AED 433.98	Naira ₦ 108057.32
12.7 mm od x 1.5/ 1.6 mm thk x 200 mm long	US $ 1201.31	AED 4412.17	Naira ₦ 1098597.99
21.3 mm od x 2.77 mm thk	US $ 111.04	AED 407.83	Naira ₦ 101546.08
33.4 mm od x 3.38 mm thk	US $ 249.85	AED 917.65	Naira ₦ 228487.82
6 mm od x 1 mm thk x 2000 mm long	US $ 118.98	AED 436.99	Naira ₦ 108807.21
6.35 mm od x 1.43 / 1.6 mm thk x 500 mm lg	US $ 109.06	AED 400.56	Naira ₦ 99735.37
8 mm od x 1mm thk x 200 mm long	US $ 98.15	AED 360.49	Naira ₦ 89758.18

ASTM B704 standard covering material list

ASTM	UNS	Material Name	Density
ASTM B704	N06219	Nickel-chromium-molybdenum-silicon alloy	8.5 g/cm3
ASTM B704	N06625	Inconel 625	8.42 g/cm3
ASTM B704	N08825	Incoloy 825	8.13 g/cm3
ASTM B704	N08827	–	–

Purchase ASTM b704 UNS n06625 welded tubes that are cut to size from the pioneer importers in Dubai in accordance with the requirements, and observe the application

Sizes of ASTM B704 UNS N06625 tubes

Explore ASTM B704 Tube Suppliers in UAE Who Deliver Products in Custom sizes

Tubing sizes ( in mm)	Weight (KG per meter)	Wall thickness (WT in mm)
20 X 20	1.11	2
25 X 25	1.43	2
30 X 30	1.74	2
40 X 40	2.37	2
50 X 50	3.00	2
60 X 60	5.34	3
70 X 70	5.28	2.5
80 X 80	7.22	3
90 X 90	8.16	3
100 X 100	9.10	3
120 X 120	14.50	4
140 X 140	25.97	6
150 X 150	18.30	4

ASME SB704 Welded Alloy Tube Applications

Slotted
Six-Lobe
Phillips
Slot/Phillips

Material Inspection Facility in Following Locations

MENA	Algeria, Israel, Egypt, Palestine, Libya, Morocco, Tunisia
Middle East countries	Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen, Lebanon, Qatar, Saudi,
Africa	Tunisia, Egypt, Algeria, South Africa, Nigeria, Morocco, Kenya

SB 704 N06625 tube gauge thickness chart

Gauge thickness	Typical value (inches)	Thickness range (inches)
7	0.18	0.175 to 0.185
8	0.165	0.157 to 0.167
9	0.148	0.140 to 0.150
10	0.134	0.126 to 0.136
11	0.12	0.112 to 0.122
12	0.109	0.101 to 0.111
13	0.095	0.087 to 0.097
14	0.083	0.075 to 0.085
15	0.072	0.066 to 0.074
16	0.065	0.060 to 0.065
17	0.058	0.053 to 0.058
18	0.049	0.044 to 0.049
19	0.042	0.038 to 0.042
20	0.035	0.031 to 0.035
22	0.028	0.025 to 0.029

See Where Can Find Material Ex Stock

Al Jubail	Abu Dhabi	Saudi Arabia	Ajman
Fujairah	Umm Al Quwain	Sharjah	Doha
Riyadh	Dubai	Muscat	Ras Al Khaimah

Dimensions of ASME SB704 UNS N08825 heat exchanger tube

Tube O.D.	Tube gauge
	00	0	1	2	3	4	5	6	7	8	9	10
	Wall thickness (inches)	–
	0.380	0.340	0.300	0.284	0.259	0.238	0.220	0.203	0.180	0.165	0.148	0.134
	Tube I.D.	–
1″	0.240	0.320	0.400	0.432	0.482	0.524	0.560	0.594	0.640	0.670	0.704	0.732
1 1/8″	0.365	0.445	0.525	0.557	0.607	0.649	0.685	0.719	0.765	0.795	0.829	0.857
1 1/4″	0.490	0.570	0.650	0.682	0.732	0.774	0.810	0.844	0.890	0.920	0.954	0.982
1 1/2″	0.740	0.820	0.900	0.932	0.982	1.024	1.060	1.094	1.140	1.170	1.204	1.232
1 3/4″	0.990	1.070	1.150	1.182	1.232	1.274	1.310	1.344	1.390	1.420	1.454	1.482
2″	1.240	1.320	1.400	1.432	1.482	1.524	1.560	1.594	1.640	1.670	1.704	1.732
2 1/4″	1.490	1.570	1.650	1.682	1.732	1.774	1.810	1.844	1.890	1.920	1.954	1.982
2 1/2″	1.740	1.820	1.900	1.932	1.982	2.024	2.060	2.094	2.140	2.170	2.204	2.232
2 3/4″	1.990	2.070	2.150	2.182	2.232	2.274	2.310	2.344	2.390	2.420	2.454	2.482
3″	2.240	2.320	2.400	2.432	2.482	2.524	2.560	2.594	2.640	2.670	2.704	2.732
3 1/4″	2.490	2.570	2.650	2.682	2.732	2.774	2.810	2.844	2.890	2.920	2.954	2.982
3 1/2″	2.740	2.820	2.900	2.932	2.982	3.024	3.060	3.094	3.140	3.170	3.204	3.232
3 3/4″	2.990	3.070	3.150	3.182	3.232	3.274	3.310	3.344	3.390	3.420	3.454	3.482
4″	3.240	3.320	3.400	3.432	3.482	3.524	3.560	3.594	3.640	3.670	3.704	3.732
4 1/4″	3.490	3.570	3.650	3.682	3.732	3.774	3.810	3.844	3.890	3.920	3.954	3.982
4 1/2″	3.740	3.820	3.900	3.932	3.982	4.024	4.060	4.094	4.140	4.170	4.204	4.232

Wide Clientele in Following Locations

Country	Cities
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Amsterdam
Belgium	Leuven
Belgium	Westerlo
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Antwerp

ASTM B 704 tube chemical composition

Elements	UNS N06625	UNS N08825
Ni	58.0 min	38 – 46
Cr	20 – 23	19.5 – 23.5
Mo	8 -10	2.5 – 3.5
Fe	5.0 max	22 min
Ti	0.40 max	0.6 – 1.2
C	0.10 max	0.05 max
Mn	0.50 max	1 max
Si	0.50 max	0.5 max
S	0.15 max	0.03 max
P	0.15 max	–
Al	0.40 max	0.2 max
Co	1.0 max	–

Mechanical properties of ASME SB 704 welded nickel alloy tubes

Material	Form and Condition	Tensile Strength MPa		Yield Strength (0.2% Offset) MPa		Elongation 4D(%)	Hardness HB
Material	Form and Condition	Ksi	MPa	Ksi	MPa	Elongation 4D(%)	Hardness HB
UNS N06625	Annealed	120	827	60	414	35	–
UNS N08825	Annealed	–	772	–	441	36	–
UNS N08825	Cold drawn	–	1000	–	889	15	–

Consult with the best ASME sb704 UNS n06219 tubing traders in the GCC to purchase at the lowest possible cost; also, verify the manufacturing process.

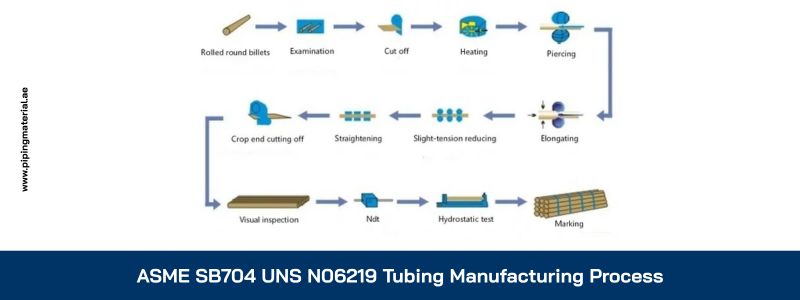

ASME SB704 UNS N06219 Tubing Manufacturing Process

Material Inspection Facility in Following Locations

MENA	Algeria, Israel, Egypt, Palestine, Libya, Morocco, Tunisia
Middle East countries	Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen, Lebanon, Qatar, Saudi,
Africa	Tunisia, Egypt, Algeria, South Africa, Nigeria, Morocco, Kenya

ASTM B704 tubing equivalent

Standards	Country	UNS N06625	UNS N08825
UNS	North America	N06625	NO8825
WNR	Russia	2.4856	2.4858
ASTM	America	ASTM B704	ASTM B704
ASME	Australia	ASME SB 704	ASME SB 704
JIS	Japan	NCF 625	NCF 825
BS	United Kingdom	NA 21	NA 16
GOST	Russia	ХН75МБТЮ	ЭИ703
AFNOR	France	NC22DNB4M	NFE30C20DUM
EN	Europe	NiCr22Mo9Nb	NiCr21Mo
AMS	United States	–	–
ANSI	America	–	–
SAE	United States	–	–
AS	Australia	–	–
DIN	German	2.4856	2.4858

ASTM B704 Tube Properties

Warehouse Locations of Partner Suppliers

Region	City	Country
Africa	Cape Town	South Africa
Middle East	Dammam	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Abuja	Nigeria
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Physical properties of ASTM B704 material

Materials	Specific heat (0-100°C)	Thermal conductivity	Thermal expansion	Modulus elasticity	Electrical resistivity	Density
UNS N06625	460 J.kg-1.°K-1	14.8 W.m -1.°K-1	12.4 μm/μm/°C	207 GPa	10.3 Ohm-cm	8.42 g/cm3
UNS N08825	440 J.kg-1.°K-1	11.1 W.m -1.°K-1	14 μm/μm/°C	196 GPa	1.13 Ohm-cm	8.13 g/cm3

Find the most trusted and verified stocking distributors of ASTM b704 UNS n08825 welded alloy tubes here with the most latest pricing. here to compare prices

Delivery schedule for ASTM B704 UNS N06625 welded tubes

Shipping location	The changes in pricing and approx days of delivery
Saudi Arabia	5 % extra \| 5-7 days (Contact above listed stockist of ASTM B704 material for fast delivery in KSA)
Jamaica	5 % extra \| 50 days
Denmark	5 % extra \| 35 days
Norway	5 % extra \| 45 days
Russia	5 % extra \| 20 days
Mexico	5 % extra \| 35-40 days
Italy	5 % extra \| 28 days
France	5 % extra \| 28 days
Uk	5 % extra \| 30 days
Ukraine	5 % extra \| 60 days
Spain	5 % extra \| 30 days
Netherland	5 % extra \| 30 days
