ASTM F468 Alloy 400 Bolts Quick Features
| Grade | ASTM F468 Alloy 400 Bolts |
|---|---|
| Manufacturing Standard | ASME B18.6.3, ANSI B1.1, ASME B18.2.1, GB5783, IS:1364, BS 3692, UNI 5737 |
| Threads Specification | UNC, UNF-3B, 8UN, UNJF-3A, UNS, UNF, NPT, NPTF, BSF, BSW, UNEF, Metric Course, Metric Fine |
| DIN Standard | DIN 931, DIN 933, DIN 912, DIN 934, DIN 6923, DIN 603, DIN 7981, DIN 970, DIN916, DIN 7982, DIN 7985, DIN 913 |
| ISO Standard | ISO 4017, ISO 4033, ISO 4032, ISO 4014, ISO 7380 |
| Standard Sizes in mm | M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M27, M30, M36 |
Refer Standard Specification for F468U UNS N04400 Socket Head Cap Screw, Stud & Hexagon Bolts
ASTM F468 Alloy 400 Bolts Specification
Metric Sizes : M1.2 – M48, 1/4″ – 4″
Heads : Square, Round, Hex flange, Hex Head, Triangular, Flat, T-head
ASTM F468 Alloy 400 Fasteners Type : Nuts, Washers, Screws, Hex Bolts
Make : UNBRAKO, TVS, Fischer, Sundaram, BOLTMASTER, PFL, LPS, DFL, VIF,
BOSSARD
Buy Directly from ASTM F468 Alloy 400 Bolts suppliers in UAE
100% Tested ASTM F468 Alloy 400 Bolts with MTC EN 10204/3.1
Advantage of ASME SF468 Alloy 400 Heavy Hex Bolt
- Higher Strength Corrosive Resistance
- Formability
- Increase in Toughness
- Durable
- Stress Corrosive Resistant
- Non Magnetic
ASTM F468 UNS N04400 studs/ hex bolts/ hex cap screws in various Metric sizes, find yield & tensile strength

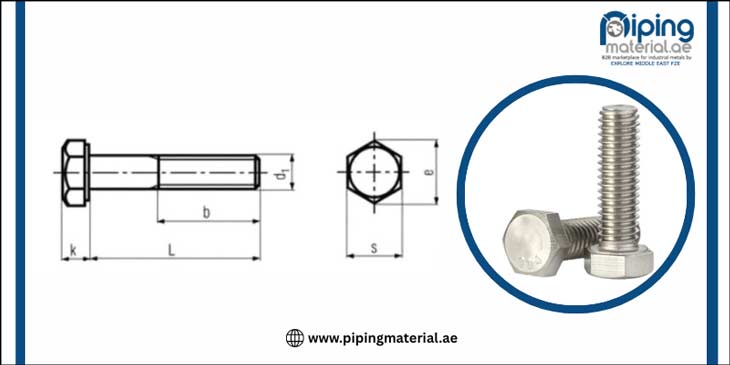

F468 UNS N04400 Hex Bolts Dimension Chart
| d1d1 | M20 | M18 | M14 | M16 | M12 | M6 | M10 | M8 | M4 | M5 |
|---|---|---|---|---|---|---|---|---|---|---|
| b over 200 | 65 | 61 | 53 | 57 | 49 | – | 45 | – | – | – |
| b to 125 | 46 | 42 | 34 | 38 | 30 | 18 | 26 | 22 | 14 | 16 |
| e | 33.53 | 30.14 | 24.49 | 26.75 | 21.1 | 11.05 | 18.9 | 14.38 | 7.66 | 8.79 |
| d1d1 | M48 | M42 | M45 | M36 | M27 | M33 | M30 | M22 | M24 | |
| b to 200 | 108 | 96 | 102 | 84 | 66 | 78 | 72 | 56 | 60 | |
| k | 30 | 26 | 28 | 22.5 | 17 | 21 | 18.7 | 14 | 15 | |
| s | 75 | 65 | 70 | 55 | 41 | 50 | 46 | 32 | 36 | |
| b to 200 | 52 | 48 | 40 | 44 | 36 | 24 | 32 | 28 | – | – |
| k | 12.5 | 11.5 | 8.8 | 10 | 7.5 | 4 | 6.4 | 5.3 | 2.8 | 3.5 |
| s | 30 | 27 | 22 | 24 | 19 | 10 | 17 | 13 | 7 | 8 |
| b to 125 | 102 | 90 | 96 | 78 | 60 | 72 | 66 | 50 | 54 | |
| b over 200 | 121 | 109 | 115 | 97 | 79 | 91 | 85 | 69 | 73 | |
| e | 82.6 | 71.3 | 76.95 | 60.79 | 45.2 | 55.37 | 50.85 | 35.72 | 39.98 |

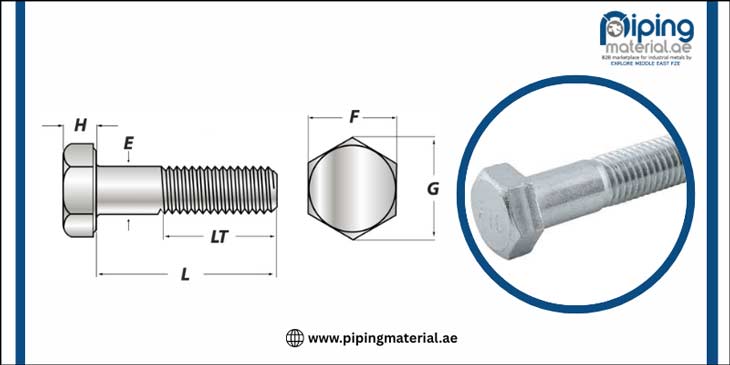

Size Chart for F468 400 Monel Hex Cap Screws
|
Nominal Sizes |
Width Across Flats (F) | Body Diameter (E) | Head Height(H) | Width Across Corners(G) | Thread Length (LT) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Basic | Min | Max | Min | Max | Basic | Min | Max | Min | Max | >6″ | <or=6″ | ||
| 1.5000 | 1-1/2 | 2-1/4 | 2.175 | 2.250 | 1.4880 | 1.5000 | 1-5/16 | .902 | .974 | 2.480 | 2.598 | 3.500 | 3.250 |
| 1.2500 | -1/4 | 1-7/8 | 1.812 | 1.875 | 1.2390 | 1.2500 | 25/32 | .749 | .813 | 2.066 | 2.162 | 3 | 2.750 |
| 1.1250 | -1/8 | 1-11/16 | 1.631 | 1.688 | 1.1140 | 1.1250 | 11/16 | .658 | .718 | 1.859 | 1.949 | 2.750 | 2.500 |
| 10 | 1/2 | 1.469 | 1.500 | .9900 | 10 | 39/64 | .591 | .627 | 1.675 | 1.732 | 2.500 | 2.250 | |
| .8750 | 7/8 | 1-5/16 | 1.285 | 1.312 | .8660 | .8750 | 35/64 | .531 | .563 | 1.465 | 1.516 | 2.250 | 2 |
| .7500 | 3/4 | 1-1/8 | 1.100 | 1.125 | .7410 | .7500 | 15/32 | .455 | .483 | 1.254 | 1.299 | 2 | 1.750 |
| .6250 | 5/8 | 15/16 | .922 | .938 | .6170 | .6250 | 25/64 | .378 | .403 | 1.051 | 1.083 | 1.750 | 1.500 |
| .5625 | 9/16 | 13/16 | .798 | .812 | .5545 | .5625 | 23/64 | .348 | .371 | .910 | .938 | 1.625 | 1.375 |
| .5000 | 1/2 | 3/4 | .736 | .750 | .4930 | .5000 | 5/16 | .302 | .323 | .840 | .866 | 1.500 | 1.250 |
| .4375 | 7/16 | 5/8 | .612 | .625 | .4305 | .4375 | 9/32 | .272 | .291 | .698 | .722 | 1.375 | 1.125 |
| .3750 | 3/8 | 9/16 | .551 | .562 | .3690 | .3750 | 15/64 | .226 | .243 | .628 | .650 | 1.250 | 1 |
| .3125 | 5/16 | 1/2 | .489 | .500 | .3065 | .3125 | 13/64 | .195 | .211 | .557 | .577 | 1.125 | .875 |
| .2500 | 1/4 | 7/16 | .428 | .438 | .2450 | .2500 | 5/32 | .150 | .163 | .488 | .505 | 1 | .750 |
Nickel Alloy N04400 Threaded Rod Surface Coating Methods
- Passivation
- Electro polished
- Mirror buffed
- Chrome plate
- Oxidized
- Teflon
- Epoxy
Yield & Tensile Strength Alloy F468 N04400 All Thread
| Grade | Yield Strength | Tensile Strength | ||
|---|---|---|---|---|
| PSI | MPa | PSI | MPa | |
| ASTM F468 UNS N04400 | 35000 | 240 | 80000 | 550 |
ASTM F468U Ni 400 Hex Bolts and Threaded Rod as per ASME B18.2.1 standard, check hardness & density of F468 N04400 material
ASTM Alloy F468 UNS N04400 Stud Bolt Applications
We maintain a ready stock of ASTM F468 Alloy 400 Bolts from trusted brands such as Ras Al Khaimah and Ajman.
Hardness Range of Monel N04400 Threaded Rod
| UNS Designation | Hardness Range (HRB) |
|---|---|
| UNS N04400 | 60 To 80 |
Check the Density of Nc F468u Flange Bolts
- The Density of Nc F468u Flange Bolts is 8.80 g/cm³
ASTM F468 UNS N04400 material available in various types with MTC 3.1
Popular Types of ASTM F468 Alloy 400 Bolts
ASTM F468 Alloy 400 Hex Bolts
F468 Alloy 400 Heavy Hex Bolt
ASTM F468 UNS N04400 Flange Bolts
F468 UNS N04400 Square Bolts
ASTM F468m N04400 Eye Bolts
F468m N04400 Hex Head Bolt
ASTM F468 Monel 400 Round Head Bolts
F468 400 Monel Plow Bolt
Alloy F468 N04400 Shoulder Bolt
ASTM F468 Alloy 400 Carriage Bolt
F468 Monel Alloy 400 Elevator Bolt
ASTM F468 Monel N04400 Anchor Bolt
ASTM F468m N04400 Socket Head Cap Screws Most Common Types
ASTM F468 Alloy 400 Socket Head Cap Screws
F468 Ni UNS N04400 Hex Head Cap Screw
Nickel Alloy N04400 Countersunk Screws
ASTM Alloy F468 UNS N04400 Hex Cap Screw
F468 N04400 Hexagon Socket Head Cap Screw
ASTM F468 Nickel Alloy 400 Allen Head Screw
ASTM F468 N04400 Nickel Alloy Button Head Cap Screw
F468 Nickel UNS N04400 Flat Head Cap Screw
Monel N04400 Cap Head Screw
Available Types for ASTM F468 UNS N04400 Studs
ASTM F468 Alloy 400 Threaded Rod
F468 400 Monel Stud Bolt
Alloy N04400 All Thread
ASTM F468 UNS N04400 Threaded Studs
F468m N04400 Double End Stud Bolts
ASTM F468 Monel 400 Fully Threaded Studs
Alloy F468 N04400 Anchor Stud Bolt
F468 Monel Alloy 400 Eye Stud Bolt
ASTM F468 Monel N04400 Tap End Stud Bolts
F468 Ni UNS N04400 Welding Studs
Nickel Alloy N04400 Plain Stud Bolt
F468 Nickel UNS N04400 Welded Stud Bolt
How do F468 Alloy 400 Screw perform in higher pressure conditions ?
- Temperature Tolerance
- Corrosion Resistance
- High Strength
- Durability
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Nickel Alloy N04400 Allen Head Screw Torque Chart
| Bolt Diameter (Inch) | Torque | Thread Pitch (TPI) | |
|---|---|---|---|
| ft-lbs | Nm | ||
| 1 | 480 | 651 | 8 |
| 7/8 | 330 | 447 | 9 |
| 3/4 | 210 | 285 | 10 |
| 5/8 | 120 | 163 | 11 |
| 3/8 | 25 | 34 | 16 |
| 5/16 | 14 | 19 | 18 |
| 1/4 | 7 | 9.5 | 20 |
Material of ASTM F468 Alloy 400 Bolts
High-performance ASTM F468 Alloy 400 Bolts Supplier in UAE offering Bolts, Threaded Rod which are built to endure at toughest conditions.
Know American & European equivalent for ASTM F468 Monel 400 Bolting material, view chemical & mechanical properties
Chemical Composition of F468 Ni UNS N04400 Button Head Cap Screw
| Grade | Iron | Sulphur | Silicon | Carbon | Nickel | Copper | Manganese |
|---|---|---|---|---|---|---|---|
| Alloy N04400 | 2.5 max | 0.024 | 0.5 max | 0.3 max | 63.00 min | 28-34 | 2 max |
Storage Sites of Partner Suppliers
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
F468 N04400 Countersunk Head Screw Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Poisson’s ratio | 0.32 | 0.32 |
| Modulus of elasticity | 179 GPa | 26000 ksi |
Equivalent Standards for ASTM F468 Monel N04400 Shoulder Bolt
| Grade | WERKSTOFF NR. | UNS | AFNOR | GOST | BS | JIS | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NU-30M | МНЖМц 28-2,5-1,5 | NA 13 | NW 4400 | NiCu30Fe |
Why is Monel 400 ideal for marine and chemical applications ?
- Exceptional Corrosive Resistant
- Copper-Nickel Composition
- Highly Strength
- Non Magnetic
- Toughness
- Spark-Resistance
- Fabricability
