ASTM F468 UNS N10276 Bolts Quick Overview
| Grade | ASTM F468 UNS N10276 Bolts |
|---|---|
| Manufacturing Standard | ASME B18.6.3, ANSI B1.1, IS:1364, GB5783, ASME B18.2.1, BS 3692, UNI 5737 |
| Threads Specification | 8UN, UNC, UNF-3B, NPT, UNS, UNF, UNJF-3A, UNEF, NPTF, BSW, BSF, Metric Course, Metric Fine |
| DIN Standard | DIN 931, DIN 603, DIN 934, DIN 933, DIN 912, DIN 7981, DIN 970, DIN 6923, DIN 913, DIN916, DIN 7982, DIN 7985 |
| ISO Standard | ISO 4032, ISO 4033, ISO 4017, ISO 4014, ISO 7380 |
| Standard Sizes in mm | M36, M30, M27, M24, M20, M16, M14, M12, M10, M8, M6, M5, M4 |
ASTM F468 alloy C276 hex bolts & F468 Hastelloy C276 socket head cap screws suppliers in UAE
ASTM F468 UNS N10276 Bolts Specification
Metric Sizes : M1.2 – M48, 1/2″ – 4″
Heads : Square, Round, Hex flange, Hex Head, Triangular, Flat, T-head
ASTM F468 UNS N10276 Fasteners Type : Nuts, Washers, Screws, Hex Bolts
Makes : Sundaram, UNBRAKO, TVS, PFL, Fischer, LPS, BOSSARD, DFL, VIF, BOLTMASTER
Buy Directly from ASTM F468 UNS N10276 Bolts suppliers in UAE
100% Tested ASTM F468 UNS N10276 Bolts with MTC EN 10204/3.1
What is The Manufacturing Process for ASTM F468 Alloy C276 Hex Bolts ?
- Cold Heading
- Surface Plate
- Heat Treatment
- Insert Tap
- Inspecting
- Drawing of Wire
ASTM F468 N10276 studs and F468M Ni 276 flange bolts in different head & drive styles for petrochemical, power & oil gas sectors
F468 Ni UNS N10276 Heavy Hex Bolt Applications
Electrical Resistivity of ASTM F468m N10276 Studs
| Grade | Electrical Resistivity (µΩ.m) |
|---|---|
| F468 UNS N10276 | 1.229 |
Most Common Types of ASTM F468 UNS N10276 Bolts
ASTM F468 UNS N10276 Hex Bolts
F468 UNS N10276 Heavy Hex Bolt
ASTM F468m N10276 Flange Bolts
F468m N10276 Square Bolts
ASTM F468 Hastelloy C276 Eye Bolts
F468 C276 Hastelloy Hex Head Bolt
Alloy F468 N10276 Round Head Bolts
ASTM F468 Alloy C276 Plow Bolt
F468 Hastelloy Alloy C276 Shoulder Bolt
ASTM F468 Hastelloy N10276 Carriage Bolt
F468 Ni UNS N10276 Elevator Bolt
Nickel Alloy N10276 Anchor Bolt
We proudly stockist of ASTM F468 UNS N10276 Bolts from world-class producers such as Abu Dhabi and Ajman.
ASTM F468 Hastelloy C276 Socket Head Cap Screws Various Types
ASTM Alloy F468 UNS N10276 Socket Head Cap Screws
F468 N10276 Hex Head Cap Screw
ASTM F468 Nickel Alloy C276 Countersunk Screws
ASTM F468 N10276 Nickel Alloy Hex Cap Screw
F468 Nickel UNS N10276 Hexagon Socket Head Cap Screw
Hastelloy N10276 Allen Head Screw
ASTM F468 C276 Hastelloy Button Head Cap Screw
Alloy N10276 Flat Head Cap Screw
ASTM F467 UNS N10276 Hastelloy C276 Cap Head Screw
Popular Forms of ASTM F468 N10276 Nickel Alloy Studs
ASTM F468 UNS N10276 Threaded Rod
F468 UNS N10276 Stud Bolt
ASTM F468m N10276 All Thread
F468m N10276 Threaded Studs
ASTM F468 Hastelloy C276 Double End Stud Bolts
F468 C276 Hastelloy Fully Threaded Studs
Alloy F468 N10276 Anchor Stud Bolt
ASTM F468 Alloy C276 Eye Stud Bolt
F468 Hastelloy Alloy C276 Tap End Stud Bolts
ASTM F468 Hastelloy N10276 Welding Studs
Nickel Alloy N10276 Plain Stud Bolt
ASTM Alloy F468 UNS N10276 Welded Stud Bolt
Alloy F468 N10276 Square/ Hex Bolts and Screws are manufactured in accordance with ASME B18.2.1
Nickel Alloy N10276 Allen Head Screw Surface Treatment
- HDG
- Oxidation
- Electric Galvanize
- Zinc impregnation
- Phosphating
- DACROMET

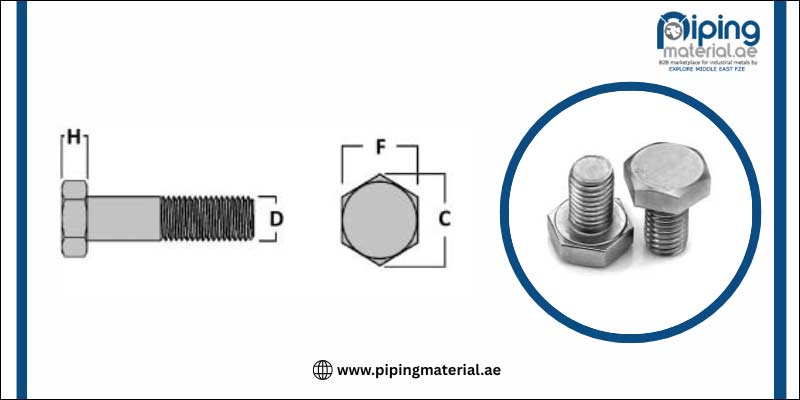

ASTM F468 UNS N10276 Bolts Dimension Chart
| Nominal Bolt Diameter (Inch) | F | D | H | C | |||||
|---|---|---|---|---|---|---|---|---|---|
| Width Across Flats | Body Diameter | Height | Width Across Corners | ||||||
| Basic | Min | Max | Max | Basic | Min | Max | Min | Max | |
| 2-1/2 | 3-7/8 | 3.750 | 3.875 | 2.559 | 1-21/32 | 1.479 | 1.708 | 4.275 | 4.474 |
| 2-1/4 | 3-1/2 | 3.388 | 3.500 | 2.305 | 1-1/2 | 1.327 | 1.548 | 3.862 | 4.041 |
| 2 | 3-1/8 | 3.025 | 3.125 | 2.039 | 1-11/32 | 1.175 | 1.388 | 3.449 | 3.608 |
| 1-3/4 | 2-3/4 | 2.662 | 2.750 | 1.785 | 1-5/32 | 1.054 | 1.196 | 3.035 | 3.175 |
| 1-1/2 | 2-3/8 | 2.300 | 2.375 | 1.531 | 1 | 0.902 | 1.036 | 2.622 | 2.742 |
| 1-3/8 | 2-3/16 | 2.119 | 2.188 | 1.404 | 29/32 | 0.810 | 0.940 | 2.416 | 2.526 |
| 1-1/4 | 2 | 1.938 | 2.00 | 1.277 | 27/32 | 0.749 | 0.876 | 2.209 | 2.309 |
| 1-1/8 | 1-13/16 | 1.756 | 1.812 | 1.149 | 3/4 | 0.658 | 0.780 | 2.002 | 2.093 |
| 1 | 1-5/8 | 1.575 | 1.625 | 1.022 | 43/64 | 0.591 | 0.700 | 1.796 | 1.876 |
| 7/8 | 1-7/16 | 1.394 | 1.438 | 0.895 | 37/64 | 0.531 | 0.604 | 1.589 | 1.660 |
| 3/4 | 1-1/4 | 1.212 | 1.250 | 0.768 | 1/2 | 0.455 | 0.524 | 1.383 | 1.443 |
| 5/8 | 1-1/16 | 1.031 | 1.062 | 0.642 | 27/64 | 0.378 | 0.444 | 1.175 | 1.227 |
| 1/2 | 7/8 | 0.850 | 0.875 | 0.515 | 11/32 | 0.302 | 0.364 | 0.969 | 1.010 |
What is The Melting Range of ASTM F468 Hastelloy N10276 Square Bolts ?
- 1370ºC is The Melting Range of ASTM F468 Hastelloy N10276 Square Bolts
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Material of ASTM F468 UNS N10276 Bolts
ASTM F468 UNS N10276 heavy hex bolts as per Thread Tolerance Class 2A, get quick quote from multiple manufacturers
F468 N10276 Button Head Cap Screw Thermal Properties
| Properties | Metric | Imperial |
|---|---|---|
| Thermal conductivity (-168 °C) | 7.20 W/mK | 50.0 BTU in/hr.ft².°F |
| Thermal expansion co-efficient (@24-93°C/75.2-199°F) | 11.2 µm/m°C | 6.22 µin/in°F |
What is The Heat Capacity for ASTM Alloy F468 UNS N10276 All Thread ?
- The Heat Capacity for ASTM Alloy F468 UNS N10276 All Thread is 427 J/kg.°C
F468 Hastelloy Alloy C276 Flange Bolts Coating
Premier ASTM F468 UNS N10276 Bolts Supplier in UAE of highly quality bolts that are engineered for lasting performance.
Nickel alloy N10276 Head Marking
| Grade | Material Marking |
|---|---|
| UNS N10276 |
|
Check the F468M N10276 stud bolt and F468T Ni 276 Allen head screw density, chemical composition and mechanical properties
Density of Alloy F468 N10276 Hex Cap Screws
| Grade | Density |
|---|---|
| F468 UNS N10276 | 8.89 g/cm³ |
Storage Sites of Partner Suppliers
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
ASTM F468 Nickel Alloy C276 Countersunk Head Screw Chemical Composition
| Grade | Si | Mn | C | Fe | Cr2 | S | Ni | Al-Ti | |
|---|---|---|---|---|---|---|---|---|---|
| ASTM F468 UNS N06625 | max. | 0.50 | 0.50 | 0.10 | 5.0 | 23.0 | 0.015 | – | 0.40 |
| min. | – | – | – | – | 20.0 | – | 58.0 | – | |
Mechanical Properties of F468m N10276 Stud Bolt
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation (%) | ||
|---|---|---|---|---|---|
| MPa | Psi | MPa | Psi | ||
| ASTM F468 UNS N10276 | 790 | 1,15,000 | 355 | 52,000 | 40 |
Sales Agents in Following Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
F468 UNS N10276 Screw Thread Forms
- UNEF
- UNF
- UNJ
- ACME
- BSF
- UNC
Equivalent Standards for F468 Nickel UNS N10276 Shoulder Bolt
| Standard | EN | WNR. | JIS | UNS | GOST |
|---|---|---|---|---|---|
| UNS N10276 | NiMo16Cr15W | 2.4819 | NW 0276 | N10276 | XH65MBY |
Warehouse Locations of Partner Suppliers
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
F468 C276 Hastelloy Threaded Rod for Torque Chart
| Nominal Diameter (Inch) | Torque (ft-lb) | Threads/in | |
|---|---|---|---|
| Lubricated | Dry | ||
| 1-1/2 | 876 | 1169 | 12 |
| 1-1/2 | 779 | 1039 | 6 |
| 1-1/4 | 495 | 661 | 12 |
| 1-1/4 | 447 | 597 | 7 |
| 1 | 289 | 385 | 14 |
| 1 | 257 | 343 | 8 |
| 7/8 | 189 | 252 | 14 |
| 7/8 | 172 | 228 | 9 |
| 3/4 | 119 | 158 | 16 |
| 3/4 | 107 | 142 | 10 |
| 5/8 | 67.9 | 90.5 | 18 |
| 5/8 | 60.0 | 79.9 | 11 |
| 9/16 | 48.5 | 64.6 | 18 |
| 9/16 | 43.5 | 57.9 | 12 |
| 1/2 | 33.9 | 45.3 | 20 |
| 1/2 | 30.1 | 40.2 | 13 |
| 7/16 | 22.1 | 29.4 | 20 |
| 7/16 | 19.8 | 26.3 | 14 |
| 3/8 | 14.0 | 18.6 | 24 |
| 3/8 | 12.4 | 16.5 | 16 |
| 5/16 | 7.7 | 10.3 | 24 |
| 5/16 | 7.0 | 9.3 | 18 |
| 1/4 | 3.8 | 5.2 | 28 |
| 1/4 | 3.4 | 4.5 | 20 |
