Bevel Seat Sanitary Fittings

Home > Bevel Seat Sanitary Fittings

Bevel Seat Sanitary Fittings Properties

Standard	ASTM A312 \| ASME SA312
DIN Standards	DIN 11851 DIN 11865 ASME BPE Standard DT-18
Industry Standards	ASTM B912 ASME BPE SEMI F17, SEMI F19
Grades	SS 304, 316, 304L, 316L, 321, 347 etc.
Origin	American, Janpanese, European, Russian, Korean
HSN Code	73072900
Schedule	5 to XXS
Packaging	Square Pack Tri-Wall Box Scored Cardboard Paper/Poly Sleeve
Connection	Clamps Thread Welding
Specification	TRICLOVER DIN, ISO IDF, SMS NPT BSP
Welding Method	Laser Beam Welding Orbital Welding Plasma Arc Welding (PAW) TIG / GTAW welding Stick Welding (SMAW)
Types	Welded, Seamless, Fabricated
Certificates	3A Certified EN 10204-3.1 Certificate 3-A-63-03 Third Party Inspection Report 100% Radiography Test Report

Meet the Top 10 most Fast-growing Stainless Steel Bevel Seat Elbow Suppliers in UAE

Bevel Seat Sanitary Fittings Specification

Bevel Seat Sanitary Fittings Sizes : 1 to 4”

Bevel Seat Fittings Thickness: 12 Swg, 14 Swg, 16 Swg, 18 Swg or Customizable

Sanitary Bevel Seat Fittings Seal Material: PTFE, EPDM, and Viton

Exterior Surface Finish: 32 Ra

Services: Custom Fabrication, Threading , Passivation and Electropolishing As Per ISO/SF5 Standards

Bevel Seat Union Fittings Testing: Hardness, Ultrasonic, Roughness Test

Finish:Mirror Polished (SF5), Electropolished (SF5), SF1 (2B mill), Bright Annealed, Mechanical Polished

Applications: Pharmaceutical, Food And Beverage, Personal Care And Dairy Industries etc.

Interior Surface Finish: 15 Ra

Types: Wye, Ferrule, Cap, Adapter, Elbow, Crosses, Tees, Reducers

Buy Directly From Bevel Seat Sanitary Fittings Suppliers in UAE and Get Datasheet

Process: Mandrel, Hot forming

You Can Save 20%-30% Cost When Ordering Sanitary Bevel Seat Fittings Directly From the Manufacturers in Dubai

Sanitary Bevel Seat Fittings Types

Bevel Seat End Caps

Bevel Seat Sanitary Adapter

Bevel Seat Elbows

Bevel Seat Crosss

Bevel Seat Cross

Bevel Seat Tees

Bevel Seat Tee

Bevel Seat Reducer

Bevel Seat Gasket Size Chart

Size (Tube OD)	Gasket OD	Gasket ID
1 “	1.325″	0.900″
1-1/2″	1.875″	1.375″
2 “	2.375″	1.850″
2-1/2″	2.950″	2.340″
3″	3.475″	2.875″
4″	4.500″	3.700″

Check Out Your Nearby Locations For Fastest Deliveries

Fujairah	Umm Al Quwain	Sharjah	Doha
Riyadh	Dubai	Muscat	Ras Al Khaimah
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

Buy Bevel Seat Union Fittings for Application Industrial, Also Check Bevel Seat Tube Fittings Dimensions & Advantages

Sanitary Long Threaded Bevel Seat Application

Established Bevel Seat Sanitary Fittings Suppliers in UAE of reliable goods tailored for harsh industrial applications

Dairy Processing:
Beverage and Brewery
Food Processing
Pharmaceutical and Biotech
General Chemical/Detergent

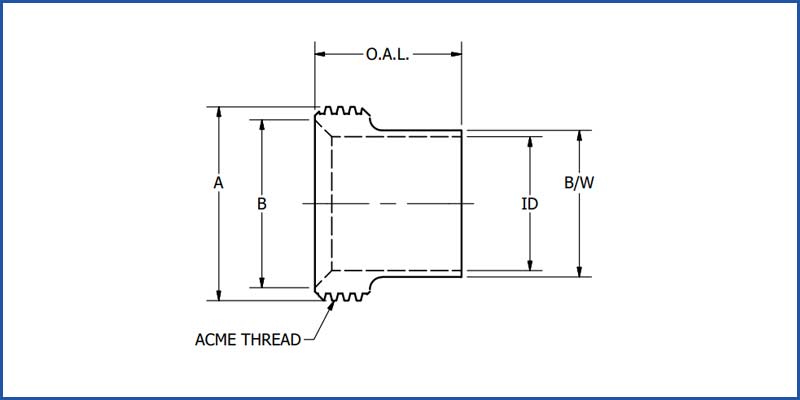

Long Threaded Bevel Seat Ferrules Dimensions

Size(Tube OD)	Dimensions
Size(Tube OD)	A	B	B/W	ID	O.A.L.	ACME THREAD
1 “	1.375	1.453″	1.000″	0.870″	1.375″	1.453-8
1-1/2″	1.500	1.984″	1.500″	1.370″	1.500″	1.984-8
2 “	1.500	2.516″	2.000″	1.870″	1.500″	2.516-8
2-1/2″	1.750	3.048″	2.500″	2.370″	1.750″	3.048-8
3 “	1.750	3.434″	3.000″	2.870″	1.750″	3.579-8
4 “	1.750	4.683″	4.000″	3.834″	1.750″	4.683-6

See Where You Can Find Material Ex Stock

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Bevel Seat Union Fittings Advantages

Dependable Bevel Seat Sanitary Fittings Suppliers in UAE with a focus on performance, safety, and innovation

Sanitary & Secure Design
Easy Maintenance & Installation
Corrosion Resistance
Versatility & Reliability
Economical
Wide Availability

Find Iso Approved Stockists & Importers of Sanitary Long Threaded Bevel Seat Ferrule & Tee in the Middle East Countries

Sales Agents in Following Locations

Region	City	Country
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Before You Buy Sanitary Bevel Seat End Fitting in UAE, Check the Manufacturing Origin

Sanitary Bevel Seat End Fitting Manufacturing Origin

American
Janpanese
European
Russian
Korean

Bevel Seat Union Fittings Equivalent

America	Russia	Japan	North America	Europe	United Kingdom	Russia	France
ASTM	WERKSTOFF NR.	JIS	UNS	EN	BS	GOST	AFNOR
SS 304	1.4301	SUS 304	S30400	X5CrNi18-10	304S31	08Х18Н10	Z7CN18‐09
SS 316	1.4401 / 1.4436	SUS 316	S31600	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	316S31 / 316S33	–	Z7CND17‐11‐02
SS 316L	1.4404 / 1.4435	SUS 316L	S31603	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316H	–	–	S31609	–	316S51	–	–
SS 317	1.4449	SUS 317	S31700	X5CrNiMo1713	–	–	–
SS 304L	1.4306 / 1.4307	SUS 304L	S30403	X2CrNi18-9 / X2CrNi19-11	3304S11	03Х18Н11	Z3CN18‐10
SS 310	1.4841	SUS 310	S31000	X15CrNi25-20	310S24	20Ch25N20S2	–
SS 304H	1.4301	–	S30409	–	–	–	–
SS 310S	1.4845	SUS 310S	S31008	X8CrNi25-21	310S16	20Ch23N18	–
SS 321	1.4541	SUS 321	S32100	X6CrNiTi18-10	–	–	–
SS 317L	1.4438	SUS 317L	S31703	X2CrNiMo18-15-4	–	–	–
SS 347	1.4550	SUS 347	S34700	X6CrNiNb18-10	–	–	–
SS 321H	1.4878	SUS 321H	S32109	X12CrNiTi18-9	–	–	–
SS 347H	1.4961	SUS 347H	S34709	X6CrNiNb18-12	–	–	–
SS 410S	1.4516	SUS410S	S41008	X6CrNiTi12	–	–	–
SS 409	1.4512	SUS409	S40900	X2CrTi12	–	–	–
SS 904L	1.4539	SUS 904L	N08904	X1NiCrMoCu25-20-5	904S13	STS 317J5L	Z2 NCDU 25-20

Sanitary Bevel Seat End Fitting Chemical Composition

Grades	Nickel	Carbon	Chromium	Silicon	Phosphorus	Sulfur	Manganese
SS 304	8.00 11.00	0.08	18.00 20.00	0.075	0.04	0.03	2
SS 304H	8.00 11	0.04 0.1	18.00 20	0.75	0.04	0.03	2
SS 304L	8.00 13.00	0.035	18.00 20.00	0.75	0.04	0.03	2 .00
SS 316	11.00 4.00	008	16.00 18.00	0.75	0.040	0.030	2.00
SS 310	19.00 22	0.15	24.00 26	0.75	0.04	0.03	2
SS 416	–	0.15	12.00 14.00	1.00	0.066	0.15	1.25
SS 316L	10.00 15	0.035	16.00 18	0.75	0.04	0.03	2
SS 317	11.00 14	0.08	18.00 20	0.75	0.04	0.03	2
SS 316H	11.00 14.00	0_04 0.10	16.00 18.00	0.75	0040	0.030	I 2.00
SS 321	9.00 13	0.48	17.00 20	0.75	0.04	0.03	203
SS 347	7.00 13	0.08	17.00 20	0.75	0.04	0.03	200
21-6-9	5.50 7.5	0.04	19.00 21.5	1	60	0.03	8.00

Sanitary Long Threaded Bevel Seat Ferrules Mechanical Properties

Grades	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Poisson’s Ratio	Modulus of Elasticity (GPa)	Hardness (HRB)
SS 304L	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 304H	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 310S	205 – 275	515 – 740	40 – 50	0.29	193	90 – 105
SS 310	205 – 275	515 – 740	40 – 50	0.29	193	90 – 105
SS 316L	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 446	205	520 – 720	40 – 50	0.28	190	85 – 95
SS 317	205	520 – 730	40 – 50	0.29	193	85 – 95
SS 321	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 347	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 316	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 316Ti	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 317L	205	520 – 730	40 – 50	0.29	193	85 – 95
SS 321H	205	520 – 720	40 – 50	0.29	193	85 – 95
SS 410	205	520 – 720	35 – 45	0.28	190	85 – 95
SS 904L	205	520 – 720	40 – 50	0.29	193	85 – 95
