Buttweld Pipe Fittings

Home > Buttweld Pipe Fittings

Buttweld Pipe Fittings Overview

Size in Ready Stock:	1/2″ to 48″
Approvals	ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI
Applications	Oil & Gas, Power Generation, Chemical & Petrochemical Processing, Water & Waste Treatment
ASTM & ASME Standard	ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43
Types	Elbow, Tee, Reducer, Cap, Stub End, Cross, Pipe bend
Origin Of Raw Material :	European, Korean, Indian, Japanese, UK, German
Test Certificates	Certificate of Origin Fumigation Certificates Raw Material Test Certificate Mill Test Certificate
Manufacturing Process:	Forged, Hot & Cold Formed, Machined
Shipping Time	Manama : 5 Days Al Jubail : 3-4 Days Riyadh : 4-6 Days
MTC:	EN 10204/3.1B
RFQ:	support@pipingmaterial.ae

What makes pipingmaterial.ae the preferred choice for B2B procurement?

For over 26 years, the team behind Explore Middle East FZE has worked directly with piping manufacturers across Asia, Europe, and the Middle East, and this global exposure is embedded in every page of Pipingmaterial.ae.

Buyer Certificate Tips
Compliance Documents Listed
Mill Test Certificates
Third Party Inspection Guide
Years Experience
UAE Registered Company
Since 2016 Operating

Genuine ASME B16.9 Fittings Suppliers in UAE

Buttweld Pipe Fittings Specification

Size In Ready Stock: Buttweld : 1/2″ to 36″ | Seamless : 1/2″ to 24″ | Welded : 18″ to 72″

Maximum Size: Up to 72 For Large Diameter

American Standard: ASME B16.9, ANSI B16.28

Wall Thickness : Schedule 5 To SCH 180

Corrosion Resistance: Phosphoric, Seawater, Sulfuric and Nitric Acid

Machinery: Beveling Machine, CNC, Cold Forging

Application: Oil & Gas, Power Generation, Chemical & Petrochemical Processing, Water & Waste Treatment

Testing: Proof Test, PIM Testing, Impact Test

Documentation: MTC EN 10204/3.1B, Third Party Inspection

Packaging: Plastic Bag, Wooden Case, Carton Box

Value Added Services: Threading, Polishing, Casting, Cutting

Method: Buttweld, Welded, Seamless

Get Quote Directly From Buttweld Pipe Fittings Suppliers in UAE

100% Tested Alloy 600 Pipe Fittings with MTC EN 10204 3.1/3.2

Buttweld Pipe Fittings Material

Multiple Verified Butt Weld Fittings Manufacturers at the Very Best Price in Dubai, Check Buttweld Fittings Dimensions in Mm

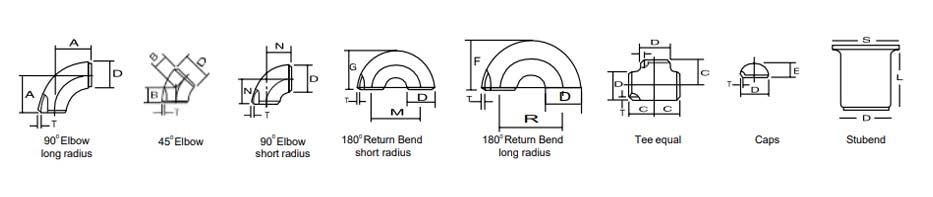

Buttweld Fittings Dimensions in Mm

Nominal Pipe Size		Outside Diameter	Center to Face				Back to Face			Center to Center			Length ‘L’
Inch.	mm	D	A	B	C	N	E	F	G	R	M	S	M S S SP43	ANSI B 16.9
1/2	15	21.3	38	16	25	_	25	48	_	76	_	34.9	50.8	76.2
3/4	20	26.7	29	11	29	_	25	43	_	57	_	42.8	50.8	76.2
1	25	33.4	38	22	38	25	38	56	41	76	51	50.8	50.8	101.6
1 1/4	32	42.2	48	25	48	32	38	70	52	95	64	63.5	50.8	101.6
1 1/2	40	48.3	57	29	57	38	38	83	62	114	76	73.0	50.8	101.6
2	50	60.3	76	35	64	51	38	106	81	152	102	92.0	63.5	152.4
2 1/2	65	73.0	95	44	76	64	38	132	100	191	127	104.8	63.5	152.4
3	80	88.9	114	51	86	76	51	159	121	229	152	127.0	63.5	152.4
3 1/2	90	101.6	133	57	95	89	64	184	140	267	178	139.7	76.2	152.4
4	100	114.3	152	64	105	102	64	210	159	305	203	157.2	76.2	152.4
5	125	141.3	190	79	124	127	76	262	197	381	254	185.7	76.2	203.2
6	150	168.3	229	95	143	152	89	313	237	457	305	215.9	88.9	203.2
8	200	219.1	305	127	178	203	102	414	313	610	406	270.0	101.6	203.2
10	250	273.1	381	159	216	254	127	518	391	762	508	324.0	127.0	254.0
12	300	323.9	457	190	254	305	152	619	467	914	610	381.0	152.4	254.0
14	350	355.6	533	222	279	356	165	711	533	1067	711	412.8	152.4	305.0
16	400	406.4	610	254	305	406	178	813	610	1219	813	470.0	152.4	305.0
18	450	457.2	686	286	343	457	203	914	686	1372	914	533.4	152.4	305.0
20	500	508.0	762	318	381	508	229	1016	762	1524	1016	584.2	152.4	305.0
22	550	559.0	838	343	419	559	254	1118	838	1676	1118	614.4	152.4	305.0
24	600	610.0	914	381	432	610	267	1219	914	1829	1219	692.2	152.4	305.0

See Where You Can Find Material Ex Stock

Asia	Vietnam, Singapore, Taiwan, Malaysia, Mongolia, Brunei, Indonesia, Cambodia, Philippines, Laos, Thailand, Myanmar
Europe	France, Italy, Georgia, Germany, Armenia, Netherlands, Andorra, Belgium, Azerbaijan
Middle East	Abu Dhabi, Dammam, Jordan, Beirut, Doha, Muscat, SCZone, Riyadh, Al Khobar, Sharjah, Iraq, Syria, Turkey, Jeddah, Yemen, Al Jubail, Jebel Ali, Saudi Arabia, Dubai, Lusail, Sohar, Lebanon, Amman, Ajman, Umm Al Quwain, Ras Al Khaimah, Fujairah, Manama

Contact Directly Wrought Buttwelding Fittings Stockists for Custom Sizes and Factory Prices in the Middle East, Refer to Bw Fittings Weight Chart

Buttwelded Fittings Weight Chart In mm

Pipe Elbow Nominal Size		Pipe Elbow Outside Diameter Y	Wall Thickness T (Pipe Elbow Schedule)		45 Deg. Elbow LR Centre to Face B	45 Deg. Elbow LR Weight	90 Deg. Elbow SR Centre to Face A	90 Deg. Elbow SR Weight	90 Deg. Elbow LR Centre to Face A	90 Deg. Elbow LR Weight
mm	in	mm	mm	Schedule	mm	kg	mm	kg	mm	kg
15	1/2”	21.3	2.78	STD	15.9	0.04	–	–	38.1	0.08
			3.73	X.S	15.9	0.05	–	–	38.1	0.10
20	3/4”	26.7	2.87	STD	11.1	0.04	–	–	28.6	0.08
			3.91	X.S	11.1	0.05	–	–	28.6	0.11
25	1”	33.4	3.38	STD	22.2	0.09	25.4	0.11	38.1	0.15
			4.55	X.S	22.2	0.11	25.4	0.14	38.1	0.19
32	11/4”	42.2	3.56	STD	25.4	0.14	31.75	0.18	47.6	0.28
			4.85	X.S	25.4	0.2	31.75	0.24	47.6	0.39
40	11/2”	48.3	3.68	STD	28.6	0.2	38.1	0.26	57.1	0.4
			5.08	X.S	28.6	0.25	38.1	0.35	57.1	0.5
50	2”	60.3	3.91	STD	34.9	0.36	50.8	0.5	76.2	0.72
			5.54	X.S	34.9	0.5	50.8	0.68	76.2	1.0
65	21/2”	73.0	5.16	STD	44.4	0.73	63.5	0.95	95.2	1.46
			7.01	X.S	44.4	0.91	63.5	1.27	95.2	1.82
80	3”	88.9	5.49	STD	50.8	1.1	76.2	1.45	114.3	2.18
			7.62	X.S	50.8	1.45	76.2	1.95	114.3	2.86
100	4”	114.3	6.02	STD	63.5	2.1	101.6	2.8	152.4	4.2
			8.56	X.S	63.5	2.9	101.6	3.9	152.4	5.7
125	5”	141.3	6.65	STD	79.4	3.4	127.0	4.8	190.0	6.8
			9.5	X.S	79.4	5.0	127.0	6.5	190.0	10.0
150	6”	168.3	7.11	STD	95.2	5.1	152.4	6.8	229.0	10.1
			10.97	X.S	95.2	7.7	152.4	10.2	229.0	15.3
200	8”	219.1	8.18	STD	127.0	10.2	203.0	13.6	305.0	20.4
			12.7	X.S	127.0	15.5	203.0	20.9	305.0	30.9
250	10”	273.9	9.27	STD	159.0	18.1	254.0	24.1	381.0	36.1
			12.7	X.S	159.0	24.4	254.0	32.5	381.0	48.8
300	12”	323.9	9.52	STD	190.0	26.6	305.0	35.4	457.0	53.1
			12.7	X.S	190.0	35.0	305.0	46.7	457.0	70.0
350	14”	355.6	9.52	STD	222.0	34.1	356.0	45.4	533.0	68.1
			12.7	X.S	222.0	45.0	356.0	60.0	533.0	90.0
400	16”	406.4	9.52	STD	254.0	45.0	406.0	59.5	610.0	89.3
			12.7	X.S	254.0	59.0	406.0	78.7	610.0	118.0
450	18”	457.0	9.52	STD	286.0	56.5	457.0	75.6	686.0	113.0
			12.7	X.S	286.0	75.0	457.0	100.0	686.0	150.0
500	20”	508.0	9.52	STD	318.0	85.0	508.0	93.5	762.0	140.0
			12.7	X.S	318.0	112.5	508.0	124.0	762.0	186.0
600	24”	610.00	9.52	STD	381.0	101.5	610.0	135.0	914.0	203.0
			12.7	X.S	381.0	134.5	610.0	179.0	914.0	269.0

Types of Buttweld Pipe Fittings

Long Radius Bend

Long Radius Elbow

Short Radius Elbow

Buttweld Tee

Concentric Reducer

Eccentric Reducer

Reducing Tee

End Cap

Lap Joint Stub End

Material Inspection Facility in Following Locations

Africa	Nigeria, South Africa, West Africa, Kenya, Nairobi, Congo, Chad, Togo, Benin, Johannesburg, Gabon, Rwanda, Ivory Coast, Republic of the Congo, Ghana, Niger, Cameroon, Equatorial Guinea , Sudan, Ogun, Durban, Addis Ababa, Lagos, Cape Town, Abuja
GCC Countries	Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, United Arab Emirates (UAE)
MENA	Egypt, Morocco, Algeria, Tunisia, Libya, Cairo, Casablanca

Buy ASME B16.9 Pipe Fittings for the Piping Industry and Petrochemical Plants, View Factory-made Wrought Buttwelding Fittings in Schedule 10 to 160 Price in the United Arab Emirates

ASME B16.9 Pipe Fittings Applications

Petrochemical Plants
Power Generation
Chemical and Process Industries
Marine and Offshore Engineering
Water Treatment and Desalination
Oil & Gas

Buttwelding Fittings Schedule Chart

Nominal Pipe Size (NPS)	Outside Diameter (in)	Sch 10S	Sch 40S	Std (Standard)	Sch 80S	XS (Extra Strong)
1/2″	0.840	0.065	0.109	0.109	0.147	0.147
3/4″	1.050	0.065	0.113	0.113	0.154	0.154
1″	1.315	0.065	0.133	0.133	0.179	0.179
1-1/4″	1.660	0.065	0.140	0.140	0.191	0.191
1-1/2″	1.900	0.065	0.145	0.145	0.200	0.200
2″	2.375	0.065	0.154	0.154	0.218	0.218
2-1/2″	2.875	0.083	0.203	0.203	0.276	0.276
3″	3.500	0.083	0.216	0.216	0.300	0.300
4″	4.500	0.083	0.237	0.237	0.337	0.337
6″	6.625	0.109	0.280	0.280	0.432	0.432
8″	8.625	0.109	0.322	0.322	0.500	0.500
10″	10.750	0.134	0.365	0.365	0.500	0.500
12″	12.750	0.156	0.375	0.375	0.500	0.500
14″	14.000	0.156	0.375	0.375	0.500	0.500
16″	16.000	0.165	0.375	0.375	0.500	0.500
18″	18.000	0.165	0.375	0.375	0.500	0.500
20″	20.000	0.188	0.375	0.375	0.500	0.500
24″	24.000	0.218	0.375	0.375	0.500	0.500

Material Inspection Facilities in the Following Countries

Country	Cities
Netherlands	Eindhoven, Haarlem, Rotterdam, Amsterdam, The Hague
Belgium	Brussels, Seraing, Meeuwen-Gruitrode, Westerlo, Leuven, Ghent, Antwerp

An Easiest Way to Find a Steel Butt Weld Fittings Manufactures & Suppliers in Middle East Countries With a Visual Inspection, Non-destructive Testing

Butt Weld Fittings Testing

Non-destructive Testing
Radiographic Testing
Ultrasonic Testing (UT)
Magnetic Particle Testing (MT)
Liquid Penetrant Testing (PT)
Hydrostatic Proof Test
Tensile Testing
