Class 6000 threaded fittings
Class 6000 Threaded Fittings Key Points
| Sizes in Ready Stock | 1/8″ to 4″ |
|---|---|
| Standard | ASME B16.11 & ANSI B16.11 |
| Pressure Class | 6000 PSI |
| Threads | ISO, BSP, UNF, NPT, BSPT, SAE |
| Material | Stainless Steel, Nickel Alloy, Carbon Steel, Brass, Duplex and Super Duplex Steel, Copper Alloy |
| Thickness | SCH 20 to SCH 60 |
| Process | CNC Machined |
| Forging | Open Die Forging |
| Temprature | -20°F to 800°F (-29°C to 427°C) f |
| Approvals | ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI |
| Available Forms | 90 Degree Threaded Elbow, 45 Degree Threaded Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee |
| Origin of Raw Material: | European, Indian, Korean, Janpanese, UK, German |
| MTC | EN 10204/3.1B |
| Test Certificates |
|
| RFQ: | support@pipingmaterial.ae |
| Shipping Time |
|
| Value Added Services | Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing |
Why do consultants prefer Pipingmaterial.ae?
Pipingmaterial.ae is the result of Explore Middle East FZE channeling 26 years of supplier vetting, market analysis, and buyer consultation into one powerful and comprehensive B2B platform.
- MTC Guidance Provided
- Test Certificate Guide
- Raw Material Origin
- Document Checklist Available
- Buyer Certificate Tips
- Compliance Documents Listed
Find Verified and Trusted 6000 LBS Screwed Union Suppliers in the Middle East and India
Class 6000 Threaded Fittings Specification
Size In Ready Stock: 1/8″ to 4″
Maximum Size: 4″
Wall Thickness: SCH 20 to SCH 60
Pressure Class: 6000
International Standard: ANSI B16.11, ASME B16.11
Surface Finish: Polished, Anti-rust Oil
Installations: Oil & Gas, Power Generation, Petrochemicals
Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing
Packaging: Plastic Bag, Wooden Case & Carton Box
Connection: Socket Welding & Threaded
Threads : ISO, BSP, UNF, NPT, BSPT, SAE
Forging Method: Open Die & Closed Die Forging
Warehouse Locations of Partner Suppliers
Certified Class 6000 Threaded Fittings Suppliers in UAE of high-integrity products with proven resistance to fatigue.
| Asia | Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia |
|---|---|
| Europe | Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy |
| Middle East | Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen |
Refer 6000 PSI Threaded Coupling Dimensions, Weight Chart, and Pressure Rating

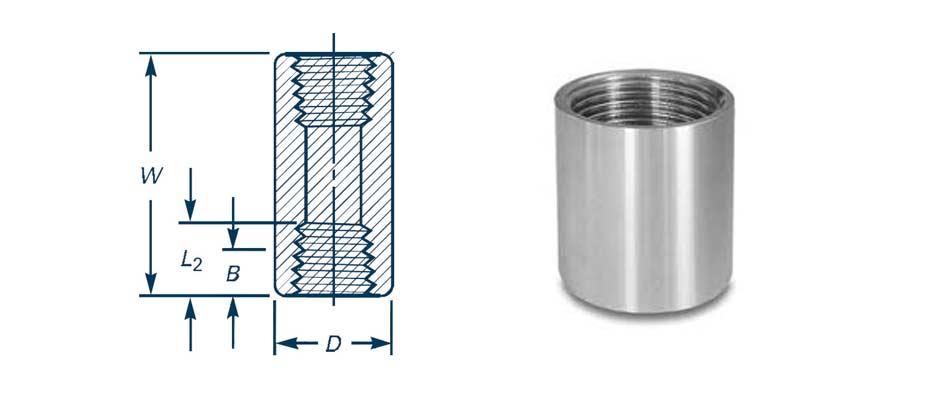

6000 PSI Threaded Coupling Dimensions
| Nominal Pipe Size | Outside Diameter, D | Minimum End Wall Thickness, G | End to End Couplings, W | Minimum Length of Thread | |
|---|---|---|---|---|---|
| B | L2 | ||||
| 1/2 | 38 | 7.9 | 48 | 10.9 | 13.6 |
| 3/4 | 44 | 7.9 | 51 | 12.7 | 13.9 |
| 1 | 57 | 11.2 | 60 | 14.7 | 17.3 |
| 1 1/4 | 64 | 11.2 | 67 | 17.0 | 18.0 |
| 1 1/2 | 76 | 12.7 | 79 | 17.8 | 18.4 |
| 2 | 92 | 15.7 | 86 | 19.0 | 19.2 |
| 2 1/2 | 108 | 19.0 | 92 | 23.6 | 28.9 |
| 1/8 | 22 | – | 32 | 6.4 | 6.7 |
| 1/4 | 25 | 6.4 | 35 | 8.1 | 10.2 |
| 3/8 | 32 | 6.4 | 38 | 9.1 | 10.4 |
| 3 | 127 | 22.4 | 108 | 25.9 | 30.5 |
| 4 | 159 | 28.4 | 121 | 27.7 | 33.0 |

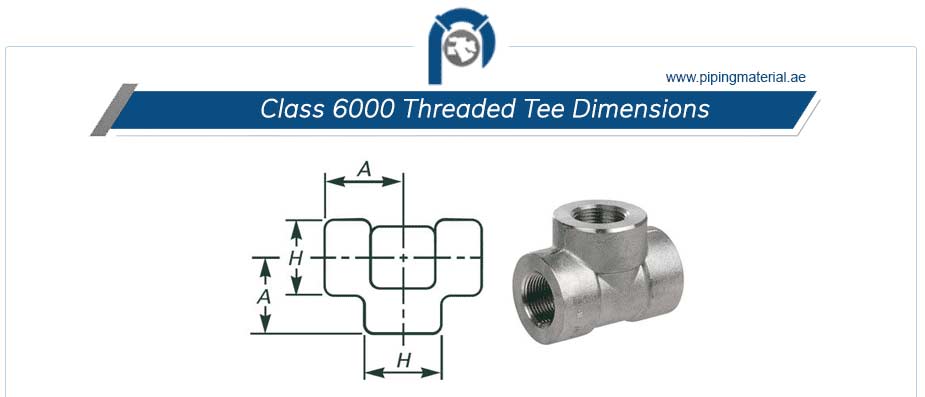

Class 6000 Threaded Tee Dimensions
| Nominal Pipe Size | Center to End, A | Outside Diameter of Band, H | Minimum Wall Thickness, G | Minimum Length of Thread | |
|---|---|---|---|---|---|
| B | L2 | ||||
| 1/8 | 25 | 25 | 6.35 | 6.4 | 6.7 |
| 1/4 | 28 | 33 | 6.60 | 8.1 | 10.2 |
| 3/8 | 33 | 38 | 6.98 | 9.1 | 10.4 |
| 1/2 | 38 | 46 | 8.15 | 10.9 | 13.6 |
| 3/4 | 44 | 56 | 8.53 | 12.7 | 13.9 |
| 1 | 51 | 62 | 9.93 | 14.7 | 17.3 |
| 1 1/4 | 60 | 75 | 10.59 | 17.0 | 18.0 |
| 1 1/2 | 64 | 84 | 11.07 | 17.8 | 18.4 |
| 2 | 83 | 102 | 12.09 | 19.0 | 19.2 |
| 2 1/2 | 95 | 121 | 15.29 | 23.6 | 28.9 |
| 3 | 106 | 146 | 16.64 | 25.9 | 30.5 |
| 4 | 114 | 152 | 18.67 | 27.7 | 33.0 |
Class 6000 Threaded Fittings Material
| Material Type | Grades / Specifications |
|---|---|
| Stainless Steel | 304 / 304L / 316 / 316L / 317 / 321 / 321H / 347 / 347H / 904L |
| Duplex | Duplex 2205, UNS S31803 / S32205 |
| Carbon Steel | ASTM A105 / ASTM A350 LF2 |
| Inconel | Inconel 600, 601, 625, 718, x750 |
| Alloy Steel | F5, F9, F11, F12, F22, F91 |
| Incoloy | Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825) |
| Super Duplex | Super Duplex 2507, UNS S32750 / S32760 |
| Monel | Monel 400 (UNS N04400), Monel 500 (UNS N05500) |
| SMO 254 | SMO 254/6Mo, UNS S31254, DIN 1.4547 |
| Alloy 20 | Carpenter® 20 Alloy, Alloy 20Cb-3 |
| Aluminium | 5052 / 6061 / 6063 / 2017 / 7075 / etc. |
| Hastelloy | Hastelloy C276 (UNS N10276), C22 (UNS N06022), B2, B3 |
| Nickel | Nickel 200, Nickel 201 |
| Titanium | Titanium grade 2 / Titanium grade 5 |
| Copper Nickel | Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500) |

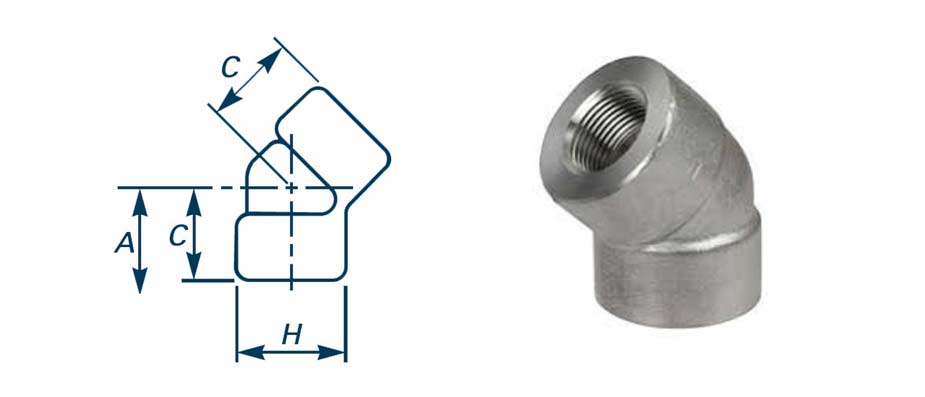

Threaded Class 6000 45 Degree Elbow Dimensions
| Nominal Pipe Size | Outside Diameter of Band, H | Minimum Wall Thickness, G | Center to End, C | Minimum Length of Thread | |
|---|---|---|---|---|---|
| B | L2 | ||||
| 3/8 | 38 | 6.98 | 25 | 9.1 | 10.4 |
| 1/2 | 46 | 8.15 | 28 | 10.9 | 13.6 |
| 3/4 | 56 | 8.53 | 33 | 12.7 | 13.9 |
| 1 | 62 | 9.93 | 35 | 14.7 | 17.3 |
| 2 | 102 | 12.09 | 52 | 19.0 | 19.2 |
| 2 1/2 | 121 | 15.29 | 64 | 23.6 | 28.9 |
| 1/8 | 25 | 6.35 | 19 | 6.4 | 6.7 |
| 1/4 | 33 | 6.60 | 22 | 8.1 | 10.2 |
| 3 | 146 | 16.64 | 79 | 25.9 | 30.5 |
| 1 1/4 | 75 | 10.59 | 43 | 17.0 | 18.0 |
| 1 1/2 | 84 | 11.07 | 44 | 17.8 | 18.4 |
| 4 | 152 | 18.67 | 79 | 27.7 | 33.0 |

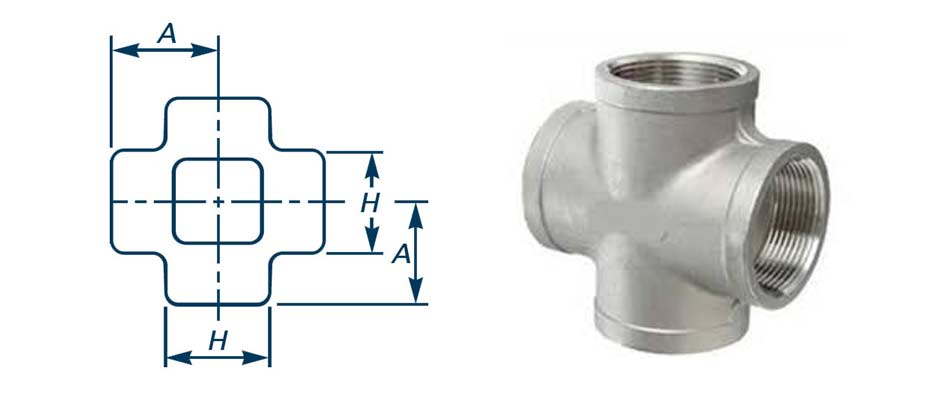

ASME B16.11 Threaded Class 6000 Cross Dimensions
| Nominal Pipe Size | Outside Diameter of Band, H | Minimum Wall Thickness, G | Center to End, A | Minimum Length of Thread | |
|---|---|---|---|---|---|
| B | L2 | ||||
| 1/2 | 46 | 8.15 | 38 | 10.9 | 13.6 |
| 3/4 | 56 | 8.53 | 44 | 12.7 | 13.9 |
| 1 | 62 | 9.93 | 51 | 14.7 | 17.3 |
| 1 1/4 | 75 | 10.59 | 60 | 17.0 | 18.0 |
| 1/4 | 33 | 6.60 | 28 | 8.1 | 10.2 |
| 3/8 | 38 | 6.98 | 33 | 9.1 | 10.4 |
| 2 1/2 | 121 | 15.29 | 95 | 23.6 | 28.9 |
| 3 | 146 | 16.64 | 106 | 25.9 | 30.5 |
| 1 1/2 | 84 | 11.07 | 64 | 17.8 | 18.4 |
| 2 | 102 | 12.09 | 83 | 19.0 | 19.2 |
| 1/8 | 25 | 6.35 | 25 | 6.4 | 6.7 |
| 4 | 152 | 18.67 | 114 | 27.7 | 33.0 |

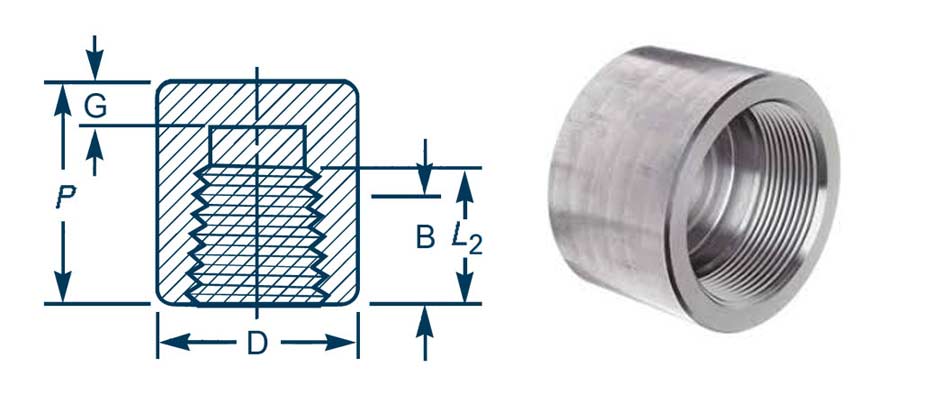

ANSI B16.11 Threaded Class 6000 Cap Dimensions
| Nominal Pipe Size | Outside Diameter, D | Minimum End Wall Thickness, G | End to End Caps, P | Minimum Length of Thread | |
|---|---|---|---|---|---|
| B | L2 | ||||
| 3/4 | 44 | 7.9 | 38 | 12.7 | 13.9 |
| 1 | 57 | 11.2 | 43 | 14.7 | 17.3 |
| 1 1/4 | 64 | 11.2 | 46 | 17.0 | 18.0 |
| 1 1/2 | 76 | 12.7 | 48 | 17.8 | 18.4 |
| 2 | 92 | 15.7 | 51 | 19.0 | 19.2 |
| 2 1/2 | 108 | 19.0 | 64 | 23.6 | 28.9 |
| 1/8 | 22 | – | – | 6.4 | 6.7 |
| 1/4 | 25 | 6.4 | 27 | 8.1 | 10.2 |
| 3/8 | 32 | 6.4 | 27 | 9.1 | 10.4 |
| 1/2 | 38 | 7.9 | 33 | 10.9 | 13.6 |
| 3 | 127 | 22.4 | 68 | 25.9 | 30.5 |
| 4 | 159 | 28.4 | 75 | 27.7 | 33.0 |
Choosing the Right Exporter is Crucial When Buying ANSI Class 6000 Stainless Steel Threaded Pipe Fittings for High-pressure Applications
ANSI Class 6000 Stainless Steel Threaded Pipe Fittings Applications
- Oil & Gas Extraction
- Petrochemical & Chemical Processing
- Power Generation
- Marine & Offshore
6000# Screwed Pipe Fittings Pressure Rating
| Temperature | Pressure Rating (PSI) |
|---|---|
| 200°F | 5760 |
| 300°F | 5520 |
| 400°F | 5280 |
| 600°F | 4800 |
| 700°F | 4560 |
| 800°F | 4320 |
| 900°F | 4080 |
| 500°F | 5040 |
| 100°F | 6000 |
| 1000°F | 3840 |
| Size | Weight in LB |
|---|---|
| 3/8 | 1.05 |
| 1/2 | 1.64 |
| 3/4 | 2.69 |
| 1 | 3.62 |
| 1 1/4 | 6.13 |
| 1 1/2 | 7.84 |
| 1/8 | 0.37 |
| 1/4 | 0.65 |
| 2 | 14.40 |
| 2 1/2 | 22.95 |
| 3 | 37.12 |
| 4 | 33.42 |
Send an RFQ of ASME Class 6000 Threaded Bushing and Elbow to Multiple Importers to Get the Best Price
Types of Class 6000 Threaded Fittings
Class 6000 Threaded Elbow
6000# Threaded Tee
6000 Psi Threaded Plug
6000# Threaded Coupling
Class 6000 Threaded Cap
6000# Threaded Pipe Nipple
6000# Threaded Union
6000 lb Threaded Bushing
6000# Threaded Cross
Sales Agents in Following Locations
Professional Class 6000 Threaded Fittings Suppliers in UAE providing custom solutions backed by superior material science.
| Africa | Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa |
|---|---|
| GCC Countries | Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman |
| MENA | Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia |
Ask Manufacturers if 6000# Screwed Pipe Fittings Go Through Destructive and Nondestructive Testing or Not
6000# Screwed Pipe Fittings Testings
- Radiography Testing
- Dye Penetrant Test
- Magnetic Particle Testing
- Positive Material Identification
- Chemical / Spectro Analysis
- Mechanical Testing
- Ultrasonic Testing
Locate Available Material from Stock
Premier Class 6000 Threaded Fittings Suppliers in UAE of high-quality products engineered for lasting performance.
| Country | Cities |
|---|---|
| Netherlands | Haarlem, Amsterdam, Eindhoven, The Hague, Rotterdam |
| Belgium | Leuven, Antwerp, Seraing, Brussels, Ghent, Meeuwen-Gruitrode, Westerlo |
