Class 9000 socket weld fittings

Home > Class 9000 socket weld fittings

Class 9000 Socket Weld Fittings Highlights

Sizes in Ready Stock	1/8″ to 4″
Standard	ASME B16.11 & ANSI B16.11
Pressure Class	9000 PSI
Material	Stainless Steel, Nickel Alloy, Carbon Steel, Brass, Duplex and Super Duplex Steel, Copper Alloy
Thickness	SCH 20 to SCH 60
Process	CNC Machined
Forging	Open Die Forging
Temprature	-29° C to 425° C (-20° F to 800° F)
Approvals	ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, KPI
Available Forms	45 Degree Socket Weld Elbow, 90 Degree Socket Weld Elbow, Bushing, Square Plug, Hex Plug, Half Coupling, Full Coupling, Forged Tee
Origin of Raw Material:	European, Indian, Korean, Janpanese, UK, German
MTC	EN 10204/3.1B
Test Certificates	Mill Test Certificate Certificate of Origin Fumigation Certificates Raw Material Test Certificate
RFQ:	support@pipingmaterial.ae
Shipping Time	Muscat : 5 Days Sohar : 5 Days Doha : 5 Days
Value Added Services	Forging, Casting, Polish, Sand Blasting, Electroplating, Galvanizing

Why choose pipingmaterial.ae?

Pipingmaterial.ae is more than a supplier directory it is a 26-year knowledge base of Explore Middle East FZE, freely available to every procurement manager, consultant, and trader in the Middle East.

Trusted Platform
Document Guidance
MENA Coverage
MTC Guidance Provided
Test Certificate Guide
Raw Material Origin
Document Checklist Available

Table of Content

Class 9000 Socket Weld Fittings Specification
ASME B16.11 Socket Weld Class 9000 45 Degree Elbow Dimensions
Socket Weld Class 9000 Cross Dimensions
Class 9000 Socket Weld Tee Dimensions
ANSI B16.11 Socket Weld Class 9000 Coupling Dimensions
Socket Weld Class 9000 Cap Dimensions
Class 9000 Forged High Pressure Pipe Fittings Pressure Rating
Types of Class 9000 Socket Weld Fittings
Class 9000 Elbow Weight Chart
9000 LBS Forged Socket Weld Cap Testings

Locate Some of the Leading Reliable Suppliers of 9000# SW Union in Dubai

Class 9000 Socket Weld Fittings Specification

Size In Ready Stock: 1/8″ to 4″

Maximum Size: 4″

Wall Thickness: SCH 20 to SCH 60

Pressure Class: Class 9000

International Standard: ANSI B16.11, ASME B16.11

Surface Finish: Polished, Anti-rust Oil

Installations: Oil & Gas, Power Generation, Petrochemicals

Standard Testing: Hydrostatic, Hardness, Proof & Impact Testing

Packaging: Plastic Bag, Wooden Case & Carton Box

Connection: Socket Welding & Threaded

View 9000 Lbs Socket Weld Plug and Coupling Dimensions and Weight Chart

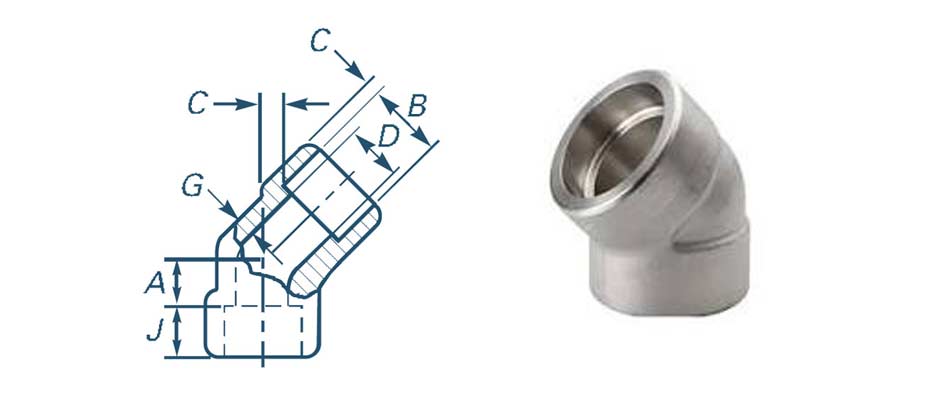

ASME B16.11 Socket Weld Class 9000 45 Degree Elbow Dimensions

Nominal Pipe Size	Socket Bore Diameter, B	Bore Diameter of Fitting, D	Socketwall Thickness, C		Body Wall,G	Min. Depth Of Socket, J	Center-to-Bottom of Socket, A	Tolerances
		Class Designation	Class Designation		Class Designation		45-Deg Elbows	A	E	F
		9000	9000		9000		Class Designation
		9000	Avg.	Min.	Min.		9000
1/4	14.6 14.2	–	–	–	–	9.5	–	1.0	1.5	1.0
3/8	18.0 17.6	–	–	–	–	9.5	–	1.5	3.0;	1.5
1/2	22.2 21.8	7.2 5.6	9.35	8.18	7.47	9.5	15.5	1.5	3.0	1.5
3/4	27.6 27.2	11.8 10.3	9.78	8.56	7.82	12.5	19.0	1.5	3.0	1.5
1 1/4	43.1 42.7	23.5 22.0	12.14	10.62	9.70	12.5	22.5	2.0	4.0	2.0
1 1/2	49.2 48.8	28.7 27.2	12.70	11.12	10.15	12.5	25.5	2.0	4.0	2.0
2	61.7 61.2	38.9 37.4	13.84	12.12	11.07	16.0	28.5	2.0	4.0	2.0
2 1/2	74.4 73.9	–	–	–	–	16.0	–	2.5	5.0	2.5
1/8	11.2 10.8	–	–	–	–	9.5	–	1.0	1.5	1.0
1	34.3 33.9	16.0 14.4	11.38	9.96	9.09	12.5	20.5	2.0	4.0	2.0
3	90.3 89.8	–	–	–	–	6.0	–	2.5	5.0	2.5
4	115.7 115.2	–	–	–	–	19.0	–	2.5	5.0	2.5

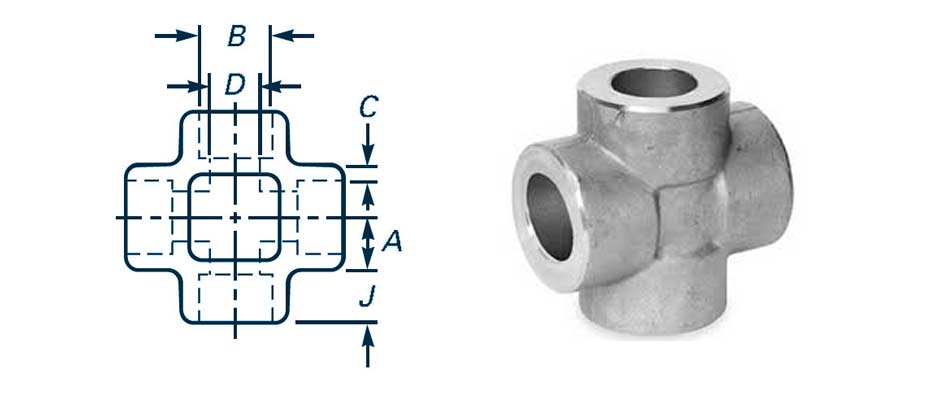

Socket Weld Class 9000 Cross Dimensions

Nominal Pipe Size	Socket Bore Diameter, B	Bore Diameter of Fitting, D	Socketwall Thickness, C		Body Wall,G	Min. Depth Of Socket, J	Center-to-Bottom of Socket, A	Tolerances
		Class Designation	Class Designation		Class Designation		Crosses	A	E	F
		9000	9000		9000		Class Designation
		9000	Avg.	Min.	Min.		9000
1 1/4	43.1 42.7	23.5 22.0	12.14	10.62	9.70	12.5	35.0	2.0	4.0	2.0
1 1/2	49.2 48.8	28.7 27.2	12.70	11.12	10.15	12.5	38.0	2.0	4.0	2.0
1/8	11.2 10.8	–	–	–	–	9.5	–	1.0	1.5	1.0
3/8	18.0 17.6	–	–	–	–	9.5	–	1.5	3.0;	1.5
1/2	22.2 21.8	7.2 5.6	9.35	8.18	7.47	9.5	25.5	1.5	3.0	1.5
3/4	27.6 27.2	11.8 10.3	9.78	8.56	7.82	12.5	28.5	1.5	3.0	1.5
1/4	14.6 14.2	–	–	–	–	9.5	–	1.0	1.5	1.0
2	61.7 61.2	38.9 37.4	13.84	12.12	11.07	16.0	54.0	2.0	4.0	2.0
2 1/2	74.4 73.9	–	–	–	–	16.0	–	2.5	5.0	2.5
3	90.3 89.8	–	–	–	–	6.0	–	2.5	5.0	2.5
1	34.3 33.9	16.0 14.4	11.38	9.96	9.09	12.5	32.0	2.0	4.0	2.0
4	115.7 115.2	–	–	–	–	19.0	–	2.5	5.0	2.5

Class 9000 Socket Weld Tee Dimensions

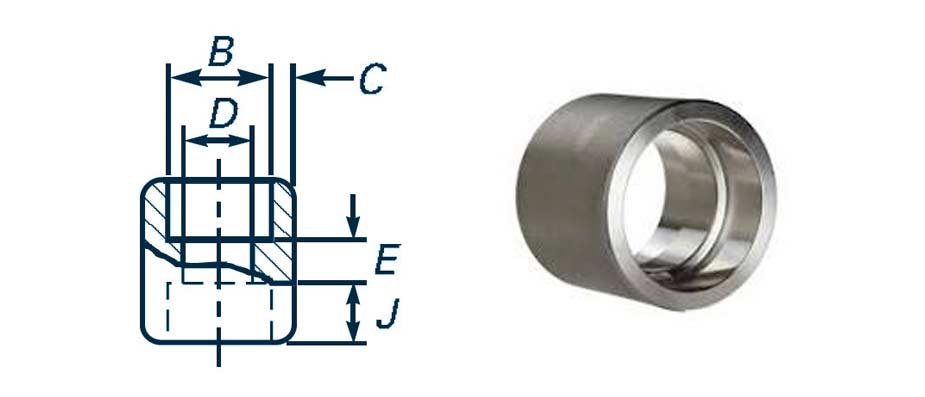

ANSI B16.11 Socket Weld Class 9000 Coupling Dimensions

Nominal Pipe Size	Socket Bore Diameter, B	Bore Diameter of Fitting, D	Socketwall Thickness, C		Body Wall,G	Min. Depth Of Socket, J	Laying Lengths	Tolerances
		Class Designation	Class Designation		Class Designation		Couplings, E	A	E	F
		9000	9000		9000
		9000	Avg.	Min.	Min.
1/4	14.6 14.2	–	–	–	–	9.5	6.5	1.0	1.5	1.0
3/8	18.0 17.6	–	–	–	–	9.5	6.5	1.5	3.0;	1.5
1/2	22.2 21.8	7.2 5.6	9.35	8.18	7.47	9.5	9.5	1.5	3.0	1.5
2	61.7 61.2	38.9 37.4	13.84	12.12	11.07	16.0	19.0	2.0	4.0	2.0
2 1/2	74.4 73.9	–	–	–	–	16.0	19.0	2.5	5.0	2.5
3	90.3 89.8	–	–	–	–	6.0	19.0	2.5	5.0	2.5
4	115.7 115.2	–	–	–	–	19.0	19.0	2.5	5.0	2.5
3/4	27.6 27.2	11.8 10.3	9.78	8.56	7.82	12.5	9.5	1.5	3.0	1.5
1	34.3 33.9	16.0 14.4	11.38	9.96	9.09	12.5	12.5	2.0	4.0	2.0
1 1/4	43.1 42.7	23.5 22.0	12.14	10.62	9.70	12.5	12.5	2.0	4.0	2.0
1/8	11.2 10.8	–	–	–	–	9.5	6.5	1.0	1.5	1.0
1 1/2	49.2 48.8	28.7 27.2	12.70	11.12	10.15	12.5	12.5	2.0	4.0	2.0

Socket Weld Class 9000 Cap Dimensions

Nominal Pipe Size	Socket Bore Diameter, B	Socketwall Thickness, C		Min. Depth Of Socket, J	End Wall Thickness, Kmin.
		Class Designation			Class Designation
		9000			9000
		Avg.	Min.		9000
1/4	14.6 14.2	–	–	9.5	–
3/8	18.0 17.6	–	–	9.5	–
1/2	22.2 21.8	9.35	8.18	9.5	11.2
1	34.3 33.9	11.38	9.96	12.5	14.2
1/8	11.2 10.8	–	–	9.5	–
3	90.3 89.8	–	–	6.0	–
4	115.7 115.2	–	–	19.0	–
1 1/4	43.1 42.7	12.14	10.62	12.5	14.2
1 1/2	49.2 48.8	12.70	11.12	12.5	15.7
2	61.7 61.2	13.84	12.12	16.0	19.0
2 1/2	74.4 73.9	–	–	16.0	–
3/4	27.6 27.2	9.78	8.56	12.5	12.7

Are You Looking for Class 9000 Forged High Pressure Pipe Fittings Manufacturers in the Middle East and India as Per ASME B16.11 Standard

Class 9000 Forged High Pressure Pipe Fittings Pressure Rating

Temperature	Pressure Rating (PSI)
100°F	9000
800°F	7200
900°F	6960
1000°F	6720
200°F	8640
300°F	8400
400°F	8160
500°F	7920
600°F	7680
700°F	7440

Types of Class 9000 Socket Weld Fittings

9000 Lb SW Coupling

9000# Socket Weld Reducing Tee

9000 Lb Socket Weld Elbow

Class 9000 Socket Weld Union

9000 Lb Socket Weld Cross

9000# Socket Weld Pipe Nipple

9000 Lb SW Reducer

9000 Lb Socket Weld Bushing

Class 9000 Socket Weld Boss

Material Inspection Facility in Following Locations

Trusted Class 9000 Socket Weld Fittings Suppliers in UAE delivering precision-engineered products with unmatched durability.

Asia	Brunei, Cambodia, Laos, Malaysia, Mongolia, Myanmar, Philippines, Singapore, Taiwan, Thailand, Vietnam, Indonesia
Europe	Andorra, Armenia, Azerbaijan, Belgium, France, Georgia, Germany, Netherlands, Italy
Middle East	Abu Dhabi, Ajman, Al Khobar, Al Jubail, Amman, Beirut, Dammam, Doha, Dubai, Fujairah, Iraq, Jeddah, Jebel Ali, Jordan, Lebanon, Lusail, Manama, Muscat, Ras Al Khaimah, Riyadh, Saudi Arabia, SCZone, Sharjah, Sohar, Syria, Turkey, Umm Al Quwain, Yemen

Importers Over Distributor of Class 9000 Socket Weld Elbow Would Be Good Choices to Buy in Small Quantities in Dubai

Class 9000 Elbow Weight Chart

Size	Weight in KG
1	3.81
1 1/4	5.71
1 1/2	8.15
1/2	1.70
3/4	2.79
2	11.26

Explore Nearby Locations for the Quickest Delivery Options

Renowned Class 9000 Socket Weld Fittings Suppliers in UAE of top-grade materials, crafted for longevity and reliability.

Africa	Abuja, Addis Ababa, Benin, Cameroon, Cape Town, Chad, Congo, Durban, Equatorial Guinea, Gabon, Ghana, Ivory Coast, Johannesburg, Kenya, Lagos, Nairobi, Niger, Nigeria, Ogun, Republic of the Congo, Rwanda, South Africa, Sudan, Togo, West Africa
GCC Countries	Kuwait, United Arab Emirates (UAE), Bahrain, Qatar, Saudi Arabia, Oman
MENA	Algeria, Cairo, Casablanca, Egypt, Libya, Morocco, Tunisia

Always Ask for the Necessary NDT Test Results for Socket Weld Cross Per 9000 LBS Forged Socket Weld Cap and Reducer

9000 LBS Forged Socket Weld Cap Testings

NDT Test
Radiography Testing
Dye Penetrant Test
Magnetic Particle Testing
Positive Material Identification
Ultrasonic Testing
Chemical / Spectro Analysis
Mechanical Testing
