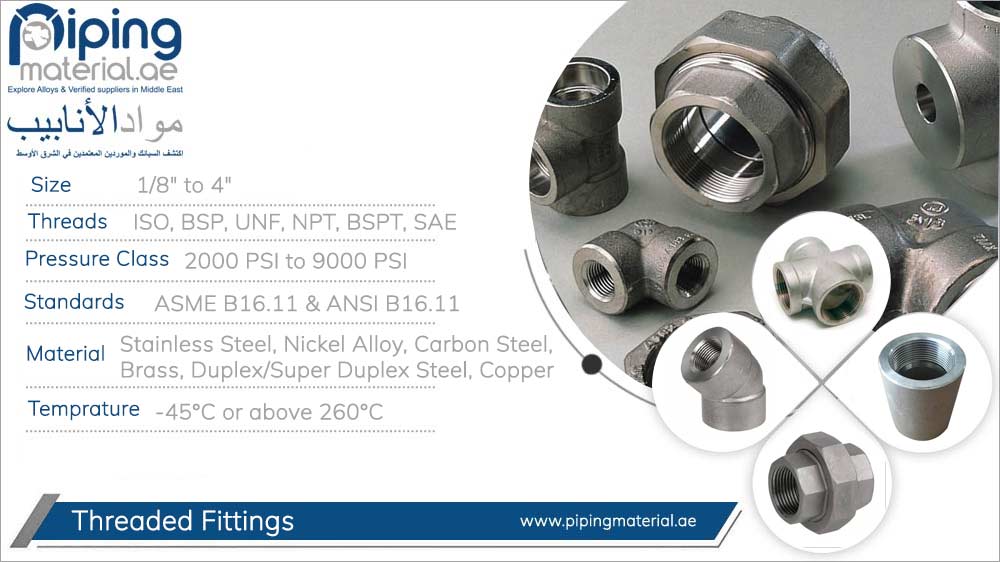

Threaded Fittings

What are Threaded Fittings?

A threaded fitting is one of the oldest methods utilized to join different piping equipment. Threaded fittings are used for smaller diameter pipes, generally with nominal diameters of NPS 2 or more. These fittings are designed in cast, forged, or carbon steel. The threaded fitting dimensions are covered by the ASME B1.20.1 standard.

Threaded fittings are commonly used in non-critical low pressure and temperature conditions. The versatile grade has 3 Threaded fittings pressure rating, namely class 2000, 3000, and 6000.

Advantages & disadvantages of Threaded Pipe Fittings

Threaded pipe fittings are versatile fittings that can allow for an easy connection point. These fittings don’t require specialized skills and are very economical. Threaded pipe fittings can be easily detached for maintenance or repair. The fittings are very economical than other fitting types.

The threaded pipe fittings are not suited for higher temperature conditions. These fittings are prone to corrosion and can crack under high pressure. It may be subjected to fatigue damage for cyclic services and has lower strength than its welded counterparts.

How is NPT thread length calculated in Threaded Fitting?

The taper rate for Npt fitting threads is 1 inch of diameter for 16 inches of length. This is measured by the change of diameter in the pipe over the distance of the thread in the NPT connection.

What is thread per inch in screw thread of a Threaded Fittings?

It can be defined as the number of complete threads occurring in one inch of a threaded length.

BSP Fittings vs NPT Fitting

BSP and NPT fittings are two standards of threads on threaded fittings. BSP fittings are common in the UK, Europe, Asia, New Zealand, and various other countries. NPT Fitting is relevant in the US and Canada. Npt pipe fittings are designed with pointed peaks and valleys, while BSP fittings are rounded. BSP has a 55 degree angle, while Npt threaded pipe fittings have threads at a 60 degrees angle.

What are the three basic types of threads in Forged Threaded Fittings?

The forged threaded fittings are produced via the forging process and have excellent strength. The basic threads that are designed to make forged threaded pipe fittings are UN/UNF, NPT/NPTF, and BSPP/BSPT.

How are threaded pipe fittings manufactured? Processing methods start from forging to Thread forming and rolling

The process for manufacturing NPT threaded fittings or any other begins with the forging process. Here the metal is heated at high temperatures till it is formed in definite sizes.

The threaded process of the NPS threaded fittings can be done in subtractive, deformative, and additive methods. The subtractive method is a cutting process. It uses tapping, die threading, single point cutting chasing, milling, and grinding methods to shape the material. The deformation process generates threads by working the metal to form its shape. Generally, the metal is rolled and cast during the phase. Finally, the additive process uses depositing material to produce the threads. Some additive process includes stereolithographic, fused filament fabrication, and selective laser sintering methods.

The final stage is the thread rolling phase, which involves deforming the metal using dies. The process forms external threads on the surface of the metal stock. Internal threads can be formed using the same method.

Which testing required to check shape and geometric dimensions of a Threaded Fitting to meet the requirements of the drawing?

Generally, a visual test can be used to check the dimensions of the threaded fittings. However, for a more sound solution, an ultrasonic test can be performed.

How to identify British and metric threaded fittings?

British and metric threaded fittings are the most popular threaded fittings. They come in parallel and tapered versions. British threads come in imperial or inch sizes, while metric threads are displayed in millimeters. The British threads are measured by threads over an inch. Imperial threads are measured by the actual distance between thread crests and millimeters.

Specification of Threaded Fittings

Specifications Threaded Fittings
Dimension Specification MSS SP-79, ASME 16.11, MSS SP-95, 95, 83, 97, BS 3799
Thread BSPT, NPT, BSPP
Standard Type DN15-DN1200
End Threaded, Welding, JIC
Pressure Rating 2000lb/ 3000lb/ 6000lbs
Size Range 1/8″ NB TO 4″ NB
Origin & Mills Indian, Japanese, USA, European, Korean, Ukraine, Russian

Contact with Npt Pipe Fittings manufacturer in UAE for factory prices, list of genuine Nps Threaded Fittings suppliers in Dubai

Threaded Pipe Fitting Price list

Screwed Fitting Price Per Piece in India Forged Screwed Fitting Price in USD Threaded Pipe Fitting Price in UAE Dirham
ASTM A182 SS 90 Degree Elbow Per Piece US $ 55.94 UAE Dirham 12.12
SA182 Stainless Steel Reducing Bush Per Piece US $ 2.20 UAE Dirham 8.08
Stainless Steel Adaptor Bsp To Npt Per Piece US $ 16.31 UAE Dirham 59.91
304 Stainless Steel Female Tee Per Piece US $ 4.40 UAE Dirham 16.16



Please note: The price may vary as per the location, you may contact the verified manufacturers & suppliers listed on this page.

ASME B16.11 Threaded Fitting Types

Threaded Fittings

Threaded Fittings

Screwed Fitting Asme B16.11

Screwed Fitting Asme B16.11

Threaded Brass Pipe Fittings

Threaded Brass Pipe Fittings

Screwed Copper Fittings

Screwed Copper Fittings

Threaded Brass Fittings

Threaded Brass Fittings

Stainless Steel Threaded Fittings

Stainless Steel Threaded Fittings

Asme B16.11 Screwed Fittings

Asme B16.11 Screwed Fittings

Bsp Screwed Fittings

Bsp Screwed Fittings

Cast Iron Screwed Screwed

Cast Iron Screwed Fittings

Copper Screwed Fittings

Copper Screwed Fittings

Copper Pipe Threaded Fittings

Copper Pipe Threaded Fittings

Ductile Iron Screwed Fittings

Ductile Iron Screwed Fittings

Din Threaded Fittings

Din Threaded Fittings

Galvanized Screwed Fittings

Galvanized Screwed Fittings

En 10241 Steel Threaded Pipe Fittings

En 10241 Steel Threaded Pipe Fittings

Check required Threaded Fittings dimensions for American Taper Pipe Threads like pitch dia, thread per inch chart, & thread in length

Threaded Fitting Dimensions

DN-NPT Major Diameter
mm
Tapping
Drill Size mm
TPI Pitch
mm
1/16″ 7.895 6.00 27 0.941
1/8″ 10.242 8.25 27 0.941
1/4″ 13.616 10.70 18 1.411
3/8″ 17.055 14.10 18 1.411
1/2″ 21.223 17.40 14 1.814
3/4″ 26.568 22.60 14 1.814
1″ 33.228 28.50 11.5 2.209
1.1/4″ 41.985 37.00 11.5 2.209
1.1/2″ 48.054 43.50 11.5 2.209
2″ 60.092 55.00 11.5 2.209
2.1/2″ 72.699 65.50 8 3.175
3″ 88.608 81.50 8 3.175
3.1/2″ 101.316 94.30 8 3.175
4″ 113.973 107.00 8 3.175
5″ 141.300 134.384 8 3.175
6″ 168.275 161.191 8 3.175
8″ 219.075 211.673 8 3.175
10″ 273.050 265.311 8 3.175
12″ 323.850 315.793 8 3.175

Threaded Pipe Fitting Pressure Rating

Description Class Designation
2000 (in MM) 3000 (in MM) 6000 (in MM)
Elbows 45 and 90 degrees
Tees, Crosses, Coupling
Half-Coupling, Cap
12.7 – 101.6 12.7 – 50.8 12.7 – 50.8
12.7 – 101.6 12.7 – 50.8 12.7 – 50.8
12.7 – 101.6 12.7 – 50.8 12.7 – 50.8
Pipe Wall SCH 80 / XS SCH 160 XXS
Buy all types of Forged Threaded Pipe Fittings for NPT connection as per ASME B16.11, check manufacturing methods, advantages and disadvantages

Din Screwed Fitting Advantages and Disadvantages

Advantages

  • On-site threaded junction creation is simple using pipe and fittings.
  • When installed in locations with flammable gases and liquids, they reduce the risk of a fire.

Disadvantages

  • Threaded joints have a greater likelihood of leaking.
  • Seal welding might be necessary in riskier circumstances.
  • Because manufacturing the screw thread thins the wall of the pipe, threaded connections lose some of their strength.

Materials of Construction of BSP Screwed Fitting

  • A105 : Carbon Steel Forgings for Piping Applications Standard Specification.
  • A181: General-Purpose Piping Standard Specification for Carbon Steel Forgings.
  • A182: Standard Specification for High-Temperature Forged or Rolled Alloy and Stainless Steel Pipe Flanges, Forged Fittings, Valves, and Parts.
  • A350: Standard Specification for Carbon and Low-Alloy Steel Forgings, with Notch Toughness Testing Required for Piping Components

Difference between Threaded Vs Socket Weld Fittings

Threaded fittings are screwed into piping or piping components while Socket welded fittings are joined by fillet welding. Threaded Fittings are Less reliable as compared to Socket Welded Fittings. Threaded Fittings are more prone to leakage.

Recommendations For Threaded Connections

  • Threaded joints should be avoided in corrosive and erosive environments, as well as in situations where cyclic loading is possible.
  • The layout of piping using threaded joints should minimise stress on joints, with special consideration given to stresses caused by thermal expansion and valve operation.
  • Under severe cyclic conditions, threaded specialty components that are not subject to external moment loading, such as thermometer wells, may be used.

Thread Connections Standards

  • Forged Fittings, Socket Welding, and Threaded ASME B16.11
  • MSS-SP-83: Socket-Welding and Threaded Class 3000 Steel Pipe Unions
  • ASME B16.3: Threaded Fittings Made of Malleable Iron
  • Gray Iron Threaded Fittings, ASME B16.4
  • ASME B16.39: Threaded Malleable Iron Pipe Unions
Check Forged Threaded Fittings available material, pressure rating and price per kg in Dubai

Available Material of Threaded Forged Fittings

Stainless Steel

Pressure Class: 3000#, 6000# 9000#

Grades:

  • 304
  • 304L
  • 316
  • 316L
  • 317
  • 317L
  • 310
  • 321
  • 347
  • 347H
  • 904L

ASTM Standard: ASTM A182

ASME Standard: ASME SA182

Mainly used in: Chemical Industry, Petroleum Industry

Stainless Steel Threaded Fittings
Duplex / Super Duplex Threaded Pipe Fittings

Duplex / Super Duplex

Pressure Class: 3000#, 6000# 9000#

Grades:

  • Duplex 2205
  • Super Duplex 2507
  • F51
  • F53
  • F55
  • UNS S31803
  • UNS S32205
  • UNS S32550
  • UNS S32750
  • UNS S32760
  • UNS S32950

ASTM Standard: ASTM A182

ASME Standard: ASME SA182

Mainly used in: Domestic water, Cement Industries

Carbon Steel

Pressure Class: 2000 / 3000 / 6000 LBS

Grades:

  • A105
  • A350 LF1
  • A350 LF2 CL1/CL2
  • A350 LF3 CL1/CL2
  • A694 F42
  • A694 F46
  • A694 F48
  • A694 F50
  • A694 F52
  • A694 F56
  • A694 F60
  • A694 F65
  • A694 F70

ASTM Standard: ASTM A105 / A350 LF2 / A694

ASME Standard: ASME SA105 / SA350 LF2 / SA694

Mainly used in: Energy Industry, Refining Industry

Carbon Steel Screwed Fittings
Alloy Steel Threaded Forged Fittings

Alloy Steel

Pressure Class: 2000 / 3000 / 6000 LBS

Grades:

  • A182 F1
  • A182 F5
  • A182 F9
  • A182 F11
  • A182 F12
  • A182 F22
  • A182 F91
  • A182 F92

ASTM Standard: ASTM A182

ASME Standard: ASME SA182

Mainly used in: Pulp & Paper Indusry, Power Plant Industry

Copper Nickel

Pressure Class: 2000 / 3000 / 6000 LBS

Grades:

  • Copper Nickel 90/10
  • Copper Nickel 70/30

ASTM Standard: ASTM B467

ASME Standard: ASME SB467

Mainly used in: Oil and Gas Industry, Chemical Industry

Copper Nickel Threaded Fittings
Nickel Alloy BSP Threaded Fittings

Nickel Alloy

Pressure Class: 2000 / 3000 / 6000 LBS

Grades:

  • NICKEL 200
  • NICKEL 201
  • MONEL 400
  • MONEL K500
  • INCONEL 600
  • INCONEL 601
  • INCONEL 625
  • INCOLOY 800
  • INCOLOY 800H
  • INCOLOY 825
  • HASTELLOY C22
  • HASTELLOY C276
  • HASTELLOY B2

ASTM Standard: ASTM B564

ASME Standard: ASME SB564

Mainly used in: Paper Industries, Aerospace Industry
