DIN 2502 Flanges Abstract

Size in Ready Stock:	1/2″ to 48″ \| DN10 – DN2000
Thread :	BSPP, BSPP, NPT, FNPT, MNPT, BSPT
Approval :	RINA, ADNOC, BAPCO, KPI, EIL, SABIC, KNPC, KOC, Saudi Aramco, Q CHEM, MA’ADEN
Suited for:	Water Treatment Systems, Oil & Gas Pipelines, Petrochemical Plants
Standards:	DIN 2502, EN 1092-1, ISO 7005-1
Raw Material Origin:	European, Japanese, German, Korean, UK, Indian
Pressure Ratings:	PN6, PN10, PN16, PN25, PN40, PN64, PN100
Types of Faces :	RTJ (Ring Type Joint), RF (Raised Face), FF (Flat Face), T/G (Tongue & Groove), M/F (Male & Female)
Test Certificates :	MTC EN 10204/3.1B Raw Materials Certificate Fumigation Certificates 100% Radiography Test Report Third Party Inspection Report
Brands :	Officine, Ulma Forja, Viraj Forgings Ltd, Hans Van Triel, Genoyer Group Companies, Forgerossi SAS
Verified Ulma Forja DIN 2502 Flanges Dealers and Distributors in UAE	Honesto International Trading Fze, Ajman MSG Oilfield Equipment Trading LLC, Dubai Bestway Oilfields & Gas Eqpt LLC, Sharjah
Shipping Country :	France : 28 Days Saudi Arabia : 7 to 10 Days Norway : 45 Days
What’s New :	Retired petrochemical engineers and industry consultants contribute authentic technical content, ensuring information accuracy and reliability.
MTC:	EN 10204/3.1 and 3.2
RFQ:	support@pipingmaterial.ae

Table of Content

DIN 2502 Flange Specification
DIN 2502 Flange Dimensions
DIN 2502 Flange PN16 Temperature And Pressure As Per EN 1092-1
DIN 2502 Flange Weight Chart
Machining Defects In DIN 2502 PN16 Flanges
Material & Grade Available For DIN 2502 Flat Face Flanges
DIN 2502 PN16 Plate Flange Surface Finishes
DIN 2502 PN16 Flange Size Chart
DIN 2502 Plate Flange Installation Process
DIN 2502 Flange Technical Details
Where DIN 2502 PN16 SS Plate Flange Are Mostly Used ?
What Are The Testing Requirements Of DIN 2502 PN16 SS Plate Flange ?
Which Gaskets Are Used With DIN 2502 Flanges ?

DIN 2502 PN16 Plate And Slip On Flanges Suppliers In UAE

DIN 2502 Flange Specification

Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000

Maximum Size: DN2000 as per DIN 2502

Coatings: Oil Black Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

Bolts Hole Number: 4 To 48

Flanges Types: Plate Flange, Slip On, Threaded, Blind, Lap Joint

Surface Finish: Smooth Finish, Stock Finish, Concentric Serrated, Spiral Serrated Finish

Application: Water Treatment Systems, Oil & Gas Industries, Petrochemicals and acids

Testing: Tensile Test, Hardness Testing, Pressure Shell Test, PMI Test

Documentation: Material Test Certificates (MTC), Certificate of Origin

Packaging: Wooden Case, Plastic Bag, Carton Box, Custom

Value Added Services: Cutting, Threading, Machining, Casting, Polishing

Equipments: Press Machine, Sand-blasting Machine, Electric Bevelling Machine, Pushing Machine

Get Quote Directly From DIN 2502 Flanges Suppliers in UAE

100% Tested DIN 2502 PN16 Plate Flanges With MTC EN 10204 3.1/3.2

Check DIN 2502 PN16 Flange Dimensions In MM, View DIN 2502 PN10 Stainless Steel Sorf Flange Pressure Rating

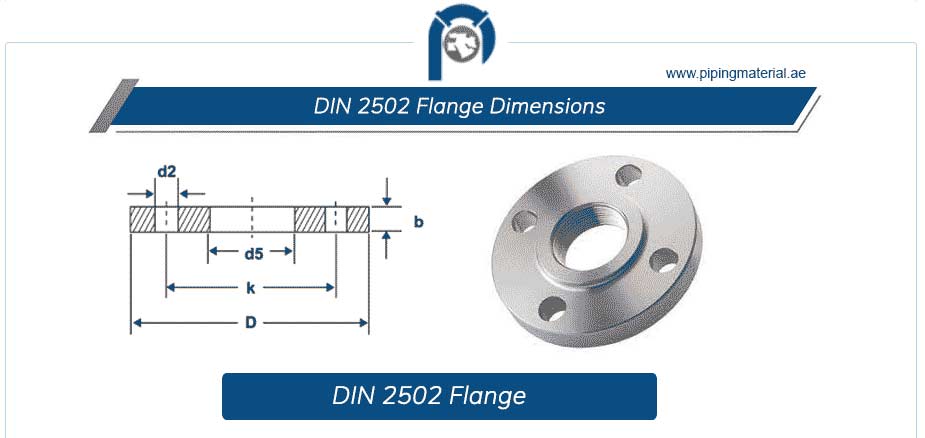

DIN 2502 Flange Dimensions

DN	Pipe	d1	K	D	b	d2	Thread	Holes	Weight
10	17.2	17.7	90	60	14	14	M12	4	0.216
15	21.3	22.0	65	95	14	14	M12	4	0.669
20	26.9	27.6	75	105	16	14	M12	4	0.935
25	33.7	34.4	85	115	16	14	M12	4	1.110
32	42.4	43.1	100	140	16	18	M16	4	1.622
40	48.3	49.0	110	150	16	18	M16	4	1.854
50	60.3	61.1	125	165	18	18	M16	4	2.462
65	76.1	77.1	145	185	18	18	M16	4	2.993
80	88.9	90.3	160	200	20	18	M16	8	3.605
100	114.3	115.9	180	220	20	18	M16	8	3.990
125	139.7	141.6	210	250	22	18	M16	8	5.403
150	168.3	170.5	240	285	22	22	M20	8	6.546
175	193.7	196.1	315	270	24	22	M20	8	4.522
200	219.1	221.8	295	340	24	22	M20	12	8.962
250	273	276.2	355	405	26	26	M24	12	12.758
300	323.9	327.6	410	460	28	26	M24	12	16.593
350	355.6	359.7	470	520	30	26	M24	16	24.070
400	406.4	411.0	525	580	32	30	M27	16	30.186
450	457	462.3	585	640	38	30	M27	20	41.653
500	508	513.6	650	715	38	33	M30	20	52.842

DIN 2502 Flange PN16 Temperature And Pressure As Per EN 1092-1

Temperature & Pressure	WNR 1.4404 (SS F316L)	WNR 1.4541 (SS F321)	WNR 1.4571 (SS F316Ti)	(WNR 1.4462/ UNS S31803)	WNR 1.4307 (SS F304L)
temperature of room in celsius	16,0 bar	16,0 bar	16,0 bar	16,0 bar	16,0 bar
100 °C	15,1	15,8	16,0	16,0	13,7
150 °C	13,7	14,9	15,6	16,0	12,3
200 °C	12,7	14,1	14,9	16,0	11,2
250 °C	11,9	13,4	14,1	16,0	10,4
300 °C	11,0	12,7	13,3	–	9,6
350 °C	10,5	12,2	12,8	–	9,2
400 °C	10,2	11,8	12,4	–	8,8
450 °C	10,0	11,6	12,2	–	8,5
500 °C	9,7	11,3	12,0	–	8,3
550 °C	–	10,8*	11,9	–	7,0*
560 °C	–	9,8*	11,8	–	6,4*
570 °C	–	8,9*	11,7*	–	5,9*
580 °C	–	8,1*	10,7*	–	5,4*
590 °C	–	7,3*	9,7*	–	4,9*
600 °C	–	6,5*	8,8*	–	4,4*

Weekly Shipment To Below Locations

MENA	Libya, Morocco, Algeria, Israel, Egypt, Palestine, Tunisia
Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Buy Factory Direct Eliminating The Costs Of DIN 2502 PN16 Slip On Flange And DIN 2502 Plate Flange, Check DIN 2502 PN16 Sorf Flanges Weight And Price Per Kg In Dubai

DIN 2502 Flange Weight Chart

Size	Weight In KG
DN10	0.60
DN15	0.67
DN20	0.94
DN25	1.11
DN32	1.62
DN40	1.85
DN50	2.46
DN65	2.99
DN80	3.61
DN100	3.99
DN125	5.41
DN150	6.55
DN175	8.42
DN200	8.97
DN250	12.76
DN300	16.60
DN350	24.08
DN400	30.20
DN450	41.67
DN500	52.87
DN600	77.58
DN700	77.13
DN800	106.35
DN900	125.39
DN1000	177.99

Machining Defects In DIN 2502 PN16 Flanges

Surface roughness issues
Improper face flatness
Bolt hole misalignment
Overcut sealing face
Heat distortion marks
Edge finishing defects

Material & Grade Available For DIN 2502 Flat Face Flanges

Get SEBIC Approved DIN 2502 Flanges Suppliers in UAE Who Provides Various Materials

Materials	Grades
Stainless Steel	ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S
Alloy Steel	ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12
Copper Alloy Steel	ASTM SB 61 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100
Carbon Steel	ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36
Nickel Alloy	ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

See Where You Can Find Material Ex Stock

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

DIN 2502 PN16 Plate Flange Available In Concentric Serrated, Cold Water, Spiral Serrated, Smooth, & Stock Finish In The Middle East And South Korea

DIN 2502 PN16 Plate Flange Surface Finishes

Smooth
Stock finish
Concentric serrated
Spiral serrated

DIN 2502 PN16 Flange Size Chart

Get DIN 2502 Flanges Suppliers in UAE Who Provided Custom Sizes With Ready Stocks

NSP	Holes Number	Bolt Holes Diameter	Bolt Cirlce Diameter	Wall Thickness	Inside Diameter	Diameter
DN	D2	Pipe Diameter		K	B	D5	D
10	14	17.20	4	60	14	17.70	90
15	14	21.30	4	65	14	22.00	95
20	14	26.90	4	75	16	27.60	105
25	14	33.70	4	85	16	34.40	115
32	18	42.40	4	100	16	43.10	140
40	18	48.30	4	110	16	49.00	150
50	18	60.30	4	125	18	61.10	165
65	18	76.10	4	145	18	77.10	185
80	18	88.90	8	160	20	90.30	200
100	18	114.30	8	180	20	115.90	220
125	18	139.70	8	210	22	141.60	250
150	22	168.30	8	240	22	170.50	285
200	22	219.10	12	295	24	221.80	340
250	26	273.00	12	355	26	276.20	405
300	26	323.90	12	410	28	327.60	460

DIN 2502 Plate Flange Installation Process

Cleanup urfaces
Use correct gasket
Align flanges properly
Apply uniform bolt torque
Cross tightening
Avoid flange misalignment
Apply bolt lubrication
Inspect joint gaps
Perform leak testing
Recheck bolt tightness

Material Inspection Facilities In The Following Countries

Doha	Umm Al Quwain	Sharjah	Fujairah
Ras Al Khaimah	Muscat	Riyadh	Dubai
Saudi Arabia	Abu Dhabi	Al Jubail	Ajman

DIN 2502 Flange Technical Details

DIN standard	Nominal pressure	Available size
DIN 2502	PN16	DN10 – DN2000
Coating	Face	Type
Oil black paint Anti-rust paint Yellow transparent	FF	Plate Flange
Manufacturing Process	Surface Finish	(DIN 2502 plate flange) Material Specification
Plate Stamped	Stock flange finish Smooth finish Cold water finish	LTCS (Low temp carbon steel): ASTM A516 Grade 70, Grade 65, Grade 60 Super Duplex and Duplex: ASTM A240 F53 (UNS S32750) and F55 (UNS S32760), F60 (UNS S32205) and F61 (UNS S32550), F44 (UNS S31254), F51 (UNS S31803) SS (Stainless Steel) : A240 F304/304L, F316/316L, F316Ti, F310/310S, F321/321H, F347/347H, F317L, F904L
All listed DIN 2502 flange manufacturers at pipingmaterial.ae offers	Export Packing	Logistics
Aging Treatment / Solution Treatment Design / Modify Drawings for Free Ship with MTC Acc. to EN 10204/3.1 Quotation with Valuable Data Sheet Quick Response within 24 Hours Lowest price in UAE	Wooden Case Plastic Bag Or custom as required	By Air (for urgent demand) By Sea

Get Connected With A Trusted And Audited Carbon Steel DIN 2502 PN16 Slip On Flange Manufacturer In Sharjah, DIN 2502 PN16 SS Plate Flange. View Application

Where DIN 2502 PN16 SS Plate Flange Are Mostly Used ?

Water Supply Systems
Chemical Industry
Plumbing
Food Processing Industry
Power Plant
Oil and Gas Pipeline
Fabrication Industry
Paper & Pulp Industry

What Are The Testing Requirements Of DIN 2502 PN16 SS Plate Flange ?

Which Gaskets Are Used With DIN 2502 Flanges ?

Spiral wound gasket
Ring joint gasket
Graphite gasket
PTFE gasket
Rubber gasket
Metal jacketed gasket
